Lens Option

Compatible lens icons
UWL-H100 28LDUCL-165LDUWL-H100 28M67 Type1/Type2UWL-100 28ADUWL-105ADUFL-165ADUCL-165ADUWL-100 Achromat Type1/ Type2UCL-330UCL-165M67
Dome Lens Unit II for UWL-H100 Dome Lens Unit II for UWL-100Dome Lens Unit for UWL-100

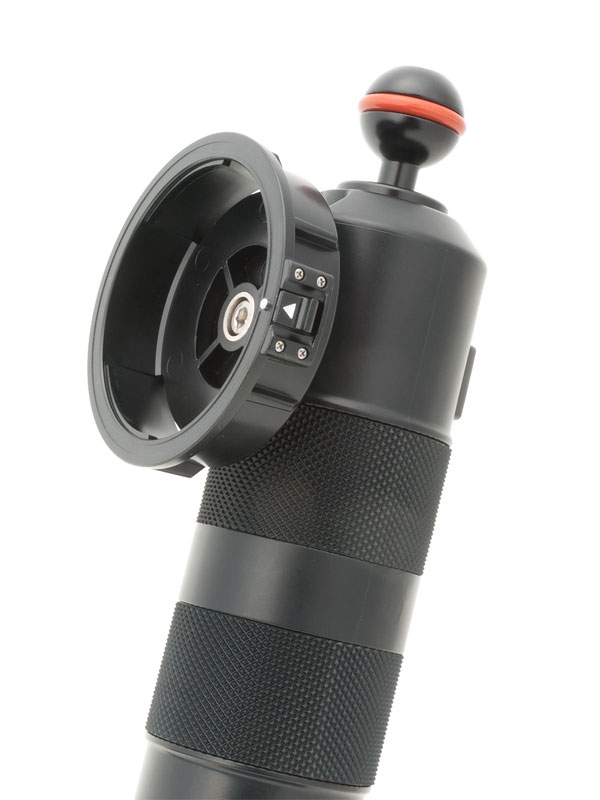

■LD Lens Holder for Float Arm

click to enlarge

click to enlargeSet-up image on a Float Armclick to enlargeSet-up image on a Stick Arm

A lens holder attached on Float Arm/Mega Float Arm or on the "M5 Joint" installed on Stick Arm/Multi Ball Arm (*1) to carry 28LD series attachment lens to help comfortable multiple lens handling underwater. The lens holder is screwed on an arm or M5 Joint through center screw hole.
In combination with "AD-LD Mount Converter for UCL-165AD" / "M67-LD Mount Converter for UCL-330/165M67", other series attachment lens can be attached as well in addition to 28LD Mount series lens.

(*1) "Multi Ball Arm SS" is not compatible with the "M5 Joint". "Stick Arm XS" and "Multi Ball Arm S" can hold the "M5 Joint" but not compatible with a lens holder.

■Weight: 32g (1.1oz) [air] / approx.7g (0.2oz) [underwater]

■Compatible Arm etc.
Float Arm S/M/ML
Mega Float Arm S/M
M5 Joint + Stick Arm SS/S/M/L
M5 Joint + Multi Ball Arm ML/L/LL/XL

[Compatible Lens]
UCL-165LDUWL-H100 28LDUCL-165ADUCL-330UCL-165M67
*1 "AD-LD Mount Converter for UCL-165AD" is necessary.
*2 "M67-LD Mount Converter for UCL-330/165M67" is necessary.

■LD Lens Holder S

click to enlarge

click to enlargeSet-up image on an Armclick to enlargeSet-up image on the D Holder Extension Barclick to enlargeSet-up image on the Grip Base DIII

A lens holder attached on an Arm, "D Holder Extension Bar", "Grip Base DIII w/ Rubber Grip D" etc. to carry 28LD series attachment lens. Compatible product is sandwiched between Lens Holder [screw] and Lens Holder Base of this product.
In combination with "AD-LD Mount Converter for UCL-165AD" / "M67-LD Mount Converter for UCL-330/165M67", other series attachment lens can be attached as well in addition to 28LD Mount series lens.

■Weight: 44g (1.6oz) [air] / approx.14g (0.5oz) [underwater]

■Compatible Arm/Base
Arm SS/S/M/L
YS Arm MS/M
Grip Base D4 (optional D Holder Extension Bar is necessary.)
Grip Base M1 (optional D Holder Extension Bar is necessary.)
D Holder (optional D Holder Extension Bar is necessary.)
Grip Base DIII w/ Rubber Grip D
Grip Base DII w/ Rubber Grip D

[Compatible Lens]
UCL-165LDUWL-H100 28LDUCL-165ADUCL-330UCL-165M67
*1 "AD-LD Mount Converter for UCL-165AD" is necessary.
*2 "M67-LD Mount Converter for UCL-330/165M67" is necessary.

■LD Lens Holder W

click to enlarge

click to enlargeSet-up image on an Armclick to enlargeSet-up image on an Armclick to enlargeSet-up image on the D Holder Extension Bar

click to enlargeSet-up image on the Grip Base DIIIclick to enlargeSet-up image on a Float Armclick to enlargeSet-up image on a Stick Arm

A lens holder attached on an Arm etc. to carry 28LD series attachment lens. Compatible product is sandwiched between Lens Holder [screw] and Lens Holder [hole], or Lens Holder [screw] and Lens Holder Base of this product. The Lens Holder [hole] is usable as like "LD Lens Holder for Float Arm" as well.
In combination with "AD-LD Mount Converter for UCL-165AD" / "M67-LD Mount Converter for UCL-330/165M67", other series attachment lens can be attached as well in addition to 28LD Mount series lens.

■Weight:
●When attached on single side
44g (1.6oz) [air] / approx.14g (0.5oz) [underwater]

●When attached on both sides
69g (2.4oz) [air] / approx.20g (1.6oz) [underwater]

■Compatible Arm/Base
●Installed with Lens Holder [screw] and Lens Holder [hole]
Arm SS/S/M/L
YS Arm MS/M

●Installed with Lens Holder [screw] and Lens Holder Base
Arm SS/S/M/L
YS Arm MS/M
Grip Base D4 (optional D Holder Extension Bar is necessary.)
Grip Base M1 (optional D Holder Extension Bar is necessary.)
D Holder (optional D Holder Extension Bar is necessary.)
Grip Base DIII w/ Rubber Grip D
Grip Base DII w/ Rubber Grip D

●Installing Lens Holder [hole] by a screw
Float Arm S/M/ML
Mega Float Arm S/M
M5 Joint + Stick Arm SS/S/M/L
M5 Joint + Multi Ball Arm ML/L/LL/XL

[Compatible Lens]
UCL-165LDUWL-H100 28LDUCL-165ADUCL-330UCL-165M67
*1 "AD-LD Mount Converter for UCL-165AD" is necessary.
*2 "M67-LD Mount Converter for UCL-330/165M67" is necessary.

■M67 Lens Holder for Float Arm

click to enlarge

click to enlargeSet-up image on a Float Armclick to enlargeSet-up image on a Stick Arm

A lens holder attached on Float Arm/Mega Float Arm or on the "M5 Joint" installed on Stick Arm/Multi Ball Arm (*1) to carry M67 series/28M67 series attachment lens to help comfortable multiple lens handling underwater. The lens holder is screwed on an arm or M5 Joint through center screw hole.

(*1) "Multi Ball Arm SS" is not compatible with the "M5 Joint". "Stick Arm XS" and "Multi Ball Arm S" can hold the "M5 Joint" but not compatible with a lens holder.

■Weight: 50.0g (1.8oz) [air] / approx.25g (0.9oz) [underwater]

■Compatible Arm/Base etc.
Float Arm S/M/ML
Mega Float Arm S/M
M5 Joint + Stick Arm SS/S/M/L
M5 Joint + Multi Ball Arm ML/L/LL/XL

[Compatible Lens]
UCL-330UC-165M67UWL-100 Achromat Type1/Type2UWL-H100 28M67 Type1/Type2

■M67 Lens Holder S

click to enlarge

click to enlarge   click to enlarge   click to enlarge

Set-up image on an Arm   Set-up image on the D Holder Extension Bar   Set-up image on the Grip Base DIII

A lens holder attached on an Arm, "D Holder Extension Bar", "Grip Base DIII w/ Rubber Grip D" etc. to carry M67 series/28M67 series attachment lens. Compatible product is sandwiched between Lens Holder [screw] and Lens Holder Base of this product.

■Weight: 62g (2.2oz) [air] / approx.31g (1.1oz) [underwater]

■Compatible Arm/Base
Arm SS/S/M/L
YS Arm MS/M
Grip Base D4 (optional D Holder Extension Bar is necessary.)
Grip Base M1 (optional D Holder Extension Bar is necessary.)
D Holder (optional D Holder Extension Bar is necessary.)
Grip Base DIII w/ Rubber Grip D
Grip Base DII w/ Rubber Grip D

[Compatible Lens]
UCL-330UCL-165M67UWL-100 Achromat Type1/Type2UWL-H100 28M67 Type1/Type2

■M67 Lens Holder W

click to enlarge

click to enlarge   click to enlarge   click to enlarge

Set-up image on an Arm   Set-up image on an Arm   Set-up image on the D Holder Extension Bar

click to enlarge   click to enlarge   click to enlarge
Set-up image on the Grip Base DIII   Set-up image on a Float Arm   Set-up image on a Stick Arm

A lens holder attached on an Arm etc. to carry M67/28M67 series attachment lens. Compatible product is sandwiched between Lens Holder [screw] and Lens Holder [hole], or Lens Holder [screw] and Lens Holder Base of this product. The Lens Holder [hole] is usable as like "M67 Lens Holder for Float Arm" as well.

■Weight:
●When attached on single side
62g(2.2oz) [air] / approx.31g (1.1oz) [underwater]

●When attached on both sides
106g (3.7oz) [air] / approx.60g (2.1oz) [underwater]

■Compatible Arm/Base
●Installed with Lens Holder [screw] and Lens Holder [hole]
Arm SS/S/M/L
YS Arm MS/M

●Installed with Lens Holder [screw] and Lens Holder Base
Arm SS/S/M/L
YS Arm MS/M
Grip Base D4 (optional D Holder Extension Bar is necessary.)
Grip Base M1 (optional D Holder Extension Bar is necessary.)
D Holder (optional D Holder Extension Bar is necessary.)
Grip Base DIII w/ Rubber Grip D
Grip Base DII w/ Rubber Grip D

●Installing Lens Holder [hole] by a screw
Float Arm S/M/ML
Mega Float Arm S/M
M5 Joint + Stick Arm SS/S/M/L
M5 Joint + Multi Ball Arm ML/L/LL/XL

[Compatible Lens]
UCL-330UC-165M67UWL-100 Achromat Type1/Type2UWL-H100 28M67 Type1/Type2

■AD Lens Holder for Float Arm

click to enlarge

click to enlarge   click to enlarge

Set-up image on a Float Arm   Set-up image on a Stick Arm

A lens holder attached on Float Arm/Mega Float Arm or on the "M5 Joint" installed on Stick Arm/Multi Ball Arm (*1) to carry AD series/28AD series attachment lens to help comfortable multiple lens handling underwater. The lens holder is screwed on an arm or M5 Joint through center screw hole.
Usable to hold SD Mount series attachment lenses for GoPro® as well.

(*1) "Multi Ball Arm SS" is not compatible with the "M5 Joint". "Stick Arm XS" and "Multi Ball Arm S" can hold the "M5 Joint" but not compatible with a lens holder.

■Weight: 26g (0.9oz) [air] / approx.6g (0.2oz) [underwater]

■Compatible Arm etc.
Float Arm S/M/ML
Mega Float Arm S/M
M5 Joint + Stick Arm SS/S/M/L
M5 Joint + Multi Ball Arm ML/L/LL/XL

[Compatible Lens]
UCL-165ADUWL-105ADUFL-165ADUWL-100 28AD
UFL-G140 SD, UCL-G165 SD

■AD Lens Holder

click to enlarge

click to enlargeSet-up image on an Armclick to enlargeSet-up image on an Armclick to enlargeSet-up image on the D Holder Extension Bar
click to enlargeSet-up image on the Grip Base DIIIclick to enlargeSet-up image on a Float Armclick to enlarge Set-up image on a Stick Arm

A lens holder attached on an Arm etc. to carry AD series/28AD series attachment lens. Compatible product is sandwiched between Lens Holder [screw] and Lens Holder [hole], or Lens Holder [screw] and Lens Holder Base of this product. The Lens Holder [hole] is usable as like "AD Lens Holder for Float Arm" as well.
Usable to hold SD Mount series attachment lenses for GoPro® as well.

■Weight:
●When attached on single side
38g(1.3oz) [air] / approx.12g (0.4oz) [underwater]

●When attached on both sides
57g (2.0oz) [air] / approx.18g (0.6oz) [underwater]

■Compatible Arm/Base
●Installed with Lens Holder [screw] and Lens Holder [hole]
Arm SS/S/M/L
YS Arm MS/M

●Installed with Lens Holder [screw] and Lens Holder Base
Arm SS/S/M/L
YS Arm MS/M
Grip Base D4 (optional D Holder Extension Bar is necessary.)
Grip Base M1 (optional D Holder Extension Bar is necessary.)
D Holder (optional D Holder Extension Bar is necessary.)
Grip Base DIII w/ Rubber Grip D
Grip Base DII w/ Rubber Grip D

●Installing Lens Holder [hole] by a screw
Float Arm S/M/ML
Mega Float Arm S/M
M5 Joint + Stick Arm SS/S/M/L
M5 Joint + Multi Ball Arm ML/L/LL/XL

[Compatible Lens]
UCL-165ADUWL-105ADUFL-165ADUWL-100 28AD
UFL-G140 SD, UCL-G165 SD

page top

■AD-LD Mount Converter for UCL-165AD

click to enlarge

The AD-LD Mount Converter is exclusively for 28LD Mount compatible product to attach AD Mount series attachment lens "UCL-165AD Close-up Lens".

*Using this product will have significant vignetting on image corners with/without a lens on land and underwater at zoom range from wide end to middle. Zoom to telephoto side to eliminate vignetting.

■Weight: 48.2g (1.7oz) [air] / approx.23g (0.8oz) [underwater]

[Compatible Lens]
UCL-165AD

■M67-LD Mount Converter for UCL-330/165M67

click to enlarge

The M67-LD Mount Converter is exclusively for 28LD Mount compatible product to attach M67 Mount series attachment lens "UCL-330 Close-up Lens" / "UCL-165M67 Close-up Lens".

*Using this product will have significant vignetting on image corners with / without a lens on land and underwater at zoom range from wide end to middle. Zoom to telephoto side to eliminate vignetting.

■Weight: 33.5g (1.2oz) [air] / approx.17g (0.6oz) [underwater]

[Compatible Lens]
UCL-330UCL-165M67

■AD Mount Converter for UCL-165AD

click to enlarge

The converter is used to attach "UCL-165AD Close-up Lens" on "28AD Mount Base DC35" / "28AD Mount Base MDFT2" / "28AD Mount Base MDFT1" / "28AD Mount Base DC40" / "28AD Port PT-027/020" for macro shot. (The converter is not necessary for other 28AD Mount Base.)

*The AD Mount Converter for UCL-165AD is not necessary for a Mount Base except for "28AD Mount Base DC35" / "28AD Mount Base MCFT2" / "28AD Mount Base MCFT1" / "28AD Mount Base DC40" / "28AD Port PT-027/020" to attach the UCL-165AD
*Vignetting at zoom / wide end. Zoom towards to telephoto side.

■Weight: 13.8g (0.5oz) [air] / approx.3g (0.1oz) [underwater]

[Compatible Lens]
UCL-165AD

■Lens Hood II for UWL-H100

click to enlarge

Attached on the UWL-H100 28LDAttached on the UWL-H100 28LDAttached on the UWL-H100 28M67Attached on the UWL-H100 28M67

A lens hood specifically designed for series of UWL-H100 Wide Conversion Lenses. The hood position is adjustable to accommodate with screw mount UWL-H100 28M67 Type1/Type2 as well as UWL-H100 28LD. The hood blocks unnecessary ambient light in back-lit condition etc. to prevent ghost/flare and also protects lens surface from accidental damage.

■Outer diameter: φ114mm (4.5in)
■Length: [standalone] 53mm (2.1in)
     : [with UWL-H100 28LD] 73mm (2.9in)
     : [with UWL-H100 28M67] 73mm (2.9in)
■Weight: [standalone] 54g (1.9oz) [air] / approx.8g (0.3oz) [underwater]
     : [with UWL-H100 28LD] 584g (20.6oz) [air] / approx.334g (11.8oz) [underwater]
     : [with UWL-H100 28M67 Type1] 609g (21.5oz) [air] / approx.353g (12.5oz) [underwater]
     : [with UWL-H100 28M67 Type2] 610g (21.5oz) [air] / approx.354g (12.5oz) [underwater]

*Not usable together with "Dome Lens Unit II for UWL-H100" .

[Compatible Lens]
UWL-H100 28LDUWL-H100 28M67

■Lens Hood II for UWL-100 28AD

click to enlarge

Attached on the UWL-100 28AD Attached on the UWL-100 28AD

The Lens Hood specifically designed for UWL-100 28AD to shade unnecessary light from outside of view angle and reduce flare / ghost which could happen in backlit condition. The hood also protects lens surface from damage.

■Outer diameter: φ114mm (4.5in.)
■Length: [standalone] 53mm (2.1in.)
     : [with UWL-100 28AD] 70.7mm (2.8in.)
■Weight: [standalone] 75g (2.6oz) [air] / approx.22g (0.8oz) [underwater]
     : [with UWL-100 28AD] 446g (15.7oz) [air] / approx.231g (8.1oz) [underwater]

*Not usable together with "Dome Lens Unit II for UWL-100" and "Dome Lens Unit for UWL-100"

[Compatible Lens]
UWL-100 28AD

■Lens Hood for UWL-H100 28LD

  [Discontinued]

click to enlarge

The Lens Hood specifically designed for UWL-H100 28LD to shade unnecessary light from outside of view angle and reduce flare / ghost which could happen in backlit condition. The hood also protects lens surface. We recommend to attach the lens hood on UWL-H100 28LD always when shooting.

■Outer diameter: φ114mm (4.5in)
■Length: [standalone] 54mm (2.1in)
     : [with UWL-H100 28LD] 73mm (2.9in)
■Weight: [standalone] 56.7g (2.0oz) [air] / approx.11g (0.4oz) [underwater]
     : [with UWL-H100 28LD] 586.7g (20.7oz) [air] / approx.337g (11.9oz) [underwater]

*Not usable together with "Dome Lens Unit II for UWL-H100" .

[Compatible Lens]
UWL-100 28LD

■Lens Hood for UWL-100 28AD

  [Discontinued]

click to enlarge

The hood blocks unnecessary ambient light in back-lit condition etc to prevent ghost / flare and also protect the lens surface from damage.

■Outer diameter: φ114mm (4.5in.)
■Length: [standalone] 52.7mm (2.1in.)
     : [with UWL-100 28AD] 70.5mm (2.8in.)
■Weight: [standalone] 95g (3.4oz) [air] / approx.33g (1.2oz) [underwater]
     : [with UWL-100 28AD] 466g (16.4oz) [air] / approx.252g (8.5oz) [underwater]

*Not usable together with "Dome Lens Unit II for UWL-100" and "Dome Lens Unit for UWL-100"

[Compatible Lens]
UWL-100 28AD

page top

■28AD Port PT-027/020

click to enlarge

A key component for "Olympus PT-027/PT-020" to use instead of genuine lens port to attach "UWL-100 28AD". The "28AD Port" is equipped with 28AD Mount bayonet attachment system which helps instant lens attachment / removal underwater utilizing rich lens line-up to shoot semi-fisheye imaging as well as macro imaging in various shooting situations. The "28AD Port" is compatible with "Grip Base D4" to attach "S-TTL" auto strobe "Z-240 / D-2000 / S-2000" for fully automatic strobe shooting. The "28AD Port PT-027/020" consists of "lens port" and "28AD Mount Base" attached on an underwater housing at the base of the lens port and tripod screw to securely hold attachment lens / strobe without excessive load.

■Weight: 234.0g (8.3oz) [air]

■Compatible Housing: Olympus PT-027 / PT-020

[Compatible Lens]
UWL-100 28AD

■Dome Spacer for UWL-100 28AD

click to enlarge

"Dome Spacer for UWL-100 28AD" is necessary to attach "Dome Lens Unit II for UWL-100" or "Dome Lens Unit for UWL-100" on to "UWL-100 28AD".

■Weight: 32.9g (1.2oz) [air]

[Compatible Lens]
Dome Lens Unit Ii for UWL-100Doem Lens Unit for UWL-100 UWL-100 28AD

■M67 Lens Arm

click to enlarge

click to enlargeUsage example of the M67 Lens ArmThe M67 Lens Arm is attached on ball-joint arm system enabling M67 Mount Base non-compatible underwater housing to use INON close-up lens "UCL-330"/ "UCL-165M67".

■Weight: 55.8g (2.0oz) [air] / approx.35g (1.2oz) [underwater]

[Comaptible Lens]
UCL-330UCL-165M67

■PT Housing 67mm Adapter Ring (For UWL-100 Type1 to PT-005/005s/007/010)

click to enlarge

UWL-100 Type1 requires this adapter ring when attaching to Olympus [PT-010, PT-007, PT-005].

*The combination of PT-005 Adapter Ring and UWL-100 Type1 is also required for PT-010, PT-007 with C-4100Z, C-3030Z, C-3000Z. Please see below table for detail.

■Weight: 27.6g (1.0oz) [air] / approx.17g (0.6oz) [underwater]

[Compatible Lens]
UCL-330UCL-165M67UWL-100 Achromat Type1

page top

■UCL-330 Neoprene Carry Pouch

click to enlarge

Carry pouch is made of neoprene which is used for wet suit and can bring to underwater. It is recommended to keep attachment lens in this carry pouch until just before you use the lens to prevent accidental damage.

■Outer size / Height: 75mm / 95mm (3.0in / 3.7in)

[Compatible Lens]
UCL-165LDUCL-165ADUWL-105ADUCL-330UCL-165M67

■UWL-100 Neoprene Carry Pouch

click to enlarge

Carry pouch is made of neoprene which is used for wet suit and can bring to underwater. It is recommended to keep attachment lens in this carry pouch until just before you use the lens to prevent accidental damage.

■Outer size / Height: 105mm / 100mm (4.1in / 3.9in)

[Compatible Lens]
UWL-100 Achromat Type1/Type2UWL-100 28ADUWL-H100 28LDUWL-H100 28M67 Type1/Type2

■UFL-165AD Neprene Carry Pouch

click to enlarge

Carry pouch is made of neoprene which is used for wet suit and can bring to underwater. It is recommended to keep attachment lens in this carry pouch until just before you use the lens to prevent accidental damage.

■Outer size / Height: 115mm / 140mm (4.5in / 5.5in)

[Compatible Lens]
UFL-165AD

■Dome Lens Unit Cover

click to enlarge

Dome Lens Unit Cover is made of neoprene which is used for wet suits. It is recommended to cover Dome Lens Unit with this Dome Lens Unit Cover until just before you use to prevent accidental damage.

[Compatible Lens]
Dome Lens Unit II for UWL-H100Dome Lens Unit II for UWL-100Dome Lens Unit for UWL-100

■Snap-on Lens Cap M67

click to enlarge

click to enlargeSet-up imageThe "Snap-on Lens Cap M67" is a plastic lens cap for close-up lenses and digital SLR housing lens ports to protect front optical element. Spring loaded center tabs provide easy installation and removal only by squeezing the tabs. Packaged lanyard to avoid loss of the lens cap when not being attached on a lens/port.

[Compatible Lens]
UCL-165LDUCL-330UCL-165M67

page top
