Quick Shoe System

Quick Shoe System

The Quick Shoe uses the Arca-Swiss system, commonly used for tripods. The handle with locking mechanism on the clamp part provides secure locking without any rattling and easy and quick installation/removal. You can freely change combination of INON Quick Shoe plate and clamp for various applications.

*Please note that INON Inc. has not confirmed compatibility of this product with other brands' Arca-Swiss style products.


Grip Base
Grip Base
Quick Shoe Main Base
Quick Shoe Main Base
Quick Shoe L-Type Bracket
Quick Shoe L-Type Bracket
Quick Shoe Set
Quick Shoe Set
Quick Shoe Plate
Quick Shoe Plate

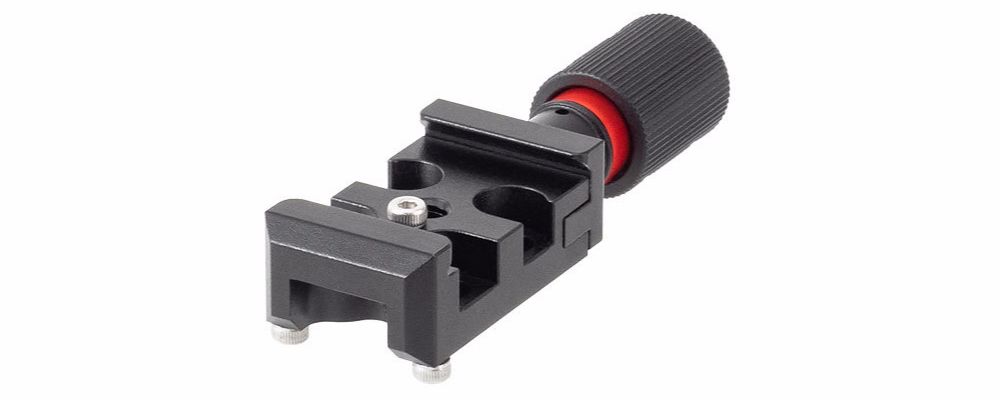

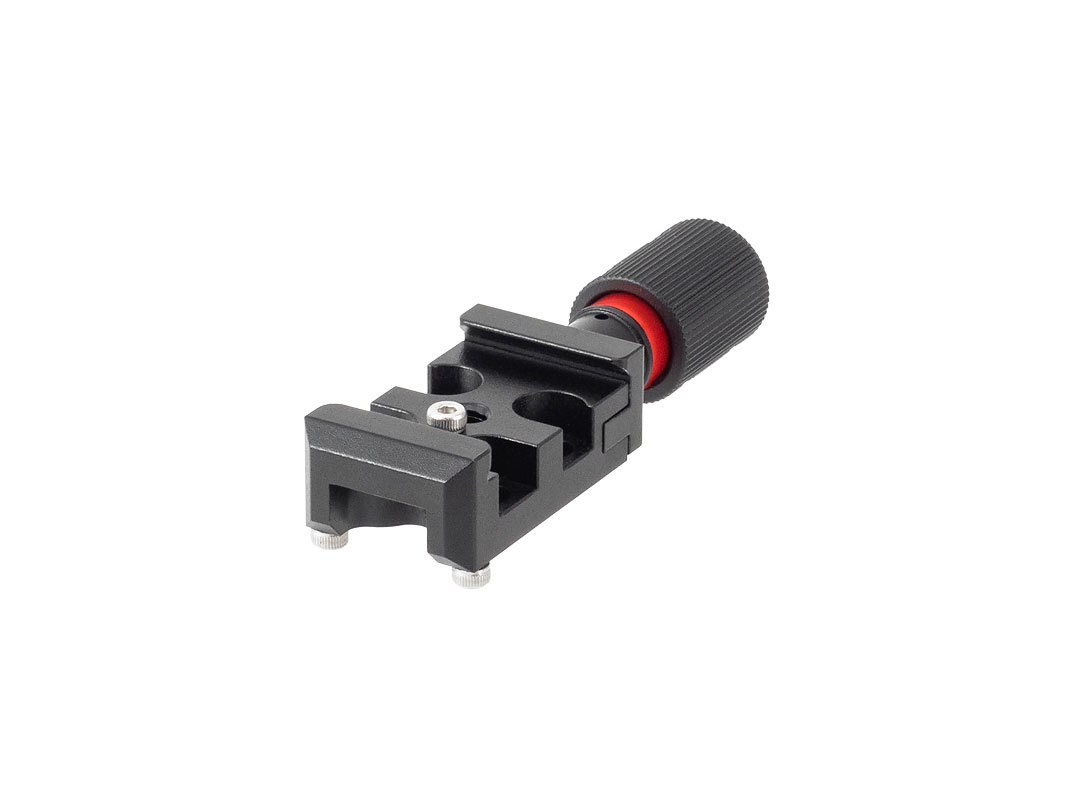

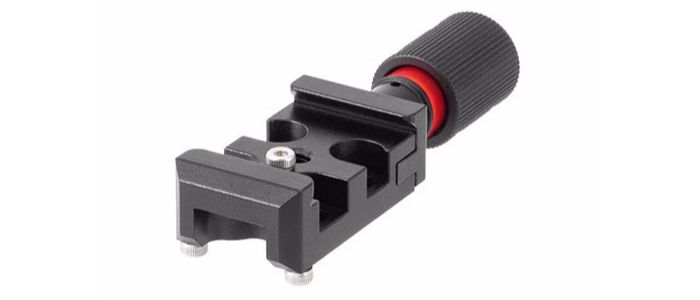

Quick Shoe Clam
Quick Shoe Clam

Grip Base

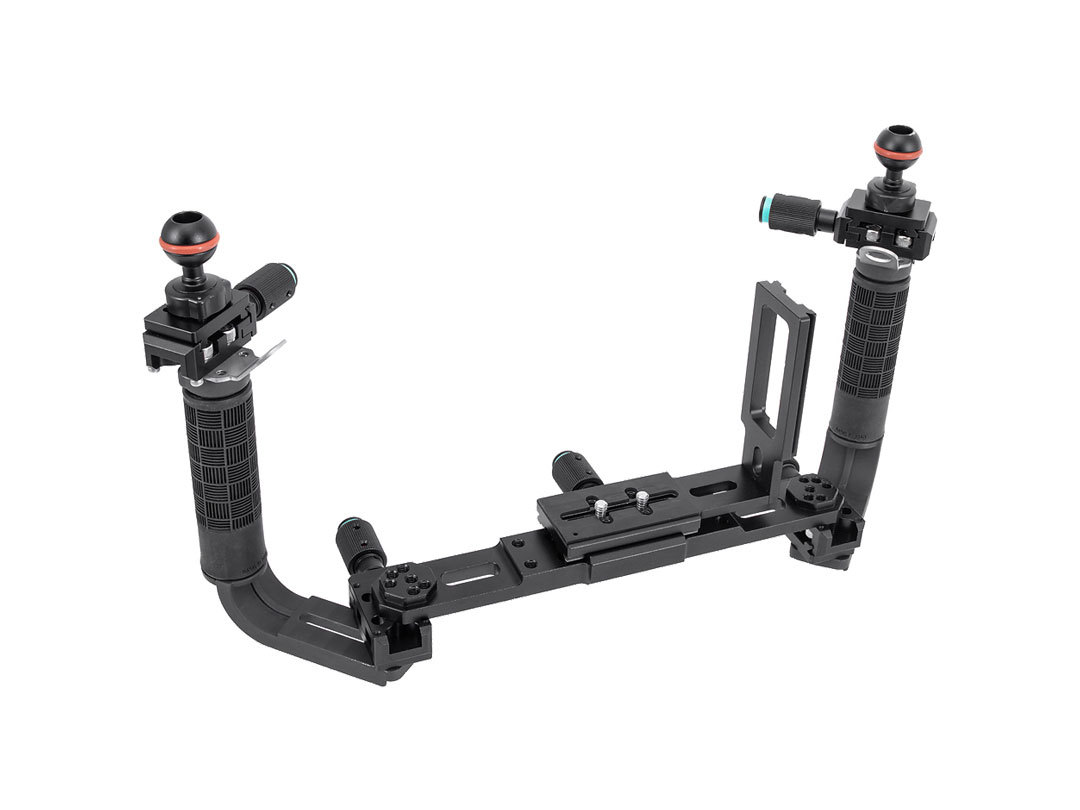

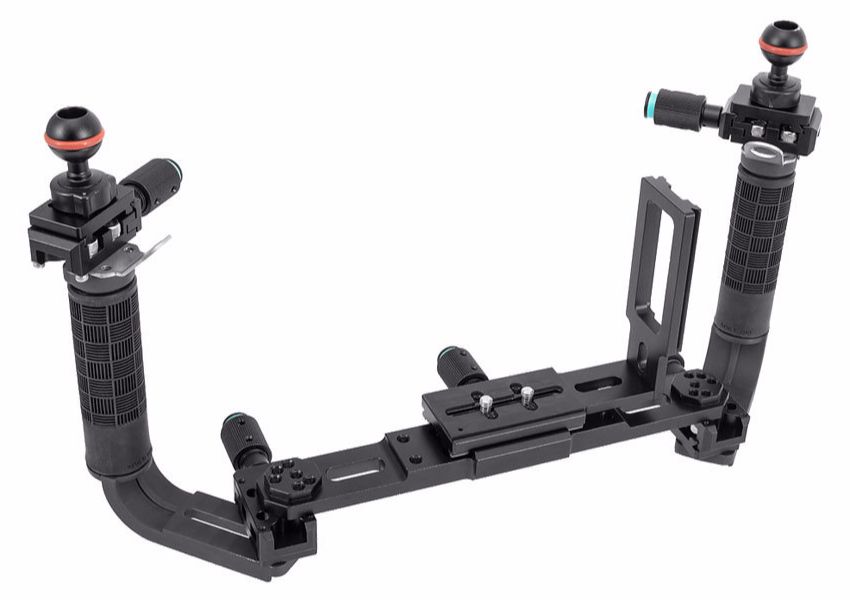

Grip Base D-PRO

JAN/EAN code : 4570018120152

Grip Base D-PRO

INON's unique Arca-Swiss system "Quick Shoe System" at five locations provides secure and reliable installation without any rattle, and speedy and easy separation of component parts. Underwater, the Grip Base D-PRO dramatically increases the lighting options while it serves as a space-saving solution on land benefitting you with comfortable and budget friendly transportation.


Dimensions
(W x H x D)
375.6 x 205.1 x 96.7 mm/
14.8 x 8.1 x 3.8 in
Weight [air] 835 g/1.8 lb
[u/w] Approx. 553 g/1.2 lb
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite etc.

Grip Base D-PRO

INON's unique Arca-Swiss system "Quick Shoe System" at five locations provides secure and reliable installation without any rattle, and speedy and easy separation of component parts. Underwater, the Grip Base D-PRO dramatically increases the lighting options while it serves as a space-saving solution on land benefitting you with comfortable and budget friendly transportation.

Dimensions (W x H x D) 375.6 x 205.1 x 96.7 mm/14.8 x 8.1 x 3.8 in
Weight [air] 835 g/1.8 lb, [u/w] Approx. 553 g/1.2 lb
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite etc.

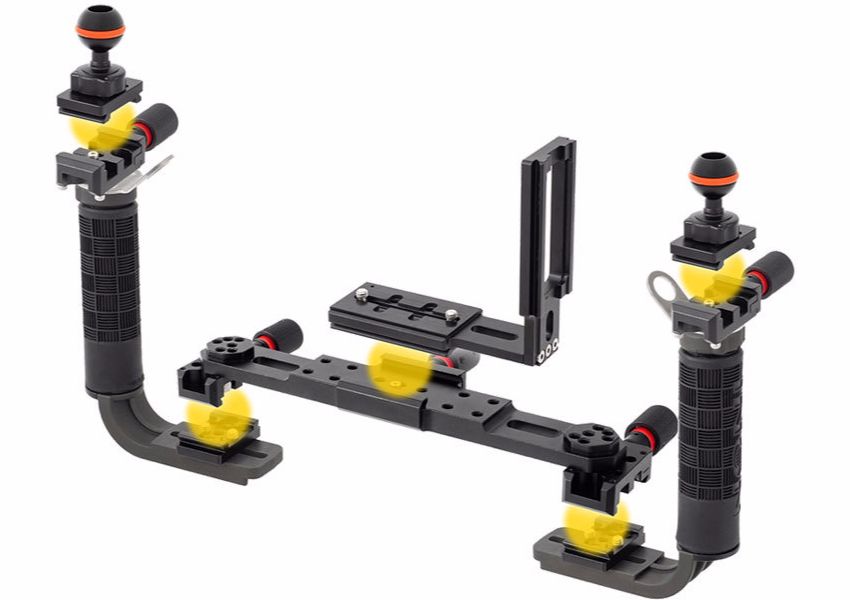

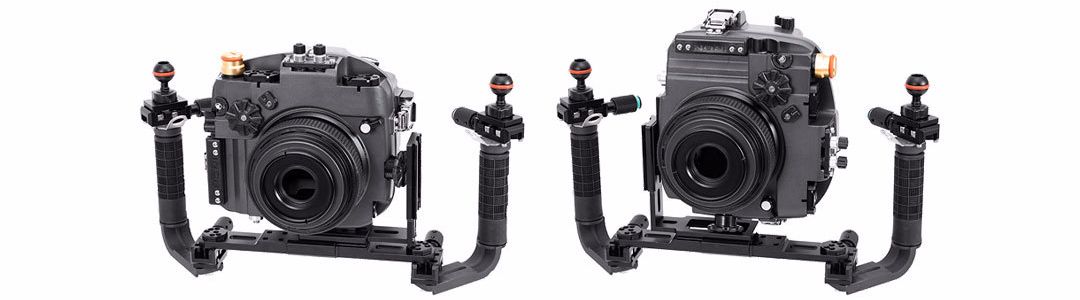

Setup example

[Part Configuration]

  • Quick Shoe Main Base
  • Quick Shoe L-Type Bracket
  • Quick Shoe W27 Set (4)
  • D5 Holder (2)
  • D5 Lanyard Plate (2)
  • Direct Base III (2)
Setup example

[Part Configuration]

  • Quick Shoe Main Base
  • Quick Shoe L-Type Bracket
  • Quick Shoe W27 Set (4)
  • D5 Holder (2)
  • D5 Lanyard Plate (2)
  • Direct Base III (2)

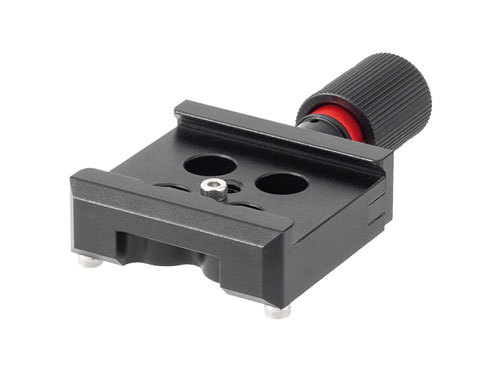

The "Quick Shoe" clamp is equipped with a handle having a locking mechanism which visually indicates LOCK/UNLOCK status. The green display indicates LOCK status showing the clamp is in use mode, and the red display indicates UNLOCK status showing the clamp is in installation/removal mode.

With locking mechanism

The "Quick Shoe" clamp is equipped with a handle having a locking mechanism which visually indicates LOCK/UNLOCK status. The green display indicates LOCK status showing the clamp is in use mode, and the red display indicates UNLOCK status showing the clamp is in installation/removal mode.

With locking mechanism

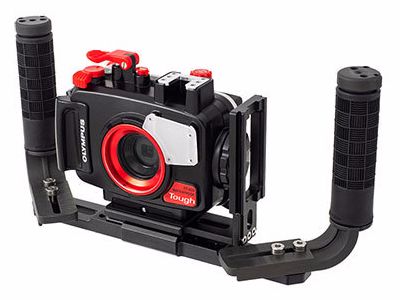

Having the "Quick Shoe L-Type Bracket" which can be attached on a housing with 12-52 mm/0.5-2.0 inch tripod screw hole spacing enables to change the camera to vertical position without altering the lighting.

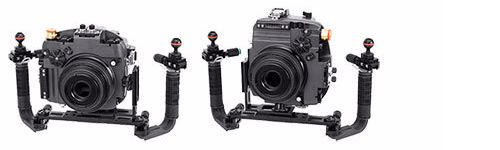

Camera can be rotated vertically without changing lighting

Having the "Quick Shoe L-Type Bracket" which can be attached on a housing with 12-52 mm/0.5-2.0 inch tripod screw hole spacing enables to change the camera to vertical position without altering the lighting.

Camera can be rotated vertically without changing lighting

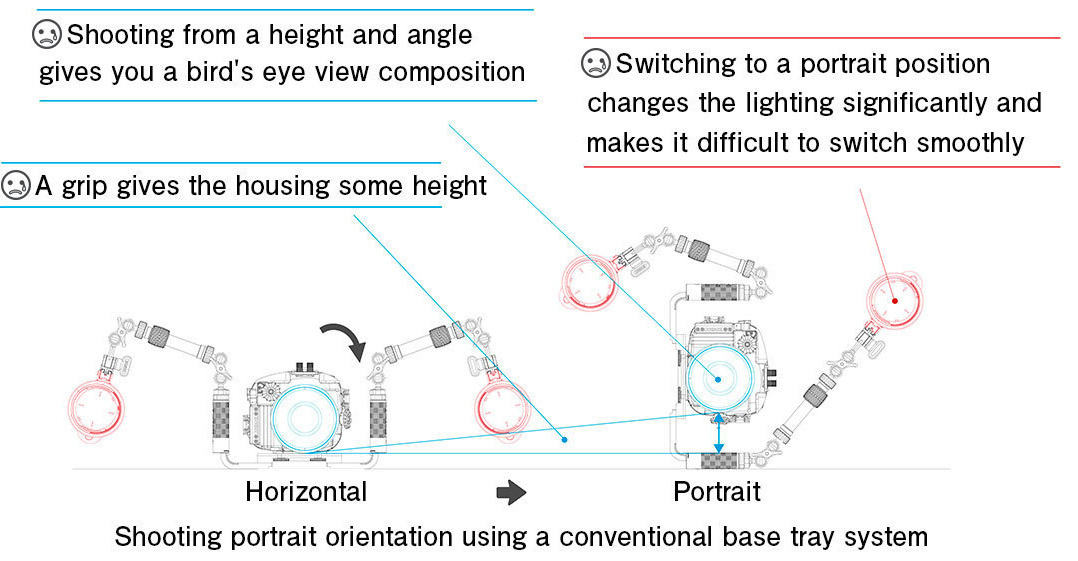

Drawback of Existing Base Tray

Drawback of Existing Base Tray

Drawback of Existing Base Tray


Drawback of Existing Base Tray

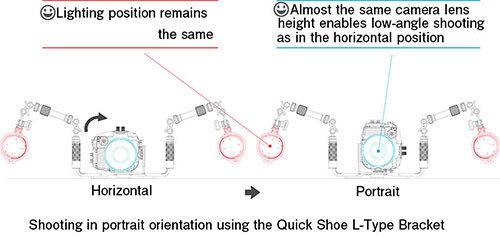

Advantage of using Quick Shoe L-Type Bracket

Advantage of using Quick Shoe L-Type Bracket

Advantage of using Quick Shoe L-Type Bracket


Advantage of using Quick Shoe L-Type Bracket

Now you can shoot vertical low angle shot which is not possible with a conventional base tray with integrated grip.

Photo examples

*Please note that not all of products are confirmed compatible with this product. If the installation of this product interferes in opening/closing the housing, it should not be used.

Now you can shoot vertical low angle shot which is not possible with a conventional base tray with integrated grip.

Photo examples

*Please note that not all of products are confirmed compatible with this product. If the installation of this product interferes in opening/closing the housing, it should not be used.

page top

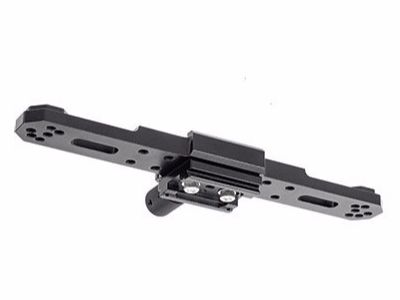

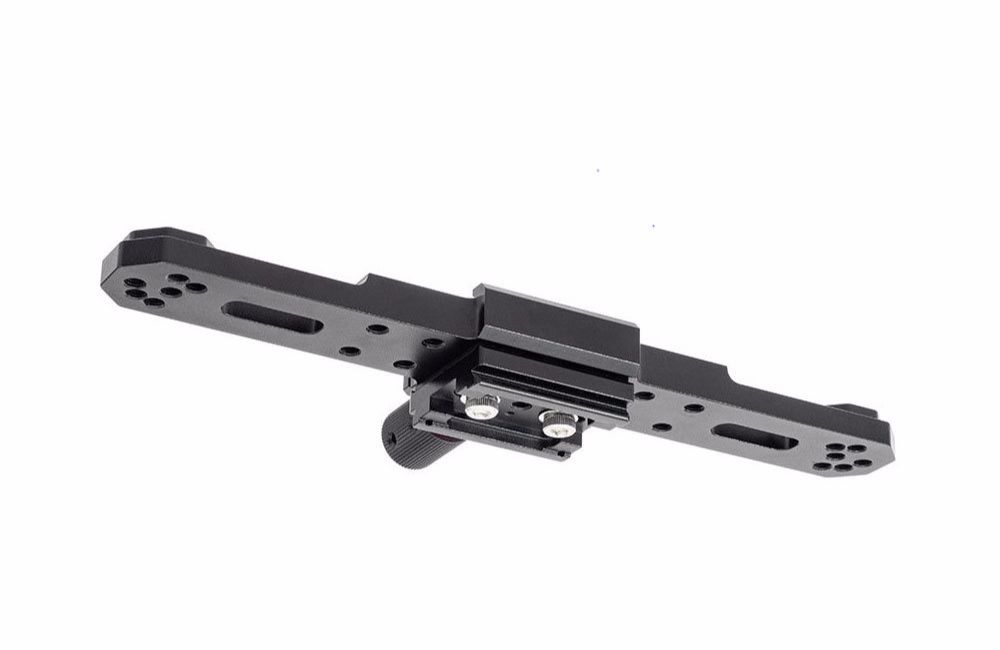

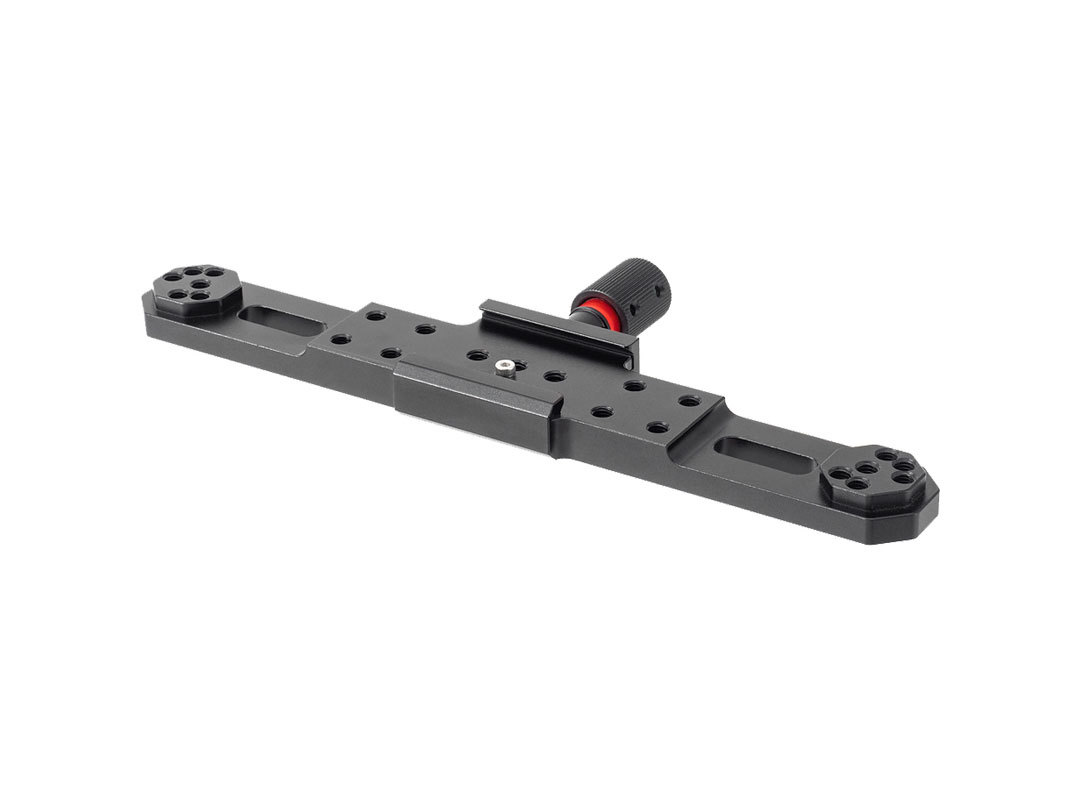

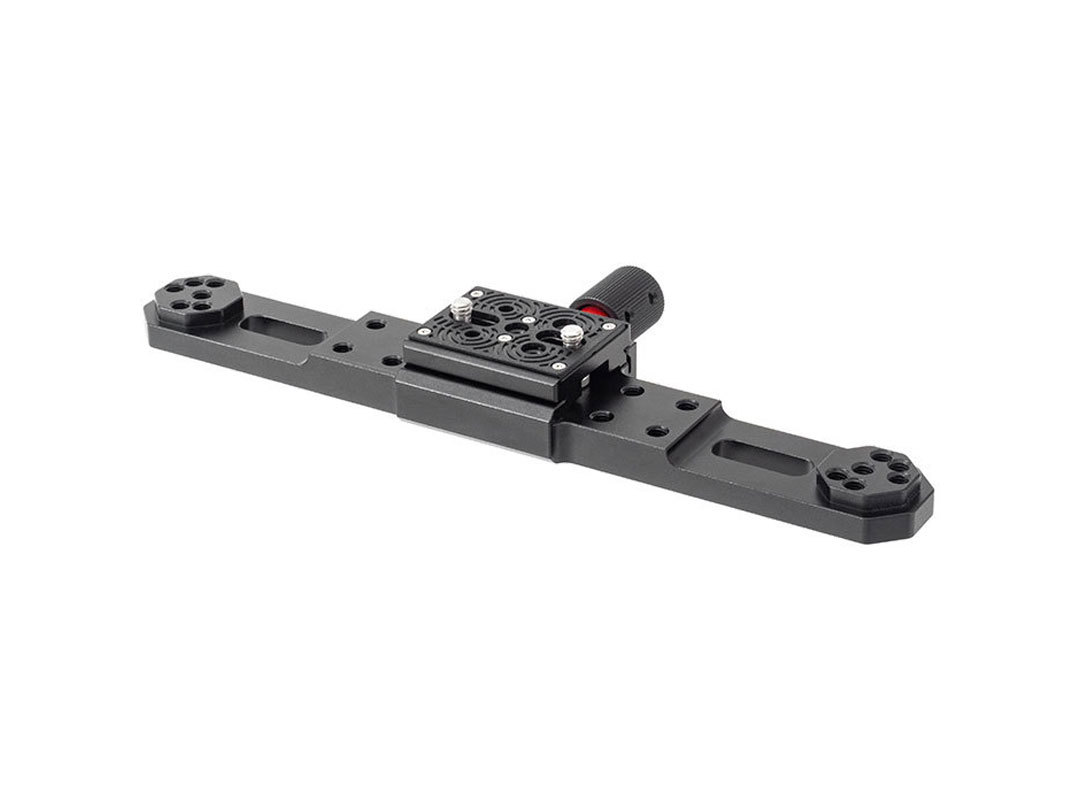

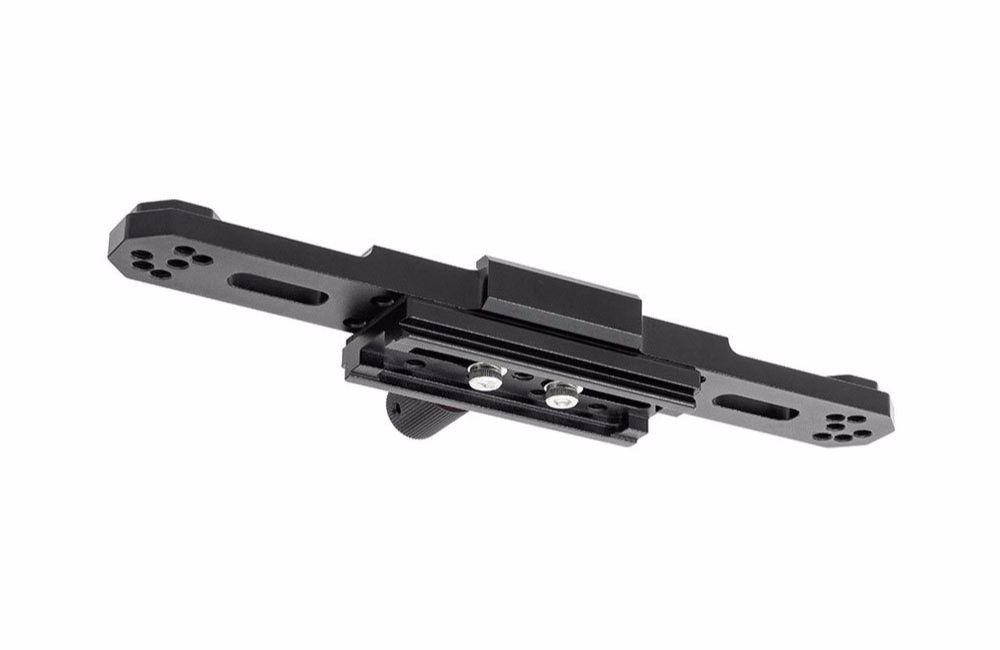

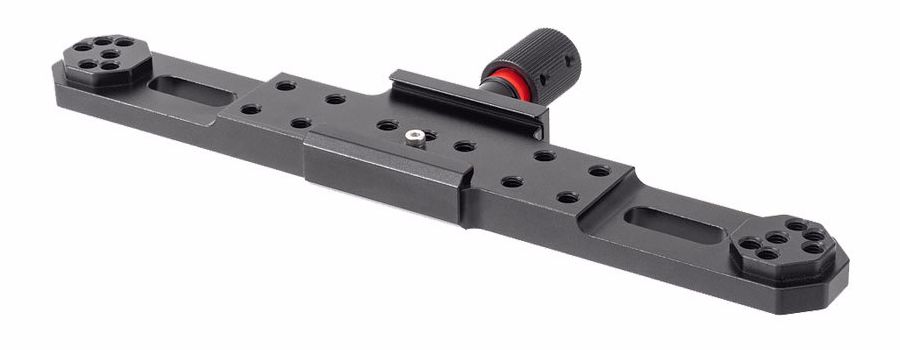

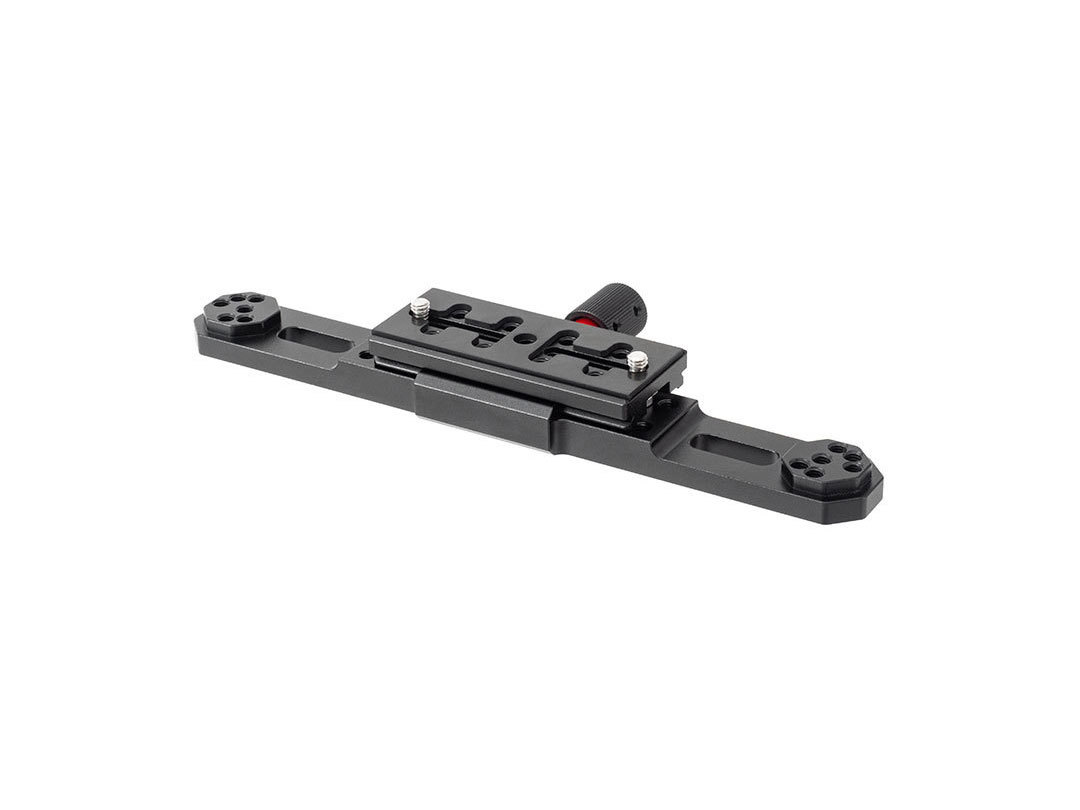

Quick Shoe Main Base

Quick Shoe Main Base

JAN/EAN code : 4562121439863

Quick Shoe Main Base

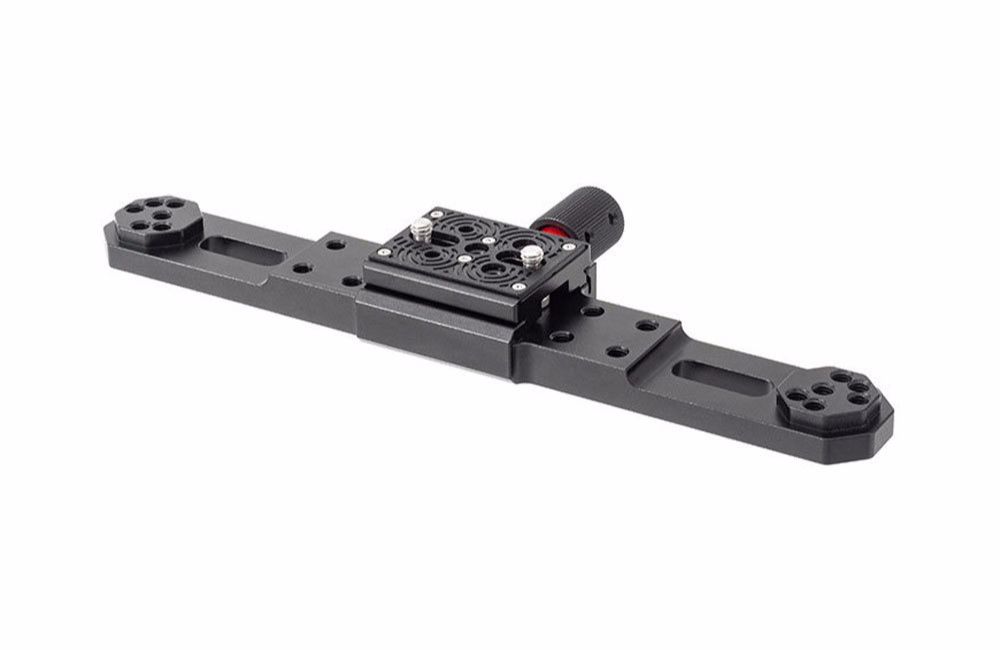

An all new main base equipped with a Quick Shoe clamp.


Dimensions
(W x H x D)
250 x 28.3 x 94.8 mm/
9.8 x 1.1 x 3.7 inch
Weight
[air] 248 g/8.7 oz
[u/w] Approx. 160 g/5.6 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite

Quick Shoe Main Base

An all new main base equipped with a Quick Shoe clamp.


Dimensions
(W x H x D)
250 x 28.3 x 94.8 mm/
9.8 x 1.1 x 3.7 inch
Weight [air] 248 g/8.7 oz
[u/w] Approx. 160 g/5.6 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite

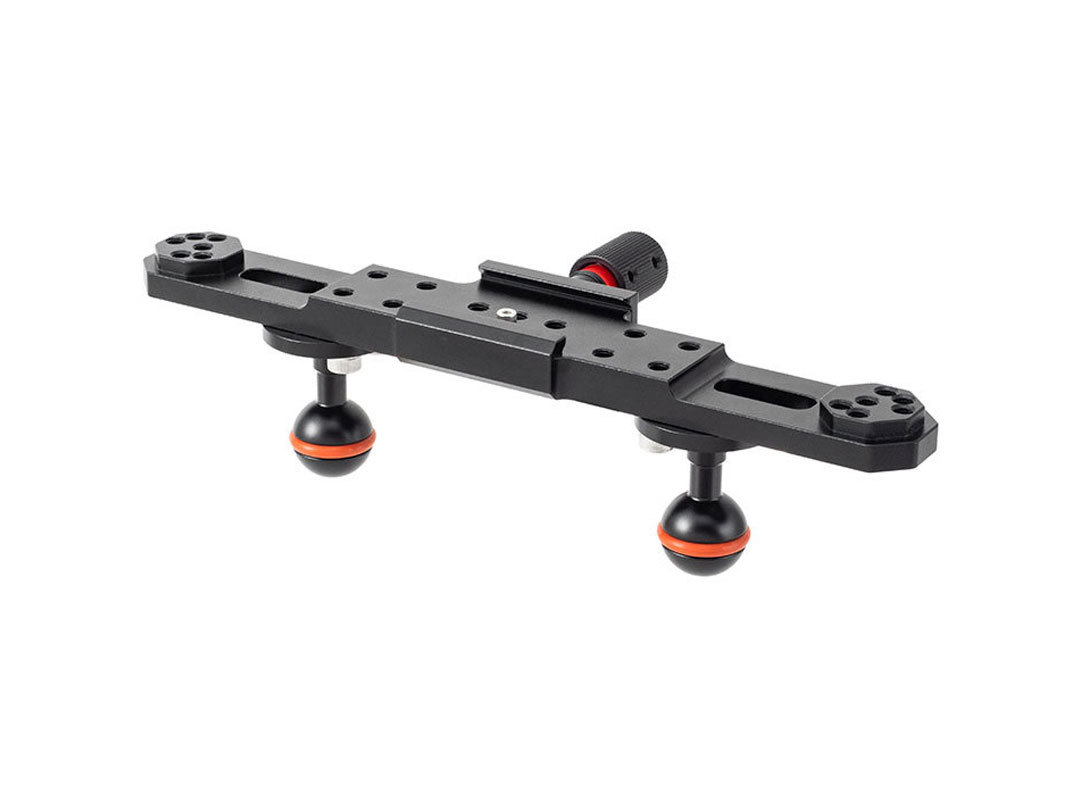

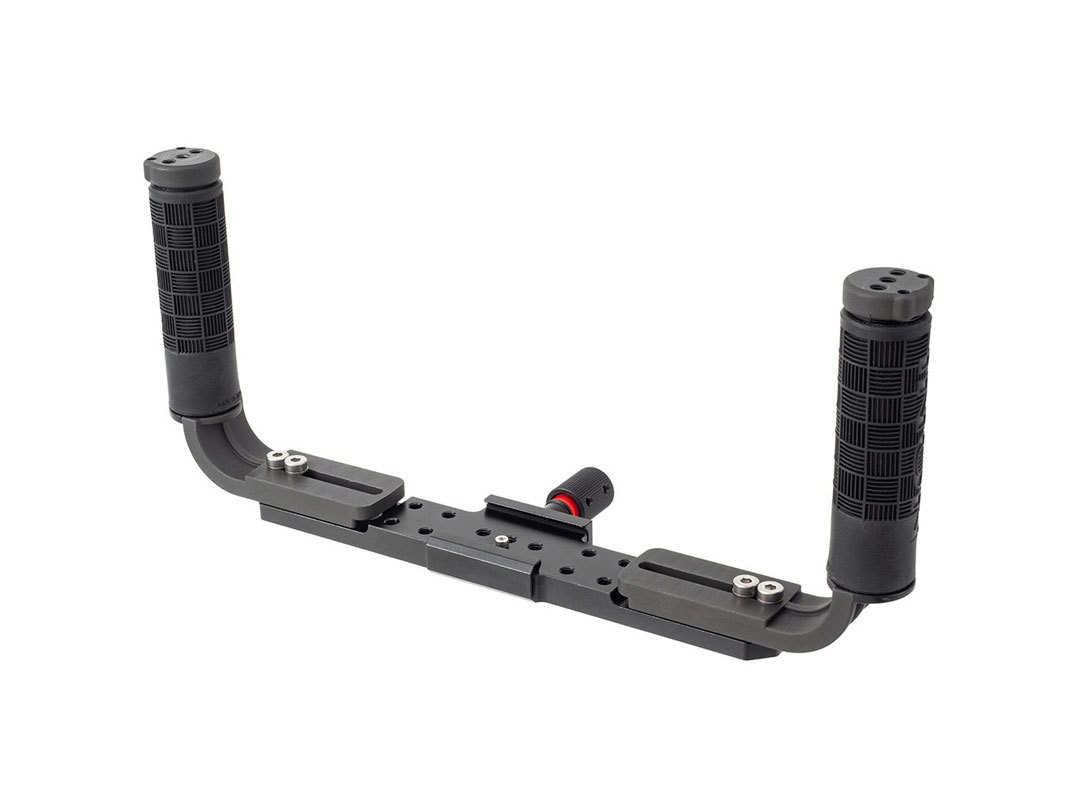

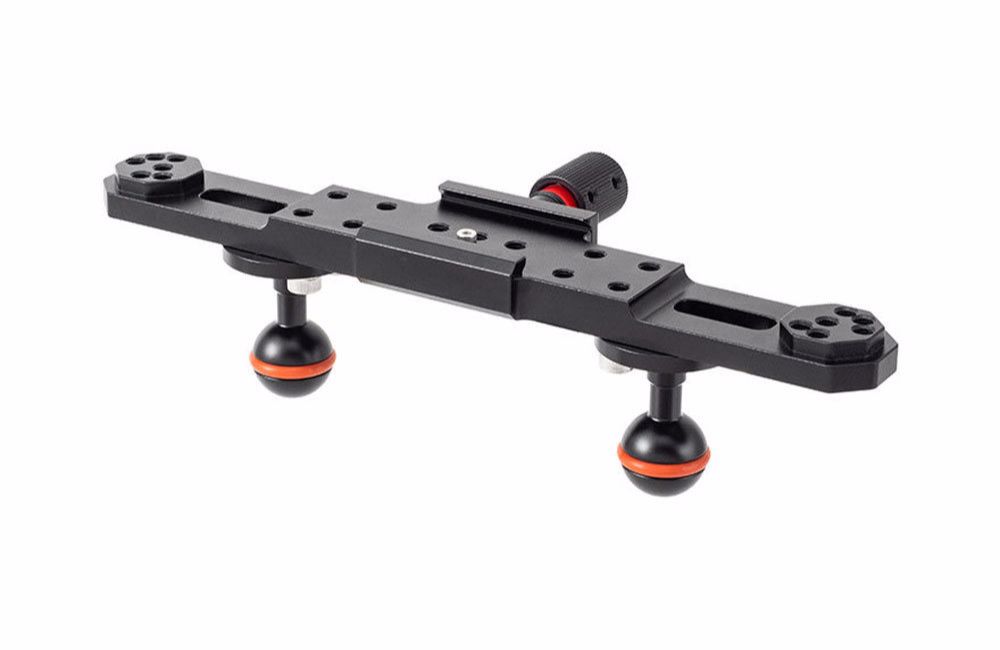

With the D5 Holder attached on both ends, it functions as a handle and tray for camera.

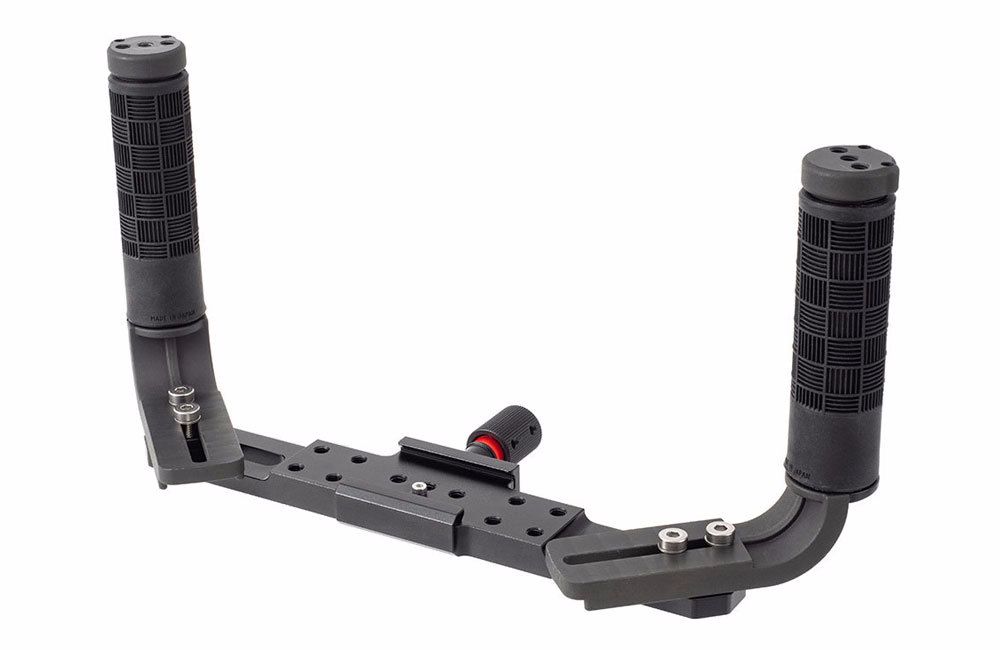

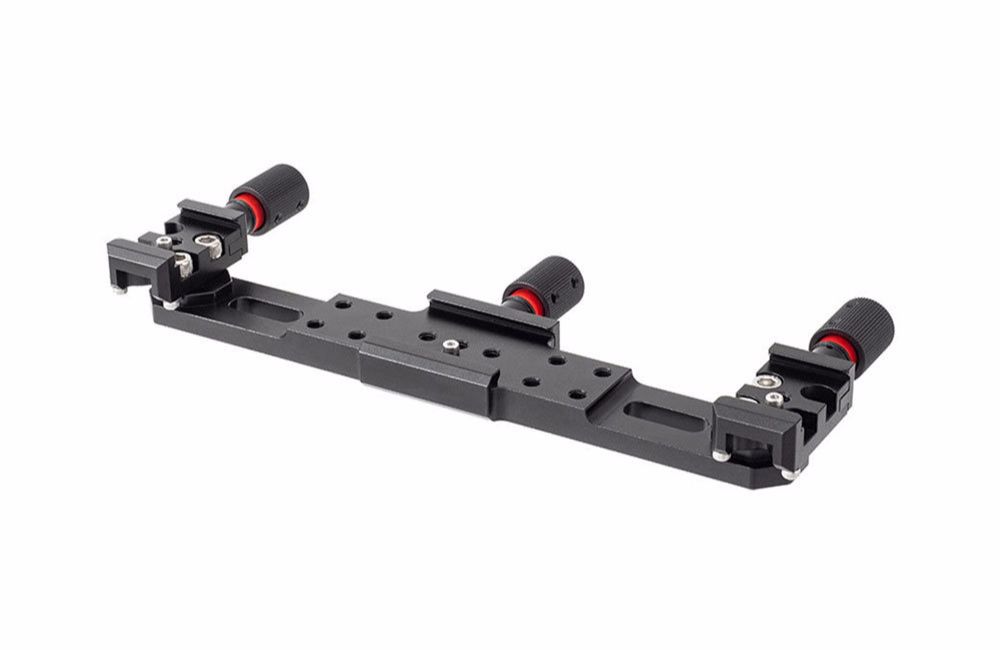

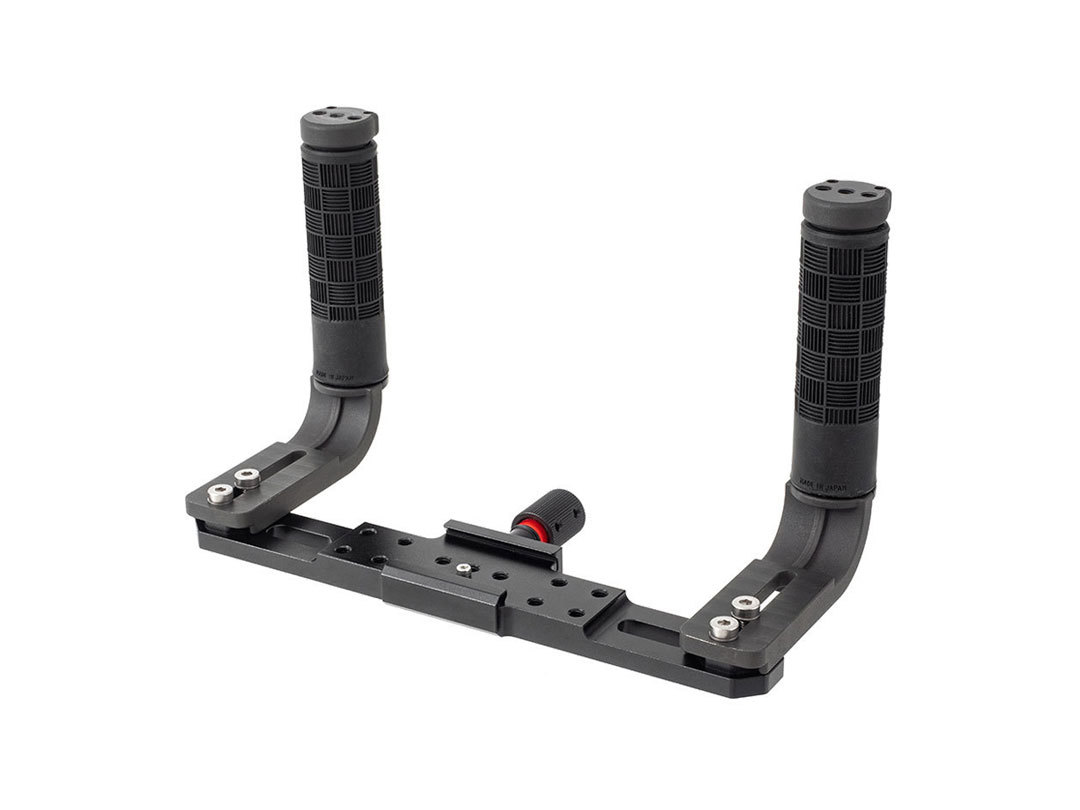

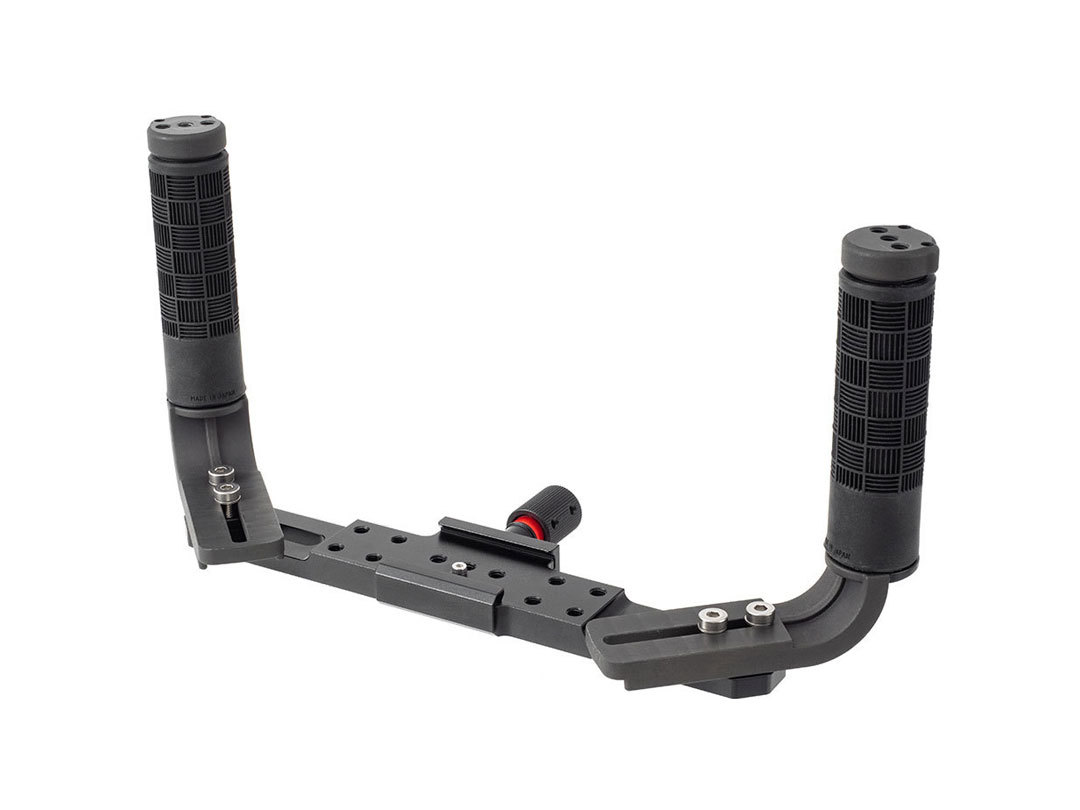

D5 holder installation example
D5 holder installation example
D5 holder installation example
D5 holder installation example
D5 holder installation example
D5 holder installation example

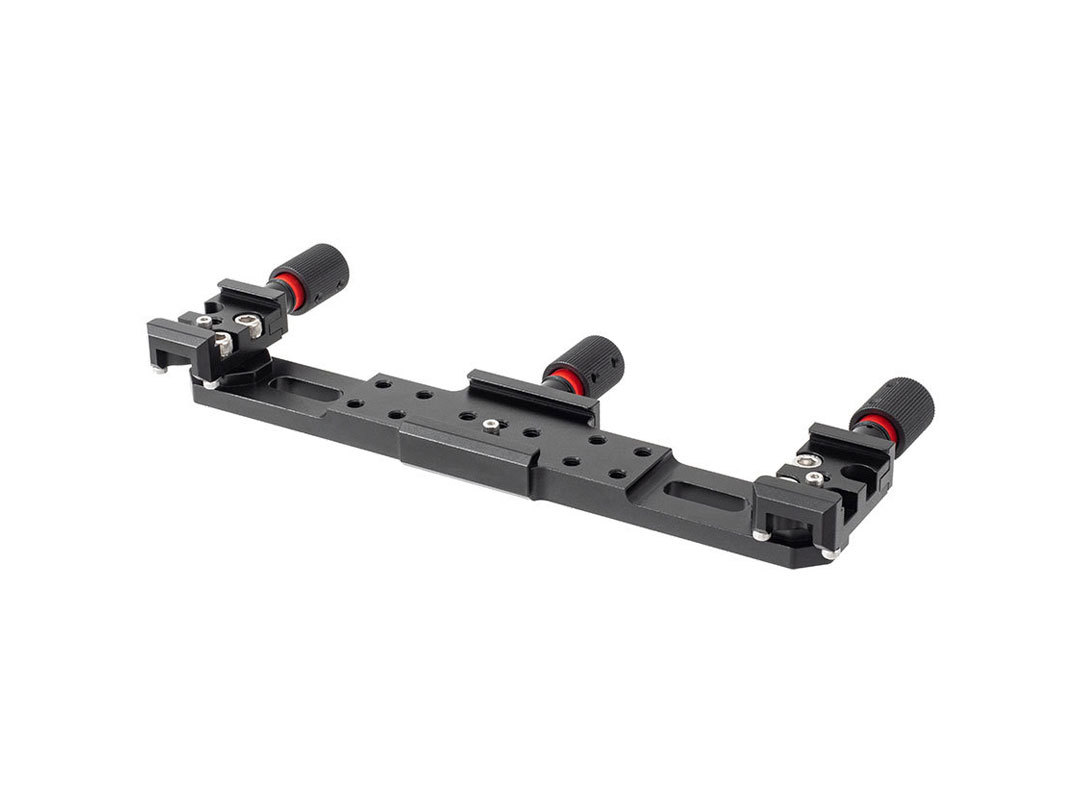

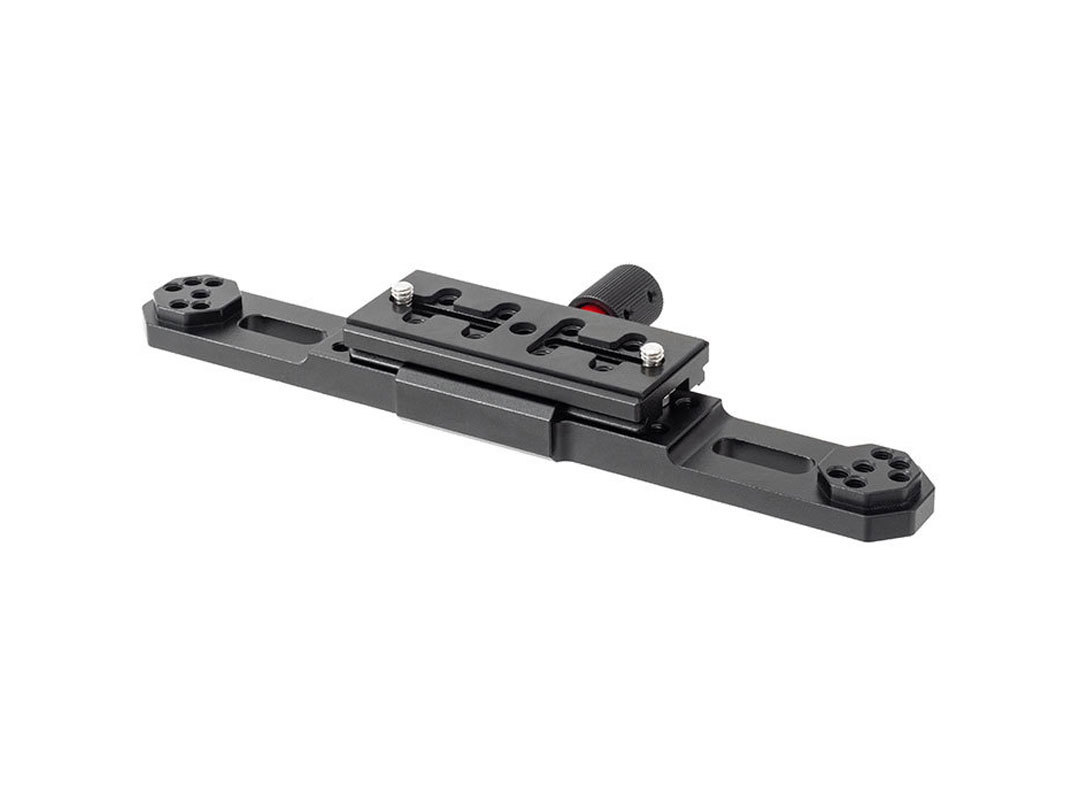

Various Quick Shoe plates and clamps can be attached for a wide variety of arm configurations.

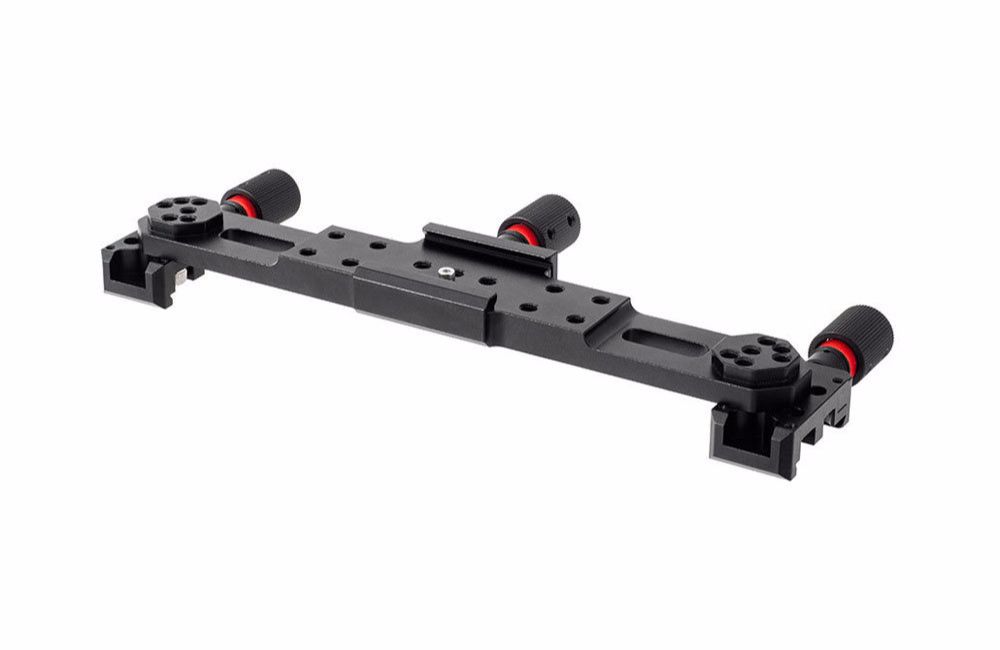

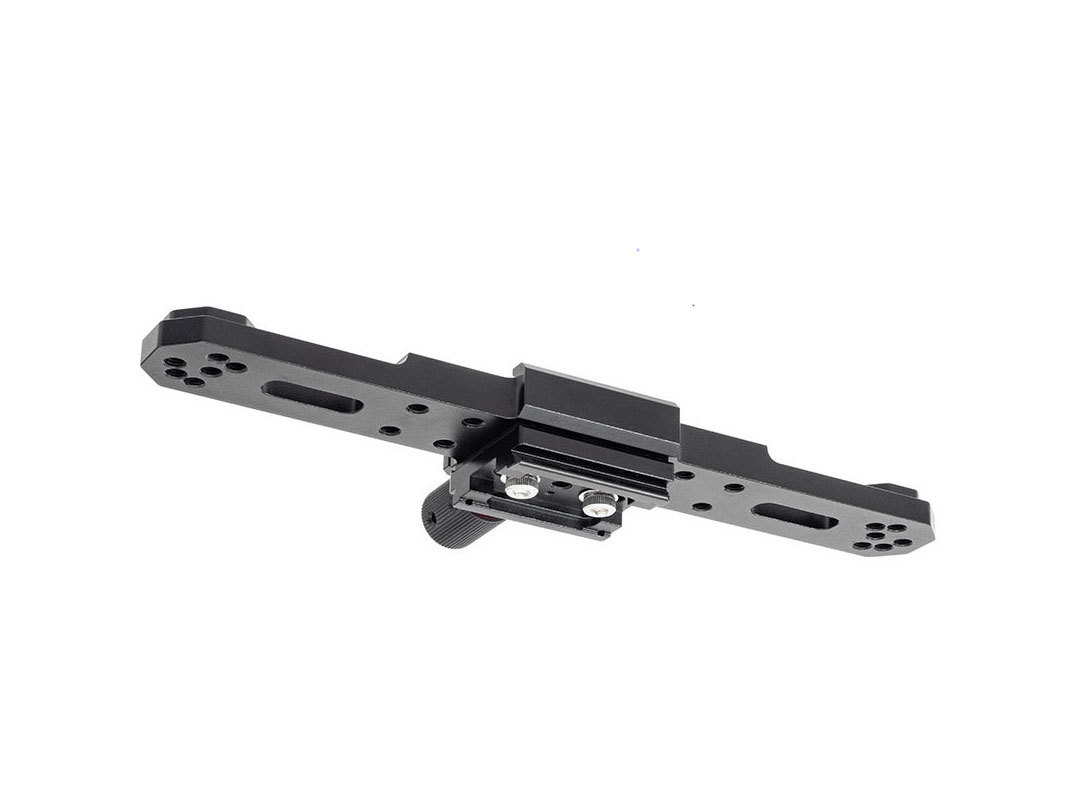

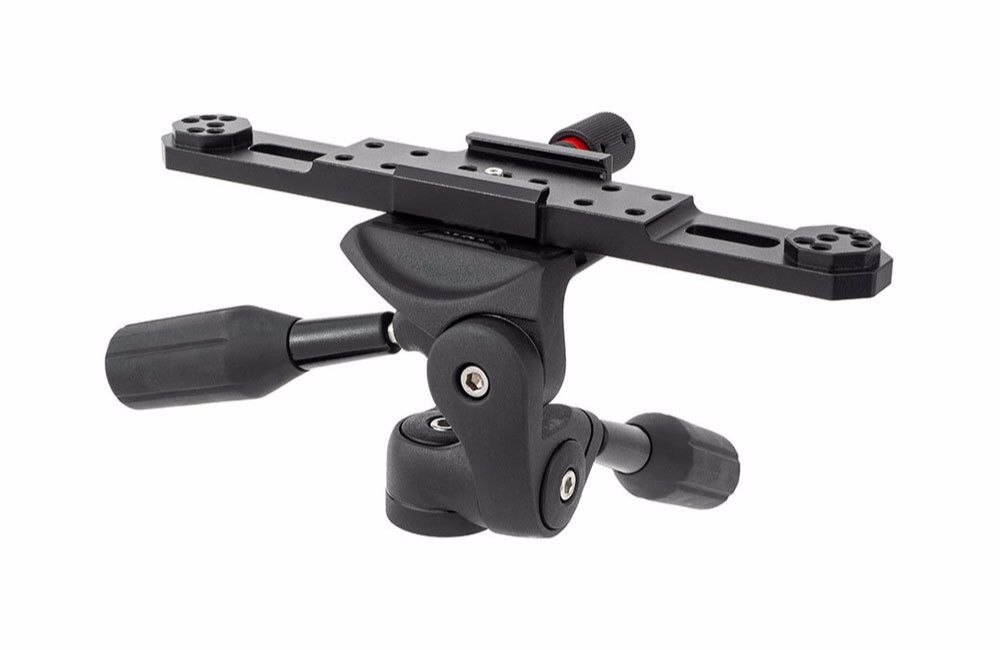

Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
Arm deployment example
page top

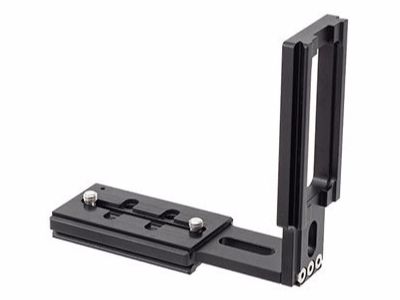

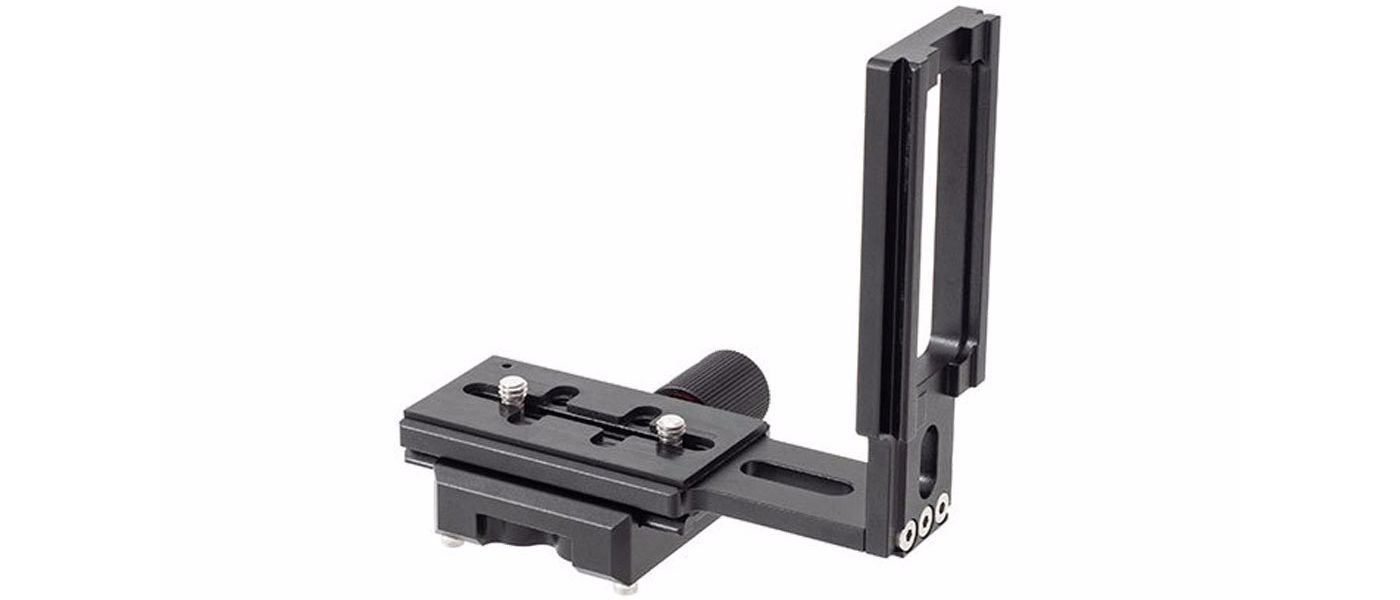

Quick Shoe L-Type Bracket

Quick Shoe L-Type Bracket

JAN/EAN code : 4562121439856

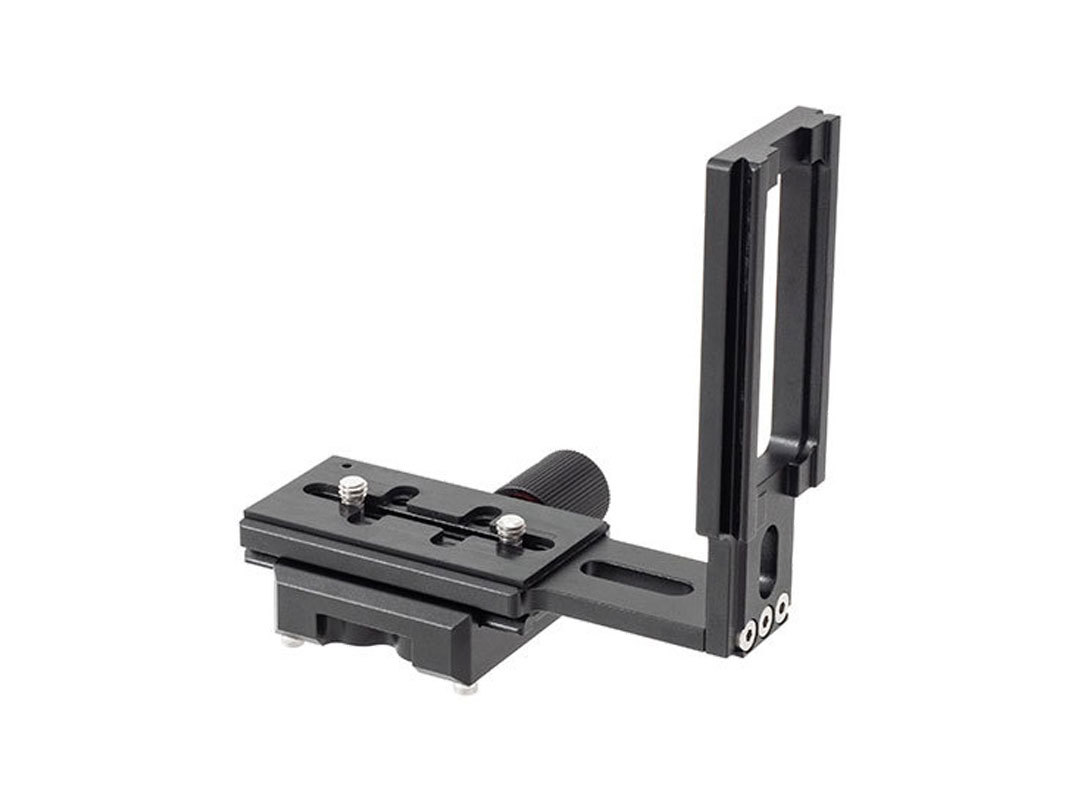

Quick Shoe L-Type Bracket

An innovative item for a housing enabling low angle portrait shot without changing the lighting, which was not possible with conventional accessory. It can be attached on a housing with tripod screw hole spacing from 12 mm/0.5 inch to 56 mm/2.2 inch.


*Please note that not all of products are confirmed compatible with this product. If the installation of this product interferes in opening/closing the housing, it should not be used.



Dimensions
(W x H x D)
122.2 x 113.5 x 42 mm/
4.8 x 4.5 x 1.7 inch
Weight [air] 131 g/4.6 oz
[u/w] Approx. 83g/2.9 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite

Quick Shoe L-Type Bracket

An innovative item for a housing enabling low angle portrait shot without changing the lighting, which was not possible with conventional accessory. It can be attached on a housing with tripod screw hole spacing from 12 mm/0.5 inch to 56 mm/2.2 inch.


*Please note that not all of products are confirmed compatible with this product. If the installation of this product interferes in opening/closing the housing, it should not be used.

Dimensions
(W x H x D)
122.2 x 113.5 x 42 mm/
4.8 x 4.5 x 1.7 inch
Weight [air] 131 g/4.6 oz
[u/w] Approx. 83g/2.9 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite

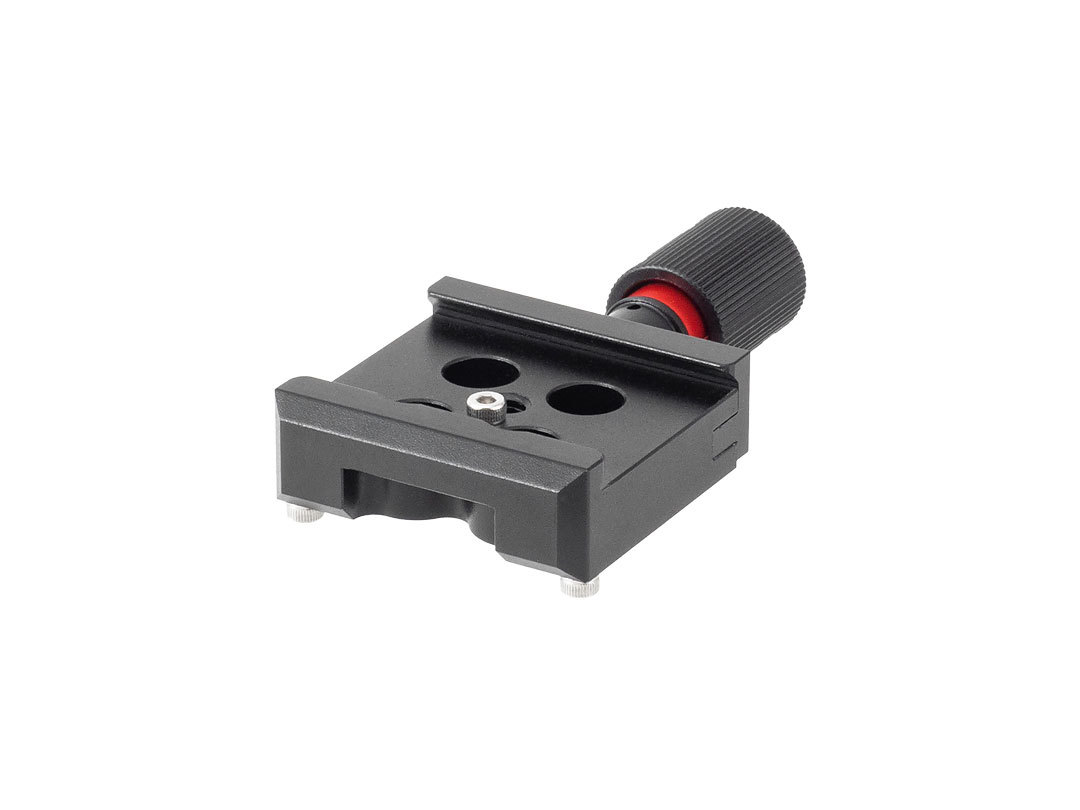

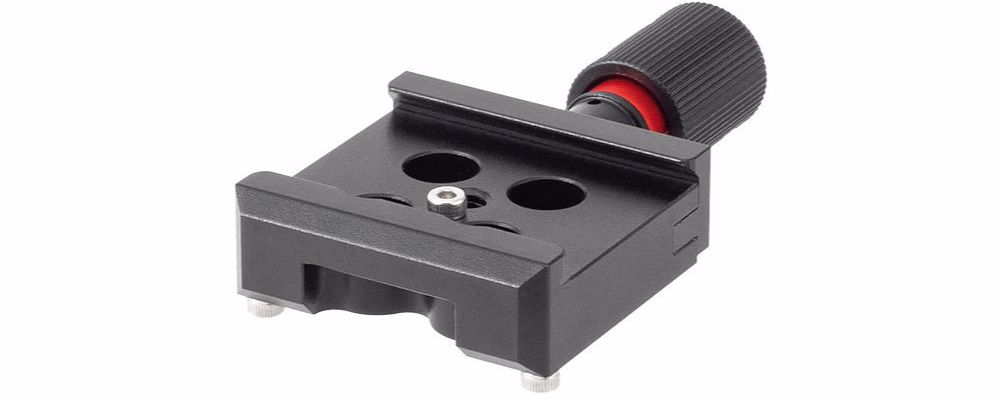

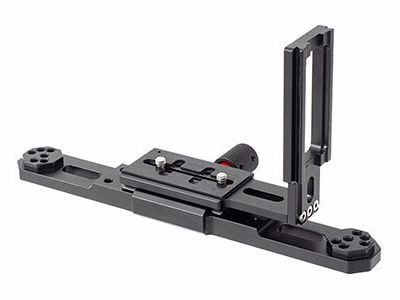

Designed to use in combination with the Quick Shoe W50 Clamp and Quick Shoe Main Base

Combined with W50 clamp

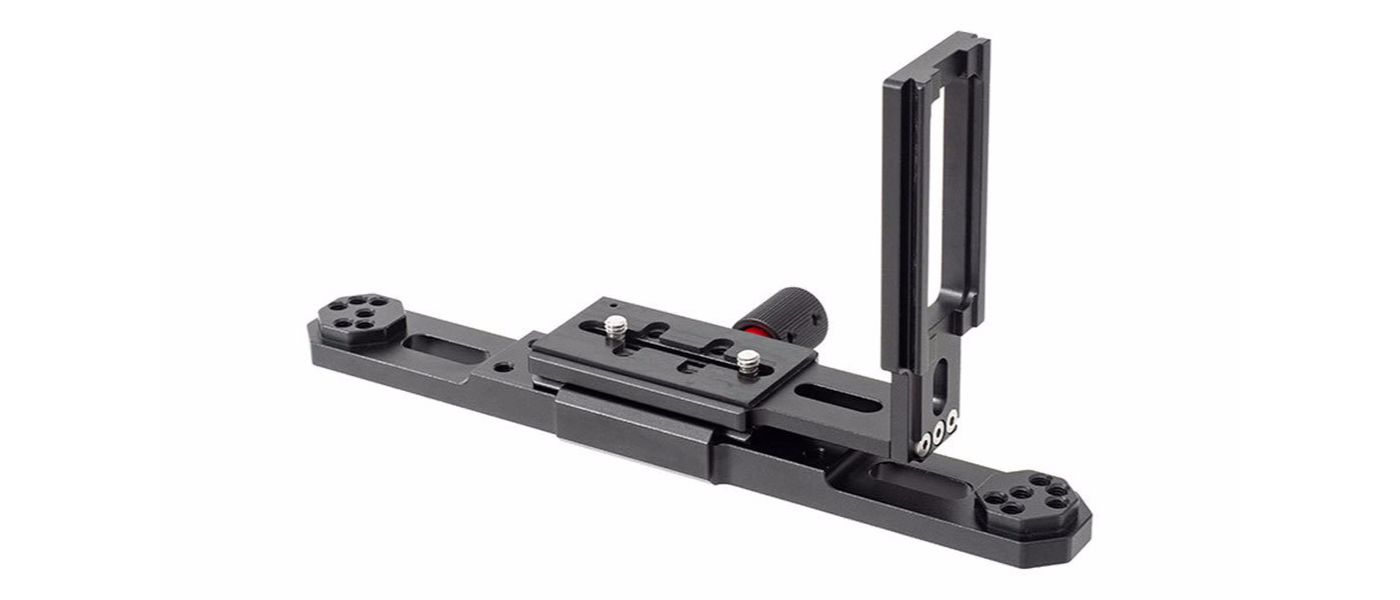

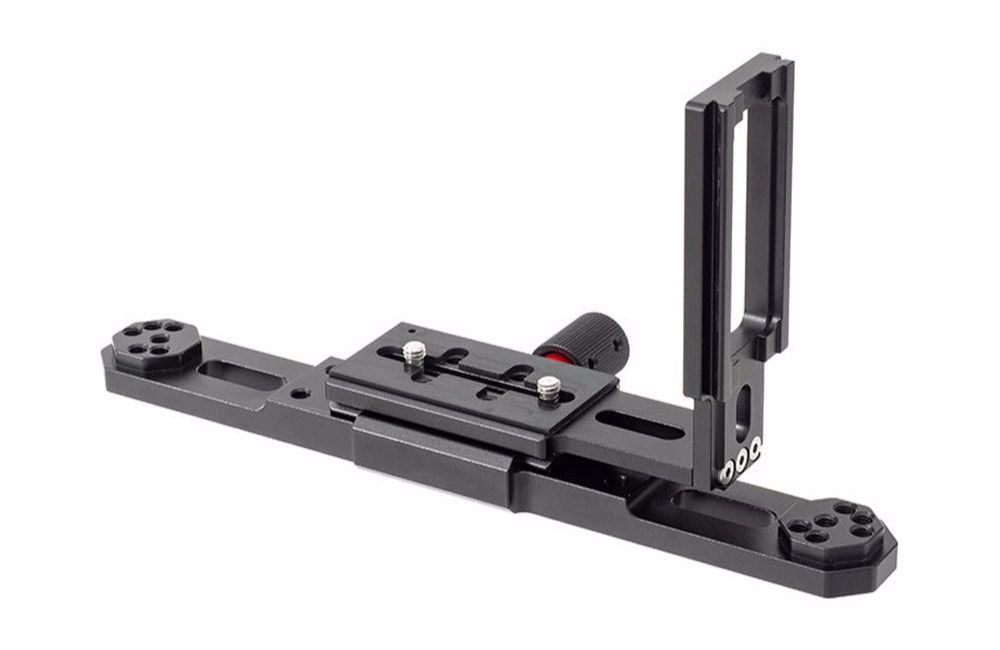

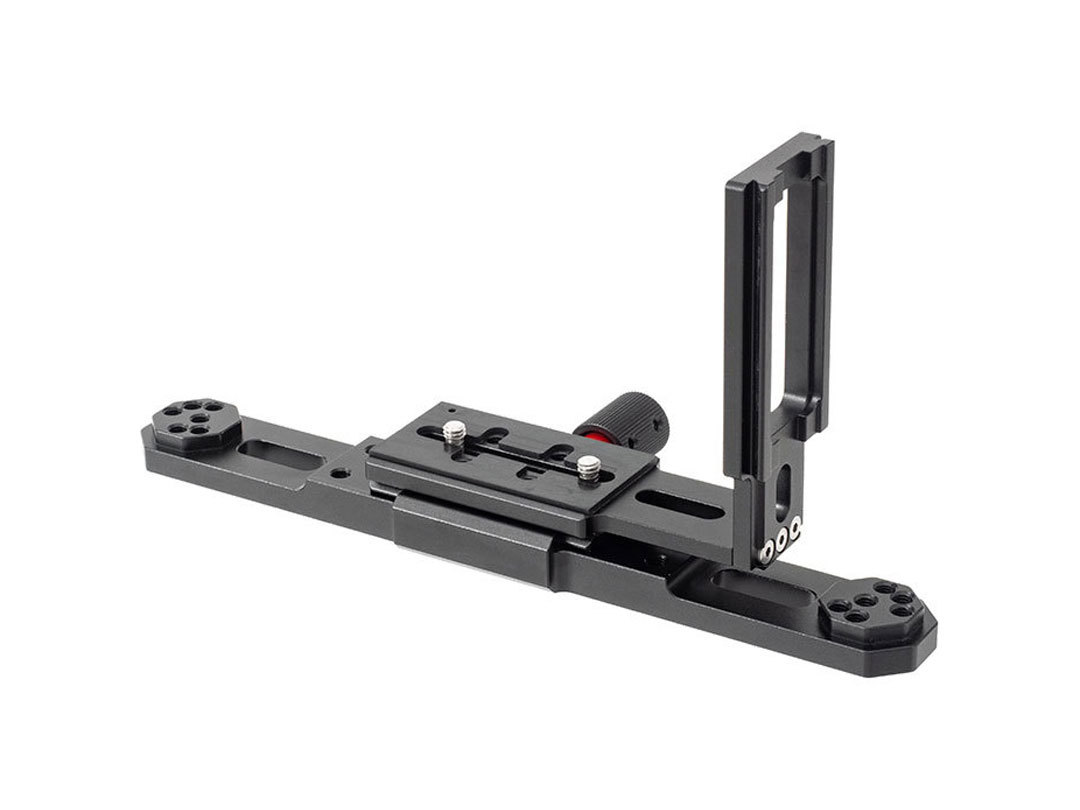

Combination with the main base
Combined with W50 clamp
Combination with the main base

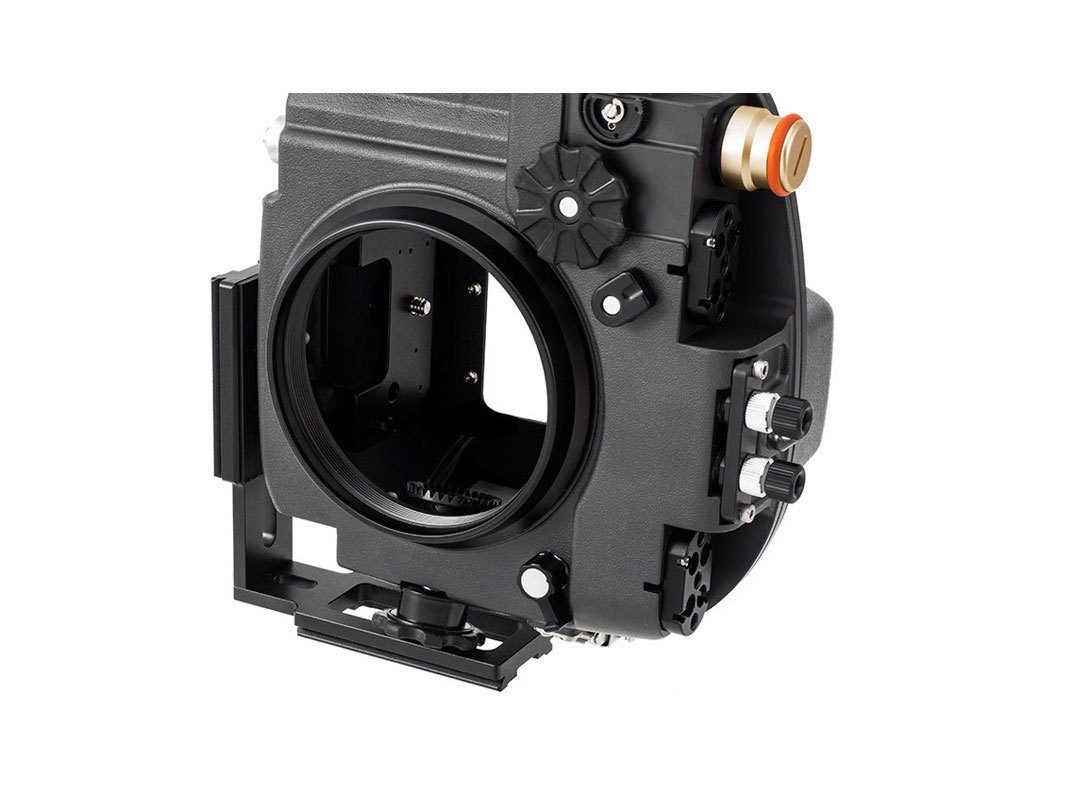

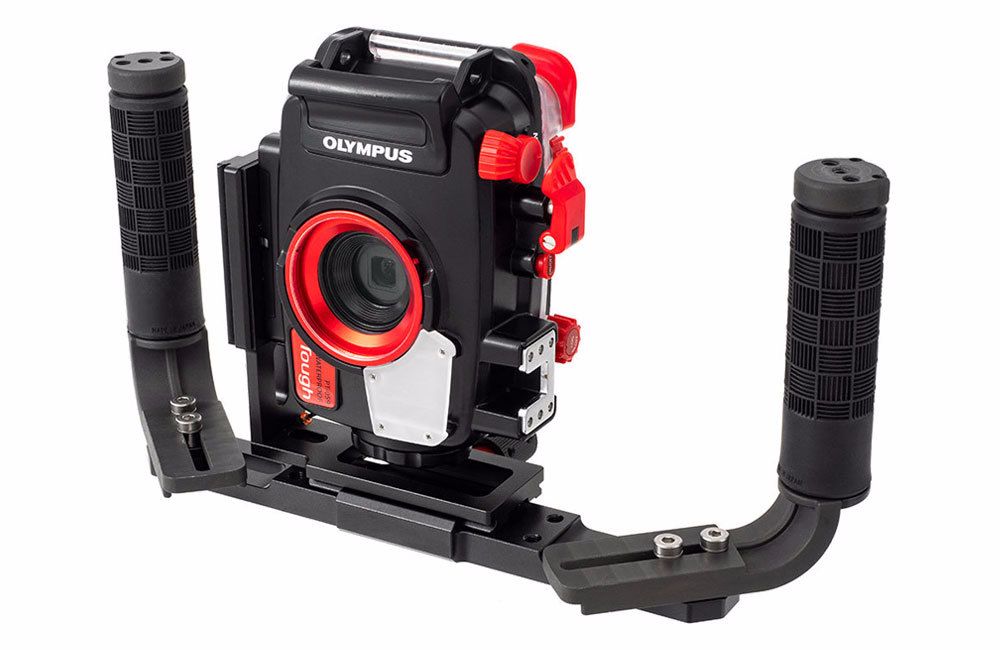

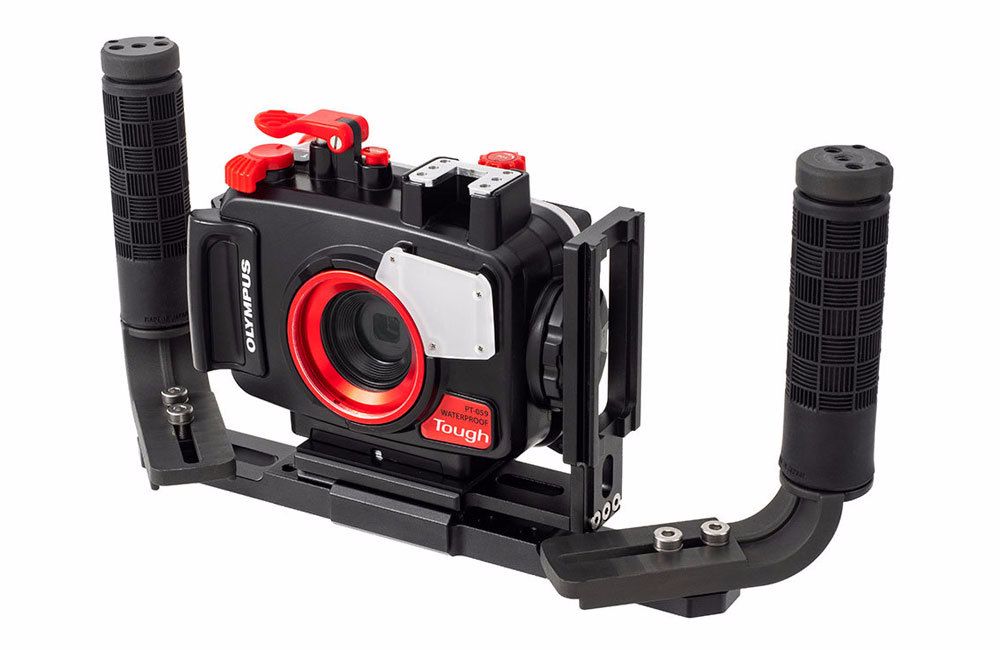

Installation and configuration

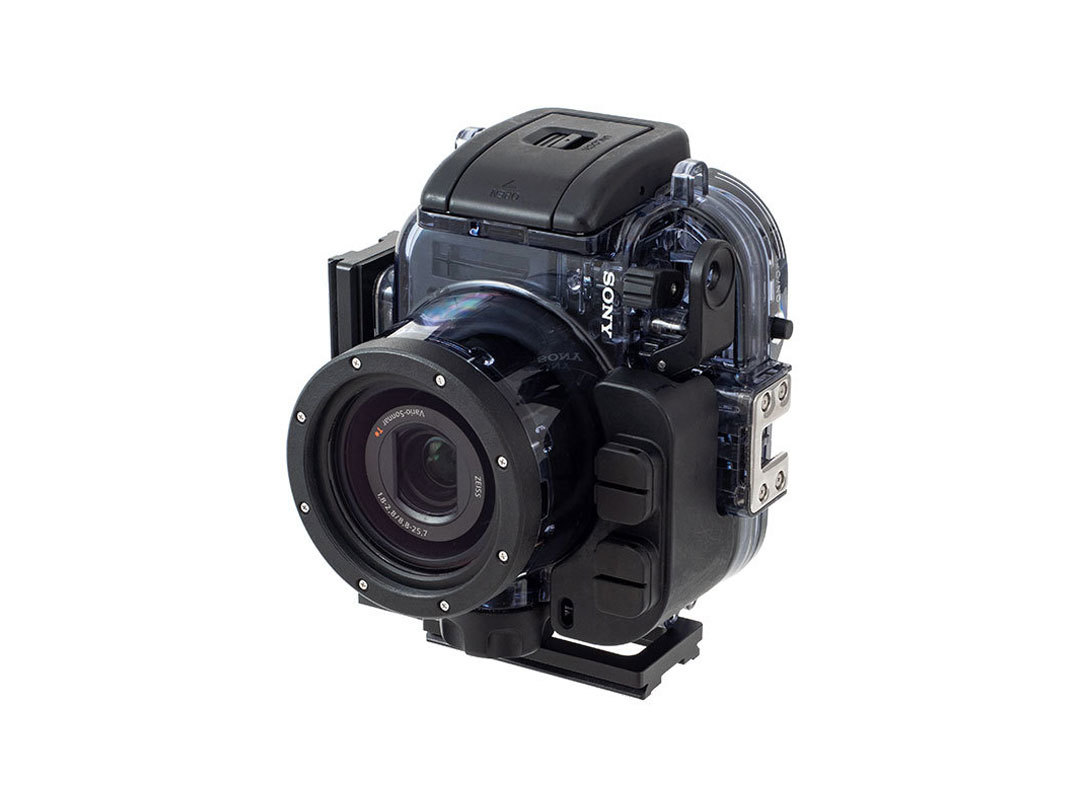

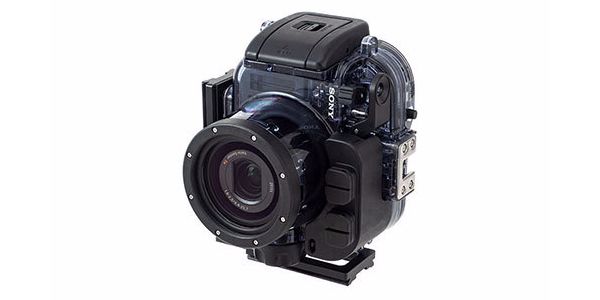

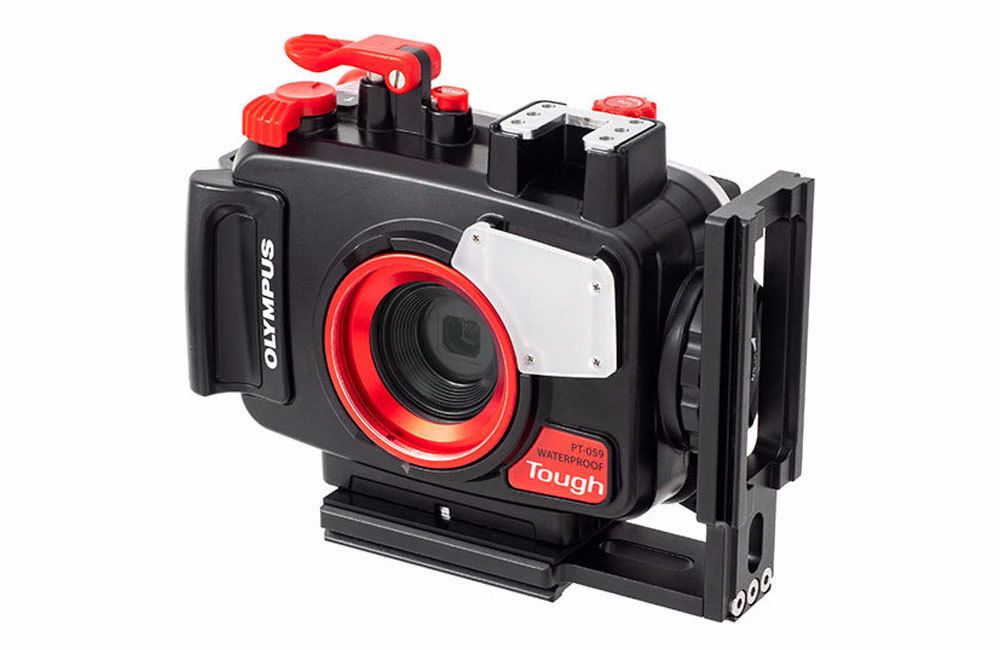

ousing installation example
ousing installation example
ousing installation example
ousing installation example
ousing installation example
ousing installation example
ousing installation example
ousing installation example
ousing installation example
ousing installation example
page top

Quick Shoe Set

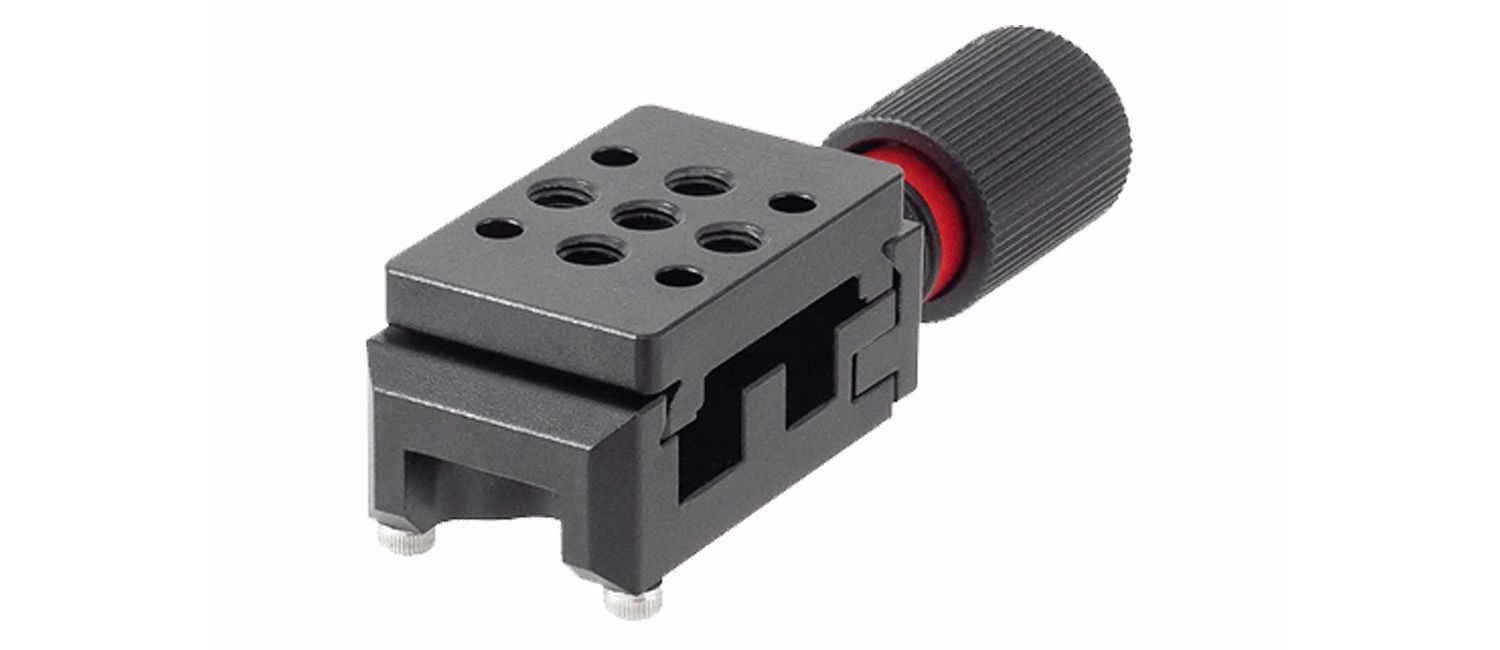

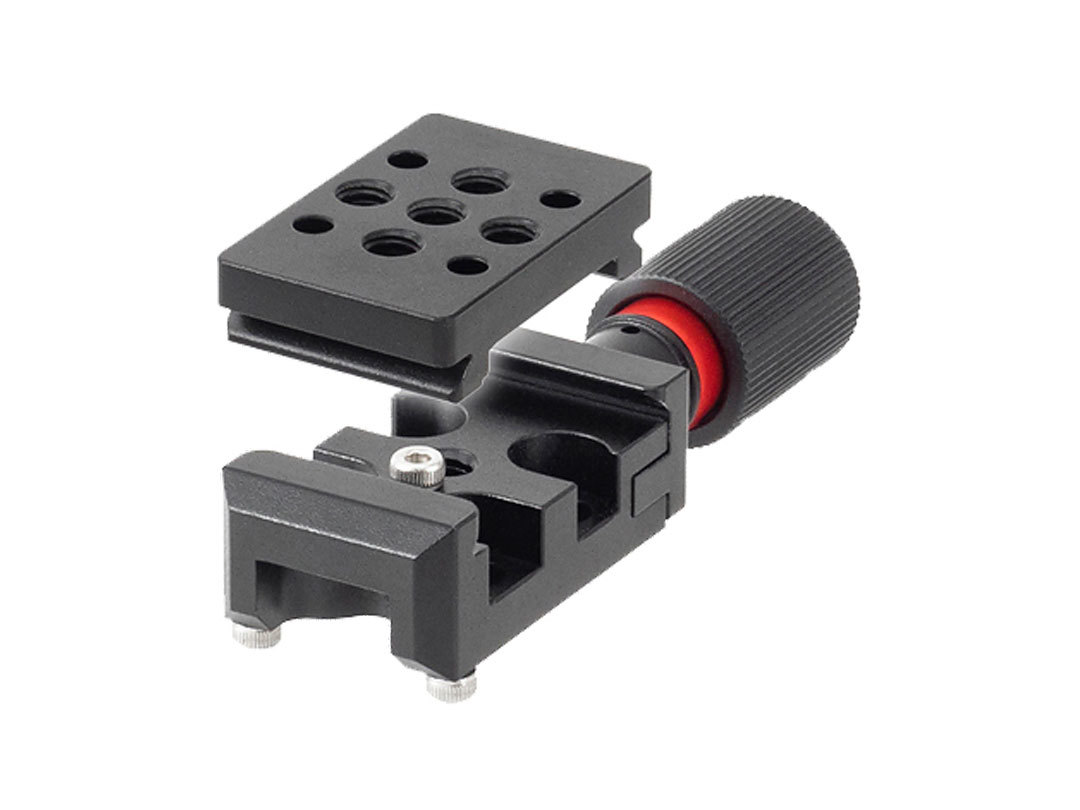

Quick Shoe W27 Set

JAN/EAN code : 4570018120169

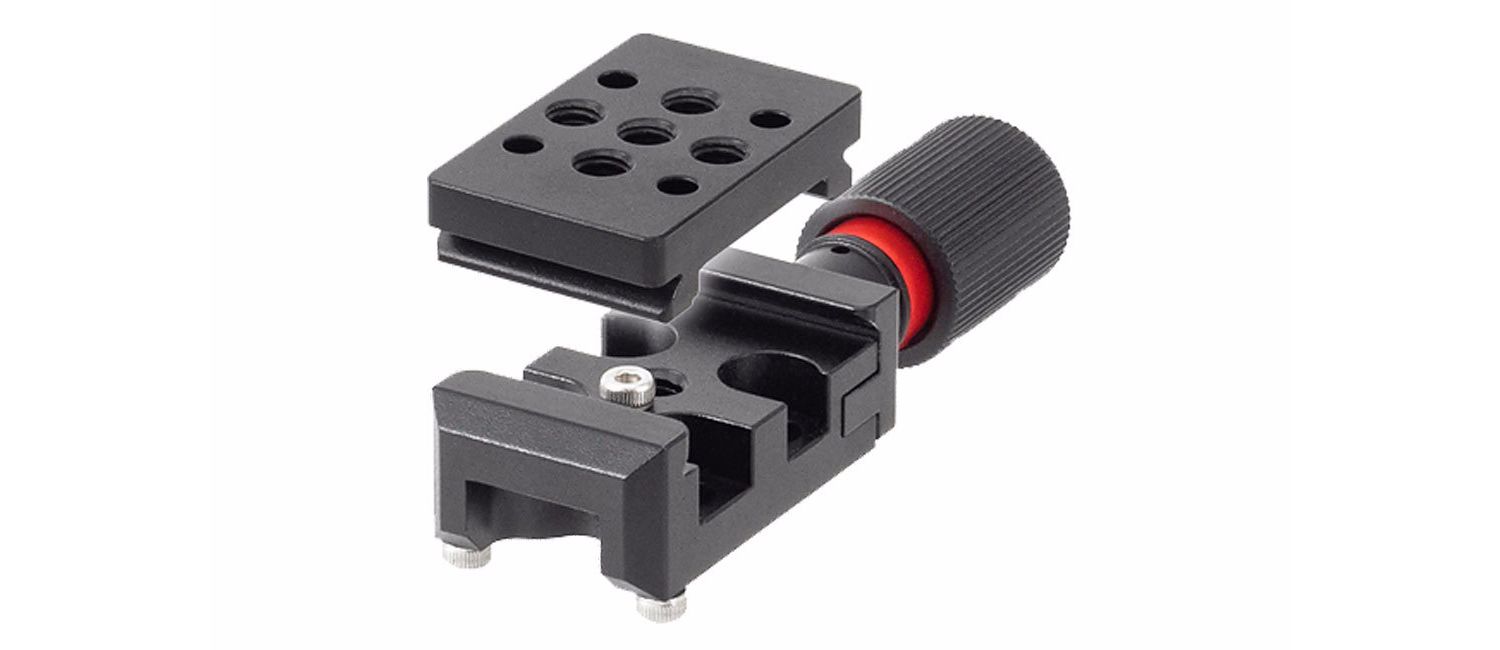

Quick Shoe W27 Set


Quick Shoe W27 Set

Compact Quick Shoe with 27 mm/1.1 inch width. Set of the Quick Shoe W27 Plate and Quick Shoe W27 Clamp.


Dimensions
(W x H x D)
27.5 x 26.2 x 94.8 mm/
1.1 x 1.0 x 3.7 inch
Weight [air] 90 g/3.2 oz
[u/w] Approx. 60 g/2.1 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite

Quick Shoe W27 Set

Compact Quick Shoe with 27 mm/1.1 inch width. Set of the Quick Shoe W27 Plate and Quick Shoe W27 Clamp.


Dimensions
(W x H x D)
27.5 x 26.2 x 94.8 mm/
1.1 x 1.0 x 3.7 inch
Weight [air] 90 g/3.2 oz
[u/w] Approx. 60 g/2.1 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite

Quick Shoe W27 Set

Various arm configurations are available by attaching on the Quick Shoe Main Base, Underwater 3-way Panhead or D5 Holder.

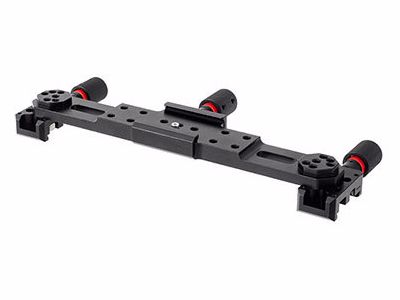

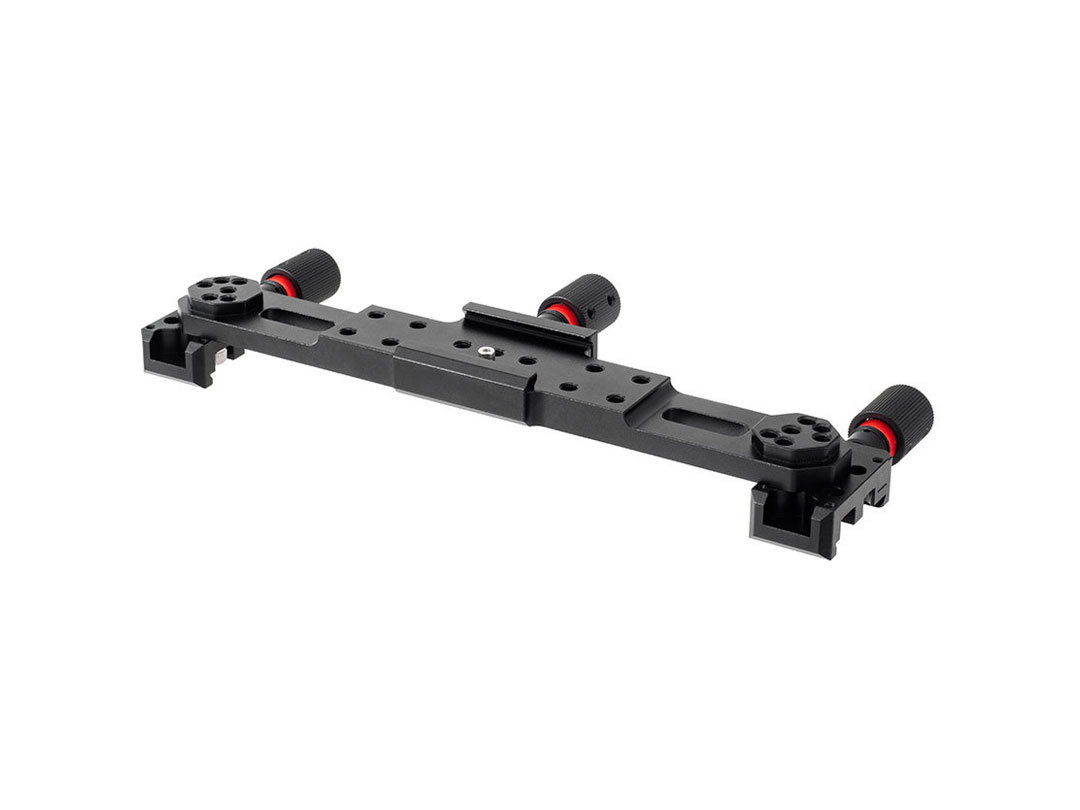

Combination with quick shoe main base
Combination with quick shoe main base

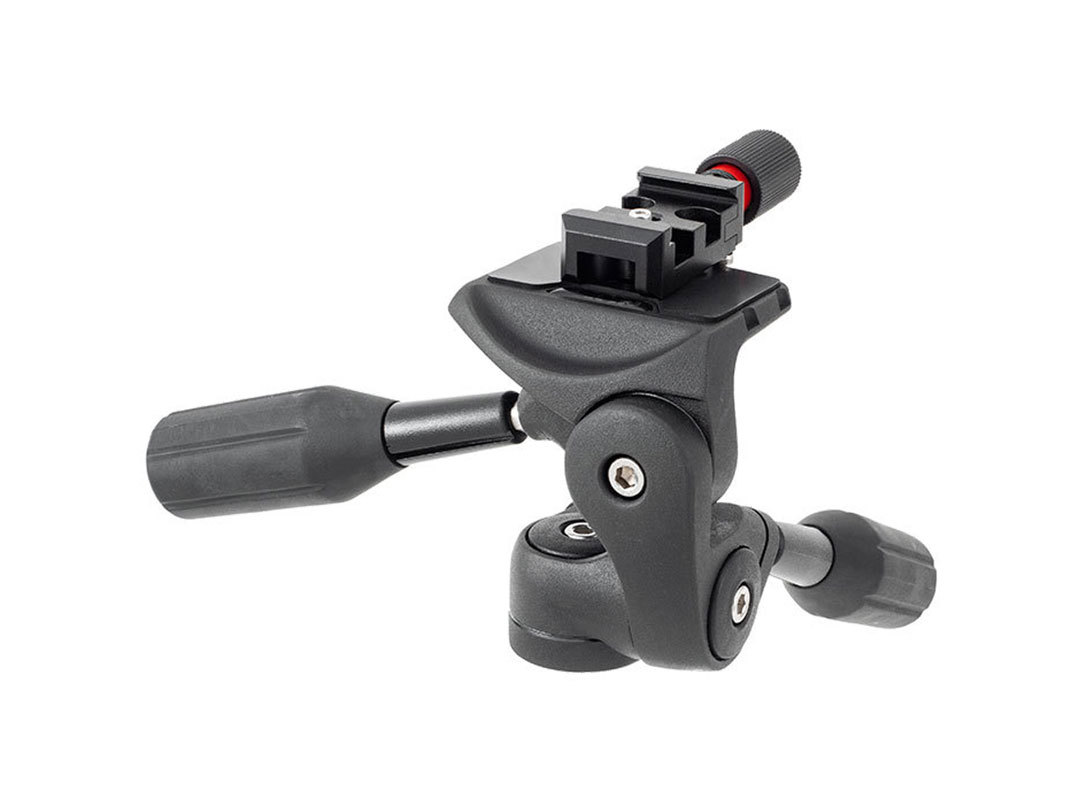

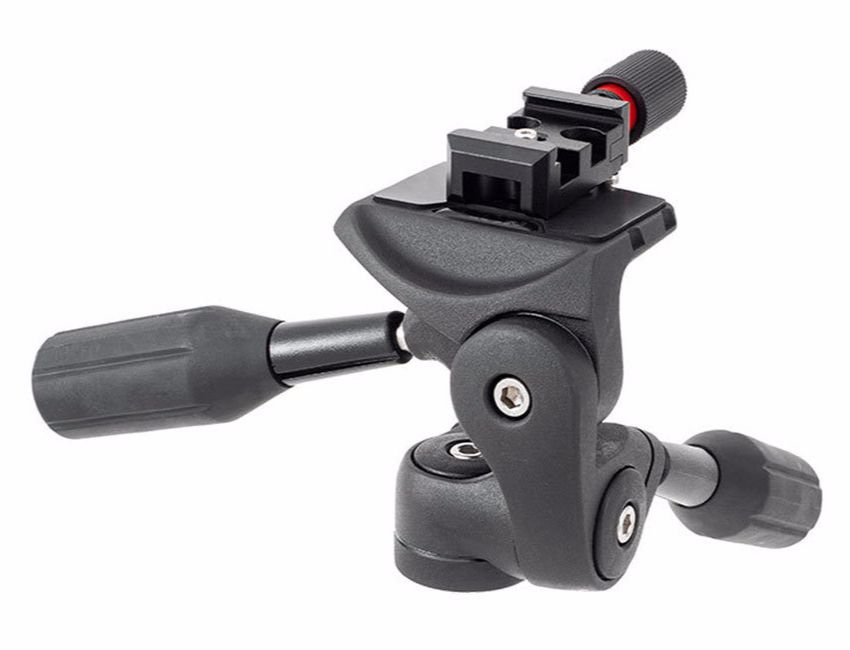

In combination with an underwater 3-way head

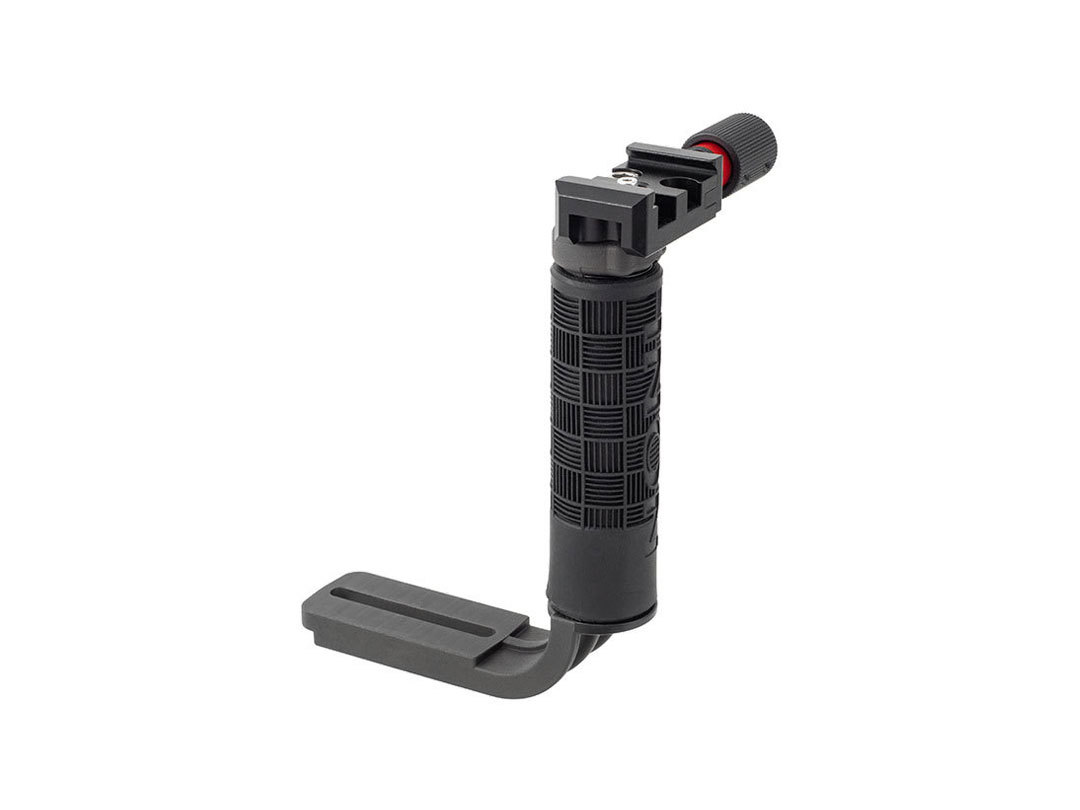

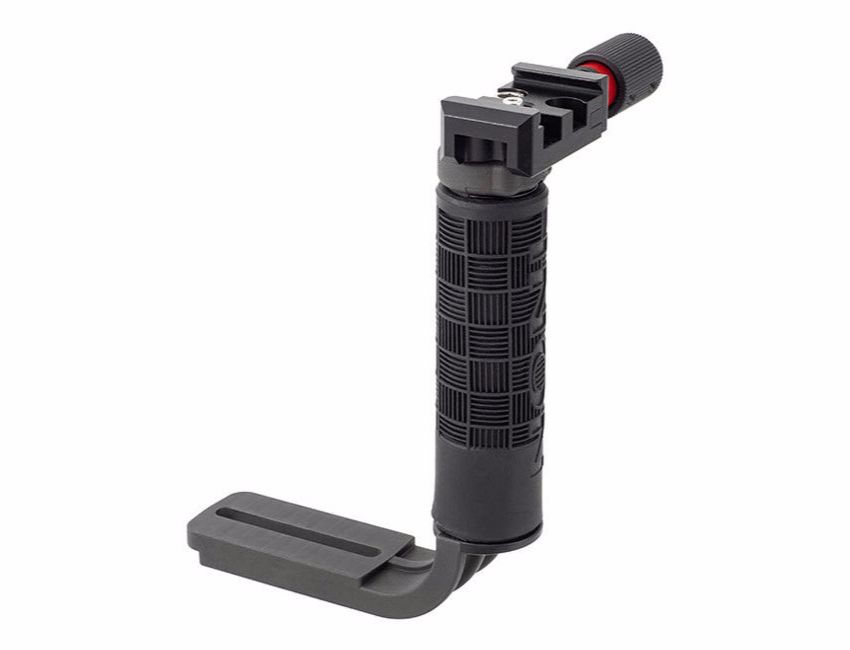

In combination with the D5 holder
Combination with quick shoe main base
Combination with quick shoe main base
In combination with an underwater 3-way head
In combination with the D5 holder

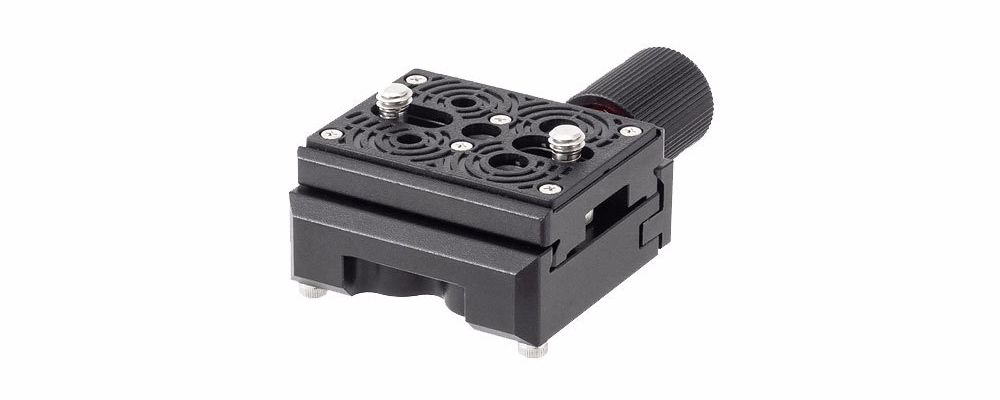

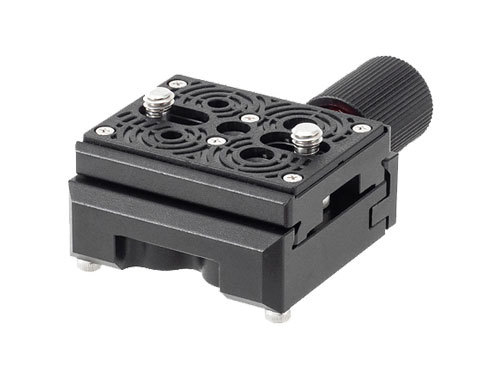

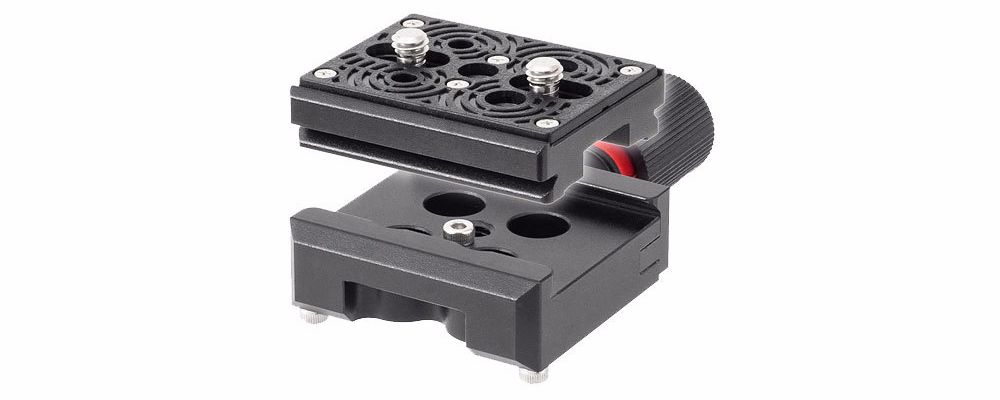

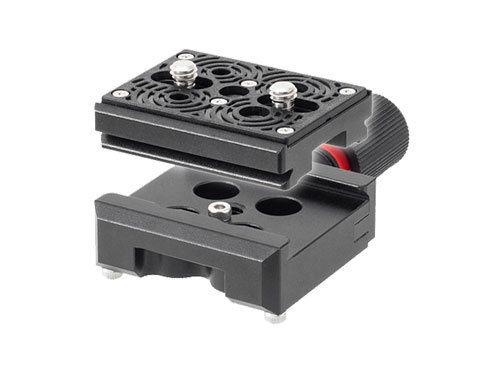

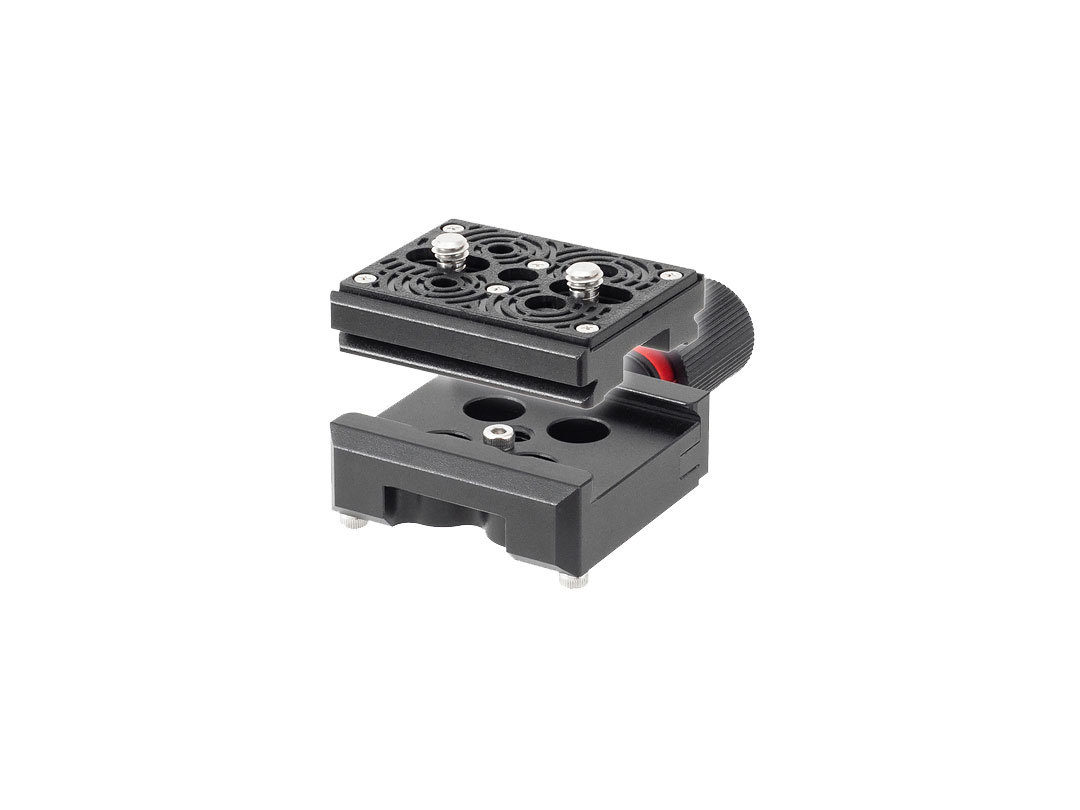

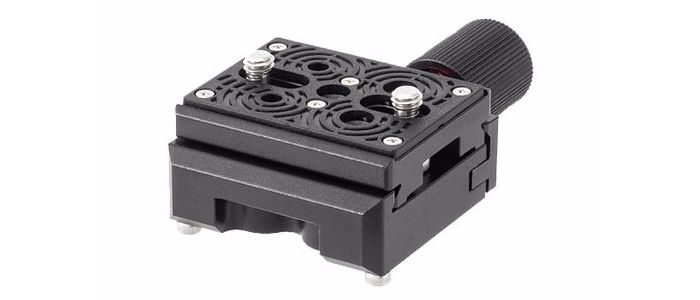

Quick Shoe W50 Set

JAN/EAN code : 4570018120176

Quick Shoe W50 Set

Quick Shoe W50 Set

Standard Quick Shoe with 50 mm/2.0 inch width. Set of the Quick Shoe W50 Plate and Quick Shoe W50 Clamp.


Dimensions
(W x H x D)
50 x 28.3 x 94.8 mm/
2.0 x 1.1 x 3.7 inch
Weight [air] 146 g/5.1 oz
[u/w] Approx. 96g/3.4 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite, ABS etc.

Quick Shoe W50 Set

Standard Quick Shoe with 50 mm/2.0 inch width. Set of the Quick Shoe W50 Plate and Quick Shoe W50 Clamp.


Dimensions
(W x H x D)
50 x 28.3 x 94.8 mm/
2.0 x 1.1 x 3.7 inch
Weight [air] 146 g/5.1 oz
[u/w] Approx. 96g/3.4 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite, ABS etc.

Quick Shoe W50 Set

Various arm configurations are available by attaching on the Quick Shoe Main Base, Underwater 3-way Panhead or D5 Holder.

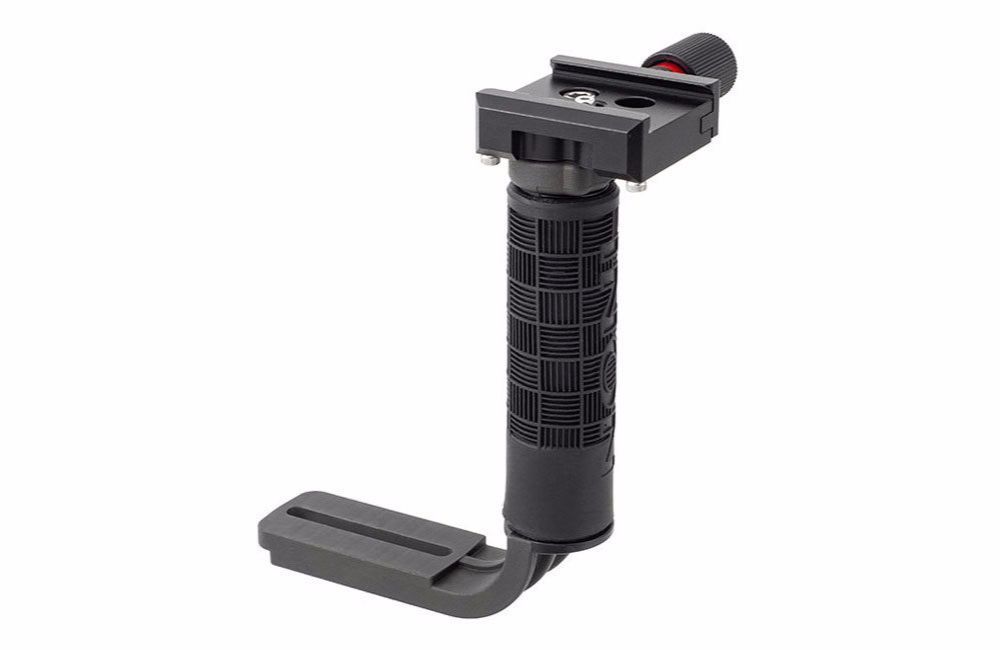

Designed to combine with the Grip Base D5, Underwater 3-way Panhead or D5 Holder.

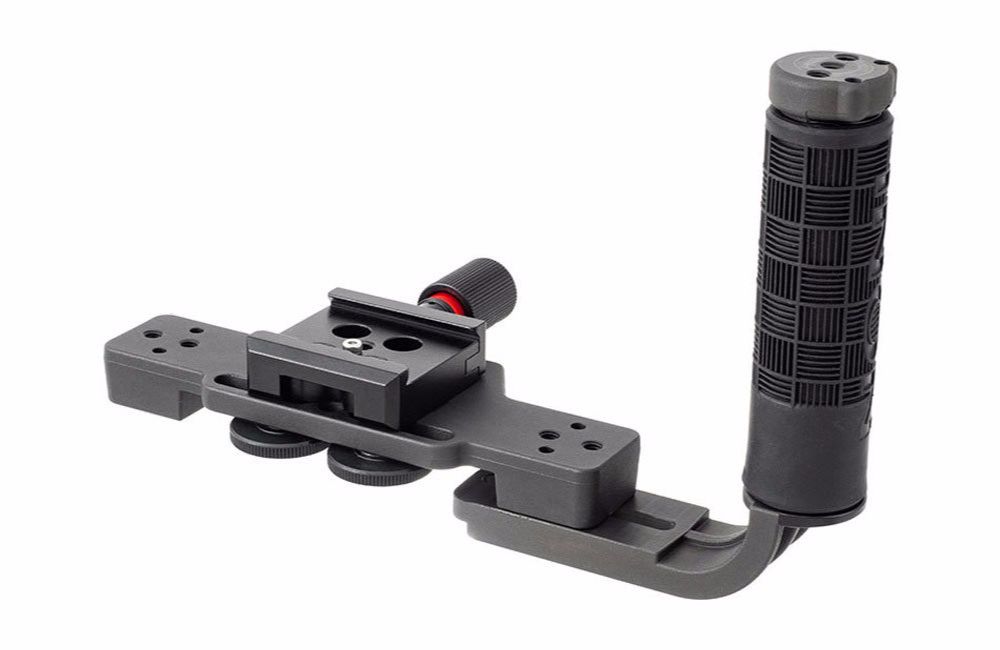

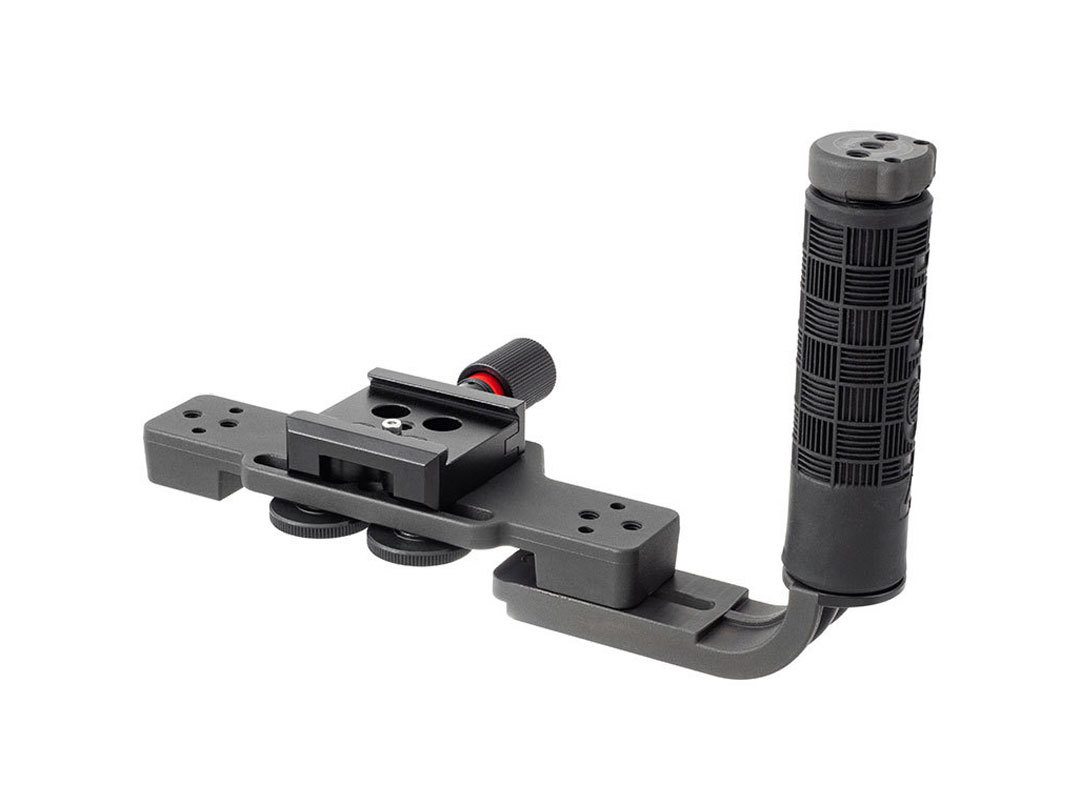

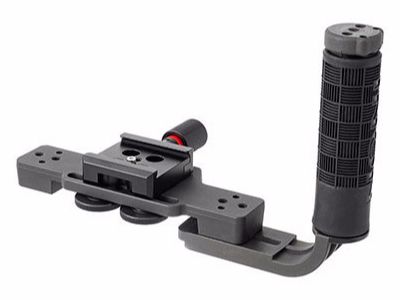

In combination with Grip Base D5

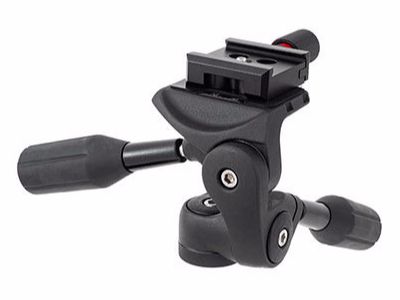

In combination with an underwater 3-way head

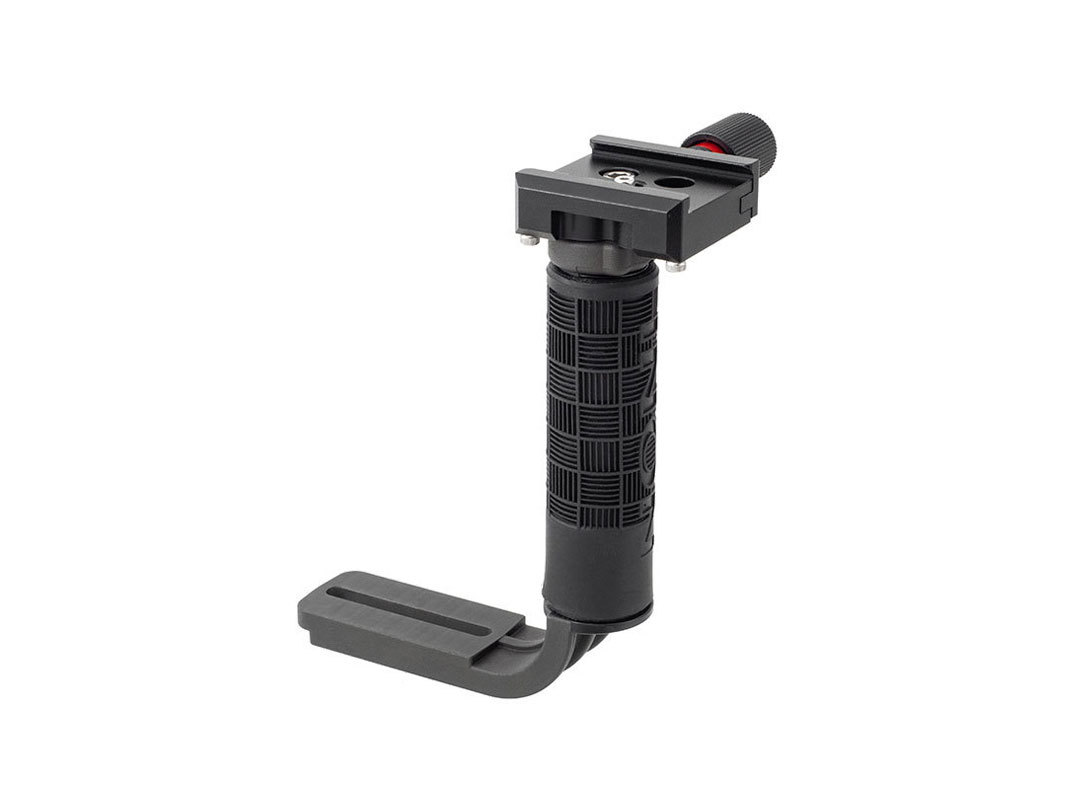

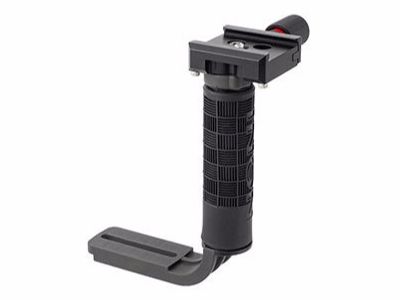

In combination with the D5 holder
In combination with Grip Base D5
In combination with an underwater 3-way head
In combination with the D5 holder
page top

Quick Shoe Plate

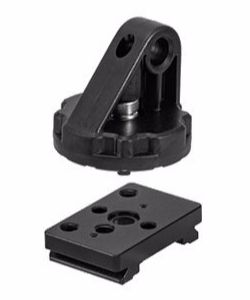

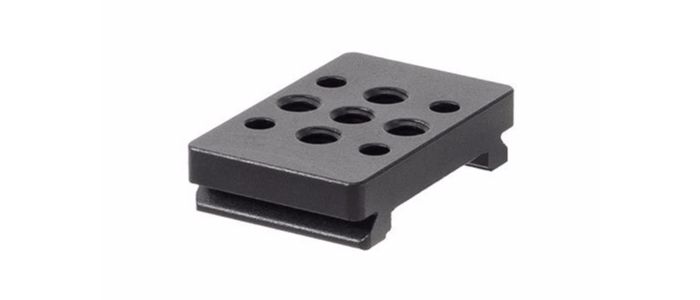

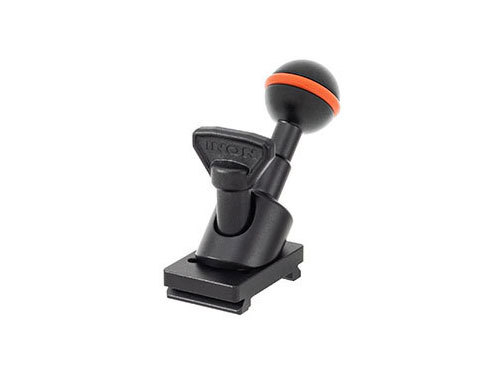

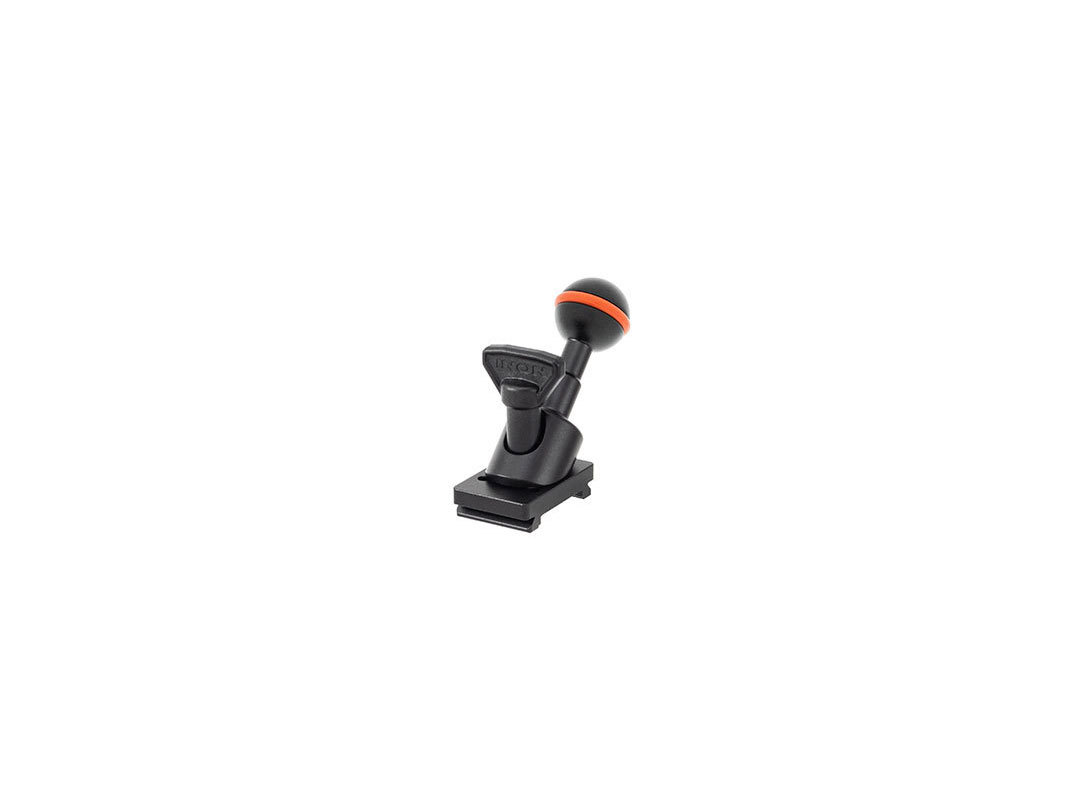

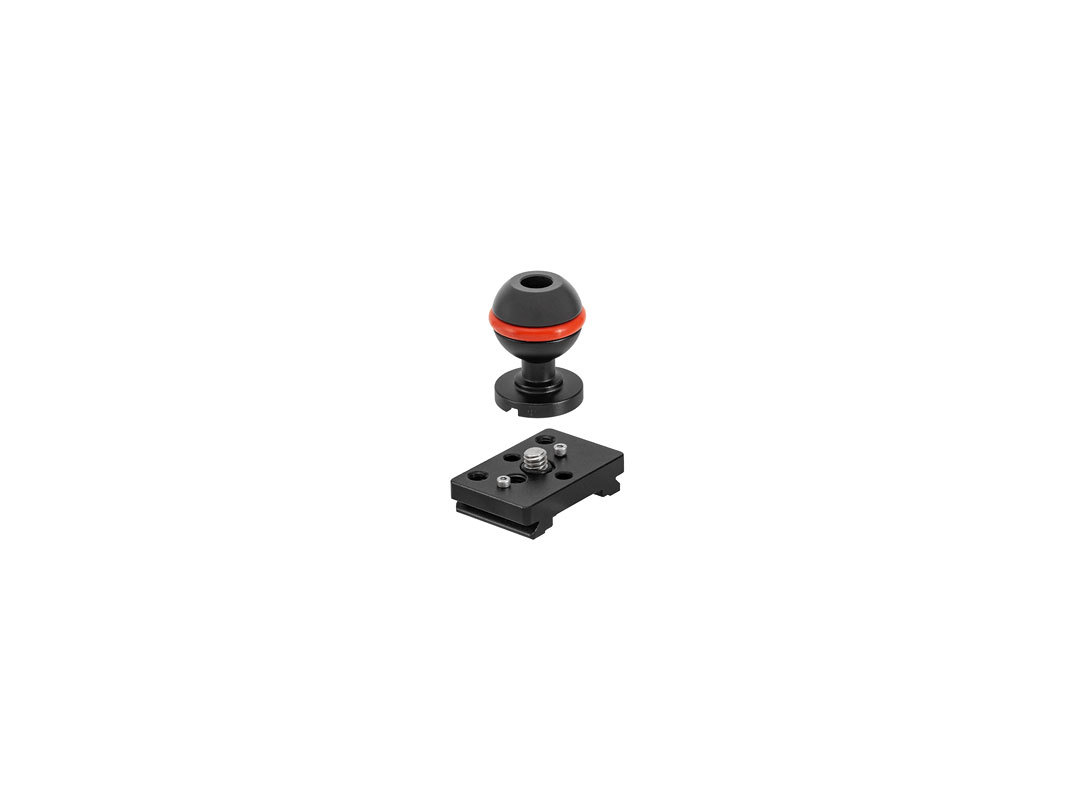

Quick Shoe W27 Plate

JAN/EAN code : 4562121439801

Quick Shoe W27 Plate

Compact Quick Shoe plate with 27 mm/1.1 inch width. Designed to use with the Quick Shoe W27 Clamp.


Dimensions
(W x H x D)
27.5 x 10.5 x 42 mm/
1.1 x 0.4 x 1.7 inch
Weight [air] 20 g/0.7 oz
[u/w] Approx. 12 g/0.4 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite

Quick Shoe W27 Plate

Compact Quick Shoe plate with 27 mm/1.1 inch width. Designed to use with the Quick Shoe W27 Clamp.


Dimensions
(W x H x D)
27.5 x 10.5 x 42 mm/
1.1 x 0.4 x 1.7 inch
Weight [air] 20 g/0.7 oz
[u/w] Approx. 12 g/0.4 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite

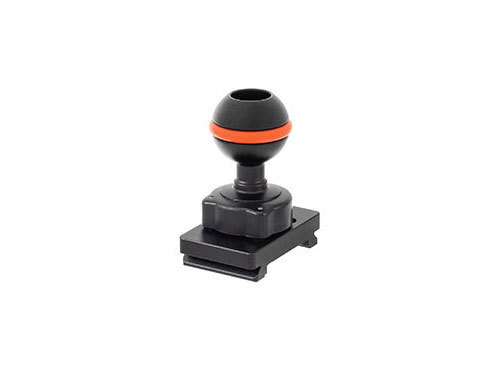

Various adapters and arms can be attached to the plate section.

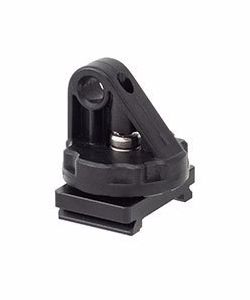

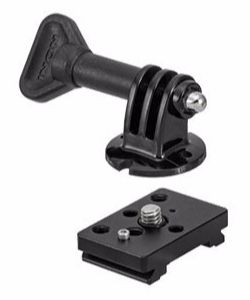

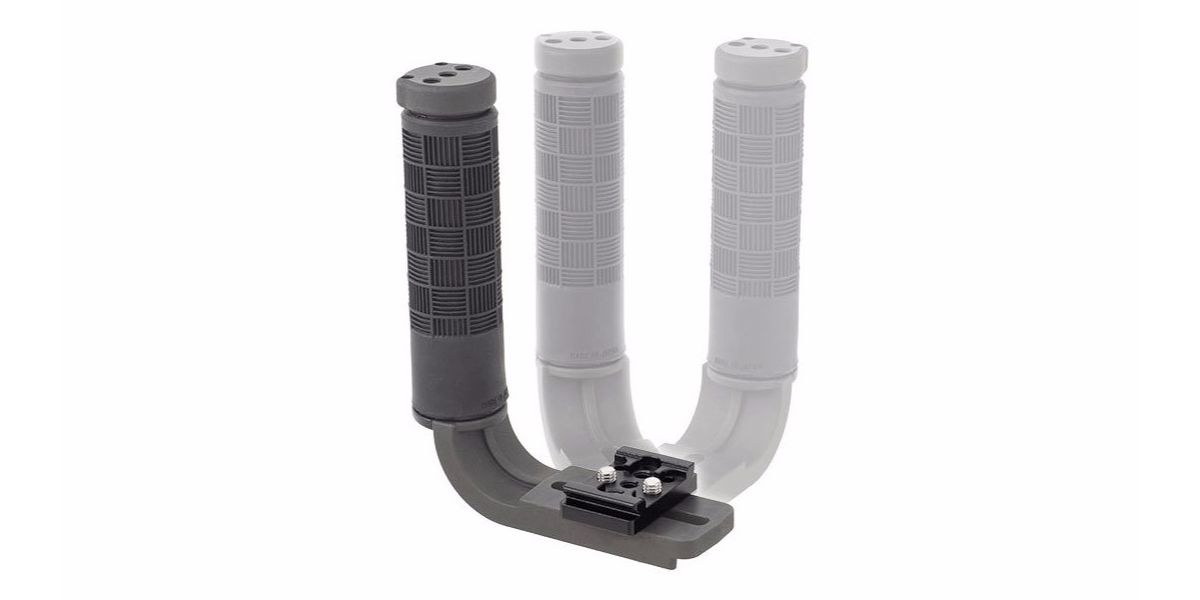

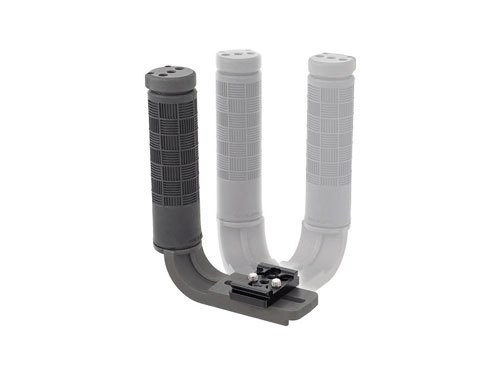

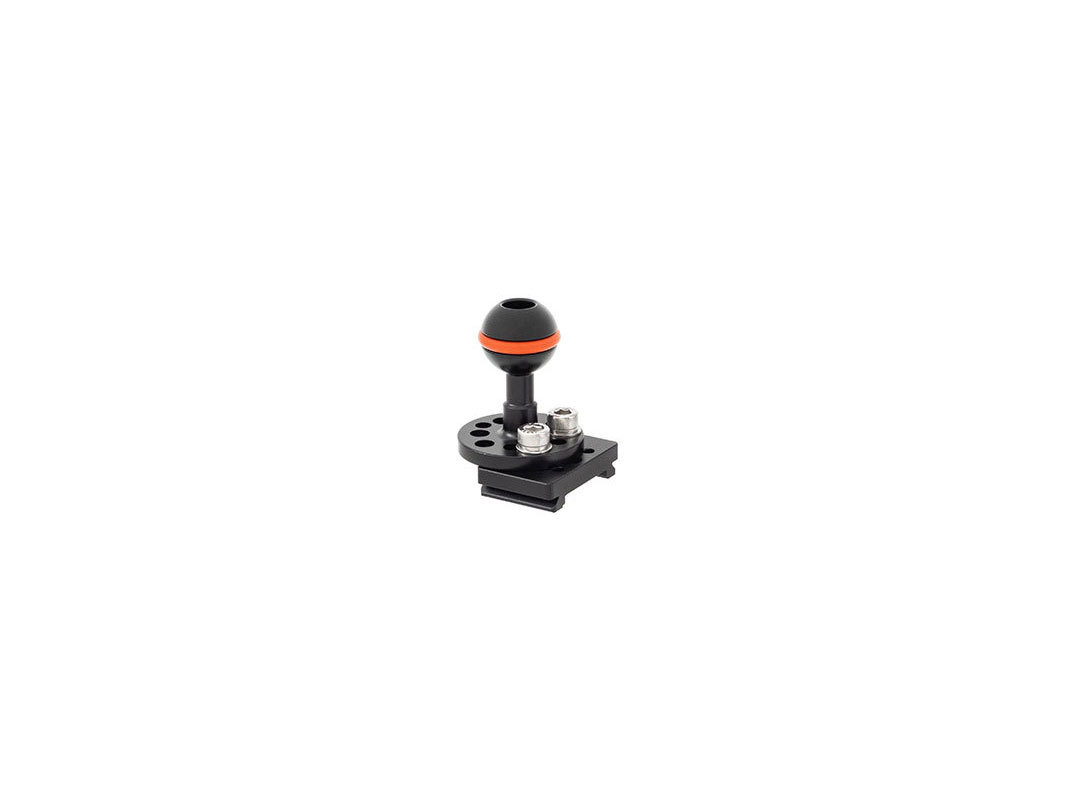

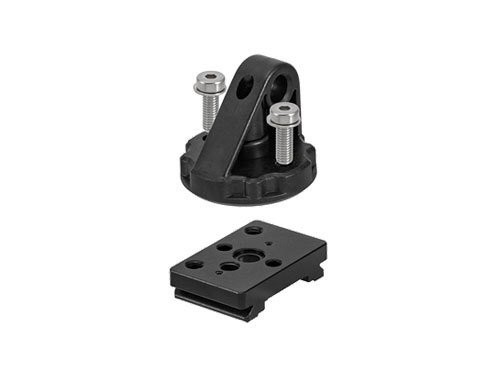

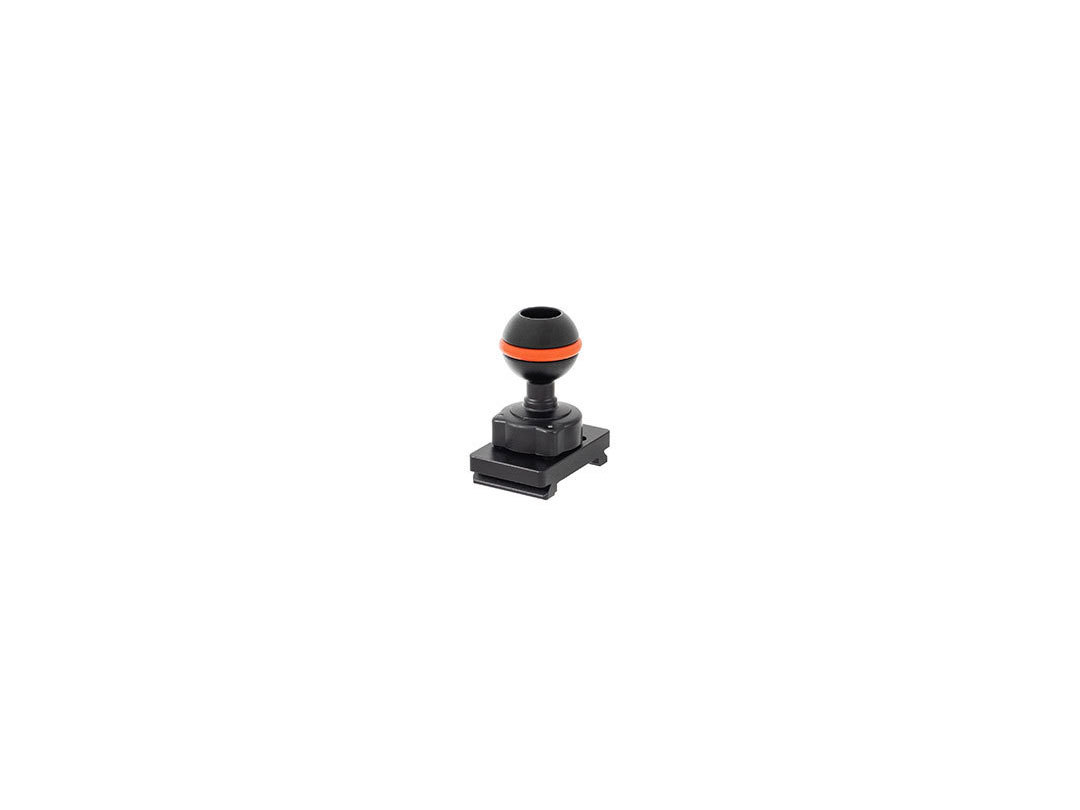

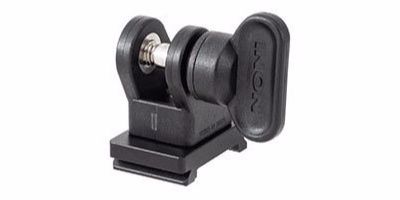

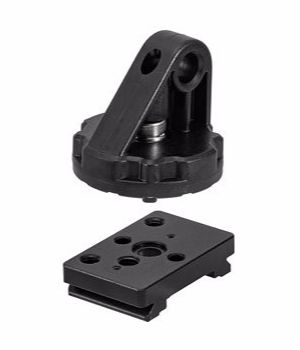

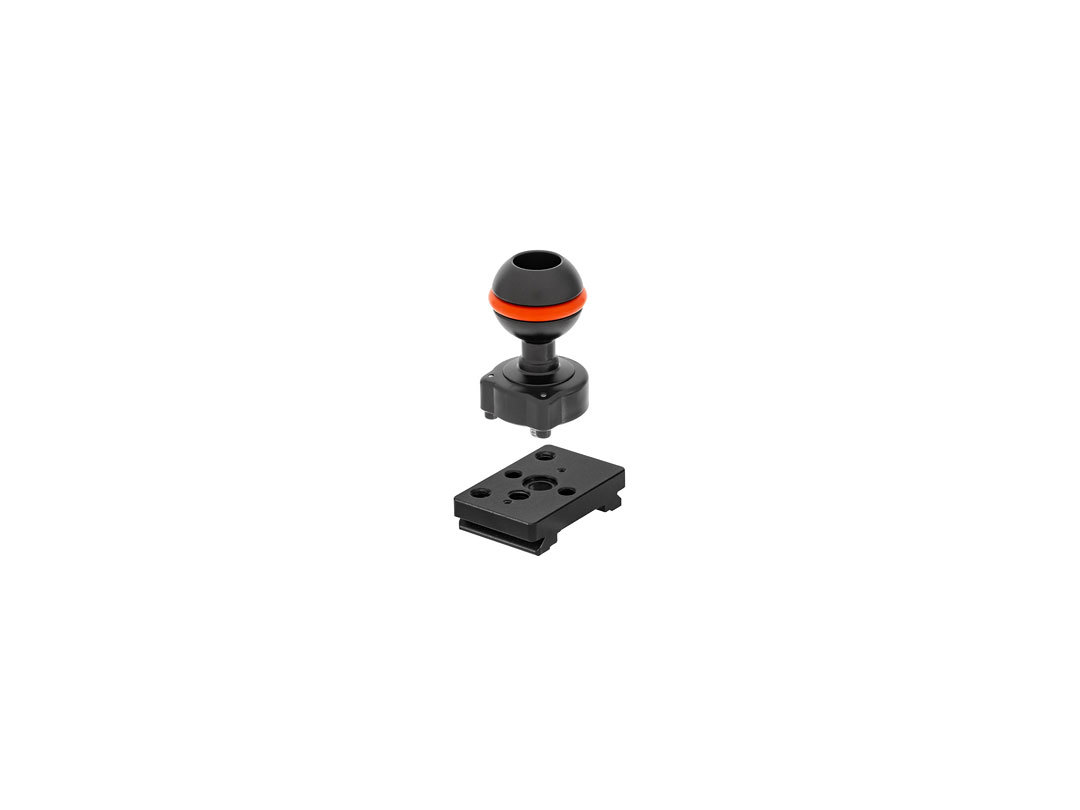

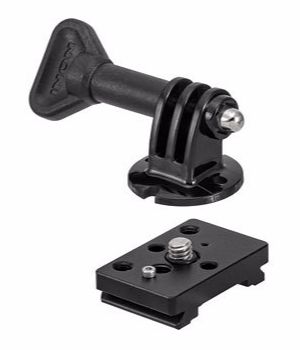

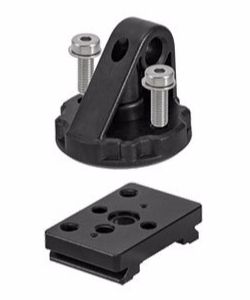

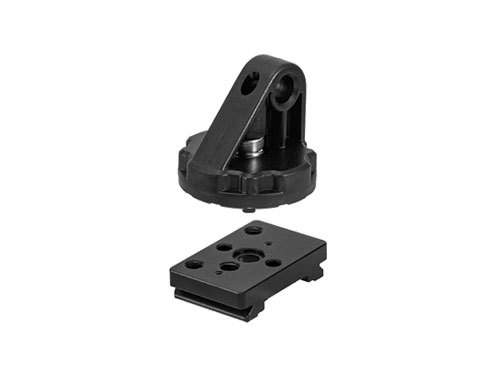

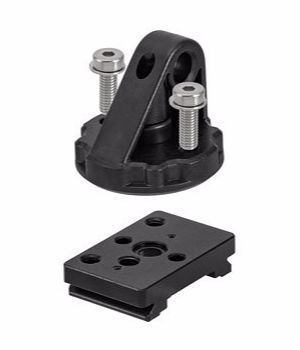

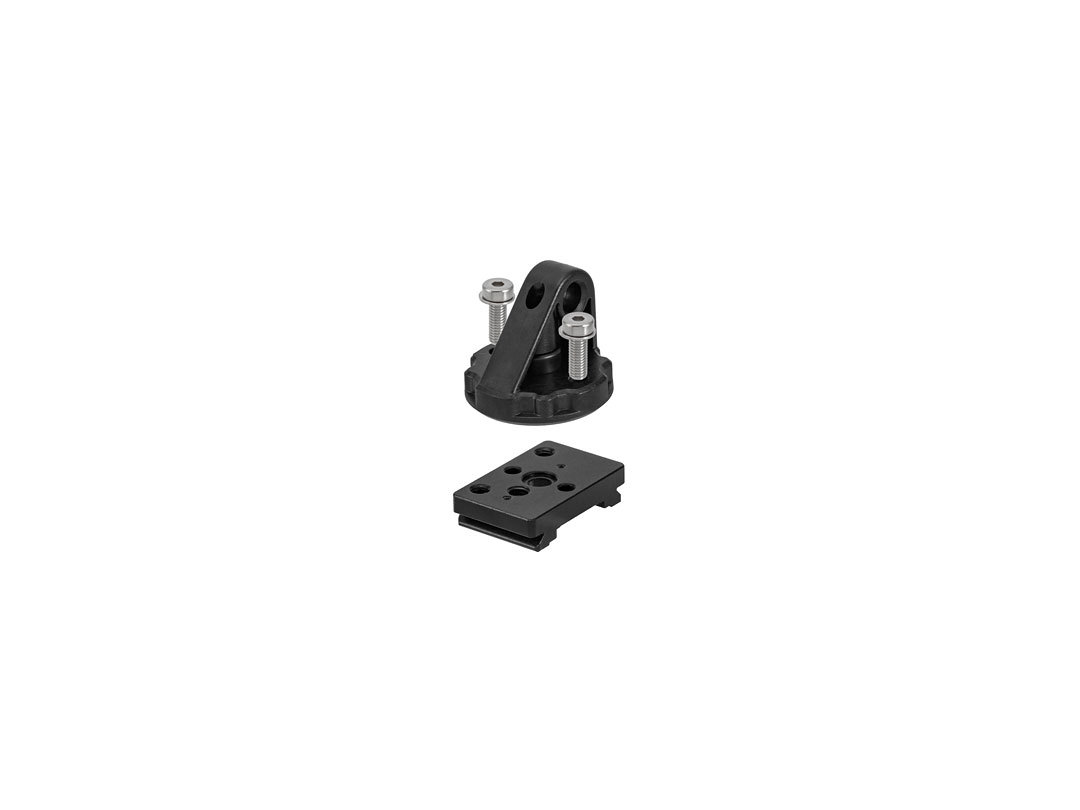

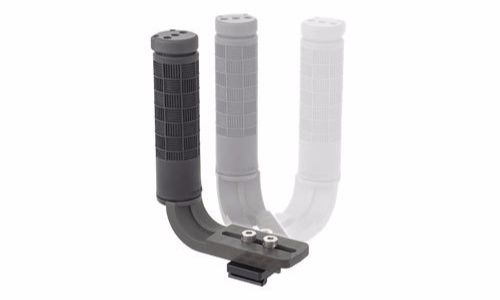

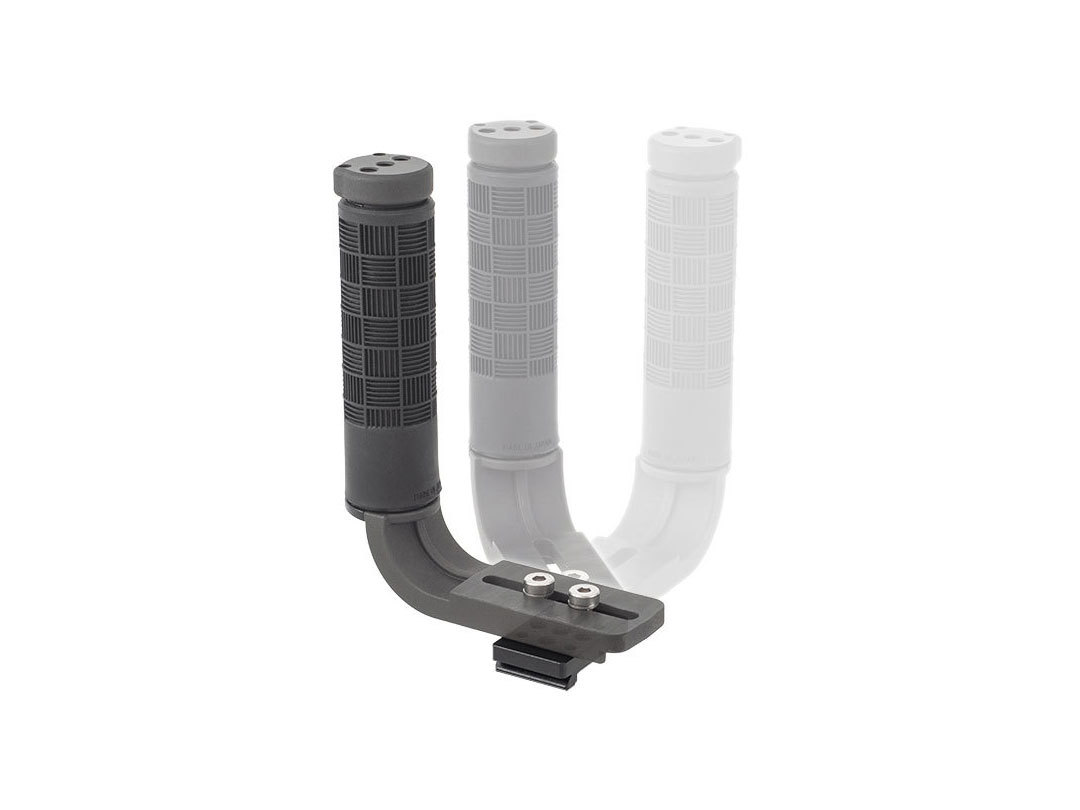

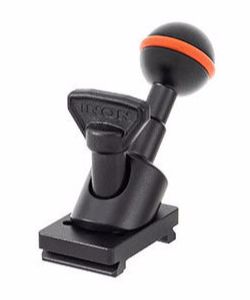

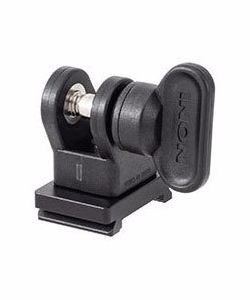

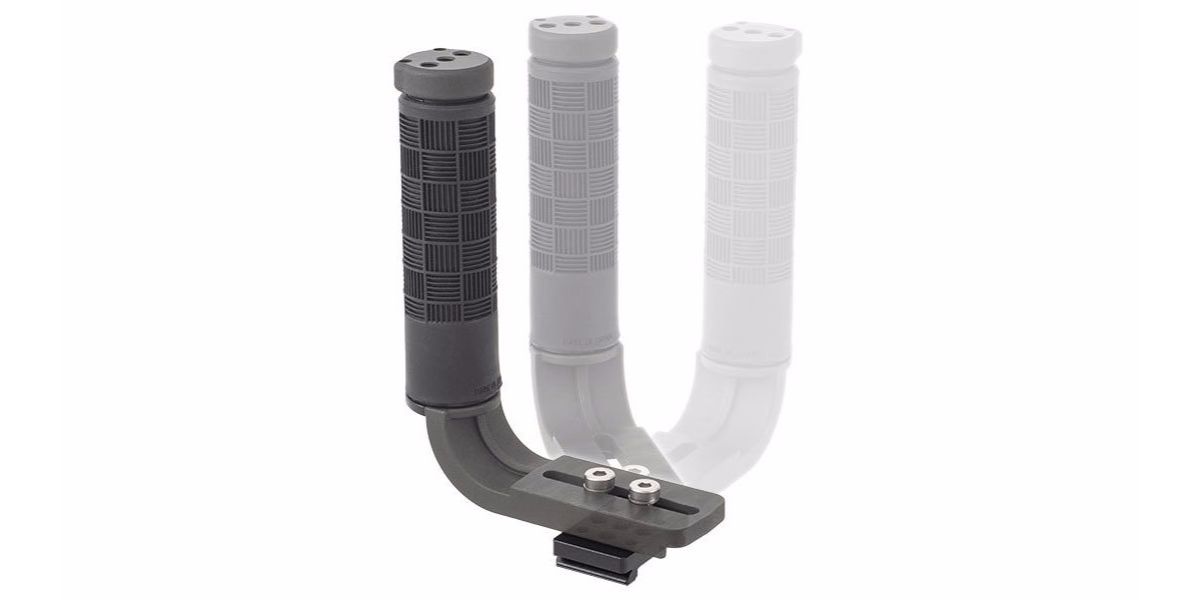

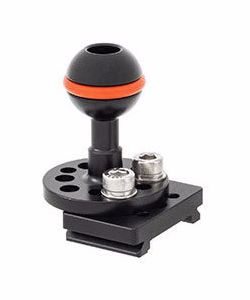

Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example

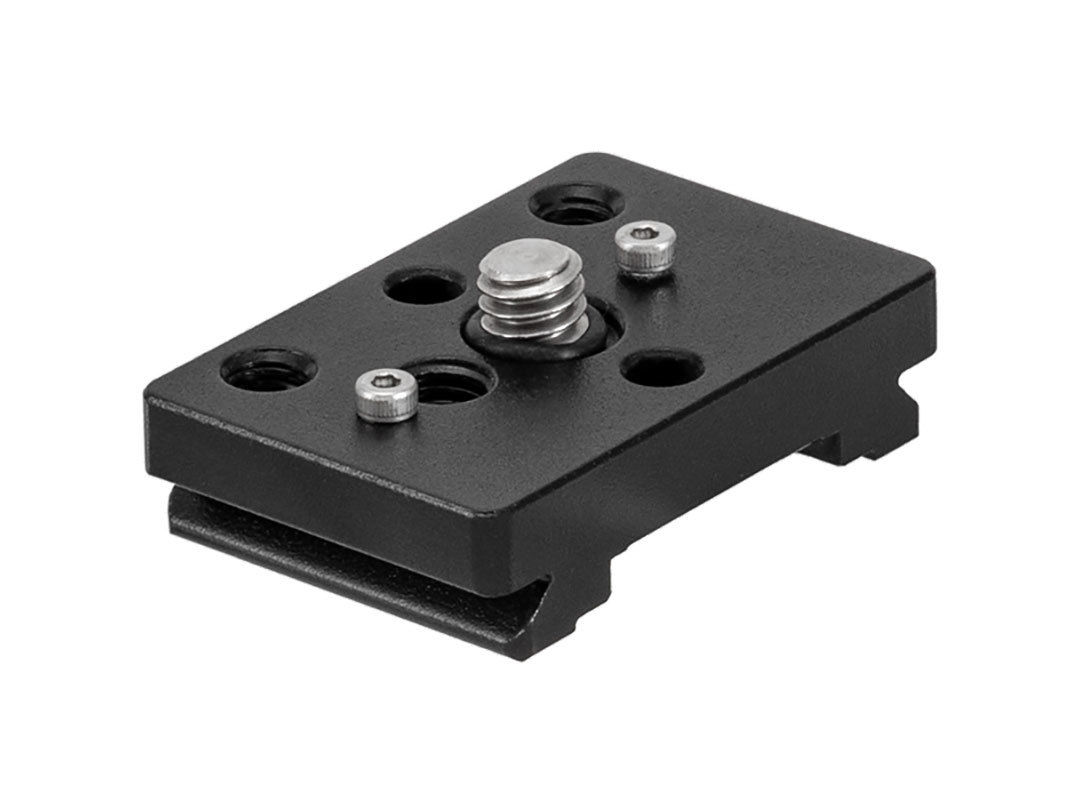

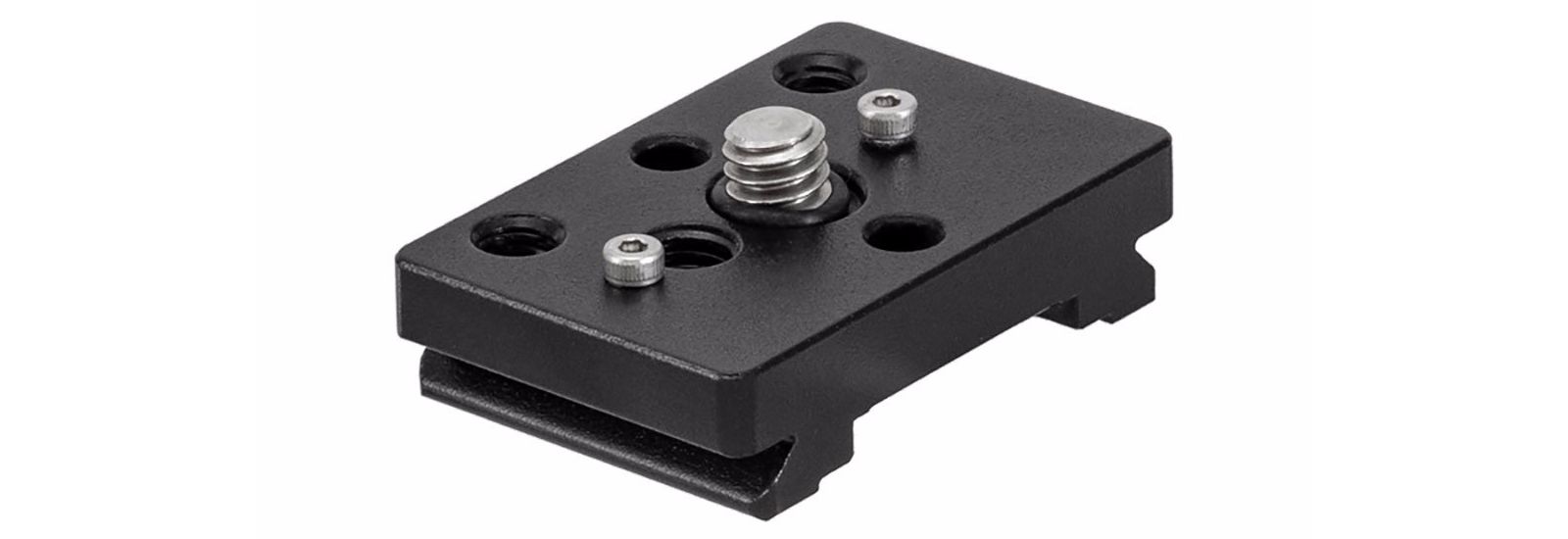

Quick Shoe W27 Plate UWTP-QB1

JAN/EAN code : 4570018121173

Quick Shoe W27 Plate  UWTP-QB1

Comes with the Quick Shoe Ballhead UWTP-QB1. Approximately 27mm wide Quick Shoe plate equipped with a 1/4-20 UNC standard screw in the center.


Dimensions
(W x H x D)
27.5 x 15.5 x 42.0 mm/
1.0 x 0.6 x 1.6 inch
Weight [air]25 g/0.9 oz
[u/w] Approx.17 g/0.6 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite

Quick Shoe W27 Plate  UWTP-QB1

Comes with the Quick Shoe Ballhead UWTP-QB1. Approximately 27mm wide Quick Shoe plate equipped with a 1/4-20 UNC standard screw in the center.

Dimensions
(W x H x D)
27.5 x 15.5 x 42.0 mm/
x x inch
Weight [air]25 g/ oz
[u/w] Approx.17 g/ oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite

Various arms can be mounted as shown below.

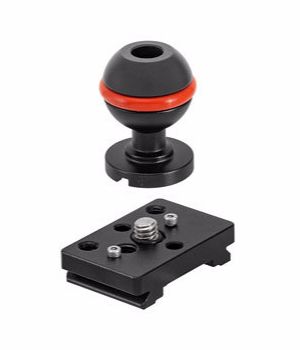

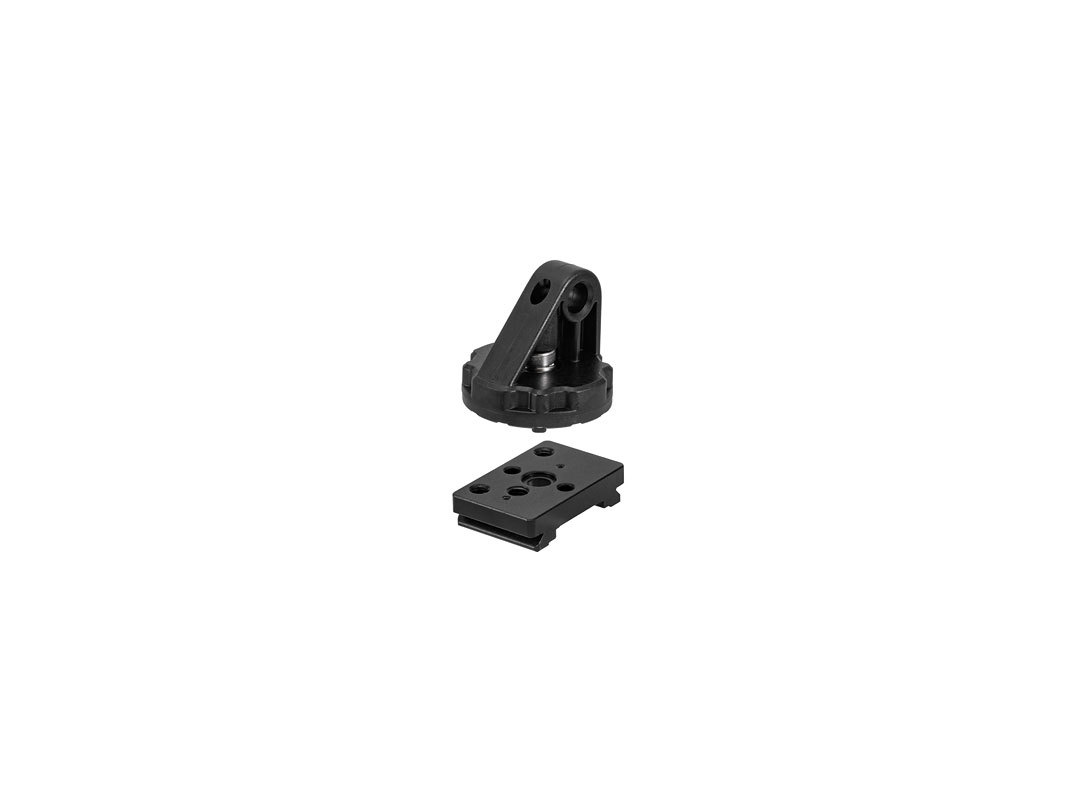

Quick Shoe W27 Plate UWTP-QB1
Quick Shoe W27 Plate UWTP-QB1
Quick Shoe W27 Plate UWTP-QB1
Quick Shoe W27 Plate UWTP-QB1
Quick Shoe W27 Plate UWTP-QB1
Quick Shoe W27 Plate UWTP-QB1
Quick Shoe W27 Plate UWTP-QB1
Quick Shoe W27 Plate UWTP-QB1
Quick Shoe W27 Plate UWTP-QB1
Quick Shoe W27 Plate UWTP-QB1

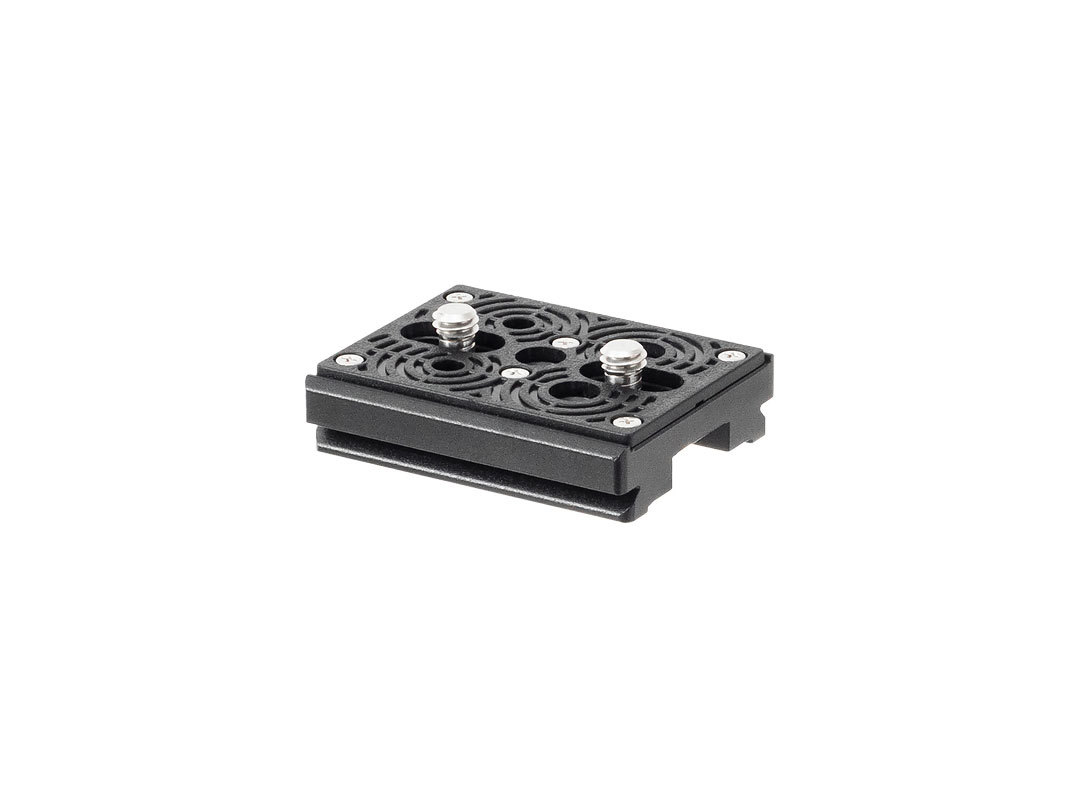

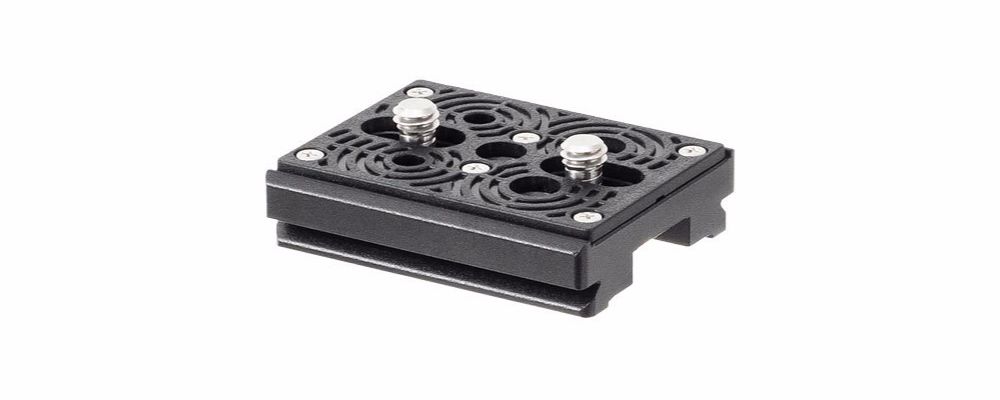

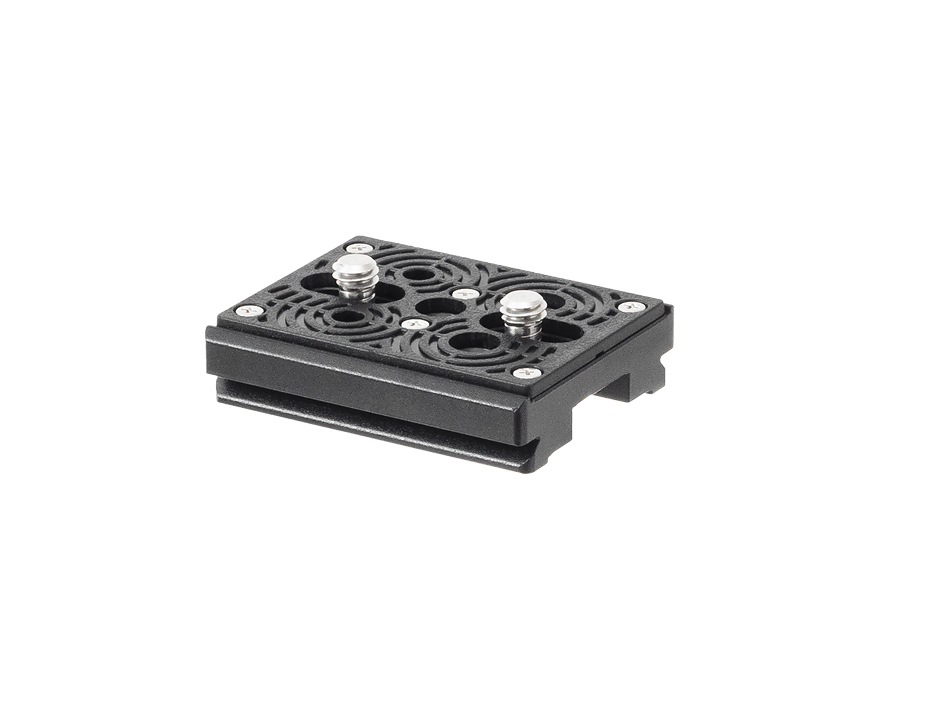

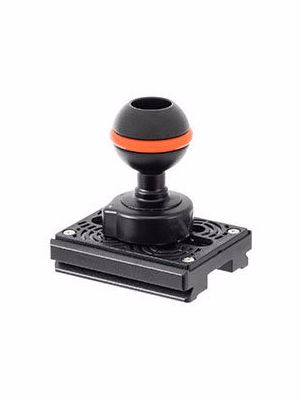

Quick Shoe W50 Plate

JAN/EAN code : 4562121439818

Quick Shoe W50 Plate

Standard Quick Shoe plate with 50 mm/2.0 inch width. Designed to use with the Quick Shoe W50 Clamp.


Dimensions
(W x H x D)
50 x 12.5 x 42.0 mm/
2.0 x 0.5 x 1.7 inch
Weight [air]45 g/1.6 oz
[u/w] Approx.29 g/1.0 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite, ABS etc.

Quick Shoe W50 Plate

Standard Quick Shoe plate with 50 mm/2.0 inch width. Designed to use with the Quick Shoe W50 Clamp.


Dimensions
(W x H x D)
50.0 x 12.5 x 42.0 mm/
2.0 x 0.5 x 1.7 inch
Weight [air]45 g/1.6 oz
[u/w] Approx.29 g/1.0 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite, ABS etc.

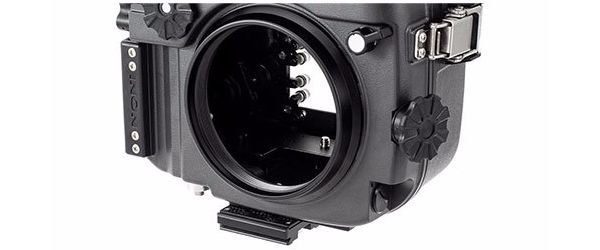

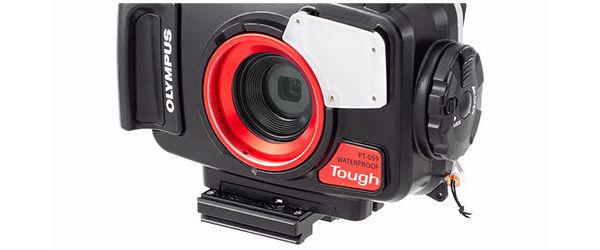

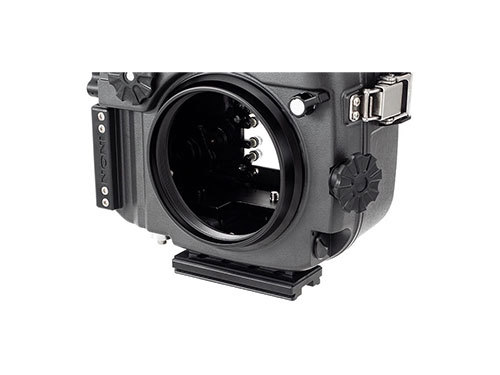

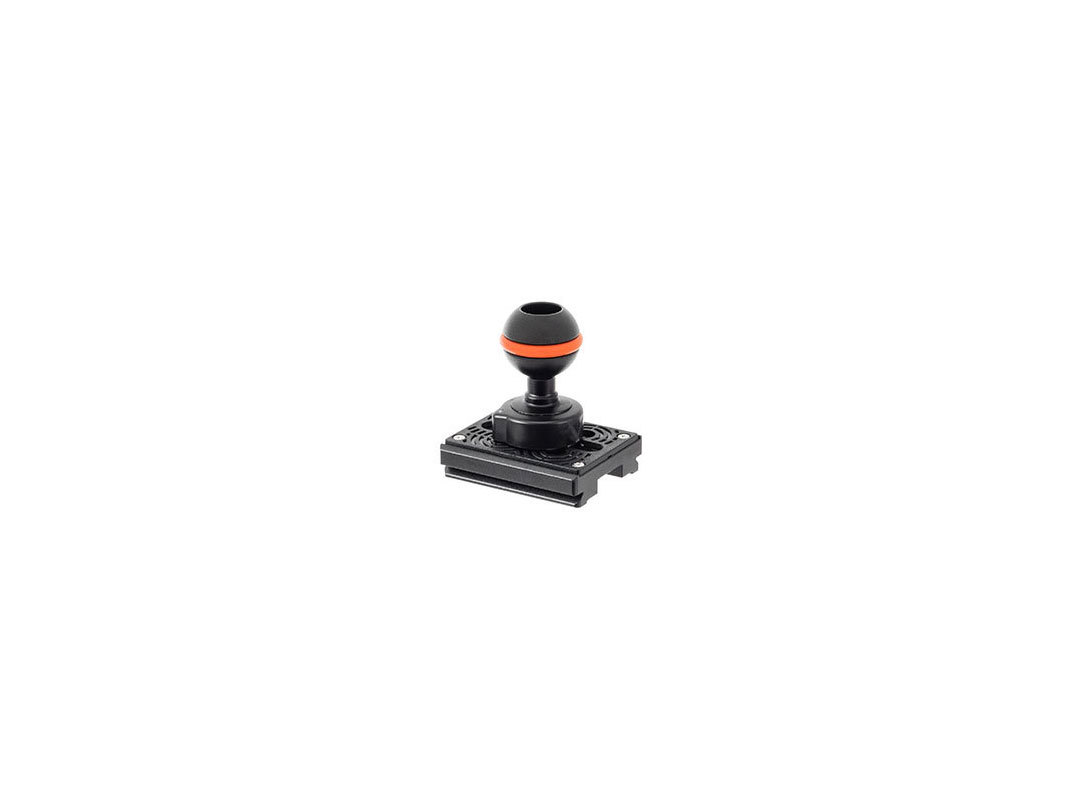

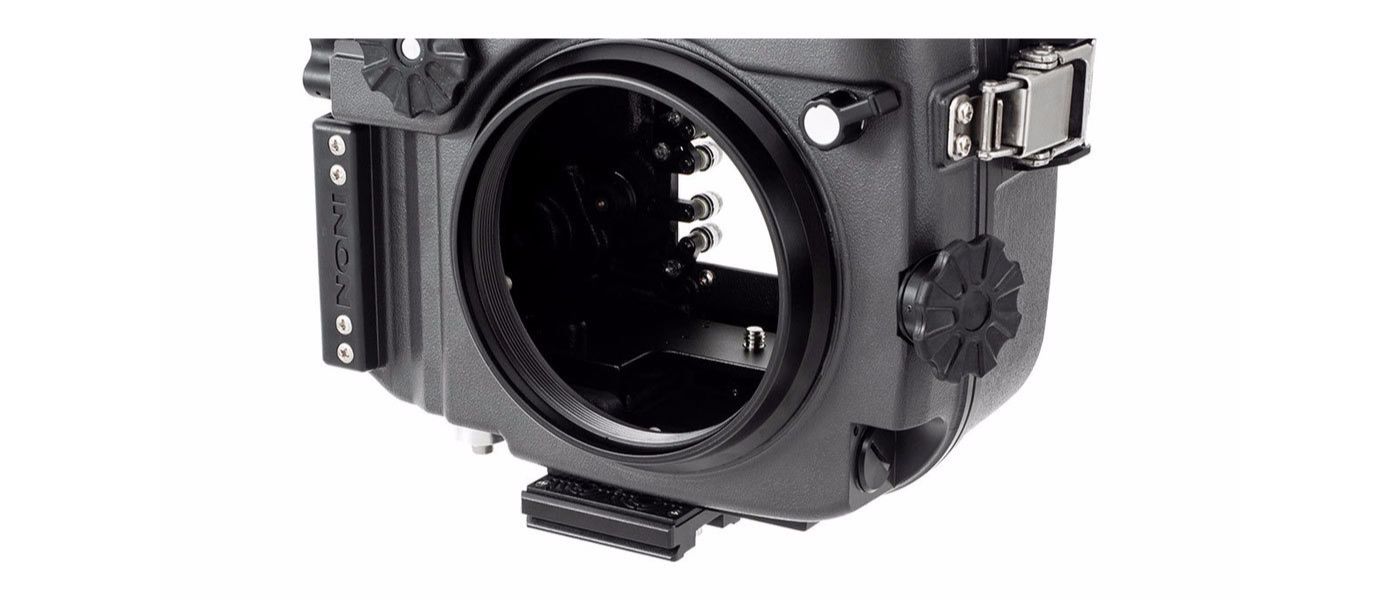

The W50 Plate can be attached to a housing with 20 mm/0.8 inch to 36 mm/1.4 inch between tripod screw holes, and a variety of adapters are also attachable other than a housing.

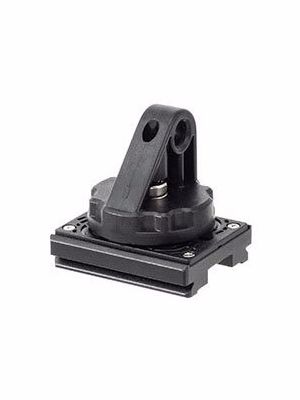

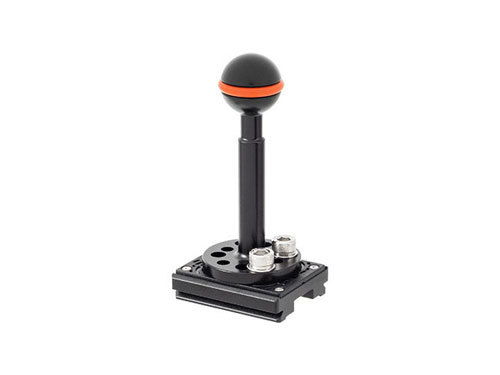

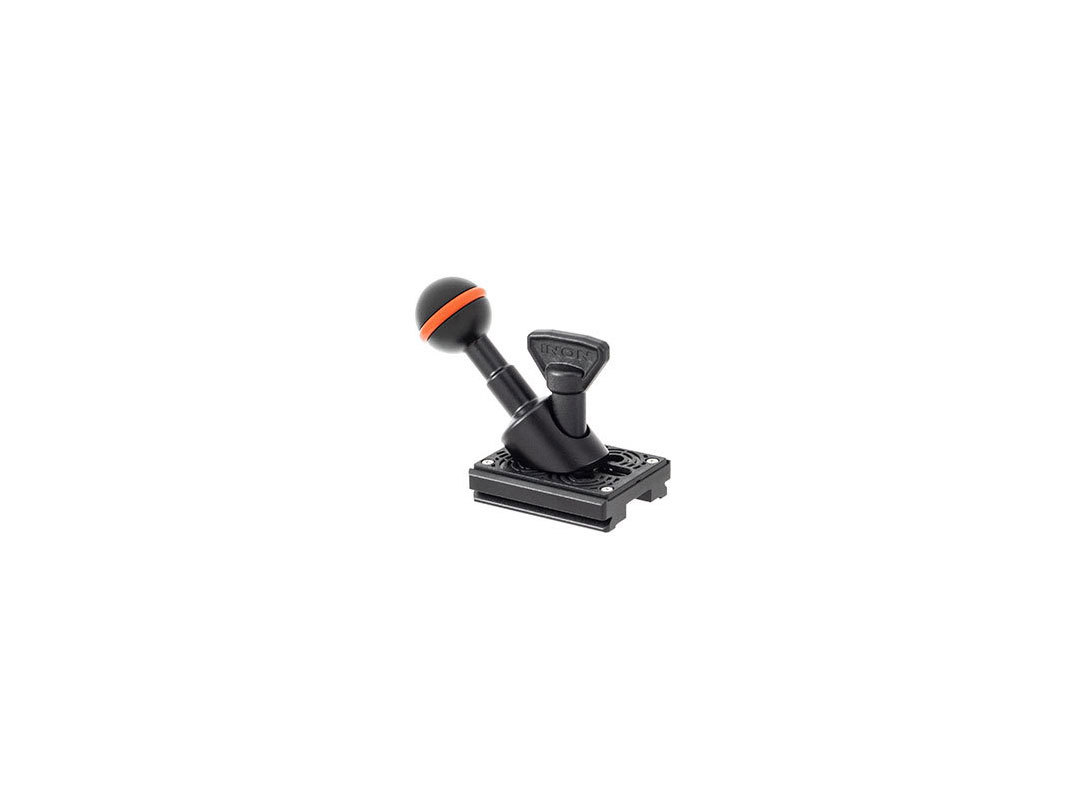

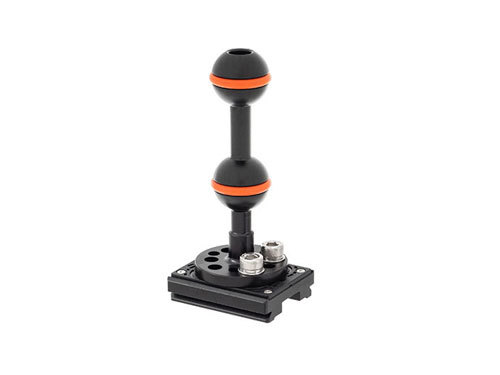

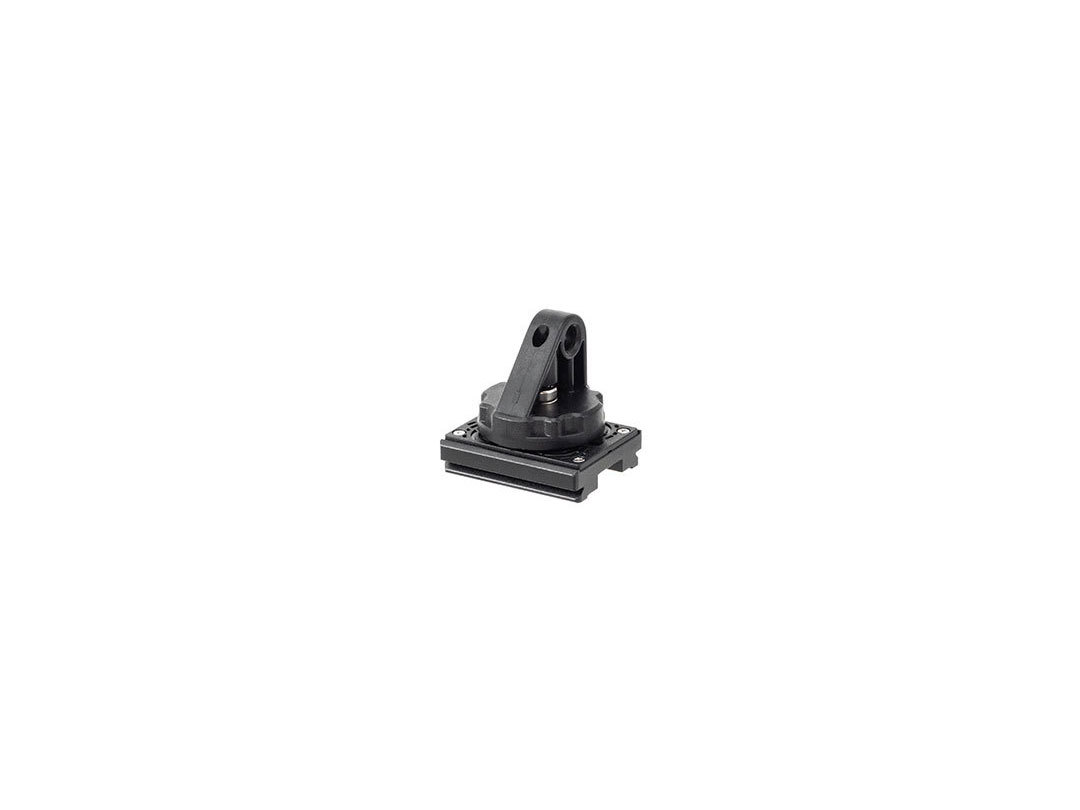

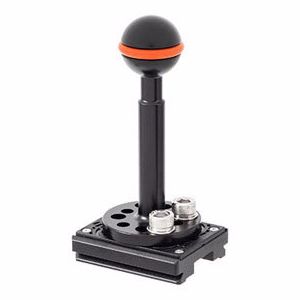

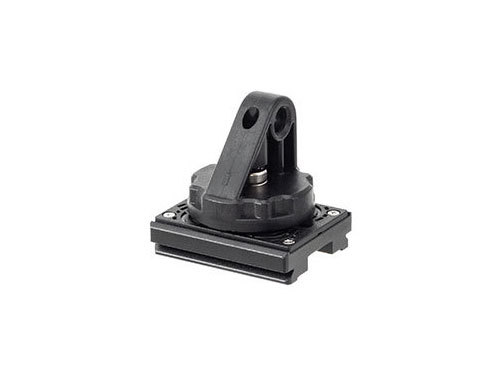

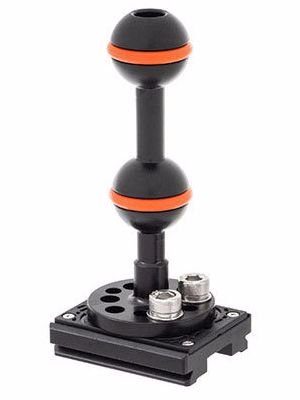

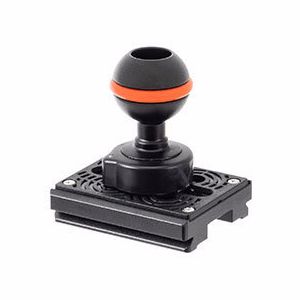

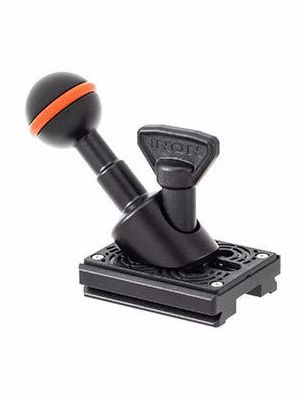

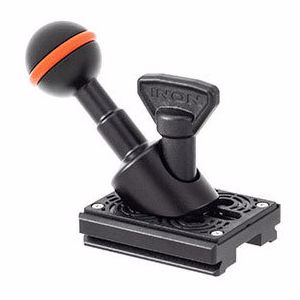

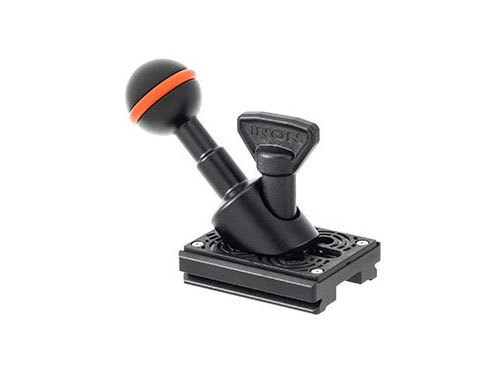

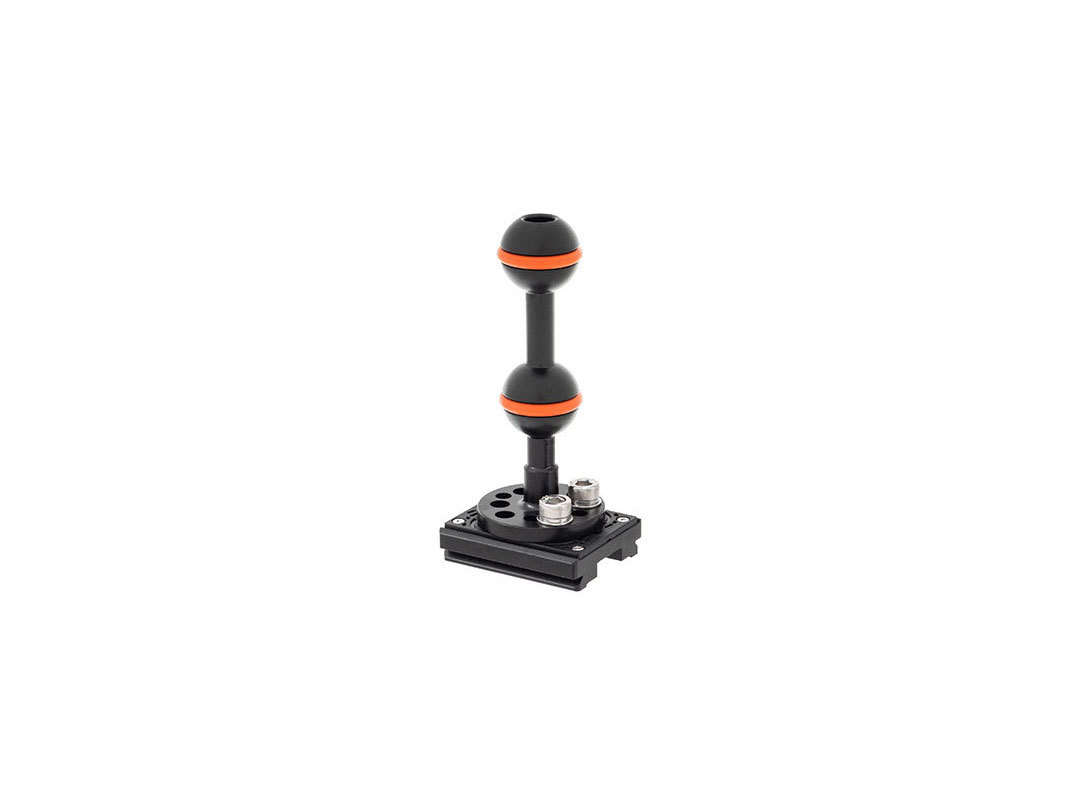

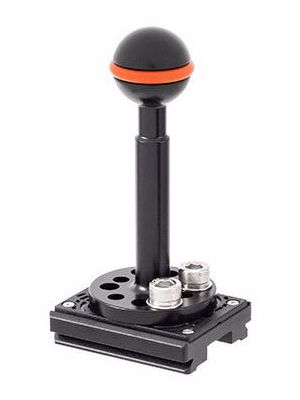

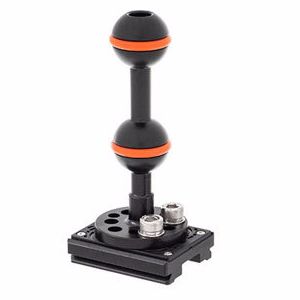

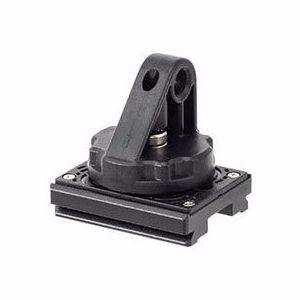

Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example
Arm installation example

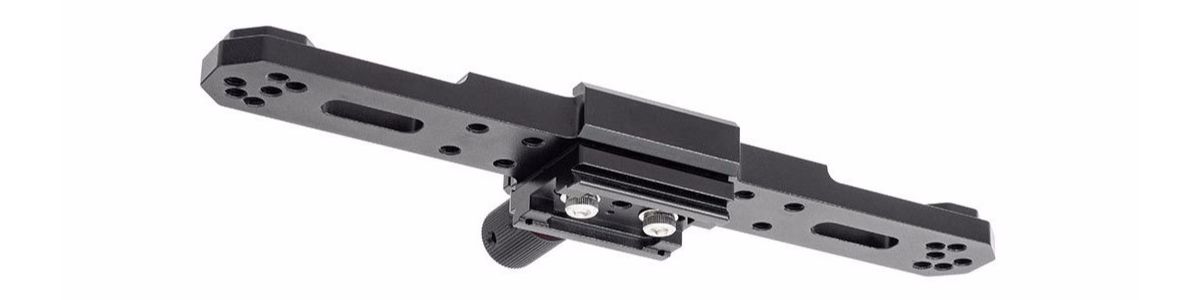

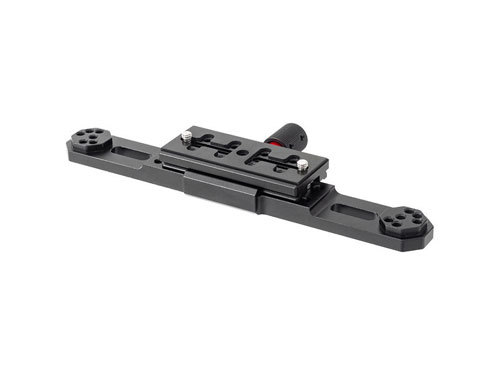

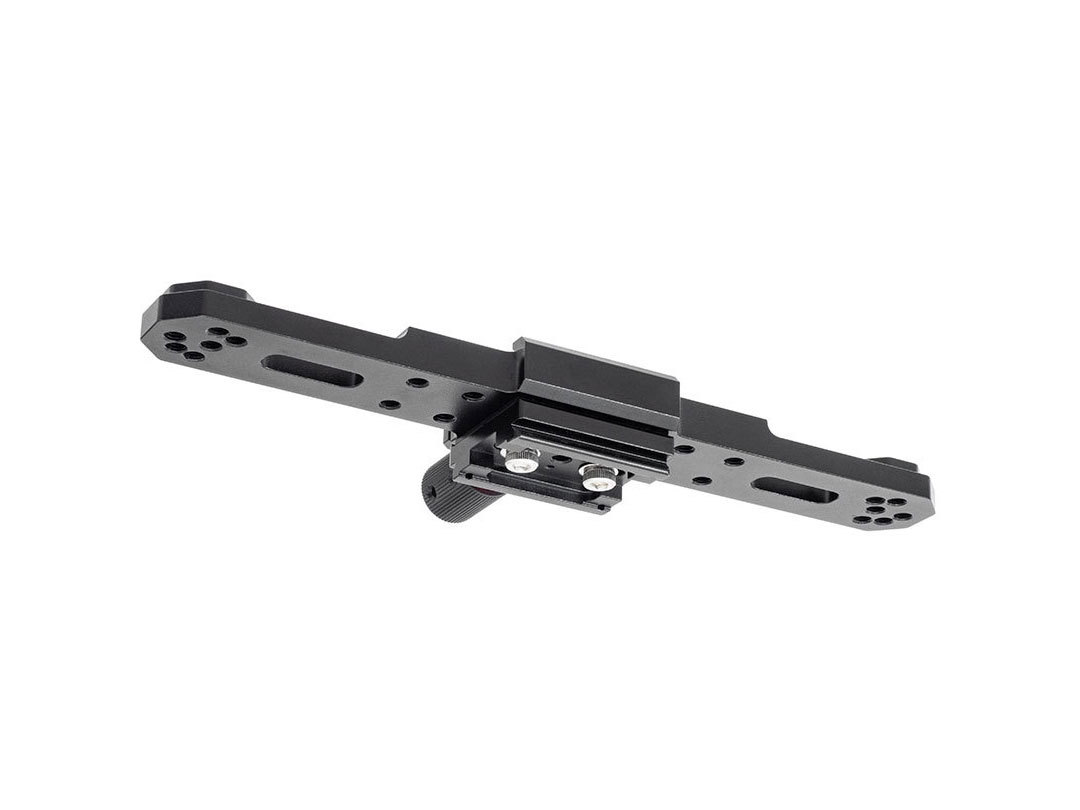

The W50 Plate can be also attached on the bottom of the Grip Base D5 or Quick Shoe Main Base to hold the entire camera system on a tripod etc.

Grip Base D5 installation example

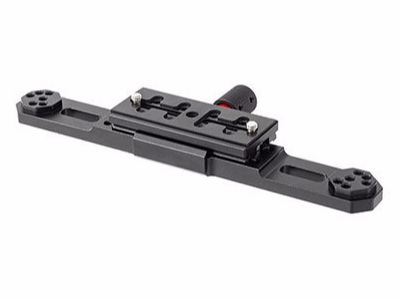

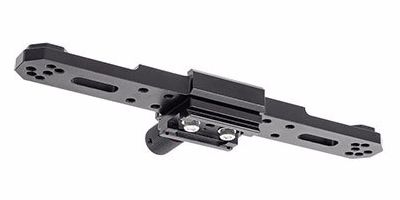

Main base installation example
Grip Base D5 installation example
Main base installation example

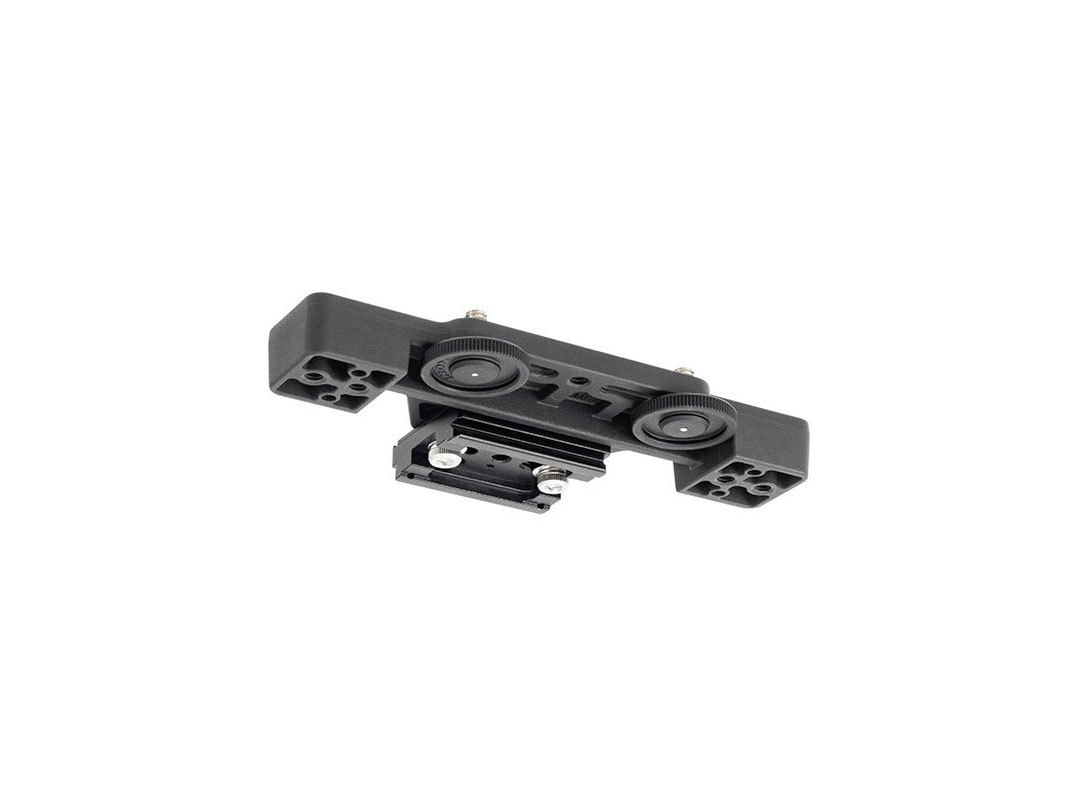

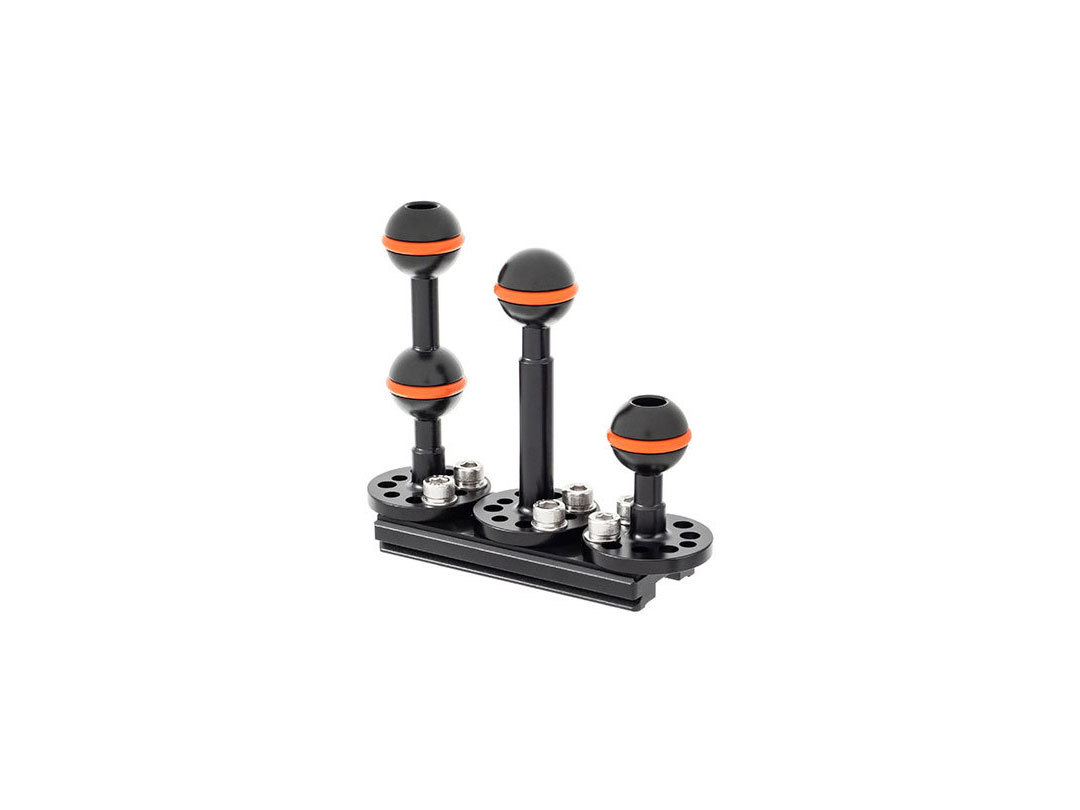

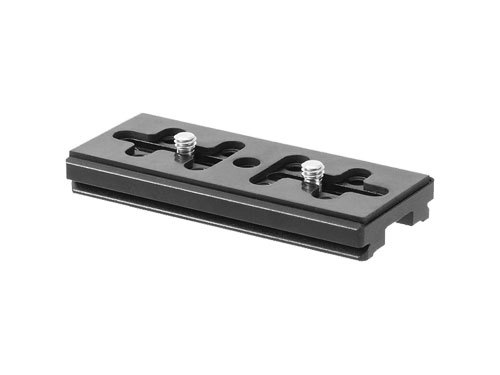

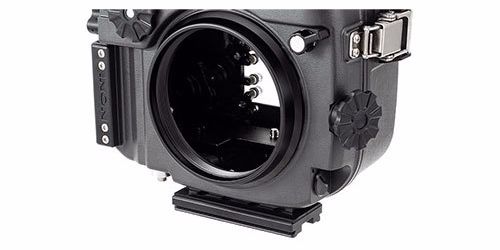

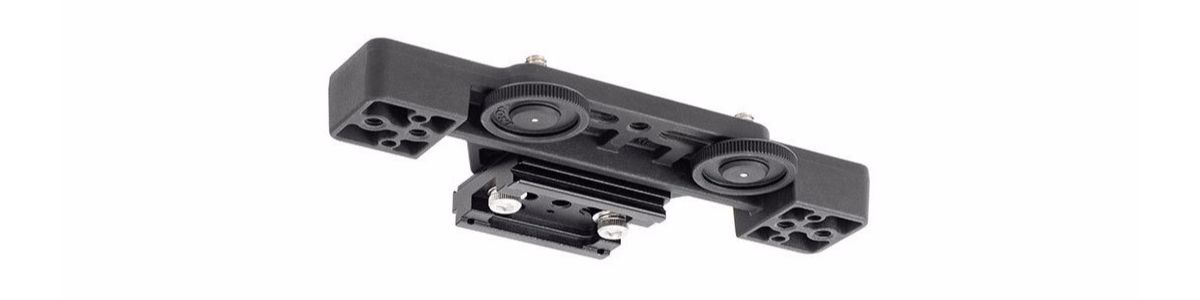

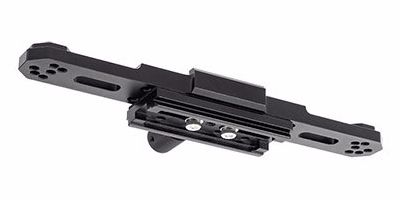

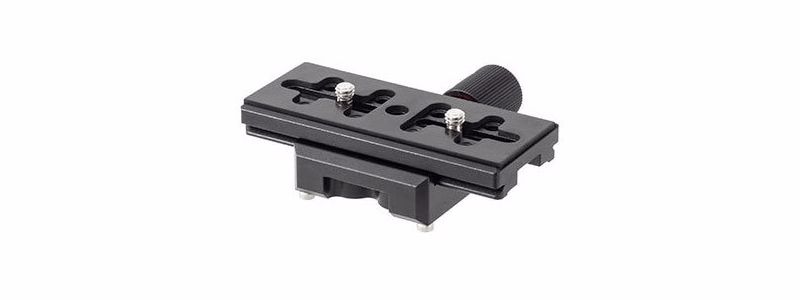

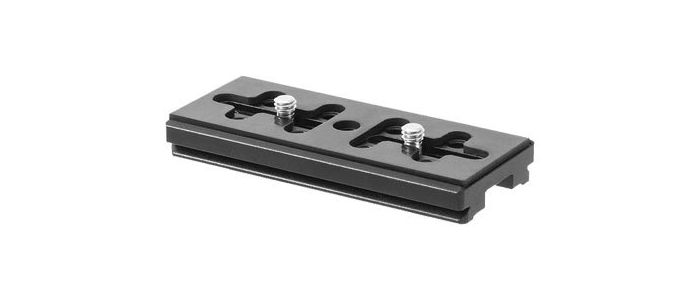

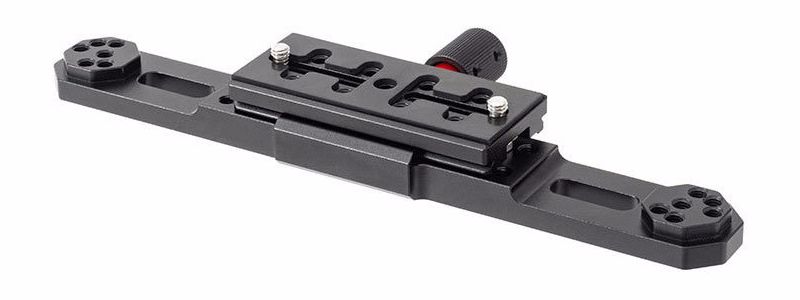

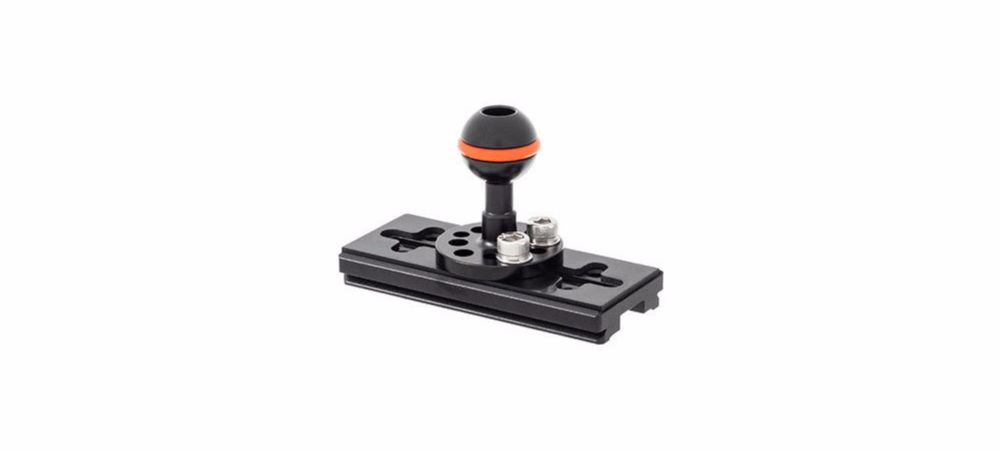

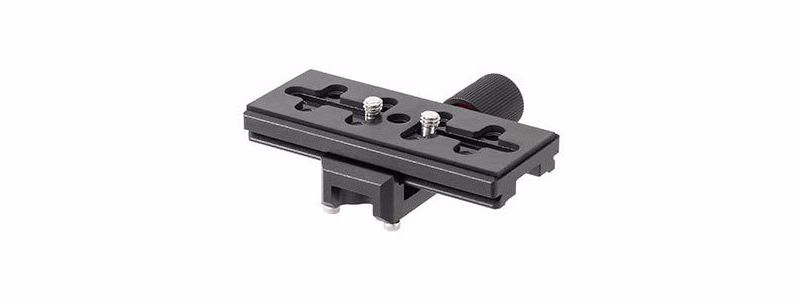

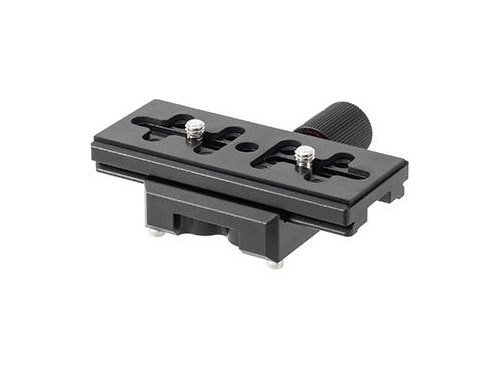

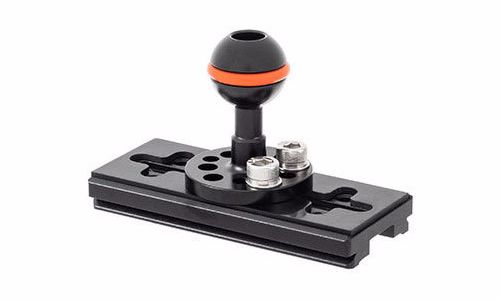

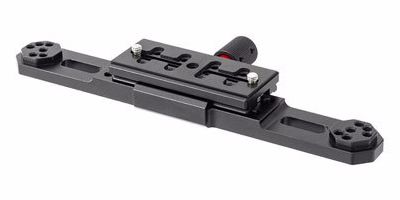

Quick Shoe W95 Plate

JAN/EAN code : 4562121439825

Quick Shoe W95 Plate

A wide Quick Shoe plate with 95 mm/3.7 inch width.



Dimensions
(W x H x D)
95.3 x 12.5 x 42.0 mm/
3.8 x 0.5 x 1.7 inch
Weight [air]76 g/2.7 oz
[u/w] Approx.47 g/1.7 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite etc.

Quick Shoe W95 Plate

A wide Quick Shoe plate with 95 mm/3.7 inch width.



Dimensions
(W x H x D)
95.3 x 12.5 x 42 mm/
3.8 x 0.5 x 1.7 inch
Weight [air]76 g/2.7 oz
[u/w] Approx.47 g/1.7 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite etc.

Designed to use with the Quick Shoe W27 Clamp, Quick Shoe W50 Clamp or Quick Shoe Main Base.

In combination with W27 clamp
In combination with W50 clamp
Combination with the main base
In combination with W27 clamp
In combination with W50 clamp
Combination with the main base

Compatible with mainly large size housings with tripod thread spacing from 20mm/0.8 inch to 80mm/3.1 inch and Multi Direct Base II products.

Multi Direct Base II installation example
Multi Direct Base II installation example
Multi Direct Base II installation example
Multi Direct Base II installation example
Housing installation example
Housing installation example
Housing installation example
Housing installation example

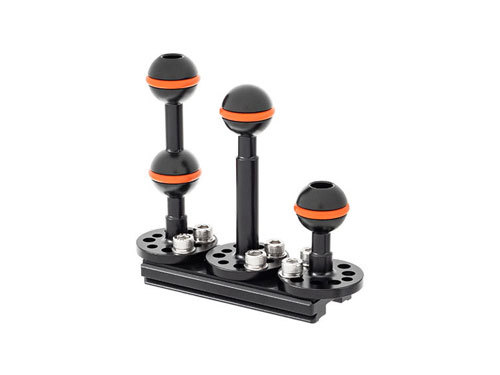

The W95 Plate can be also attached on the bottom of the Grip Base D5 or Quick Shoe Main Base to hold the entire camera system on a tripod etc.

Grip Base D5 installation example
Main base installation example
Grip Base D5 installation example
Main base installation example
page top

Quick Shoe Clamp

Quick Shoe W27 Clamp

JAN/EAN code : 4562121439832

Quick Shoe W27 Clamp

Compact Quick Shoe clamp with 27 mm/1.1 inch width. Designed to use with the Quick Shoe W27 Plate.

Various arm configurations are available by attaching on the Quick Shoe Main Base or D5 Holder.


Dimensions
(W x H x D)
27.5 x 20.2 x 93.8 mm/
1.1 x 0.8 x 3.7 inch
Weight [air]70 g/2.5 oz
[u/w] Approx.48 g/1.7 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite etc.

Quick Shoe W27 Clamp

Compact Quick Shoe clamp with 27 mm/1.1 inch width. Designed to use with the Quick Shoe W27 Plate.

Various arm configurations are available by attaching on the Quick Shoe Main Base or D5 Holder.


Dimensions
(W x H x D)
27.5 x 20.2 x 93.8 mm/
1.1 x 0.8 x 3.7 inch
Weight [air]70 g/2.5 oz
[u/w] Approx.48 g/1.7 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite etc.

Quick Shoe W50 Clamp

JAN/EAN code : 4562121439849

Quick Shoe W50 Clamp

Standard Quick Shoe clamp with 50 mm/2.0 inch width. Designed to use with the Quick Shoe W50 Plate.

Usable with the Grip Base D5 or UW 3-way Panhead.


Dimensions
(W x H x D)
50.0 x 20.2 x 93.8 mm/
2.0 x 0.8 x 3.7 inch
Weight [air]101 g/3.6 oz
[u/w] Approx.67 g/2.4 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite etc.

Quick Shoe W50 Clamp

Standard Quick Shoe clamp with 50 mm/2.0 inch width. Designed to use with the Quick Shoe W50 Plate.

Usable with the Grip Base D5 or UW 3-way Panhead.


Dimensions
(W x H x D)
50.0 x 20.2 x 93.8 mm/
2.0 x 0.8 x 3.7 inch
Weight [air]101 g/3.6 oz
[u/w] Approx.67 g/2.4 oz
Material/
surface finishing
Corrosion resisting aluminum alloy/
rigid alumite etc.

page top
