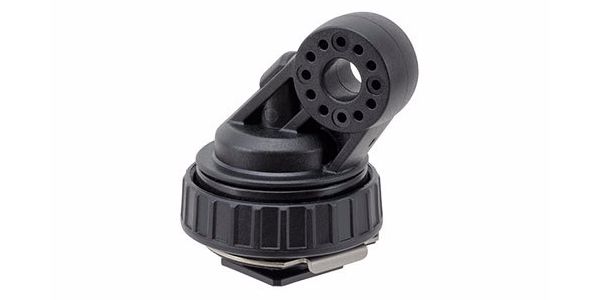

Shoe Base II
Shoe Base II
YS Type
Shoe Base 1/4-20UNC
Shoe Base 1/4-20UNC
1/4-20UNC Screw Type
Shoe Base M6
Shoe Base M6
M6 Screw Type
Shoe Base BALL
Shoe Base BALL
Arm Ball Type

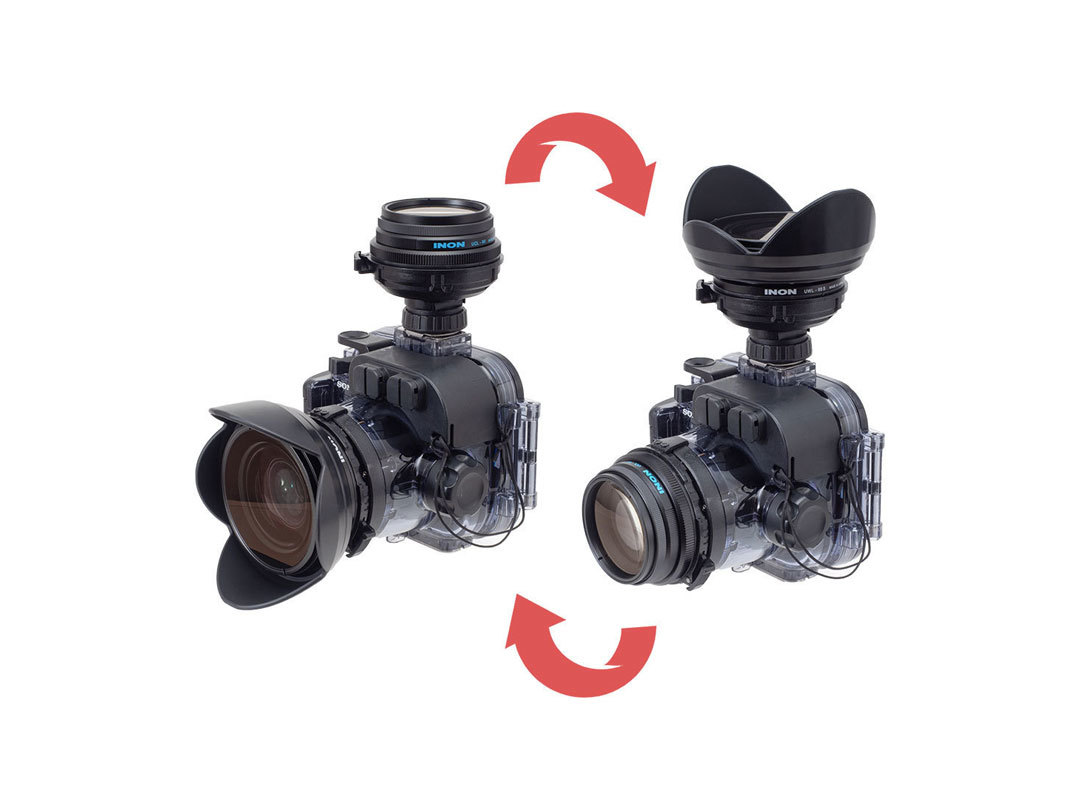

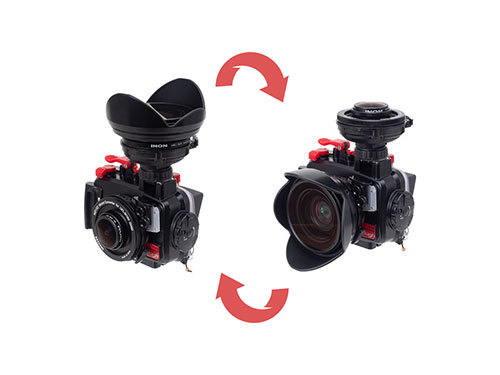

Lens Holder Shoe Base Series

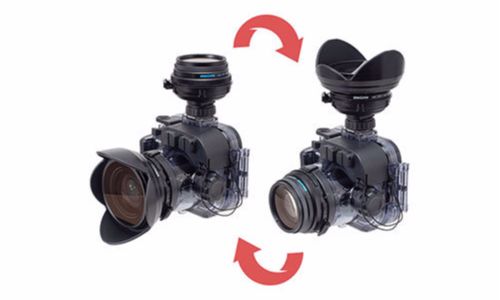

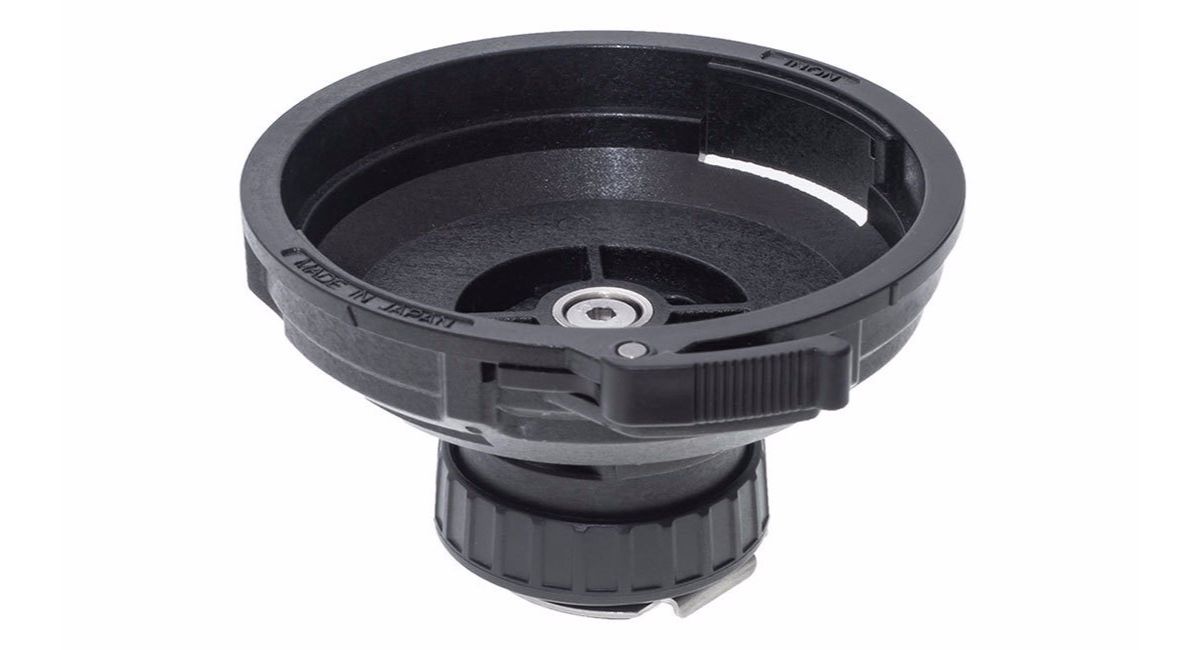

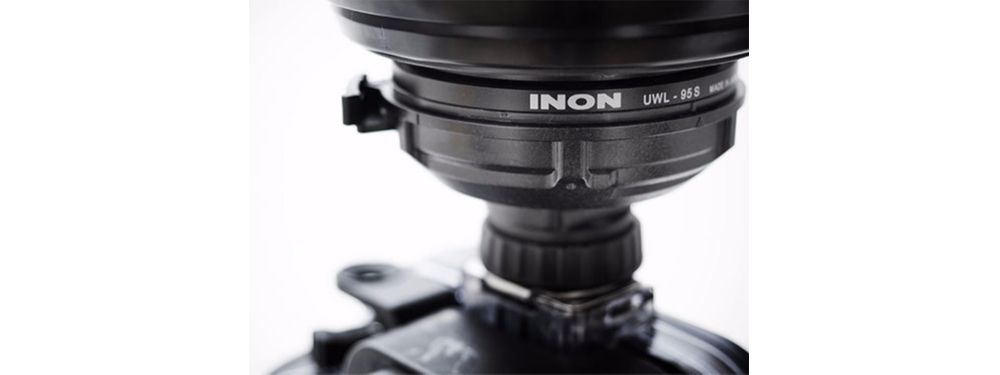

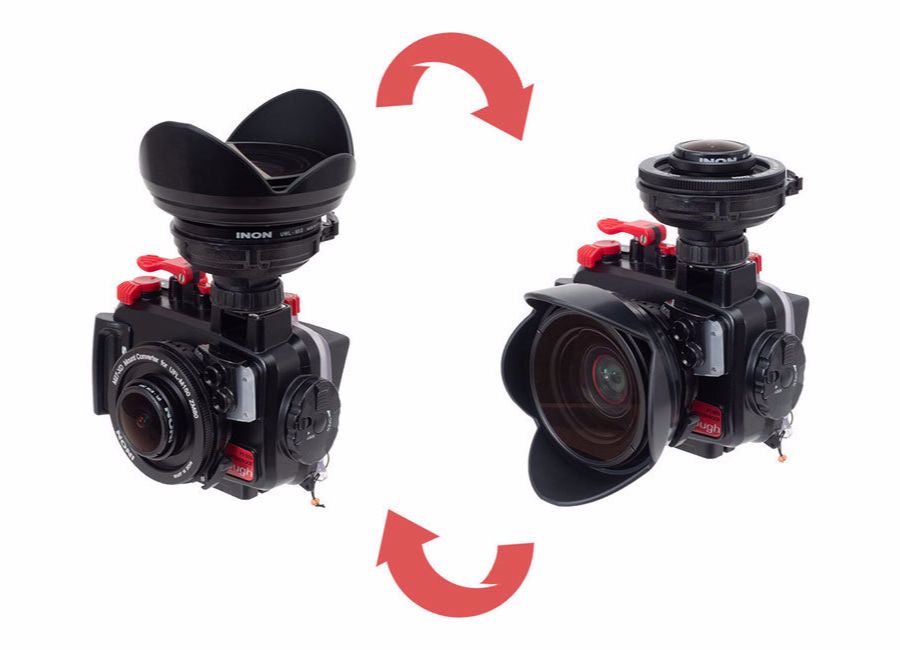

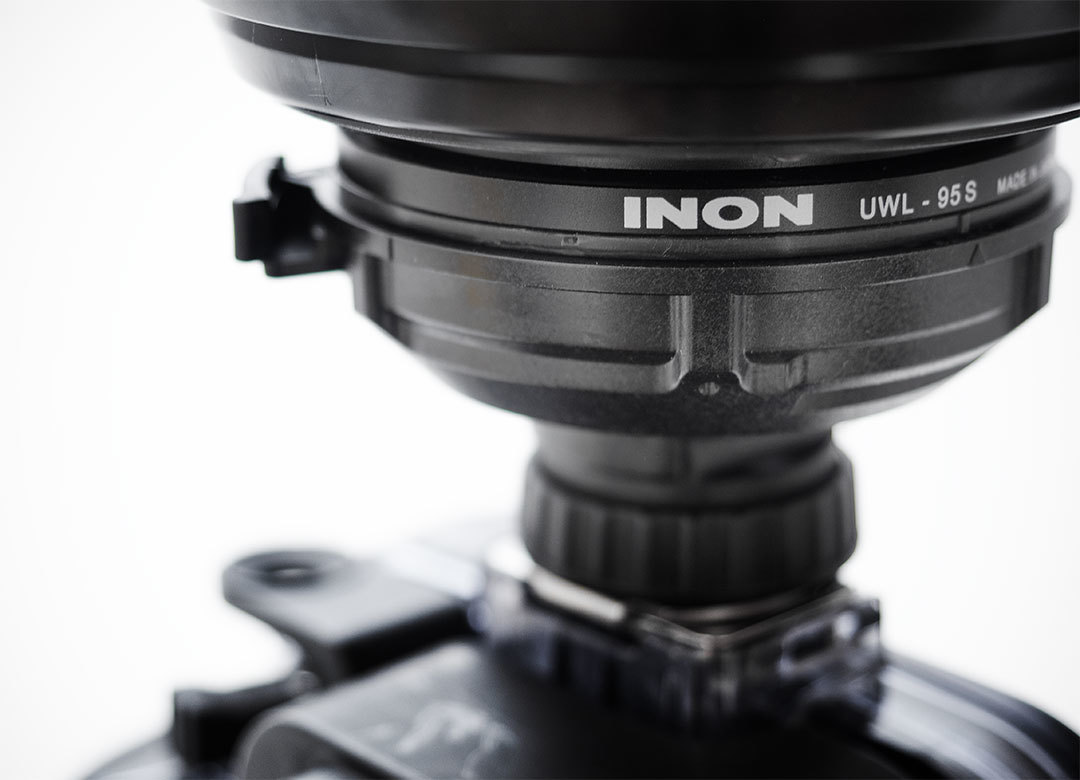

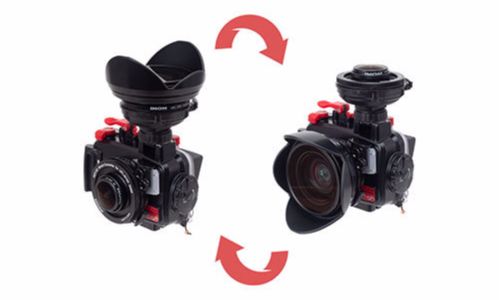

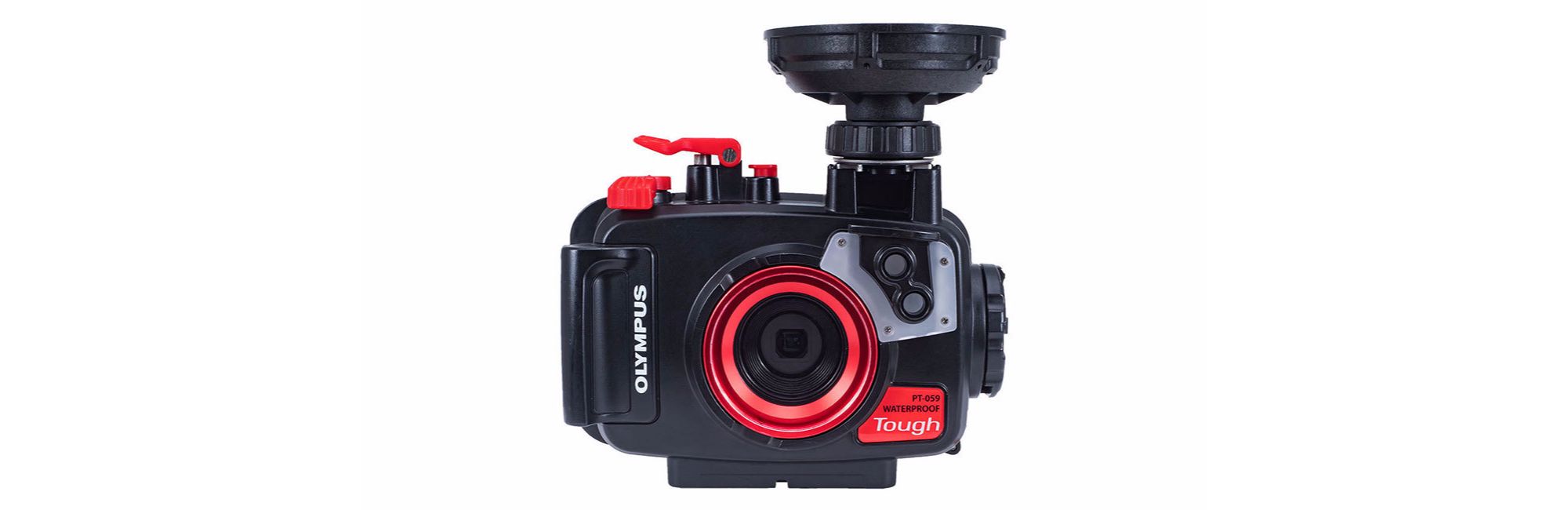

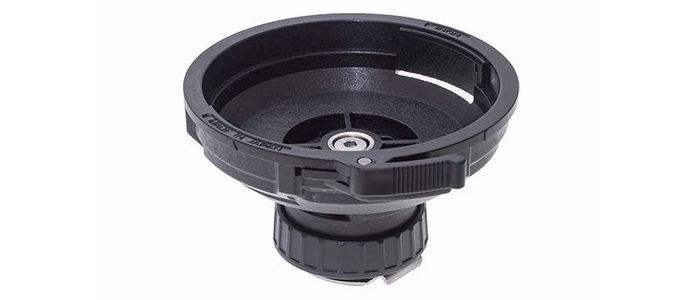

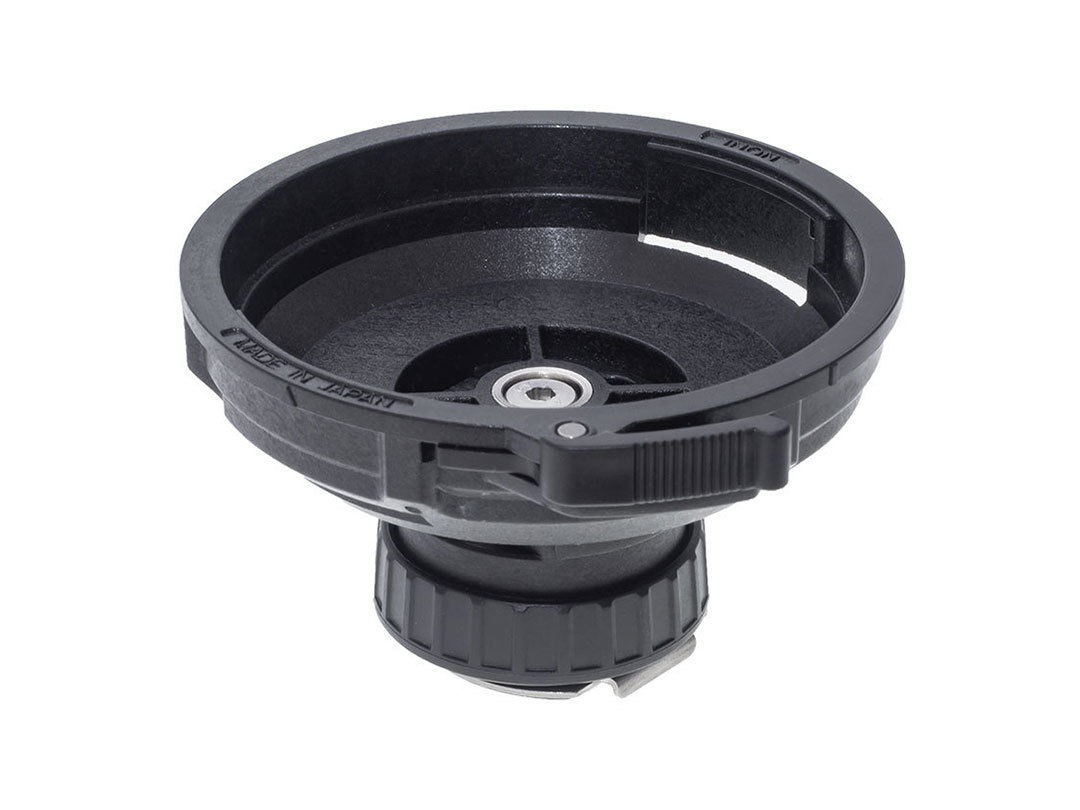

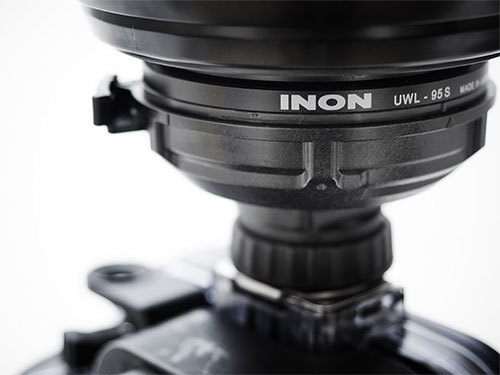

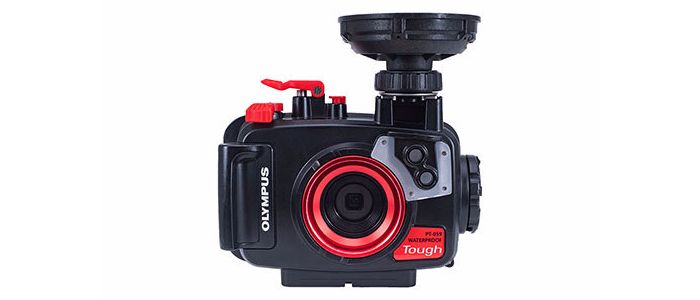

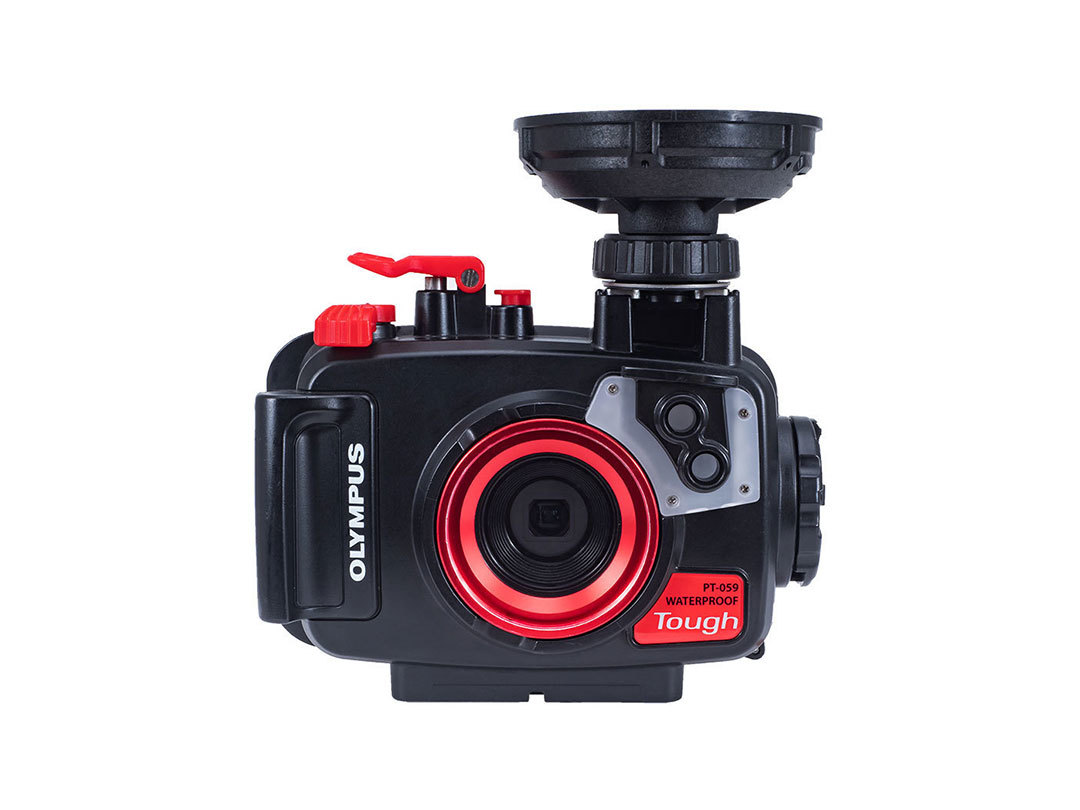

XD Lens Holder Shoe Base
XD Lens Holder Shoe Base

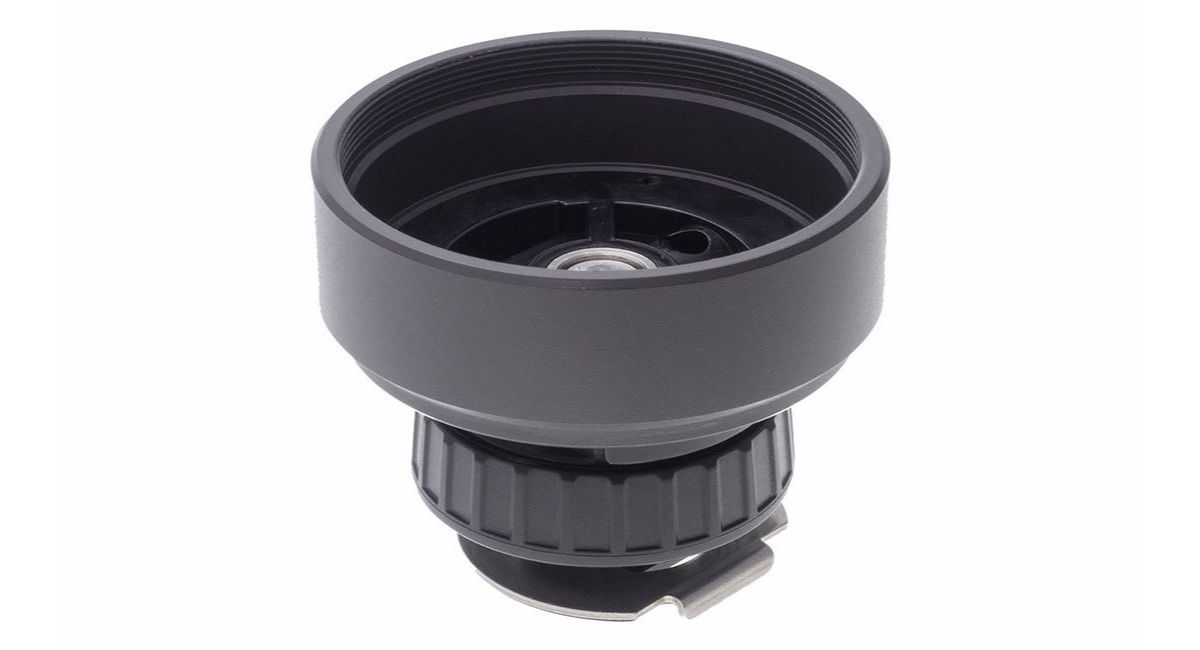

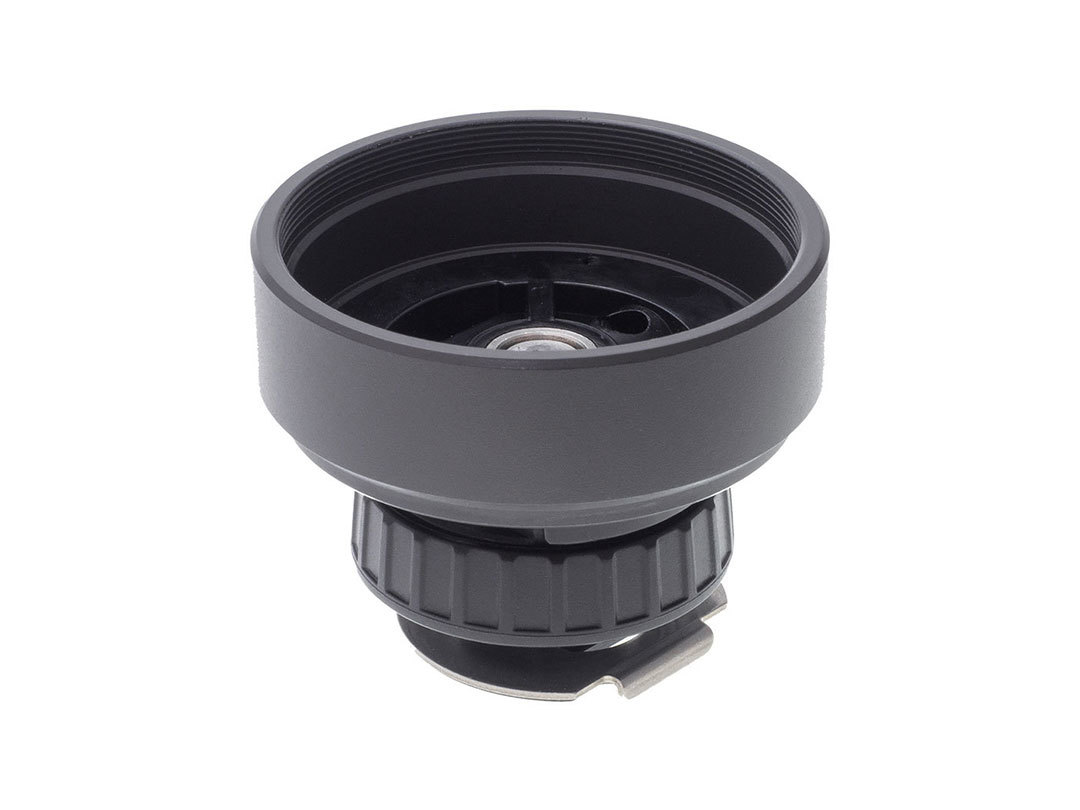

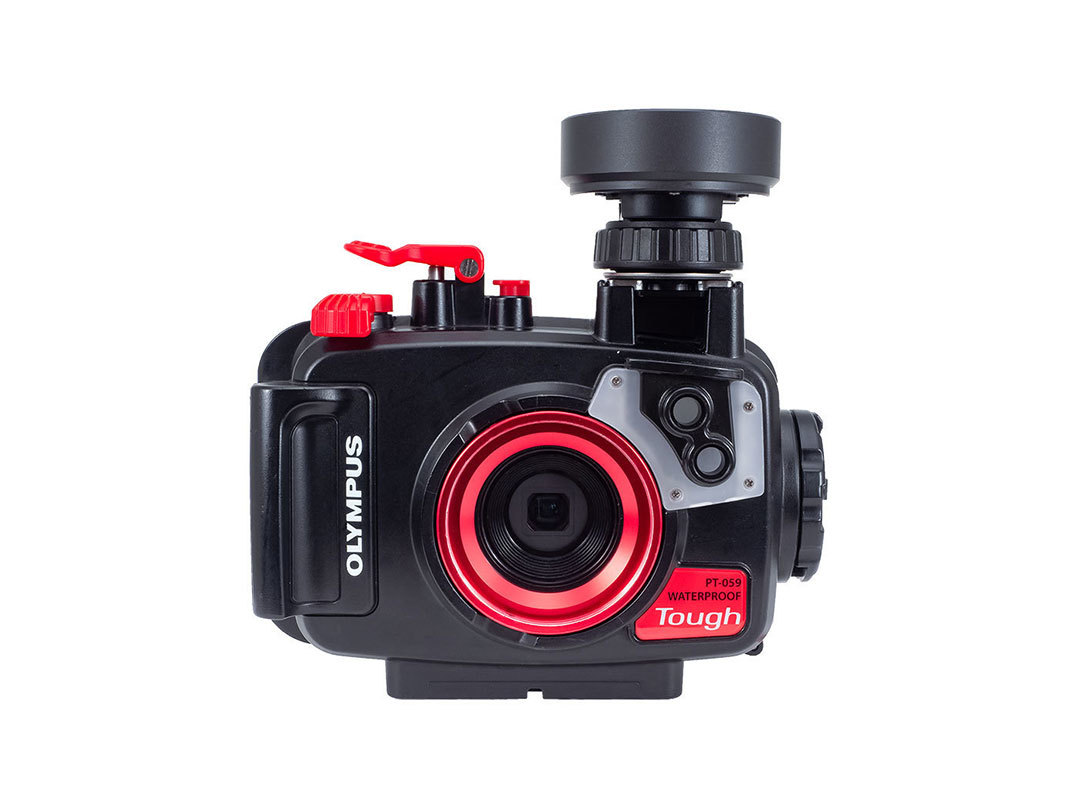

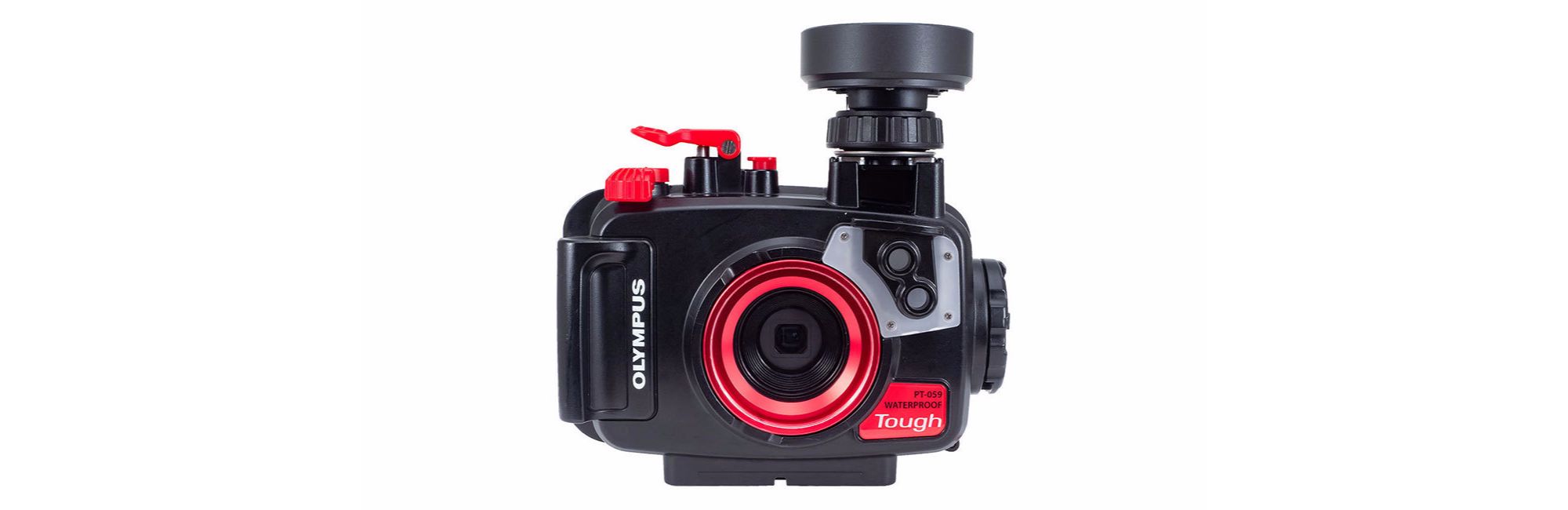

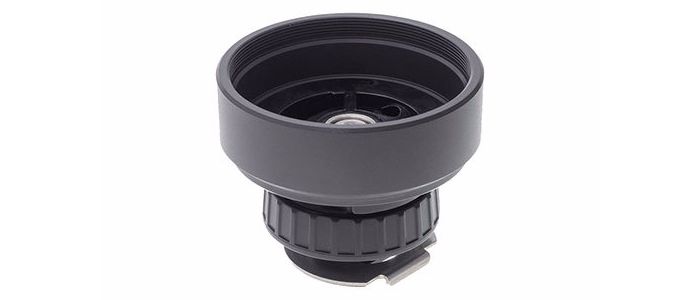

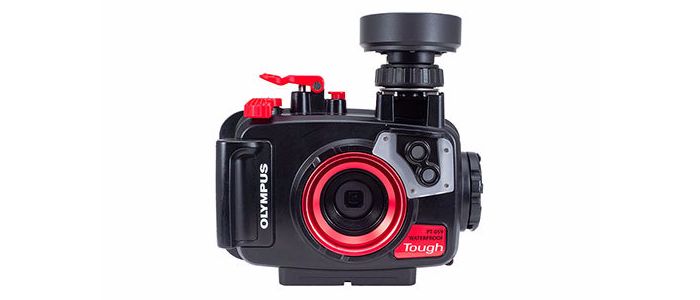

M52 Lens Holder Shoe Base
M52 Lens Holder Shoe Base

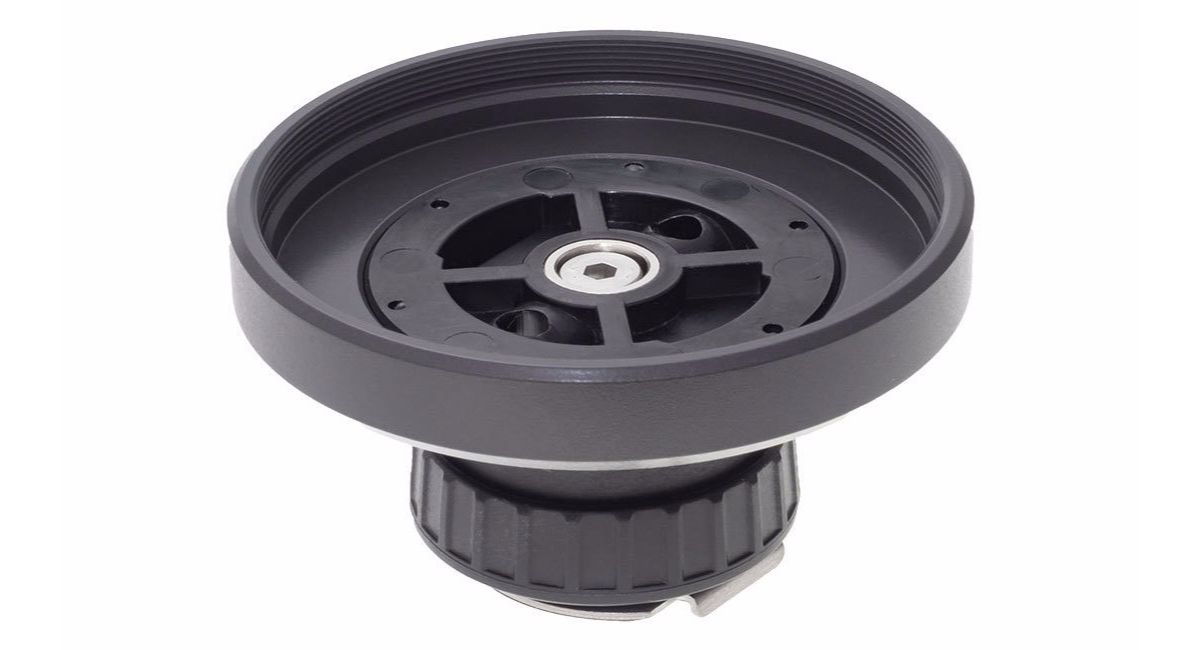

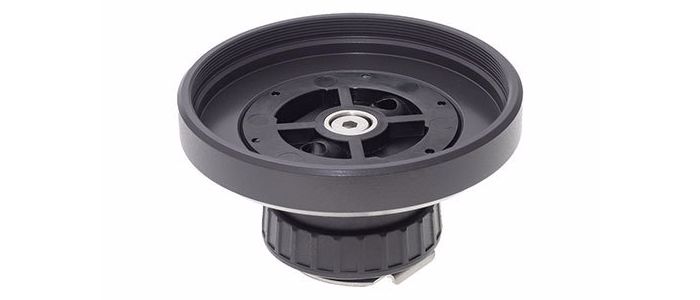

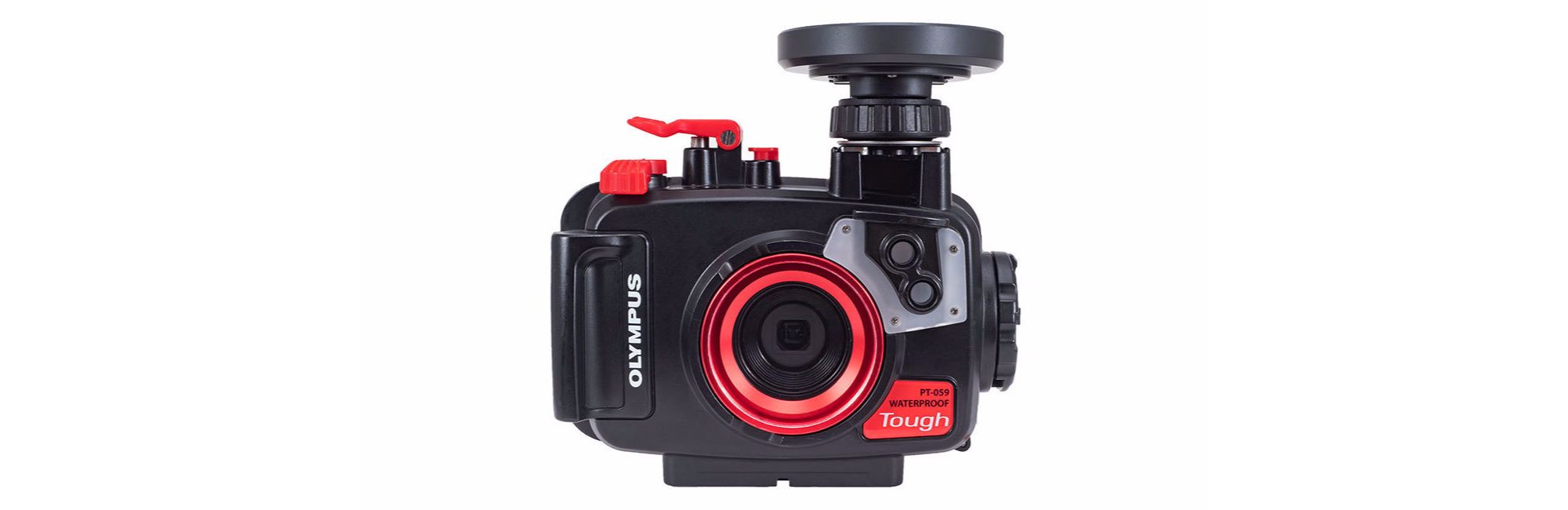

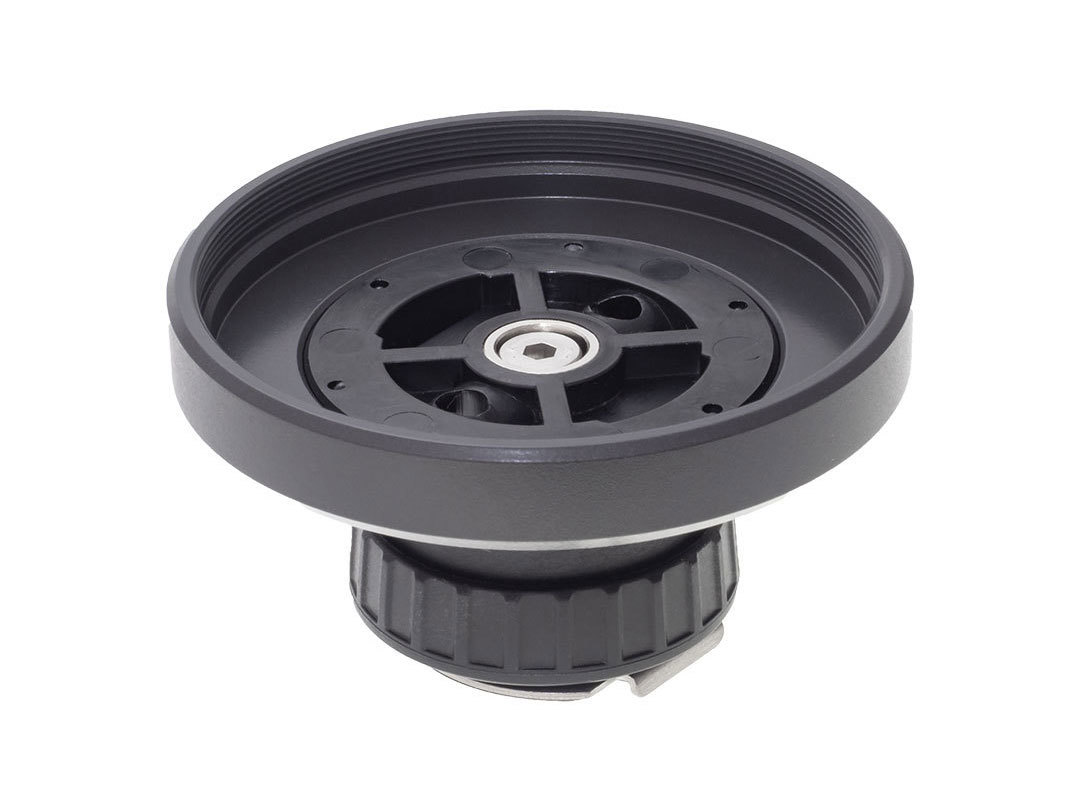

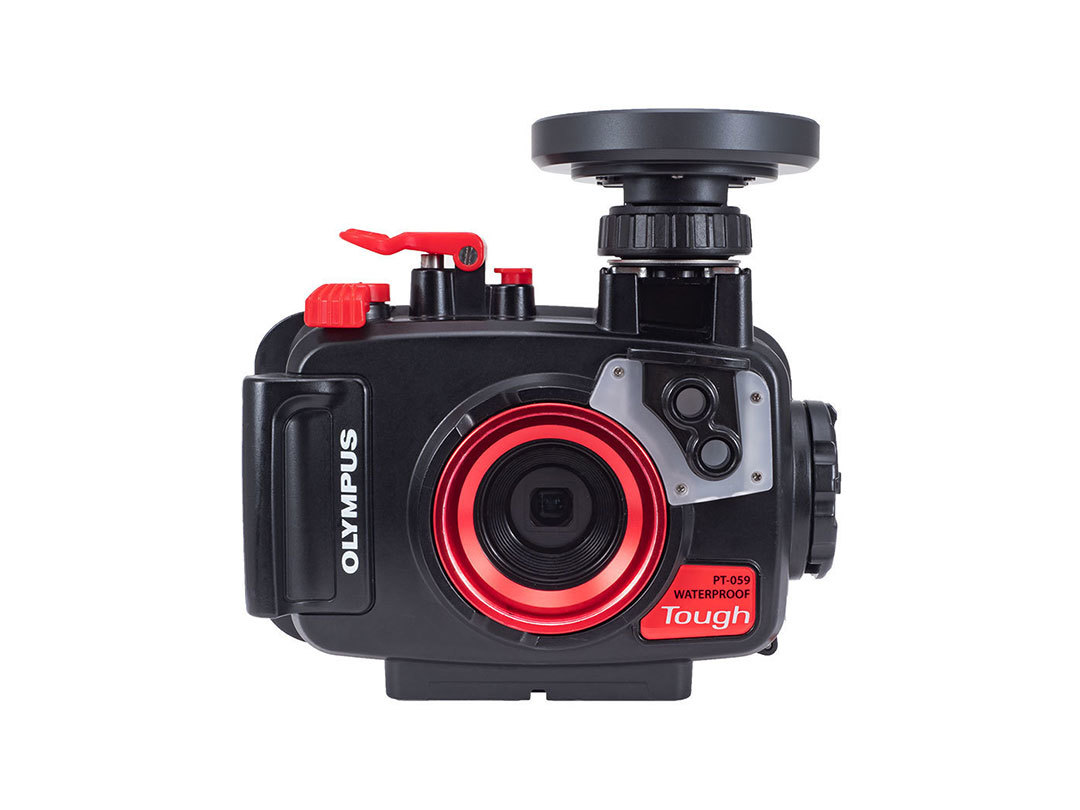

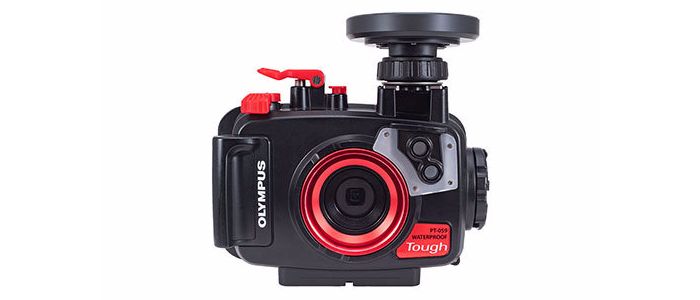

M67 Lens Holder Shoe Base
M67 Lens Holder Shoe Base

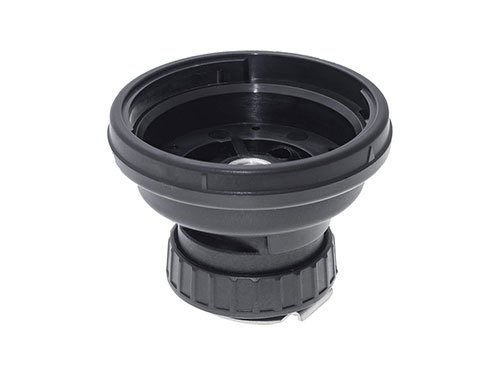

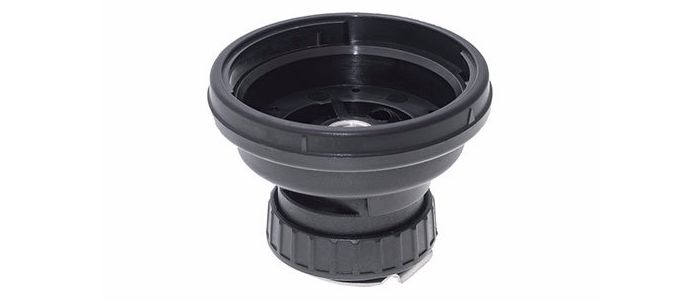

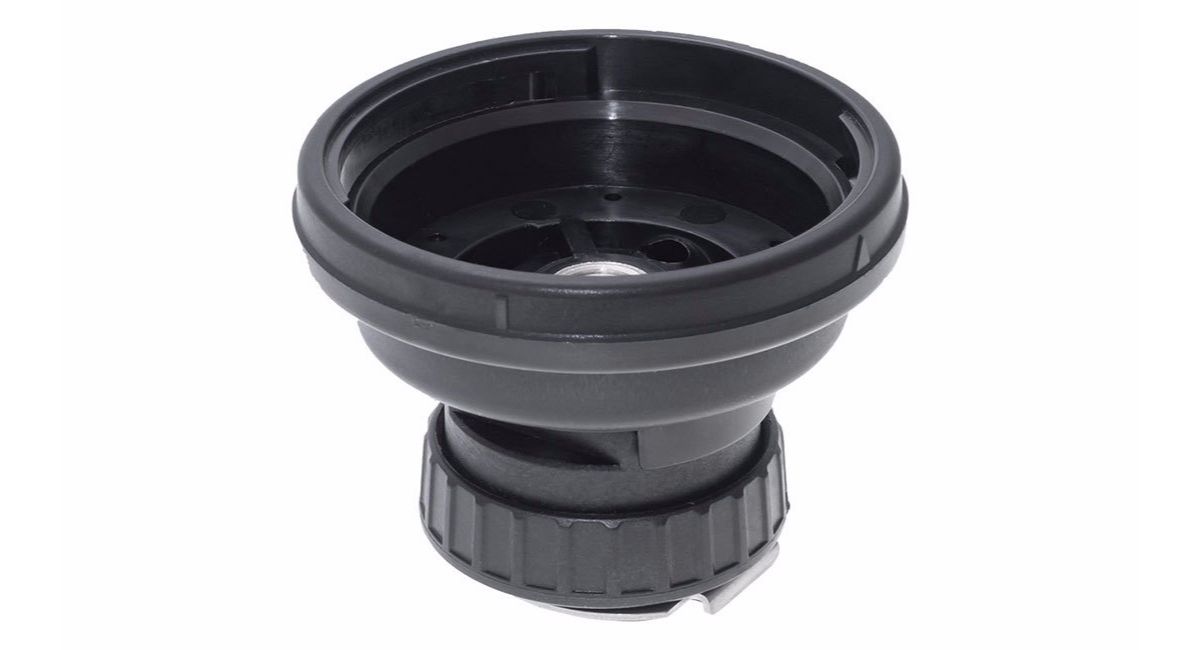

AD Lens Holder Shoe Base
AD Lens Holder Shoe Base

Base adapters to make simple yet compact strobe/light/action camera etc. installation on the "Accessory Shoe (Cold Shoe)" of an underwater housing etc. These improved Shoe Bases provide more secure installation on an accessory shoe. Head parts differ among different model having either of "YS type", "1/4 inch screw", "M6 screw" or "ball joint".

Compatible products (Shoe Adapter)

  • Accessory Shoe of water-proof camera housings, "Mount Base" and "Video Base" etc. (*1)

LinkIconShoe Base Compatible Table

  • Shoe Base Spacer
  • Shoe Base Adapter D4
  • Shoe Base Adapter X-2

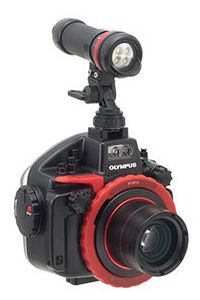

Shoe Base 1/4-20UNC usage

(*1) Optional "Accessory Shoe Spacer for Canon" is required when installing these products on an accessory shoe of Canon housings.

Base adapters to make simple yet compact strobe/light/action camera etc. installation on the "Accessory Shoe (Cold Shoe)" of an underwater housing etc. These improved Shoe Bases provide more secure installation on an accessory shoe. Head parts differ among different model having either of "YS type", "1/4 inch screw", "M6 screw" or "ball joint".

Compatible products (Shoe Adapter)

  • Accessory Shoe of water-proof camera housings, "Mount Base" and "Video Base" etc. (*1)

LinkIconShoe Base Compatible Table

  • Shoe Base Spacer
  • Shoe Base Adapter D4
  • Shoe Base Adapter X-2

(*1) Optional "Accessory Shoe Spacer for Canon" is required when installing these products on an accessory shoe of Canon housings.

Shoe Base 1/4-20UNC usage

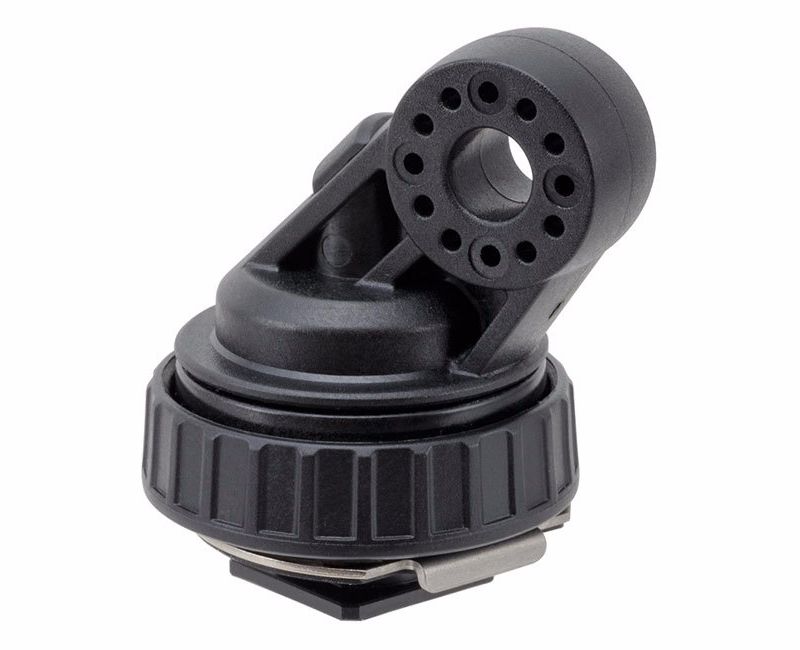

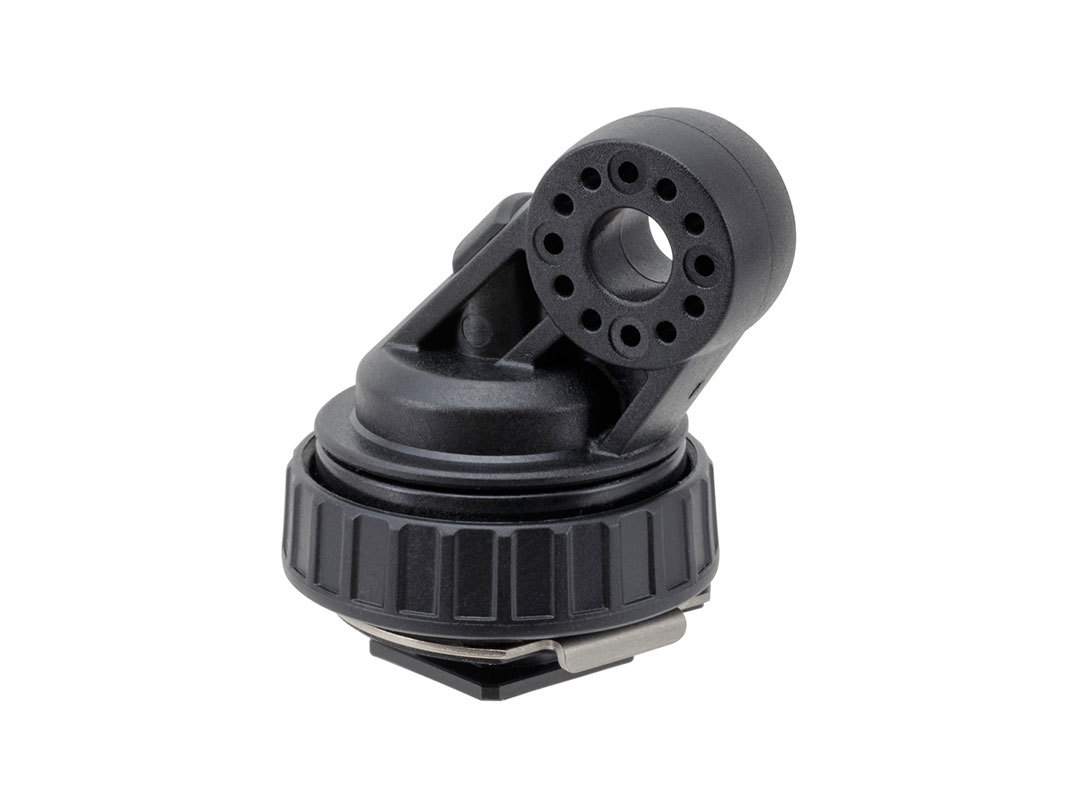

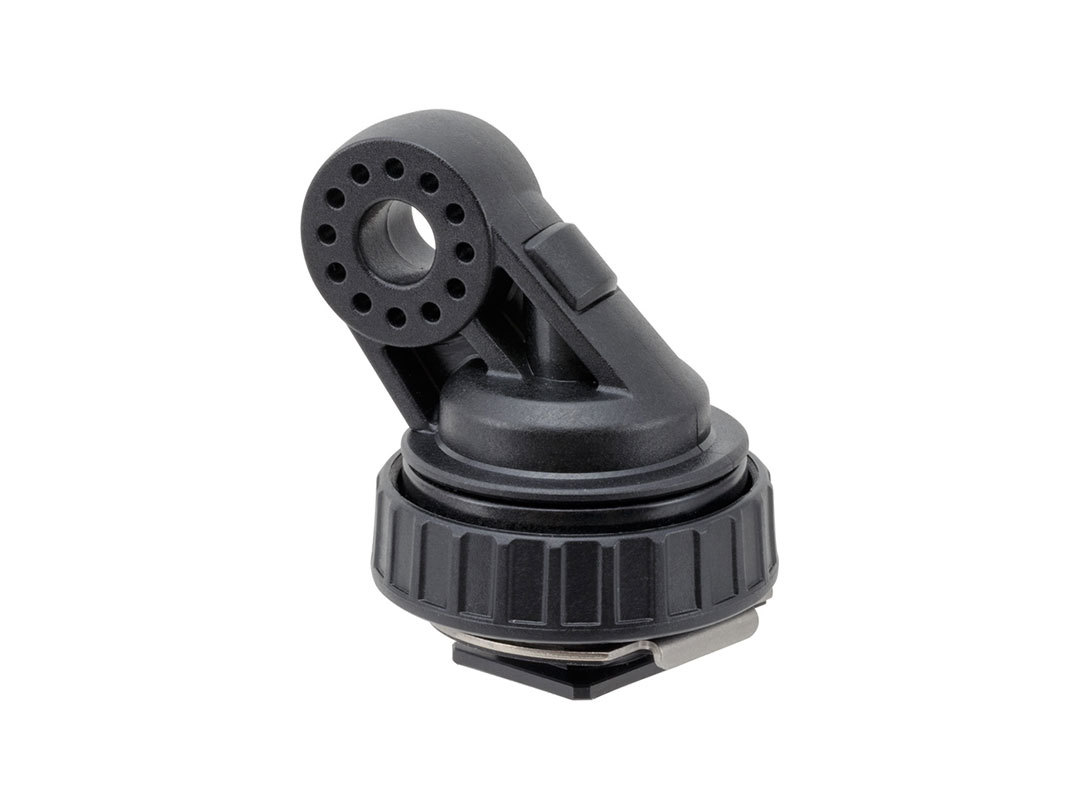

Shoe Base

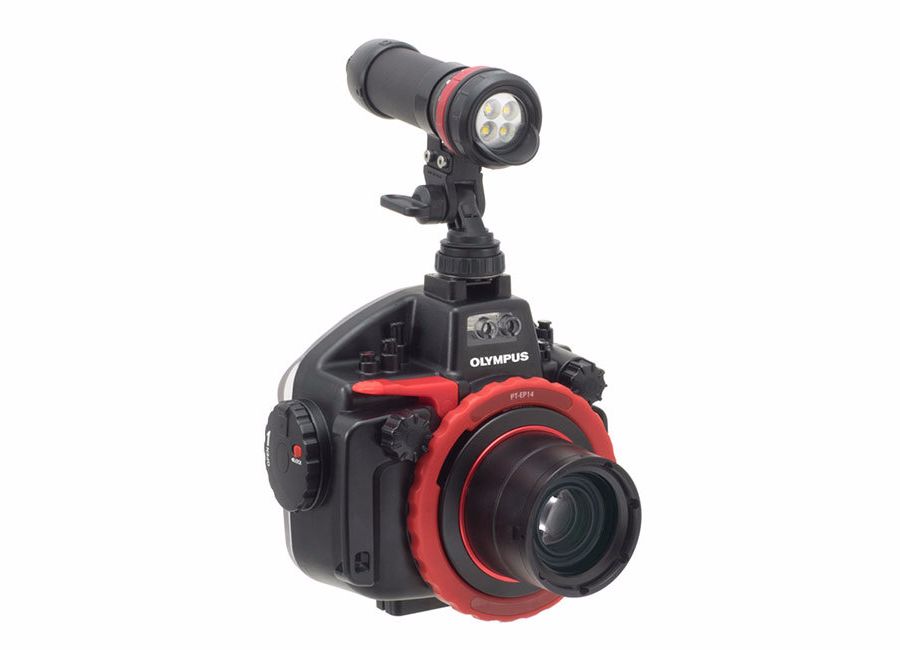

Shoe Base II

JAN/EAN code : 4562121438705

Manual

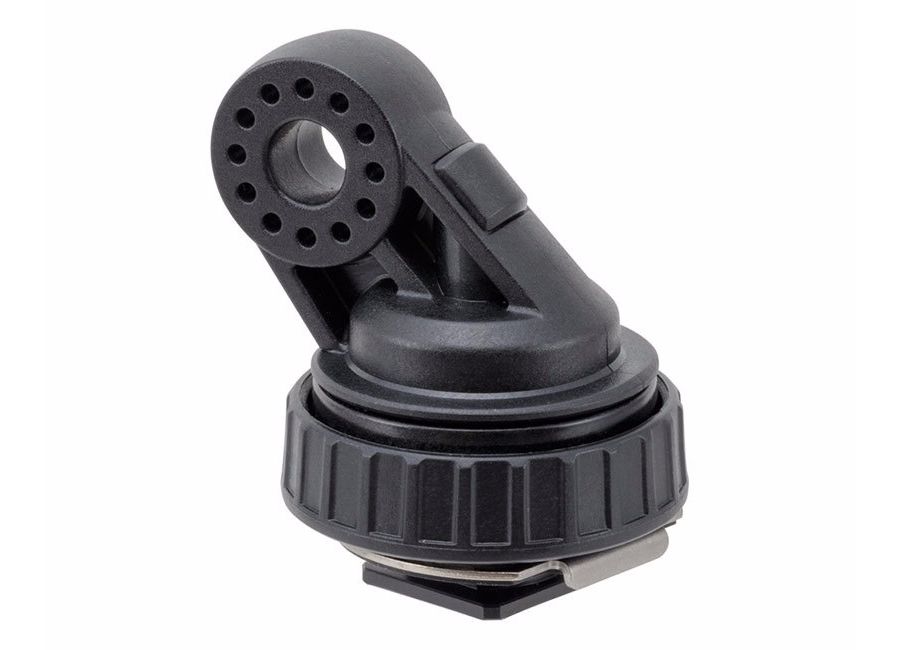

Shoe Base II


Shoe Base II

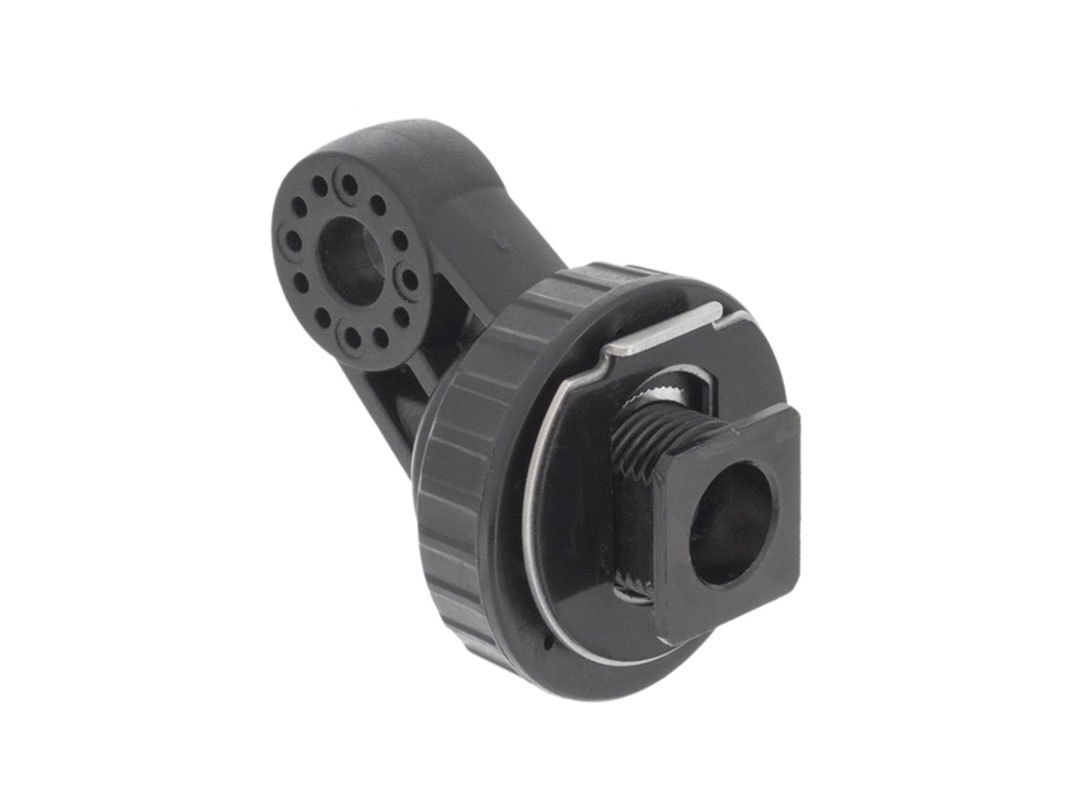

Shoe Base II rubber sheet

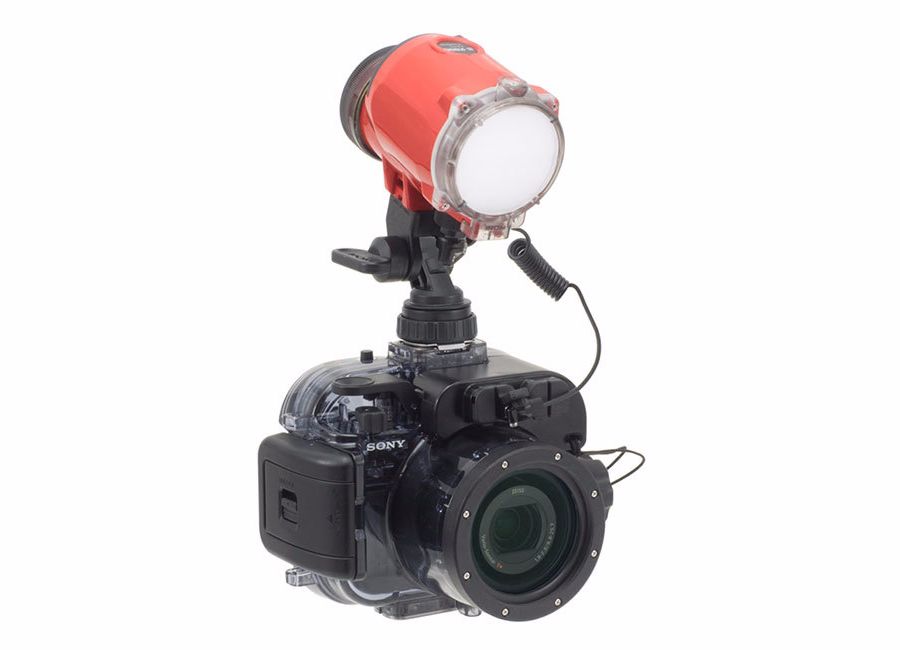

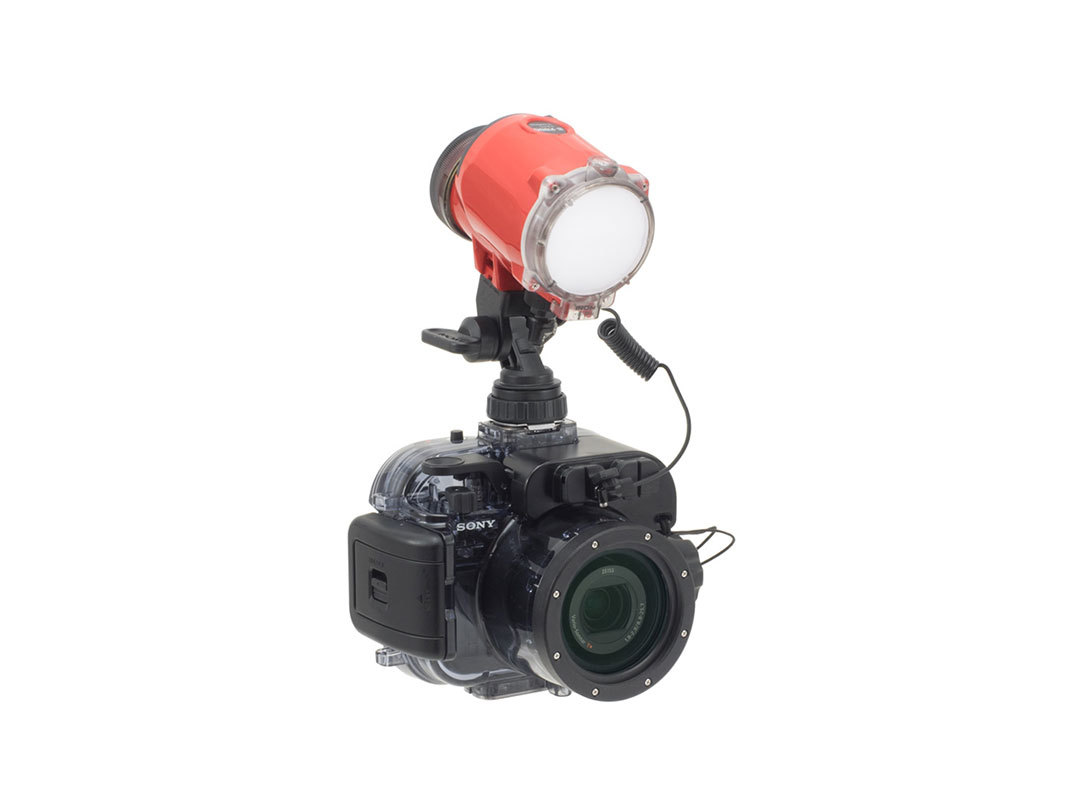

A base adapter to use on an accessory shoe of an underwater housing to add a YS Mount compatible arm head. You can create a simple and compact lighting system in combination with "Z Joint" or "Single Light Holder LE"/"Single Light Holder LF" to hold an LED flashlight or strobe. The base part of the "Shoe Base II" rotates 360 degree which benefit you to adjust aiming of combined lighting system sideways in addition to up and down adjustment.
Also this base adapter is usable to attach an action camera or compact digital camera on an accessory shoe of an underwater housing to shoot simultaneously.
As INON Z-330/D-200/S-2000/Z-240 Type4/D-2000 Type4 support wireless mode, installing any of them on an underwater housing via set of the "Shoe Base II" and "Z Joint" offers you simple strobe shooting immediately.

Full length: 52 mm/2.0 in
Weight: 45 g/1.6 oz[air] / approx.20 g/0.7 oz[underwater]

Compatible products(YS joint)
Directly attached

  • Single Light Holder LF
  • Single Light Holder LE

Attached via optional "Z Joint"


  • Z-330、Z-240、Z-220(*1)、Z-220F、Z-220S (*1)
  • D-200、D-2000、D-2000S、D-2000W/Wn、D-180(*1)、D-180S
  • S-220、S-2000
  • SD Mount Cage for HERO3/3+/4
  • SD Front Mask STD
  • SD Front Mask for HERO5/6/7
  • SD Mount Base for TG-Tracker

(*1) There are two Arm Base design depending on production lot and only trapezoidal version can accept this product.

Shoe Base II


A base adapter to use on an accessory shoe of an underwater housing to add a YS Mount compatible arm head. You can create a simple and compact lighting system in combination with "Z Joint" or "Single Light Holder LE"/"Single Light Holder LF" to hold an LED flashlight or strobe. The base part of the "Shoe Base II" rotates 360 degree which benefit you to adjust aiming of combined lighting system sideways in addition to up and down adjustment.
Also this base adapter is usable to attach an action camera or compact digital camera on an accessory shoe of an underwater housing to shoot simultaneously.
As INON Z-330/D-200/S-2000/Z-240 Type4/D-2000 Type4 support wireless mode, installing any of them on an underwater housing via set of the "Shoe Base II" and "Z Joint" offers you simple strobe shooting immediately.

Full length: 52 mm/2.0 in
Weight: 45 g/1.6 oz[air] / approx.20 g/0.7 oz[underwater]

Compatible products(YS joint)
Directly attached

  • Single Light Holder LF
  • Single Light Holder LE

Attached via optional "Z Joint"

  • Z-330、Z-240、Z-220(*1)、Z-220F、Z-220S (*1)
  • D-200、D-2000、D-2000S、D-2000W/Wn、D-180(*1)、D-180S
  • S-220、S-2000
  • SD Mount Cage for HERO3/3+/4
  • SD Front Mask STD
  • SD Front Mask for HERO5/6/7
  • SD Mount Base for TG-Tracker

(*1) There are two Arm Base design depending on production lot and only trapezoidal version can accept this product.

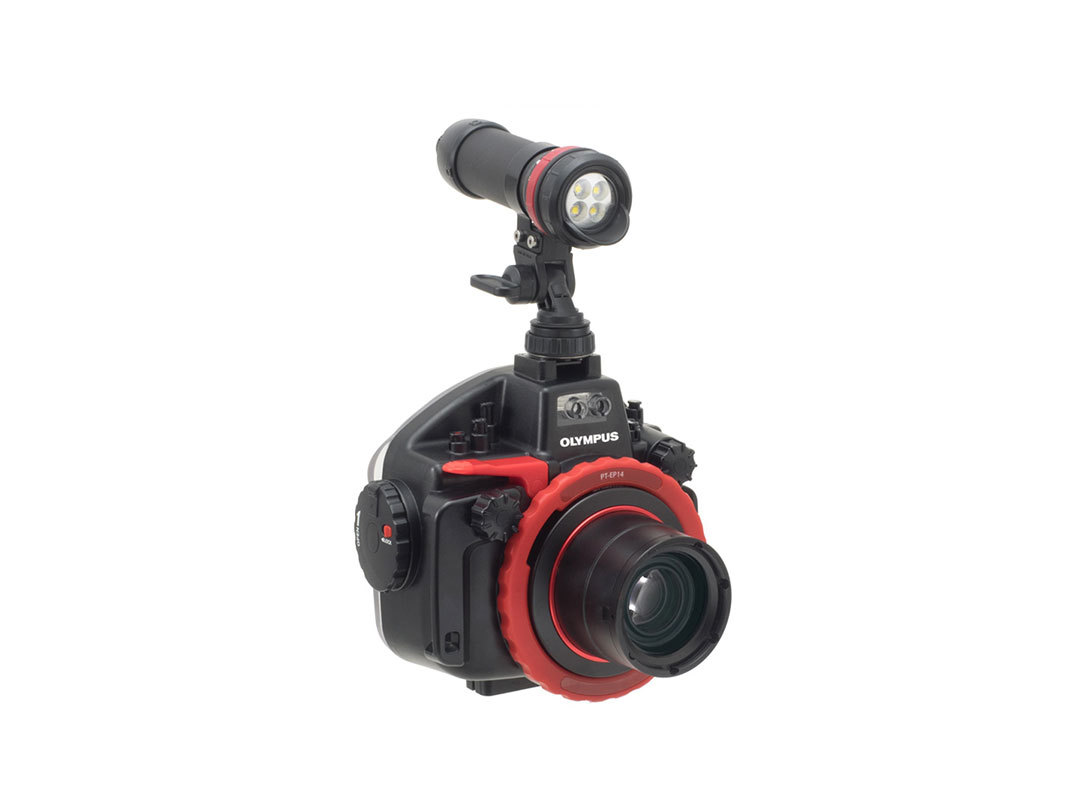

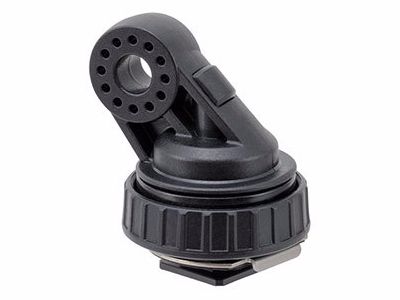

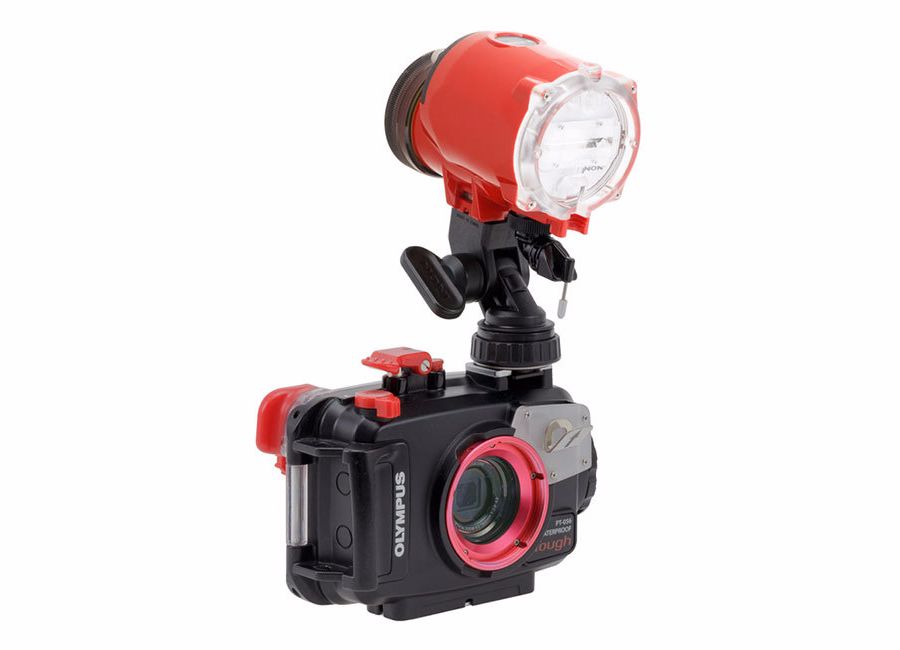

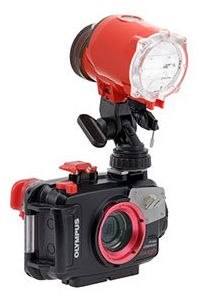

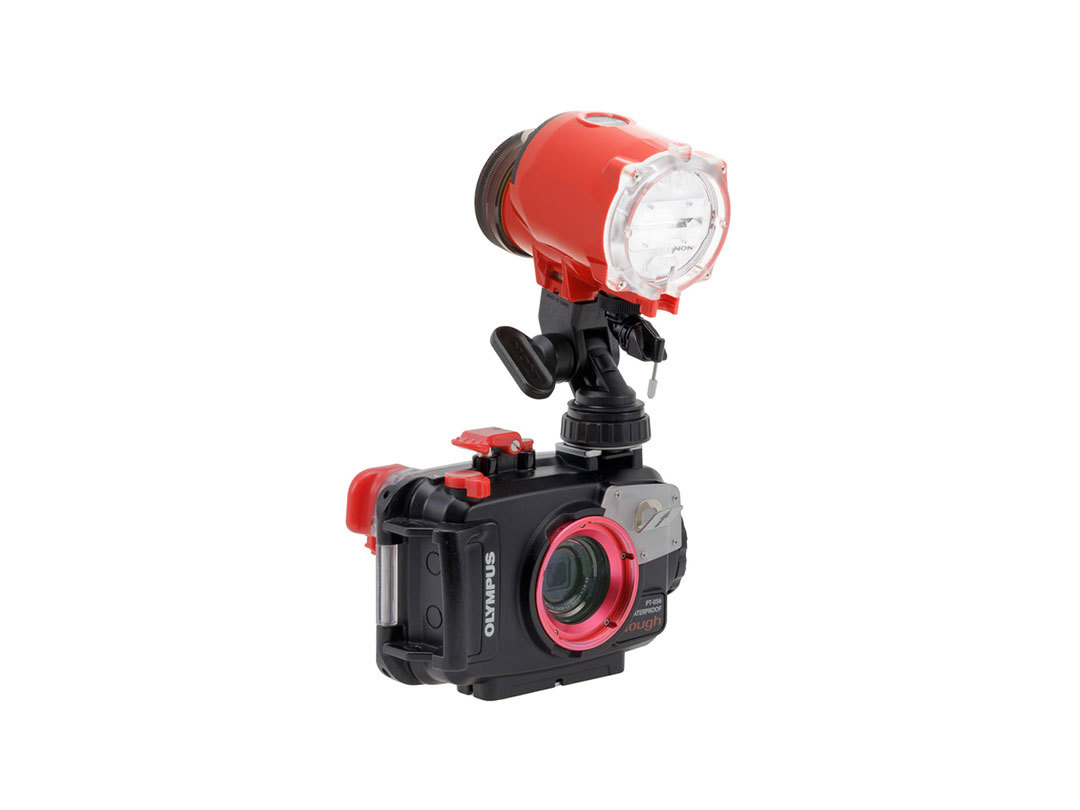

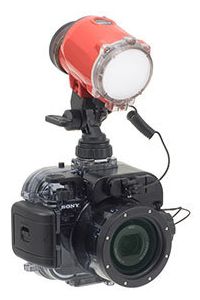

Shoe Base II

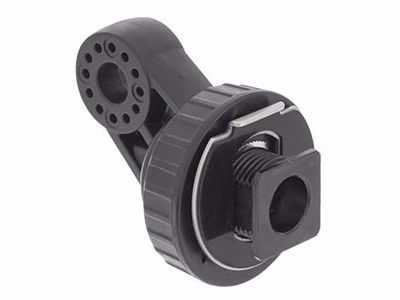

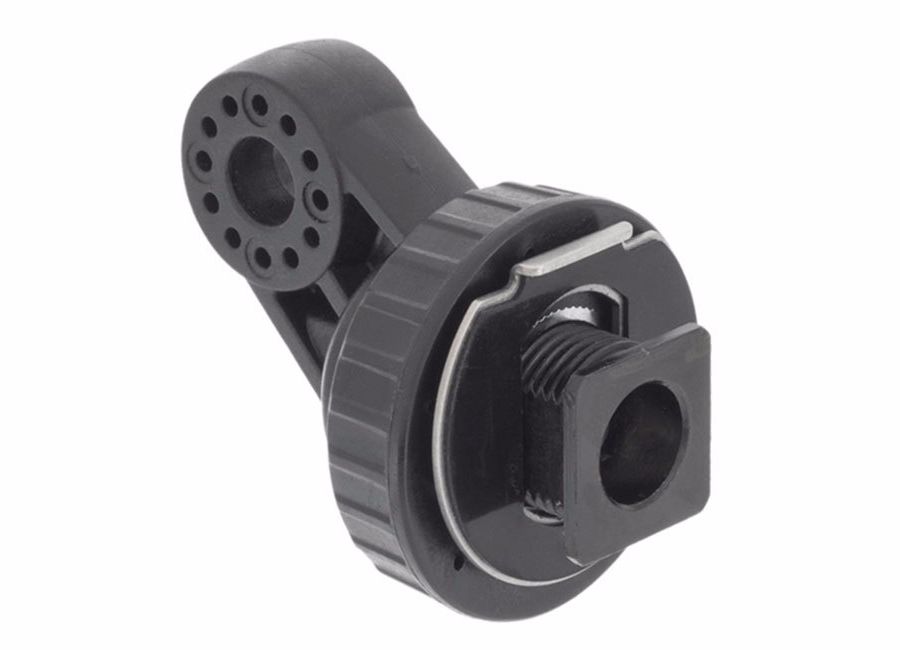

Shoe Base II rubber sheet
Shoe Base II
Shoe Base II
Shoe Base II
Shoe Base II
Shoe Base II
Shoe Base II

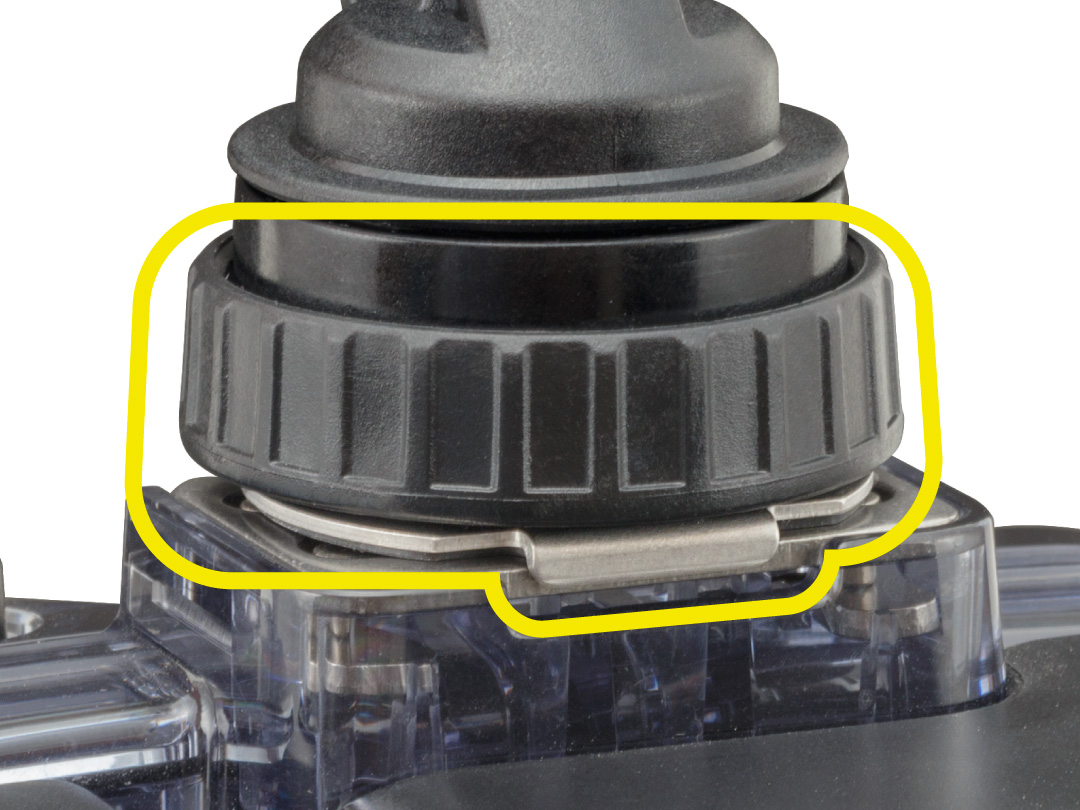

Reliable fixing mechanism

Reliable fixing mechanism

A large fixing dial helps easy installation and removal of the product. Built-in hook plate prevents accidental removal of the product. The rubber sheet on the back of the hook plate further enhances secure installation without rattle.

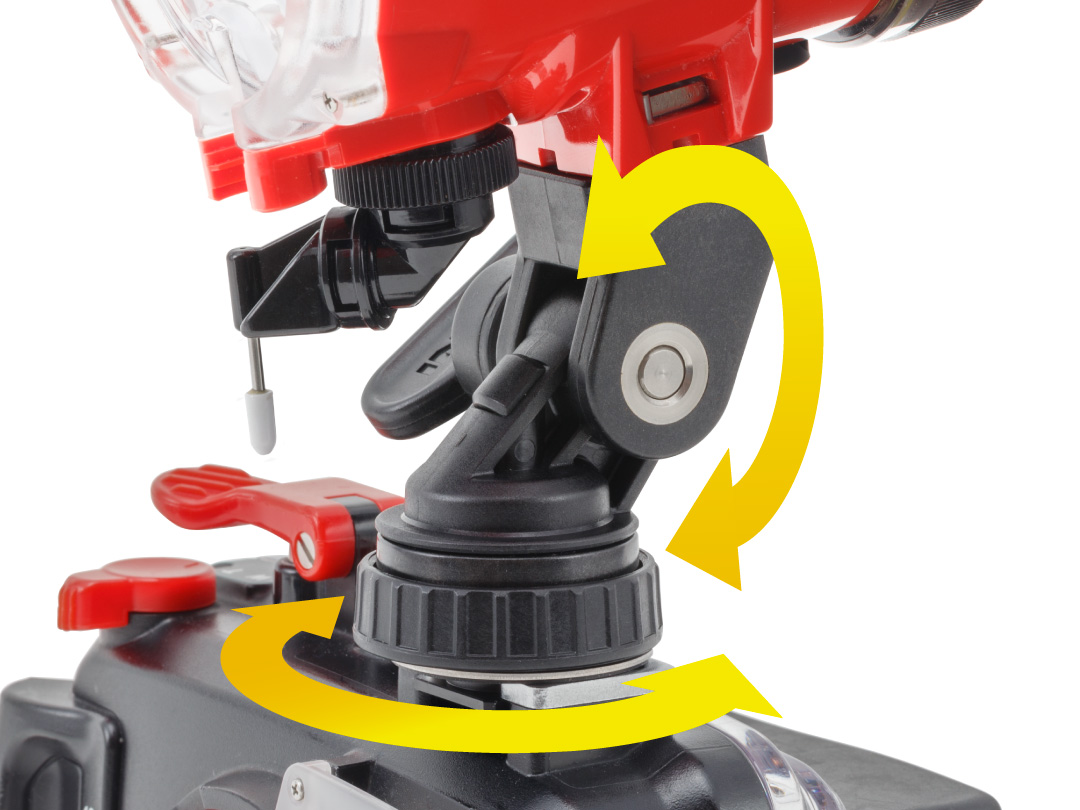

Move back and forth & Rotate 360°

Move back and forth & Rotate 360°

The combined Z Joint or light holder can move back and forth to help aiming of combined lighting device to a subject at different distance. Its base part can rotate 360°. You can adjust combined strobe aiming not only up-and-down but also sideways.

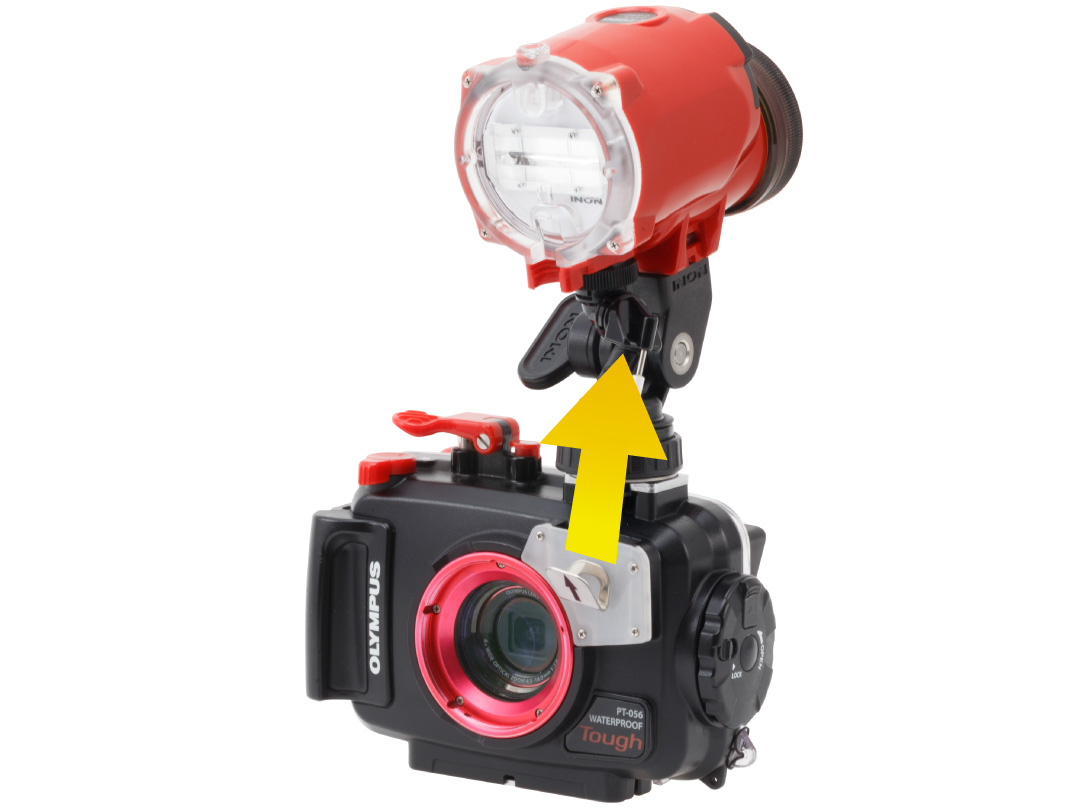

Wireless connection

Wireless connection compatibility

By installing either of Z-330/D-200/S-2000/Z-240 Type4/D-2000 Type4 strobe on top of an underwater housing via Shoe Base II and Z Joint offers simple and compact strobe shooting set-up to trigger the strobe without cable.

Shoe Base II Options

Z Joint


Z Joint

Quick Holder Set S-LF


Quick Holder Set S-LF

Quick Holder Set S-LE


Quick Holder Set S-LE

Quick Holder Set S-Z


Quick Holder Set S-Z

Single Light Holder LF


Single Light Holder LF

Single Light Holder LE


Single Light Holder LE

Rotatable YS Extension Bar


Rotatable YS Extension Bar

Shoe Base Spacer


Shoe Base Spacer

Shoe Base Adapter D4


Shoe Base Adapter D4

Shoe Base Adapter X-2


Shoe Base Adapter X-2

Accessory Shoe Spacer
for Canon

Accessory Shoe Spacer for Canon
page top

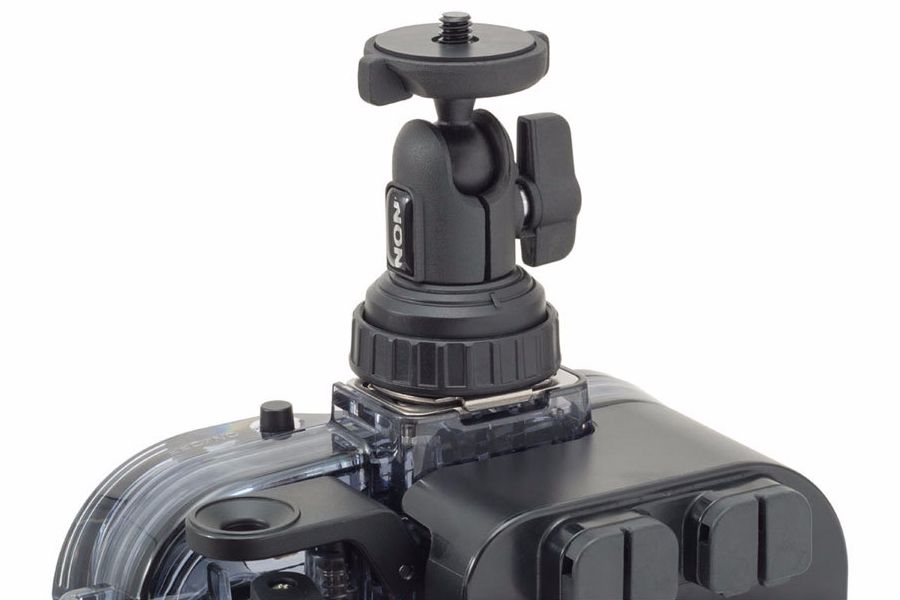

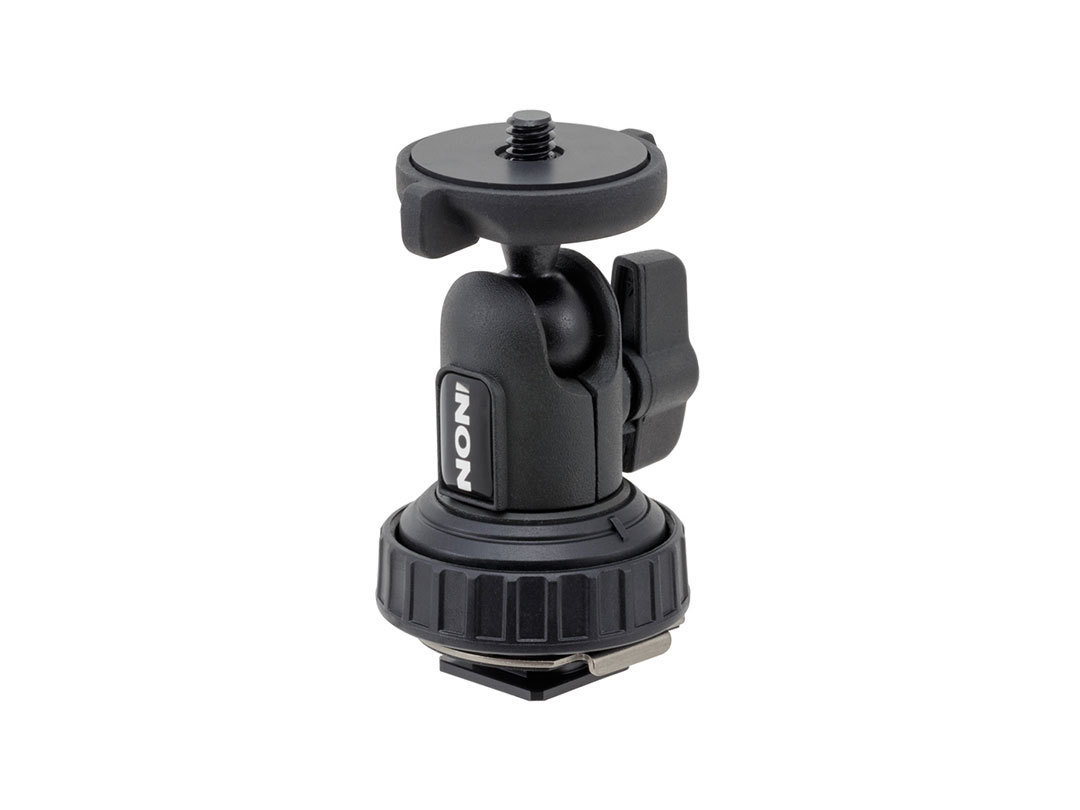

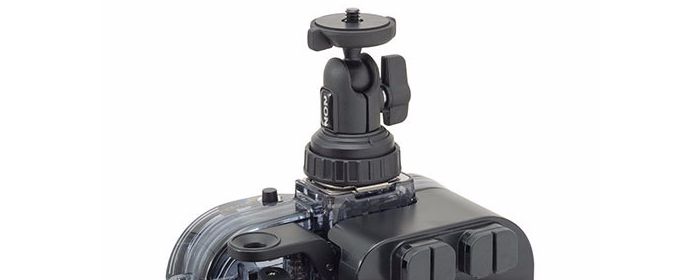

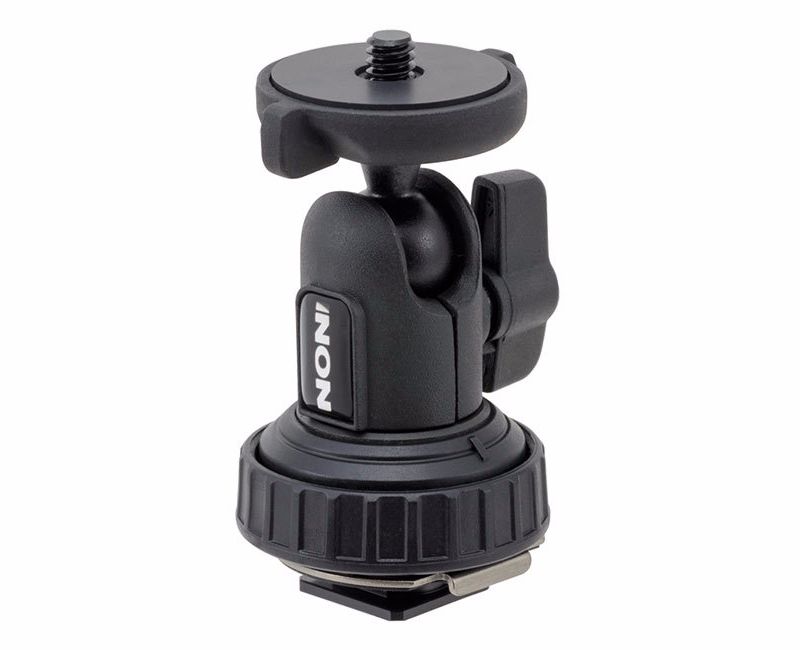

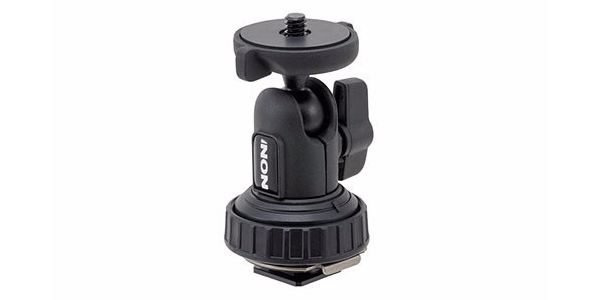

Shoe Base 1/4-20UNC

JAN/EAN code : 4562121438484

Manual

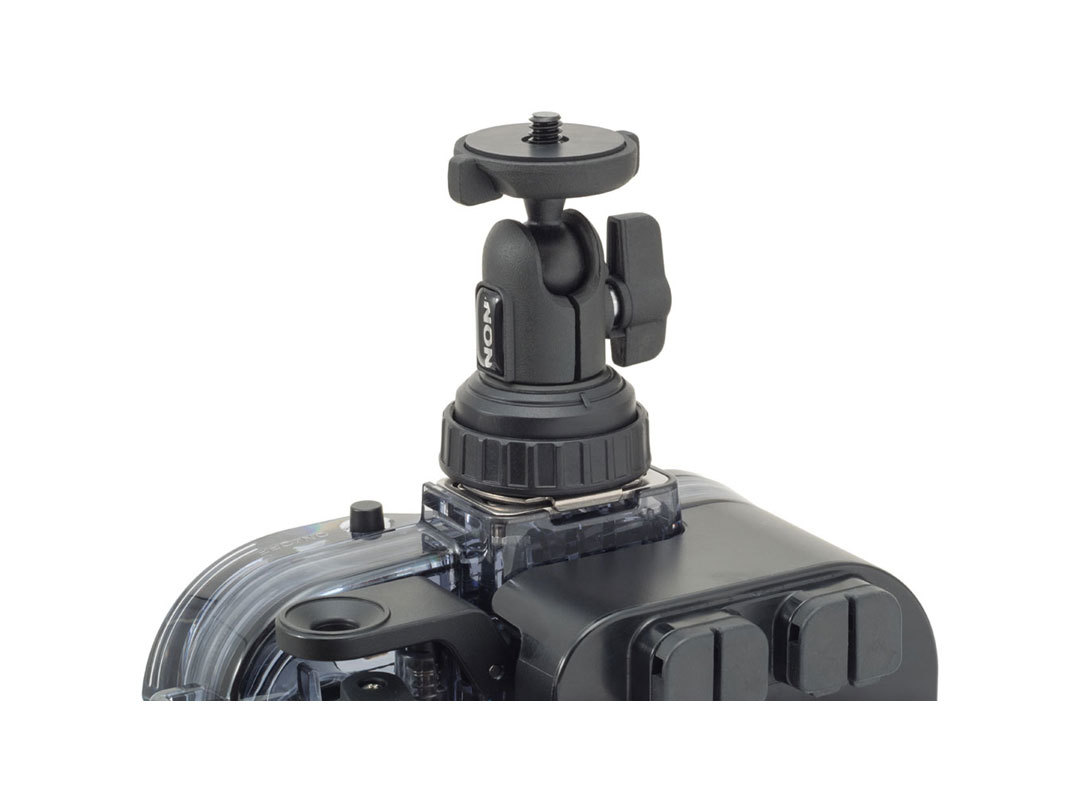

Shoe Base 1/4-20UNC

A Shoe Base equipped with "1/4-20UNC" male screw on its head adapter. The built-in ball head supports wide movable range (360-degree rotatable and 180-degree back and forth) yet with its compact body.

The Shoe Base 1/4-20UNC can be directly screwed on a conventional digital camera or underwater housing equipped with "1/4-20UNC" female screw hole at the bottom. An action camera or compact digital camera can be installed on an accessory shoe of an underwater housing to shoot/film simultaneously.
The INON "Single Light Holder LE for Tripod"/"Single Light Holder LF for Tripod" enables to combine INON LE/LF series LED flashlight with this Shoe Base.

The Shoe Base 1/4-20UNC is designed to remove upper "Ballhead UWTP-B1" to use as a tripod head with 1/4 inch screw on a tripod etc.

Full length: 72 mm/2.8 in
Weight: 78 g/2.8 oz[air] / approx.45 g/1.6 oz[underwater]

Compatible products(Top 1/4-20UNC screw)

  • GP 1/4-20UNC Adapter II
  • BALL 1/4-20UNC Adapter
  • SD/ZD Front Mask (when using supplied Mount Adapter)
  • Single Light Holder LF for Tripod
  • Single Light Holder LE for Tripod
  • Tripod Adapter
  • Action camera/compact digital camera equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).
Shoe Base 1/4-20UNC

A Shoe Base equipped with "1/4-20UNC" male screw on its head adapter. The built-in ball head supports wide movable range (360-degree rotatable and 180-degree back and forth) yet with its compact body.

The Shoe Base 1/4-20UNC can be directly screwed on a conventional digital camera or underwater housing equipped with "1/4-20UNC" female screw hole at the bottom. An action camera or compact digital camera can be installed on an accessory shoe of an underwater housing to shoot/film simultaneously.
The INON "Single Light Holder LE for Tripod"/"Single Light Holder LF for Tripod" enables to combine INON LE/LF series LED flashlight with this Shoe Base.

The Shoe Base 1/4-20UNC is designed to remove upper "Ballhead UWTP-B1" to use as a tripod head with 1/4 inch screw on a tripod etc.

Full length: 72 mm/2.8 in
Weight: 78 g/2.8 oz[air] / approx.45 g/1.6 oz[underwater]

Compatible products(Top 1/4-20UNC screw)

  • GP 1/4-20UNC Adapter II
  • BALL 1/4-20UNC Adapter
  • SD/ZD Front Mask (when using supplied Mount Adapter)
  • Single Light Holder LF for Tripod
  • Single Light Holder LE for Tripod
  • Tripod Adapter
  • Action camera/compact digital camera equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).

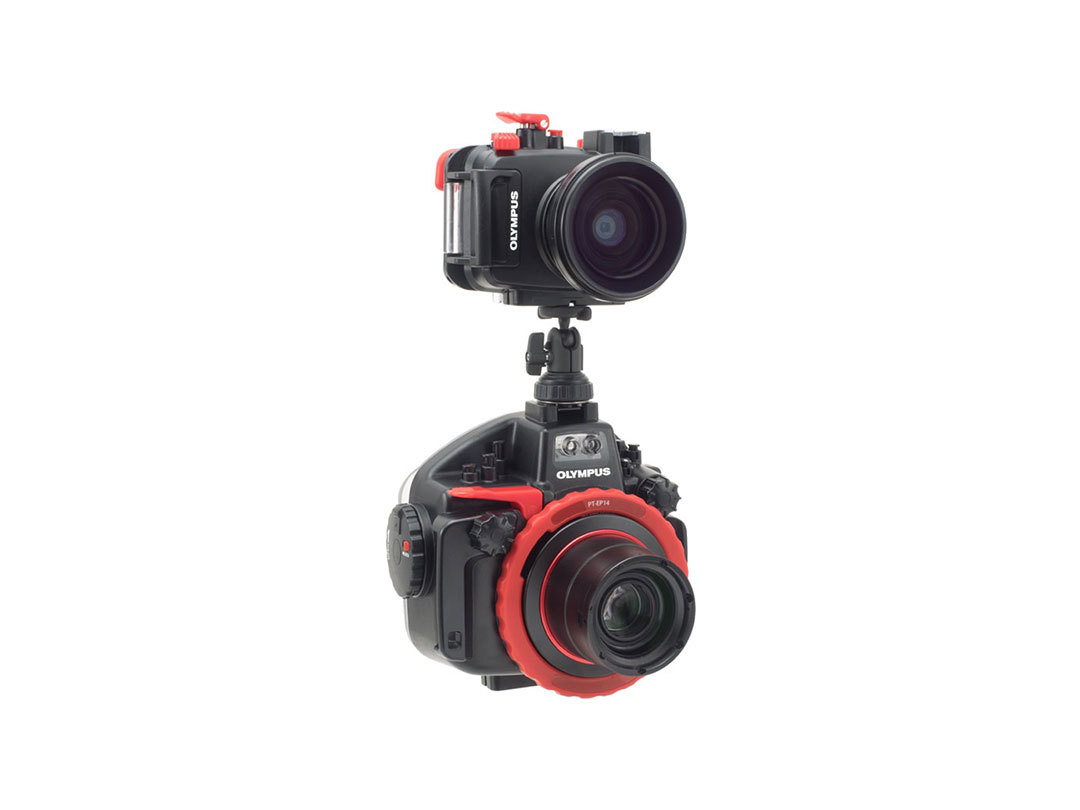

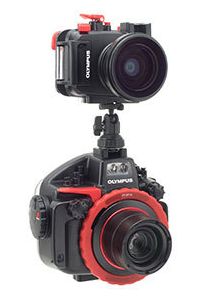

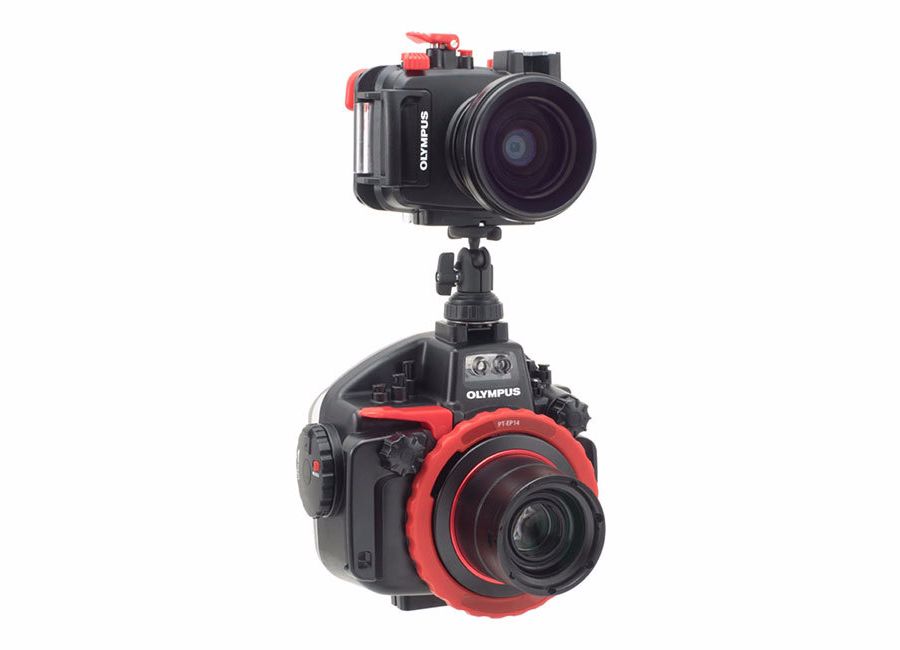

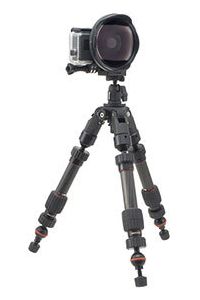

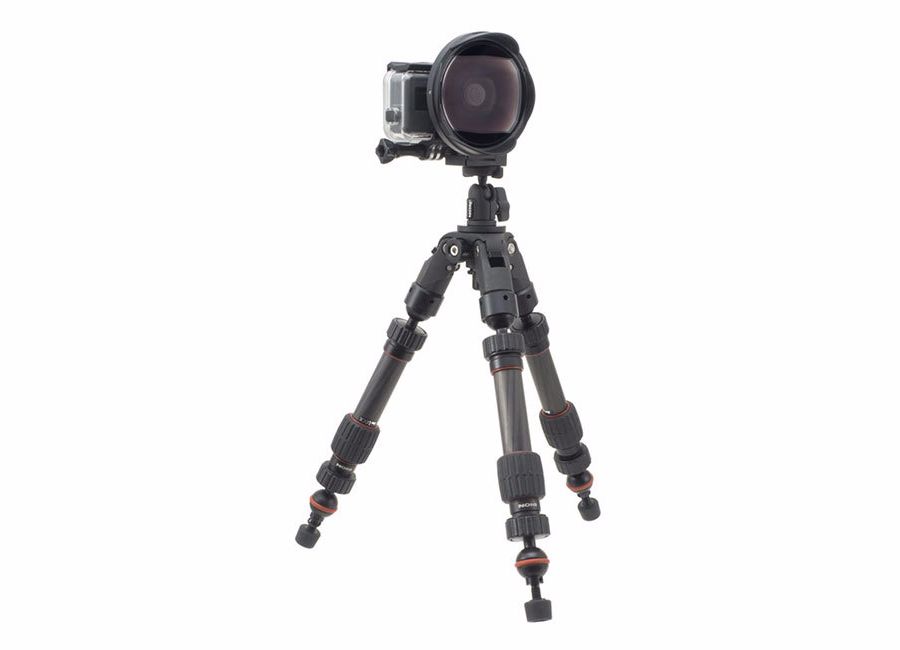

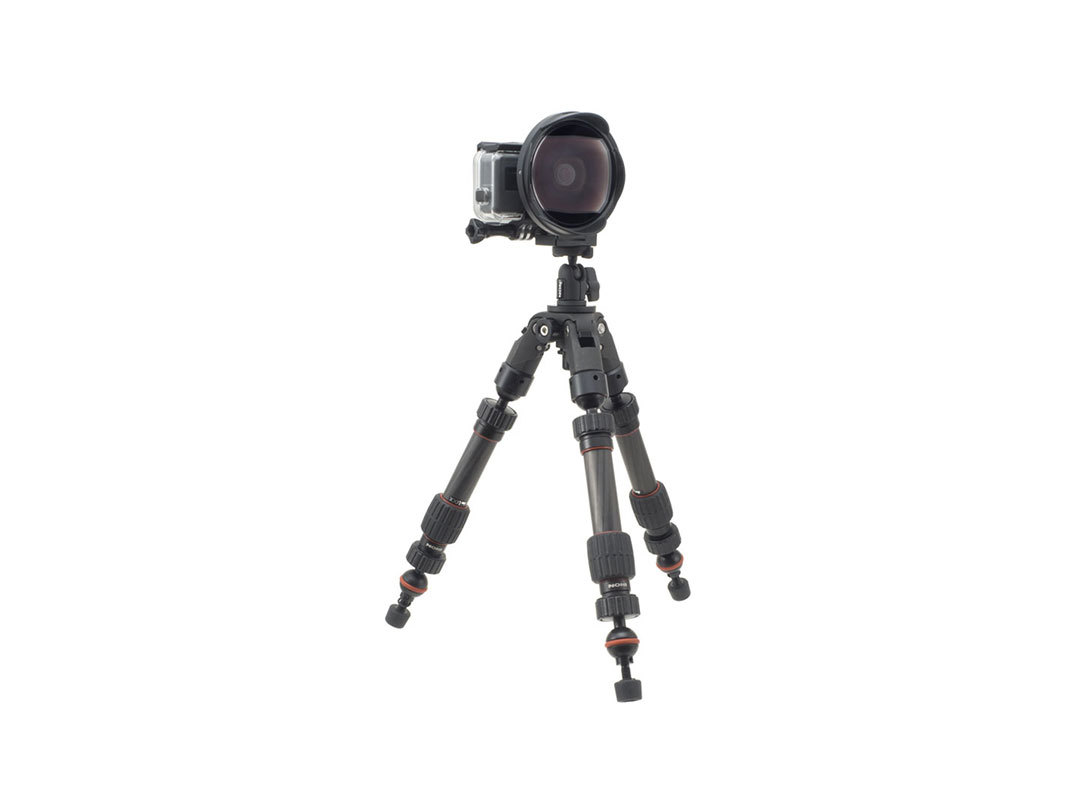

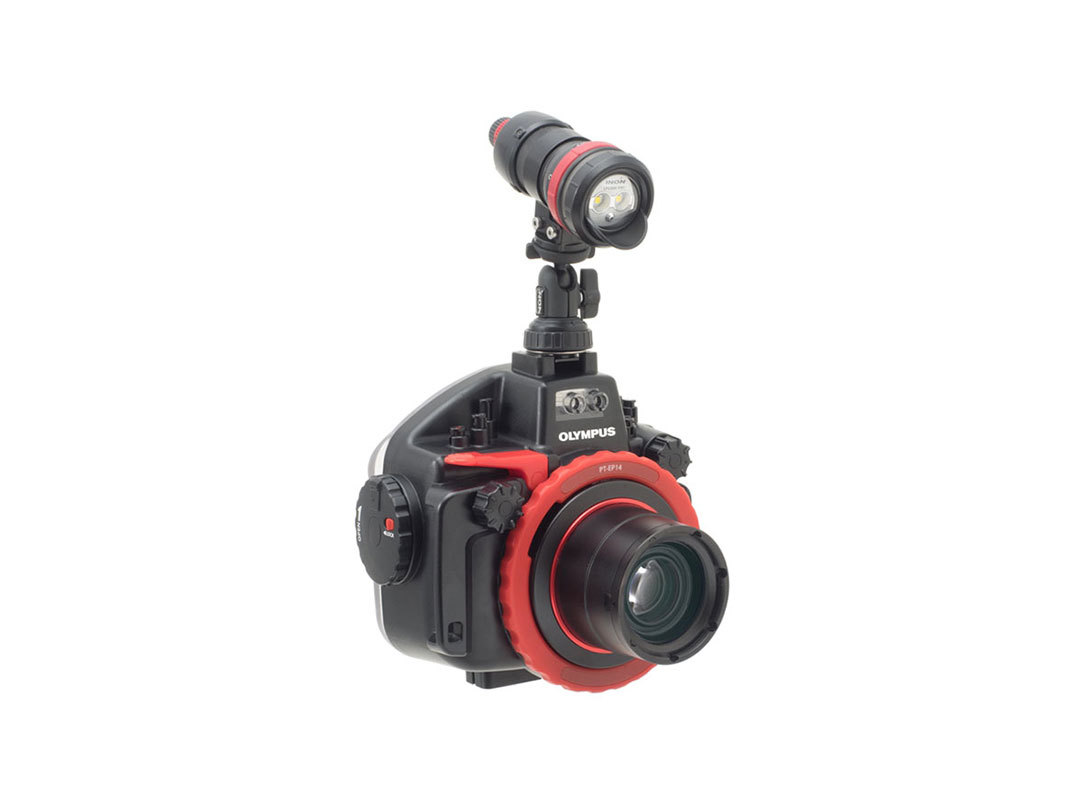

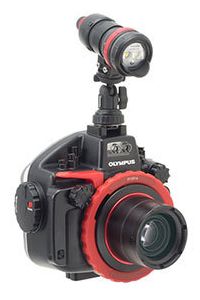

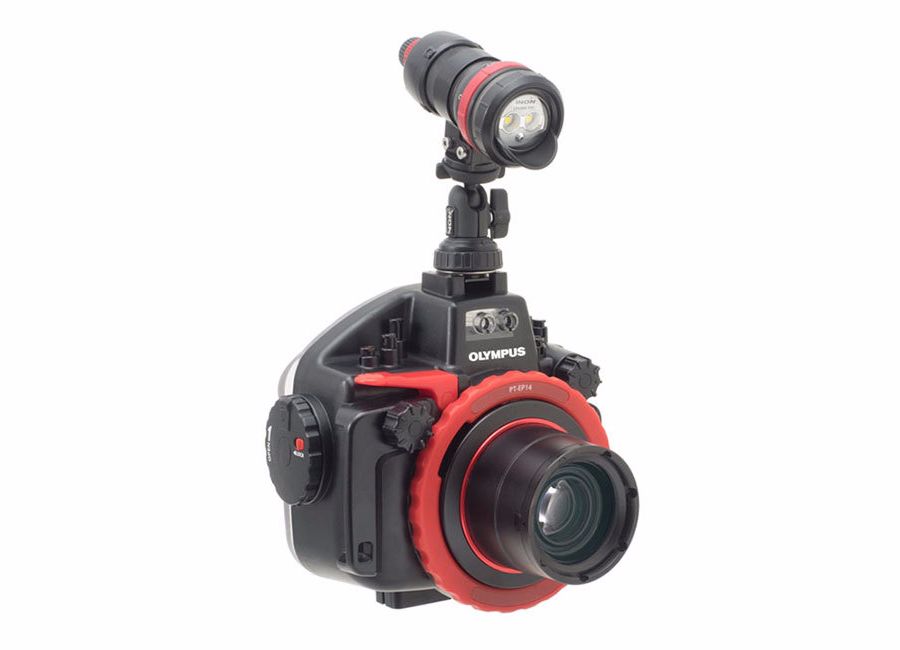

Shoe Base 1/4-20UNC usege
Shoe Base 1/4-20UNC usege
Shoe Base 1/4-20UNC usege
Shoe Base 1/4-20UNC usege
Shoe Base 1/4-20UNC usege
Shoe Base 1/4-20UNC usege
page top

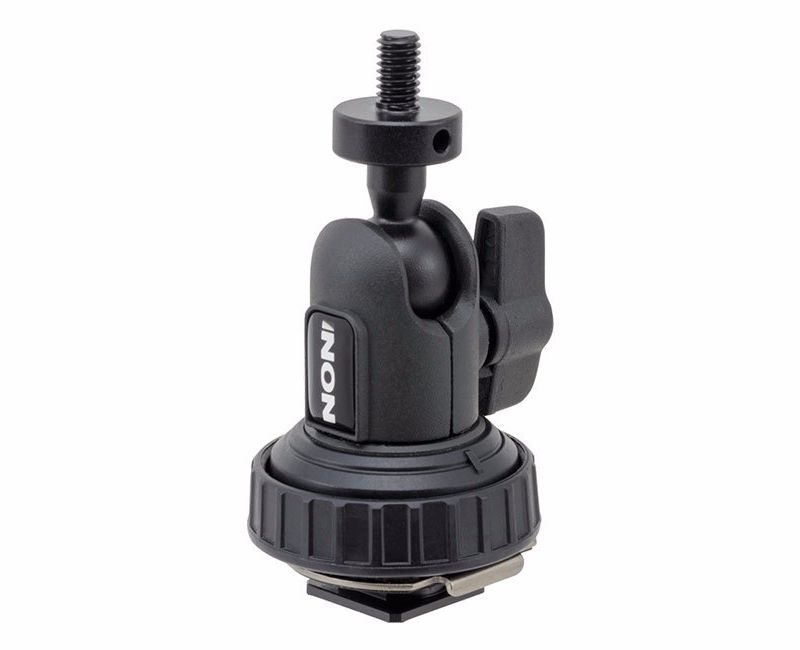

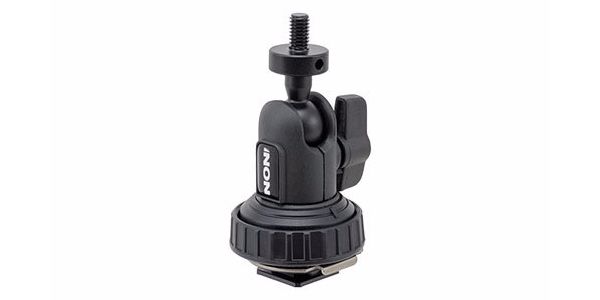

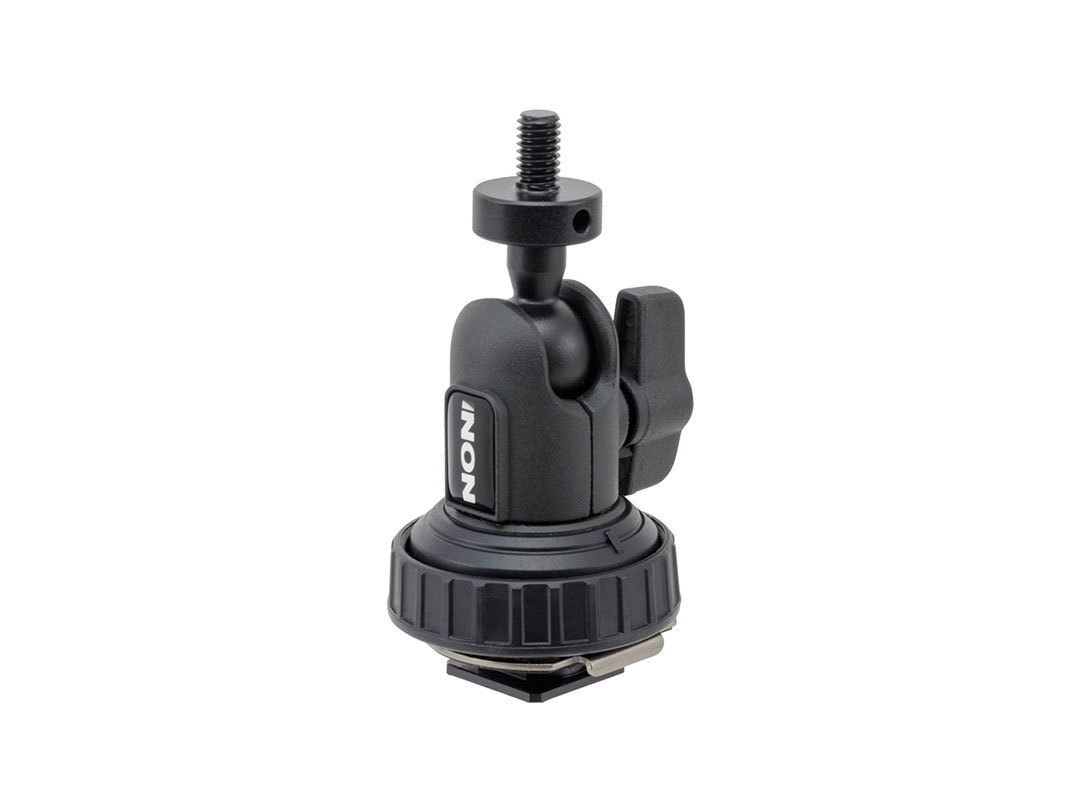

Shoe Base M6

JAN/EAN code : 4562121438477

Manual
Shoe Base M6

A Shoe Base equipped with "M6 screw" male screw on its head adapter. The built-in ball head supports wide movable range (360-degree rotatable and 180-degree back and forth) yet with its compact body.
The Shoe Base M6 can directly hold an INON strobe or accessories for an action camera (ZD/SD Front Mask, SD Mount Base etc.) on their M6 screw hole. A strobe or an action camera can be installed on an accessory shoe of an underwater housing to make simple strobe configuration or shoot/film simultaneously.

The Shoe Base M6 is designed to remove upper "M6 Ballhead UWTP-M6B1" to use as a tripod head with M6 screw on a tripod.

Full length: 77 mm/3.0 in
Weight: 69 g/2.4 oz[air] / approx.40 g/1.4 oz[underwater]

Compatible products(Top M6 screw)

  • INON strobes (excluding Z-22)
  • SD Mount Cage for HERO3/3+/4 (※)
  • ZD/SD Front Mask

When installing this product to INON "SD Mount Cage for HERO3/3+/4", optional "Rubber Spacer" is required to attach on the SD Mount Cage (*Rubber Spacer is not packaged as standard accessory). So please consult your purchasing dealer if you attach this product on INON SD Mount Cage.

Shoe Base M6

A Shoe Base equipped with "M6 screw" male screw on its head adapter. The built-in ball head supports wide movable range (360-degree rotatable and 180-degree back and forth) yet with its compact body.
The Shoe Base M6 can directly hold an INON strobe or accessories for an action camera (ZD/SD Front Mask, SD Mount Base etc.) on their M6 screw hole. A strobe or an action camera can be installed on an accessory shoe of an underwater housing to make simple strobe configuration or shoot/film simultaneously.

The Shoe Base M6 is designed to remove upper "M6 Ballhead UWTP-M6B1" to use as a tripod head with M6 screw on a tripod.

Full length: 77 mm/3.0 in
Weight: 69 g/2.4 oz[air] / approx.40 g/1.4 oz[underwater]

Compatible products(Top M6 screw)

  • INON strobes (excluding Z-22)
  • SD Mount Cage for HERO3/3+/4 (※)
  • ZD/SD Front Mask

When installing this product to INON "SD Mount Cage for HERO3/3+/4", optional "Rubber Spacer" is required to attach on the SD Mount Cage (*Rubber Spacer is not packaged as standard accessory). So please consult your purchasing dealer if you attach this product on INON SD Mount Cage.

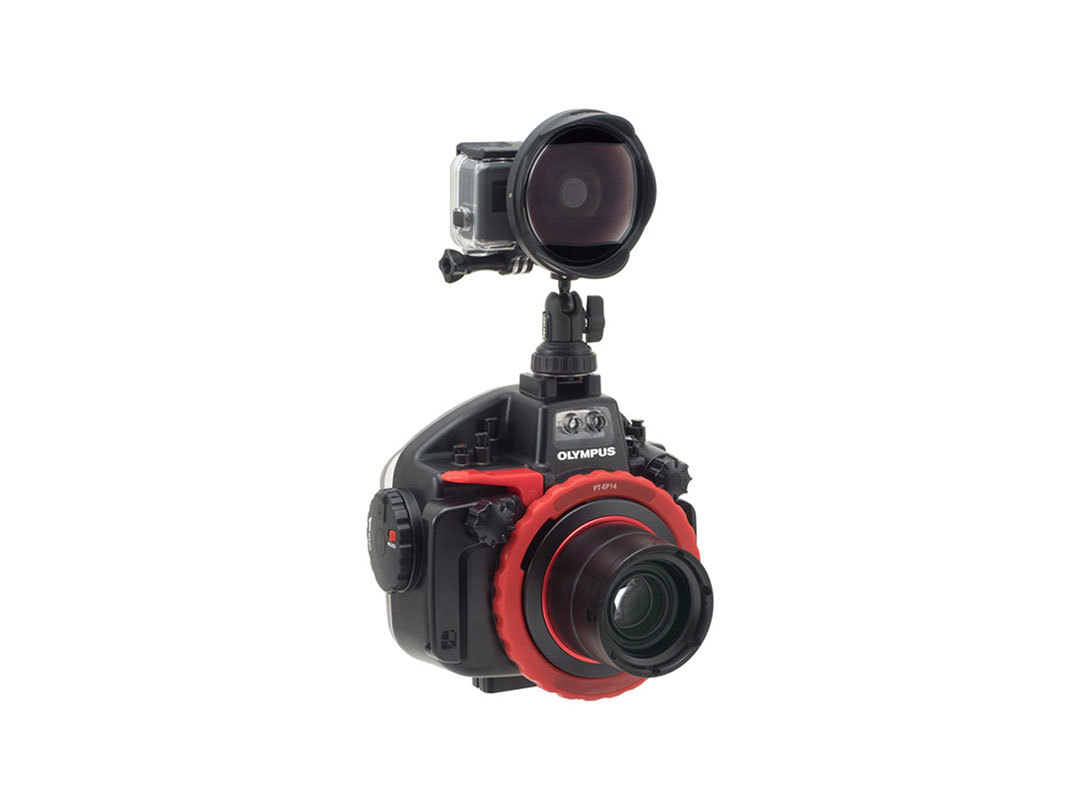

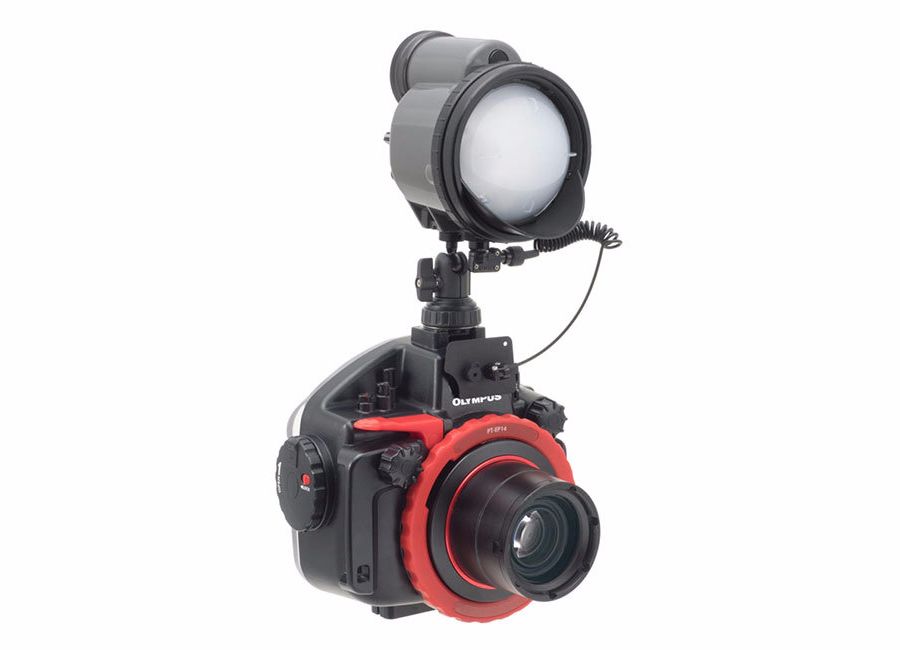

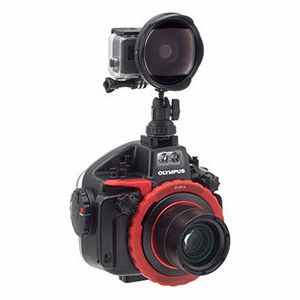

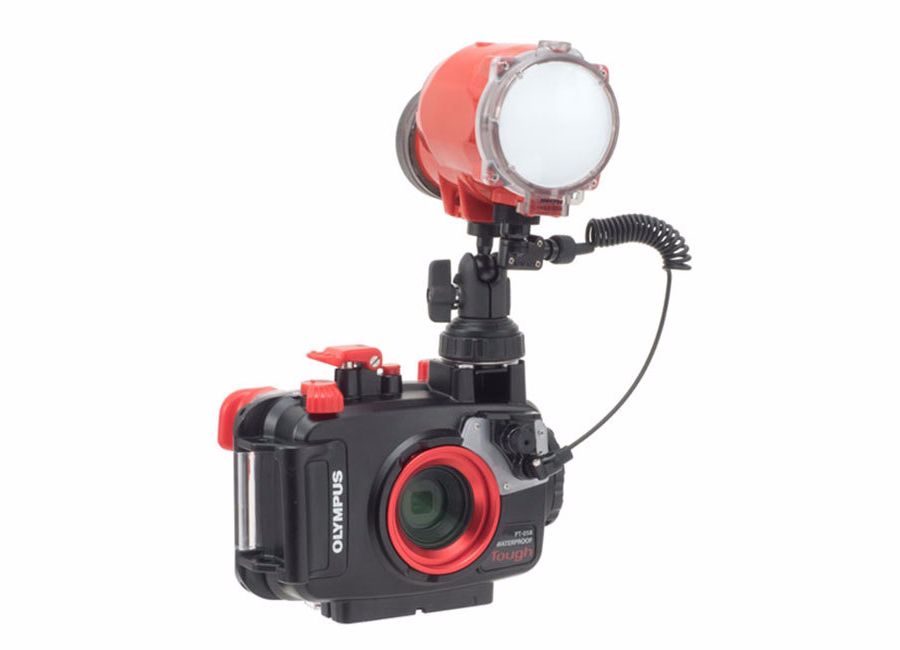

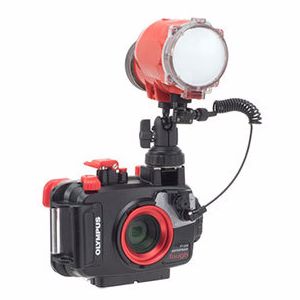

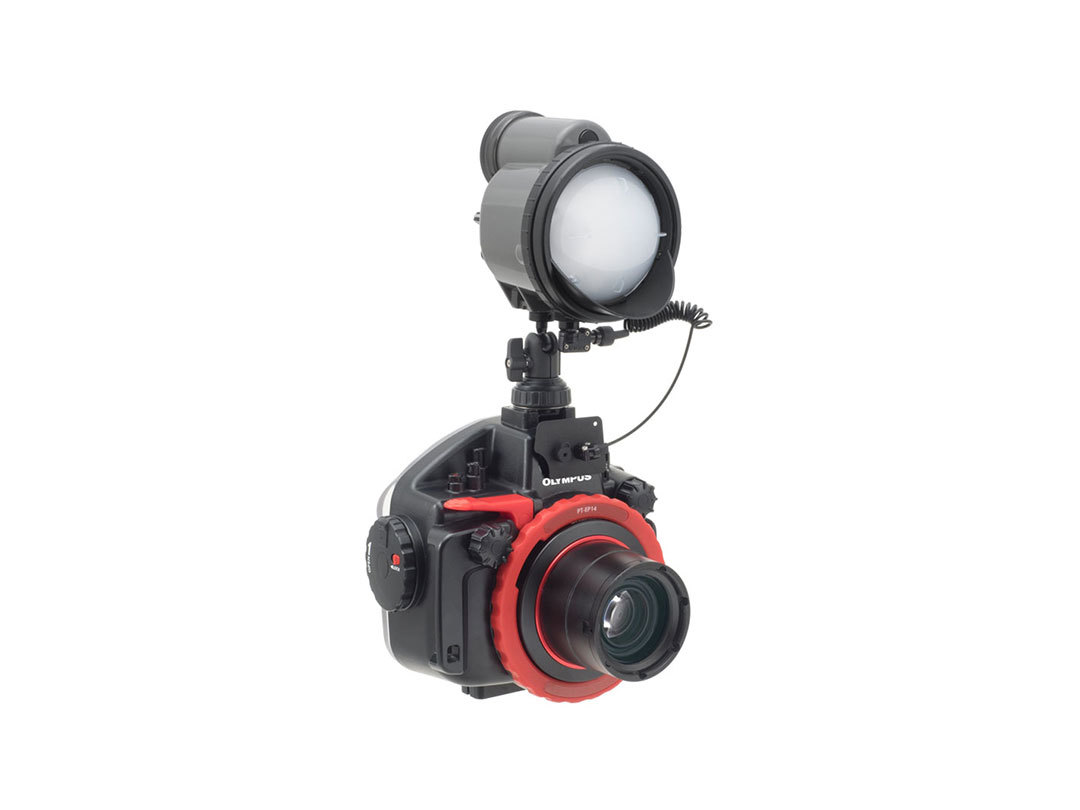

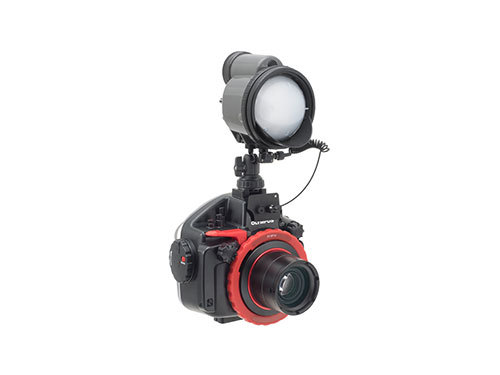

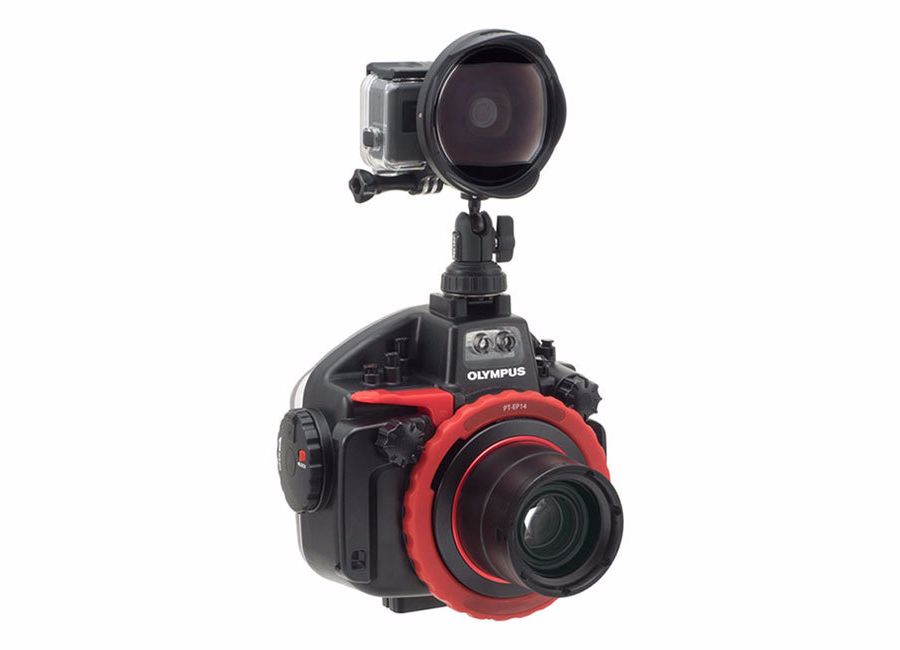

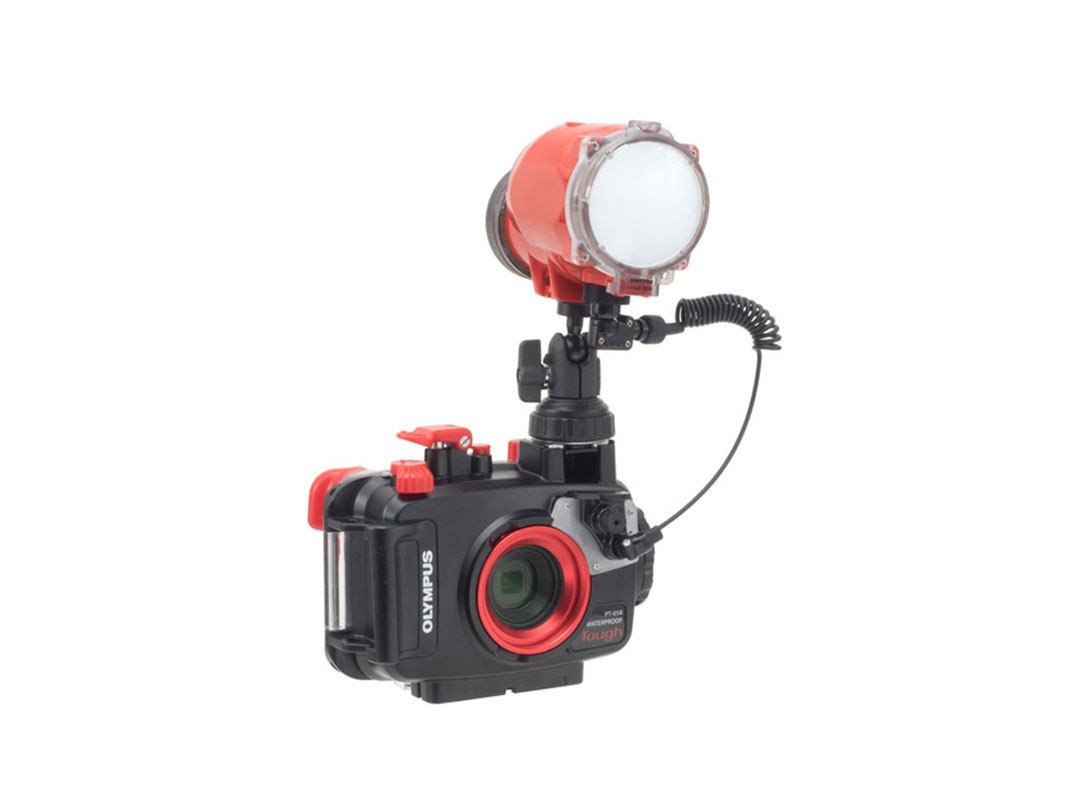

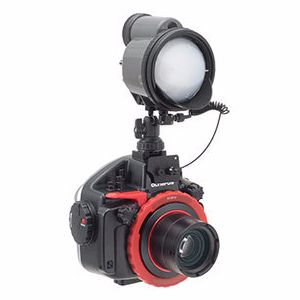

Shoe Base M6 usege
Shoe Base M6 usege
Shoe Base M6 usege
Shoe Base M6 usege
Shoe Base M6 usege
Shoe Base M6 usege
page top

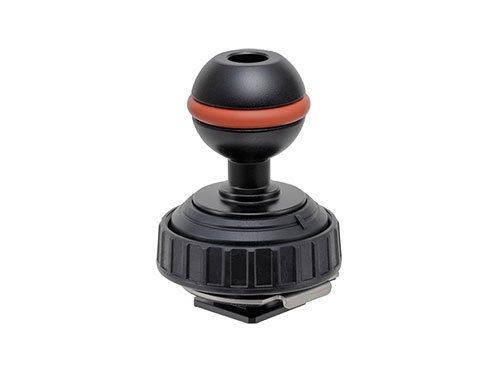

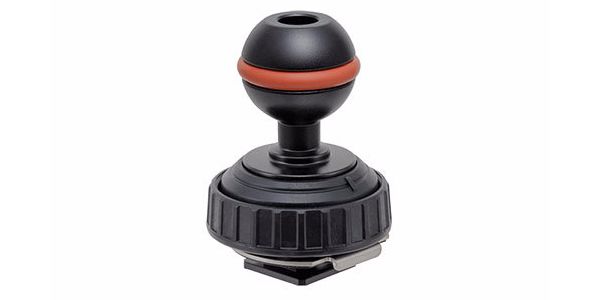

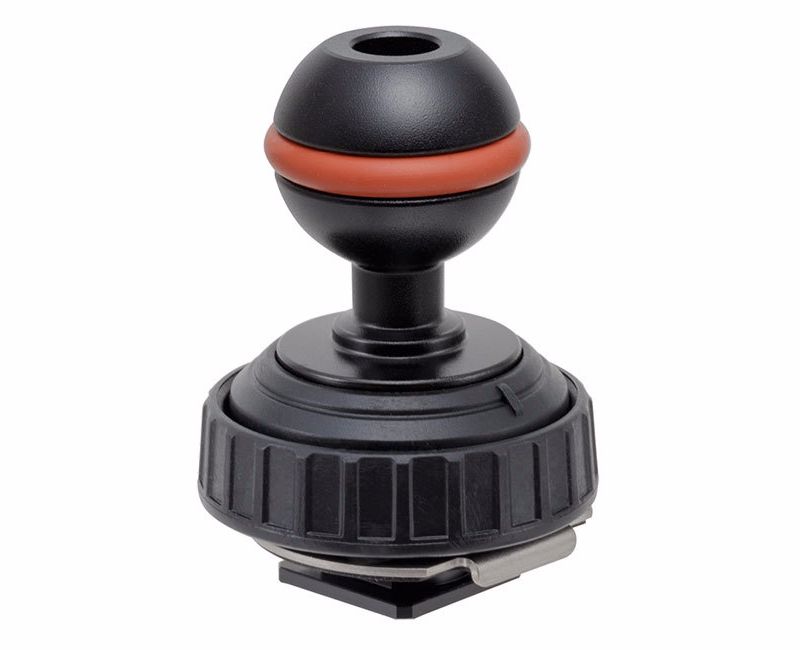

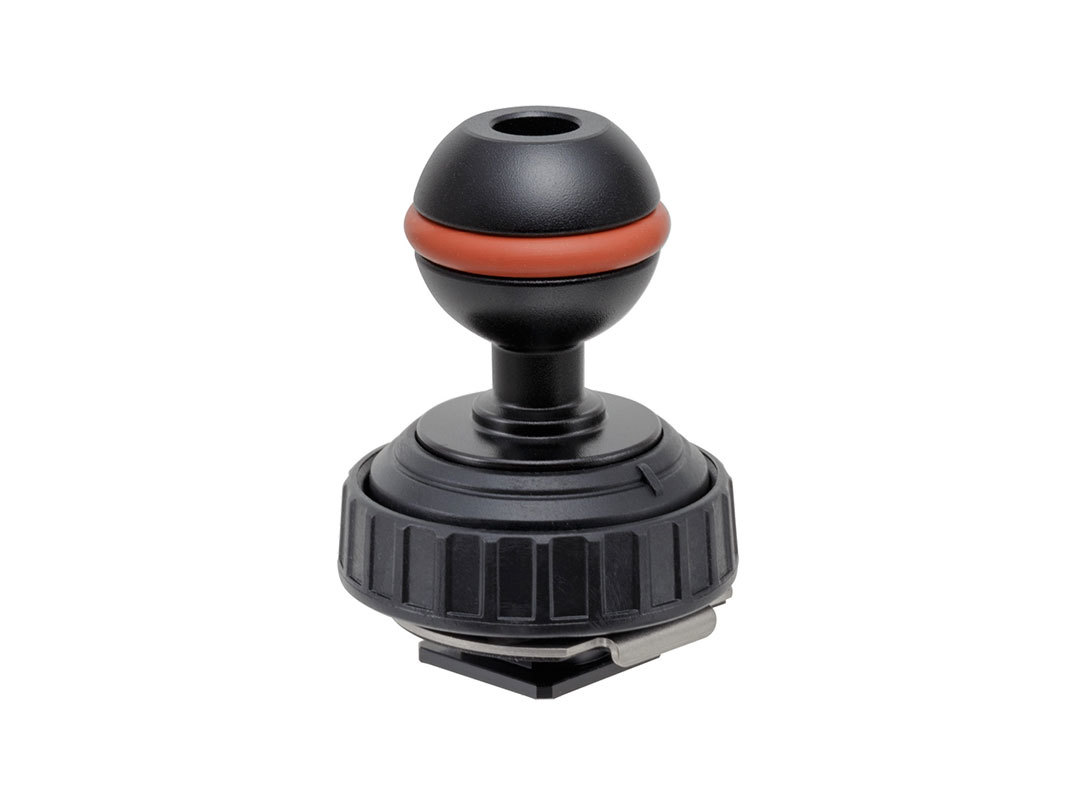

Shoe Base BALL

JAN/EAN code : 4562121438521

Manual
Shoe Base BALL

A versatile Shoe Base equipped with "ball-joint" on its head to link with any adapter having a ball-joint via clamp to install strobe, light or action camera on an accessory shoe of an underwater housing.

Full length: 55 mm/2.2 in
Weight: 52 g/1.8 oz[air] / approx.28 g/1.0 oz[underwater]

Compatible products(Top arm ball)

  • Clamp III
  • Clamp
Shoe Base BALL

A versatile Shoe Base equipped with "ball-joint" on its head to link with any adapter having a ball-joint via clamp to install strobe, light or action camera on an accessory shoe of an underwater housing.

Full length: 55 mm/2.2 in
Weight: 52 g/1.8 oz[air] / approx.28 g/1.0 oz[underwater]

Compatible products(Top arm ball)

  • Clamp III
  • Clamp

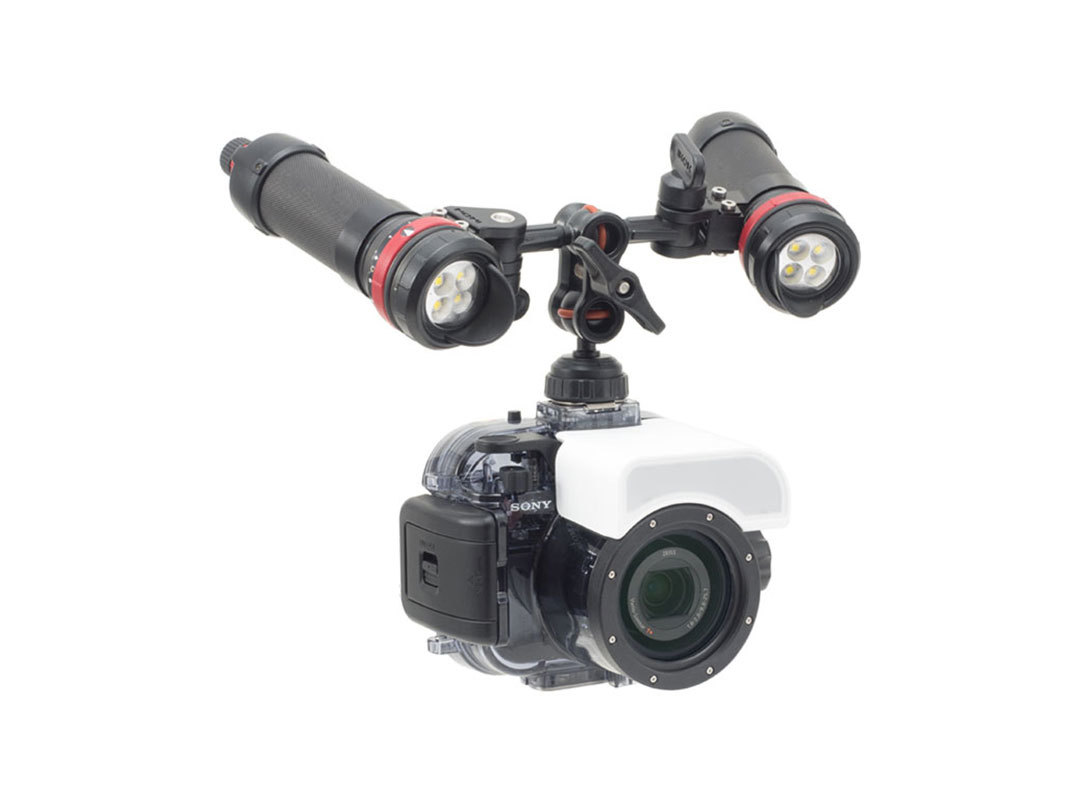

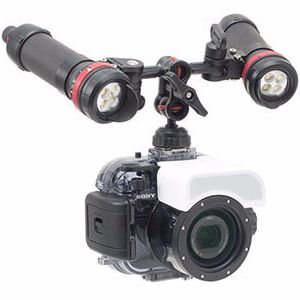

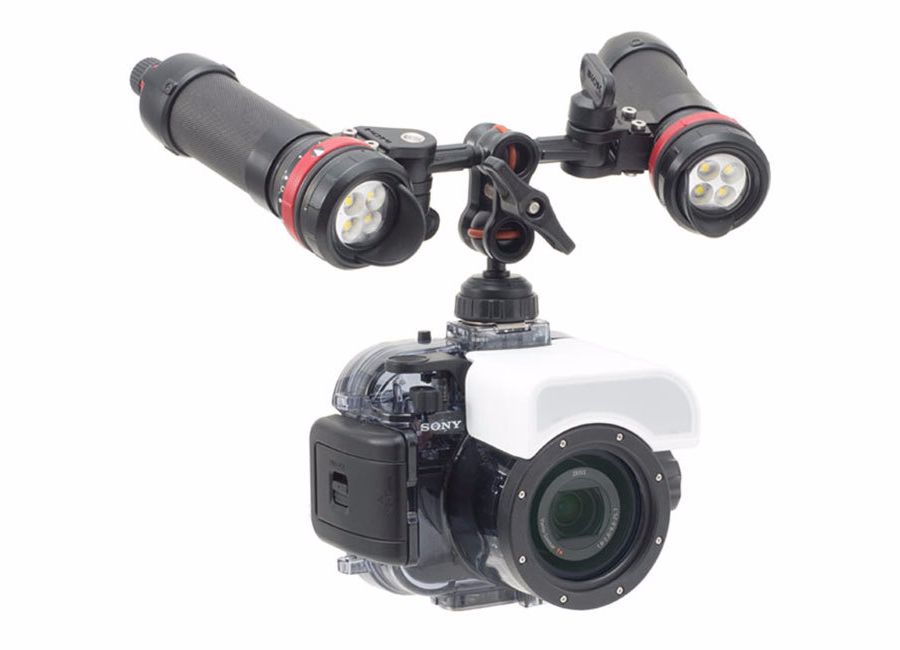

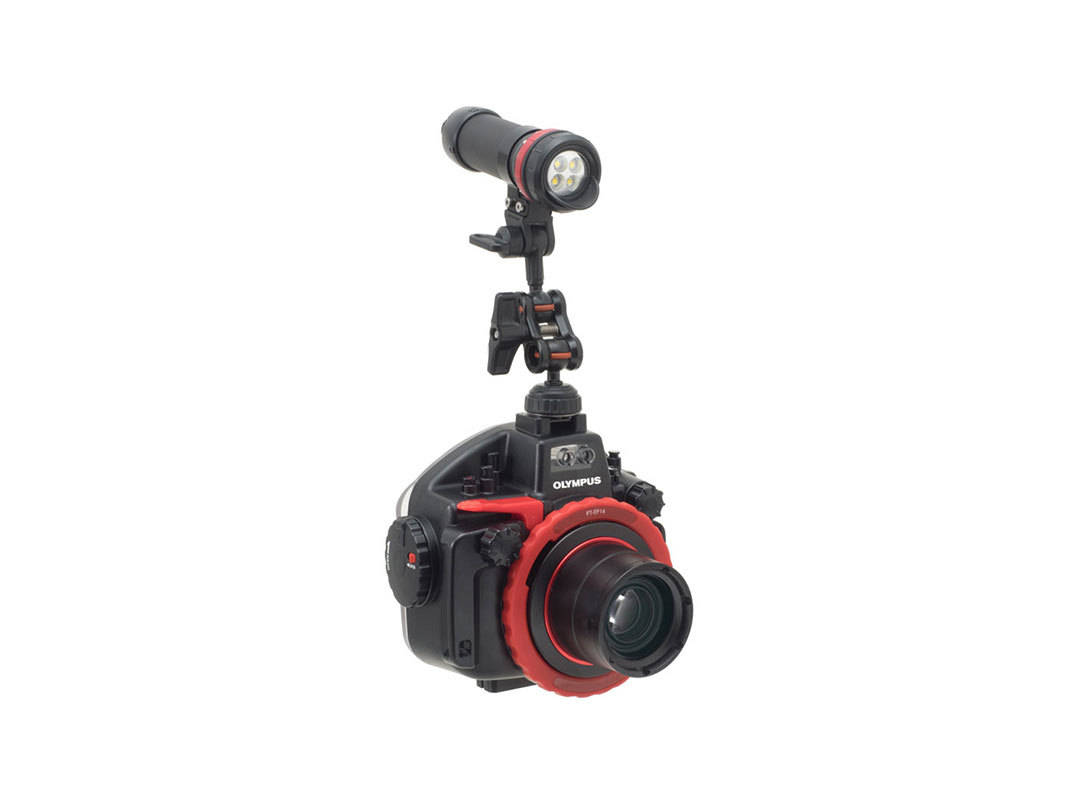

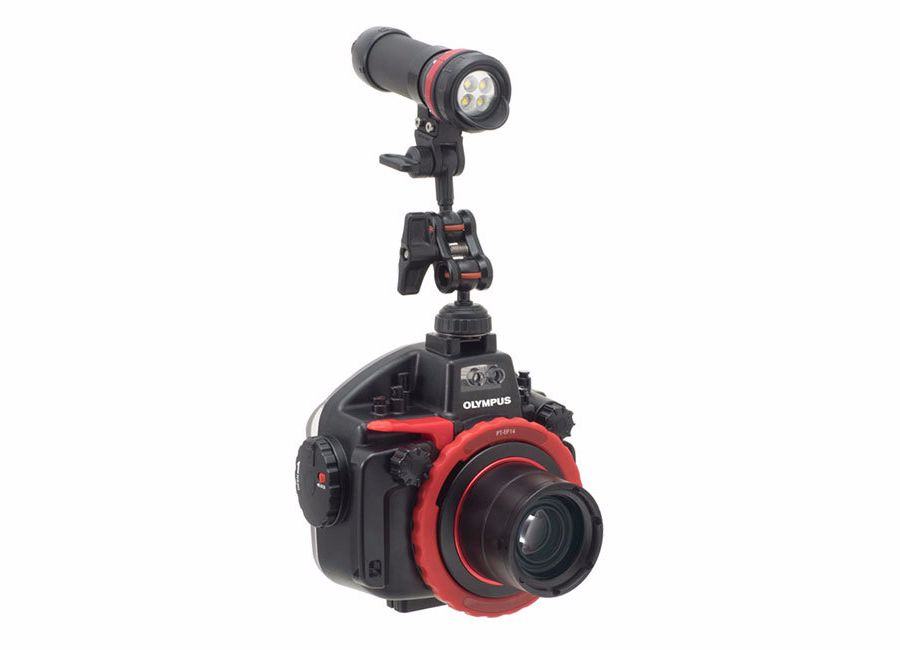

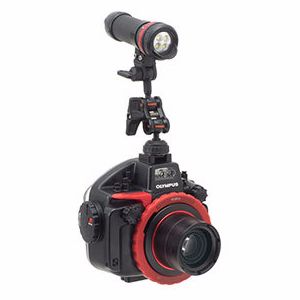

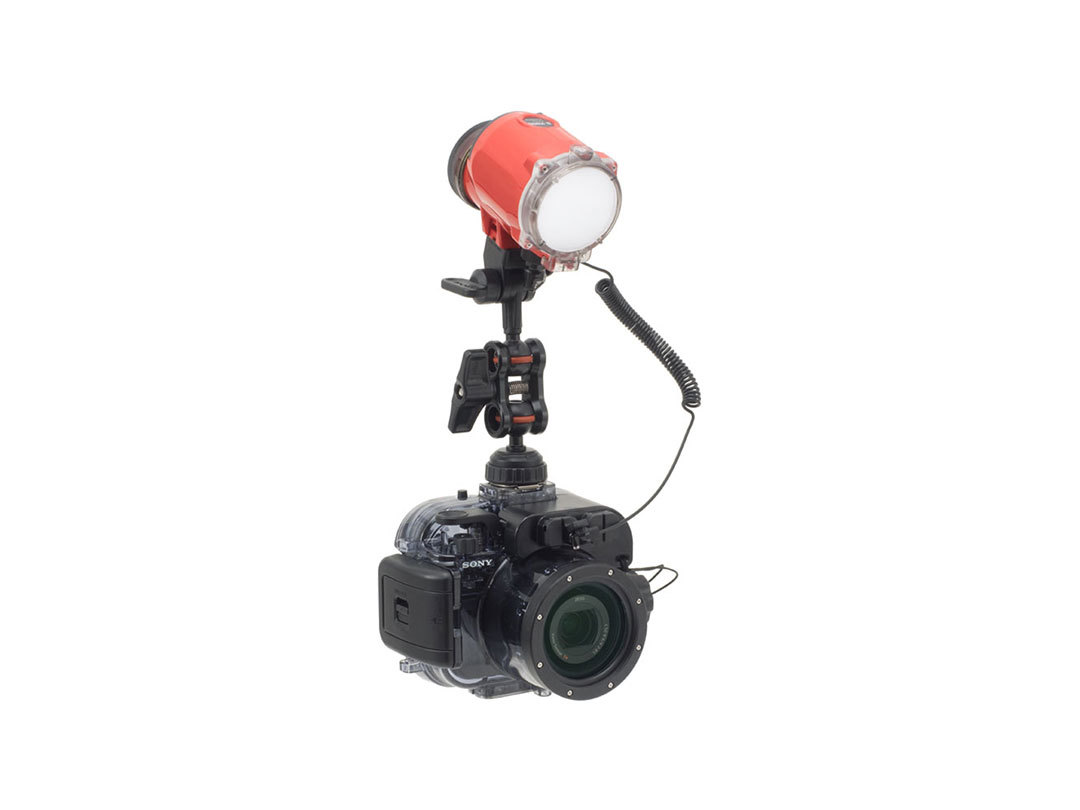

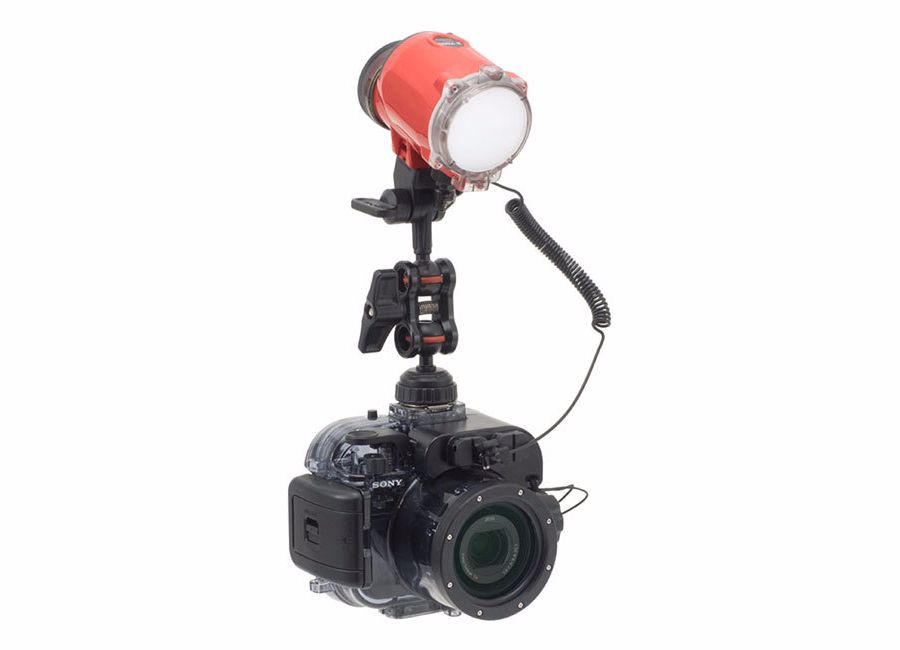

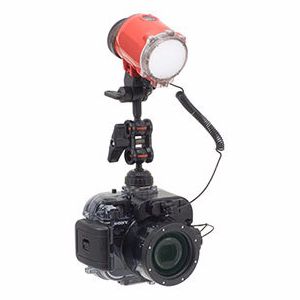

Shoe Base BALL usege
Shoe Base BALL usege
Shoe Base BALL usege
Shoe Base BALL usege
Shoe Base BALL usege
Shoe Base BALL usege

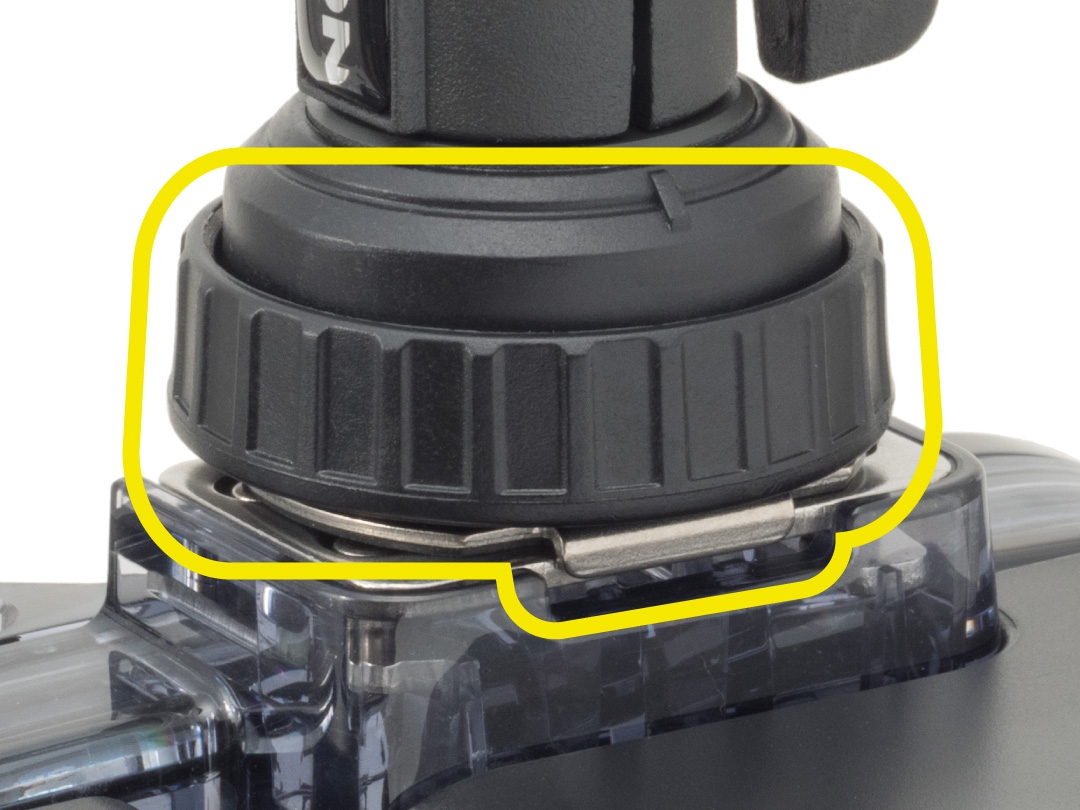

Reliable fixing mechanism

A large fixing dial helps easy installation and removal of the product. Built-in hook plate prevents accidental removal of the product. The rubber sheet on the back of the hook plate further enhances secure installation without rattle.

雲台部単独で三脚に取り付け可能

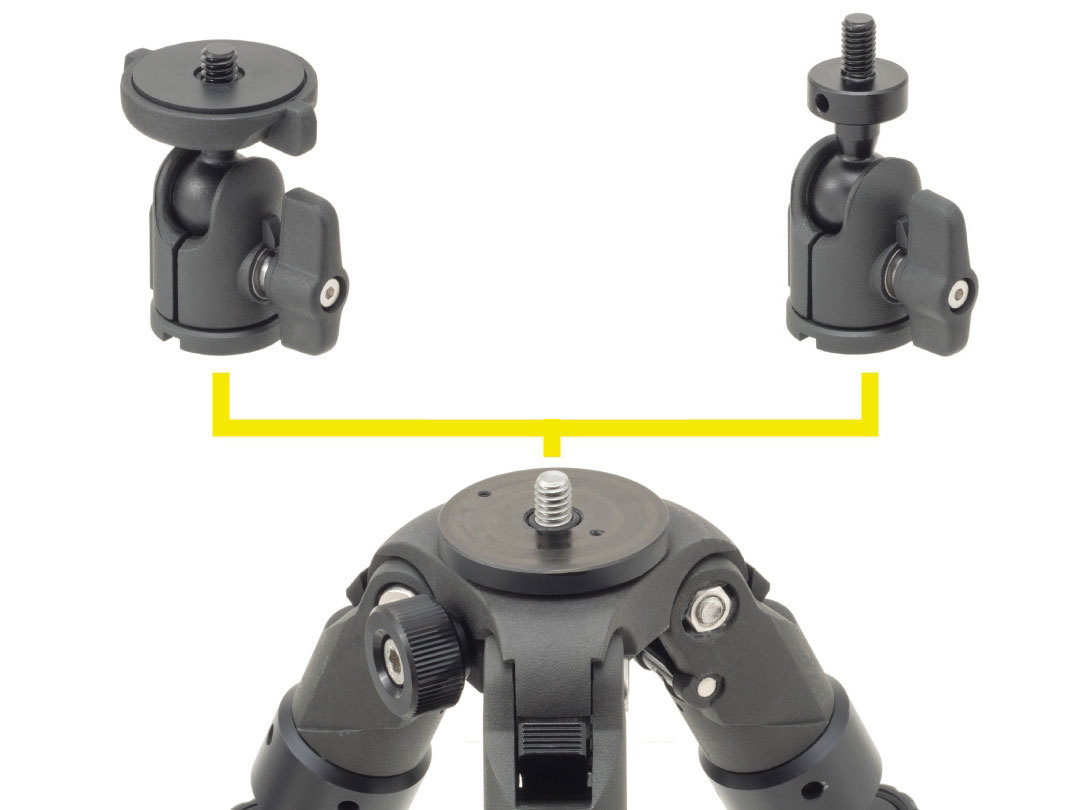

Versatile design

The ballhead of the Shoe Base 1/4-20UNC and Shoe Base M6 can be detached from the base and mounted on a tripod.

水平方向360°回転、上下180°首振り

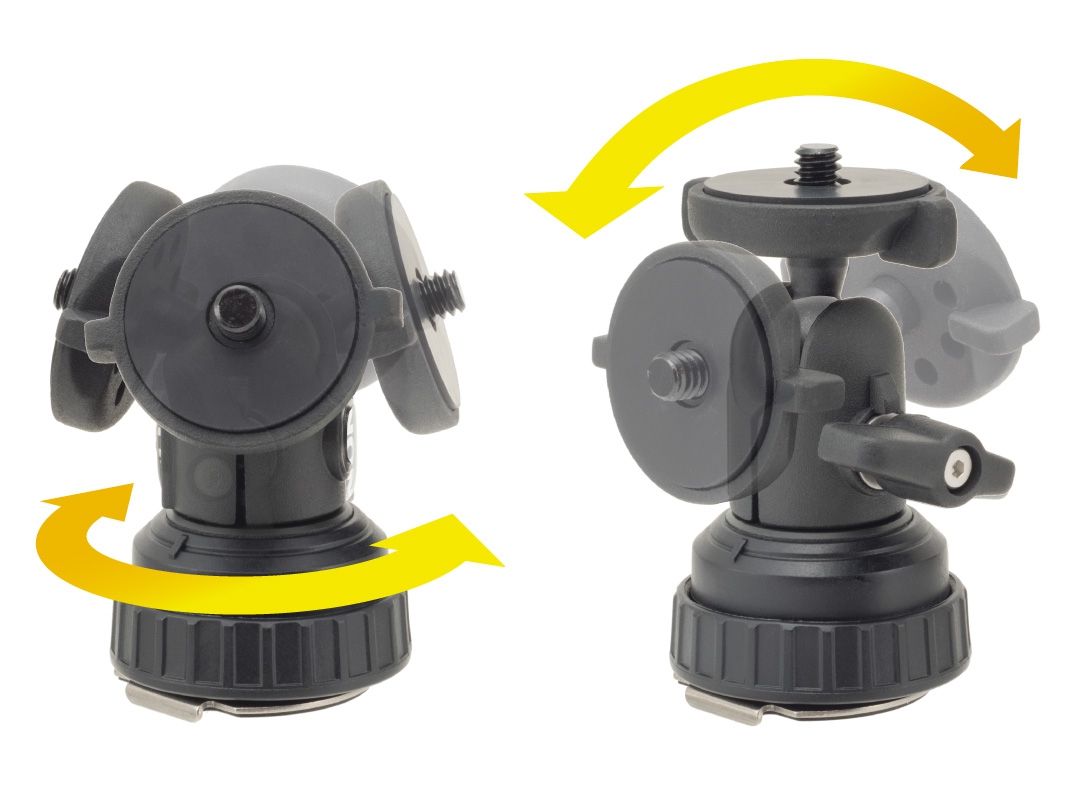

Flexible positioning

The "Shoe Base 1/4-20UNC" and "Shoe Base M6" is equipped with a ball head.
These two Shoe Bases have a "Locking Wingnut" on the side. Loosening the Locking Wingnut enables free 360-degree rotatable and 180-degree back and forth movement for flexible positioning while fixing the Locking Wingnut firmly fixed the position you select.

Shoe Base 1/4-20UNC, M6, BALL Options

Ballhead UWTP-B1


Ballhead UWTP-B1

M6 Ballhead UWTP-M6B1


M6 Ballhead UWTP-M6B1

Accessory Shoe Spacer
for Canon

Accessory Shoe Spacer for Canon

Shoe Base Spacer


Shoe Base Spacer

Shoe Base Adapter D4


Shoe Base Adapter D4

Shoe Base Adapter X-2


Shoe Base Adapter X-2

Single Light Holder LE
for Tripod(Shoe Base 1/4-20UNC)

Single Light Holder LE for Tripod

Single Light Holder LF
for Tripod(Shoe Base 1/4-20UNC)

Single Light Holder LF for Tripod

Clamp III
 (Shoe Base BALL)

クランプ3
page top

Shoe Base II, 1/4-20UNC, M6, BALL Compatible Table

<Remarks>

○: Compatible ▲: Conditionally compatible -: Not compatible
Compact Digital Camera


[OM SYSTEM(Former Olympus)]

Camera Housing Compatible Note
TG-6 PT-059
TG-5 PT-058
TG-4 PT-056
TG-3
TG-835 PT-055
TG-830
XZ-2 PT-054
TG-2 PT-053
TG-1
TG-820 PT-052
TG-810 PT-051
TG-610
XZ-1 PT-050
μTOUGH-8010 PT-048
μTOUGH-6020
μTOUGH-6000 PT-047
FE-3010 PT-046 -
μTOUGH-8000 PT-045
FE-360 PT-044 -
μ1030SW PT-043
μ1020 PT-040
μ850SW PT-041 *1
μ790SW
μ830 PT-039
μ780
SP-560UZ PT-037 *3
SP-550UZ
μ760 PT-036
μ795SW PT-035 *1*2
μ770SW
μ750 PT-034
μ725SW PT-033 *1*2
μ720SW
μ710 PT-032 -
SP-700 PT-031 -
SP-350 PT-030
μ600 PT-029
C-7070WZ PT-027 -
μ-40 PT-026 -
X-3 PT-024 -
C-8080WZ PT-023 -
C-770UZ PT-022  -
C-760UZ
C-5060WZ PT-027 -
PT-020
C-755UZ PT-018 -
C-750UZ
C-745UZ
C-740UZ
μ-30 PT-016 -
μ-25
μ-20
μ-15
μ-10
C-5050Z PT-015 -
X-2 PT-014 -
X-1
C-40Z PT-012 -
C-4100Z PT-010 -
C-4040Z
C-3100Z
C-3040Z
C-3030Z
C-3000Z
C-2040Z
C-2020Z
C-300Z PT-009 -
C-200Z
C-3040Z PT-007 -
C-3030Z
C-3000Z
C-2040Z
C-2020Z
C-3030Z PT-005 -
C-3000Z
C-2020Z

[Panasonic]

Camera Housing Compatible Note
LUMIX FT5 MCFT5 *1
LUMIX FT4  MCFT3
LUMIX FT3
LUMIX FT2 MCFT2
LUMIX FT1 MCFT1
LUMIX TZ40 MCTZ40
LUMIX TZ35 MCTZ35
LUMIX TZ30 MCTZ30
LUMIX TZ20 MCTZ20
LUMIX TZ10 MCTZ10
LUMIX TZ7 MCTZ7
LUMIX TZ5 MCTZ5
LUMIX TZ3 MCTZ3 -
LUMIX ZX3 MCZX3
LUMIX ZX1 MCZX3
〇MCZX1
LUMIX FX40 MCFX40
LUMIX FX37 MCFX35
LUMIX FX35
LUMIX FX33 MCFX30 -
LUMIX FX30
LUMIX FX07 MCFX07 -
MCFX01
LUMIX FX01 MCFX07 -
MCFX01
LUMIX FS3 MCFS5
LUMIX FS2 MCFX07 -
LUMIX FS1


[FUJIFILM]

Camera Housing Compatible Note
FUJIFILM XQ2 WP-XQ1
FUJIFILM XQ1
FinePix F600EXR WP-FXF500
FinePix F550EXR
FinePix F300EXR
FinePix F80EXR WP-FXF80
FinePix Z250fd WP-FXZ100 -
FinePix Z200fd
FinePix Z100fd
FinePix F200EXR WP-FXF200
FinePix F100fd WP-FXF100
FinePix F50fd WP-FXF50 -
FinePix F40fd WP-FXF40 -
FinePix F31fd WP-FXF30 -
FinePix F30
FinePix F11 WP-FXF10 -
FinePix F10
FinePix F810 WP-FX701 -
FinePix F710


[Canon]

Camera Housing Compatible Note
PowerShot
G7 X Mark II
WP-DC55 *5
PowerShot G7 X WP-DC54 *5
PowerShot
G1 X Mark II
WP-DC53 *5
PowerShot G16 WP-DC52 *5
PowerShot S120 WP-DC51 *5
PowerShot
SX280 HS
WP-DC49  *5
PowerShot G15 WP-DC48 *5
PowerShot S110 WP-DC47 *5
PowerShot D20 WP-DC45 *5
PowerShot S100 WP-DC43 *4
PowerShot S95 WP-DC38 *4
PowerShot S90 WP-DC35 *4


[Sony]

Camera Housing Compatible Note
DSC-RX100M5 MPK-URX100A
DSC-RX100M4
DSC-RX100M3
DSC-RX100M2
DSC-RX100
DSC-WX200 MPK-WH *4
DSC-WX100
DSC-WX50

Digiral SLR Camera


[OM SYSTEM(Former Olympus)]

Camera Housing Compatible Note
OM-D E-M1 Mark II PT-EP14
OM-D E-M5 Mark II PT-EP13
PEN E-PL7 PT-EP12
OM-D E-M1 PT-EP11
PEN E-PL5 PT-EP10
OM-D E-M5 PT-EP08
PEN E-PM1 PT-EP06L
PEN E-PL3 PT-EP05L
PEN E-PL2 PT-EP03
PEN E-PL1 PT-EP01
E-620 PT-E06
E-520 PT-E05
E-410 PT-E03 *3


[Panasonic]

Camera Housing Compatible Note
LUMIX GF2 X-2 for GF2 *6
LUMIX GF1  X-2 for GF1  *6



[Canon]

Camera Housing Compatible Note
EOS 80D X-2 for EOS80D *6
EOS 6D X-2 for EOS6D *6
EOS 70D X-2 for EOS70D *6
EOS 60D X-2 for EOS60D *6
EOS 50D X-2 for EOS50D/40D *6
EOS 40D
EOS 30D X-2 for EOS30D *6
EOS 20D X-2 for EOS20D *6
EOS 10D X-2 for EOS10D *6


[Nikon]

Camera Housing Compatible Note
NIKON 1 J4 WP-N3
NIKON 1 J3 WP-N2
NIKON 1 J2 WP-N1

Digital Video Camera


[Canon]

Camera Housing Compatible Note
iVIS HF M52 WP-V4 *4
iVIS HF M51
iVIS HF M43 WP-V3 *4
iVIS HF M41
iVIS HF M31 WP-V2 *4
iVIS HF21 WP-V1 *4
iVIS HF20 WP-V1 *4
<Remarks>

○: Compatible ▲: Conditionally compatible -: Not compatible
Compact Digital Camera


[OM SYSTEM(Former Olympus)]

Camera Housing Compatible Note
TG-6 PT-059
TG-5 PT-058
TG-4 PT-056
TG-3
TG-835 PT-055
TG-830
XZ-2 PT-054
TG-2 PT-053
TG-1
TG-820 PT-052
TG-810 PT-051
TG-610
XZ-1 PT-050
μTOUGH-8010 PT-048
μTOUGH-6020
μTOUGH-6000 PT-047
FE-3010 PT-046 -
μTOUGH-8000 PT-045
FE-360 PT-044 -
μ1030SW PT-043
μ1020 PT-040
μ850SW PT-041 *1
μ790SW
μ830 PT-039
μ780
SP-560UZ PT-037 *3
SP-550UZ
μ760 PT-036
μ795SW PT-035 *1*2
μ770SW
μ750 PT-034
μ725SW PT-033 *1*2
μ720SW
μ710 PT-032 -
SP-700 PT-031 -
SP-350 PT-030
μ600 PT-029
C-7070WZ PT-027 -
μ-40 PT-026 -
X-3 PT-024 -
C-8080WZ PT-023 -
C-770UZ PT-022  -
C-760UZ
C-5060WZ PT-027 -
PT-020
C-755UZ PT-018 -
C-750UZ
C-745UZ
C-740UZ
μ-30 PT-016 -
μ-25
μ-20
μ-15
μ-10
C-5050Z PT-015 -
X-2 PT-014 -
X-1
C-40Z PT-012 -
C-4100Z PT-010 -
C-4040Z
C-3100Z
C-3040Z
C-3030Z
C-3000Z
C-2040Z
C-2020Z
C-300Z PT-009 -
C-200Z
C-3040Z PT-007 -
C-3030Z
C-3000Z
C-2040Z
C-2020Z
C-3030Z PT-005 -
C-3000Z
C-2020Z
[Panasonic]
Camera Housing Compatible Note
LUMIX FT5 MCFT5 *1
LUMIX FT4  MCFT3
LUMIX FT3
LUMIX FT2 MCFT2
LUMIX FT1 MCFT1
LUMIX TZ40 MCTZ40
LUMIX TZ35 MCTZ35
LUMIX TZ30 MCTZ30
LUMIX TZ20 MCTZ20
LUMIX TZ10 MCTZ10
LUMIX TZ7 MCTZ7
LUMIX TZ5 MCTZ5
LUMIX TZ3 MCTZ3 -
LUMIX ZX3 MCZX3
LUMIX ZX1 MCZX3
〇MCZX1
LUMIX FX40 MCFX40
LUMIX FX37 MCFX35
LUMIX FX35
LUMIX FX33 MCFX30 -
LUMIX FX30
LUMIX FX07 MCFX07 -
MCFX01
LUMIX FX01 MCFX07 -
MCFX01
LUMIX FS3 MCFS5
LUMIX FS2 MCFX07 -
LUMIX FS1
[FUJIFILM]
Camera Housing Compatible Note
FUJIFILM XQ2 WP-XQ1
FUJIFILM XQ1
FinePix F600EXR WP-FXF500
FinePix F550EXR
FinePix F300EXR
FinePix F80EXR WP-FXF80
FinePix Z250fd WP-FXZ100 -
FinePix Z200fd
FinePix Z100fd
FinePix F200EXR WP-FXF200
FinePix F100fd WP-FXF100
FinePix F50fd WP-FXF50 -
FinePix F40fd WP-FXF40 -
FinePix F31fd WP-FXF30 -
FinePix F30
FinePix F11 WP-FXF10 -
FinePix F10
FinePix F810 WP-FX701 -
FinePix F710
[Canon]
Camera Housing Compatible Note
PowerShot
G7 X Mark II
WP-DC55 *5
PowerShot G7 X WP-DC54 *5
PowerShot
G1 X Mark II
WP-DC53 *5
PowerShot G16 WP-DC52 *5
PowerShot S120 WP-DC51 *5
PowerShot
SX280 HS
WP-DC49  *5
PowerShot G15 WP-DC48 *5
PowerShot S110 WP-DC47 *5
PowerShot D20 WP-DC45 *5
PowerShot S100 WP-DC43 *4
PowerShot S95 WP-DC38 *4
PowerShot S90 WP-DC35 *4
[Sony]
Camera Housing Compatible Note
DSC-RX100M5 MPK-URX100A
DSC-RX100M4
DSC-RX100M3
DSC-RX100M2
DSC-RX100
DSC-WX200 MPK-WH *4
DSC-WX100
DSC-WX50


Digiral SLR Camera


[OM SYSTEM(Former Olympus)]

Camera Housing Compatible Note
OM-D E-M1 Mark II PT-EP14
OM-D E-M5 Mark II PT-EP13
PEN E-PL7 PT-EP12
OM-D E-M1 PT-EP11
PEN E-PL5 PT-EP10
OM-D E-M5 PT-EP08
PEN E-PM1 PT-EP06L
PEN E-PL3 PT-EP05L
PEN E-PL2 PT-EP03
PEN E-PL1 PT-EP01
E-620 PT-E06
E-520 PT-E05
E-410 PT-E03 *3

[Panasonic]

Camera Housing Compatible Note
LUMIX GF2 X-2 for GF2 *6
LUMIX GF1  X-2 for GF1  *6


[Canon]

Camera Housing Compatible Note
EOS 80D X-2 for EOS80D *6
EOS 6D X-2 for EOS6D *6
EOS 70D X-2 for EOS70D *6
EOS 60D X-2 for EOS60D *6
EOS 50D X-2 for EOS50D/40D *6
EOS 40D
EOS 30D X-2 for EOS30D *6
EOS 20D X-2 for EOS20D *6
EOS 10D X-2 for EOS10D *6

[Nikon]

Camera Housing Compatible Note
NIKON 1 J4 WP-N3
NIKON 1 J3 WP-N2
NIKON 1 J2 WP-N1


Digital Video Camera


[Canon]

Camera Housing Compatible Note
iVIS HF M52 WP-V4 *4
iVIS HF M51
iVIS HF M43 WP-V3 *4
iVIS HF M41
iVIS HF M31 WP-V2 *4
iVIS HF21 WP-V1 *4
iVIS HF20 WP-V1 *4

(*1) Not usable together with "Mont Base" or "Lens Adapter Base".
(*2) When attaching on the Accessory Shoe of the housing, locate the Hook Plate nail of the respective Shoe Base [facing front].
(*3) An Optical D Cable Cap Set is not usable together with these Shoe Bases. Use Wireless Connection.
(*4) These Shoe Bases can be attached only via optional compatible Mount Base/Video Base.
(*5) "Accessory Shoe Spacer for Canon" is necessary.
(*6) "Shoe Base Adapter X-2" is necessary.

page top

Lens Holder Shoe Base

Feature

A new type of lens holder directly attached on a housing accessory shoe. The "Lens Holder Shoe Base" provides smooth lens exchange even underwater and easy to switch between macro and wide imaging.
Using the "Lens Holder Shoe Base" does not change center of gravity much comparing to using arm-mounted lens holder offering comfortable shooting and compact system. No specific tool is required to install or remove the lens holder, making it portable and convenient.

Lens Holder Shoe Base

A new type of lens holder directly attached on a housing accessory shoe. The "Lens Holder Shoe Base" provides smooth lens exchange even underwater and easy to switch between macro and wide imaging.
Using the "Lens Holder Shoe Base" does not change center of gravity much comparing to using arm-mounted lens holder offering comfortable shooting and compact system. No specific tool is required to install or remove the lens holder, making it portable and convenient.

Lens Holder Shoe Base
Lens holder on the housing can minimize total system
Lens holder on the housing can minimize total system

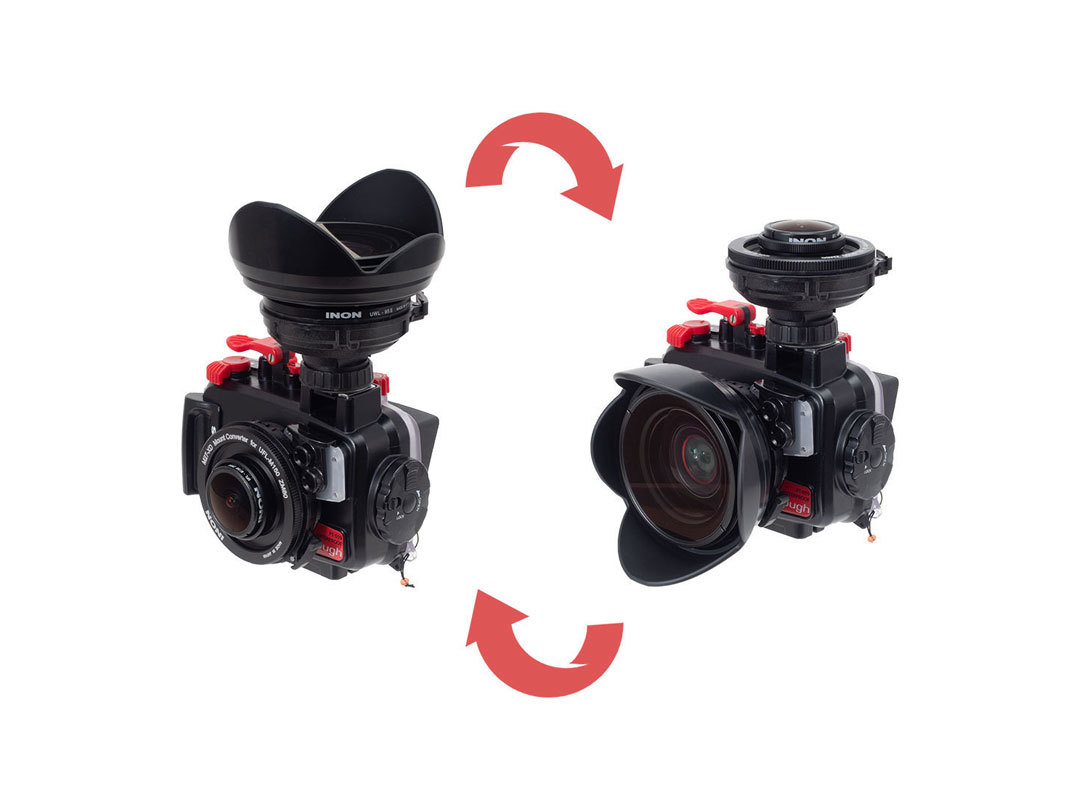

XD Mount Bug's Eye_UWL95 installation

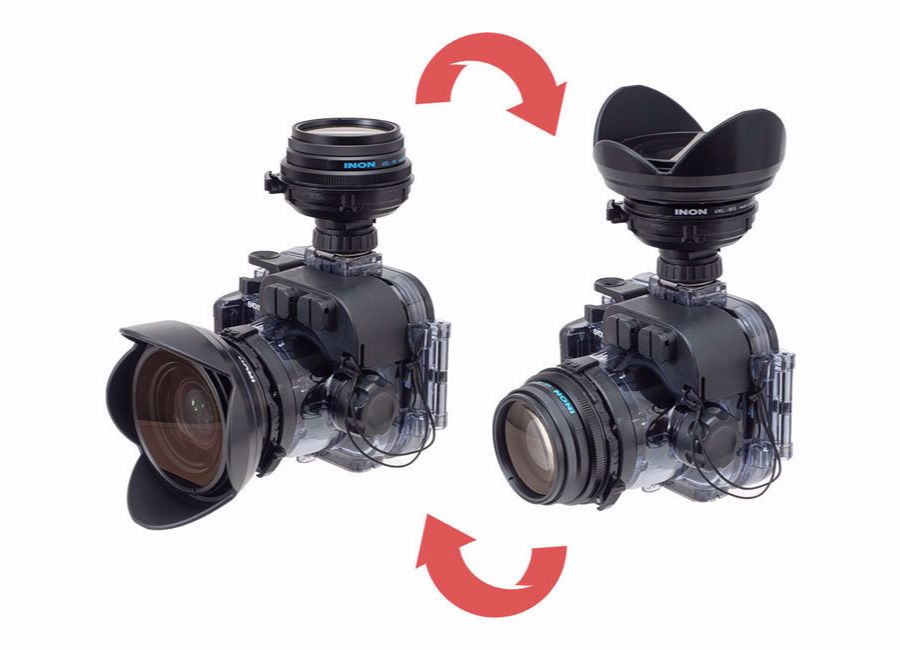

XD mount UCL90_UWL95 installation
XD Mount Bug's Eye_UWL95 installation
XD mount UCL90_UWL95 installation

XD Lens Holder Shoe Base

JAN/EAN code : 4570018120374

Manual
XD Lens Holder Shoe Base

A lens holder for INON "XD Mount" lens.


XD Lens Holder Shoe Base
XD Lens Holder Shoe Base

A lens holder for INON "XD Mount" lens.

XD Lens Holder Shoe Base
page top

M52 Lens Holder Shoe Base

JAN/EAN code : 4570018120404

Manual
M52 Lens Holder Shoe Base

A lens holder for INON M52 mount lens.


M52 Lens Holder Shoe Base
M52 Lens Holder Shoe Base

A lens holder for INON M52 mount lens.


M52 Lens Holder Shoe Base
page top

M67 Lens Holder Shoe Base

JAN/EAN code : 4570018120398

Manual
M67 Lens Holder Shoe Base

A lens holder for INON M67 mount lens.


M67 Lens Holder Shoe Base
M67 Lens Holder Shoe Base

A lens holder for INON M67 mount lens.

M67 Lens Holder Shoe Base
page top

AD Lens Holder Shoe Base

JAN/EAN code : 4570018120381

Manual
AD Lens Holder Shoe Base

A lens holder for INON "AD/SD Mount" lens.

AD Lens Holder Shoe Base

A lens holder for INON "AD/SD Mount" lens.

page top
