Arm Set

Arm Set Z-MV

Arm Set Z-MV

An arm set with "Z Adapter MV" which carries plastic ball-joint to attach strobe/flashlight for easy and comfortable strobe aiming.

Arm Set YS-MV

Arm Set YS-MV

An arm set with "YS Adapter MV" which carries YS type joint to attach strobe/LED flashlight.

Arm Set D

Arm Set D

An arm set with "Direct Base III" which carries aluminum ball-joint to hold strobe/flashlight securely.

Arm Set Z-MV

■Direct Arm Z-MV Set

■Effective length: 126mm (5.0in)
■Weight: 123g (4.3oz)[air] / approx.72g (2.5oz)[underwater]
■Set contents: Z Adapter MV, Direct Base III, Clamp III


click to enlarge

■Stick Arm XS Set Z-MV

■Effective length: 201mm (7.9in)
■Weight: 217g (7.7oz) [air] / approx.130g (4.6oz) [underwater]
■Set contents: Z Adapter MV, Stick Arm XS, Direct Base III, Clamp III x2

click to enlarge

■Stick Arm SS Set Z-MV

■Effective length: 246mm (9.7in)
■Weight: 227g (8.0oz) [air] / approx.136g (4.8oz) [underwater]
■Set contents: Z Adapter MV, Stick Arm SS, Direct Base III, Clamp III x2

click to enlarge

■Stick Arm S Set Z-MV

■Effective length: 276mm (10.9in)
■Weight: 233g (8.2oz) [air] / approx.139g (4.9oz)[underwater]
■Set contents: Z Adapter MV, Stick Arm S, Direct Base III, Clamp III x2

click to enlarge

■Stick Arm M Set Z-MV

■Effective length: 326mm (12.8in)
■Weight: 242g (8.5oz) [air] / approx.144g (5.1oz) [underwater]
■Set contents: Z Adapter MV, Stick Arm M, Direct Base III, Clamp III x2

click to enlarge

■Stick Arm L Set Z-MV

■Effective length: 446mm (17.6in)
■Weight: 277g (9.8oz) [air] / approx.168g (5.9oz) [underwater]
■Set contents: Z Adapter MV, Stick Arm L, Direct Base III, Clamp III x2

click to enlarge

page top

Arm Set YS-MV

■Direct Arm YS-MV Set

■Effective length: 114mm (4.5in)
■Weight: 108g (3.8oz) [air] / approx.63g (2.2oz) [underwater]
■Set contents: YS Adapter MV, Direct Base III, Clamp III

click to enlarge

■Stick Arm XS Set YS-MV

■Effective length: 189mm (7.4in)
■Weight: 202g (7.1oz) [air] / approx.121g (4.3oz) [underwater]
■Set contents: YS Adapter MV, Stick Arm XS, Direct Base III, Clamp III x2

click to enlarge

■Stick Arm SS Set YS-MV

■Effective length: 234mm (9.2in)
■Weight: 212g (7.5oz) [air] / approx.127g (4.5oz) [underwater]
■Set contents: YS Adapter MV, Stick Arm SS, Direct Base III, Clamp III x2

click to enlarge

■Stick Arm S Set YS-MV

■Effective length: 264mm (10.4oz)
■Weight: 218g (7.7oz) [air] / approx.130g (4.6oz) [underwater]
■Set contents: YS Adapter MV, Stick Arm S, Direct Base III, Clamp III x2

click to enlarge

■Stick Arm M Set YS-MV

■Effective length: 314mm (12.4in)
■Weight: 227g (8.0oz) [air] / approx.135g (4.8oz) [underwater]
■Set contents: YS Adapter MV, Stick Arm M, Direct Base III and Clamp III x2

click to enlarge

■Stick Arm L Set YS-MV

■Effective length: 434mm (17oz)
■Weight: 262g (9.2oz) [air] / approx.159g (5.6oz) [underwater]
■Set contents: YS Adapter MV, Stick Arm L, Diret Base III, Clamp III x2

click to enlarge

page top

Arm Set D

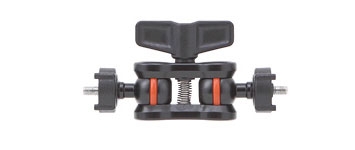

■Direct Arm D Set

■Effective length: 100mm (3.9in)
■Weight: 123g (4.3oz) [air] / approx.79g (2.8oz) [underwater]
■Set contents: Direct Base III x2, Clamp III

click to enlarge

■Stick Arm XS Set D

■Effective length: 175mm (6.9in)
■Weight: 217g (7.7oz) [air] / approx.137g (4.8oz) [underwater]
■Set contents: Stick Arm XS, Direct Base III x2, Clamp III x2

click to enlarge

■Stick Arm SS Set D

■Effective length: 220mm (8.7in)
■Weight: 227g (8.0oz) [air] / approx.143g (5.0oz) [underwater]
■Set contents: Stick Arm SS, Direct Base III x2, Clamp III x2

click to enlarge

■Stick Arm S Set D

■Effective length: 250mm (9.8in)
■Weight: 233g (8.2oz) [air] / approx.146g (5.2oz) [underwater]
■Set contents: Stick Arm S, Direct Base III x2, Clamp III x2

click to enlarge

■Stick Arm M Set D

■Effective length: 300mm (11.8in)
■Weight: 242g (8.5oz) [air] / approx.151g (5.3oz) [underwater]
■Set contents: Stick Arm M, Direct Base III x2, Clamp III x2

click to enlarge

■Stick Arm L Set D

■Effective length: 420mm (16.5in)
■Weight: 277g (9.8oz) [air] / approx.175g (6.2oz) [underwater]
■Set contents: Stick Arm L, Direct Base III x2, Clamp III x2

Arm L Body
