OLYMPUS E-SYSTEM

Optical D Cable Type L Rubber Bush Set

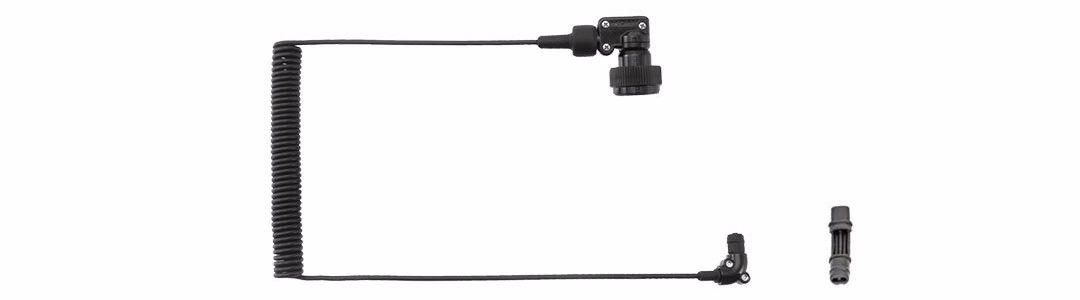

■Optical D Cable Type L / Double Hole Rubber Bush Set

 Length: approx. 43cm / 17in

Optical D Cable Type L / Double Hole Rubber Bush Set

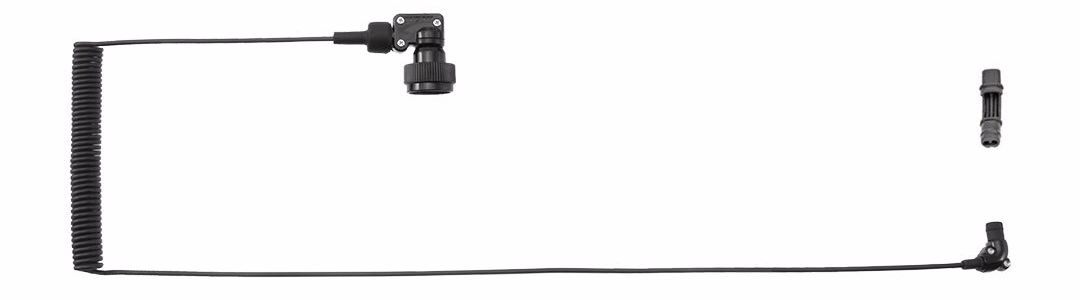

■Optical D Cable L Type L /
Double Hole Rubber Bush Set

Length: approx 68cm / 27in

Optical D Cable L Type L / Double Hole Rubber Bush Set

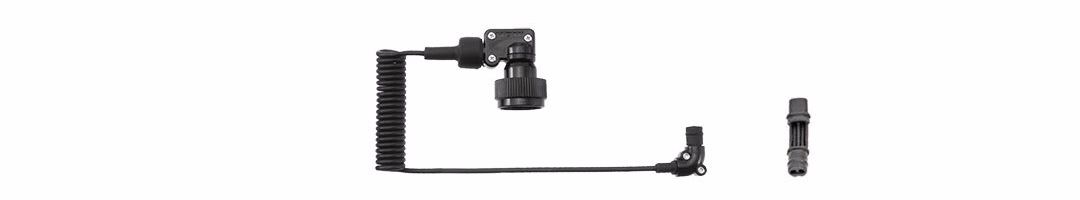

■Optical D Cable SS Type L / Double Hole Rubber Bush Set

 Length: approx 24cm / 9in

Optical D Cable SS Type L / Double Hole Rubber Bush Set

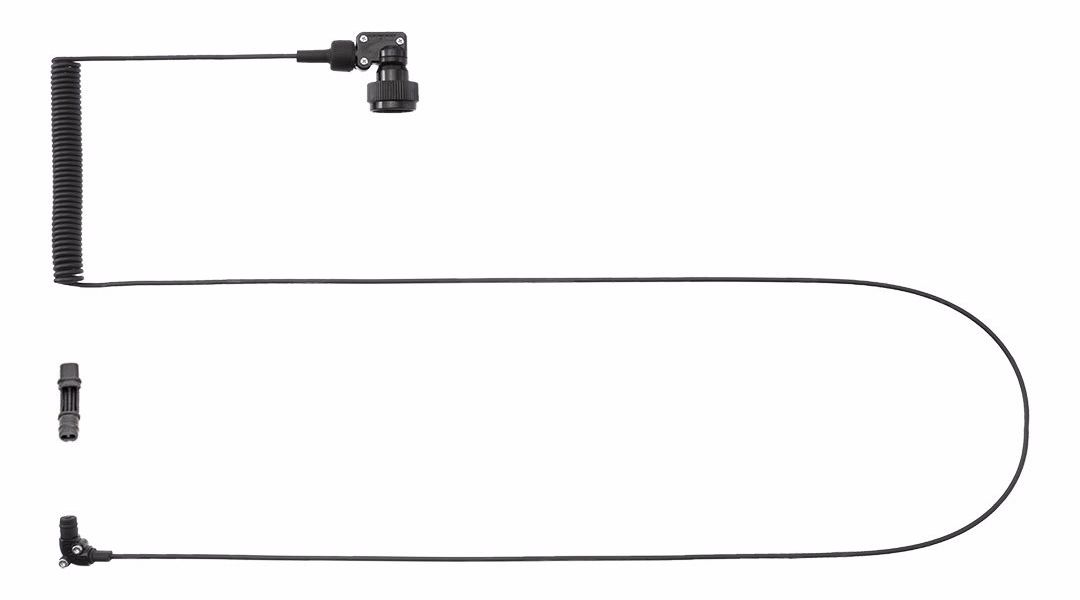

■Optical D Cable LL Type L / Double Hole Rubber Bush Set

 Length: approx 110cm / 43in

Optical D Cable LL Type L / Double Hole Rubber Bush Set

Fiber optics kit including "Double Hole Rubber Bush for Optical Fiber" which is plugged in a fiber cable connector of Olympus underwater housing to hold Optical D Cable Type L. Four different lengths from free length 24cm/9in [SS] up to 110cm/43in [LL] are available to suit to various configurations.

■Compatible Underwater Housing
Olympus PT-E05 (Digital SLR E-520)
Olympus PT-E06 (Digital SLR E-620)
Olympus PT-EP01 (Mirrorless Camera PEN E-PL1)
Olympus PT-EP03 (Mirrorless Camera PEN E-PL2)
Olympus PT-EP05L (Mirrorless Camera PEN E-PL3)
Olympus PT-EP06L (Mirrorless Camera PEN E-PM1)
Olympus PT-EP08 (Mirrorless Camera OM-D E-M5)
Olympus PT-EP10 (Mirrorless Camera PEN E-PL5)
Olympus PT-EP11 (Mirrorless Camera OM-D E-M1)

*Click here for a detailed description of this item.

*Set camera [RC Mode] to OFF when using Optical D Cable product to connect an INON strobe and E-PL1, E-PL2, E-PL3, E-PM1,E-M5 or E-M1.

rubber-bush_image.jpgSet-up image

ページの先頭へ

Attachment Lens

Mfr. Camera Housing Compatible Lens
Close-up Lens Wide Lens Super Wide Lens
Olympus OM-D E-M1 PT-EP11 UCL-330 *5 *11
UCL-165M67 *5 *11
PEN E-PL5 PT-EP10 UCL-330 *11
UCL-165M67 *11
OM-D E-M5 PT-EP08 UCL-330 *5 *11
UCL-165M67 *5 *11
PEN E-PM1 PT-EP06L UCL-330 ★ UWL-H100 28M67
Type2 ★
Dome Lens Unit II
for UWL-H100 *8
UCL-165M67 ★
PEN E-PL3 PT-EP05L UCL-330 ★ UWL-H100 28M67
Type2 ★
Dome Lens Unit II
for UWL-H100 *8
UCL-165M67 ★
PEN E-PL2 PT-EP03 UCL-330 *11
UCL-165M67 *11
PEN E-PL1 PT-EP01 UCL-330 *11
UCL-165M67 *11
E-620 PT-E06 UCL-330 *5
UCL-165M67 *5
E-520 PT-E05 UCL-330 *5
UCL-165M67 *5
E-410 PT-E03 UCL-330 *5
UCL-165M67 *5

(*5) "MRS Olympus50 Port" is compatible.
(*8) On land and underwater, slight vignetting on image corners at zoom wide end.
(*11) Olympus "PMLA-EP01 Macro Lens Adapter" is compatible.

ページの先頭へ

Wide Lens Port

■Dome Port Olympus+Shade 2 Set

click to enlarge

The Dome Port Olympus makes Olympus E system user enjoy the benefit of INON Dome Port. It is high quality port using an optical glass with multi-coating to obtain sharp and high contrast image even in edge of the image without flare / ghost.
INON supports Olympus E system Underwater Housing to use INON "S-TTL" auto strobe Z-240 / D-2000 / S-2000 connecting via fiber optics for simple and reliable TTL auto shooting by an external strobe without flooding risk.
The supplied Shade Sponge ZUIKO DIGITAL ED 8mm is effectively block built-in flash light to suppress exposure of built-in flash light on an image
The Dome Port weighs approx. 665g / 23.5oz, 747g / 26.3oz (including Shade 2) which benefits easy handling both on land / underwater.

●Digital SLR (Four Thirds System)
■ Compatible Underwater Housing
Olympus PT-E01 (Digital SLR E-300)
Olympus PT-E02 (Digital SLR E-330)
Olympus PT-E03 (Digital SLR E-410)
Olympus PT-E05 (Digital SLR E-520)
Olympus PT-E06 (Digital SLR E-620)

■ Compatible Lens + Gear
Olympus ZUIKO DIGITAL ED 8mm F3.5 Fisheye + Olympus PPZR-E05 (*1)
Olympus ZUIKO DIGITAL ED 9-18mm F4.0-5.6 + Olympus PPZR-E07 (*2)

(*1) Attach supplied Shade Sponge ZUIKO DIGITAL ED 8mm on the Olympus ZUIKO DIGITAL ED 8mm F3.5 Fisheye to block camera’s built-in flash.
(*2) Olympus PER-E01 Port Extension Ring is required to use the Olympus ZUIKO DIGITAL ED 9-18mm F4.0-5.6. When using the Olympus PPZR-E07 Zoom Gear in combination with the INON Dome Port Olympus Protector 2 Set, inner surface of the dome port obstructs smooth movement of the zoom gear and necessitates to cut the shade part edge of the zoom gear about 5mm. Shooting at zoom wide end setting with open aperture may degrade edge of an image. In such case, use smaller aperture.


●Mirrorless Camera (Micro Four Thirds System)
■ Compatible Underwater Housing
Olympus PT-EP08 (Mirrorless Camera OM-D E-M5) (*2)
Olympus PT-EP11 (Mirrorless Camera OM-D E-M1) (*2)

■ Compatible Lens
Olympus ZUIKO DIGITAL ED 8mm F3.5 Fisheye (*3)

(*2) Olympus PAD-EP08 Port Adapter and Olympus PER-E01 Port Extension Ring are required.
(*3) Optional "Shade Sponge D80" attached on inside of the Dome Port Olympus to prevent the built-in flash from exposing on an image.

■Specification

Dimensions Diameter: 170mm / 6.7in
Length: 73mm / 2.9in (incl. Shade 2)
Weight (air) 747g / 26.3oz (incl. Shade 2)
Depth Rating 60m / 197ft
Material Corrosion-resistant aluminum alloy /Rigid black alumite
Optical glass /inner multi coating
Polycarbonate (Shade 2)

■Dome Port Olympus

click to enlarge

A Dome Port for a fish-eye lens as well as a wide conversion lens. Optional Shade 2 is available.

■Specification

Dimensions Diameter: 162mm / 6.4in
Length: 68mm / 2.7in
Weight (air) 664g / 23.5oz
Depth Rating 60m / 197ft
Material Corrosion-resistant aluminum alloy/Rrigid black alumite
Optical glass / inner multi coating

ページの先頭へ

Macro Lens Port

■MRS Olympus50 Port

click to enlarge

■MRS Magnet Ring Olympus50 Set

click to enlarge

The INON unique "MRS system" uses magnetic attraction to rotate lens barrel for manual focusing like as land operation of a camera. The MRS system does not use mechanical gear for smooth manual focusing with minimum torque which is great advantage in macro shooting. The "MRS system" is free from a drawback of conventional underwater housing to operate a macro lens having large extension amount by a small control dial. Olympus E system user can benefit this very well established "MRS system".
The lens port uses an optical glass with multi coating for high image quality.
INON "UCL-330 Close-up Lens" or "UCL-165M67 Close-up Lens" can be directly attached on this port. You can mount / dismount Close-up lens underwater depending on a subject with different focusing distance.

●Digital SLR (Four Thirds System)
■ Compatible Underwater Housing
Olympus PT-E01 (Digital SLR E-300)
Olympus PT-E02 (Digital SLR E-330)
Olympus PT-E03 (Digital SLR E-410)
Olympus PT-E05 (Digital SLR E-520)
Olympus PT-E06 (Digital SLR E-620)

■ Compatible Lens
Olympus ZUIKO DIGITAL ED 50mm F2.0 Macro

■ Compatible Teleconverter / Underwater Lens Port Extension Ring
Olympus ZUIKO DIGITAL 1.4x Teleconverter EC-14
Olympus Underwater Lens Port Extension Ring PER-E01


●Mirrorless Camera (Micro Four Thirds System)
■ Compatible Underwater Housing
Olympus PT-EP08 (Mirrorless Camera OM-D E-M5) (*1)
Olympus PT-EP11 (Mirrorless Camera OM-D E-M1) (*1)

■ Compatible Lens
Olympus ZUIKO DIGITAL ED 50mm F2.0 Macro (*2)

(*1) Olympus PAD-EP08 Port Adapter and Olympus PER-E01 Port Extension Ring are required.
(*2) When installing, first set the camera/lens only in the housing then attach the MRS Magnet Ring Olympus 50 Set on the lens from housing front side and attach combined lens port on the housing.

■Specification

Dimensions Outer diameter: 114.5mm / 4.5in
Length: 74.9mm / 3.1in (incl. MRS Control Ring)
Weight (air) 396g / 14.0oz (incl. MRS Control Ring)
Depth Rating 60m / 197ft
Material Corrosion-resistant aluminum alloy /Rigid black alumite
Optical glass / inner multi coating

■MRS Olympus50 Port (w/o control ring)

click to enlarge


This product does not have a MRS Control Ring which controls focus ring of a lens, and ideal for people who only use auto focus operation or use Olympus focus gear "PPZR-E04". Optional "MRS Control Ring (60/60II/100UII/100UIII/Olympus50)" is available to upgrade this product to "MRS Olympus50 Port (with MRS Control Ring)".

■Specification

Dimensions Outer diameter: 106mm / 4.2in
Length: 79.4mm / 3.1in
Weight (air) 267g / 9.4oz
Depth Rating 60m / 197ft
Material Corrosion-resistant aluminum alloy/ Rigid black alumite
Optical glass / inner multi coating
