INON



X-2 R6

 X-2 R6

 JAN/EAN code :  4570018120787

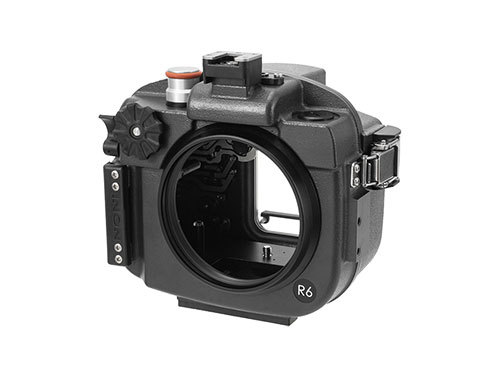

  • A housing for Canon EOS R6
  • INON strobe compatible ultra-accurate multi-functional built-in "TTL Converter" as standard feature
  • Control flash amount directly from camera
  • 12 shots/sec. continuous shooting supported
  • Standard “Vacuum Leak Sensor (PAT. P)" checks housing sealing in only 3 minutes
  • MRS port further evolves to support fine manual focusing
  • Optionally available "Quick Shoe System" for quick camera position switching between landscape and portrait composition
  • Optional two viewfinders provide bright and clear finder image
  • Lightweight and compact ultra-precision cast aluminum body

Ultra-accurate multi-functional built-in "TTL Converter"

The "TTL Converter" equipped as a standard feature, triggers INON strobe optically to enjoy fully automatic TTL. Exclusively developed for INON strobe based on its flash protocol to optimize its performance for underwater use. As an underwater strobe manufacturer, we successfully achieved the TTL Converter that provides constant, stable and highly accurate TTL exposure.

Following parameters can be controlled in the [External Speedlite control] menu of the EOS R6.

External Speedlite control menu Parameters that can be changed
Flash firing [Enable(*1)]/[Disable]
E-TTL balance [Ambience priority]/[Standard]/[Flash priority (*2)]
E-TTLII meter [Eval (Face Prty)]/[Evaluative]/[Average]
Contin flash ctrl [E-TTL each shot]/[E-TTL 1st shot]
Slow synchro [1/250-30sec. auto]/[1/250-60sec. auto]/[1/250 sec. (fixed)]
Flash Function Settings
Flash mode
[E-TTL]/[M(*3)]
Flash Function Settings
Shutter synchronization
[First-curtain synchronization]/[Second-curtain synchronization(*4)]
Flash Function Settings
Flash exposure compensation
Exposure adjustment is adjustable

(*1)When selecting [Enable], shutter speed is limited up to 1/250sec. regardless of INON strobe power setting. When not using a strobe, set to [Disable] not to have the limitation.
(*2) [Flash priority] is recommended in strong ambient light.
(*3)Manual flashing without pre-flash. Recommended to shoot shy subjects not to scare them with pre-flash.
(*4)Set to [M] when shooting in Manual flash mode on INON strobe at [Second-curtain synchronization]. INON strobe is not in synch when the flash mode is set to [E-TTL] and shutter speed is set to 1/8sec. or slower.

ケーブル接続部

LCD screen (strobe light emission designation screen)

LCD screen (second curtain sync designation screen)

Rear curtain sync sample image

Rear curtain sync sample image

The "TTL Converter" equipped as a standard feature, triggers INON strobe optically to enjoy fully automatic TTL. Exclusively developed for INON strobe based on its flash protocol to optimize its performance for underwater use. As an underwater strobe manufacturer, we successfully achieved the TTL Converter that provides constant, stable and highly accurate TTL exposure.

Following parameters can be controlled in the [External Speedlite control] menu of the EOS R6.

External Speedlite control menu Parameters that can be changed
Flash firing [Enable(*1)]/[Disable]
E-TTL balance [Ambience priority]/[Standard]/[Flash priority (*2)]
E-TTLII meter [Eval (Face Prty)]/[Evaluative]/[Average]
Contin flash ctrl [E-TTL each shot]/[E-TTL 1st shot]
Slow synchro [1/250-30sec. auto]/[1/250-60sec. auto]/[1/250 sec. (fixed)]
Flash Function Settings
Flash mode
[E-TTL]/[M(*3)]
Flash Function Settings
Shutter synchronization
[First-curtain synchronization]/[Second-curtain synchronization(*4)]
Flash Function Settings
Flash exposure compensation
Exposure adjustment is adjustable

(*1)When selecting [Enable], shutter speed is limited up to 1/250sec. regardless of INON strobe power setting. When not using a strobe, set to [Disable] not to have the limitation.
(*2) [Flash priority] is recommended in strong ambient light.
(*3)Manual flashing without pre-flash. Recommended to shoot shy subjects not to scare them with pre-flash.
(*4)Set to [M] when shooting in Manual flash mode on INON strobe at [Second-curtain synchronization]. INON strobe is not in synch when the flash mode is set to [E-TTL] and shutter speed is set to 1/8sec. or slower.

ケーブル接続部

LCD screen (strobe light emission designation screen)

LCD screen (second curtain sync designation screen)

Rear curtain sync sample image
Rear curtain sync sample image

Strobe manual power is directly adjustable from camera

INON strobe manual power is directly adjustable from camera ranging between 1/64 and FULL at 1/3EV. increments. Useful when strobe is positioned away like on long strobe arm or when shooting with backlit technique.

LCD screen (light emission amount specification screen)

Backlit example
Backlit example

12 shots/sec. continuous strobe firing (*5)

The TTL Converter fully supports [High speed continuous][High speed continuous+]. With ultra-accurate TTL shooting is now available for continuous shooting based on electricity stored in a capacitor6. INON TTL Converter strives efficiency in battery consumption not to miss precious moment and successfully provides more than 100,000 flash triggering only by two CR2032 coin batteries.

LCD screen (continuous fire designation screen)
連射画像

(*5)4 shots/sec.in [Continuous shooting], 12 shots/sec. in [Continuous shooting +].Tested by INON with fully charged camera battery.
(*6)Pause the strobe for a few minutes when taking more than 100 consecutive shots to avoid possible damage.
When strobe output gets extremely low such as using S-TTL, open aperture or high ISO sensitivity, the strobe can shoot continuously until the battery gets flat but the strobe may be damaged by the load.

Built-in "Vacuum leak sensor" confirms housing sealing in 3 minutes

The "Vacuum Leak Sensor" ensures housing sealing by monitoring air pressure inside of the housing during leak check and warns accidental flooding with LED blinks and buzzer during diving. The onboard pressure sensor changes sensitivity for leak check and diving by variable control program (PAT. P).

The supersensitive pressure sensor detects even fine leakage. Not as like conventional leak sensors, it drastically shortens test time (from 30 seconds to 3 minutes). The sensitivity of the dive mode eliminates false alarm even when ambient temperature changes.

バキュームリークセンサー(ポンプにより減圧)


青ランプ点灯の状態を確認

New S-MRS Port

Newly developed S-MRS (Magnetic Rotary System) controls focusing and zooming by magnetic attraction. The new S-MRS provides smoother operation with less play or rattle comparing to the previous model. By combining the EOS R6 with an RF lens, the MF Peaking function can also be used during full-time manual focusing. Together with the focus guide function, this enables ultra-precise focusing.

Maximum three MRS Control Rings can be installed to control the Control Ring, Focus Ring and SA Control Ring.

フォーカシング
磁石リング3個まで装着可能

Optional built-in Quick Shoe System supports quick camera composition change

Optional viewfinders provide same magnification as camera’s viewfinder (1.0x) and extends its eye-point. Two options are available: “Straight Viewfinder Unit ll” or angled “45 degree viewfinder Unit II (*7)” to choose depending on shooting conditions.

クイックシューシステム装着例(横)
クイックシューシステム装着例(縦)
ローアングル撮影例

Alternatively, the inexpensive "Grip Base D5" and "D5 Holder" combination is also available as an option.



Optional two bright viewfinders

Optional viewfinders provide same magnification as camera’s viewfinder (1.0x) and extends its eye-point. Two options are available: “Straight Viewfinder Unit ll” or angled “45 degree viewfinder Unit II(*7)” to choose depending on shooting conditions.

ストレートビューファインダーユニットII
45°ビューファインダーユニットIII

(*7)Viewfinders with serial number D294600 or later are compatible with the "X-2 R6" housing. Earlier serial numbers are not compatible.

Factory modification is available if you own previous version and need to retrofit to use for the X-2 R6 housing. Please consult your purchasing dealer.

Lightweight and compact ultra-precision cast aluminum body

The X-2 R6 is made from corrosion resistance aluminum alloy by ultraprecise cast manufacturing technique to fuse design, weight and durability in higher dimension.
The cast manufacturing technique enables thin body plate with complicated curved design which is not possible with machining. Lightweight and durable aluminum alloy body has acquired reliability, durability and controllability even in severe underwater.

アルミボディ
