INON

Grip Base System


Grip Base D5

JAN Code:4562121439535

Manual

*Not compatible with Grip Base D4, Grip Base M1, System Base II or System Base III

Grip Base D5

Adjustable Handle Position for Variety Size of Housings
The handle position is adjustable sideways in 4 cm/1.6 inches range to use for compact housings as well as large SLR housings with comfortable handle position.

Range of motion



Durable yet Lightweight
Made of aluminum alloy die cast and multilayer rib structure design dramatically strength bend resistance and miniaturize at 20% comparing to previous model. Not to worry to get damaged by housing load.

Lightweight and durable



Reliable Installation without Tool
Two tripod screws enhance secure installation of the Grip Base D5 on a housing supporting stress-free operation in severe underwater. Large tripod screw dials are easy to turn by fingers without specific tool.


No tools required



Grippy Cylindrical Rubber Grip
The handle is finished with tubular rubber surface for easy and slip free grip.

Compatible with Variety of INON Adapters
The handle top can hold variety of INON adapters to suit to different shooting styles.

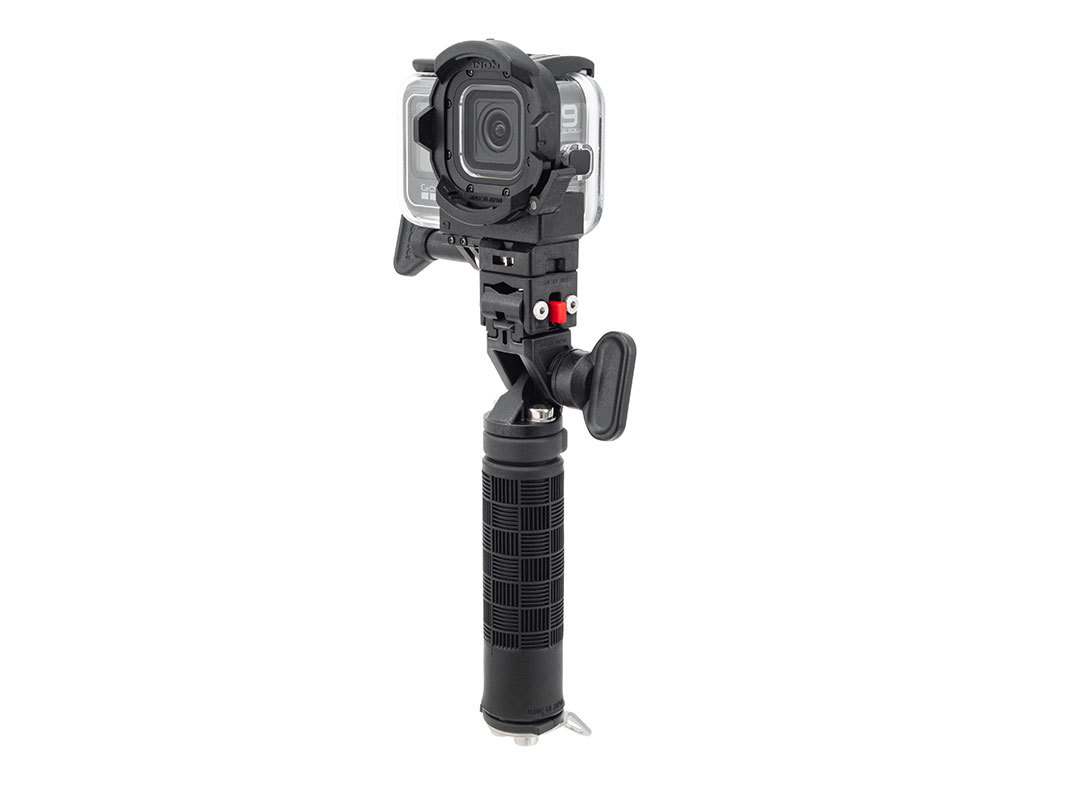

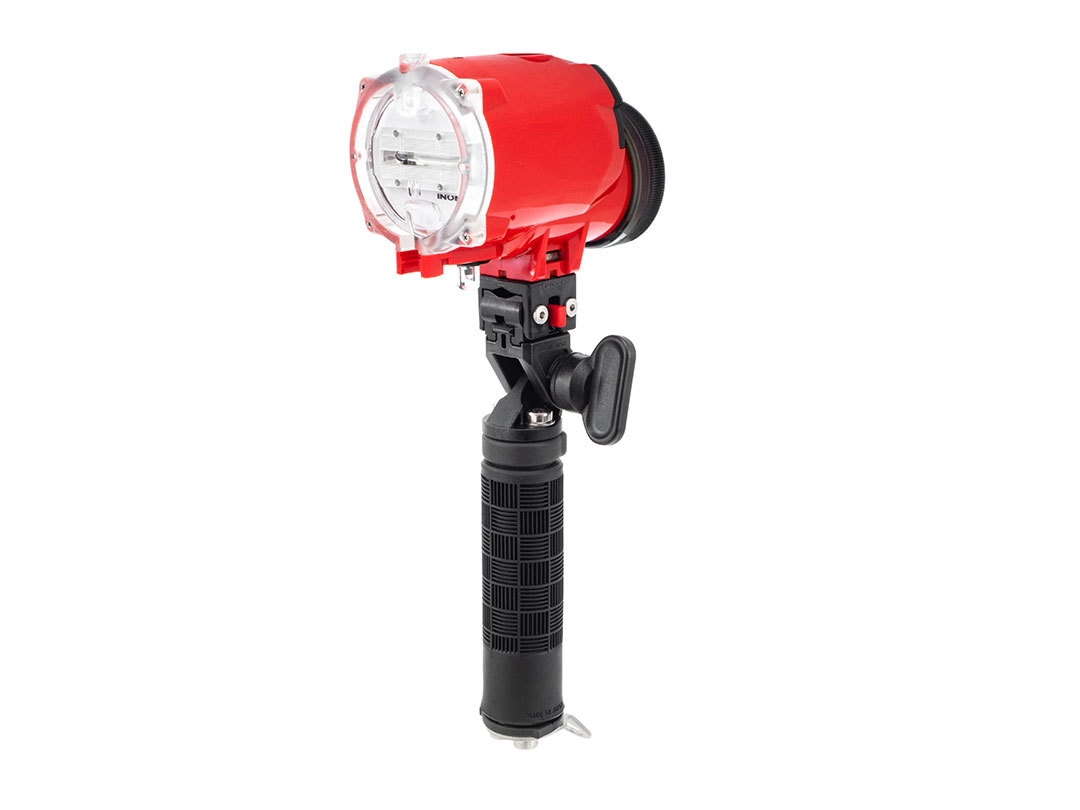

Setup examples

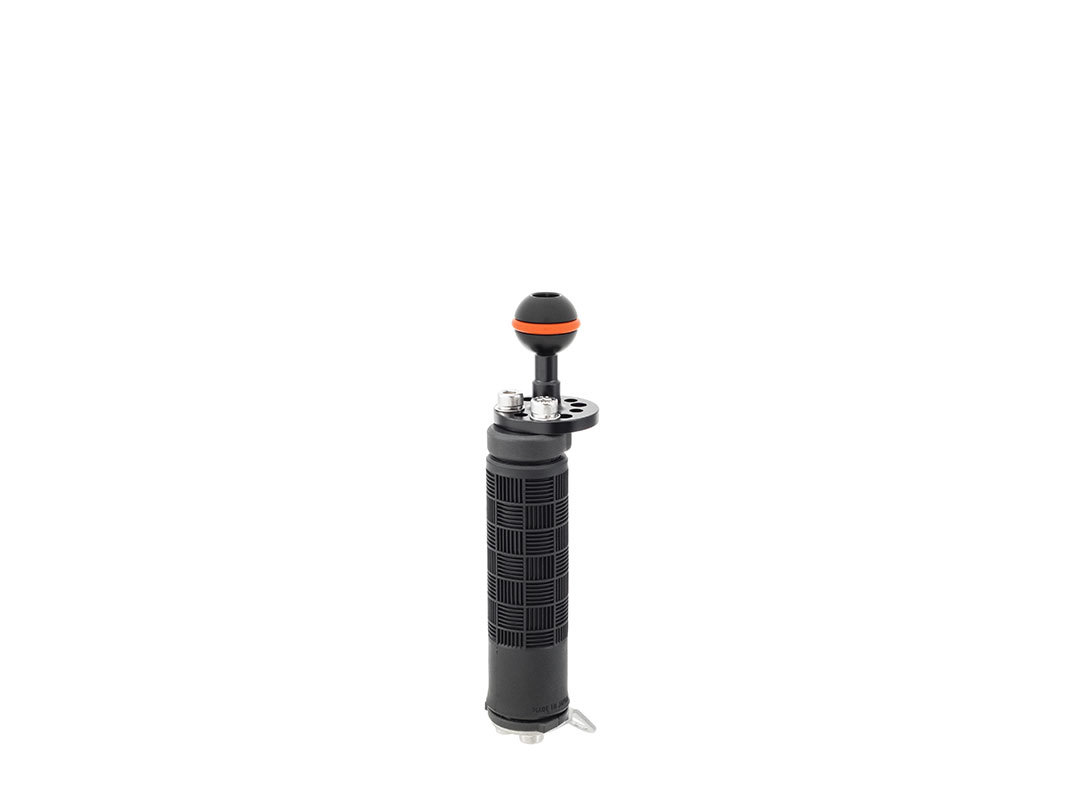

Direct Base IIa
Direct Base IIa

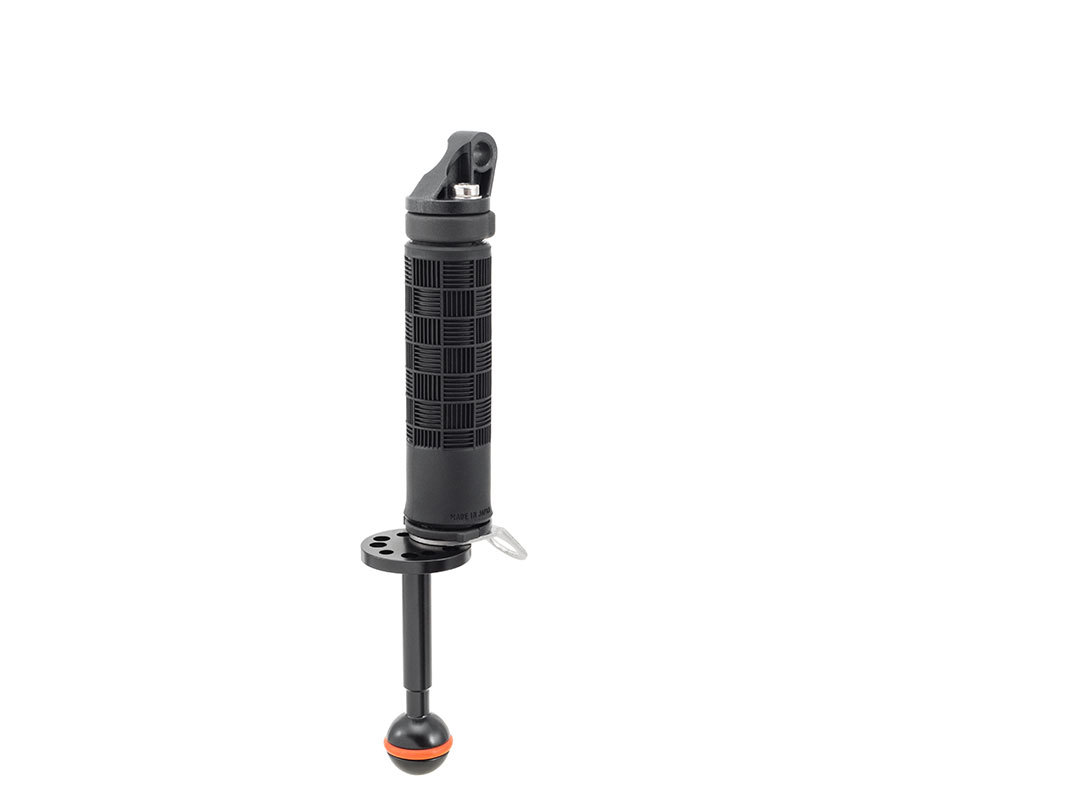

Z Adapter II
Z Adapter II

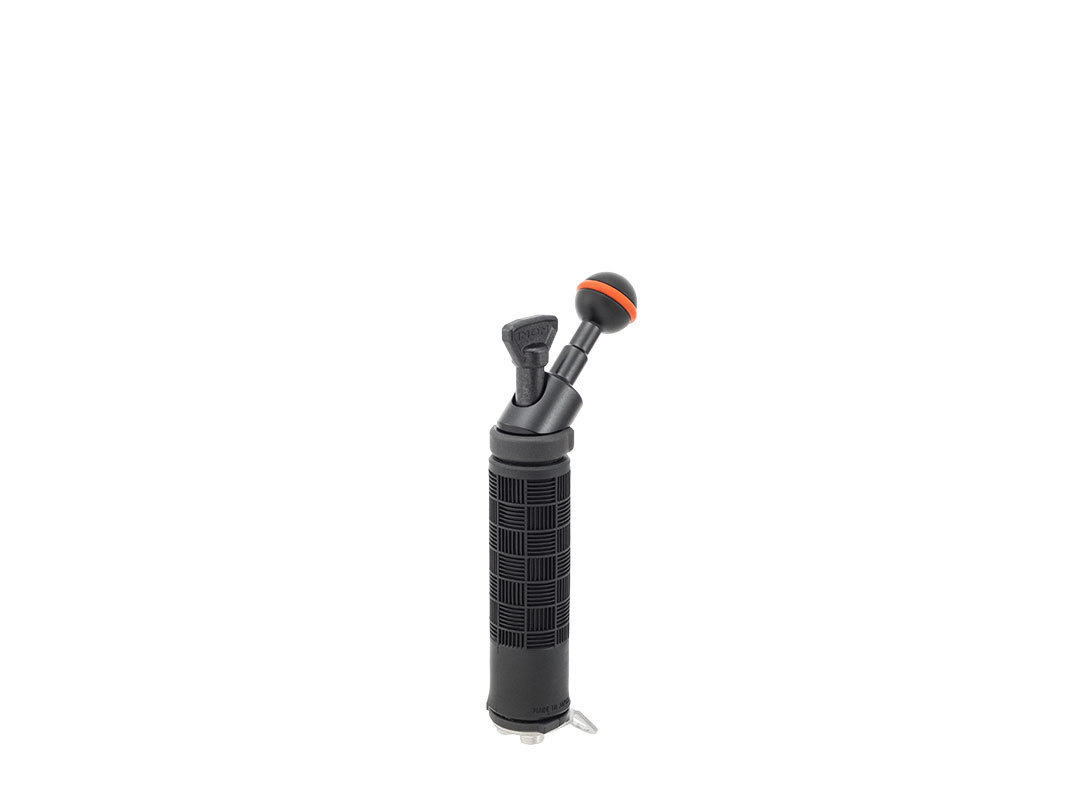

Direct Base III
Direct Base III

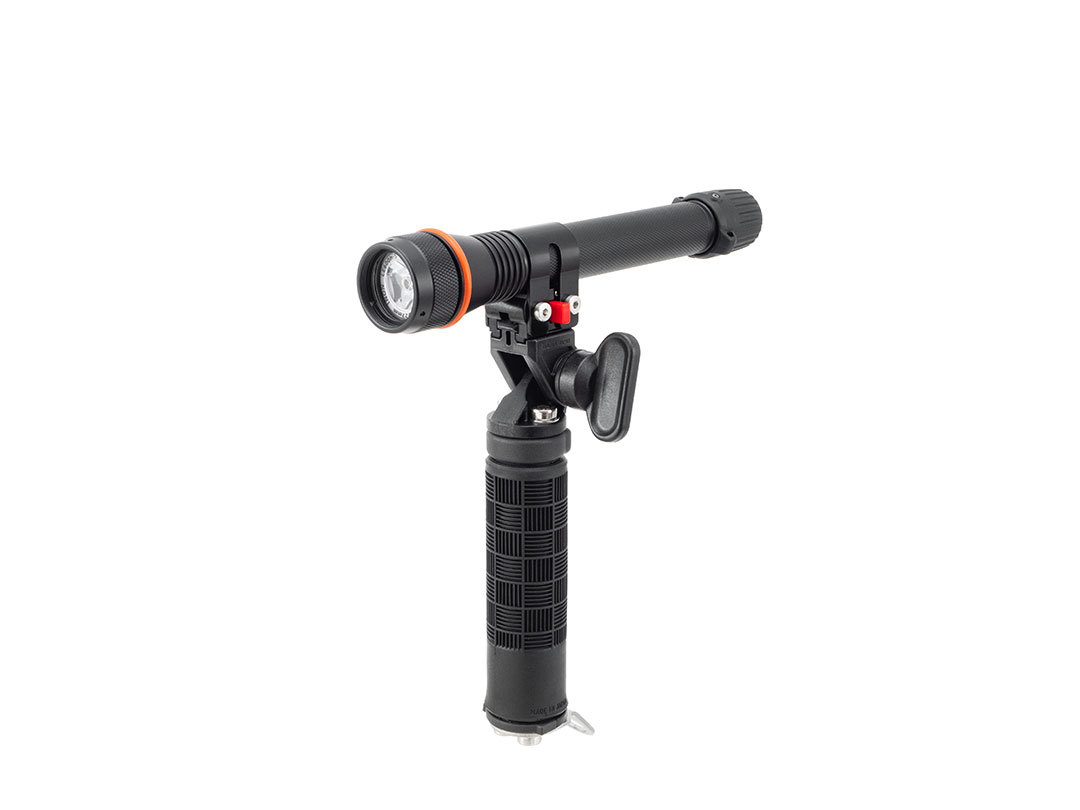

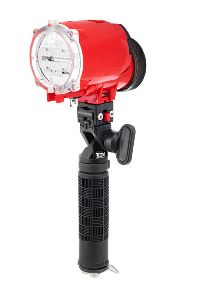

Direct Base YS RT
Direct Base YS RT

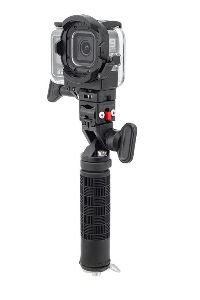

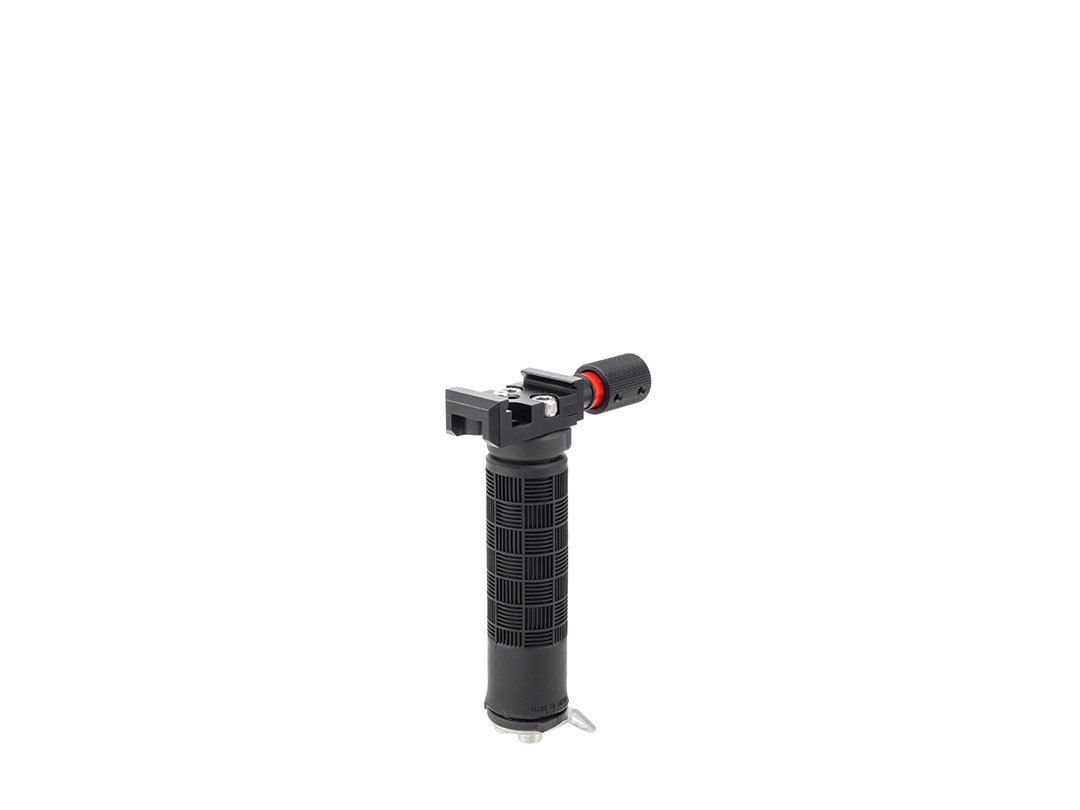

Shoe Base II
Shoe Base II
page top

D5 Holder

JAN Code:4562121439542

Manual

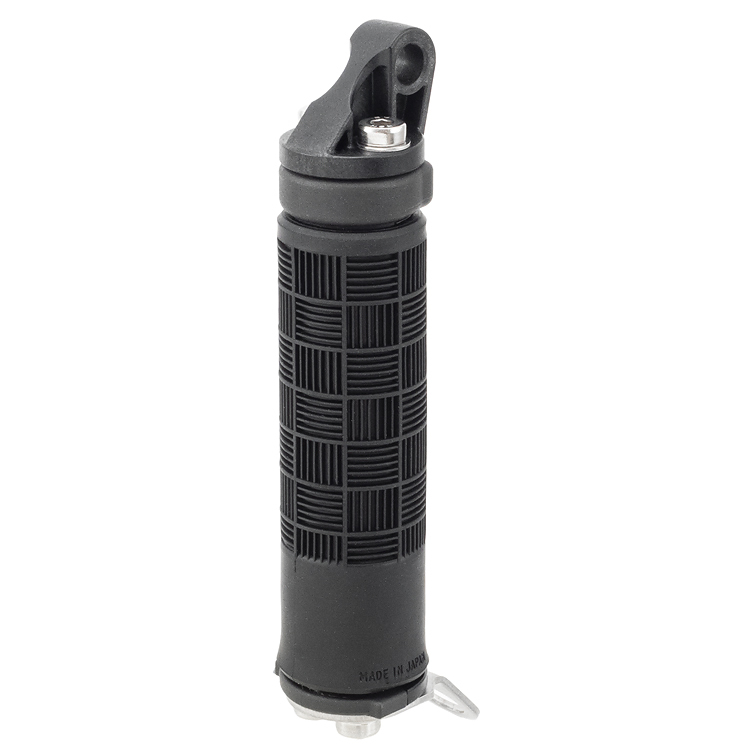

D5 Holder

Additional handle for the Grip Base D5 to create sophisticated lighting system including dual strobe setup or combination of a strobe and LED torch etc.


page top

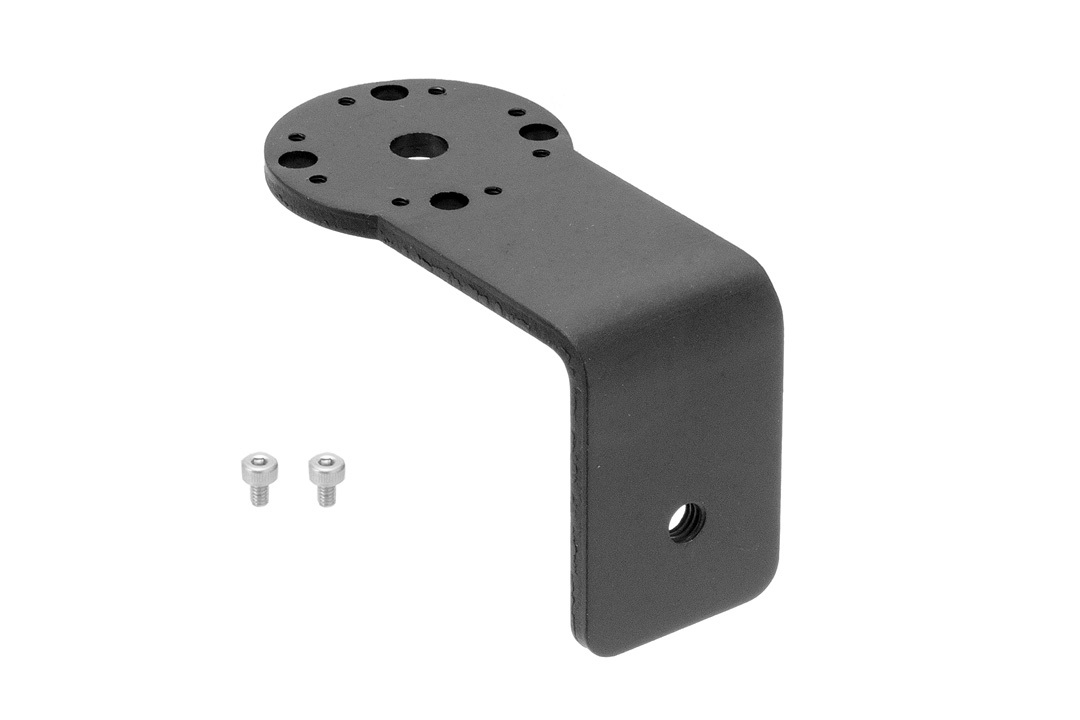

Lens Holder Adapter D5

JAN/EAN code : 4570018120800

Manual
Lens Holder Adapter D5

Various lens holders can be attached on the "D5 Holder" with "Direct Base III".

Lens Holder Adapter D5


Eight different angles for installation to locate a lens holder on your preferred position.

Lens Holder Adapter D5


Can be used with D5 Lanyard Plate.

Lens Holder Adapter D5


Compatible Lens Holder

  • AD Lens Holder for Float Arm
  • XD Lens Holder M5
  • M67 Lens Holder for Float Arm
  • LD Lens Holder for Float Arm

Compatible Adapter

  • Direct Base III



Dimensions (W x H x D) W32 x H60.5 x D37 mm/W1.2 x H2.3 x D1.4 inch
Weight [air] 18 g/0.6 oz, [u/w] Approx. 11 g/0.3 oz
Material/finishing Corrosion resisting aluminum alloy/rigid alumite etc.

page top

M6 Base Screw Set

JAN Code:4562121439566

Manual
M6 Base Tripod Screw Set

Optional tripod screw set to attach the Grip Base D5 on INON Mount Base, Lens Adapter Base or Video Base.

Set Up Image
page top

D5 Base

JAN Code:4562121439559

D5 Base

The tray part of the Grip Base D5 is separately available.


page top

Grip Base D5 Options

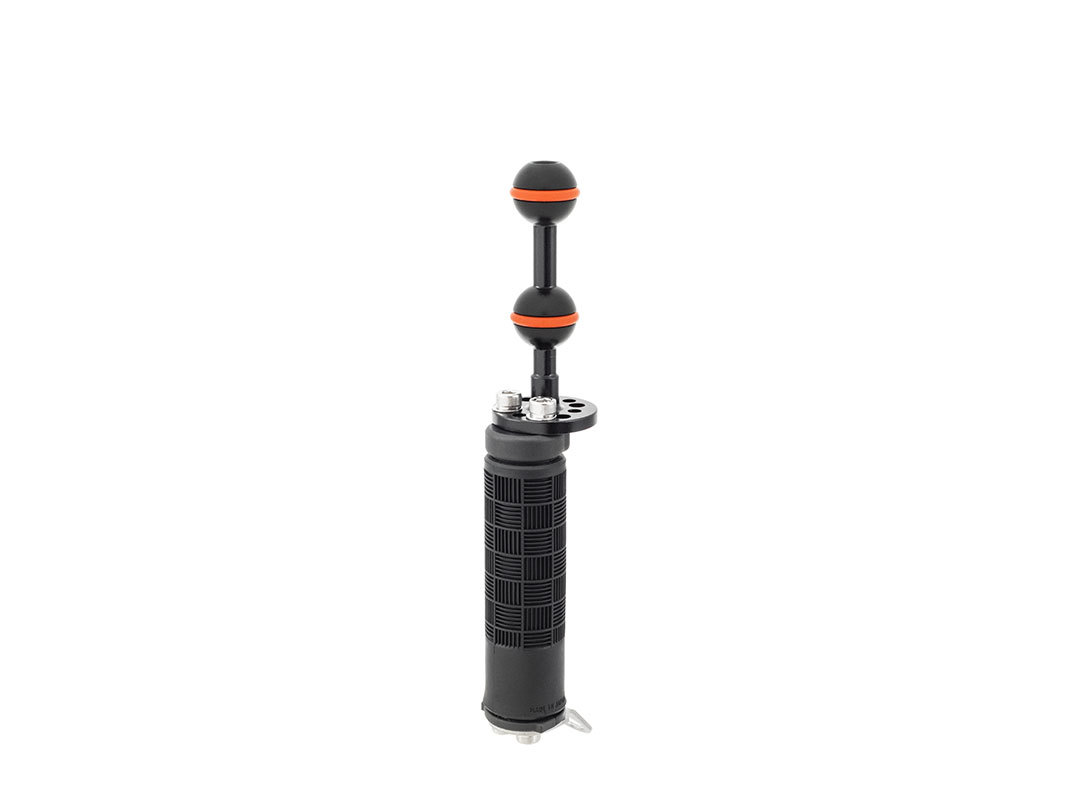

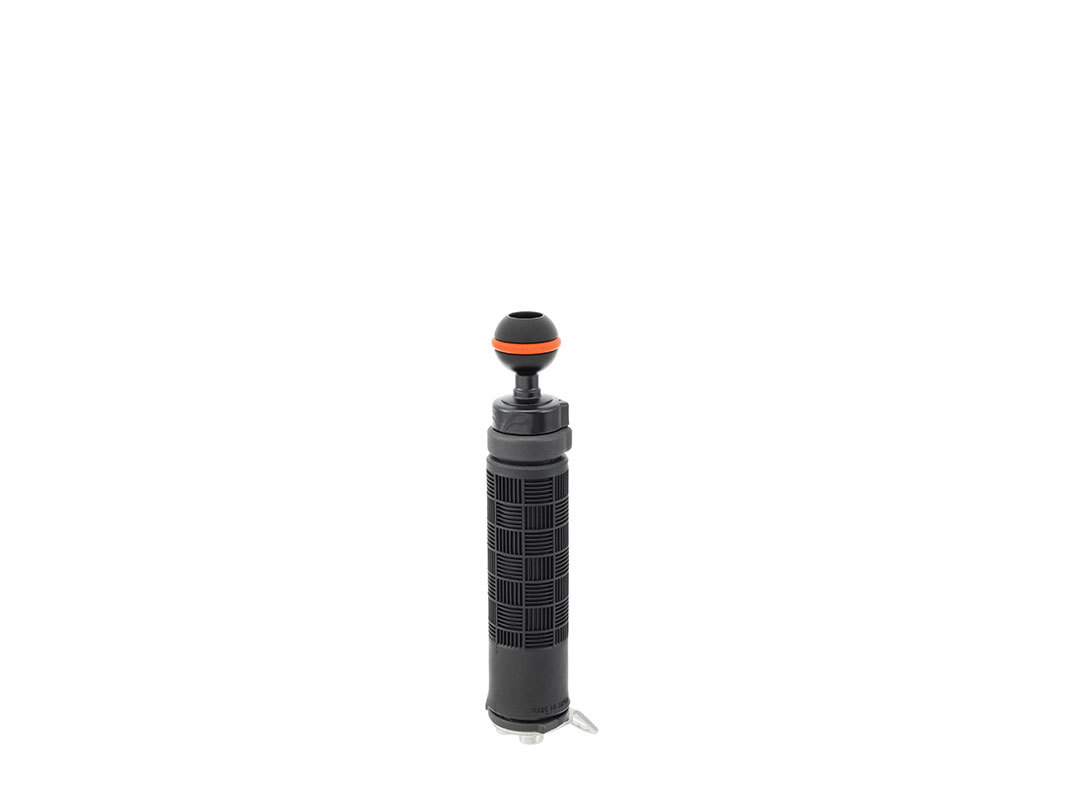

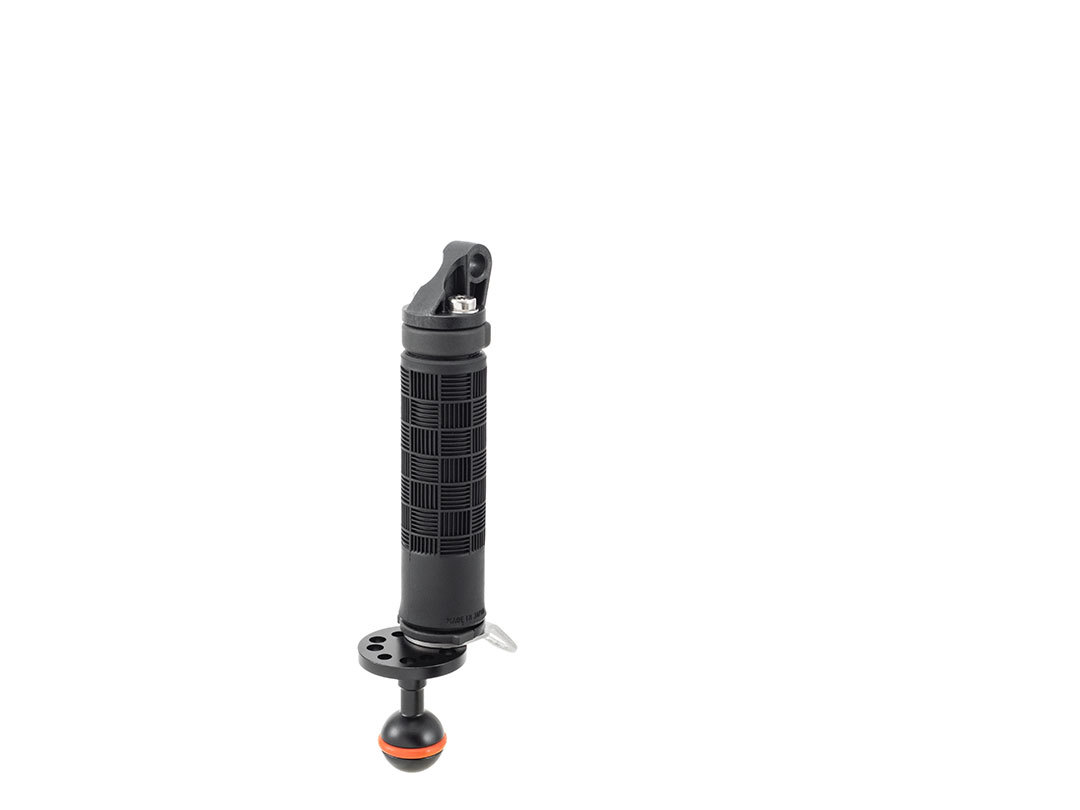

Direct Base III

Direct Base III

Multi Direct Base IIa




Multi Direct Base IIa

Multi Direct Base II Long

Multi Direct Base II Long

Multi Direct Base II WB

Multi Direct Base II WB

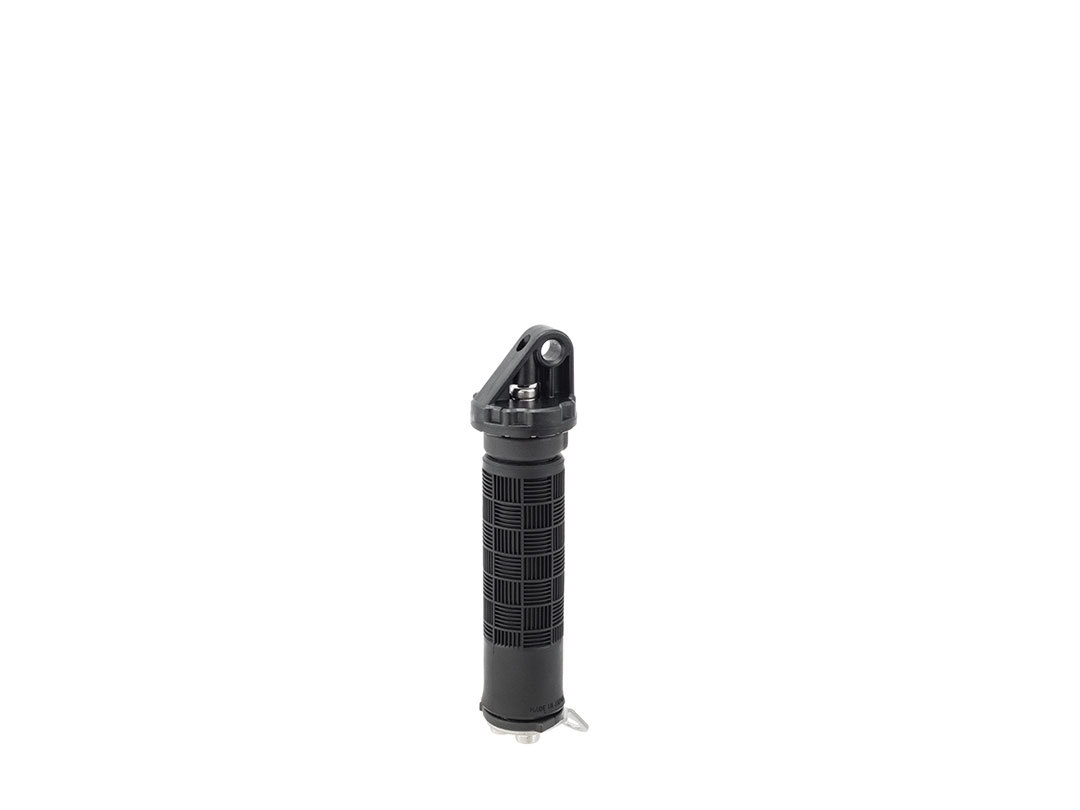

Z Adapter II


A Adapter II

Direct Base YS RT

Direct Base YS RT

Shoe Base Adapte D4+Shoe Base 1/4-20UNC

Shoe Base Adapter D4
Shoe Base 1/4-20UNC

Shoe Base Adapte D4+Shoe Base M6

Shoe Base Adapter D4
Shoe Base M6

Shoe Base Adapte D4+Shoe Base BALL

Shoe Base Adapter D4
Shoe Base BALL

Shoe Base Adapte D4+Shoe Base II

Shoe Base Adapter D4
Shoe Base II
page top

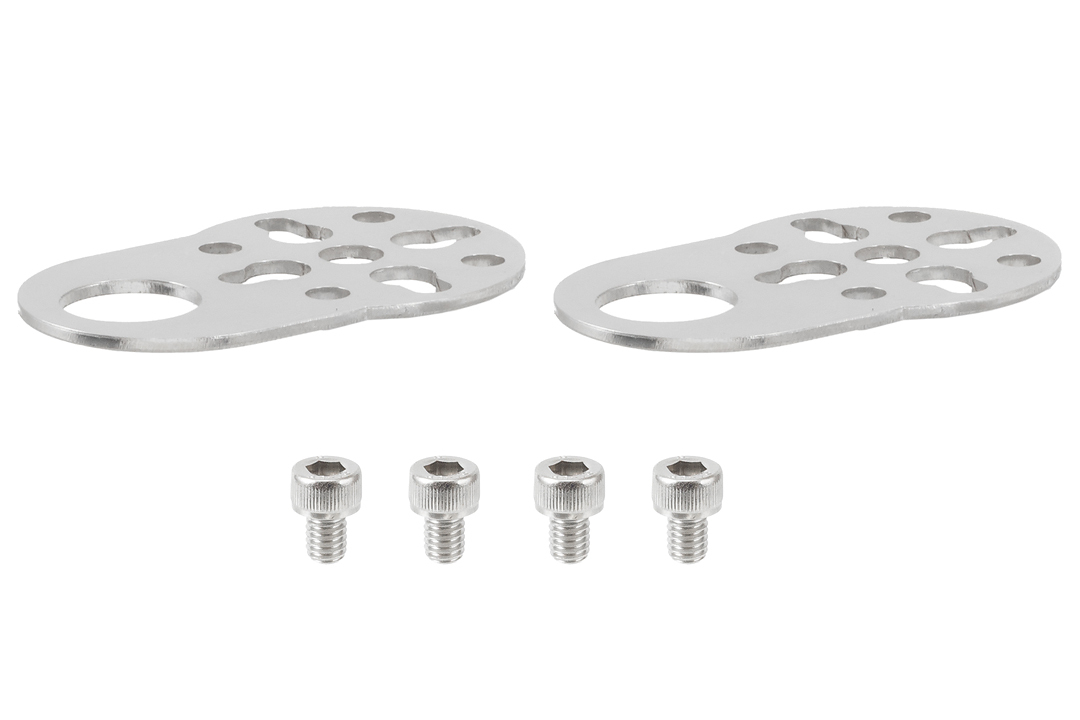

D5 Lanyard Plate 2

JAN/EAN code : 4570018120541

D5ランヤードプレート2



Installing this plate on top of the D5 Holder enables to attach a commercially available lanyard.

The lanyard eyelet location can be selected from 8 directions ( Direct Base III), or 4 directions (Multi Direct Base II).

装着例



Size W33.6 x H47.8 x T1.5 mm
/W1.3 x H1.8 x T0.05 in
Weight [Air] 52 g (1.8 oz)
[Underwater] approx. 42 g (1.5 oz)
Material Stainless
