INON

Arm System

Arm

■Arm XS

  [Discontinued]
■Full length: 99mm (3.9in)
■Effective length: 75mm (3.0in)
■Weight: 48g (1.7oz) [air] / approx.29g (1.0oz) [underwater]



click to enlarge



Base Tray Series

■Grip Base D4

  [Discontinued]

Grip Base D4


● No loose ! No rattle!

  • No loose ! No rattle!
    The Grip Base D4 is equipped with newly developed SPS (Slide Plate System) and directly attached on more than 100 different water-proof housings. The SPS provides loose-proof structure by to-and-fro adjustable main plate and two sub plates to hold bottom part of compatible housing securely (Patent P.). When using a close-up lens or wide conversion lens, the Grip Base D4 is attached on a Mount Base or Lens Adapter Base firmly with two M6 screws. The loose-proof Grip Base D4 supports you to focus on shooting without any extra work to retighten it during use.


● Wireless strobe shooting !

  • Wireless strobe shooting !
    It's easy to start external strobe shooting right away by simply attaching INON Z-330/D-200/S-2000/Z-240 Type 4/D-2000 Type 4 strobe on the Grip Base D4 Set thanks to their wireless connection capability. INON strobe benefits you to capture underwater scenery vividly with its powerful output and substantial features.


● Unlimited expandability !

  • The Grip Base D4 is compatible with wide variety of INON arm system to attach strobe or LED flashlight. Only additional "Shoe Base Adapter D4" and "Shoe Base" on a basic setting where a strobe is directly attached on the Grip Base D4 via "Z Joint", will add flexibility on lighting options. Combination of "Direct Base III" or "Multi Direct Base II Long" and INON arm further enhances flexibility of strobe positioning to suit to size of a subject or distance to it. Optional "D Holder Extension Bar" enables to hold a lens holder to carry an attachment lens not in use. Extra "D Holder" makes it easy to set-up a multiple lighting system with dual strobe on both sides.



■Weight: 250g (8.8oz) [air] / approx.142g (5.0oz) [underwater]

■Grip Base M1

  [Discontinued]

Grip Base M1
Working range of tripod screws
Working range of Tripod Screws
Removable center stand

Removable center stand

An arm base for a midsize underwater housing for micro four thirds system etc. Firmly attached on a housing with two tripod screws.
click to enlarge

Set-up image

The Base is equipped with legs to provide stable placement of combined housing. The center stand is removable to reduce total weight if the center stand is not required. Wide variety of INON arm system is compatible with this product as same as "Grip Base D4" to expand your system with strobe/LED flashlight. It is easy to set-up multiple lighting system with dual strobe configuration by attaching extra "D Holder".

■Weight:
273g (9.6oz) [air] / approx.158g (5.6oz) [underwater]
236g (8.3oz) [air] / approx.131g (4.6oz) [underwater] *excl. Center Leg

click to enlarge

Set-up image

■Compatible Housing
INON X-2 for GF1, INON X-2 for GF2
Olympus PT-EP01, Olympus PT-EP03,
Olympus PT-EP05L, Olympus PT-EP06L,
Olympus PT-EP08, Olympus PT-EP10,
Olympus PT-EP11, Olympus PT-EP12,
Olympus PT-EP13, Olympus PT-EP14,
Olympus PT-053, Olympus PT-054,
Olympus PT-055, Olympus PT-056、
Olympus PT-058
Nikon WP-N1, Nikon WP-N2, Nikon WP-N3
Sony MPK-URX100A, MPK-HSR1

■D Base M1

  [Discontinued]

D Base M1

This product is equivalent to "Grip Base M1" without "D Holder" and especially suitable for existing "D Holder" owners.

■Weight:
123g (4.3oz) [air] / approx.81g (2.9oz) [underwater]
86g (3.0oz) [air] / approx.54g (1.9oz) [underwater] *excl. Center Leg

■D Holder

  [Discontinued]

D Holder
click to enlarge

Set-up image

Optional D Holder to add to this product as additional strobe arm for dual strobe configuration and / or to hold whole system with both hands.

■Weight: 150g (5.3oz) [air] / approx.77g (2.7oz) [underwater]

■Holder III

  [Discontinued]

HolderIII


When holding an underwater housing directly by hand, the Holder III supports the back of your hand. The top end is designed to attach wide range of INON Arm System products.

■Weight: [air] 156g/5.5oz, [underwater] approx.80g/2.8oz

■Holder III Set

  [Discontinued]

HolderIIISet

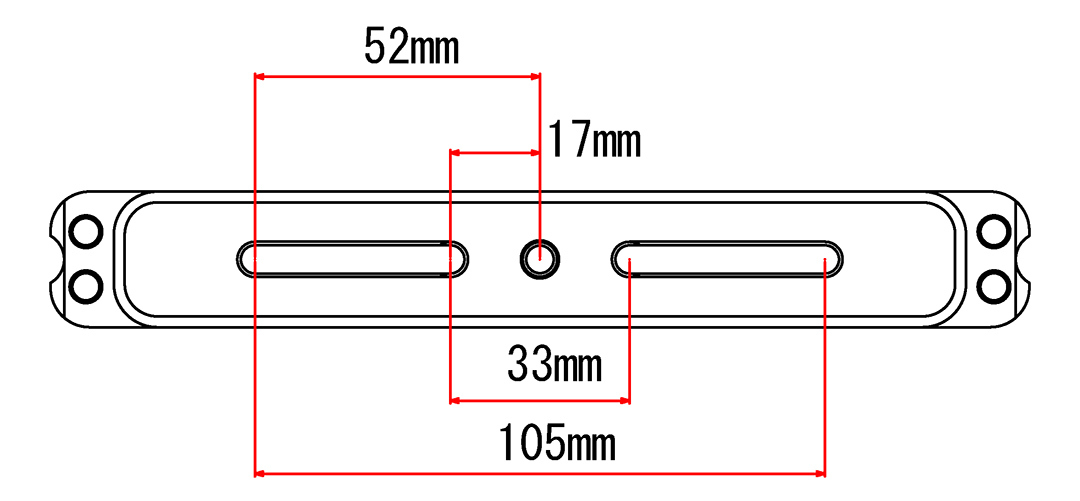

Working range of tripod screws

Working range of tripod screws

DoubleHolderIIISet

Unlike previous Holder II, the Holder III can be attached on both sides of an underwater housing and top end has total four fixing screw holes comparing to two of Holder II. The Holder III can be installed with three different angles (Holder III attached on the Main Base III at the right angle may interrupt proper opening/closure of combined underwater housing. If this happens, remove the Main Base III with Holder III(s) from the housing to open/close the housing.) Compatible with the Panhead Adapter packaged with the UW 3-Way Panhead.

■Set contents
Maine Base III, Holder III

■Weight: [air] 290g/10.2oz, [underwater] approx.162g /5.7oz

■Compatible Underwater Housing
INON X-2 for GX9
INON X-2 for EOS10D,X-2 for EOS20D,X-2 for EOS30D,X-2 for EOS50D/40D,X-2 for EOS60D,X-2 for EOS70D,X-2 for EOS6D,X-2 for EOS80D
INON X-2 for GF1,X-2 for GF2
INON X1-Z,X1-NZ,X1-LZ
Olympus PT-EP01,PT-EP03,PT-EP05L,PT-EP06L,PT-EP08,PT-EP10,PT-EP11,PT-EP12,PT-EP13,PT-EP14,PT-053,PT-054,PT-055,PT-056,PT-058
SONY MPK-URX100A,MPK-HSR1
Nikon WP-N1,WP-N2,WP-N3


■Holder II

  [Discontinued]

Holder II

The Holder II comfortably supports the back of your right hand when holding a housing or Nikonos V. INON strobe arm system is directly attached on the Holder II.

■Weight: 125g (4.4oz) [air] / approx.-8g (-0.3oz) [under surface]

■Holder II Set

  [Discontinued]

Holder II Set
Working range of tripod screws
Working range of tripod screws

The Main Base II is a fundamental component of the Holder II Set and attached on an underwater housing via two tripod screws or one tripod screw on Nikonos V to attach Arm II strobe arm system directly. The Holder II comfortably supports the back of your right hand with pre-installed 10mm neoprene rubber when holding INON X-2 series housing or Nikonos V and is slidingly adjustable to suits to different hand size. INON strobe arm system is directly attached on the Holder II.

■Weight: 212g (7.5oz) [air] / approx.66g (2.3oz) [under surface]

■Compatible Underwater Camera / Housing
INON X-2 for EOS10D, INON X-2 for EOS20D, INON X-2 for EOS30D,
INON X-2 for EOS50D/40D, X-2 for EOS60D, X-2 for EOS70D, X-2 for EOS6D, X-2 for EOS80D
INON X1-Z, INON X1-NZ, INON X1-LZ,
INON X-2 for GF1, X-2 for GF2
Nikonos V, Nikonos RS
Olympus PT-E03, Olympus PT-E05, Olympus PT-E06

*Nikonos V/RS is fixed by single tripod screw.

■Main Base II

  [Discontinued]

Main Base II
Working range of tripod screws
Working range of tripod screws

The Main Base II is a fundamental component of the Holder II Set and attached on an underwater housing via two tripod screws or one tripod screw on Nikonos V to attach Arm II strobe arm system directly. The Holder II comfortably supports the back of your right hand with pre-installed 10mm neoprene rubber when holding INON X-2 series housing or Nikonos V and is slidingly adjustable to suits to different hand size. INON strobe arm system is directly attached on the Holder II.

■Weight:
87g (3.1oz) [air] / approx.74g (2.6oz) [underwater] *standalone
212g (7.5oz) [air] / approx.66g (2.3oz) [under surface] *with Holder II

■Compatible Underwater Camera / Housing
INON X-2 for EOS10D, INON X-2 for EOS20D, INON X-2 for EOS30D,
INON X-2 for EOS50D/40D, X-2 for EOS60D, X-2 for EOS70D, X-2 for EOS6D, X-2 for EOS80D
INON X1-Z, INON X1-NZ, INON X1-LZ,
INON X-2 for GF1, X-2 for GF2
Nikonos V, Nikonos RS
Olympus PT-E03, Olympus PT-E05, Olympus PT-E06

*Nikonos V/RS is fixed by single tripod screw.

■W Base II

  [Discontinued]

click to enlarge

The W Base II connects the Main Base II (either side) or X1-G/X1-LG (left hand side) and Arm II strobe arm system.

■Weight: 62g (2.2oz) [air] / approx.32g (1.1oz) [underwater]

■Grip+Bar III Set

  [Discontinued]

click to enlarge

The Grip+Bar III Set is a grip for left hand side and adjustable space between a housing body.
Attached on left hand side of the Main base II or directly attached on left hand side of the INON X1-G/X1-LG.

■Weight: 198g (7.0oz) [air] / approx.130g (4.6oz) [underwater]

■Grip Base DIII

  [Discontinued]

click to enlarge

A base stay with strobe arm function for compact digital camera housing.

The Grip Base DIII has longer base tray and angled arm comparing to Grip Base DII for larger housing model. Z-240 strobe, D-2000 series strobe, S-2000 strobe is directly mounted with being optical coaxial of strobe and camera. INON Arm system can be easily added on. The Grip Base DIII position is sidlingly adjustable with maximum 16mm range to accommodate with your hand size. Two Grip Base DIII can be attached on single housing for dual strobe configuration.

■Weight: 205.6g (7.3oz) [air] / approx.117g (4.1oz) [underwater]

*The Grip Base DIII does not support wireless connection with S-2000 / Z-240 / D-2000. The Z Joint is not directly attached on the Grip Base DIII

page top

Shoe Base

■Shoe Base

  [Discontinued]

click to enlarge

A compact arm base to create compact lighting system in combination with Z Joint or Single Light Holder LE/Single Light Holder LF to hold a strobe or LED flashlight.

■Weight: 41g (1.4oz) [air] / approx.20g (0.7oz) [underwater]

Accessory Shoe Spacer for Canon
The Shoe Base comes with the "Accessory Shoe Spacer for Canon" to ensure stable installation of the Shoe Base on accessory shoe of compatible Canon water-proof housings.


脱落防止ツメ
■Hook Plate
Easy installation with the hook plate which has "nails" to prevent accidental separation.
前後首振り
■Move back and forth
The Z Joint can move back and forth to accommodate with different strobe distance.
左右回転
■Rotate 360°
Shoe Base can rotate 360° . You can move strobe not only up-and-down but also sideways to adjust strobe aiming.
Setup Example
■Wireless connection
Wireless connection is supported without using fiber optics to benefit you external strobe shooting with handy system.

■Shoe Base Set

  [Discontinued]

click to enlarge
click to enlarge

Set-up image

A set of the Z Joint and Shoe Base. Useable when shooting with Z-240 Type 4/D-2000 Type 4/S-2000 in wireless mode.

■Weight: 86.5g (3.1oz) [air] / approx.43g (1.5oz) [underwater]
page top

Connecting Parts

■SB Adapter

  [Discontinued]

click to enlarge

An adapter to attach Nikon SB strobe series on an Arm body or Float Arm via Clamp.

■Effective length: 45mm (1.8in)
■Weight: 45.6g (1.6oz) [air] / approx.31.0g (1.1oz) [underwater]

■Compatible strobe

  • Nikon SB103, SB105

■Clamp

  [Discontinued]

Clamp
approx.movement

The Clamp is made of machined lightweight aluminum alloy and weighs only 55g / 1.9oz The thumbscrew type gives easy clamping and unclamping.
Not only allowing 360 degrees free oscillating movement between attached arm system, also gives approx. 80°movement along an extended line of attached arm.

■Weight: 55g (1.9oz) [air] / approx.35g (1.2oz) [underwater]

■Z Adapter

  [Discontinued]

click to enlarge

click to enlarge
Installed on a strobe


An adapter to attach INON S-2000 strobe, Z-240 strobe, D-2000 strobe series, Z-220 strobe series or D-180 strobe series on an Arm body or Float Arm via Clamp.

■Effective length: 58mm (2.3in)
■Weight: 57g (2.0oz) [air] / approx.37g (1.3oz) [underwater]

■Compatible strobe
S-2000, Z-240, D-2000, D-2000S, D-2000W/Wn
D-180, D-180s, Z-220F, Z-220, Z-220S

page top

ArmSystem Options

D Holder Extension Bar

[Discontinued]

D Holder Extension Bar

click to enlarge
Usage example

The D Holder Extension Bar is attached on the Grip Base D4/Grip Base M1/D Holder to hold a lens holder.

Weight: 53g (1.9oz) [air] / approx.34g (1.2oz) [underwater]

Compatible base

  • Grip Base D4
  • Grip Base M1
  • D Holder


Compatible lens holder

  • LD/M67 Lens Holder S
  • AD Lens Holder (Lens Holder [screw] only)
  • LD/M67 Lens Holder W (Lens Holder [screw] only)


*"Wireless connection" is not compatible when using D Holder Extension Bar since combined "Lens Holder" or "attachment lens" may block built-in flash light. Please use "Optical D Cable connection" for this configuration to benefit reliable operation of the strobe.

Stick Arm Float S

[Discontinued]

Stick Arm Float S

click to enlarge
Set-up image

An optional attachment for a Stick Arm or Multi Ball Arm to provide comfortable gripping and add approx.84g buoyancy underwater (*1) to lighten total underwater weight of combined camera system.

(*1) Not compatible with "Stick Arm XS-T", "Stick Arm SS-T", "Multi Ball Arm SS" and "Multi Ball Arm S".

Buoyancy: approx.84g (3.0oz) [underwater]
Weight: 82.0g (2.9oz) [air]

Compatible arm

  • Stick Arm S-T/M-T/L (Stick Arm L can have two Stick Arm Float S)
  • Multi Ball Arm ML/L/LL/XL (Multi Ball Arm LL and Multi Ball Arm XL can have two Stick Arm Float S)

■Arm Float S

[Discontinued]

Arm Float S

click to enlage

Set-up image

The Arm Float S is attached on an aluminum alloy Arm to help to grasp it comfortably and add approx. 70g buoyancy underwater. Two pieces construction of foam rigid plastic is easy to install simply by screwed together on an arm in between and has advantage to save space when transporting.

■Buoyancy: approx.70g (2.5oz) [underwater]
■Weight: 45g (1.6oz) [air]

■Compatible arm

  • Arm S/M/L (Arm L can have two Arm Float S)
  • YS Arm MS/M
page top

Shoe Base Adapter D4

[Discontinued]

Shoe Base Adapter D4



An adapter to attach the Shoe Base directly on the Grip Base D4/Grip Base M1/D Holder/D Holder Extension Bar/Port Arm MRS/Port Arm for UFL-MR130 EFS60 to hold an external strobe (Z-330, D-200, S-2000 etc.) via Z Joint or LED flashlight (LE series, LF series) via light holder in compact configuration for free positioning of the lighting device.

click to enlarge

Set-up image

■Weight: 10g (0.4oz) [air] / approx.6g (0.2oz) [underwater]

Compatible arm/base


*Please use fiber optics connection even with a wireless connection compatible strobe since wireless connection is not supported by this product due to position limitation of the Mirror Unit (strobe).

page top

1/4 Male Female Tripod Screw (for Grip Base D4)

[Discontinued]

1/4 Male Female Tripod Screw (for Grip Base D4)

Installed on the Grip Base D4

Installed on the Grip Base D4

An optional accessory equipped with 1/4-20UNC female tripod screw hole and 1/4-20UNC male tripod screw to attach "Z Adapter MV 1/4-20UNC" on "Grip Base D4" by replacing with original tripod screw of "Grip Base D4".

Weight: 36.2g (1.3oz) [air] / approx.33g (1.2oz) [underwater]

The "1/4 Male Female Tripod Screw (for Grip Base D4) " is not required when "Grip Base D4" is attached on Mont Base/Lens Adapter Base. The "Z Adapter MV 1/4-20UNC" can be attached directly on tripod screw hole of "D Base SPS" on the "Grip Base D4".
