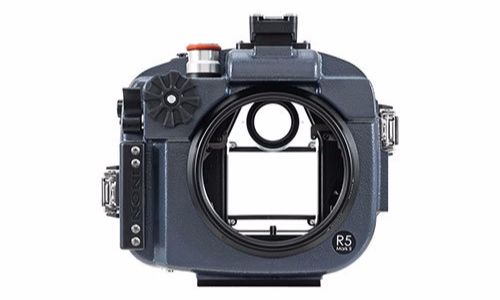

X-2 R5 Mark II
JAN/EAN code : 4570018121043
- A housing for Canon EOS R5 Mark II
- INON strobe compatible ultra-accurate multi-functional built-in "TTL Converter" as standard feature
- Burst shots in TTL, 12 shots/sec. continuous strobe firing
- Control flash amount directly from camera
- Standard “Vacuum Leak Sensor (PAT. P)" checks housing sealing in only 3 minutes
- Lightweight and compact ultra-precision cast aluminum body
- MRS port further evolves to support fine manual focusing
- Optionally available "Quick Shoe System" for quick camera position switching between landscape and portrait composition
- Optional two viewfinders provide bright and clear finder image
- A housing for Canon EOS R5 Mark II
- INON strobe compatible ultra-accurate multi-functional built-in "TTL Converter" as standard feature
- Burst shots in TTL, 12 shots/sec. continuous strobe firing
- Control flash amount directly from camera
- Standard “Vacuum Leak Sensor (PAT. P)" checks housing sealing in only 3 minutes
- Lightweight and compact ultra-precision cast aluminum body
- MRS port further evolves to support fine manual focusing
- Optionally available "Quick Shoe System" for quick camera position switching between landscape and portrait composition
- Optional two viewfinders provide bright and clear finder image

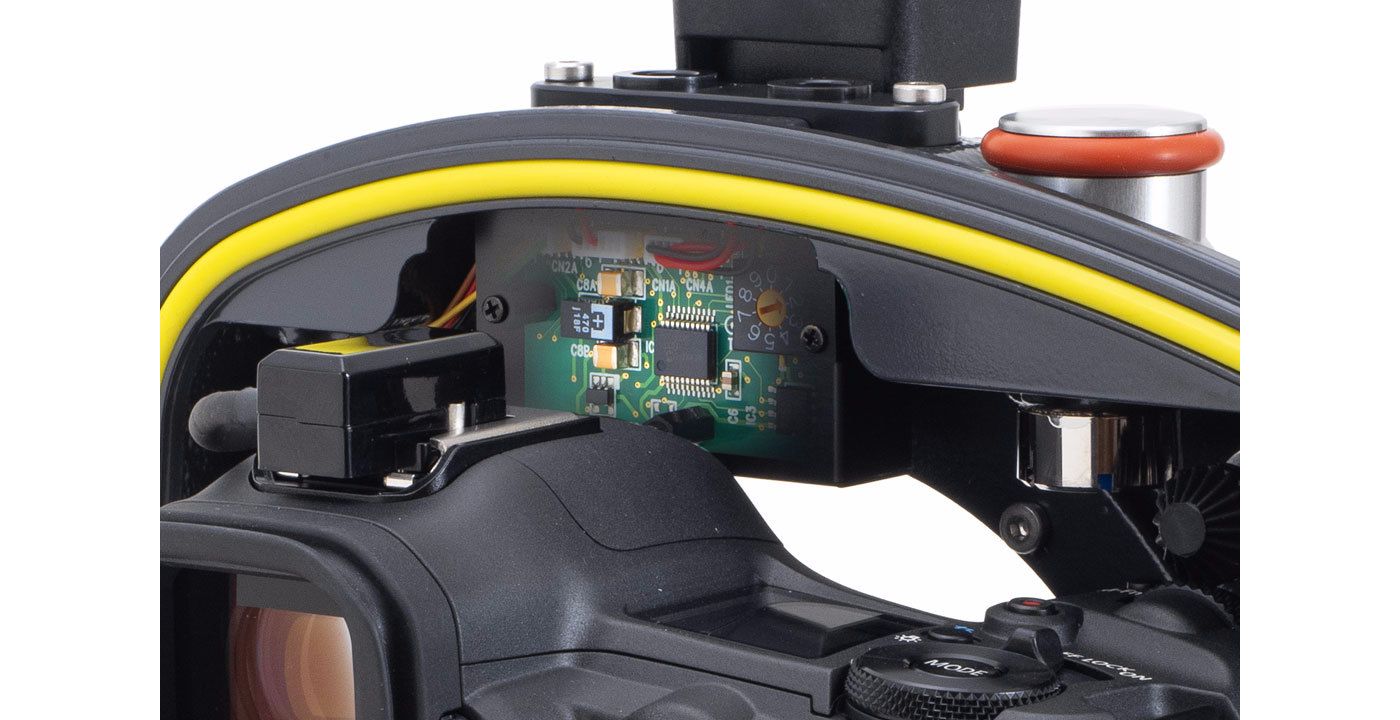

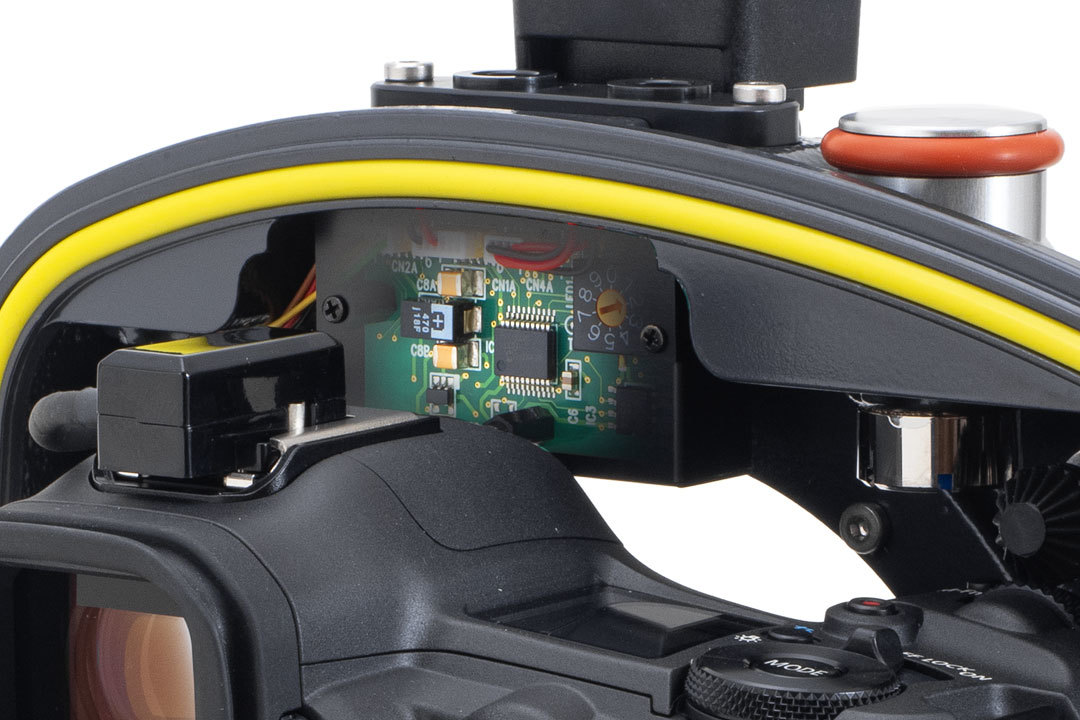

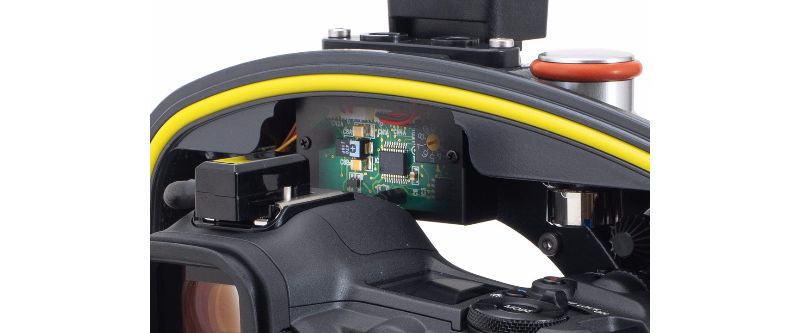

Ultra-accurate multi-functional built-in "TTL Converter"
The "TTL Converter" equipped as a standard feature, triggers INON strobe optically to enjoy fully automatic TTL. Exclusively developed for INON strobe based on its flash protocol to optimize its performance for underwater use. As an underwater strobe manufacturer, we successfully achieved the TTL Converter that provides constant, stable and highly accurate TTL exposure.
The TTL converter supports rear curtain sync as well to add motion trails on moving subject.
The "TTL Converter" equipped as a standard feature, triggers INON strobe optically to enjoy fully automatic TTL. Exclusively developed for INON strobe based on its flash protocol to optimize its performance for underwater use. As an underwater strobe manufacturer, we successfully achieved the TTL Converter that provides constant, stable and highly accurate TTL exposure.
The TTL converter supports rear curtain sync as well to add motion trails on moving subject.
| External Speedlite control menu | Parameters that can be changed |
| Flash firing | [Enable(*1)]/[Disable] |
| E-TTL balance | [Ambience priority]/[Standard]/[Flash priority (*2)] |
| E-TTLII meter | [Eval (Face Prty)]/[Evaluative]/[Average] |
| Contin flash ctrl | [E-TTL each shot]/[E-TTL 1st shot] |
| Slow synchro | [1/250-30sec. auto]/[1/250-60sec. auto]/[1/250 sec. (fixed)] |
| Flash Function Settings Flash mode |
[E-TTL]/[M(*3)] |
| Flash Function Settings Shutter synchronization |
[First-curtain synchronization]/[Second-curtain synchronization(*4)] |
| Flash Function Settings Flash exposure compensation |
Exposure adjustment is adjustable |
(*1)When selecting [Enable], shutter speed is limited up to 1/250sec. regardless of INON strobe power setting. When not using a strobe, set to [Disable] not to have the limitation.
(*2)[Flash priority] is recommended in strong ambient light.
(*3)Manual flashing without pre-flash. Recommended to shoot shy subjects not to scare them with pre-flash.
(*4)Set to [M] when shooting in Manual flash mode on INON strobe at [Second-curtain synchronization]. INON strobe is not in synch when the flash mode is set to [E-TTL] and shutter speed is set to 1/8sec. or slower.
Burst shots in TTL, 12 shots/sec. continuous strobe firing(*5)
The TTL Converter fully supports [High speed continuous][High speed continuous+] of the EOS R5 Mark II based on electricity stored in a capacitor (*6). Not only manual flash, but also TTL flash for high-speed continuous shooting is available. Never miss a moment to capture.
(*5) 4 shots/sec.in [Continuous shooting], 12 shots/sec. in [Continuous shooting +].Tested by INON with fully charged camera battery.
(*6) Pause the strobe for a few minutes when taking more than 100 consecutive shots to avoid possible damage.
When strobe output gets extremely low such as using S-TTL, open aperture or high ISO sensitivity, the strobe can shoot continuously until the battery gets flat but the strobe may be damaged by the load.

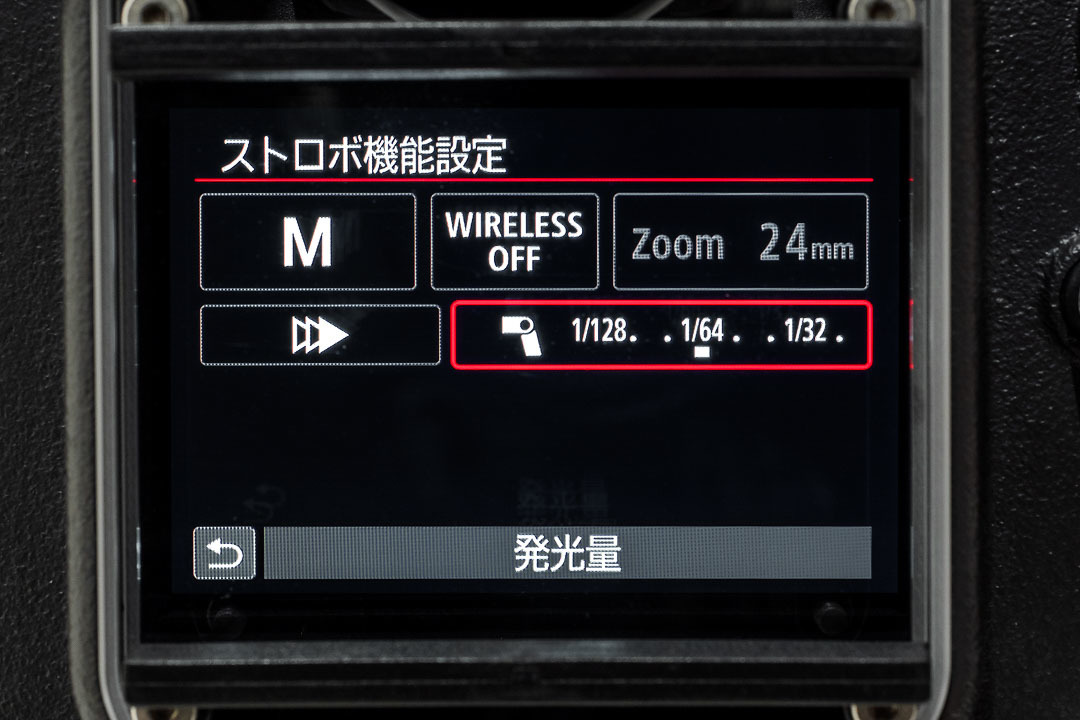

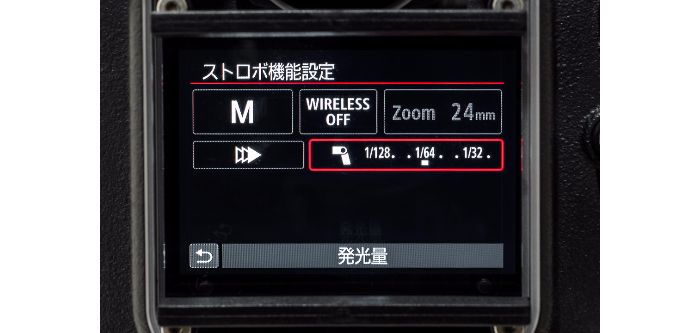

Strobe manual power is directly adjustable from camera
INON strobe manual power is directly adjustable from camera ranging between 1/64 and FULL at 1/3EV. increments. Useful when strobe is positioned away like on long strobe arm or when shooting with backlit technique.
INON strobe manual power is directly adjustable from camera ranging between 1/64 and FULL at 1/3EV. increments. Useful when strobe is positioned away like on long strobe arm or when shooting with backlit technique.

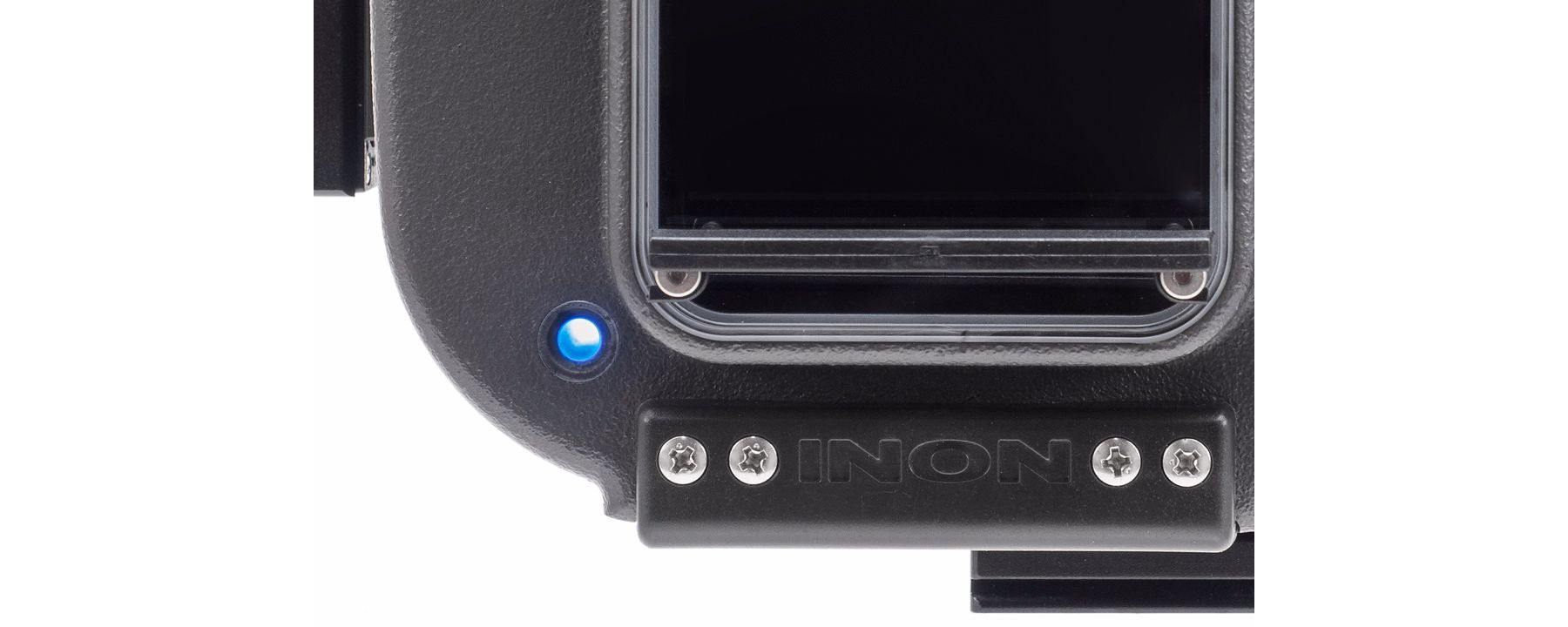

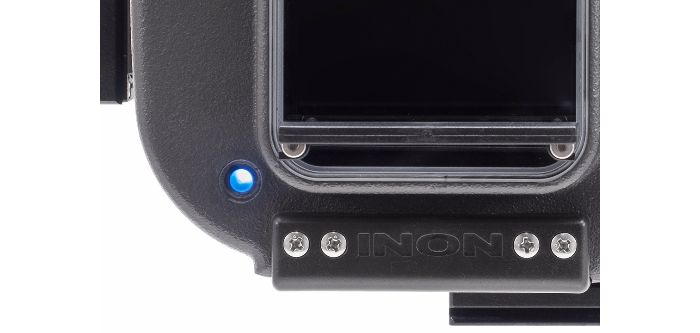

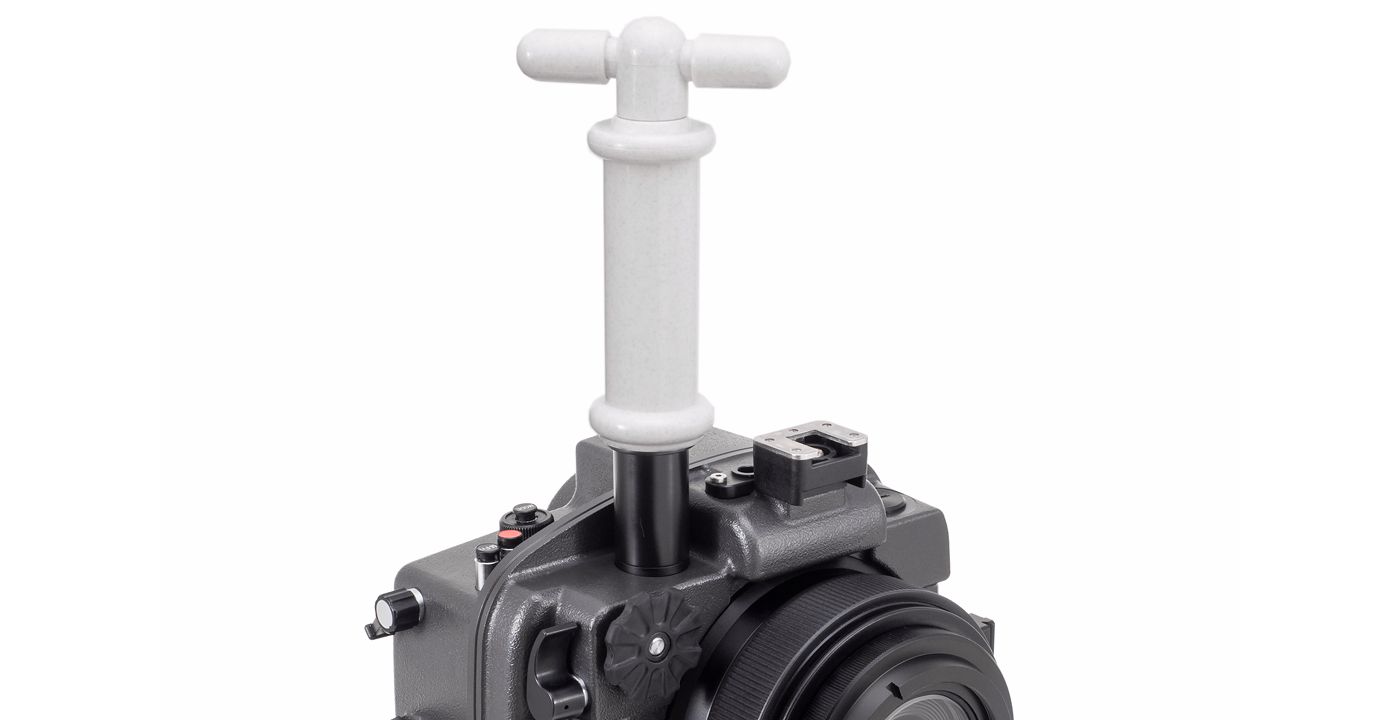

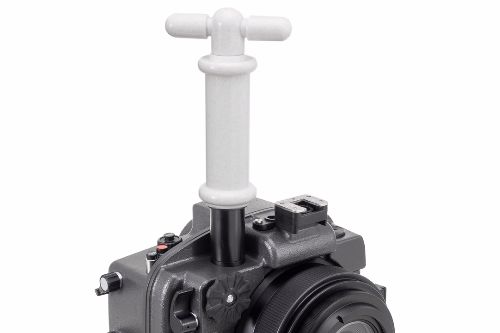

Built-in "Vacuum leak sensor" confirms housing sealing in 3 minutes
The "Vacuum Leak Sensor" ensures housing sealing by monitoring air pressure inside of the housing during leak check and warns accidental flooding with LED blinks and buzzer during diving. The onboard pressure sensor changes sensitivity for leak check and diving by variable control program (PAT. P).
The supersensitive pressure sensor detects even fine leakage. Not as like conventional leak sensors, it drastically shortens test time (from 30 seconds to 3 minutes). The sensitivity of the dive mode eliminates false alarm even when ambient temperature changes.

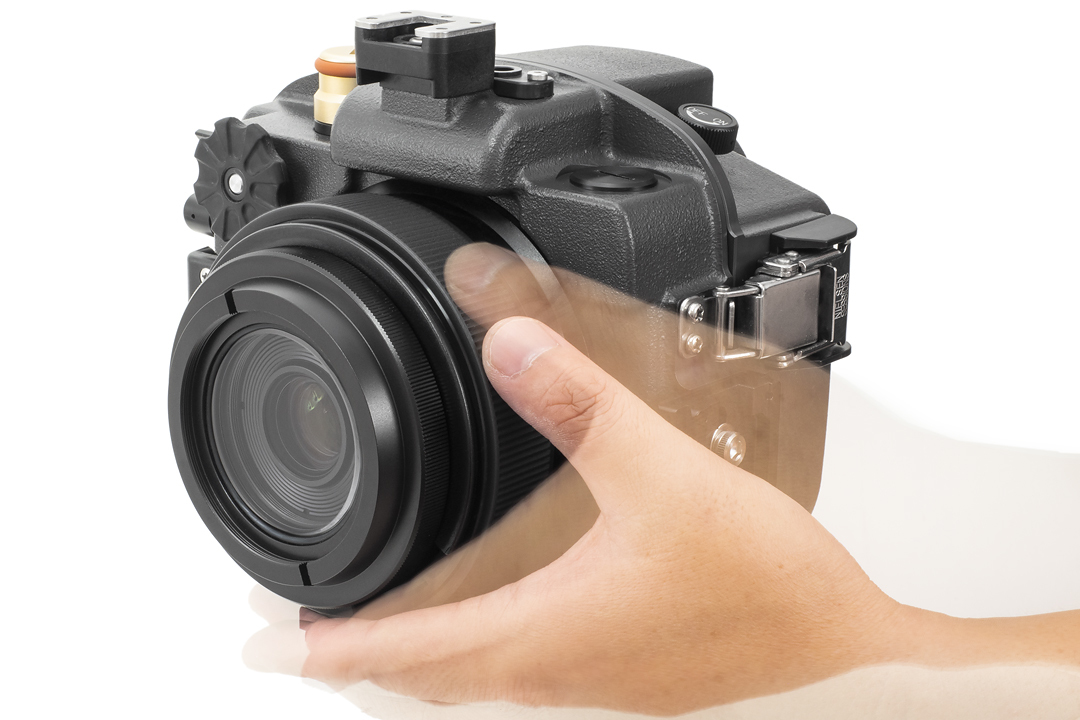

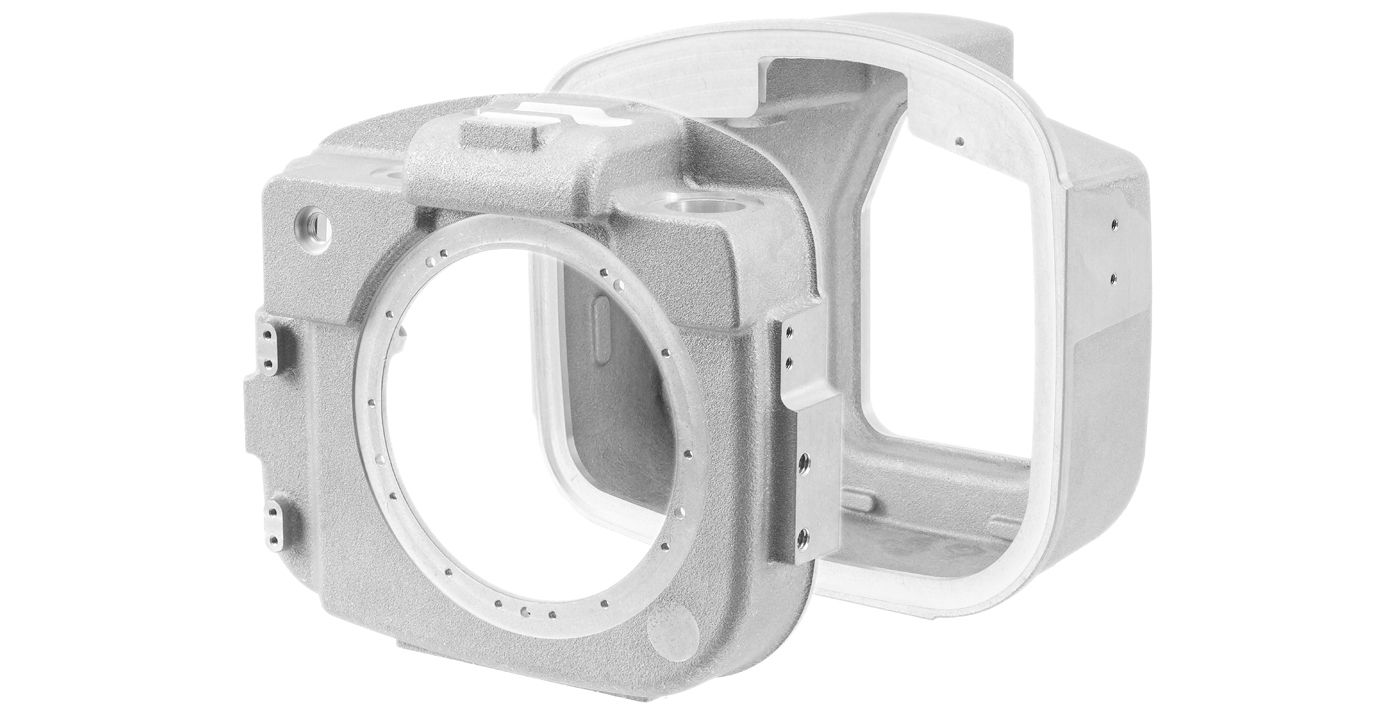

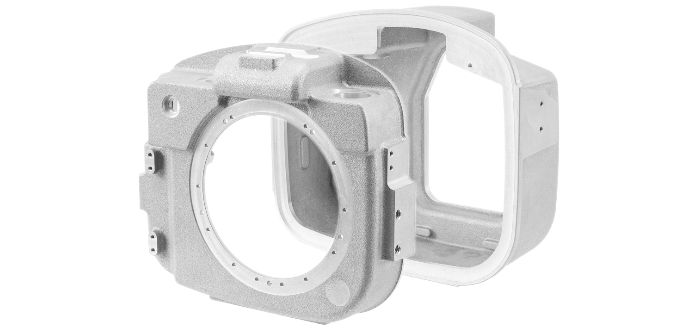

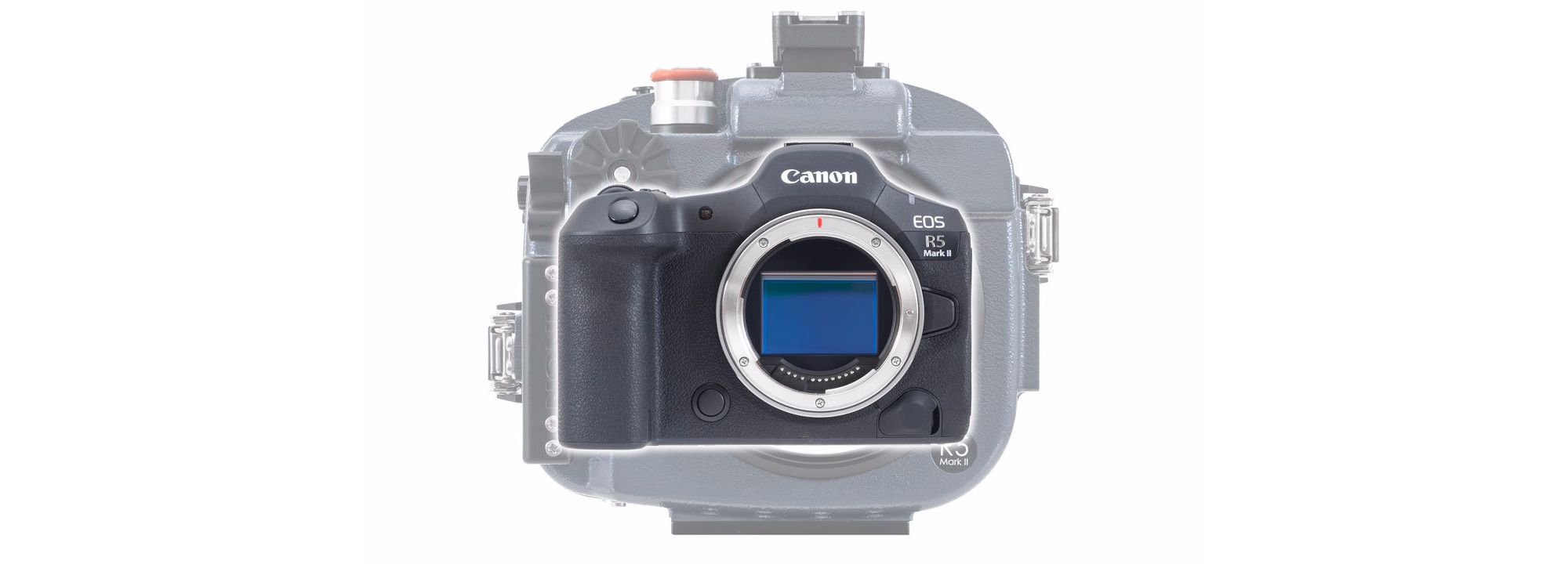

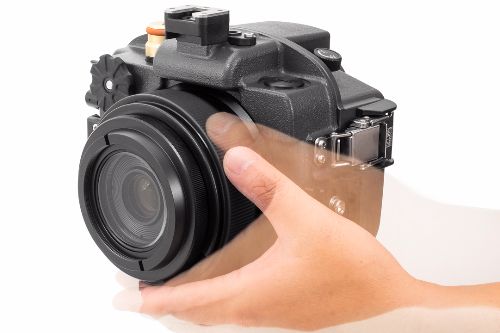

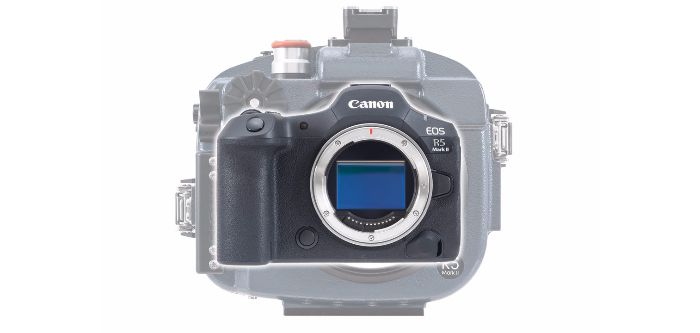

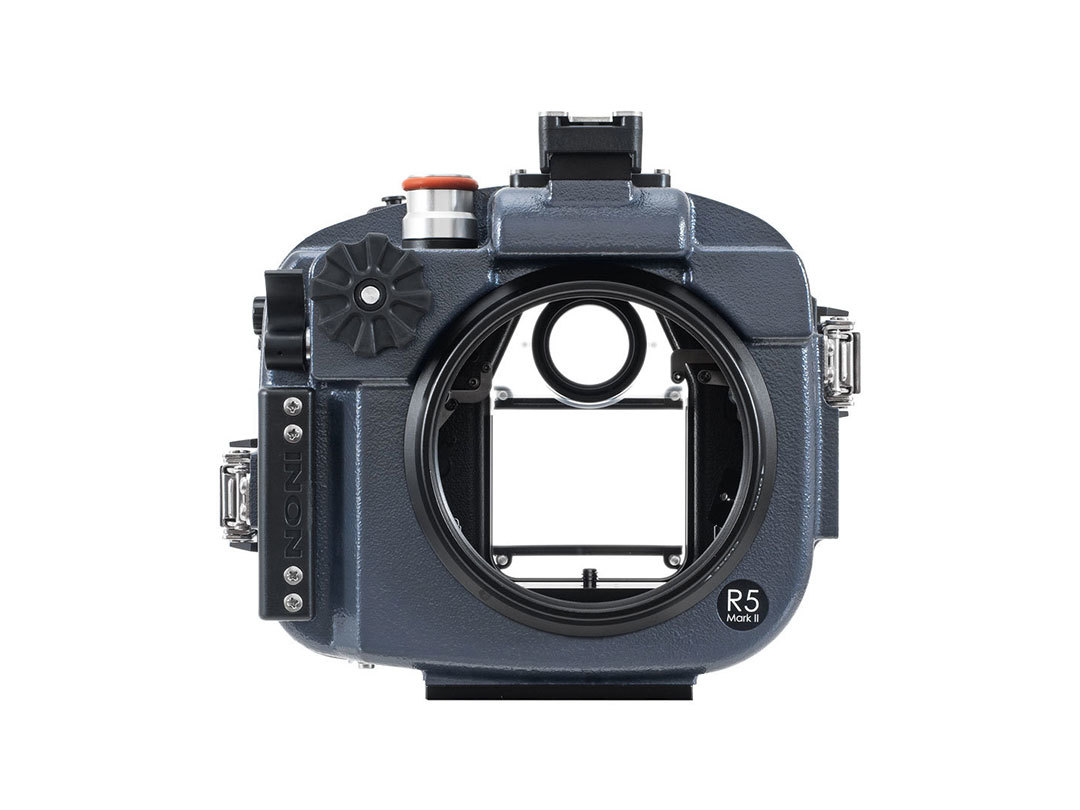

Lightweight and compact ultra-precision cast aluminum body
The housing body is made of corrosion-resistant ultra-precision cast aluminum alloy enabling thin wall and complex shapes contributing to easy handling design and lightweight, which is important for underwater photography.
The housing body is made of corrosion-resistant ultra-precision cast aluminum alloy enabling thin wall and complex shapes contributing to easy handling design and lightweight, which is important for underwater photography.
Compact size of 205mm/8.1 inch (width), 170mm/6.7 inch (height), and 125mm/4.9 inch (depth)

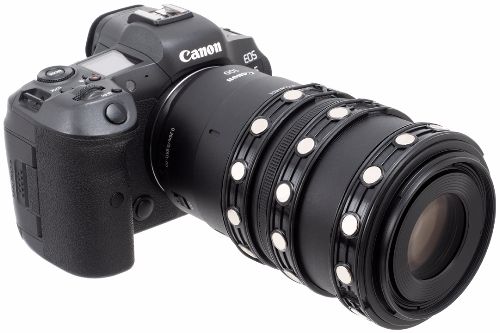

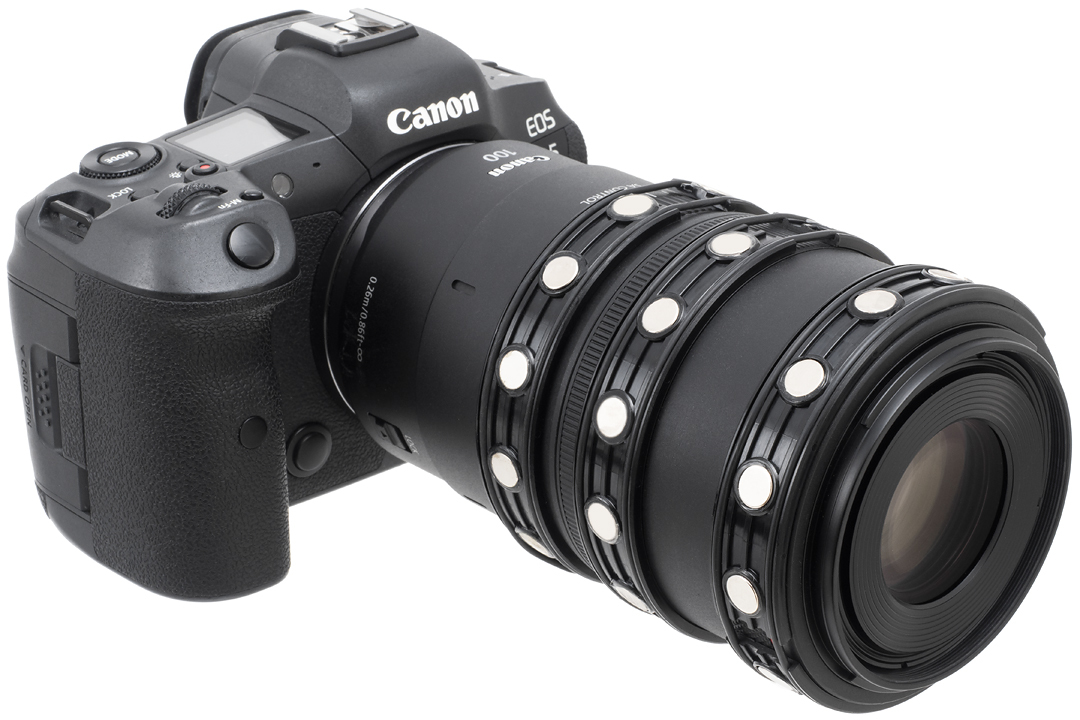

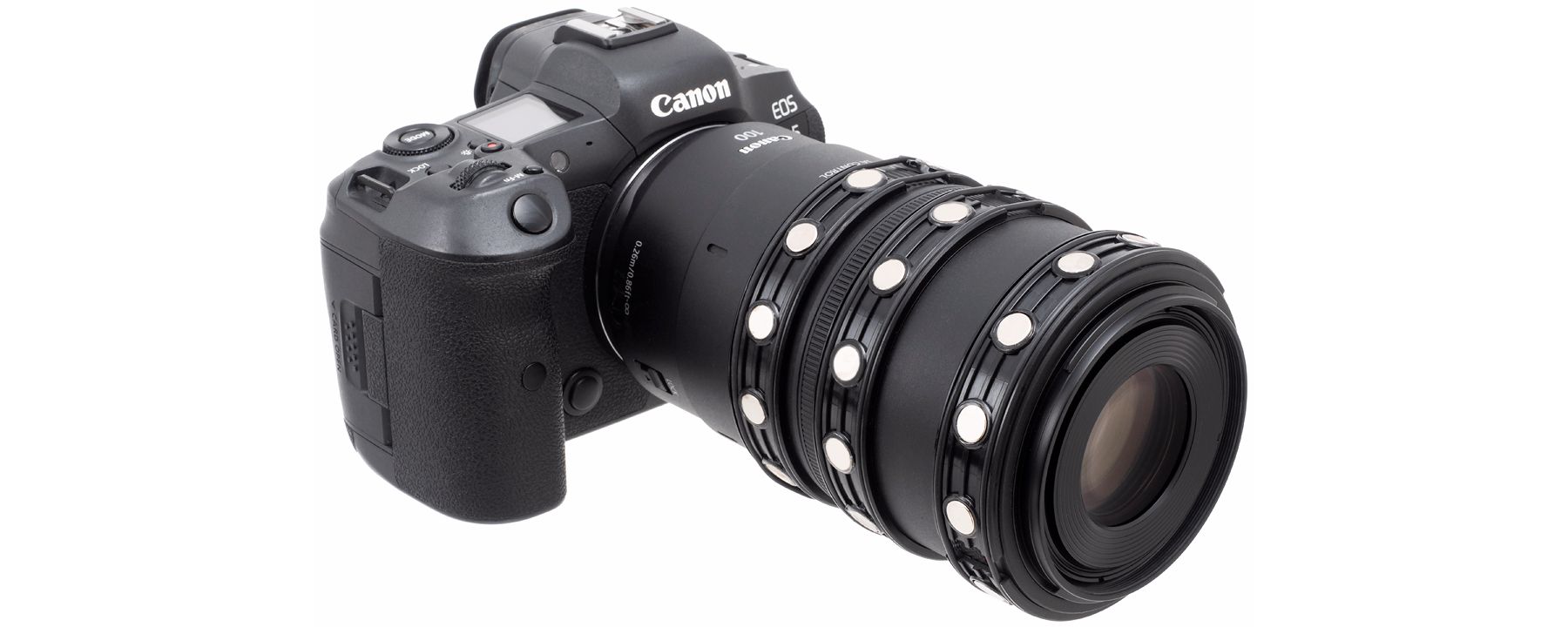

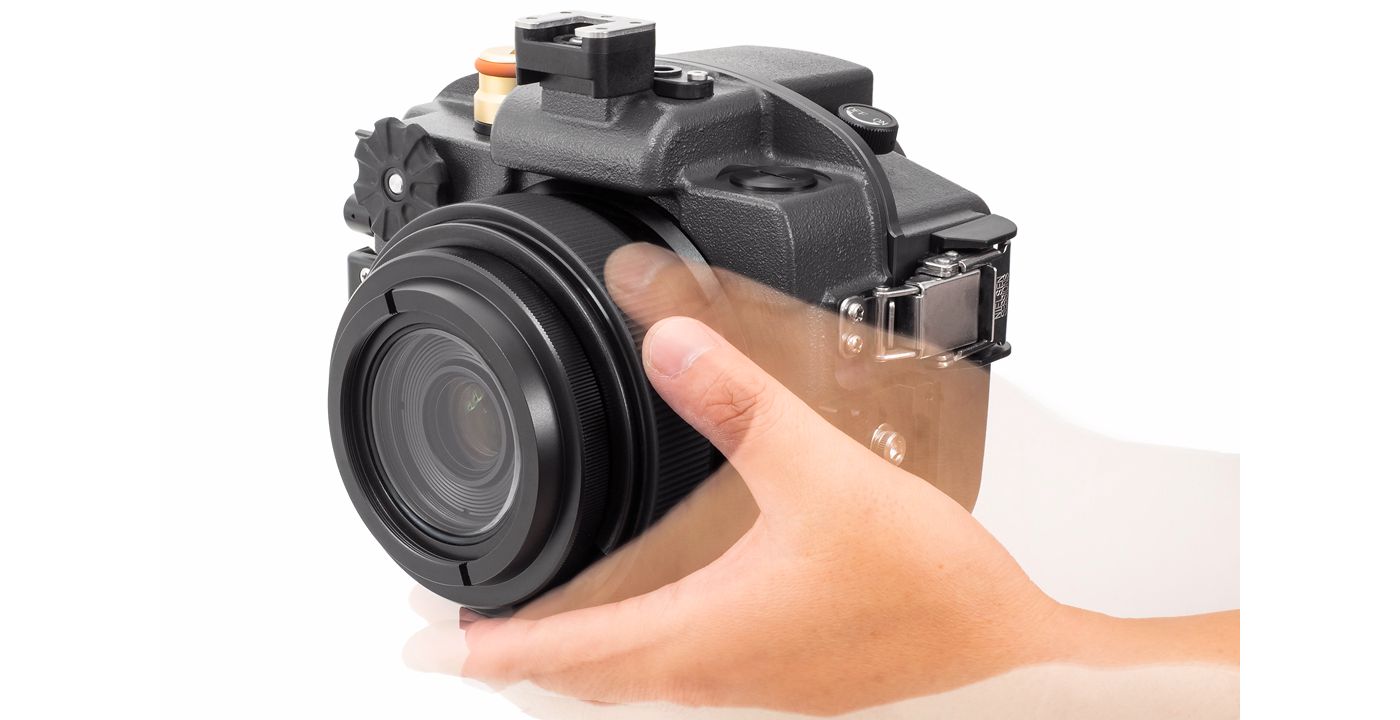

New S-MRS Port
Newly developed S-MRS (Magnetic Rotary System) controls focusing and zooming by magnetic attraction. The new S-MRS provides smoother operation with less play or rattle comparing to the previous model. By combining the EOS R5 MarkII with an RF lens, the MF Peaking function can also be used during full-time manual focusing. Together with the focus guide function, this enables ultra-precise focusing.
Maximum three MRS Control Rings can be installed to control the Control Ring, Focus Ring and SA Control Ring.

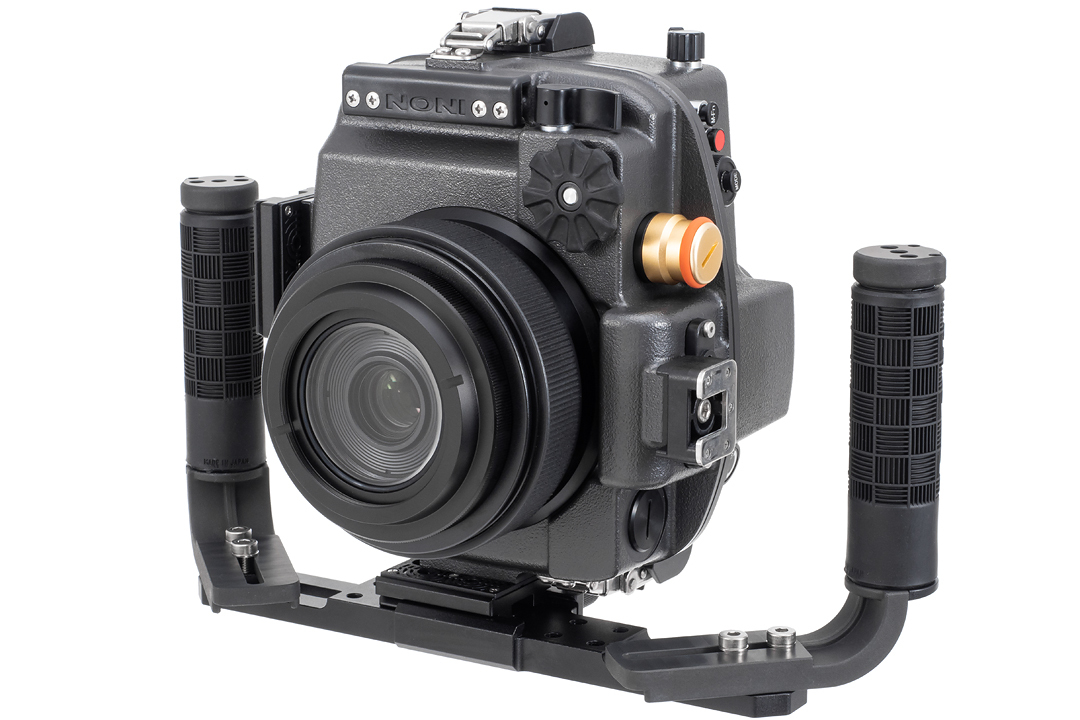

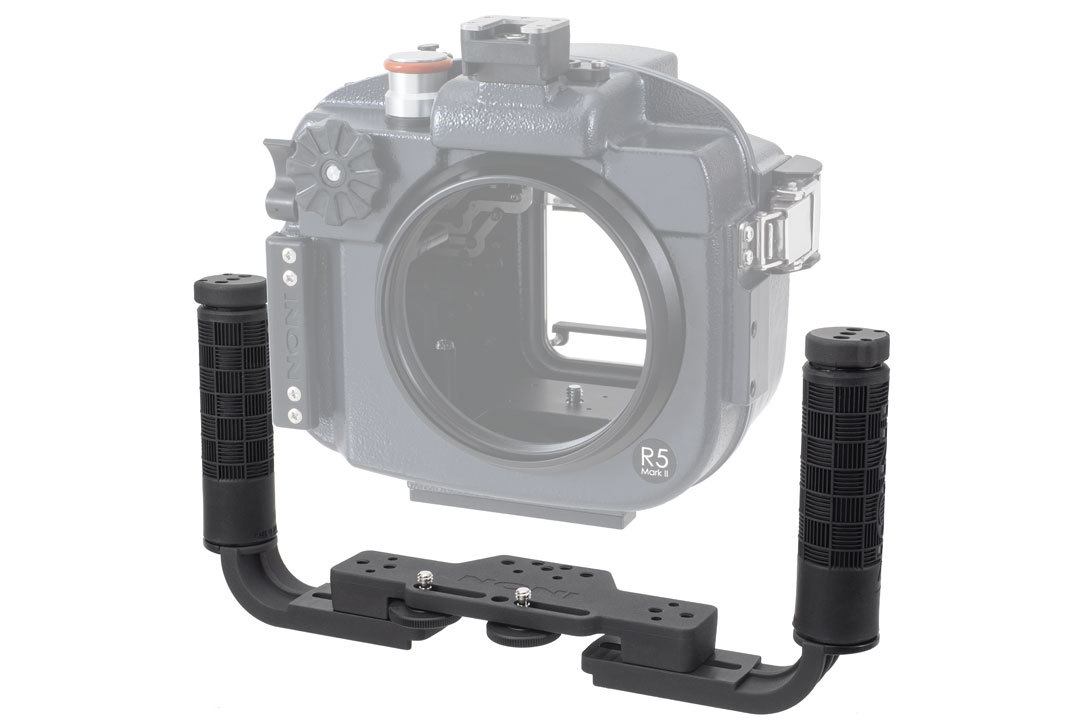

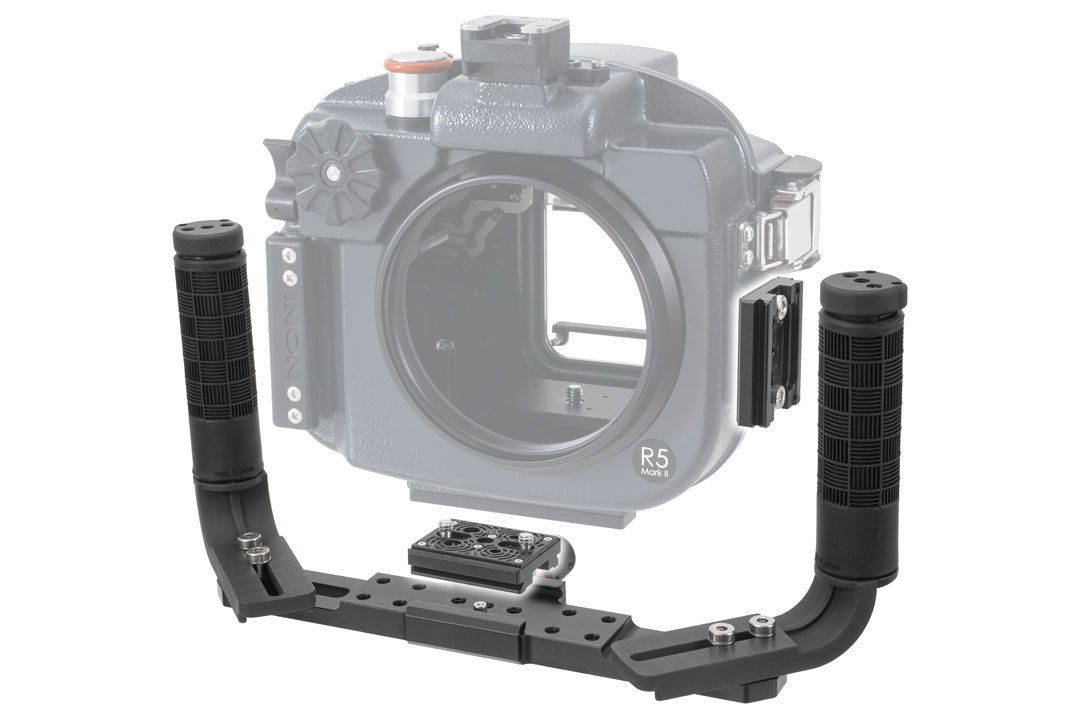

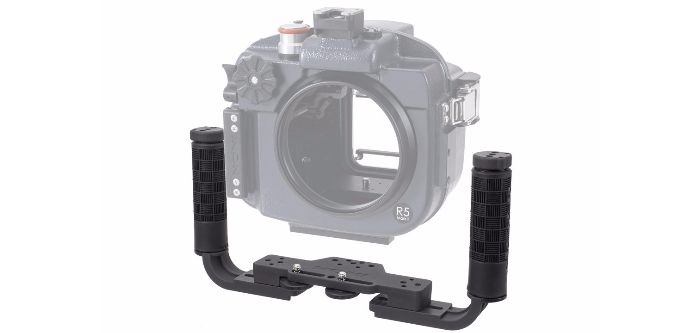

Built-in Quick Shoe System supports quick camera composition change
Budget friendly “Grip Base D5” and “D5 Holder” combination is also usable.
Budget friendly “Grip Base D5” and “D5 Holder” combination is also usable.

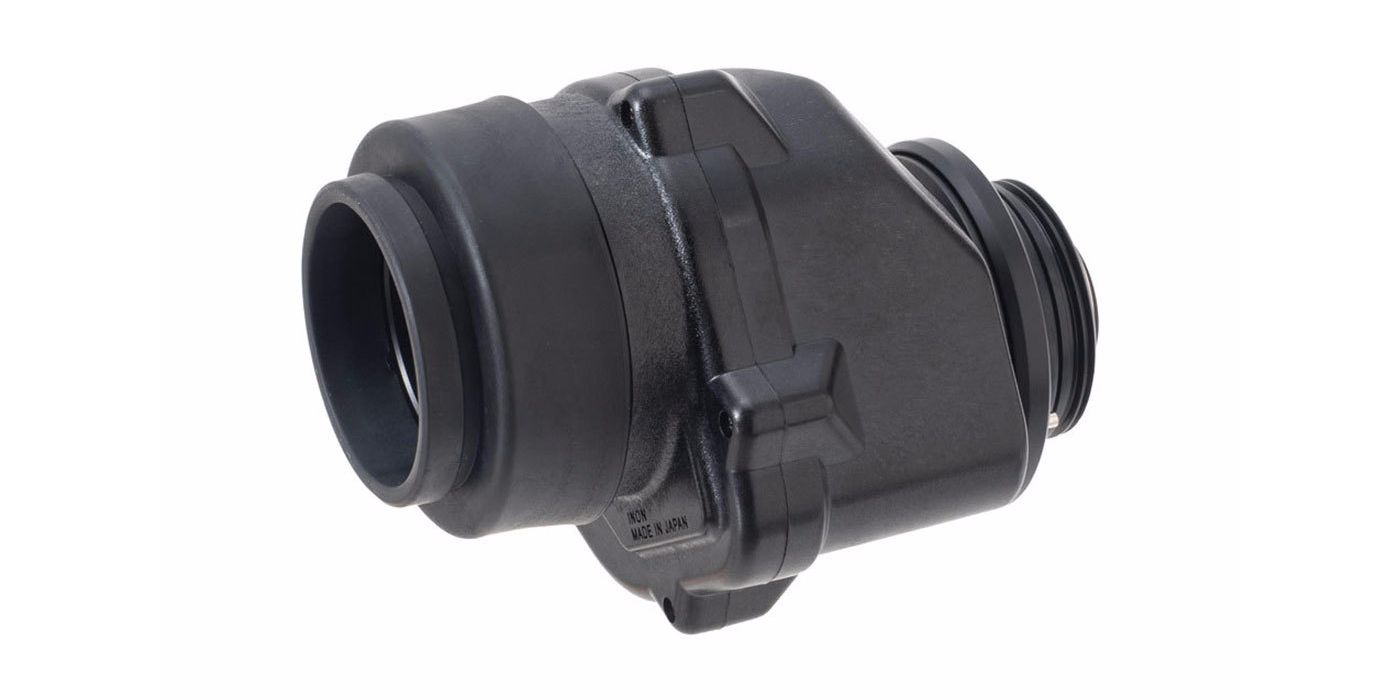

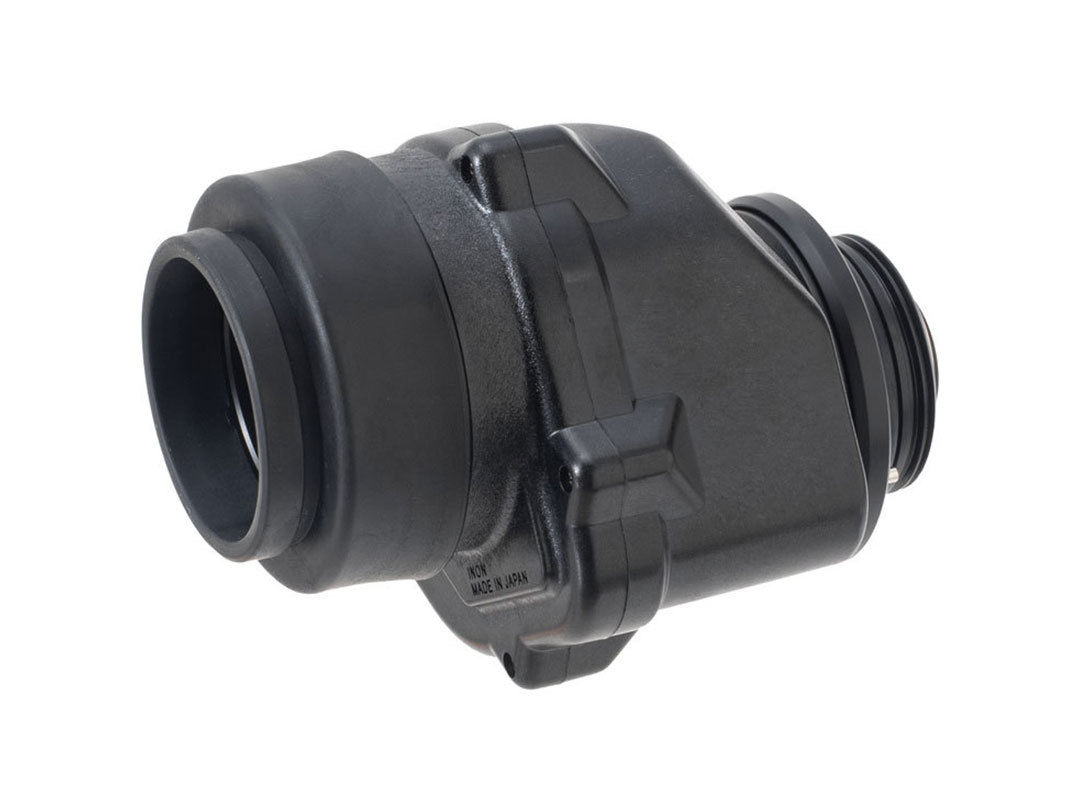

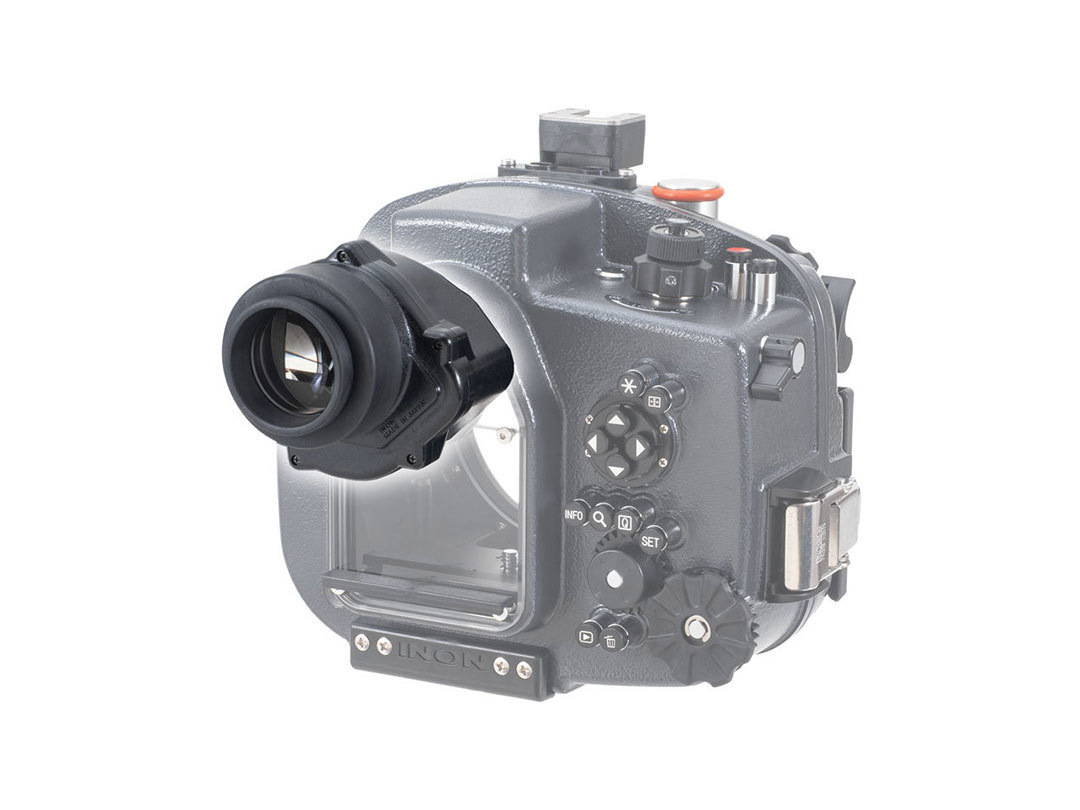

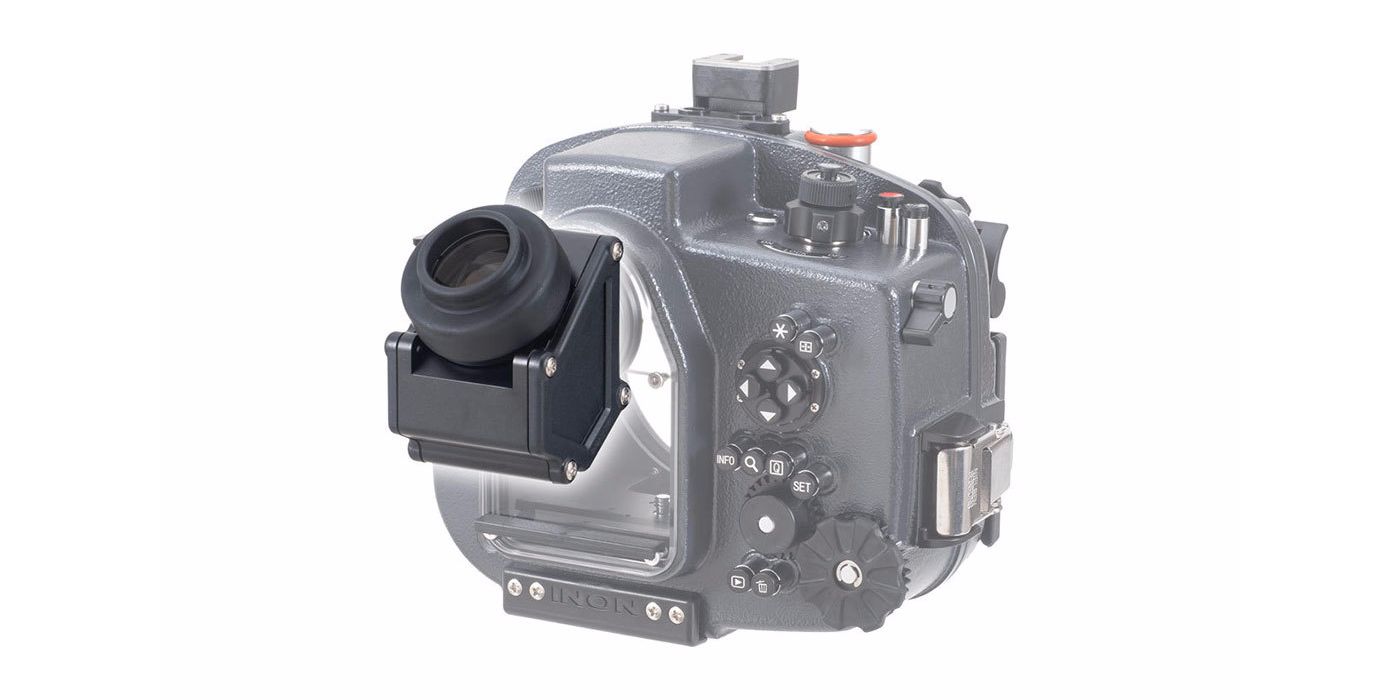

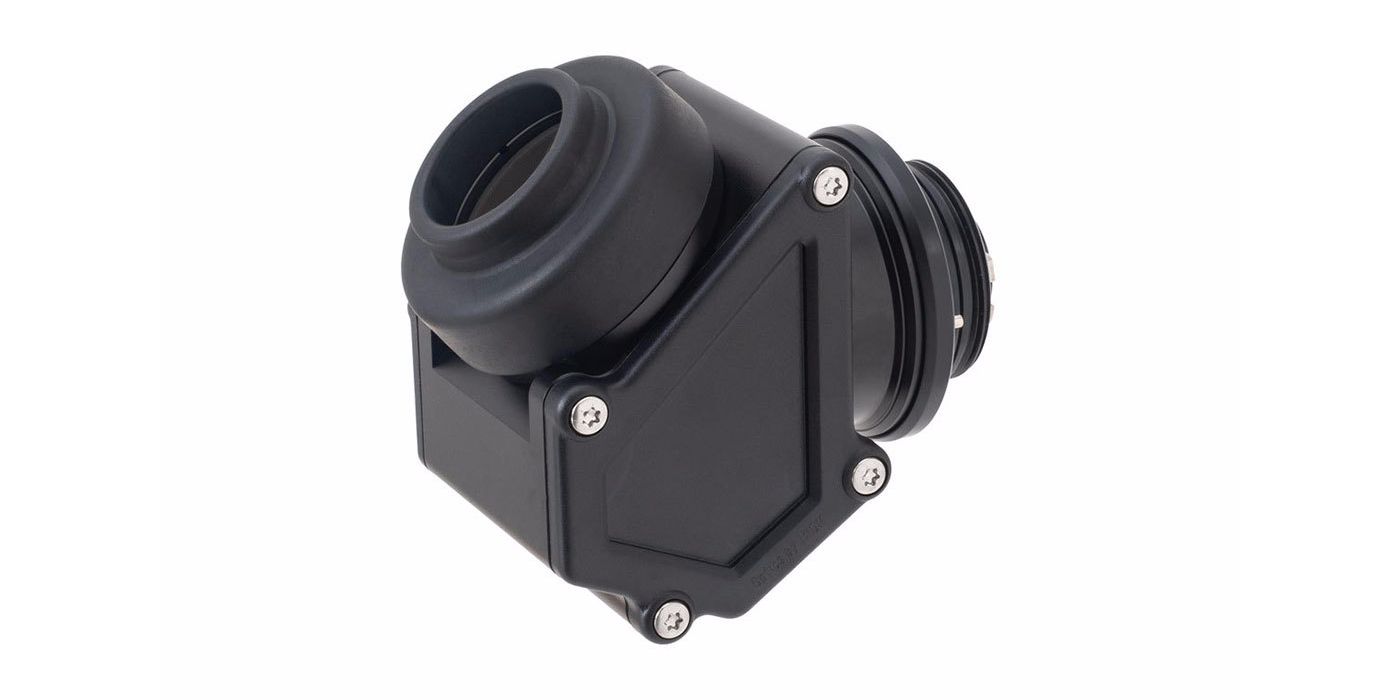

Optional two bright viewfinders

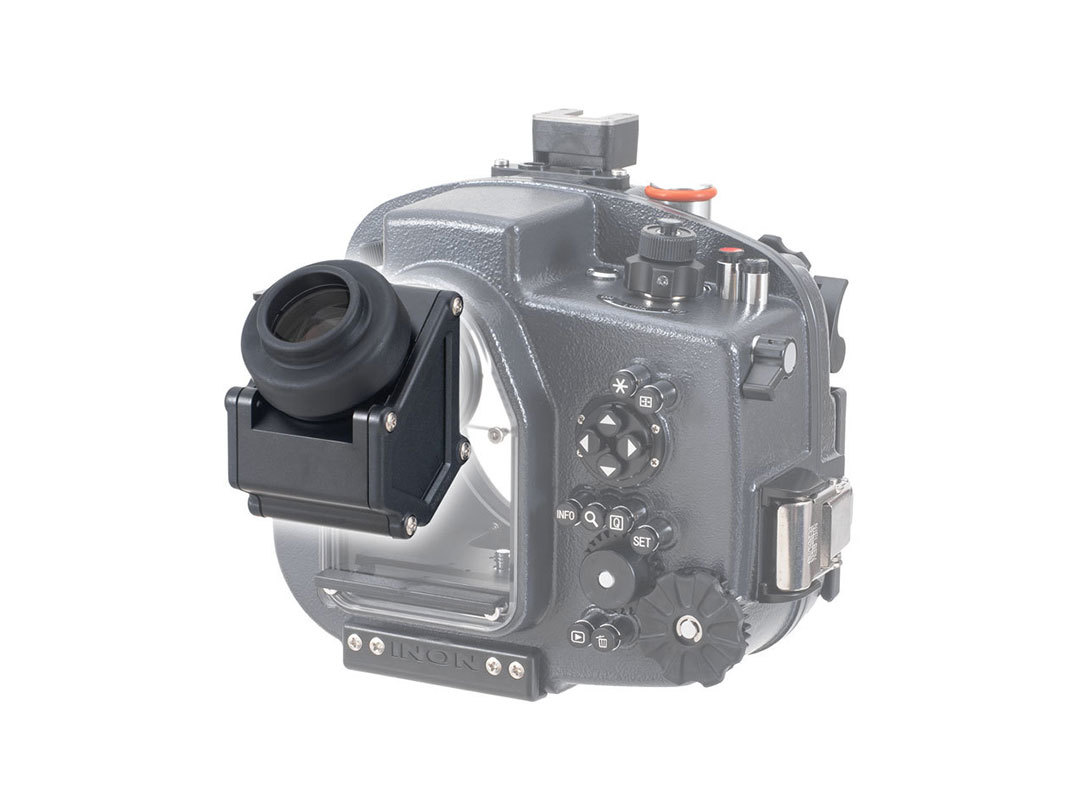

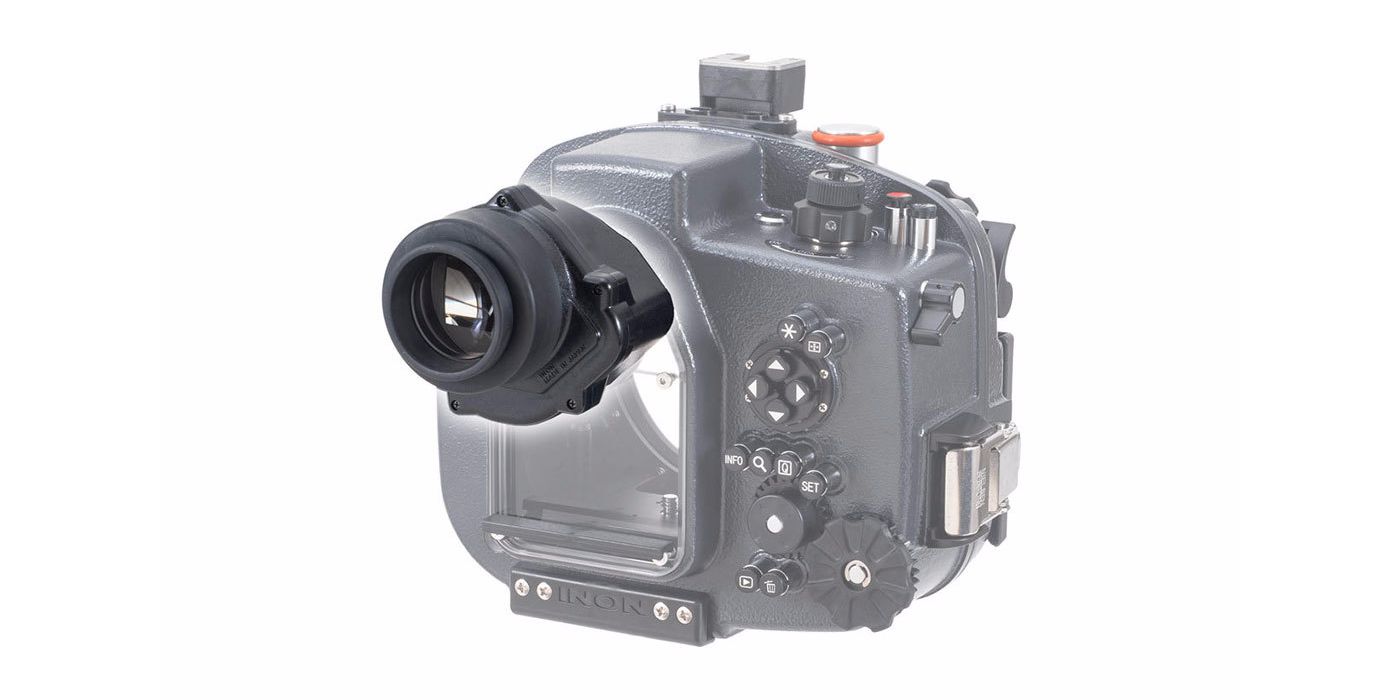

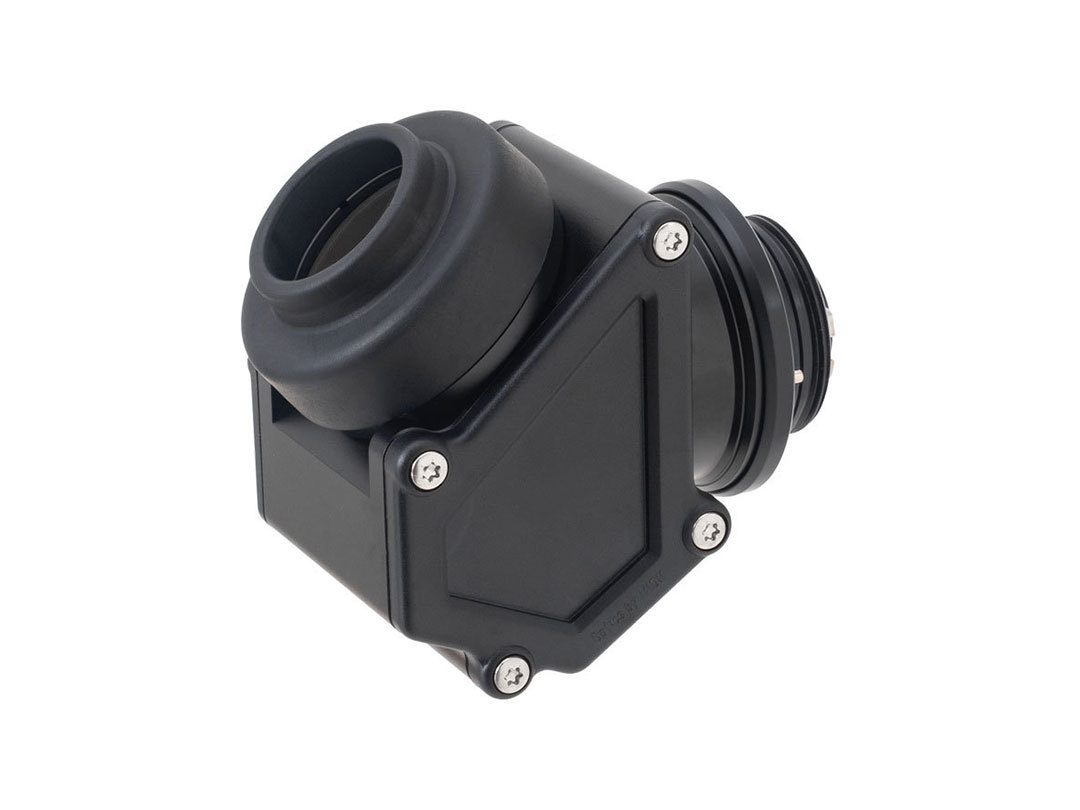

Optional viewfinders provide same magnification as camera’s viewfinder (1.0x) and extends its eye-point. Two options are available: “Straight Viewfinder Unit ll” or angled “45 degree viewfinder Unit III (*7)” to choose depending on shooting conditions.
(*7)Viewfinders with serial number D294600 or later are compatible with the "X-2 R5" housing. Earlier serial numbers are not compatible.
(*7)Viewfinders with serial number D294600 or later are compatible with the "X-2 R5" housing. Earlier serial numbers are not compatible.
|
|
Serial No. D440984 or later housings needs to have modificatin to install below viewfinders.
- 45°Viewfinder Unit for X-2 - 45°Viewfinder Unit II for X-2 - Straight Viewfinder II for X-2 For details, please contact your dealer. |
