■Port Arm for MRS

click to enlarge

click to enlargeInstallation exampleA port arm for "MRS60 Port II", "MRS100 Port Type UII", "MRS100 Port Type UIII", "MRS50 Port for Olympus" and previous model "MRS60 Port", "MRS100 Port Type U". The diameter of an adapter ring is 85.4mm (3.4in).
Two Port Arm Adapters are designed to link to "Z Joint" or "Single Light Holder" directly or to have ball-joint adapter such as "Direct Base III" or "Z Adapter II" to create compact lighting system for a DSLR with an INON external strobe or LED light.

■Weight: 83g (2.9oz) [air] / approx.55g (1.9oz) [underwater]

Compatible arm/base
Direct Base III
Multi Direct Base IIa
Multi Direct Base II WB
Multi Direct Base II Long
Z Joint
Z Adapter II
Shoe Base Adapter D4 + Shoe Base
Single Light Holder LF
Single Light Holder LE

setup image
Maximum two "Single Light Holder" or "Z Joint" can be attached on two Port Arm Adapter.

Setup image
Two "Z Adapter II" can be attached on both sides of single Port Arm Adapter. Two "Multi Direct Base IIa" can be attached on both sides of single Port Arm Adapter via optional "Cap Screw Set (Multi Direct Base IIa both sides mounting)". So the Port Arm for MRS can hold maximum four "Z Adapter II" or "Multi Direct Base IIa".

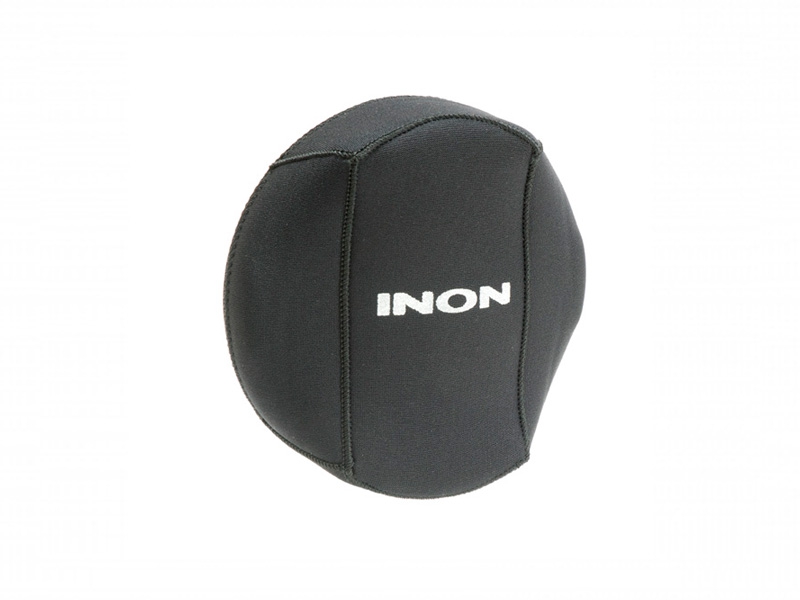

■Dome Port Cover

click to enlarge

A port cover made from neoprene protecting lens surface.

■Compatible Port
Dome Port 2 + Shade 2 Set, Dome Port 2,
Dome Port + Shade 2 Set for Olympus, Dome Port for Olympus

■Dome Lens Unit Cover

click to enlarge

Dome Lens Unit Cover is made of neoprene which is used for wet suits. It is recommended to cover Dome Lens Unit with this Dome Lens Unit Cover until just before you use to prevent accidental damage.

■Compatible Port
Dome Port 115, Front Port Dome 115, Dome Port EP02 for Olympus, Dome Port EP01 for Olympus

■Compatible Attachment Lens
Dome Lens Unit II for UWL-H100, Dome Lens Unit II for UWL-100,
Dome Lens Unit for UWL-100

■Front Port Cover 85

click to enlarge

A port cover made from neoprene protecting lens surface. The diameter is 85mm (3.3in).

■Compatible Port
MRS100 Port Type UIII, MRS100 Port Type UII,
MF Standard Port 2 (w/o control ring)

■Front Port Cover 100

click to enlarge

A port cover made from neoprene protecting lens surface. The diameter is 100mm (3.9in).

■Compatible Port
MF Wide Port, MF Flat Port, Front Port Wide

■C100 Port Cover II

click to enlarge

A port cover made from neoprene protecting lens surface.

■Compatible Port
MRS100 Port Type S

■Snap-on Lens Cap M67

click to enlarge

click to enlargeSet-up imageThe "Snap-on Lens Cap M67" is a plastic lens cap for close-up lenses and digital SLR housing lens ports to protect front optical element. Spring loaded center tabs provide easy installation and removal only by squeezing the tabs. Packaged lanyard to avoid loss of the lens cap when not being attached on a lens/port.

■MF Rear Port Cap

MF Rear Port Cap

A rear cap for a port (except for Front Port) and Extension Ring. When transporting or during storage, this cap protects O-ring and screw mount. The cap is designed to equalize with ambient pressure when transporting in an aircraft.

■Material
Corrosion-resistant aluminum alloy (black alumite)

page top

■Shade Sponge D60

click to enlarge

When using "Panasonic LUMIX G FISHEYE 8mm/F3.5" in "Dome Port 2", this sponge is attached on inner surface of the port to block built-in flash light not to be exposed on an image.

■Compatible Port
Dome Port 2 + Shade 2 Set, Dome Port 2

■Shade Sponge D70

click to enlarge

When using "Tokina AT-X 107 DX Fisheye" in "Dome Port 2" or when using "Tokina AT-X 107 NH Fisheye hood removed" in "Dome Port 2" / "Dome Port 115", this sponge is attached on inner surface of the port to block built-in flash light not to be exposed on an image.
The "Zoom Gear AT-X107" comes with the "Shade Sponge D70", so not necessary to prepare separately.

■Compatible Port
Dome Port 2 + Shade 2 Set, Dome Port 2, Dome Port 115 (*1)

(*1) Compatible with Tokina AT-X 107 NH Fisheye hood removed only.

■Shade Sponge D80

click to enlarge

When using "Canon EF8-15mm F4L Fisheye USM" / "Canon EF-S10-18mm F4.5-5.6 IS STM" in "Dome Port 2" or "Dome Port 115", this sponge is attached on inner surface of the port to block built-in flash light not to be exposed on an image.
The "Zoom Gear 8-15" and "Zoom Gear EFS10-18STM" come with the "Shade Sponge D80", so not necessary to prepare separately.

■Compatible Port
Dome Port 2 + Shade 2 Set, Dome Port 2, Dome Port 115

■Shade Sponge AT-X107

 [Discontinued]

Shade Sponge AT-X107

When using "Tokina AT-X107DX Fish-eye Lens", this sponge is attached on inner surface of the "Extension Ring S" to block built-in flash light not to expose on an image.

■Shade Sponge 7mm

Shade Sponge 7mm

A sponge attached in a port/Extension Ring to prevent built-in flash light form exposing on an image.

■MRS Control Ring (60/60II/100 UII/100UIII/50 for Olympus)

click to enlarge

Optional MRS Control Ring to upgrade a port without "MRS Control Ring" to full MRS system which utilizes magnetic attraction to rotate a lens barrel for manual focusing like as land operation of a camera.

■Weight: 129g (4.6oz) [air] / 47g (1.7oz) [underwater]

■Compatible Port
MRS60 Port II (w/o control ring)
MRS60 Port (w/o control ring)
MRS100 Port Type UII (w/o control ring)
MRS100 Port Type UIII (w/o control ring)
MRS50 Port (w/o control ring) for Olympus
MRS Base Port (w/o control ring)

■Shade 2 Only

Shade 2 Only

The INON Protector II is attached on INON Dome Port series to prevent accidental damage on port lens and also blocks unnecessary light to obtain clear image.

■Weight: 82g (2.9oz) [air]

■Material: Polycarbonate

■Compatible Port
Dome Port 2 + Shade 2 Set, Dome Port 2, Dome Port + Shade 2 for Olympus, Dome Port for Olympus

■Protector for Dome Lens Unit II/Dome Port 115/Front Port Dome 115

Protector for Dome Lens Unit II

A protector for Dome Port 115, Front Port Dome 115, Dome Lens Unit II for UWL-H100, Dome Lens Unit II for UWL-100.

■Weight: 43g (1.5oz) [air]

■Material: Polycarbonate

■Compatible Port
Dome Port 115, Front Port Dome 115, Dome Port EP02 for Olympus, Dome Port EP01 for Olympus

■O-Ring for Port / Extension Ring

■O-Ring for MRS Front Port

O-Ring for MRS Front Port

Spare oil-bearing INON yellow O-ring for MRS Front Port.

■Compatible Port
Front Port Macro, Front Port Wide, Front Port Dome 115, Front Port Flat 5
