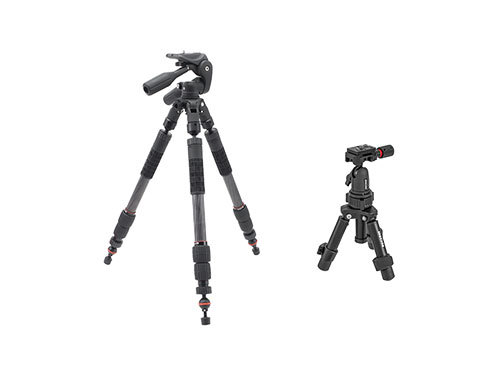

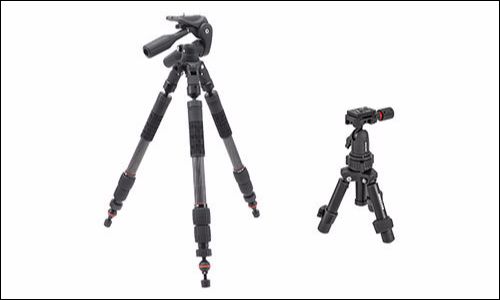

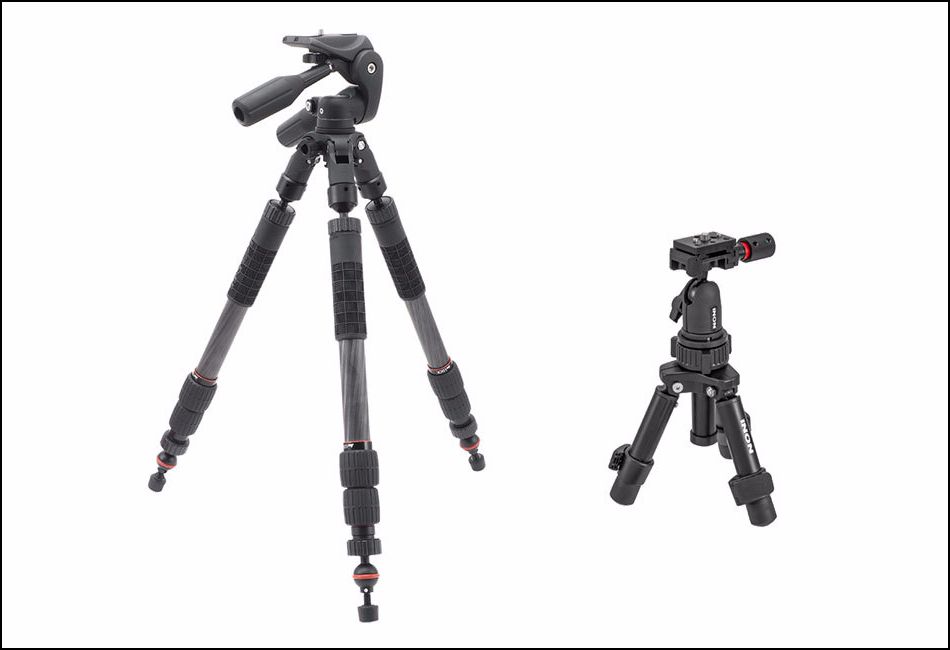

UW Tripod System
An underwater tripod system designed for use in saltwater. The tripod unit (core component) and the head unit (which allows adjustment of camera orientation and angle) can be freely combined from a wide lineup.
After use, thoroughly rinse off any salt residue with fresh water and apply grease as instructed in the manual.

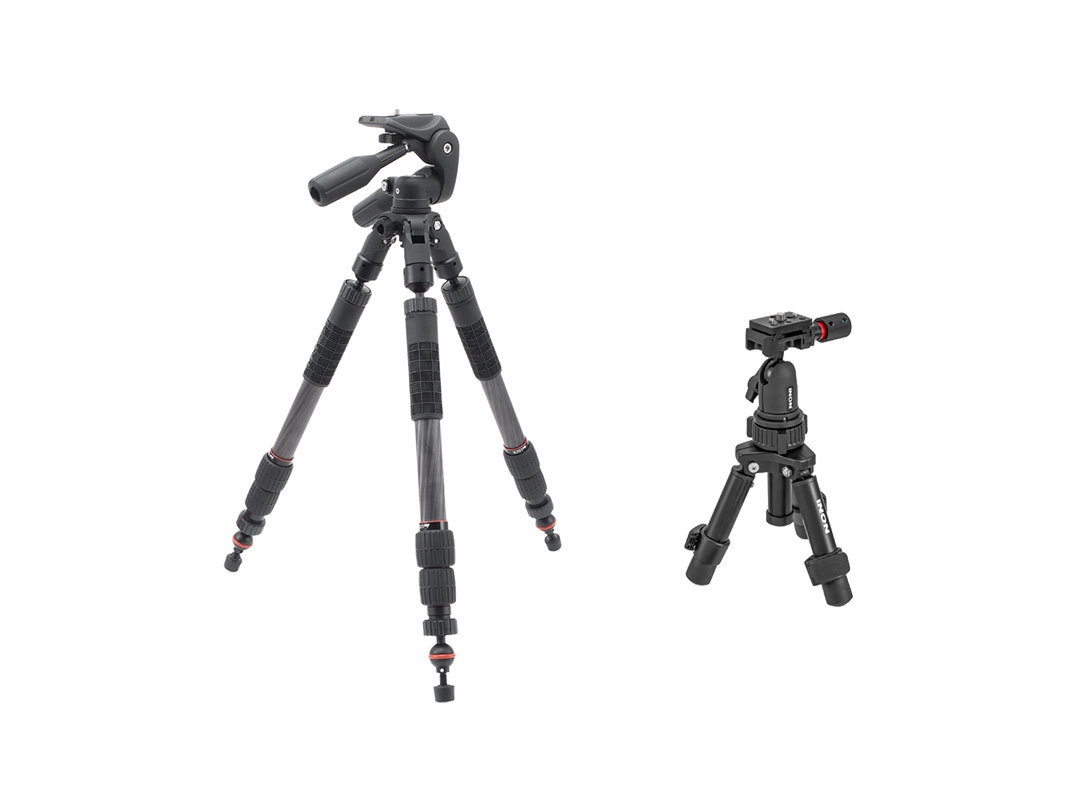

UW Tripod System
An underwater tripod system designed for use in saltwater. The tripod unit (core component) and the head unit (which allows adjustment of camera orientation and angle) can be freely combined from a wide lineup.
After use, thoroughly rinse off any salt residue with fresh water and apply grease as instructed in the manual.
Tripod
Tripod Head
Option
Tripod

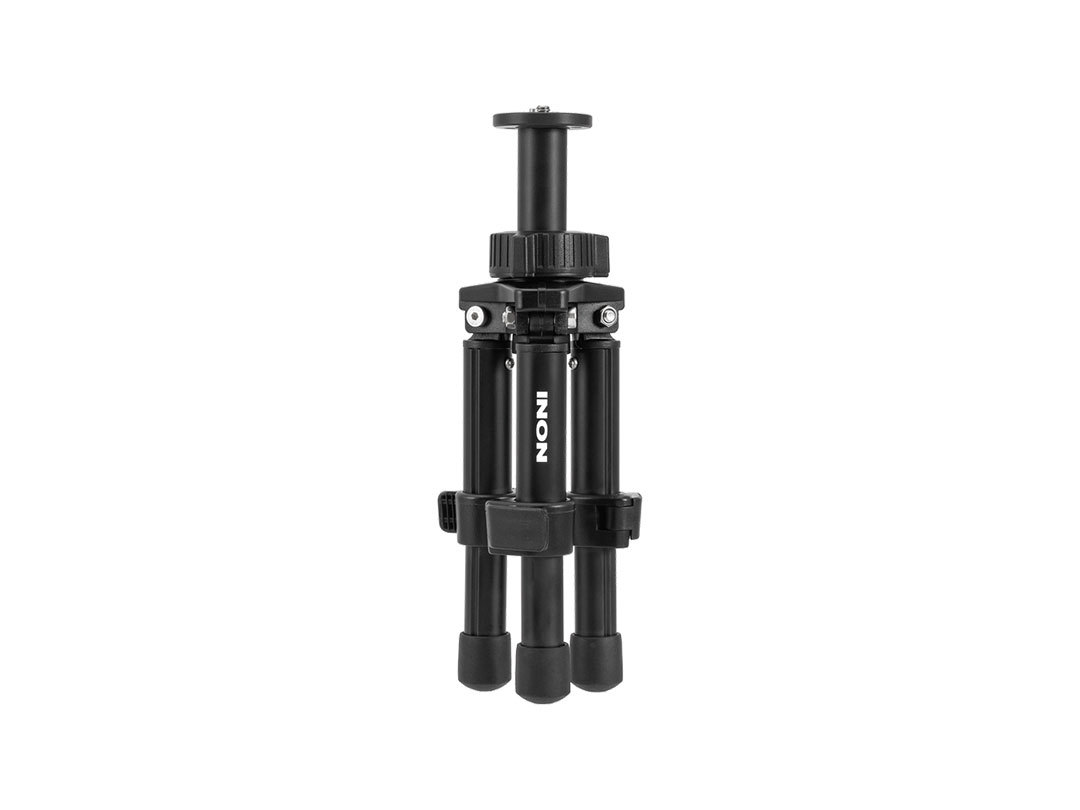

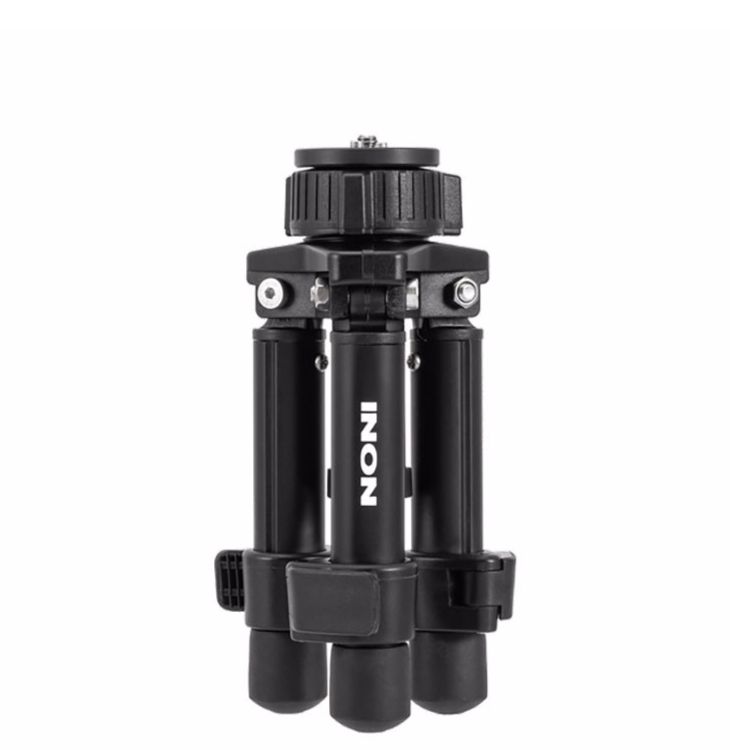

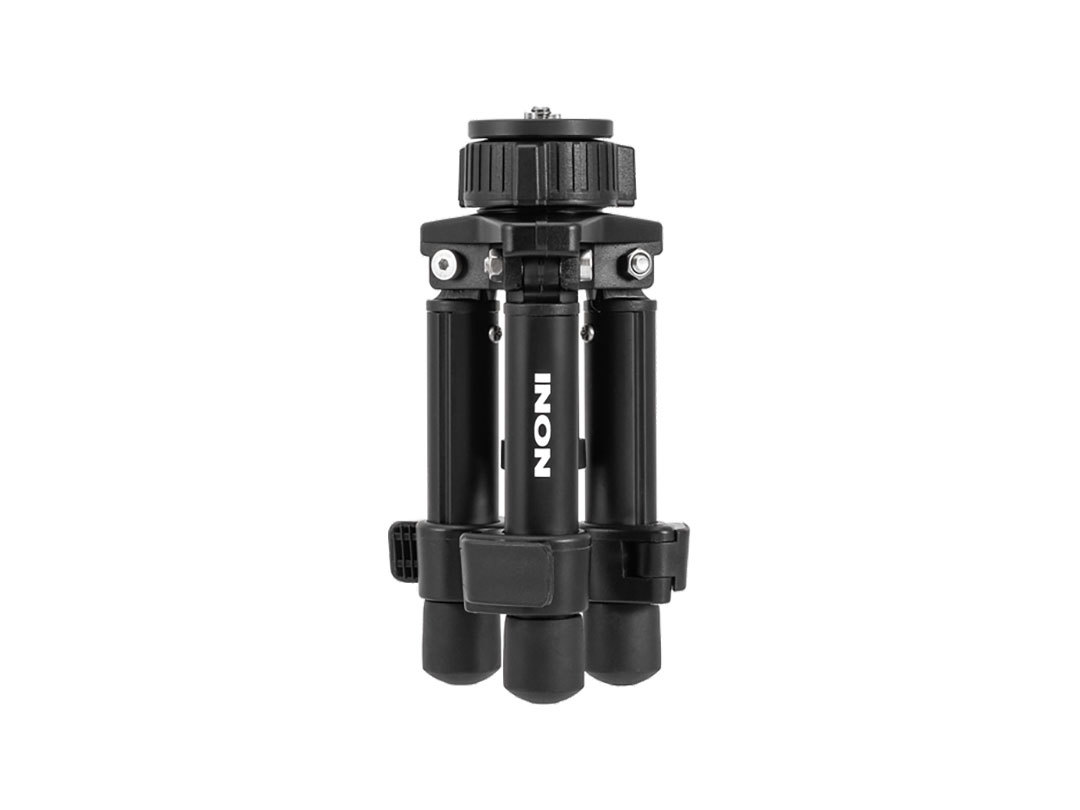

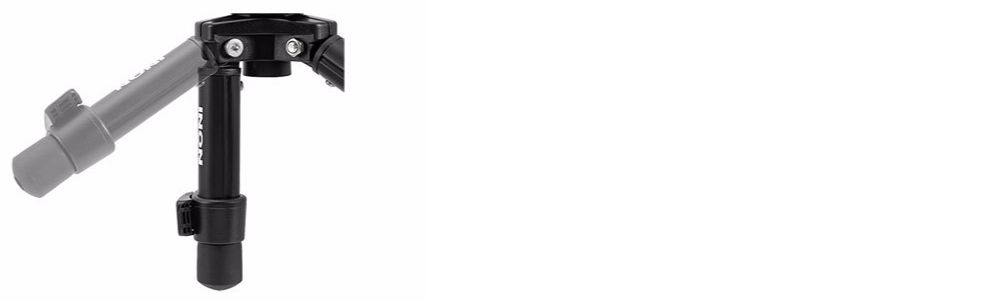

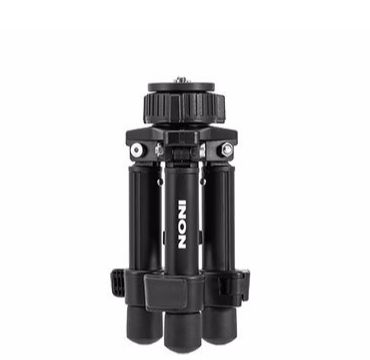

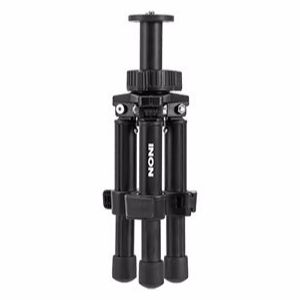

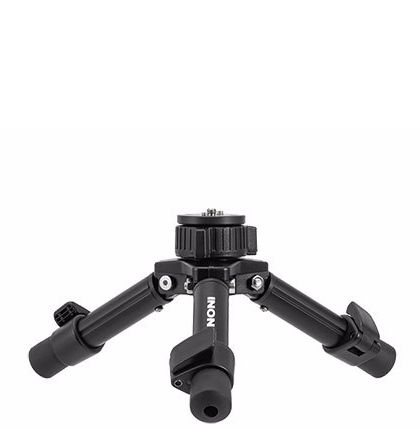

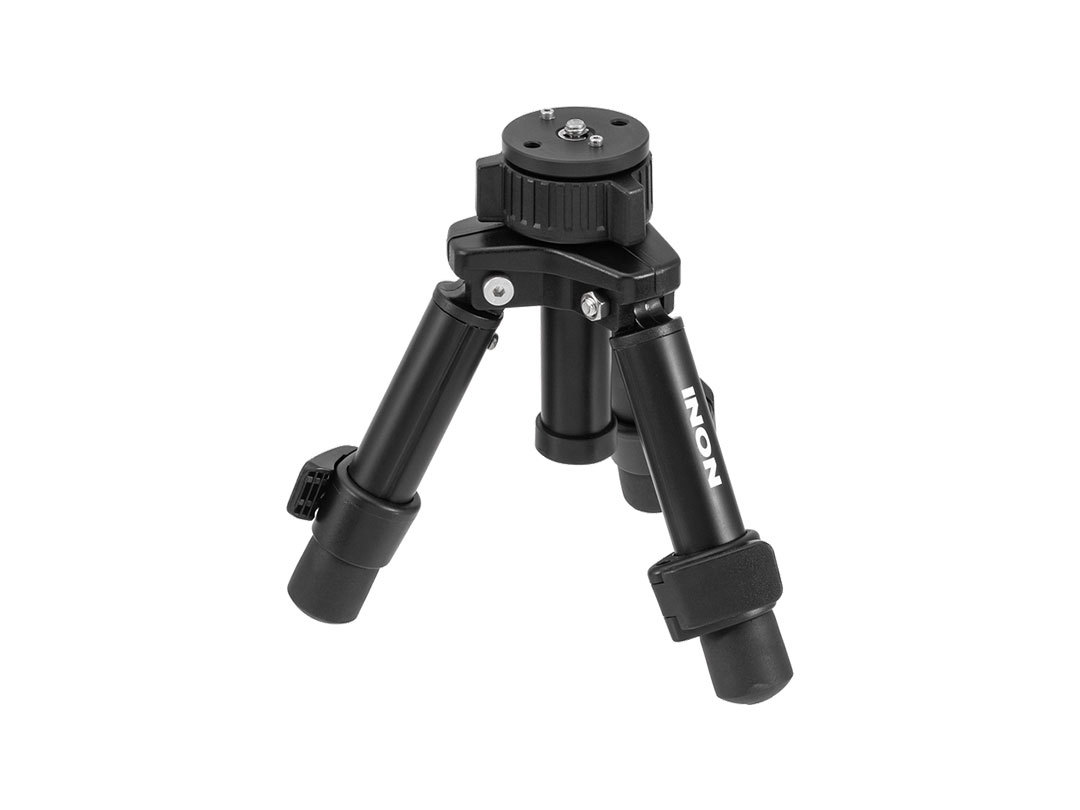

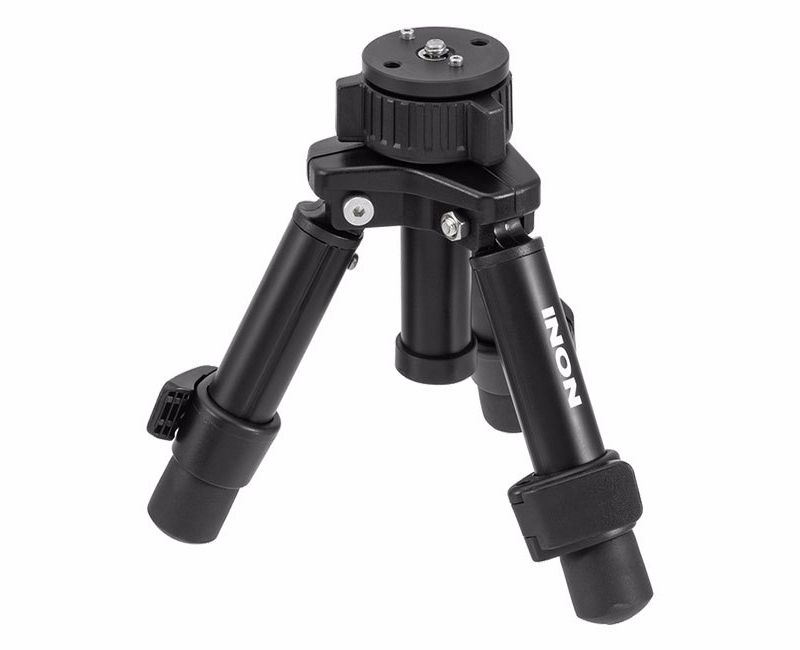

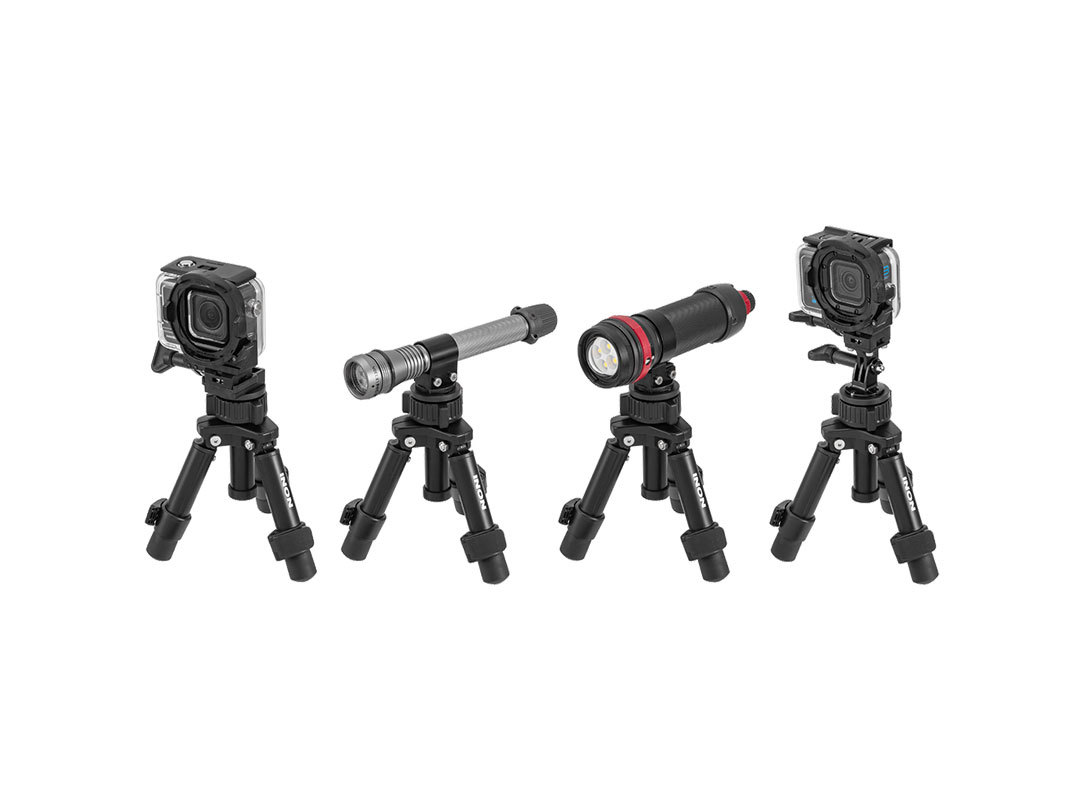

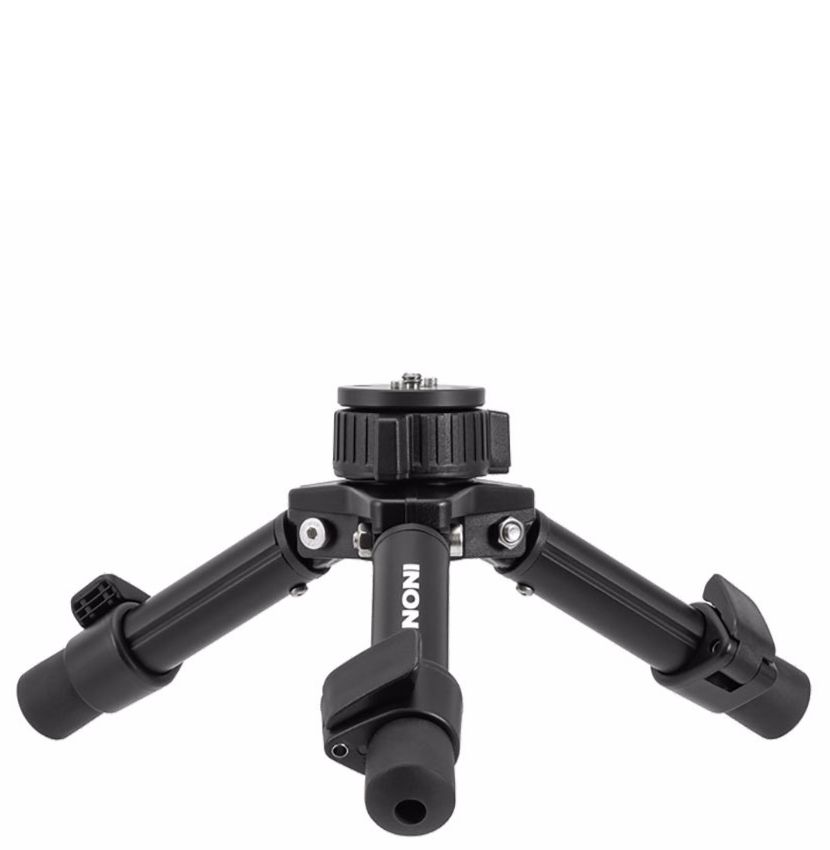

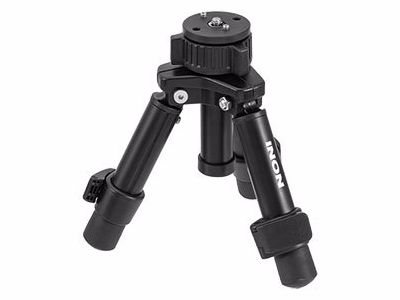

Compact Tripod UWTP-C1
JAN/EAN code : 4570018121104

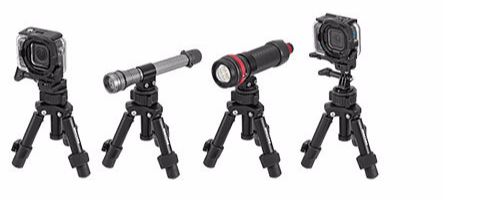

This compact, lightweight, and reasonably priced underwater tripod is ideal for a variety of applications, from blur-free video shooting with action cameras to enhanced lighting flexibility when used with a light or strobe.
Despite its small size, it offers full-featured specifications, including an elevator and extendable legs. The top section is compatible with a wide range of INON parts, enabling complete customization.
Camera mount : 1/4-20UNC thread
This compact, lightweight, and reasonably priced underwater tripod is ideal for a variety of applications, from blur-free video shooting with action cameras to enhanced lighting flexibility when used with a light or strobe.
Despite its small size, it offers full-featured specifications, including an elevator and extendable legs. The top section is compatible with a wide range of INON parts, enabling complete customization.
Camera mount : 1/4-20UNC thread

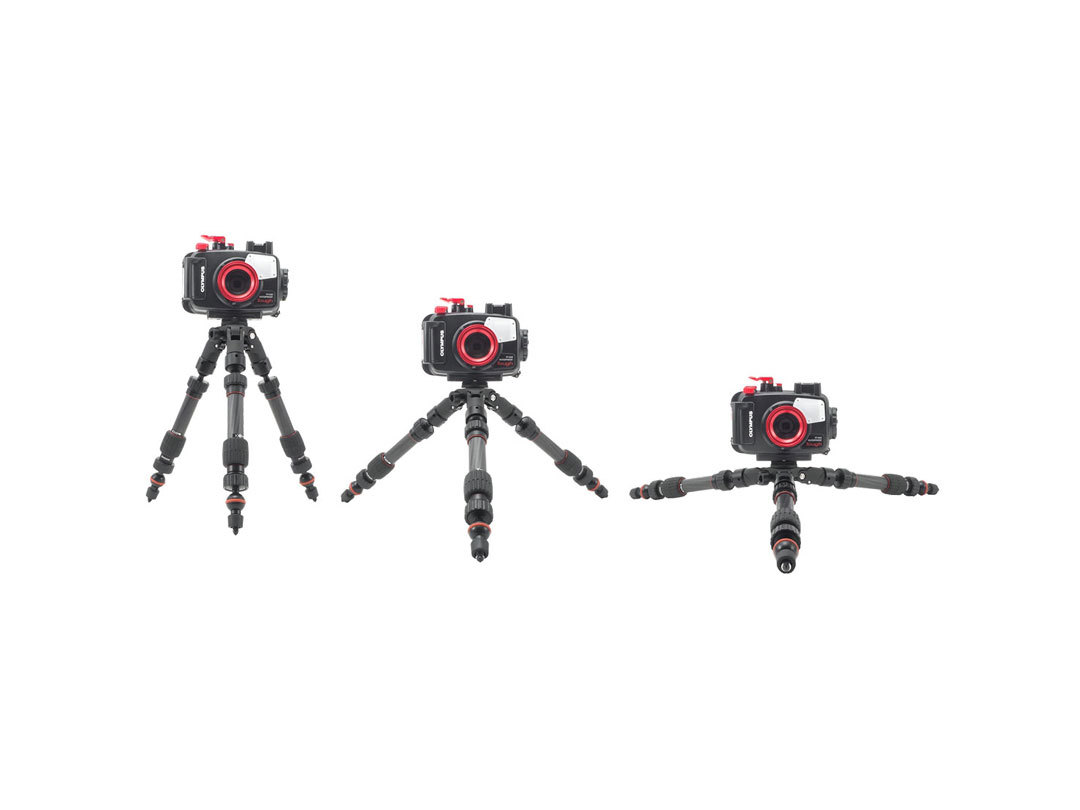

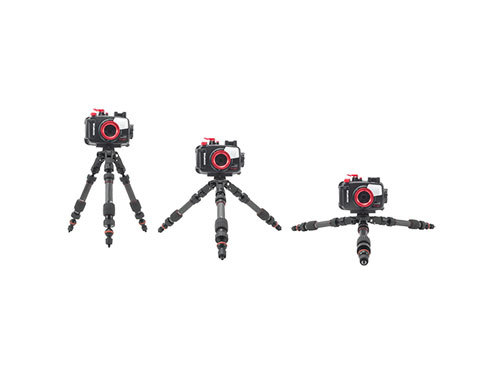

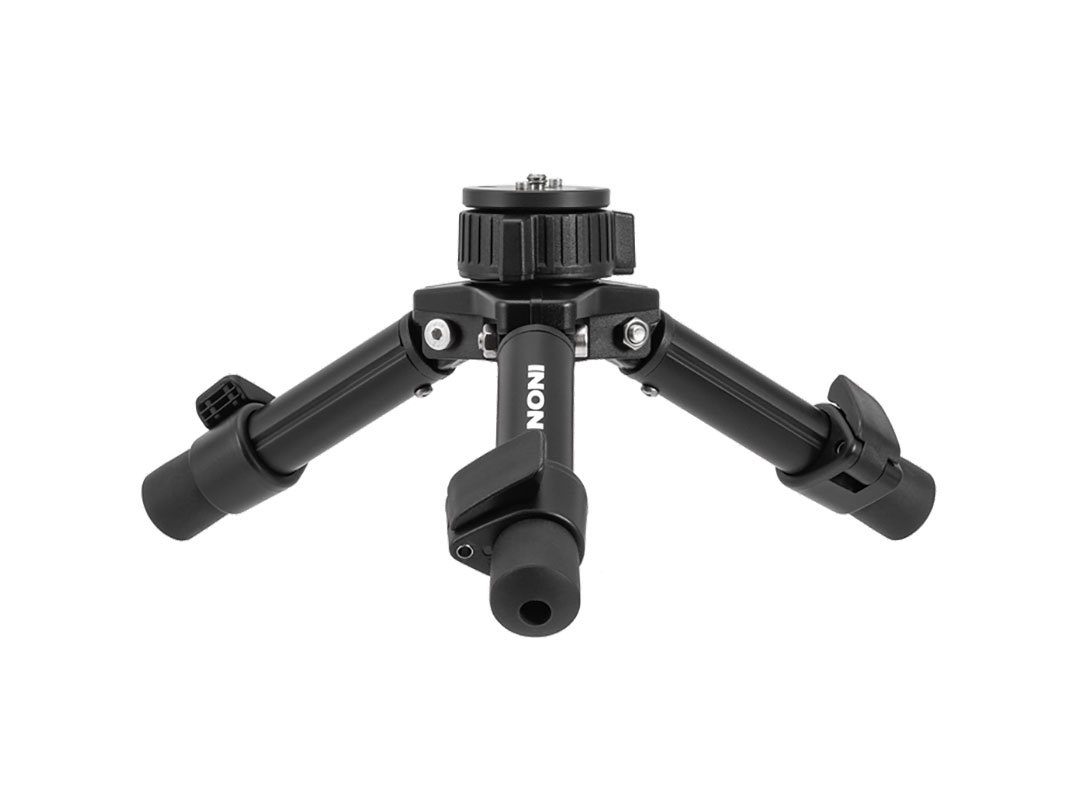

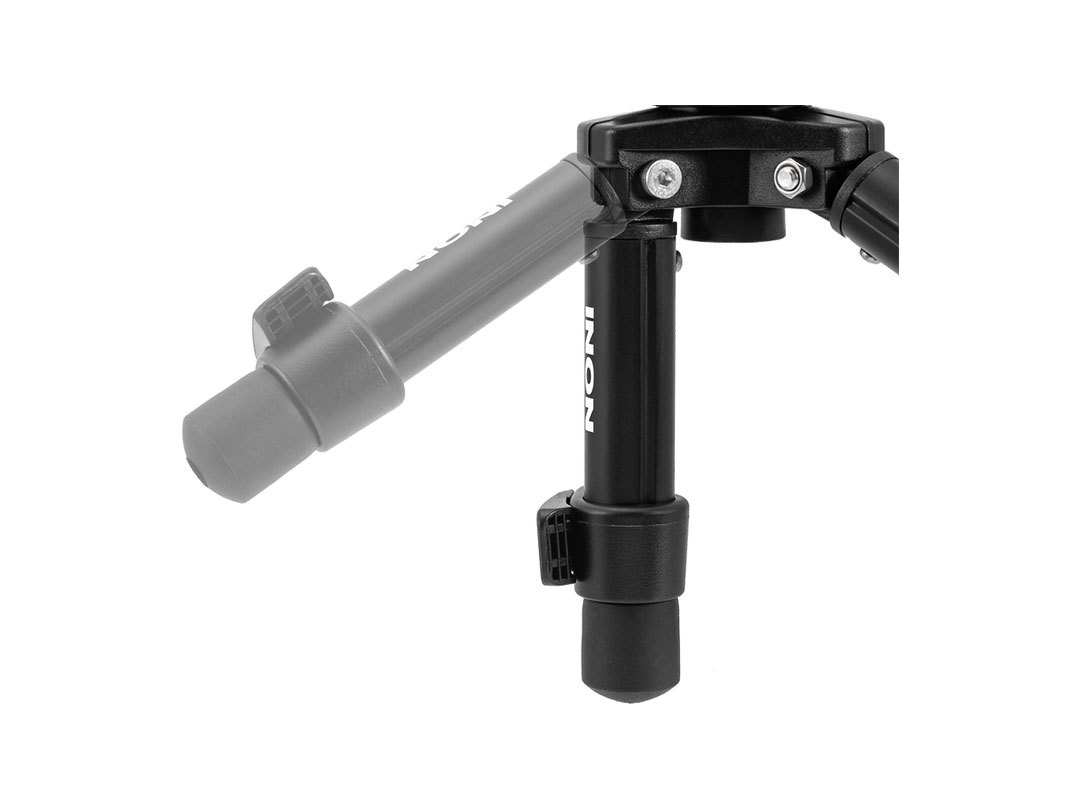

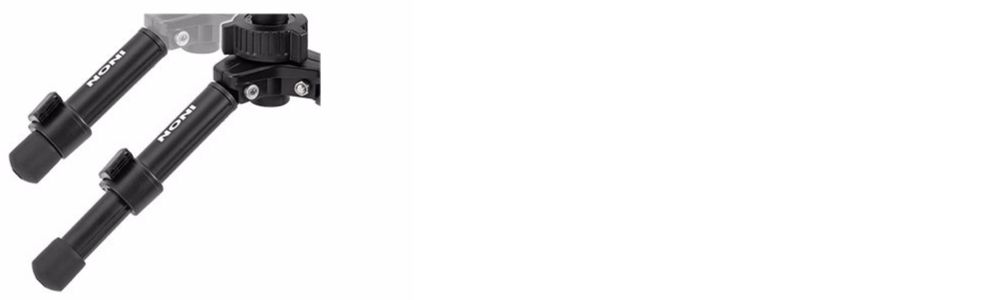

Each leg moves freely with moderate torque, allowing for easy and precise positioning.

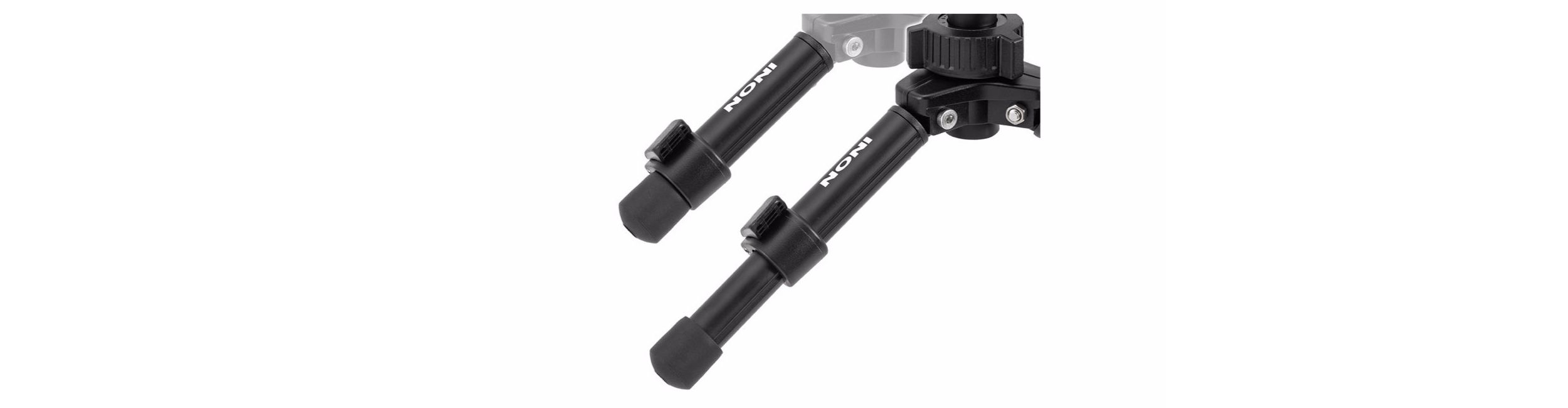

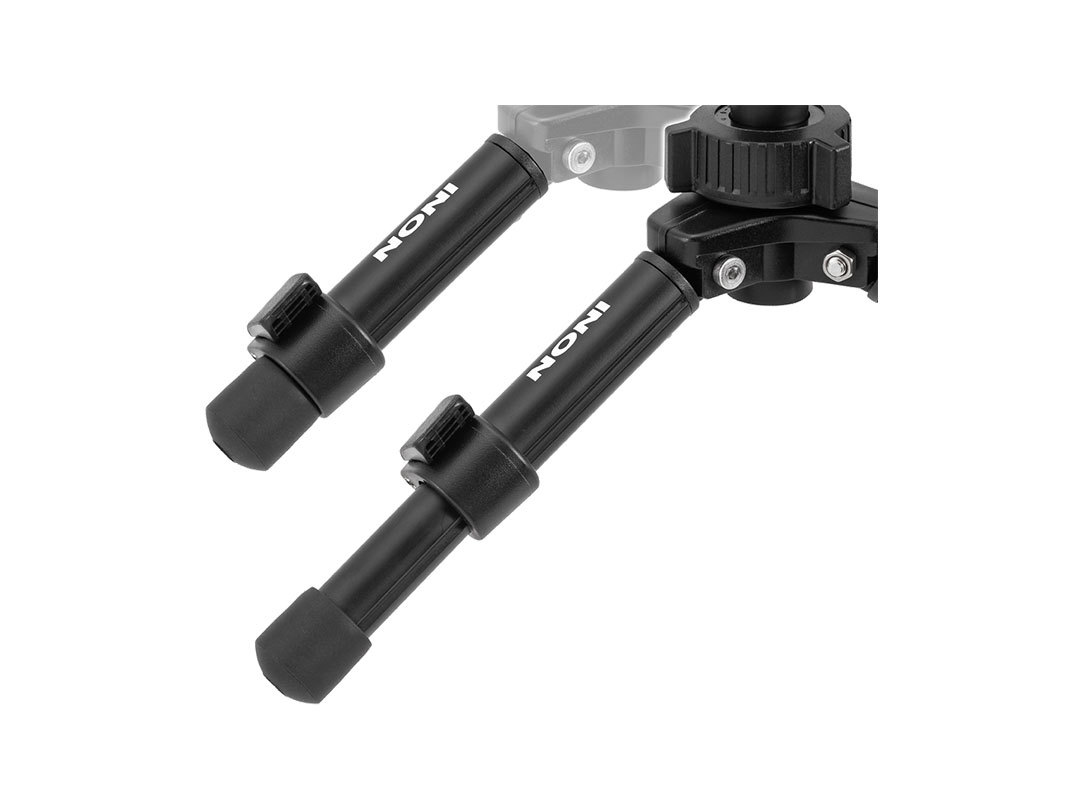

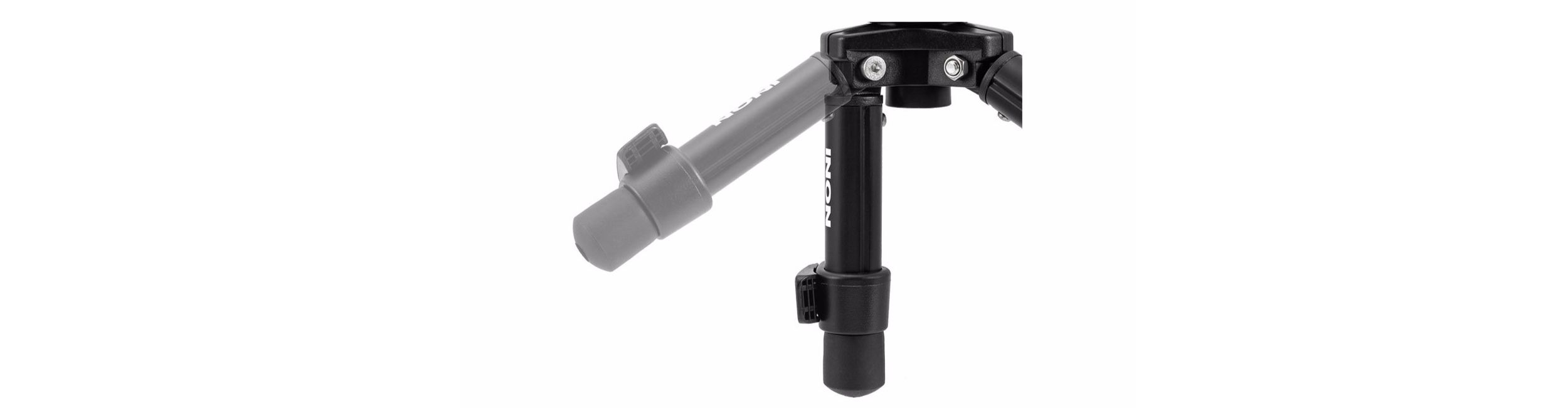

Each leg can be extended by about 30 mm / 1.2 in for additional height.

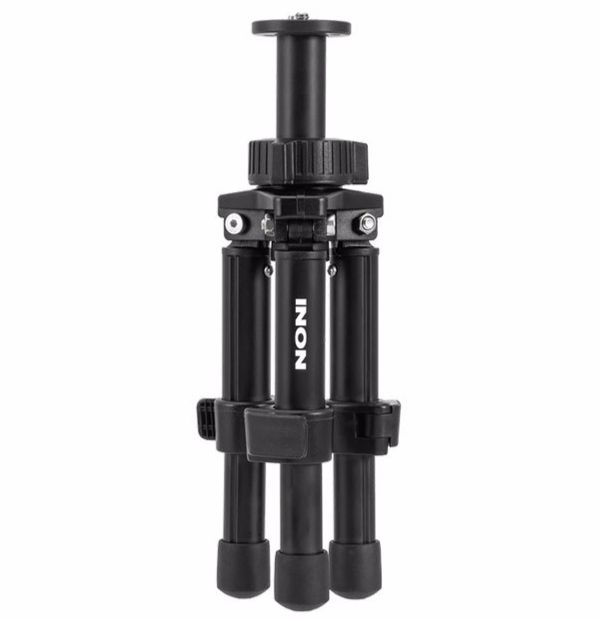

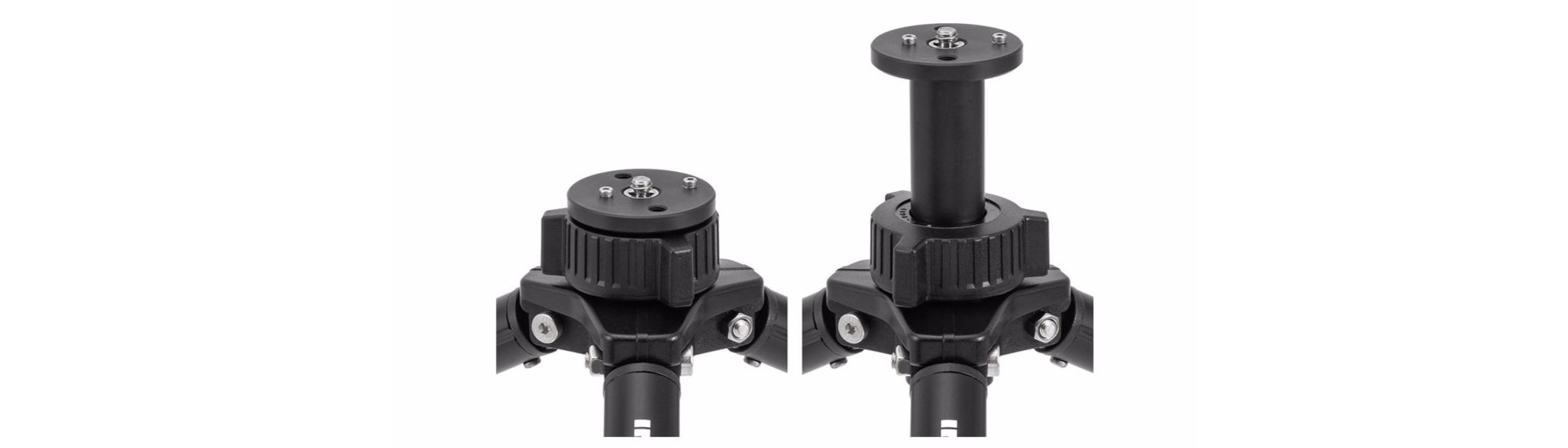

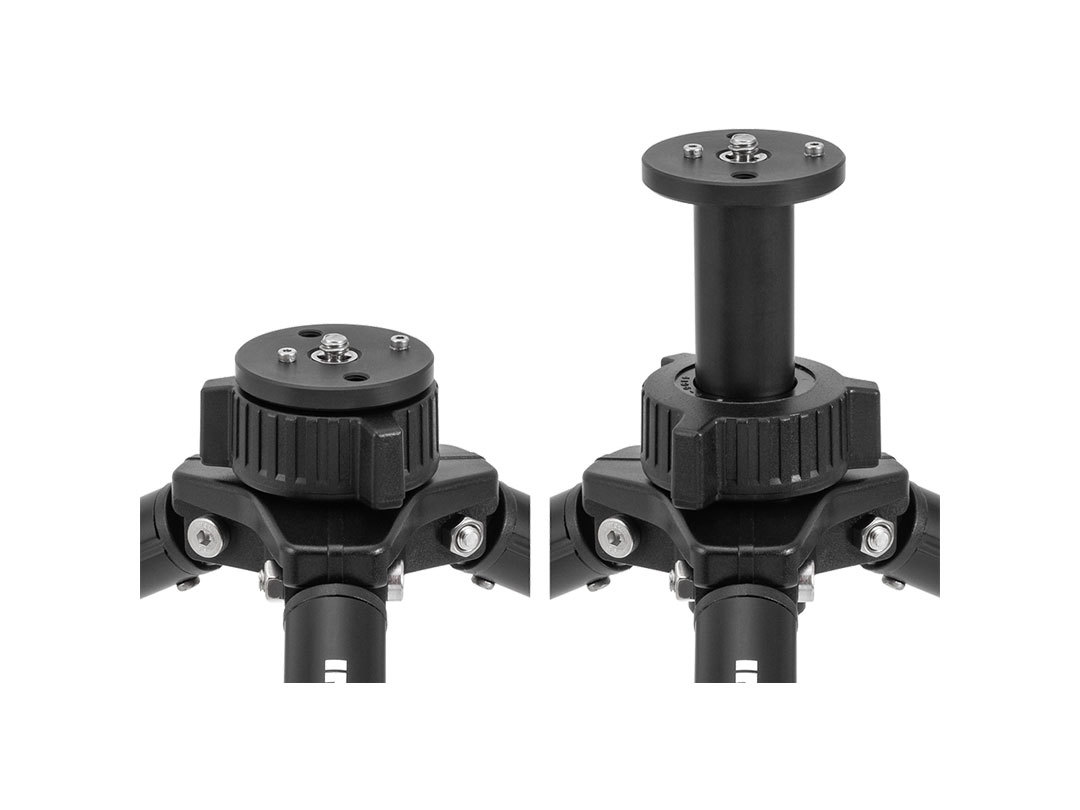

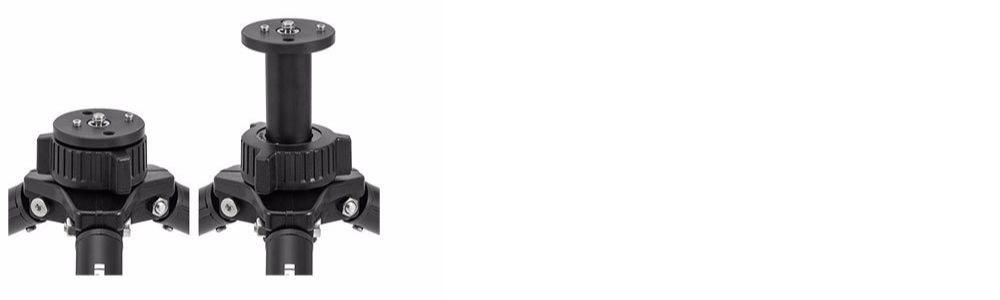

It features a large dial for easy tightening and an elevator that extends up to 40 mm / 1.6 in.

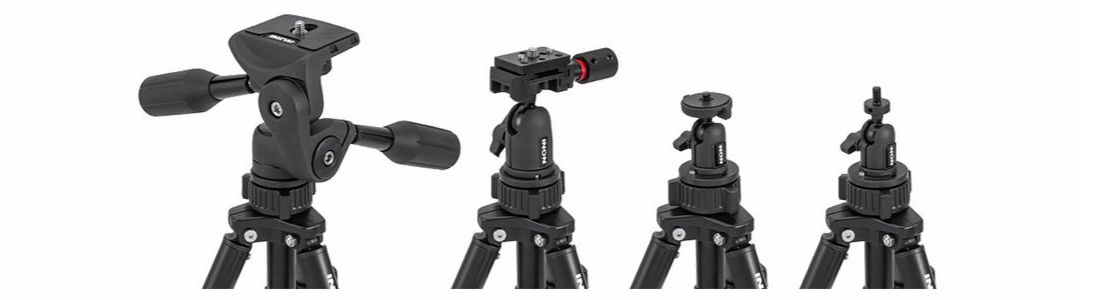

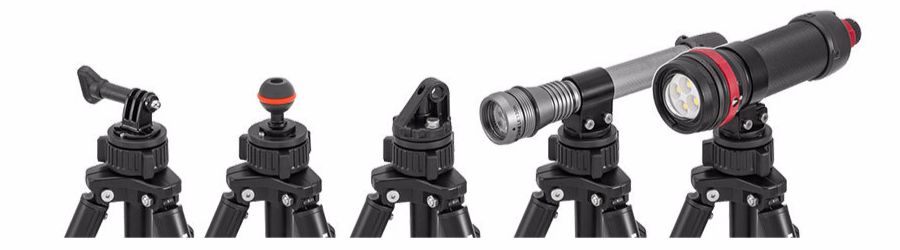

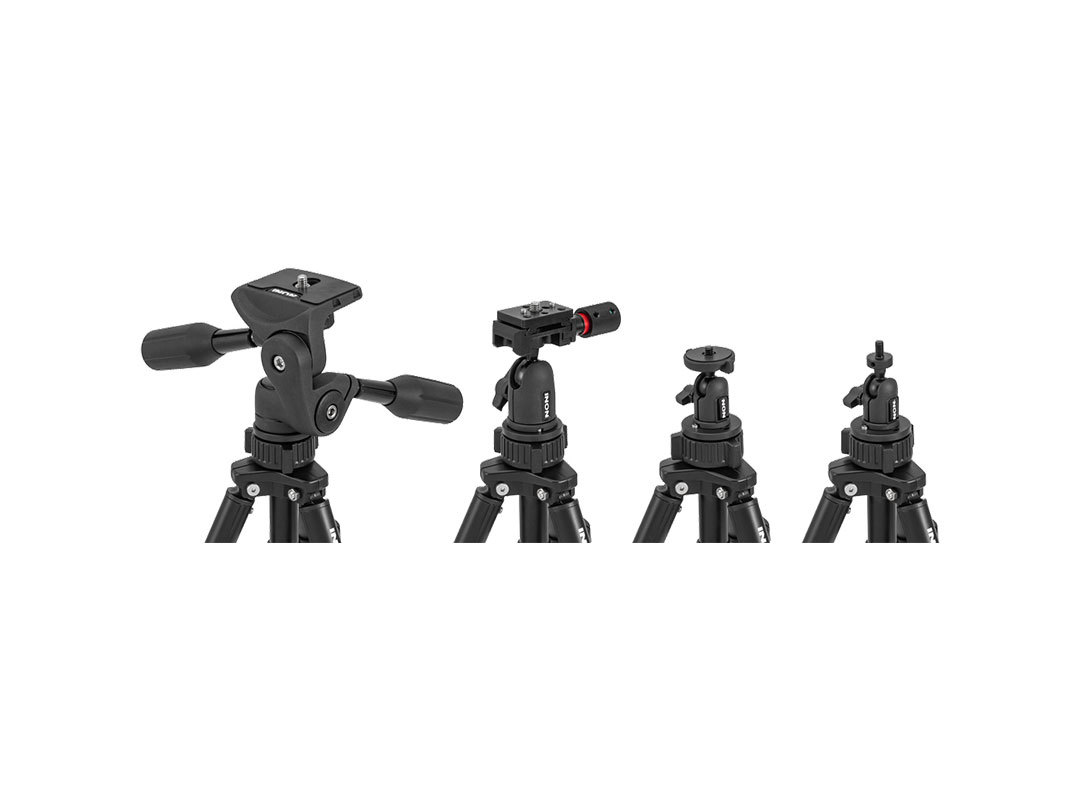

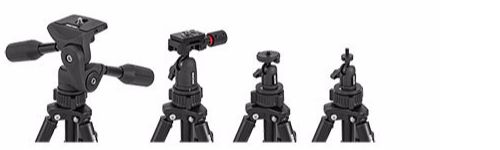

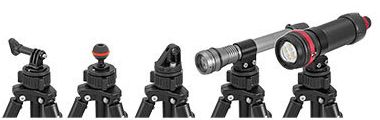

The top is compatible with various head units to suit different shooting needs.

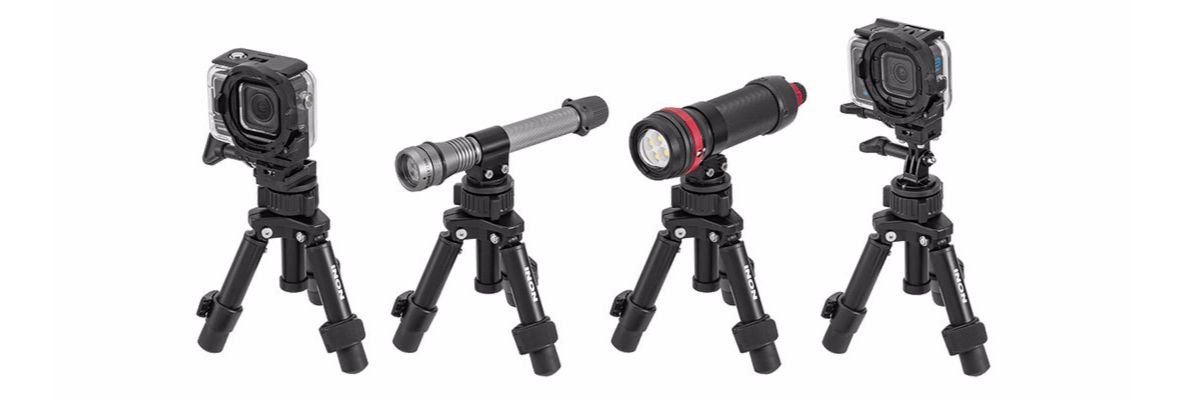

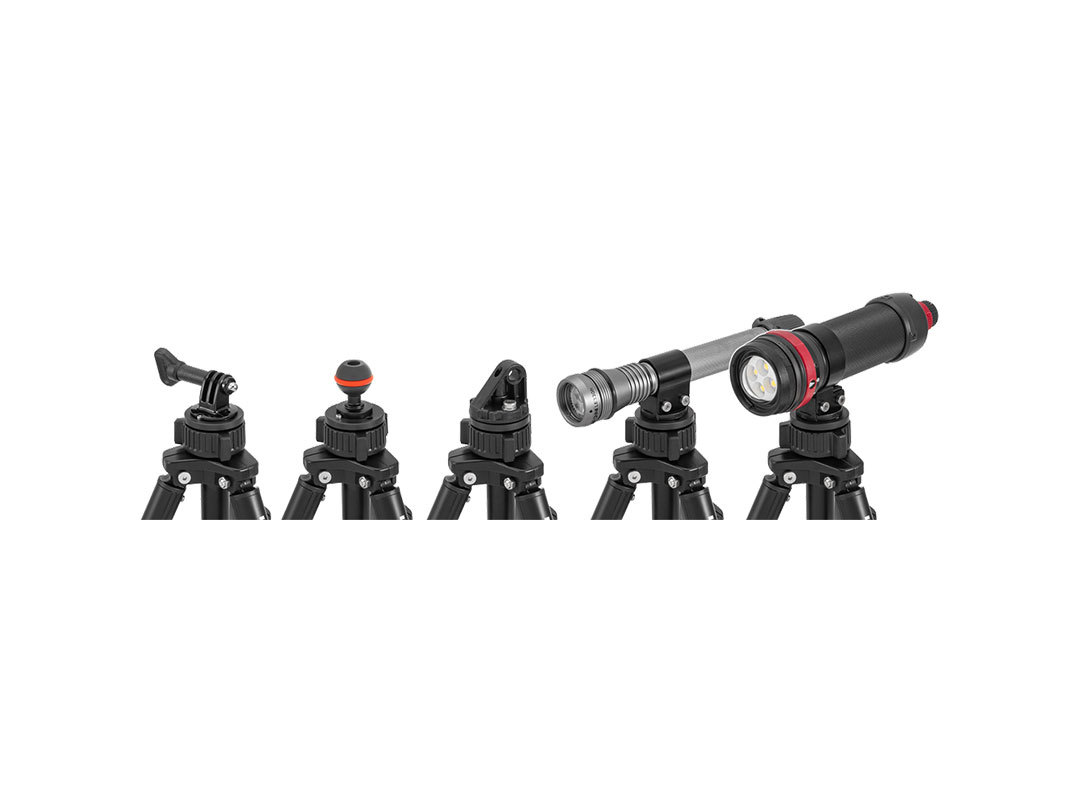

Besides the head unit, the top is compatible with a wide range of optional parts. The rotation lock pin on the camera mount securely fastens these parts, preventing accidental disengagement.

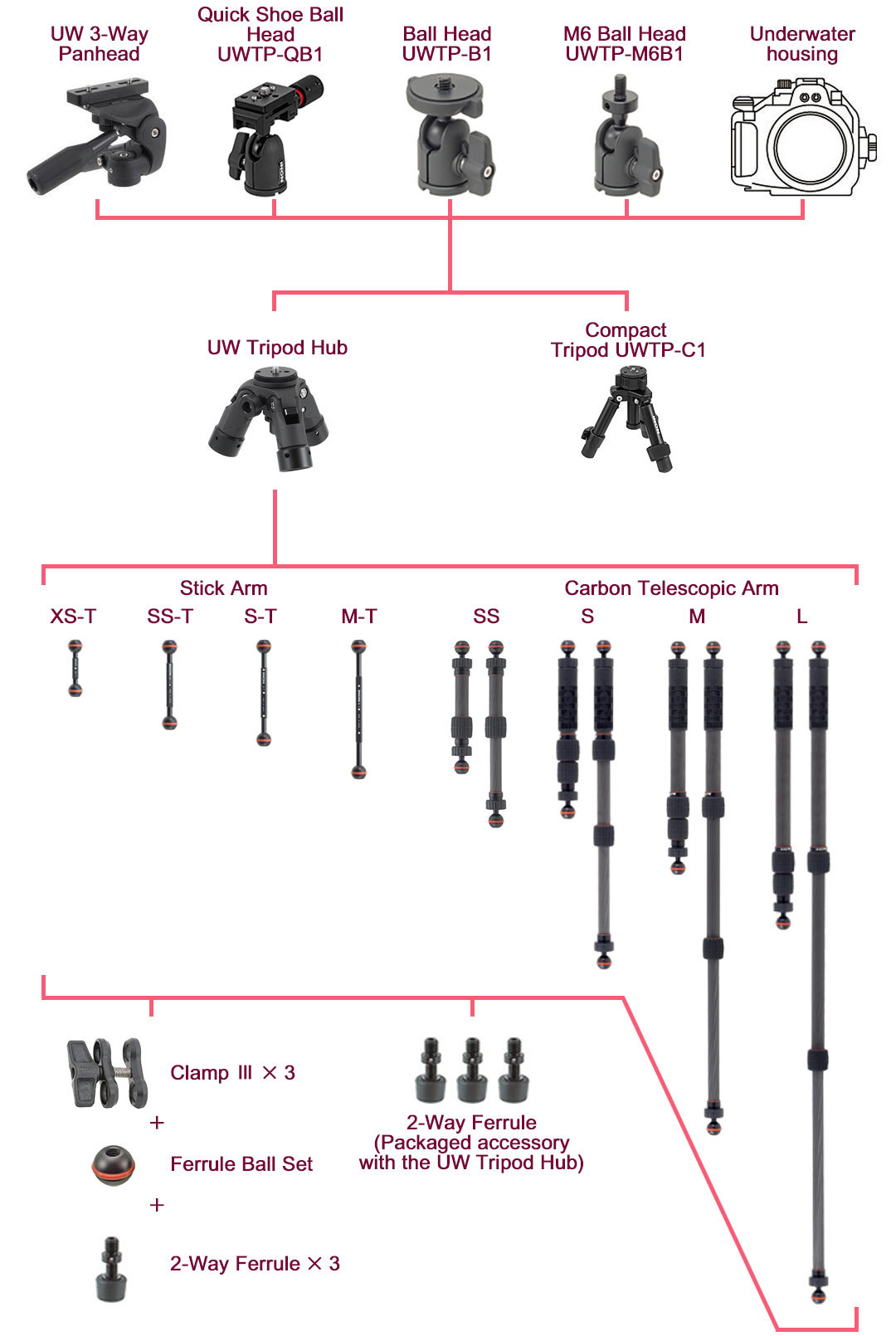

Camera-mount compatible products
- UW 3-Way Panhead
- Quick Shoe Ball Head UWTP-QB1
- Ball Head UWTP-B1

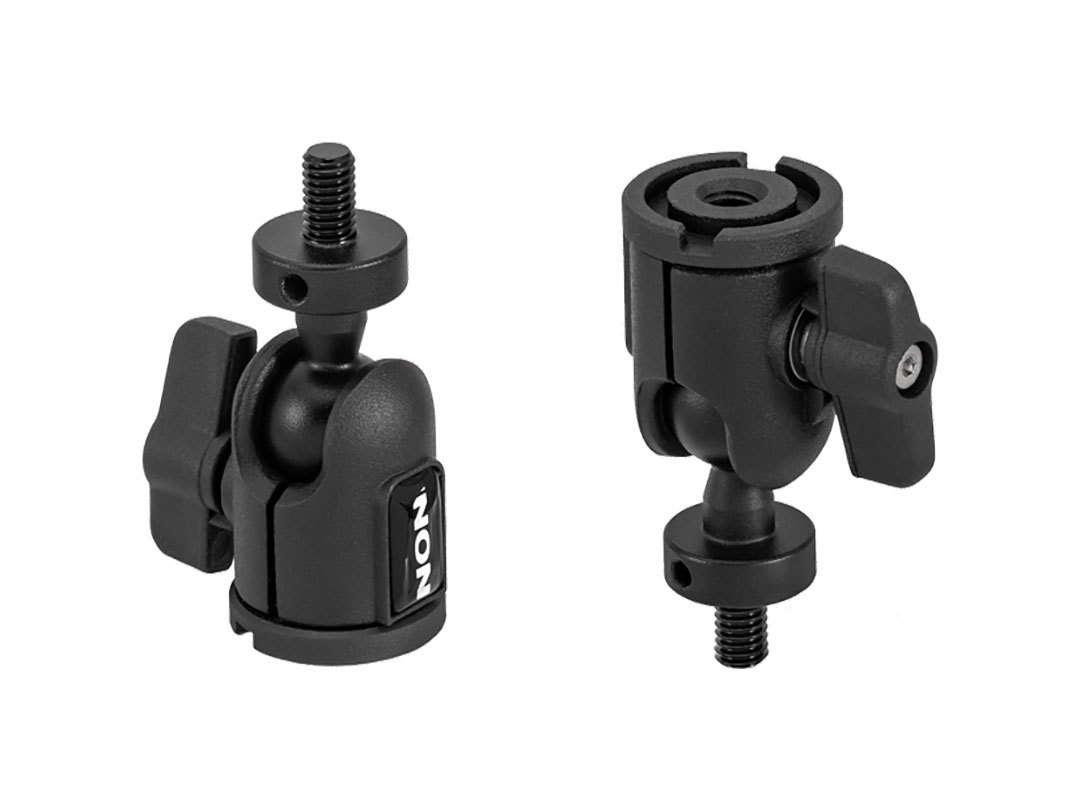

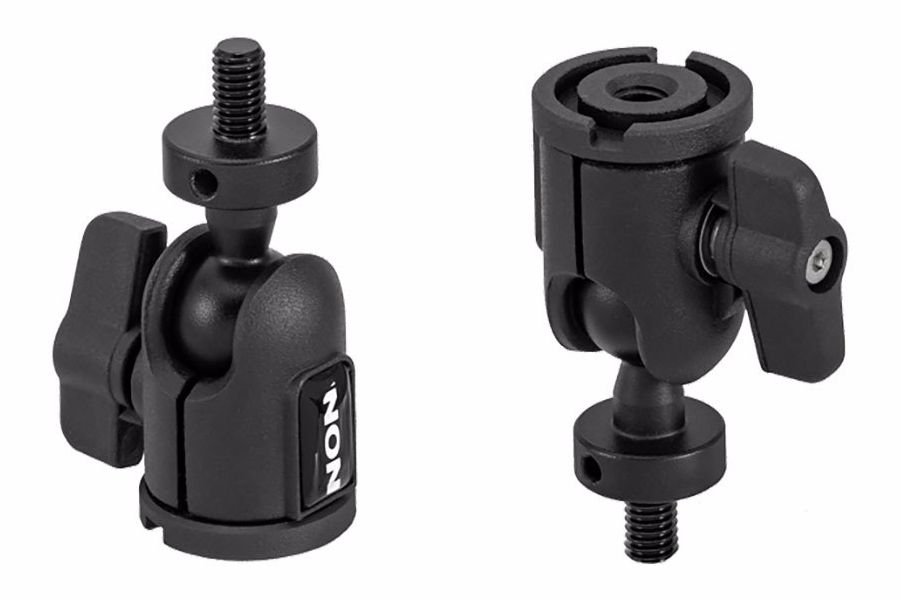

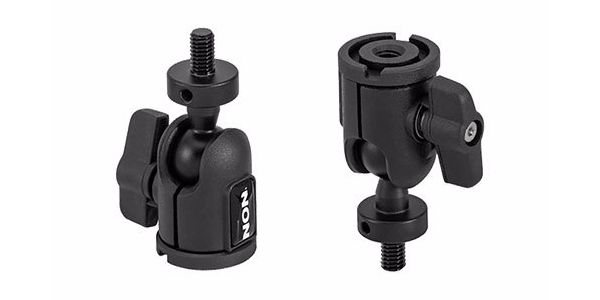

- B1M6 Ball Head UWTP-M6B1

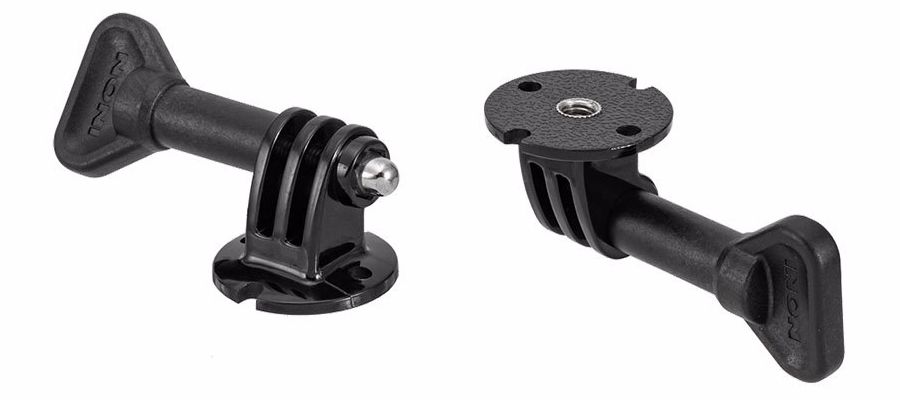

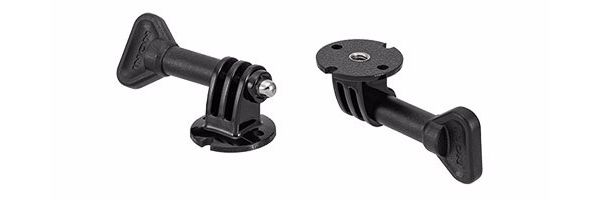

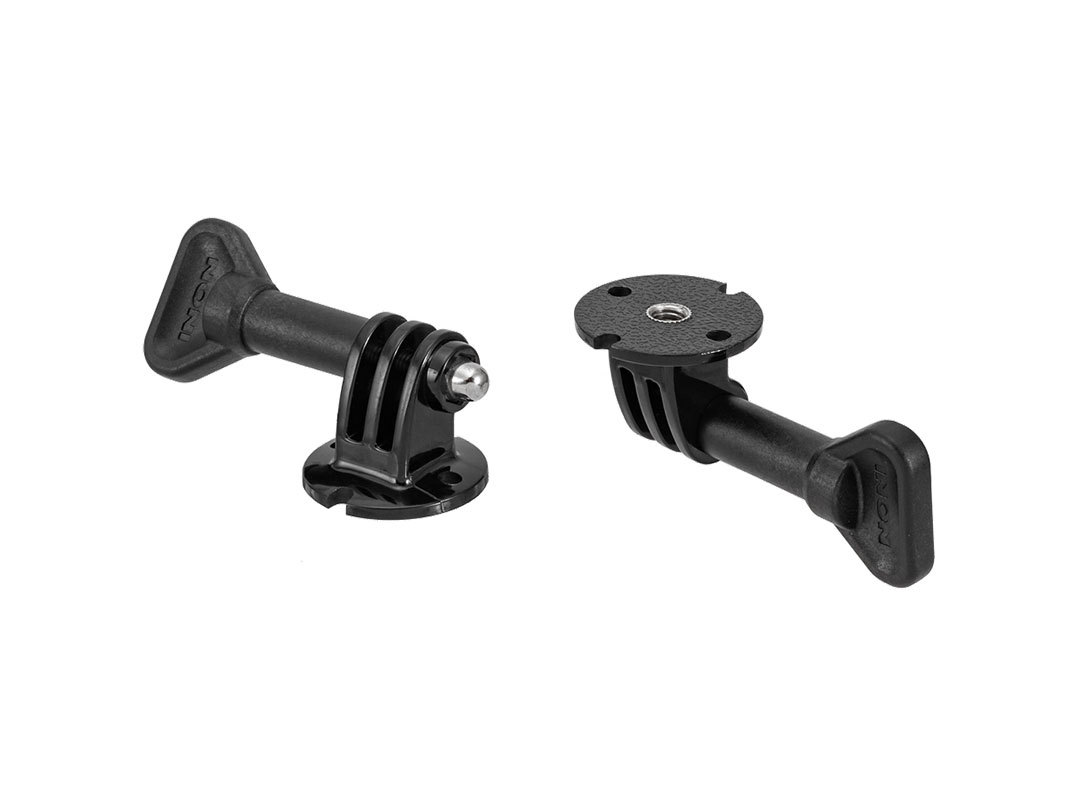

- GP 1/4-20UNC Adapter II

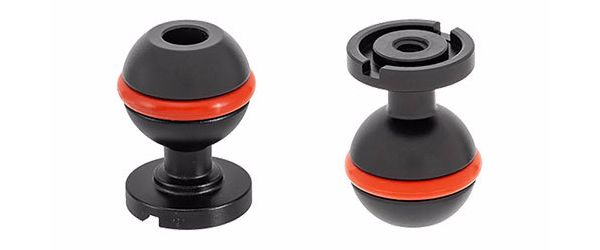

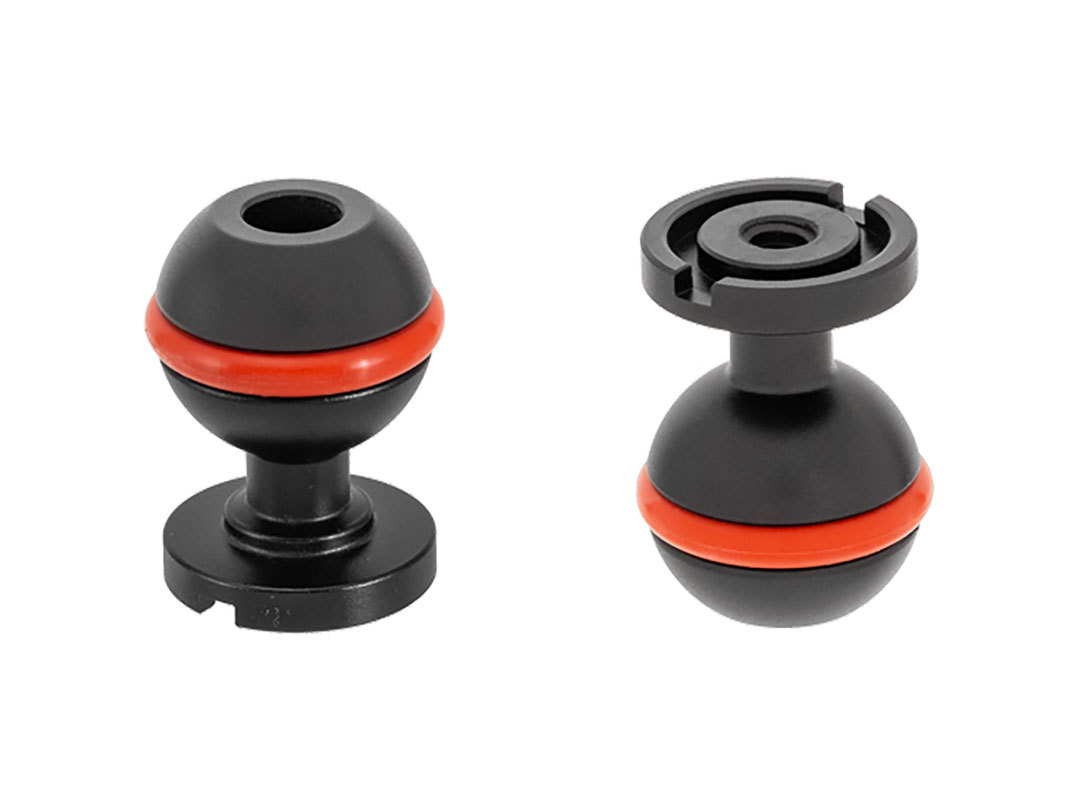

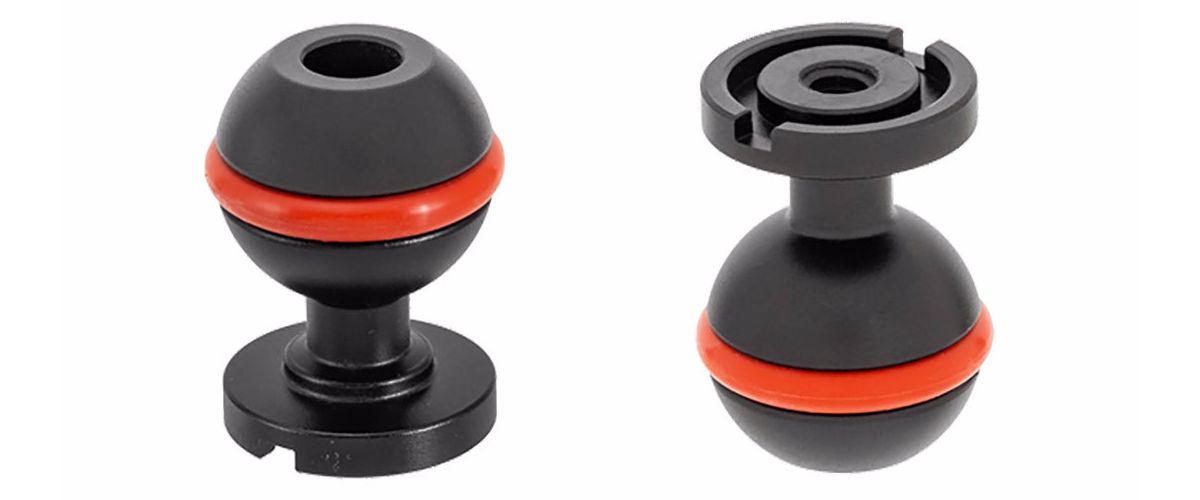

- BALL 1/4-20UNC Adapter

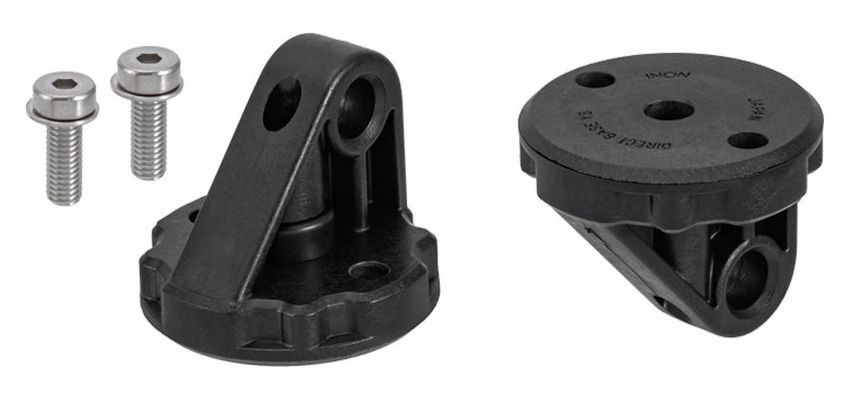

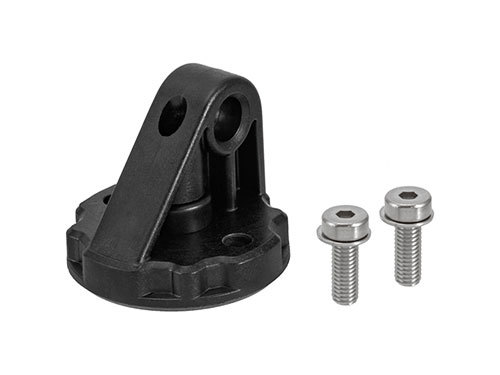

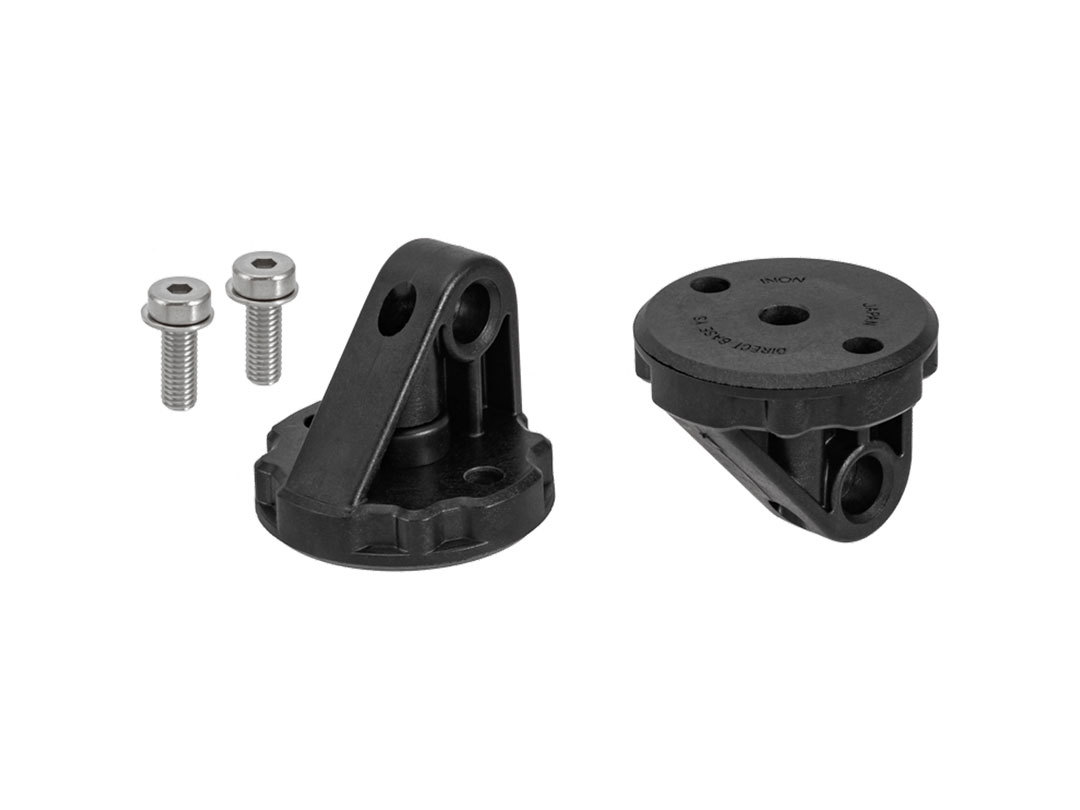

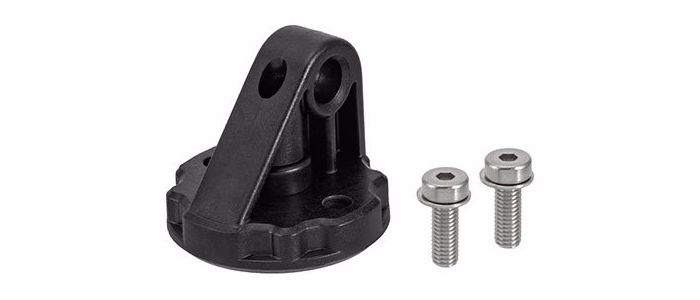

- Direct Base YS II
- Mount Adapter for ZD/SD Front Mask

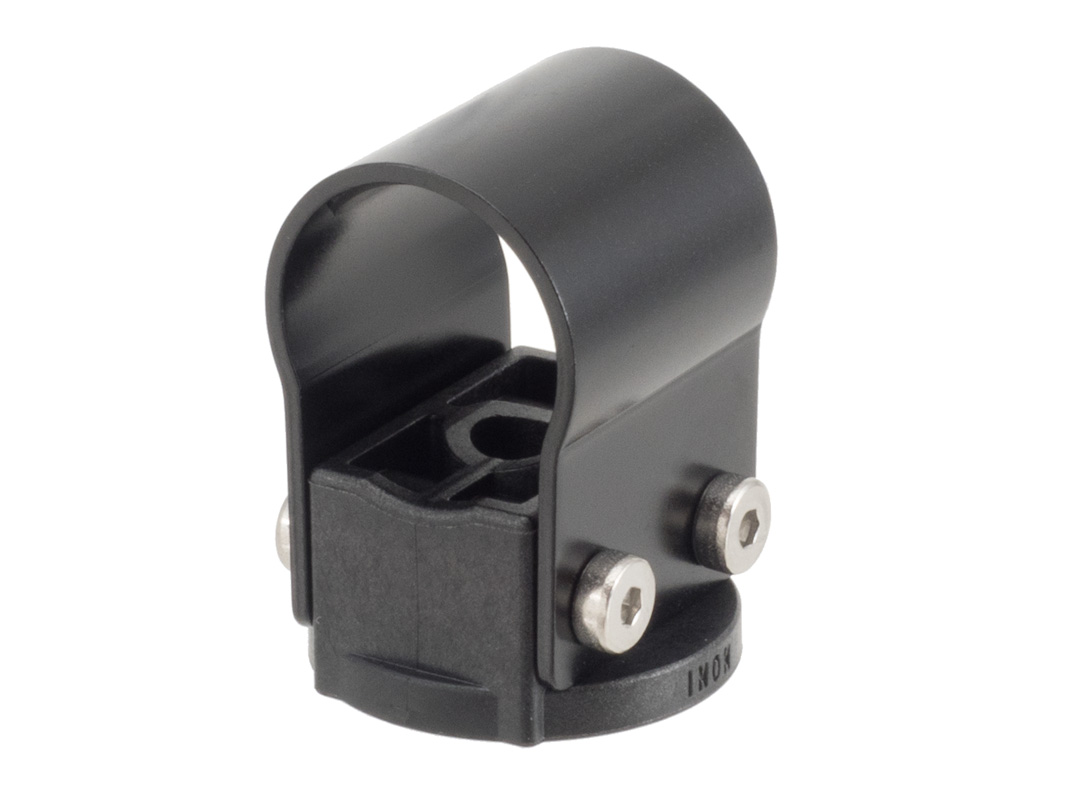

- Single Light Holder LE for Tripod

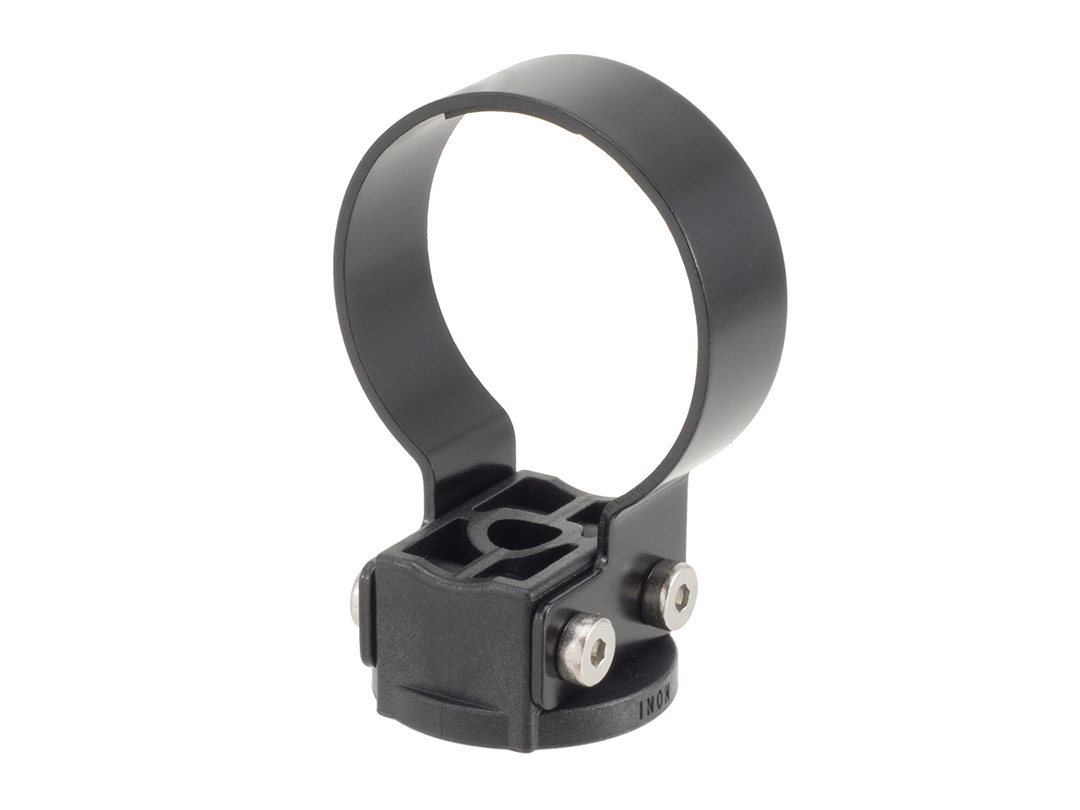

- Single Light Holder LF for Tripod

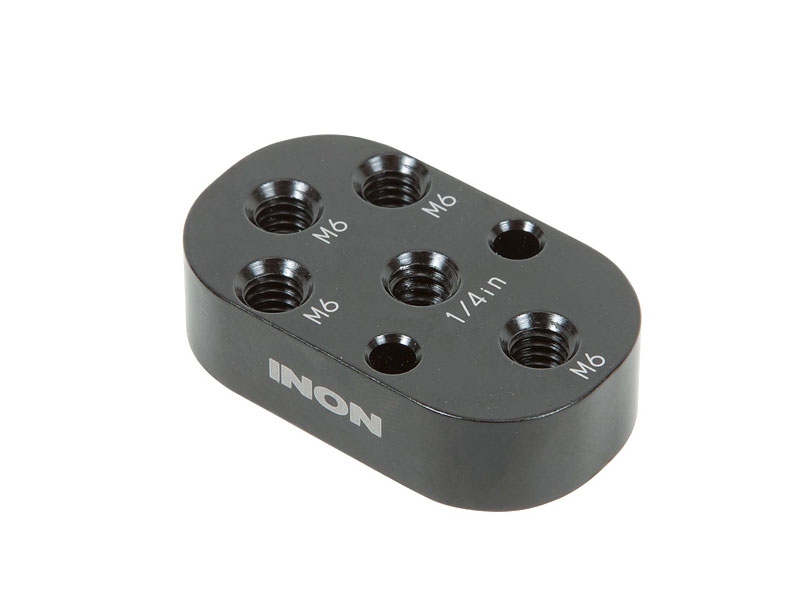

- Tripod Adapter
- An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).(*)
| Weight [air] | 232 g/8.1 oz |
| Weight [underwater] | approx.102 g/3.6 oz |
Camera-mount compatible products
- UW 3-Way Panhead
- Quick Shoe Ball Head UWTP-QB1
- Ball Head UWTP-B1
- B1M6 Ball Head UWTP-M6B1
- GP 1/4-20UNC Adapter II
- BALL 1/4-20UNC Adapter
- Direct Base YS II
- Mount Adapter for ZD/SD Front Mask
- Single Light Holder LE for Tripod
- Single Light Holder LF for Tripod
- Tripod Adapter
- An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).(*)
| Weight [air] | 232 g/8.1 oz |
| Weight [underwater] | approx.102 g/3.6 oz |

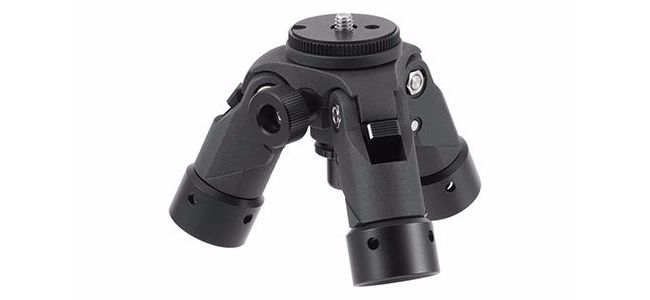

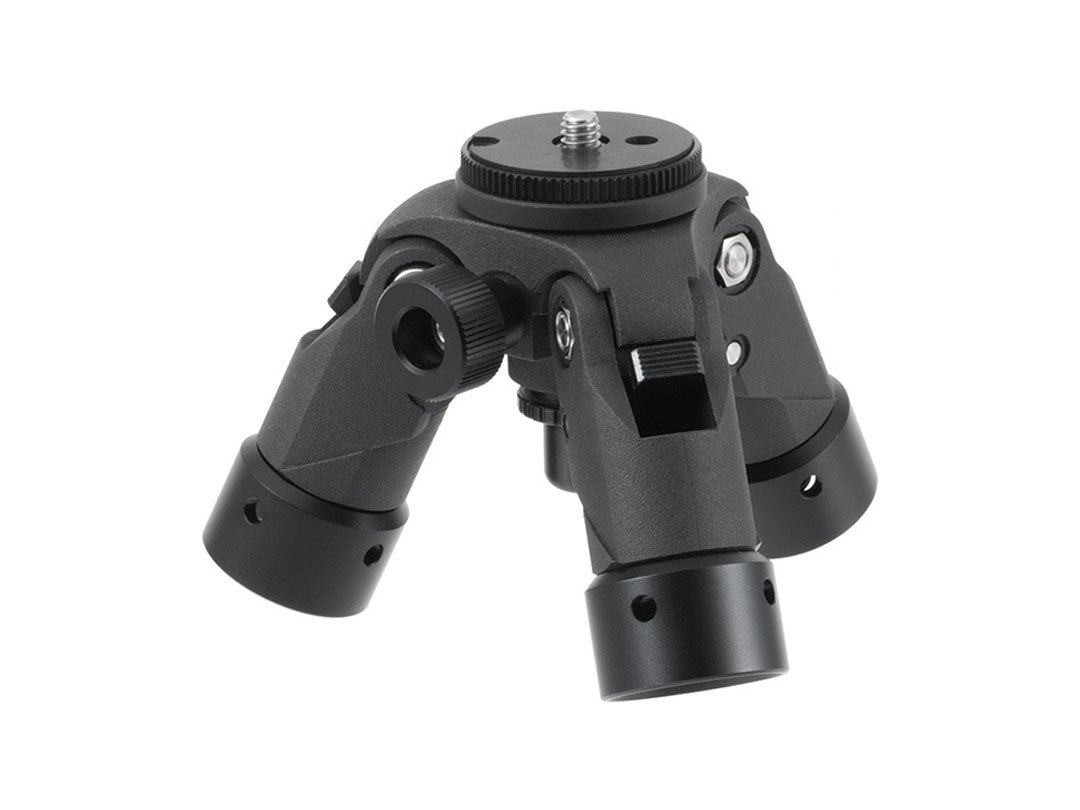

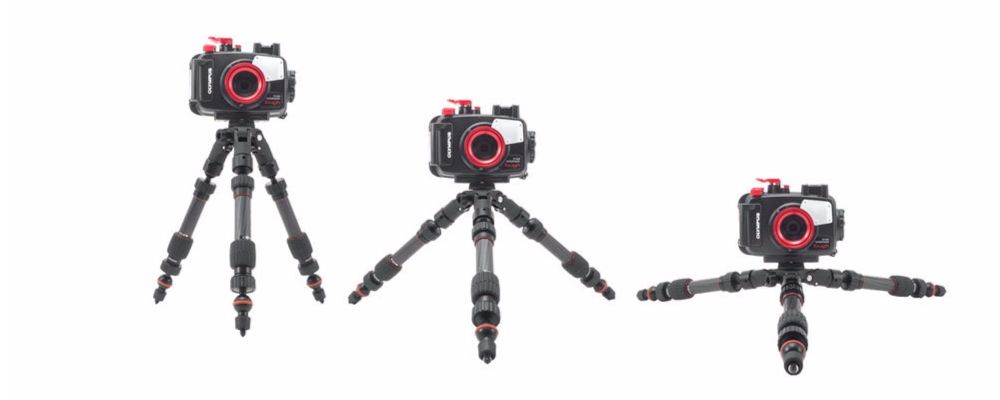

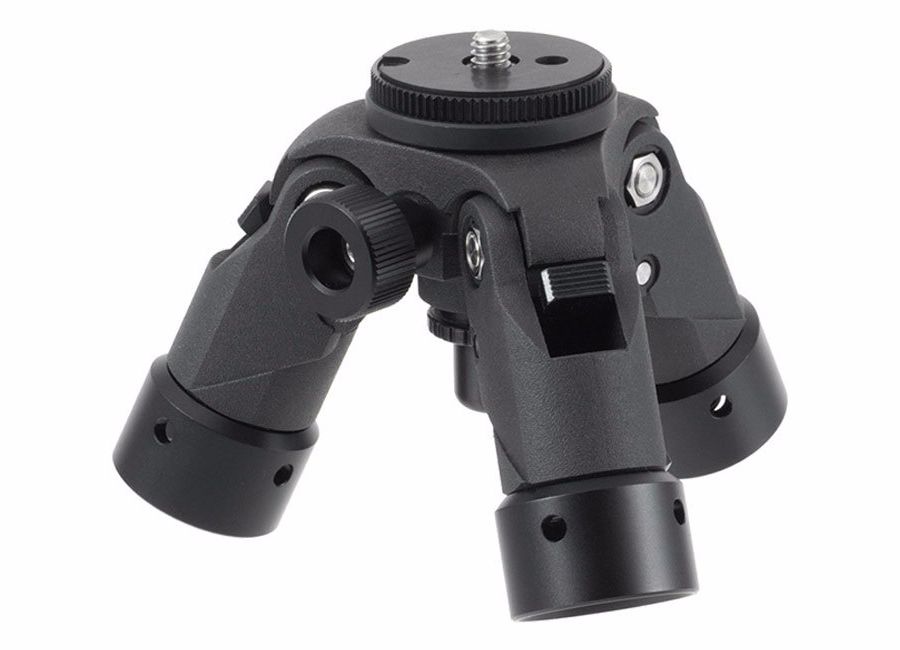

UW Tripod Hub
JAN/EAN code : 4562121439641
A robust aluminum-alloy underwater tripod built to withstand heavy use. Compatible with “Carbon Telescopic Arm SS/S/M/L bodies” and “Stick Arm XS-T/SS-T/S-T/M-T bodies” used as legs. Versatile enough to serve as either a compact underwater tripod or a full-scale large tripod, reaching a total height of 1,185 mm / 46.7 inch for serious photography.
Camera mount : 1/4-20UNC thread
A robust aluminum-alloy underwater tripod built to withstand heavy use. Compatible with “Carbon Telescopic Arm SS/S/M/L bodies” and “Stick Arm XS-T/SS-T/S-T/M-T bodies” used as legs. Versatile enough to serve as either a compact underwater tripod or a full-scale large tripod, reaching a total height of 1,185 mm / 46.7 inch for serious photography.
Camera mount : 1/4-20UNC thread

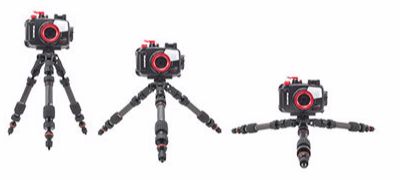

The built-in stopper prevents the legs from accidentally opening. The leg spread angle can be adjusted to three positions: “Standard,” “Medium,” and “Low.” The friction when switching angles can be adjusted by tightening the bolts that secure the hub body to the leg joints.

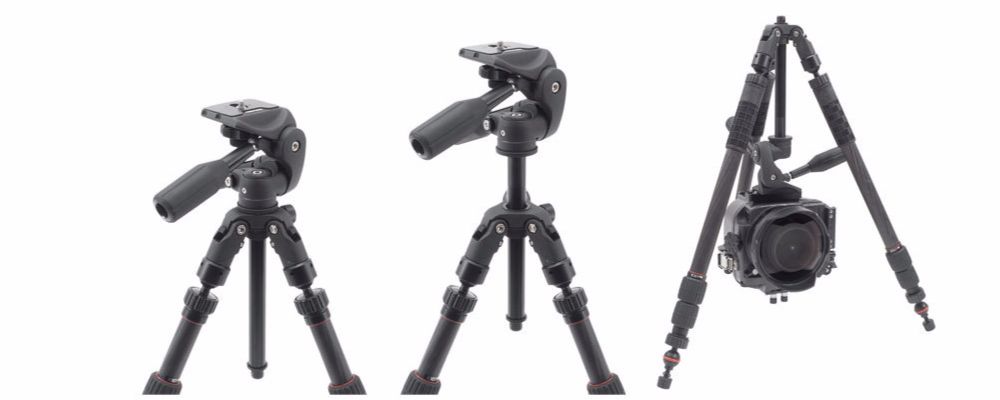

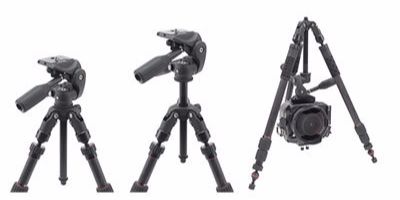

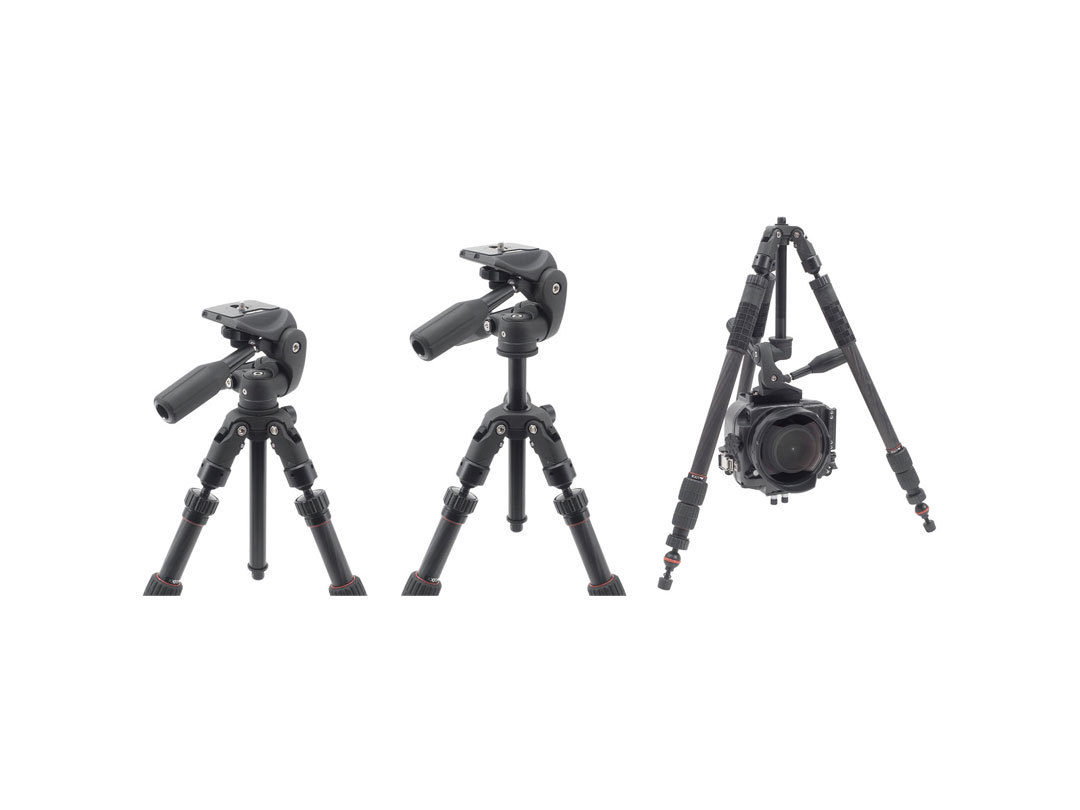

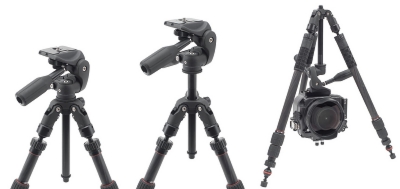

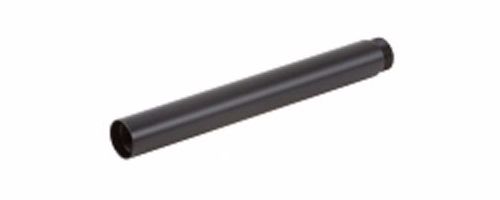

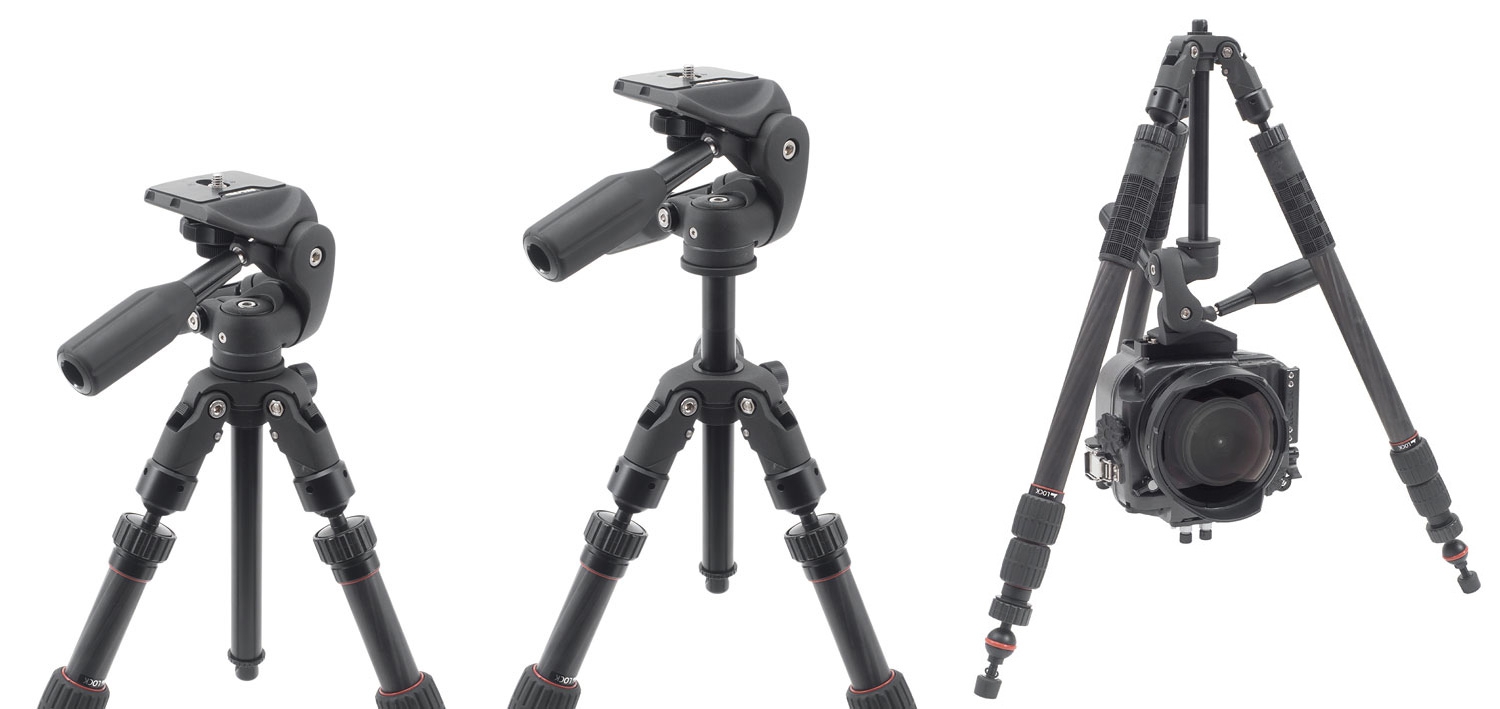

Features a split-structure elevator mechanism. By removing the lower elevator section in low-position mode, the camera can be set closer to the ground. The included “lower elevator” can also be connected to an optional “lower elevator” (sold separately).

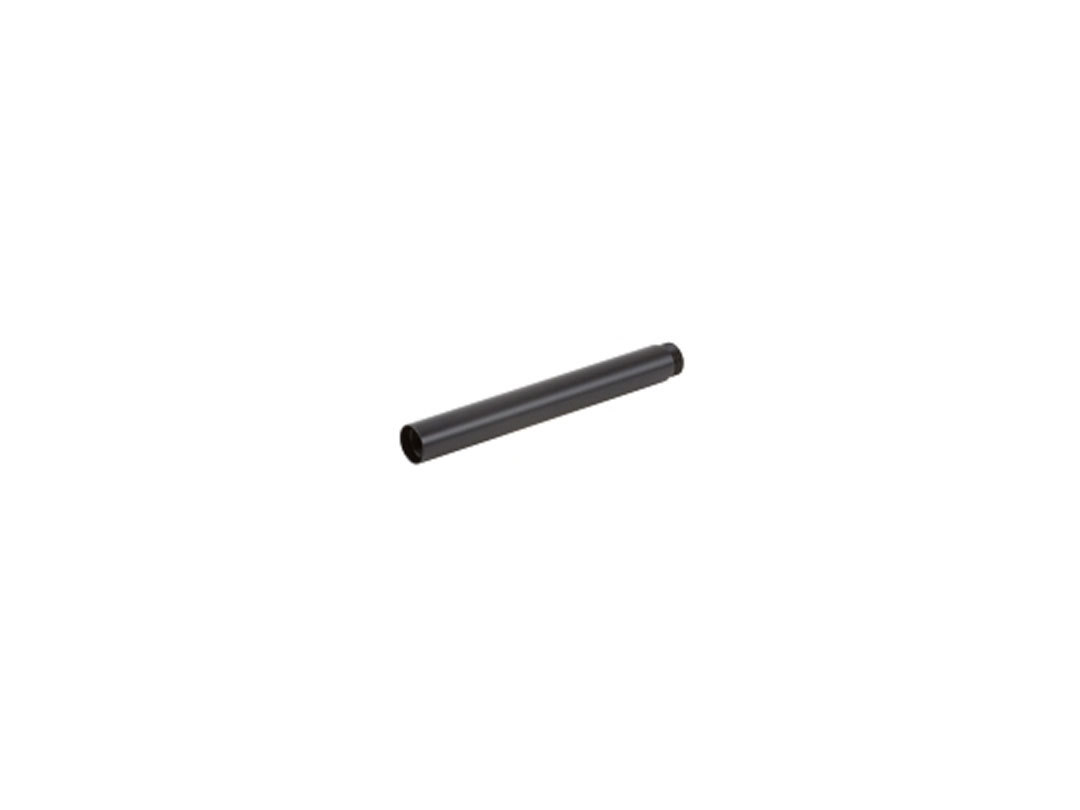

Each lower elevator section adds 145 mm / 5.7 inch to the total height. Mounting the elevator upside down enables low-angle shooting or positioning the camera directly beneath the tripod.

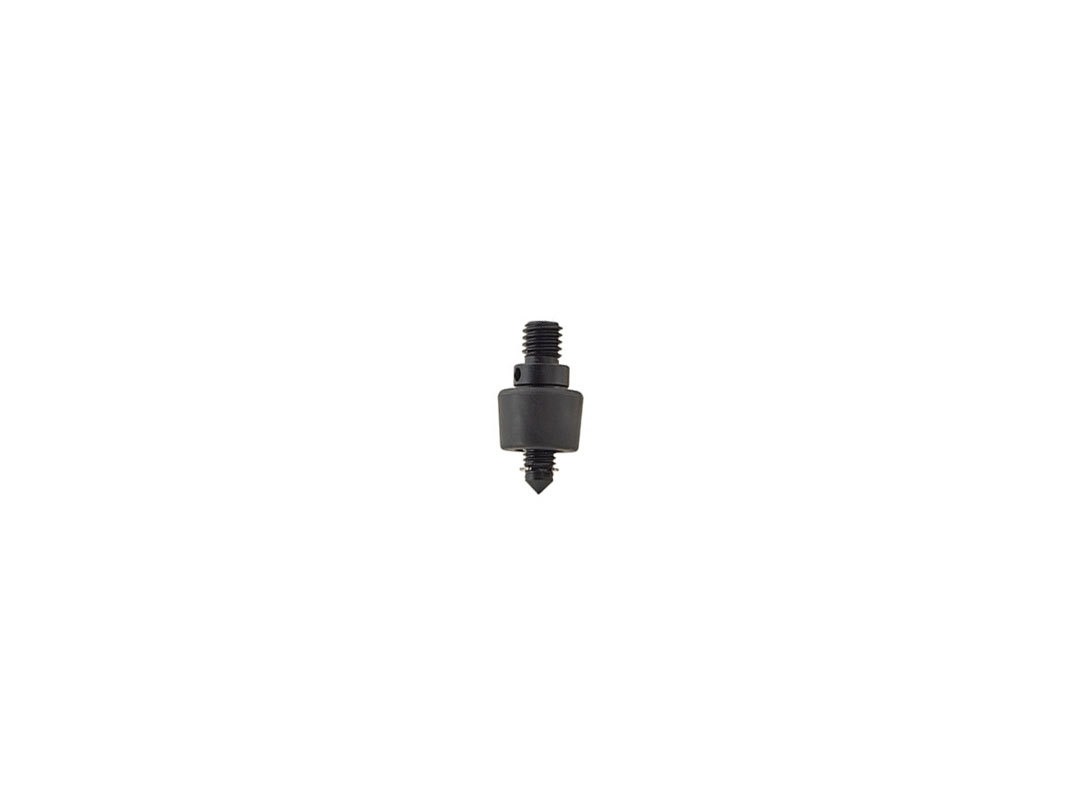

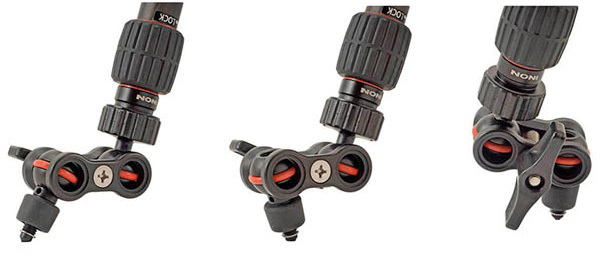

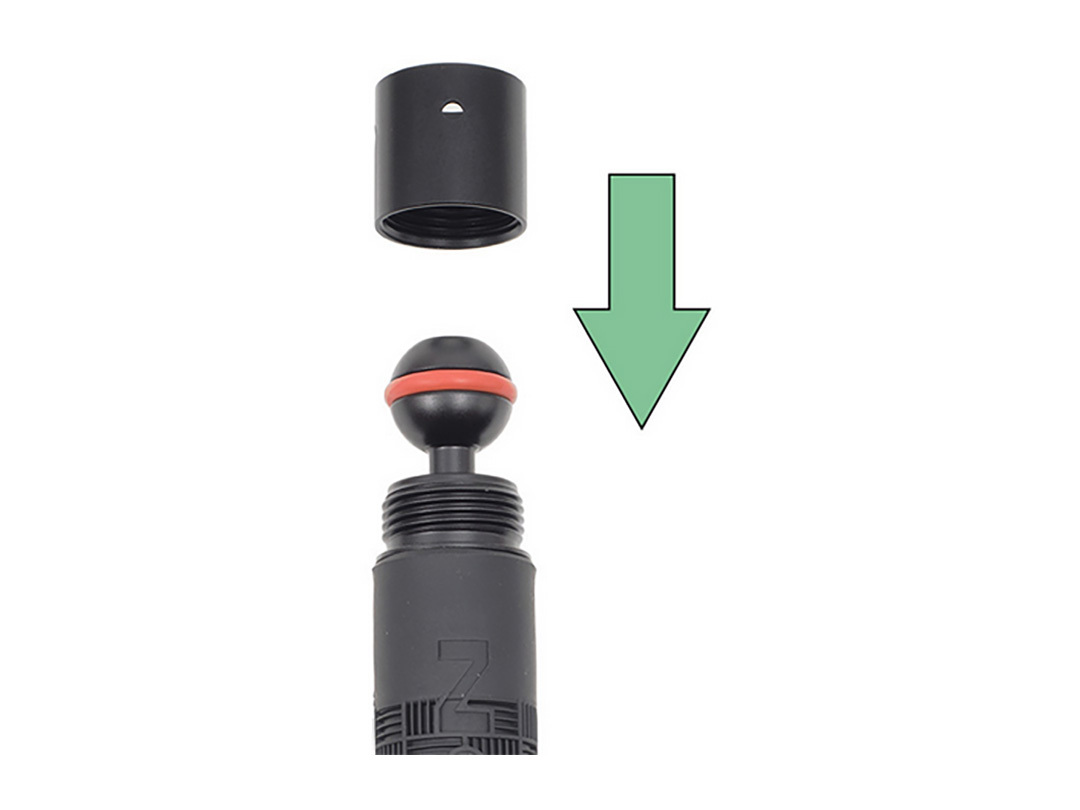

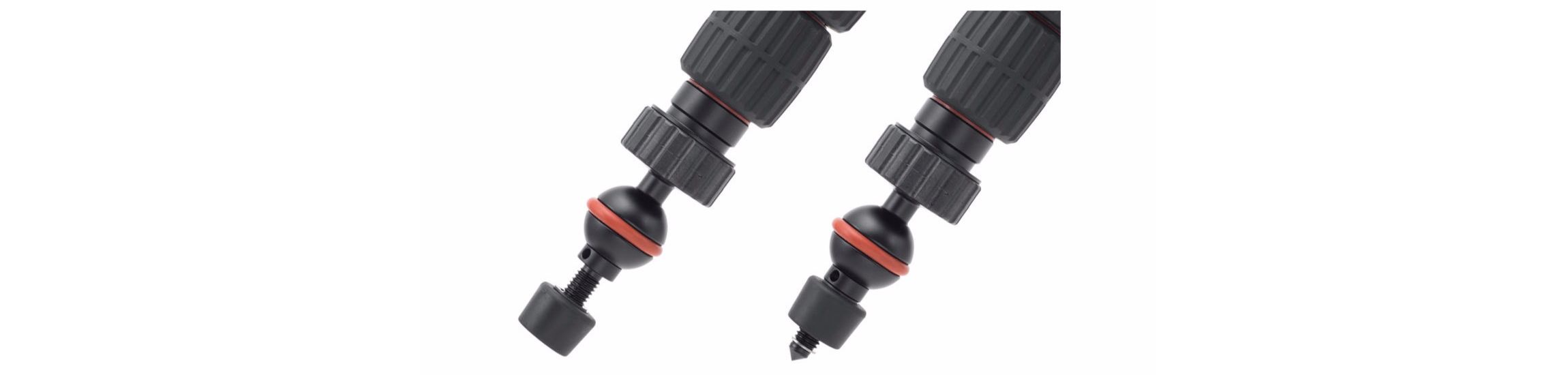

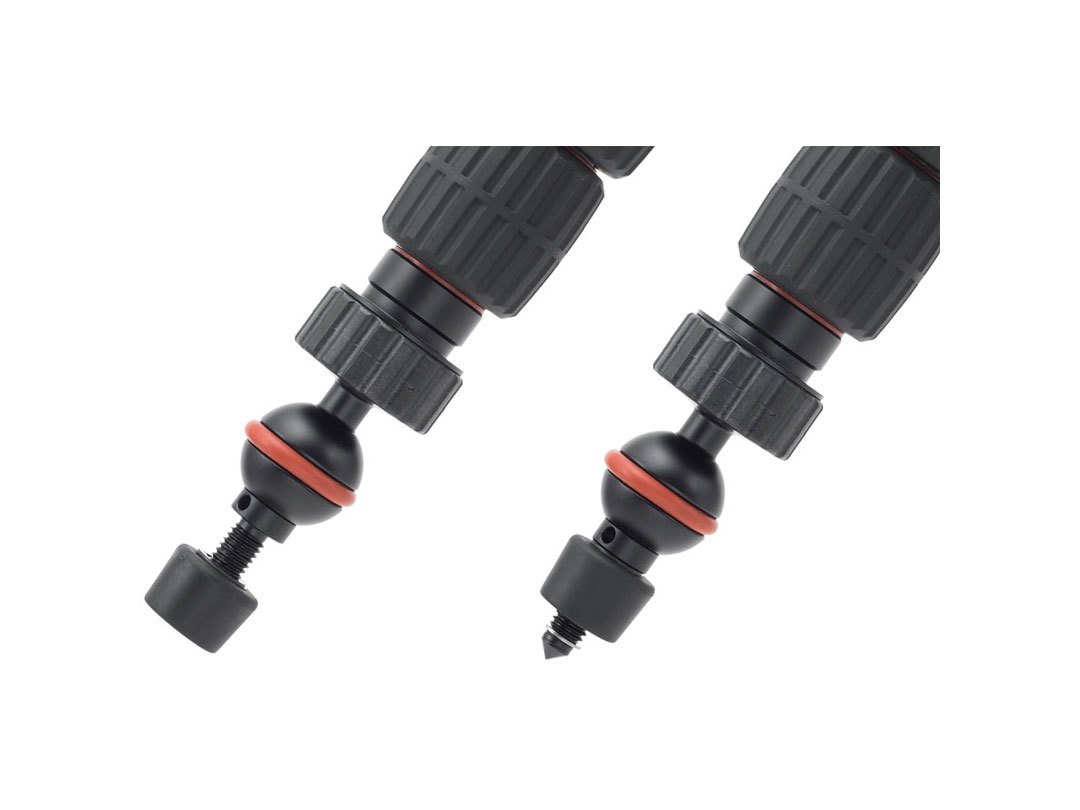

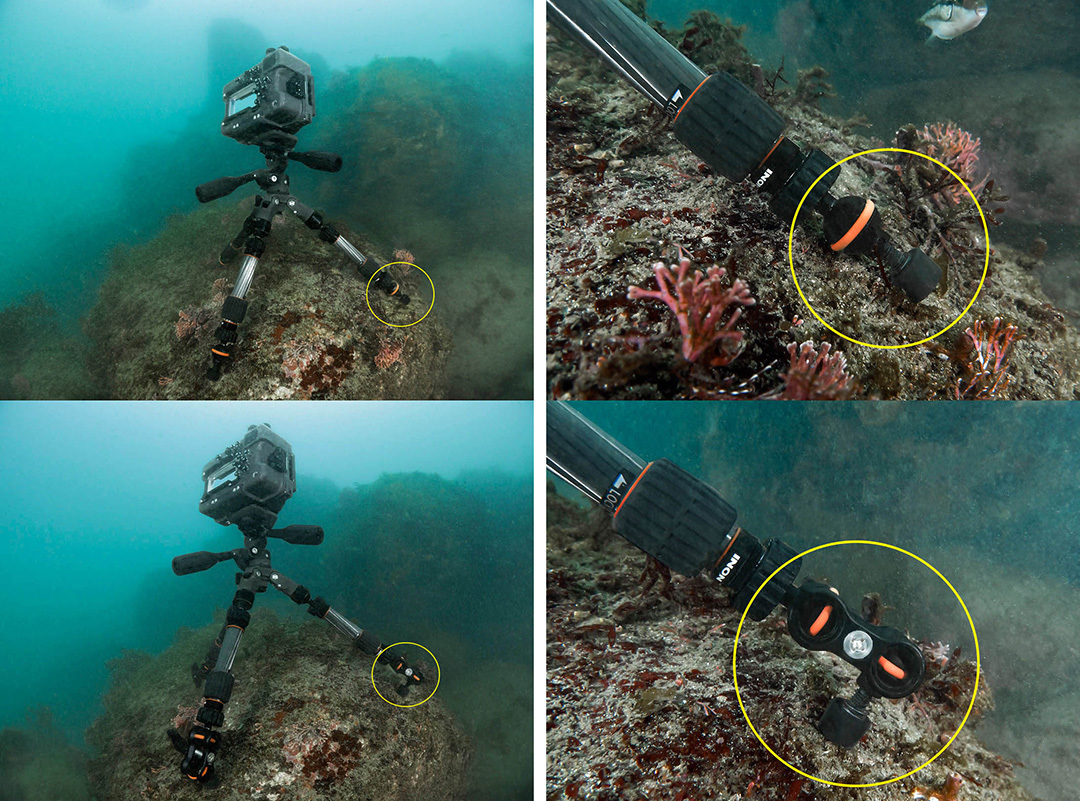

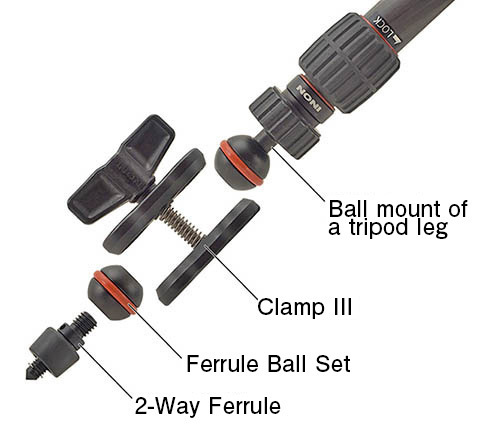

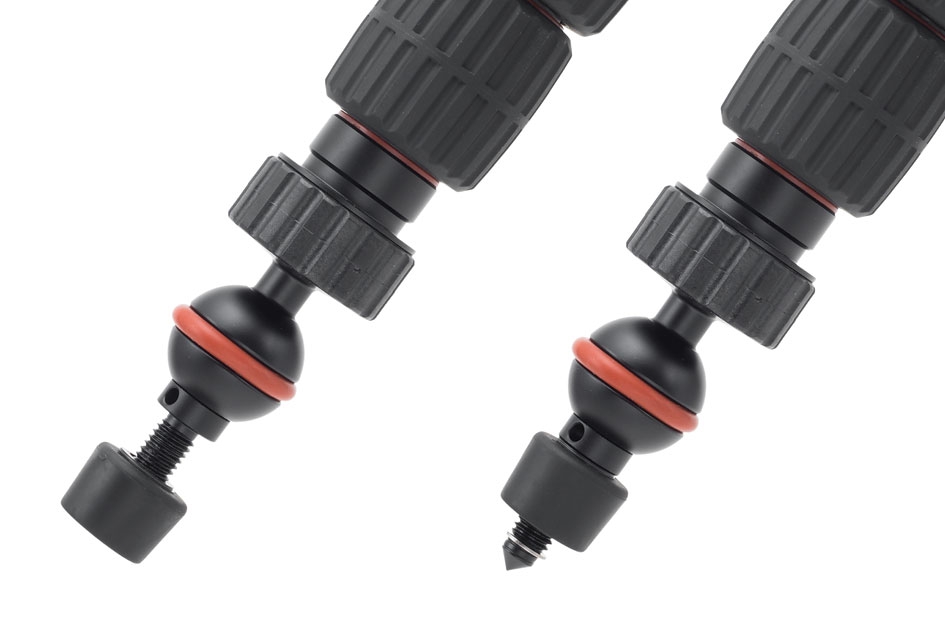

Includes a switchable rubber/spike “2-Way Ferrule.” Simply screw it onto the arm ball. Rotating the rubber reveals the spike, allowing different setups depending on the shooting environment.

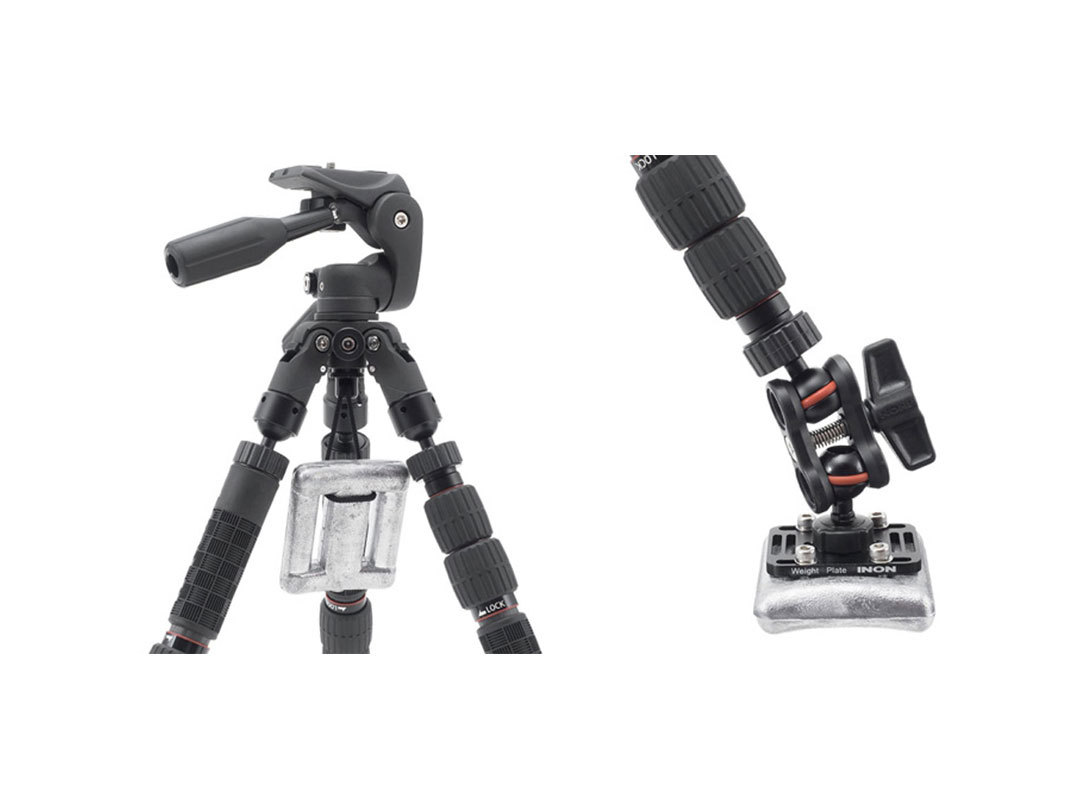

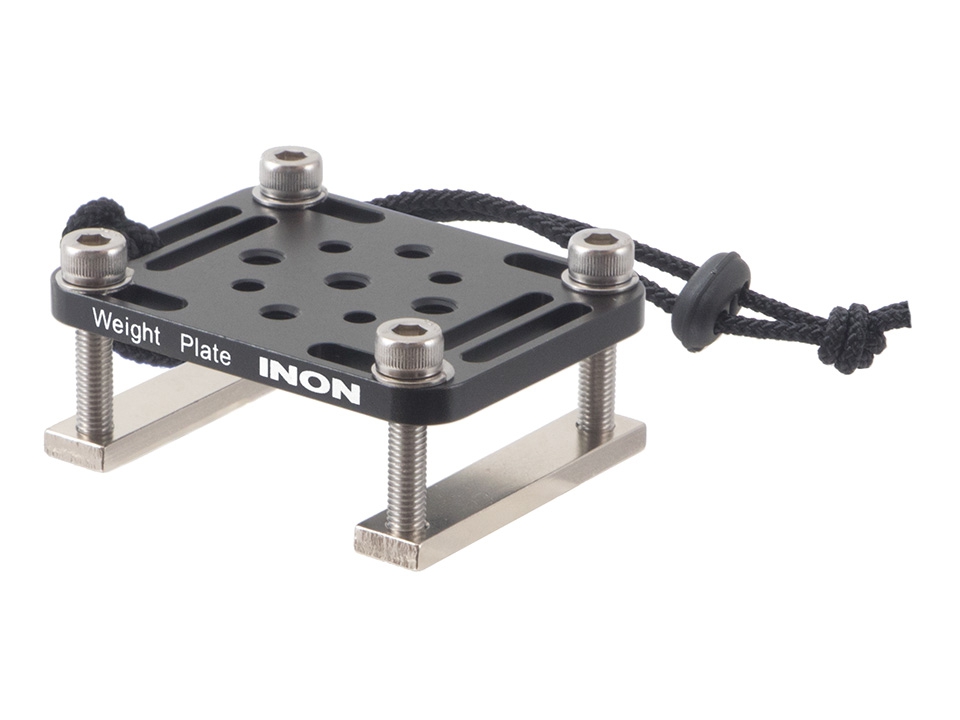

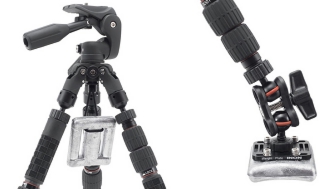

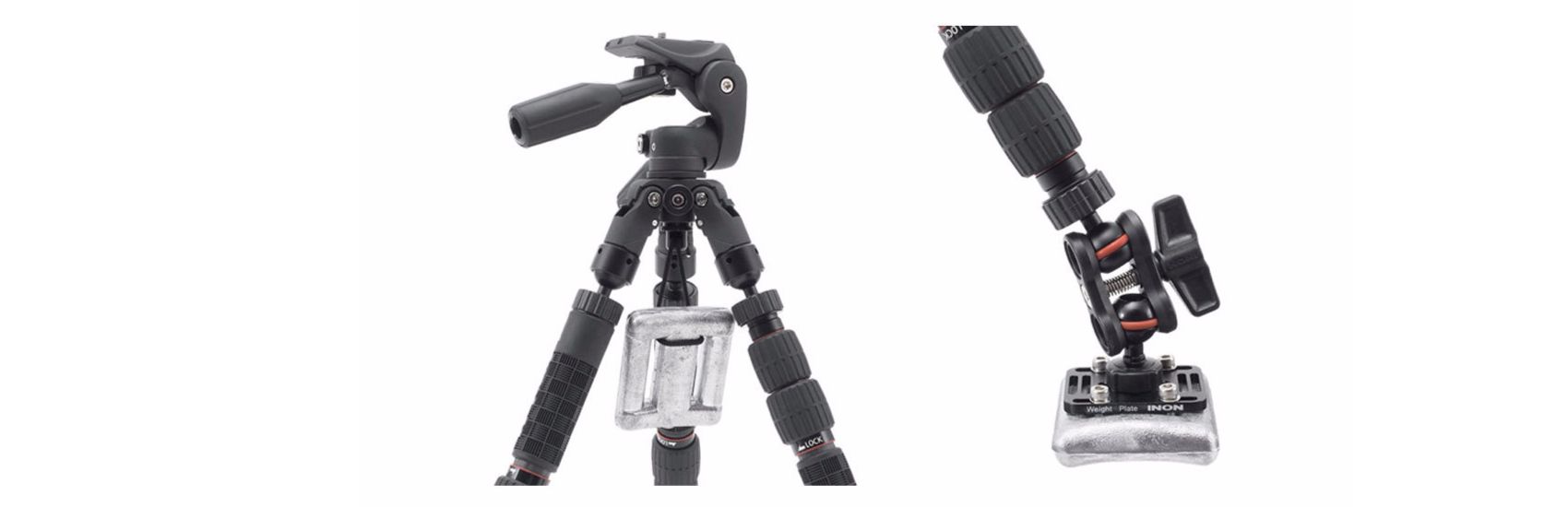

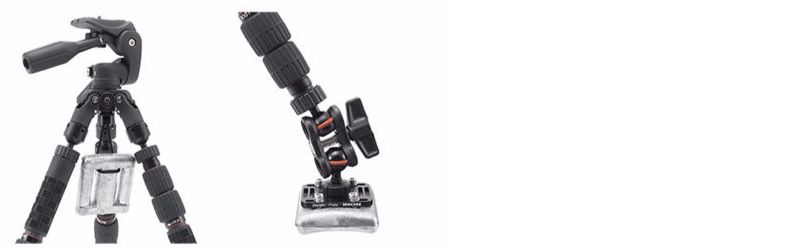

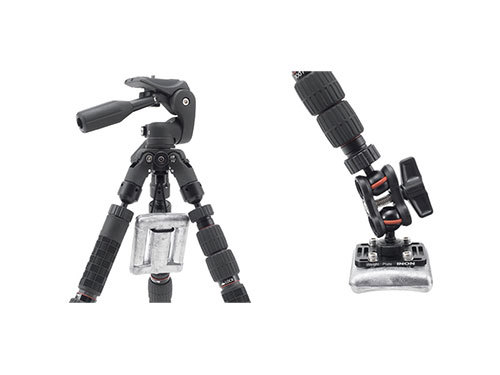

To enhance tripod stability, you can hang a weight from the strap hole or attach an INON “Weight Plate” to the arm ball of a tripod leg.

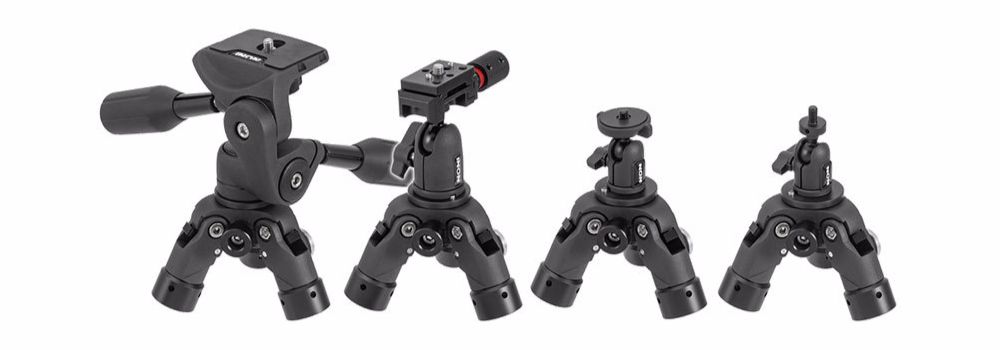

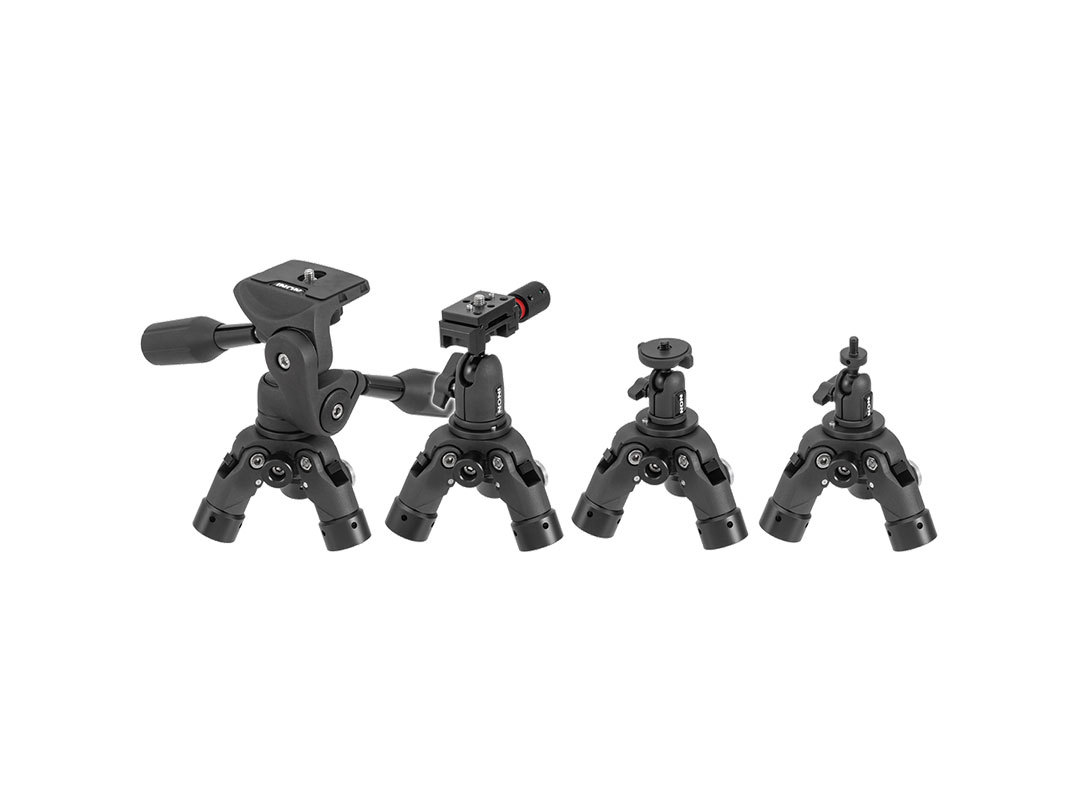

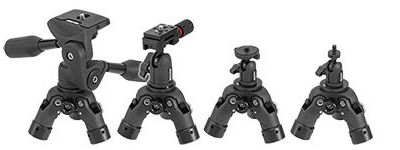

Various head units can be attached to the top to meet your shooting needs.

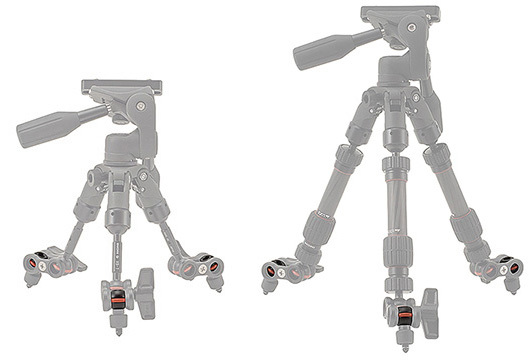

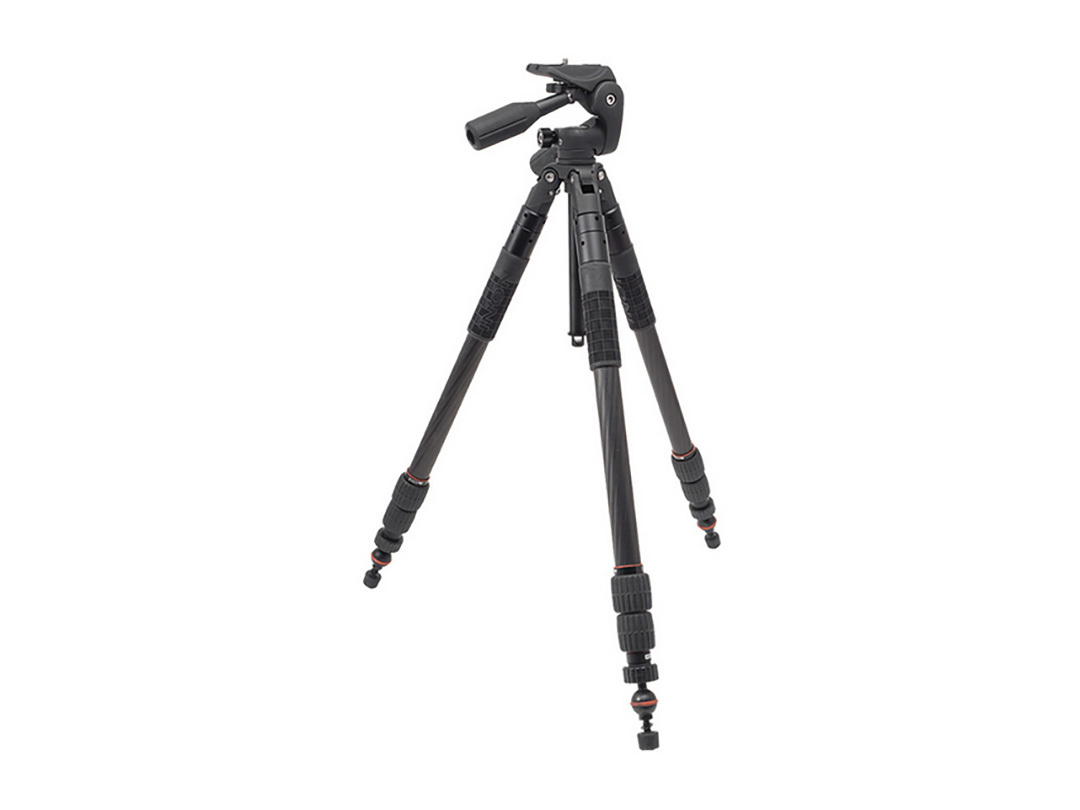

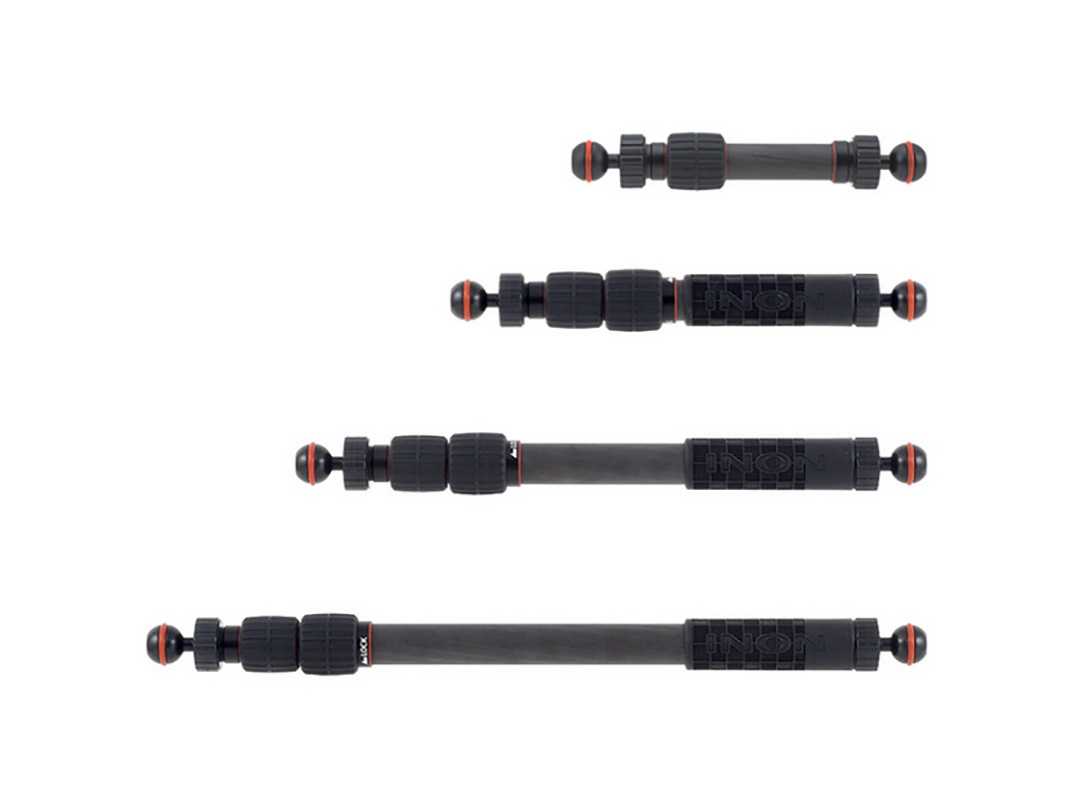

Arm usable as a tripod leg
- Stick Arm XS-T/SS-T/S-T/M-T

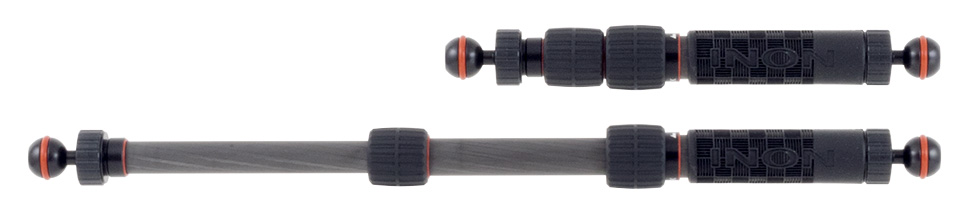

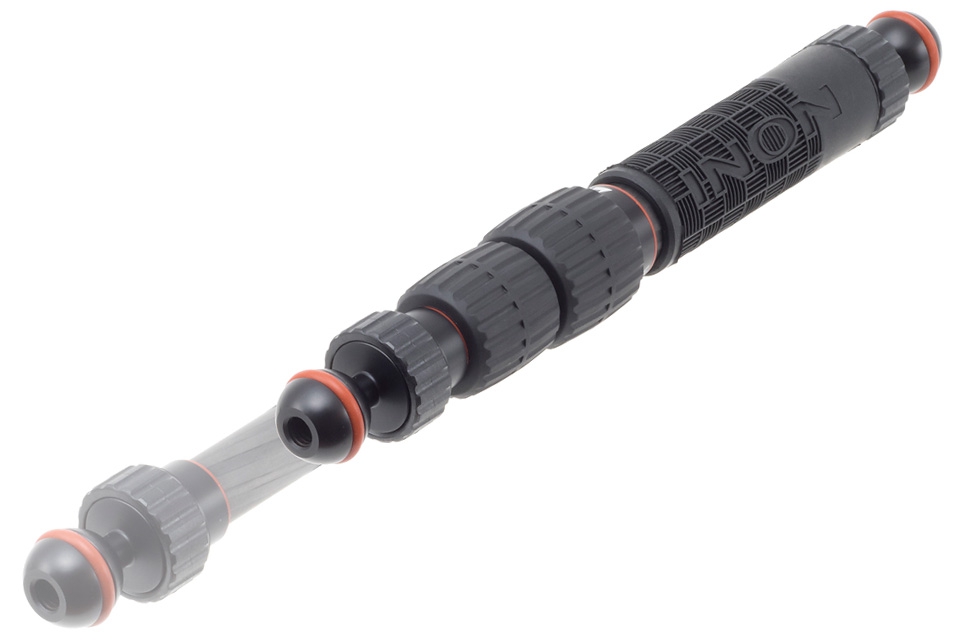

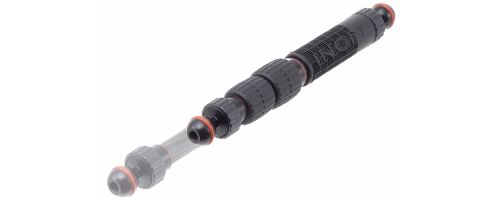

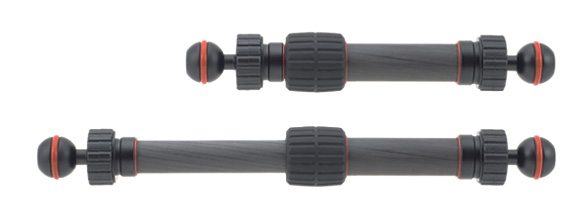

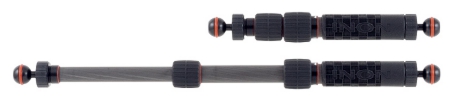

- Carbon Telescopic Arm SS/S/M/L
Camera mount compatible products
- UW 3-Way Panhead
- Quick Shoe Ball Head UWTP-QB1
- Ball Head UWTP-B1
- M6 Ball Head UWTP-M6B1
- Single Light Holder LE for Tripod
- Single Light Holder LF for Tripod
- Tripod Adapter
- Mount Adapter for ZD/SD Front Mask
- GP 1/4-20UNC Adapter II
- BALL 1/4-20UNC Adapter
- An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).
| Weight [air] | 284 g/10.0 oz |
| Weight [underwater] | approx.181 g/6.4 oz |
The built-in stopper prevents the legs from accidentally opening. The leg spread angle can be adjusted to three positions: “Standard,” “Medium,” and “Low.” The friction when switching angles can be adjusted by tightening the bolts that secure the hub body to the leg joints.
Features a split-structure elevator mechanism. By removing the lower elevator section in low-position mode, the camera can be set closer to the ground. The included “lower elevator” can also be connected to an optional “lower elevator” (sold separately).
Each lower elevator section adds 145 mm / 5.7 inch to the total height. Mounting the elevator upside down enables low-angle shooting or positioning the camera directly beneath the tripod.
Includes a switchable rubber/spike “2-Way Ferrule.” Simply screw it onto the arm ball. Rotating the rubber reveals the spike, allowing different setups depending on the shooting environment.

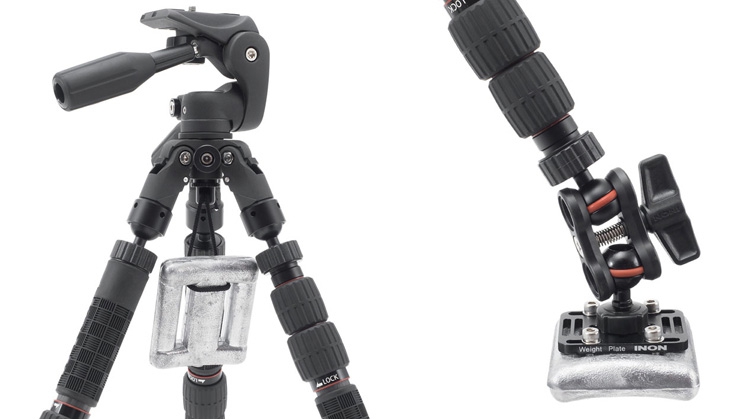

To enhance tripod stability, you can hang a weight from the strap hole or attach an INON “Weight Plate” to the arm ball of a tripod leg.
Various head units can be attached to the top to meet your shooting needs.
Arm usable as a tripod leg
- Stick Arm XS-T/SS-T/S-T/M-T
- Carbon Telescopic Arm SS/S/M/L
Camera mount compatible products
- UW 3-Way Panhead
- Quick Shoe Ball Head UWTP-QB1
- Ball Head UWTP-B1
- M6 Ball Head UWTP-M6B1
- Single Light Holder LE for Tripod
- Single Light Holder LF for Tripod
- Tripod Adapter
- Mount Adapter for ZD/SD Front Mask
- GP 1/4-20UNC Adapter II
- BALL 1/4-20UNC Adapter
- An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).
| Weight [air] | 284 g/10.0 oz |
| Weight [underwater] | approx.181 g/6.4 oz |
| Combined Arms | Maximum Operating Height  |
Maximum Operating Height with Elevator Down  |
Minimum Operating Height  |
Folded Length |
||||
| UW Tripod Hub |
UW Tripod Hub + UW 3-Way Panhead |
UW Tripod Hub |
UW Tripod Hub + UW 3-Way Panhead |
UW Tripod Hub |
UW Tripod Hub + UW 3-Way Panhead |
UW Tripod Hub |
UW Tripod Hub + UW 3-Way Panhead |
|
| Stick Arm XS-T | 320mm 1.1ft |
405mm 1.1ft |
175mm 7in (*) |
260mm 10in (*) |
55mm 2in |
140mm 6in |
190mm 7in |
275mm 11in |
| Stick Arm SS-T | 360mm 1.2ft |
445mm 1.5ft |
220mm 9ft |
305mm 1ft |
65mm 3in |
150mm 6in |
235mm 9in |
320mm 1.1ft |
| Stick Arm S-T | 390mm 1.3ft |
475mm 1.6ft |
245mm 10in |
330mm 1.1ft |
70mm 3in |
155mm 6in |
265mm 10in |
350mm 1.1ft |
| Stick Arm M-T | 435mm 1.4ft |
520mm 1.7ft |
290mm 11in |
375mm 1.2ft |
80mm 3in |
165mm 6in |
320mm 1.1ft |
405mm 1.3ft |
| Carbon Telescopic Arm SS | 500mm 1.6ft |
585mm 1.9ft |
355mm 1.2ft |
440mm 1.4ft |
75mm 3in |
160mm 6in |
310mm 1.1ft |
395mm 1.3ft |
| Carbon Telescopic Arm S | 700mm 2.3ft |
785mm 2.6ft |
555mm 1.8ft |
640mm 2.1ft |
85mm 3in |
170mm 7in |
380mm 1.3ft |
465mm 1.5ft |
| Carbon Telescopic Arm M | 945mm 3.1ft |
1,030mm 3.4ft |
800mm 2.6ft |
885mm 2.9ft |
100mm 4in |
185mm 7in |
470mm 1.5ft |
555mm 1.8ft |
| Carbon Telescopic Arm L | 1,185mm 3.9ft |
1,270mm 4.2ft |
1,040mm 3.4ft |
1,125mm 3.7ft |
115mm 5in |
200mm 8in |
560mm 1.8ft |
645mm 2.1ft |
Maximum Operating Height : The height to camera plate with tripod legs fully extended (when using Carbon Telescopic Arms), opening angle set to "High" and elevator raised to its highest position.
Maximum Operating Height with Elevator Down : The height to camera plate with same conditions above except position of the elevator which is set to its lowest position.
Minimum Operating Height : The height to camera plate with opening angle set to "Low".
Folded Length : Overall length when all tripod legs collapsed for transporting or storage.
(*)Without Lower Elevator being attached as it will conflict with the ground.
Option for UW Tripod Hub
Tripod Head Unit

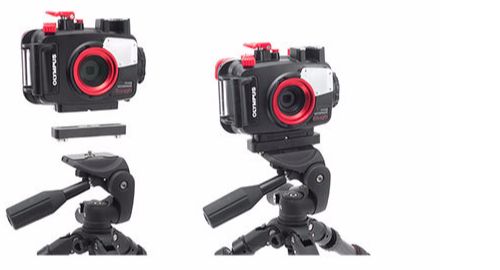

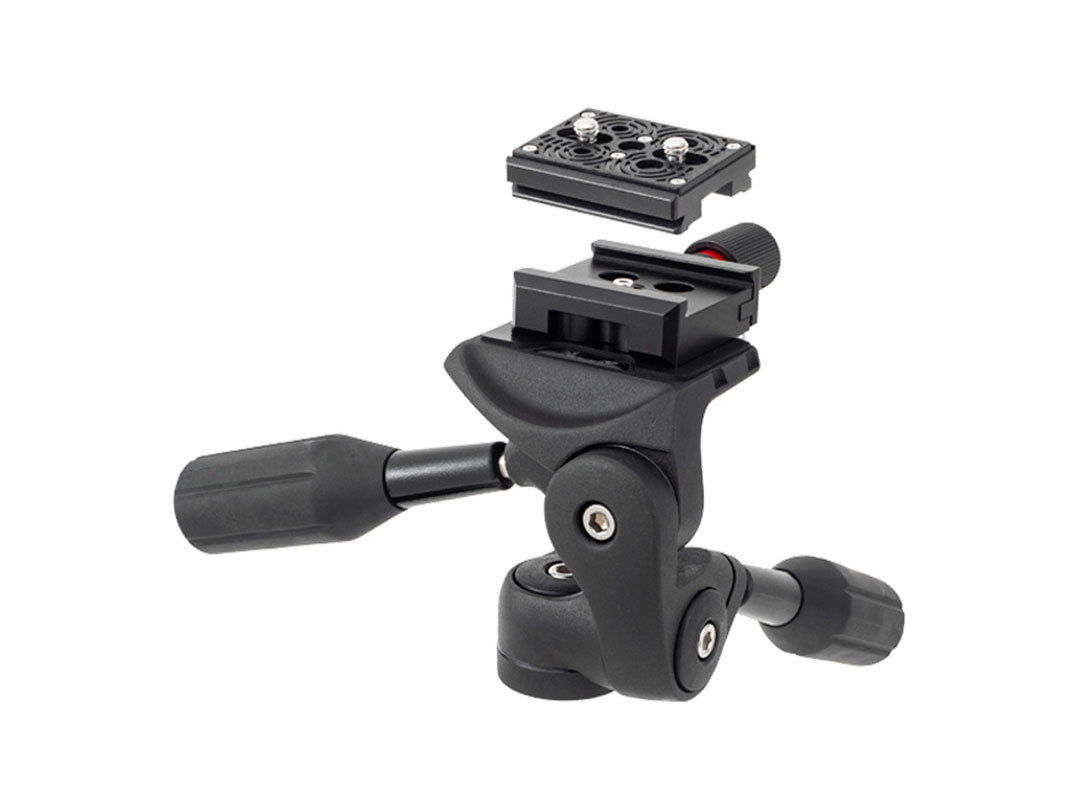

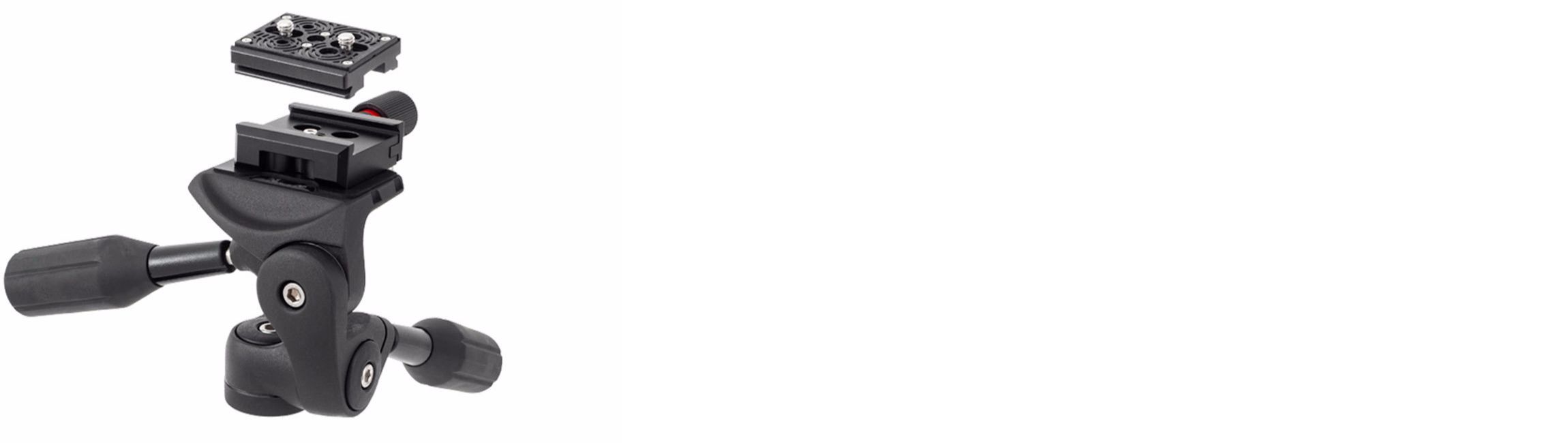

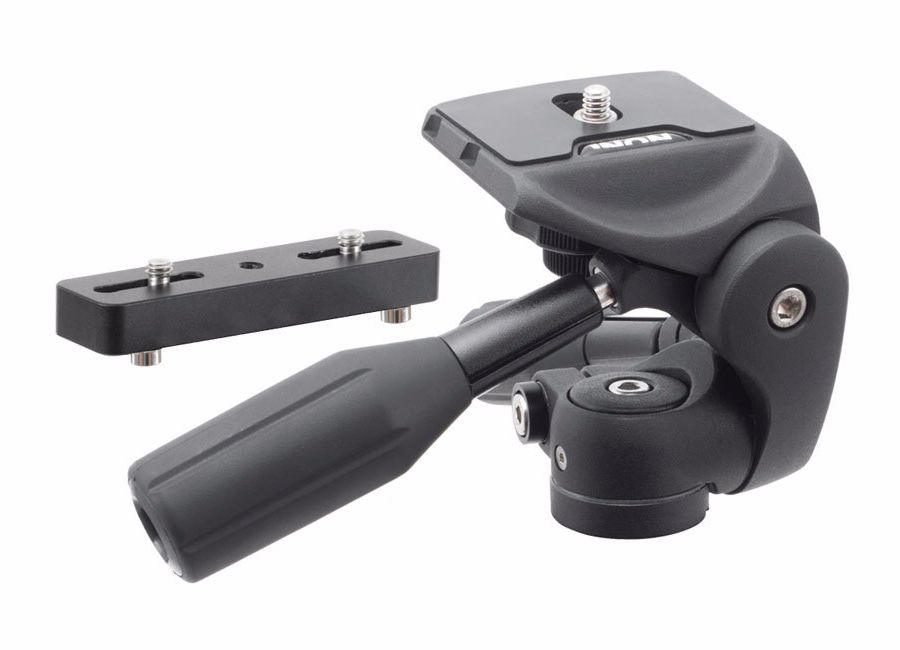

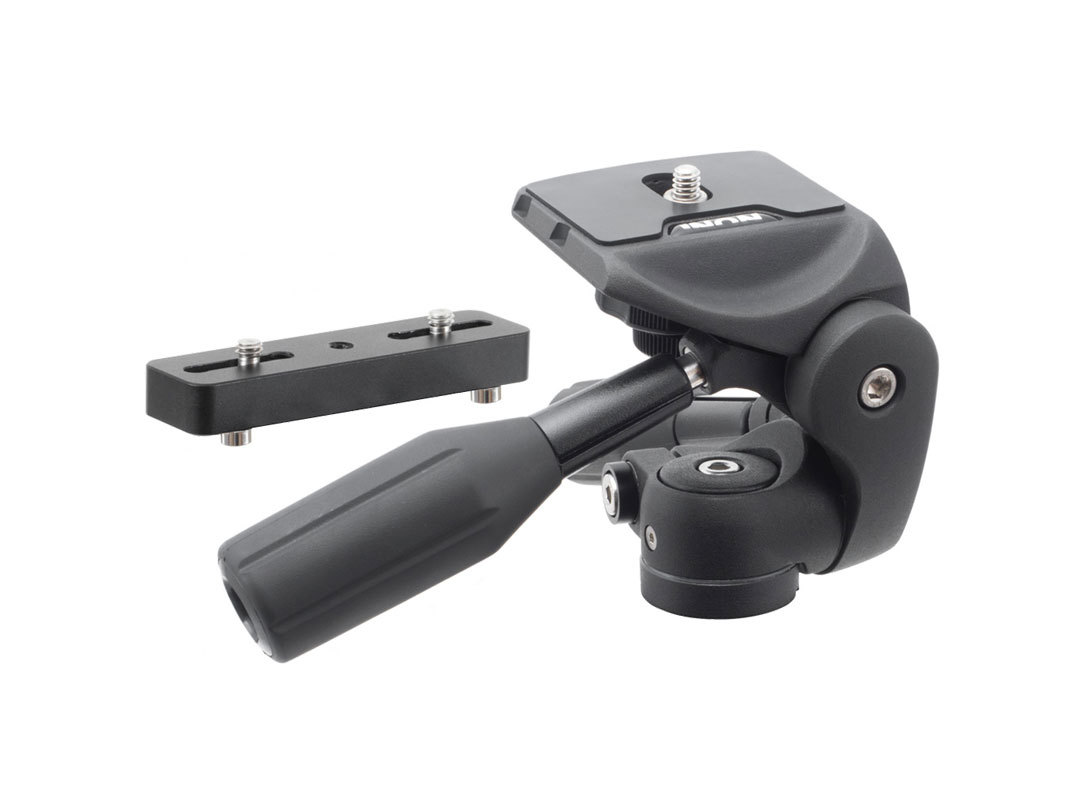

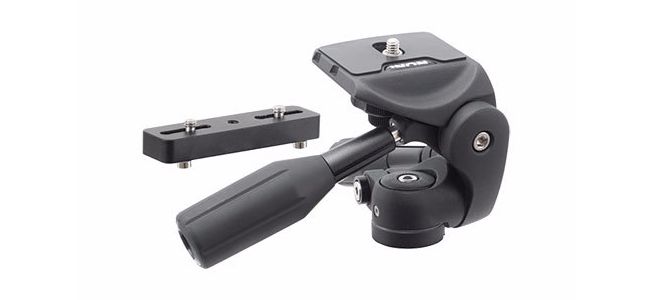

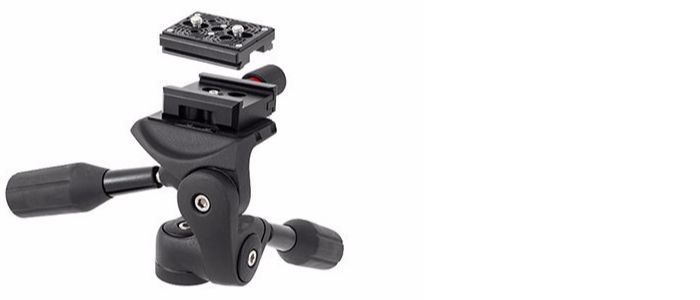

UW 3-Way Panhead
JAN/EAN code : 4562121438699
A tripod head unit designed for underwater use, equipped with two large handles that enable precise framing adjustments.
Camera mount : 1/4-20 UNC thread
Base : 1/4-20 UNC threaded hole

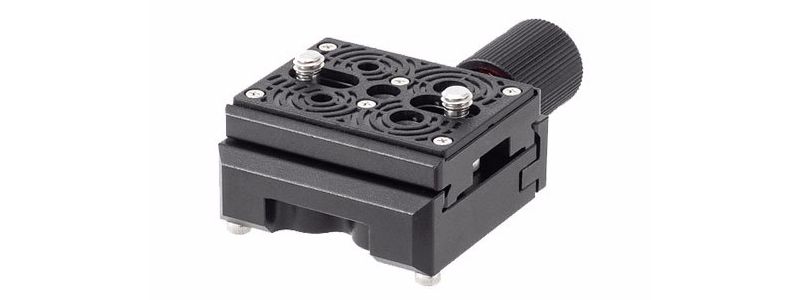

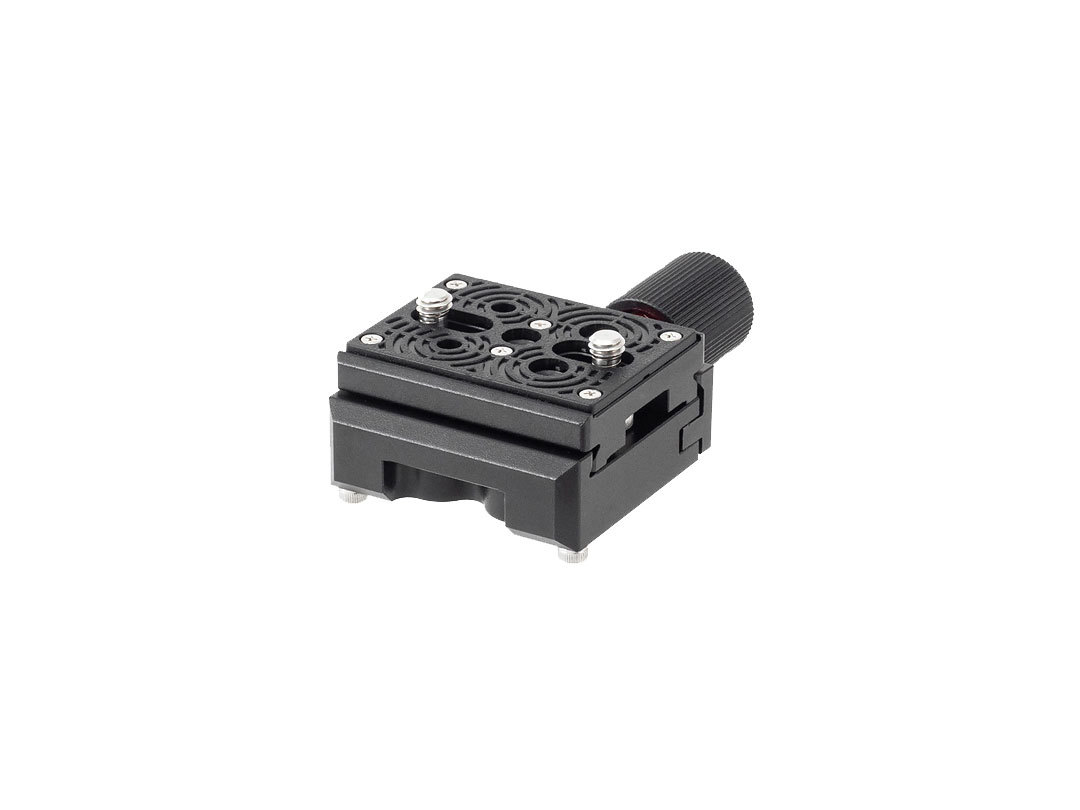

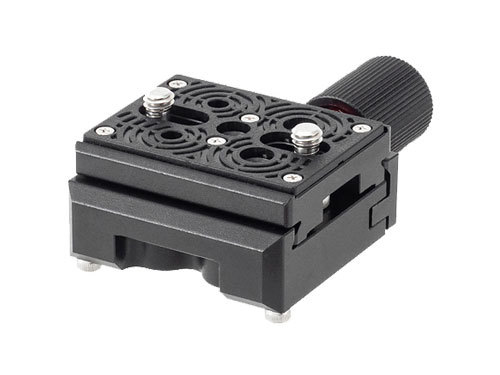

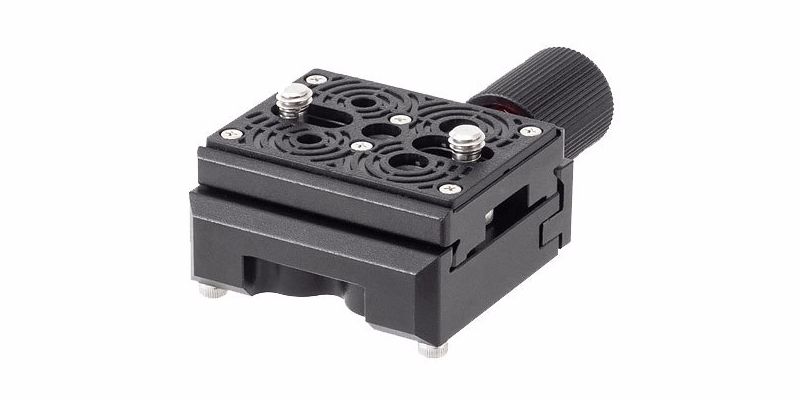

The Quick Shoe W50 Set can be used as an optional accessory. The Arca-Swiss–type quick shoe allows secure mounting and quick release. (*2)
(*1) Compatible with tripod screw holes (1/4 inch) with 33 to 80 mm/1.3 to 3.1 inch center-to-center distance on the bottom of the housing.
(*2) Compatible with tripod screw holes (1/4 inch) with center-to-center distance of 20 to 36 mm/0.8 to 1.4 inch on the bottom of the housing. For a housing with wider tripod screw hole spacing, a combination of the "Quick Shoe W95 Plate" and "Quick Shoe W50 Clamp" is available.
Compatible tripod
- Compact Tripod UWTP-C1
- UW Tripod Hub
Camera mount-compatible products
- Quick Shoe W50 Set
- Quick Shoe W27 Set
- GP 1/4-20UNC Adapter II
- BALL 1/4-20UNC Adapter
- Mount Adapter for ZD/SD Front Mask
- Single Light Holder LE for Tripod
- Single Light Holder LF for Tripod
- Tripod Adapter
- An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).
| Weight [air] | 476 g/16.8 oz |
| Weight [underwater] | approx.250 g/8.8 oz |
Camera mount : 1/4-20 UNC thread
Base : 1/4-20 UNC threaded hole

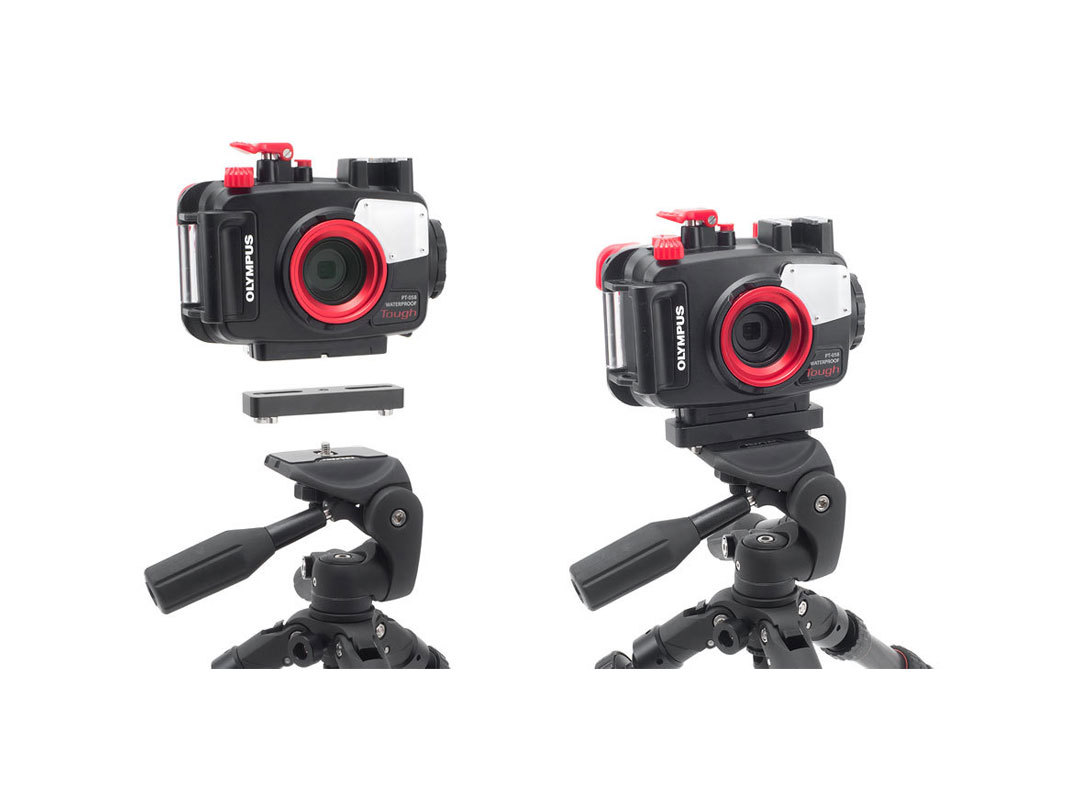

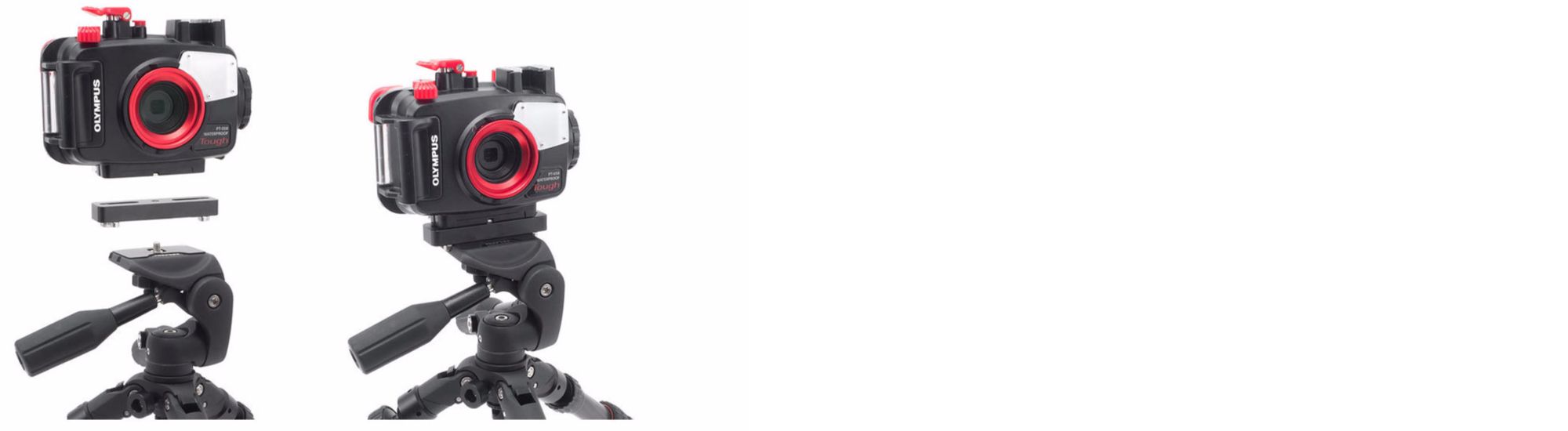

The supplied “Panhead Adapter Base” allows you to securely fasten the camera housing with two screws, eliminating wobble or loosening. (※1)
The Quick Shoe W50 Set can be used as an optional accessory. The Arca-Swiss–type quick shoe allows secure mounting and quick release. (*2)
(*1) Compatible with tripod screw holes (1/4 inch) with 33 to 80 mm/1.3 to 3.1 inch center-to-center distance on the bottom of the housing.
(*2) Compatible with tripod screw holes (1/4 inch) with center-to-center distance of 20 to 36 mm/0.8 to 1.4 inch on the bottom of the housing. For a housing with wider tripod screw hole spacing, a combination of the "Quick Shoe W95 Plate" and "Quick Shoe W50 Clamp" is available.
Compatible tripod
- Compact Tripod UWTP-C1
- UW Tripod Hub
Camera mount-compatible products
- Quick Shoe W50 Set
- Quick Shoe W27 Set
- GP 1/4-20UNC Adapter II
- BALL 1/4-20UNC Adapter
- Mount Adapter for ZD/SD Front Mask
- Single Light Holder LE for Tripod
- Single Light Holder LF for Tripod
- Tripod Adapter
- An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).
| Weight [air] | 476 g/16.8 oz |
| Weight [underwater] | approx.250 g/8.8 oz |

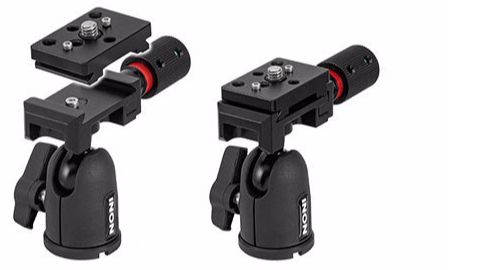

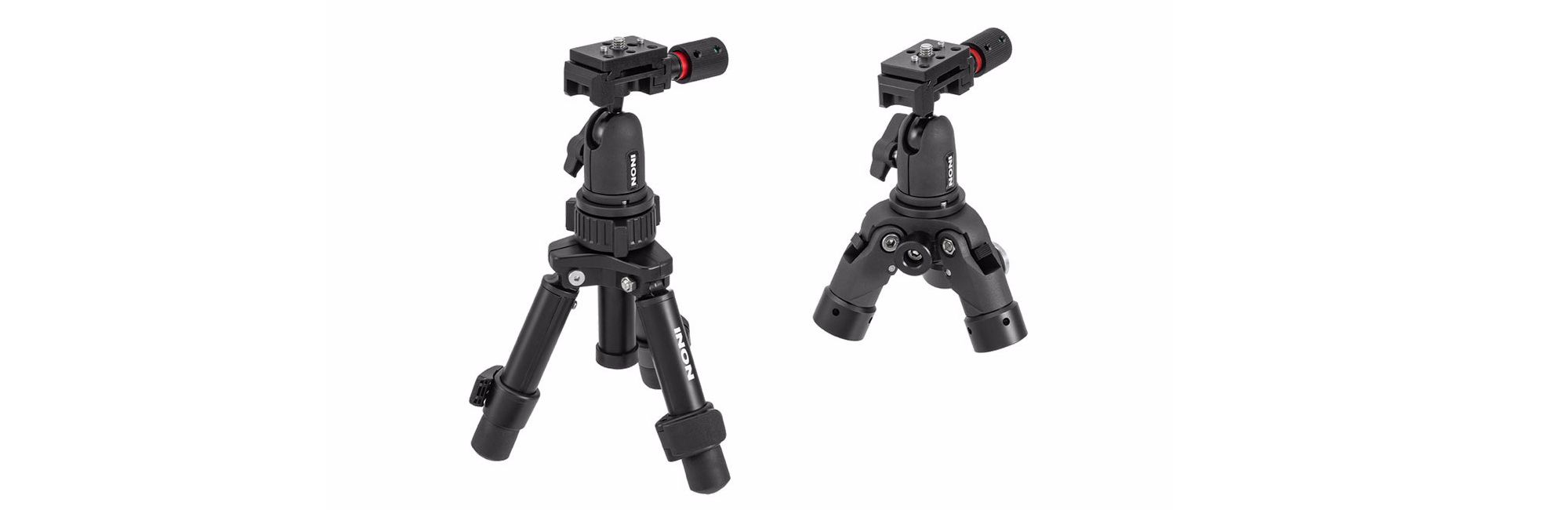

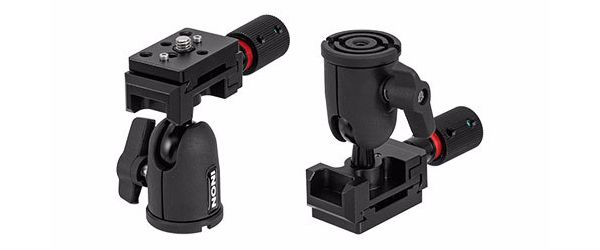

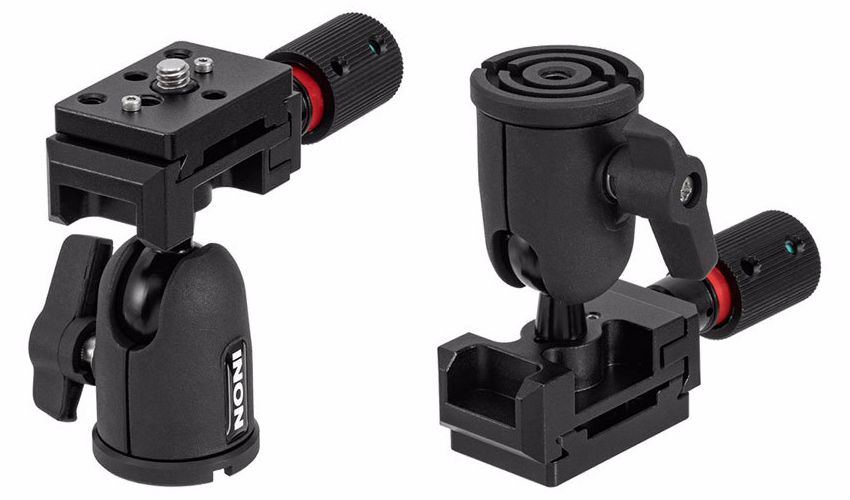

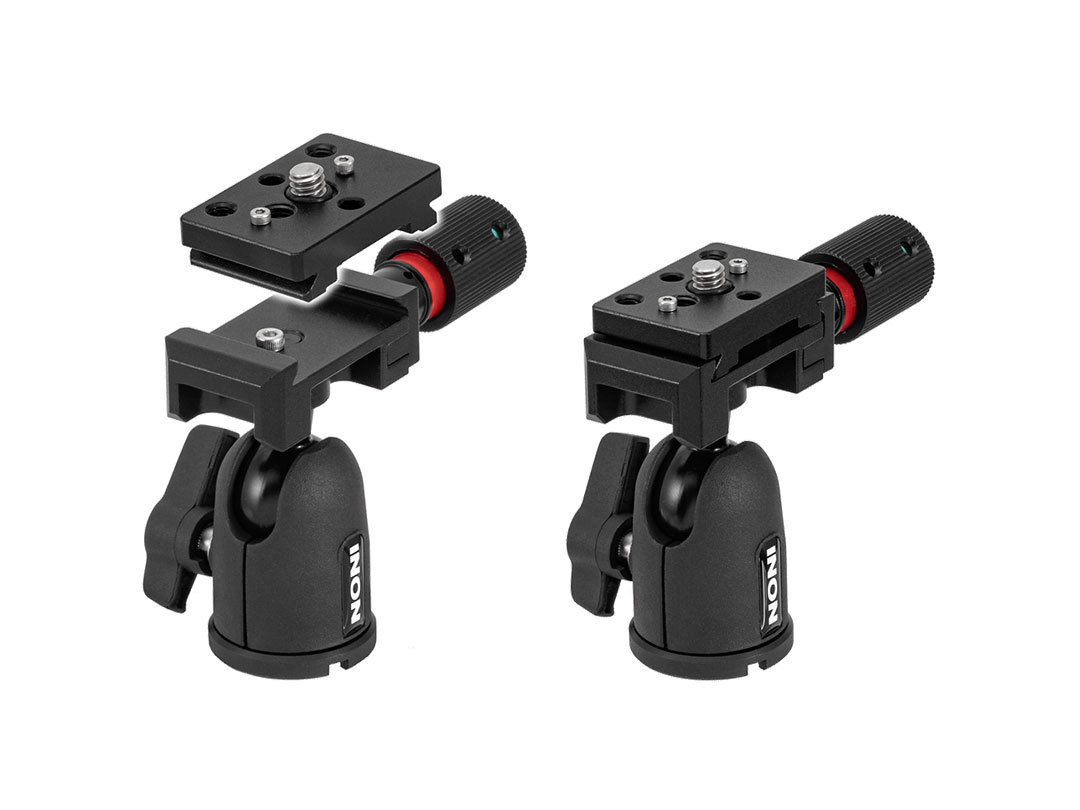

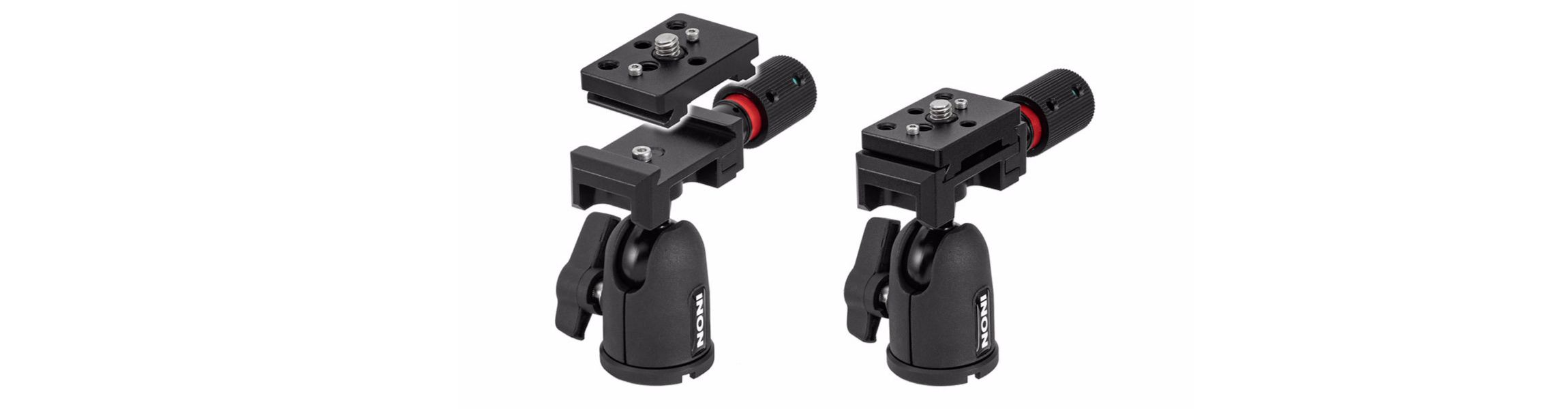

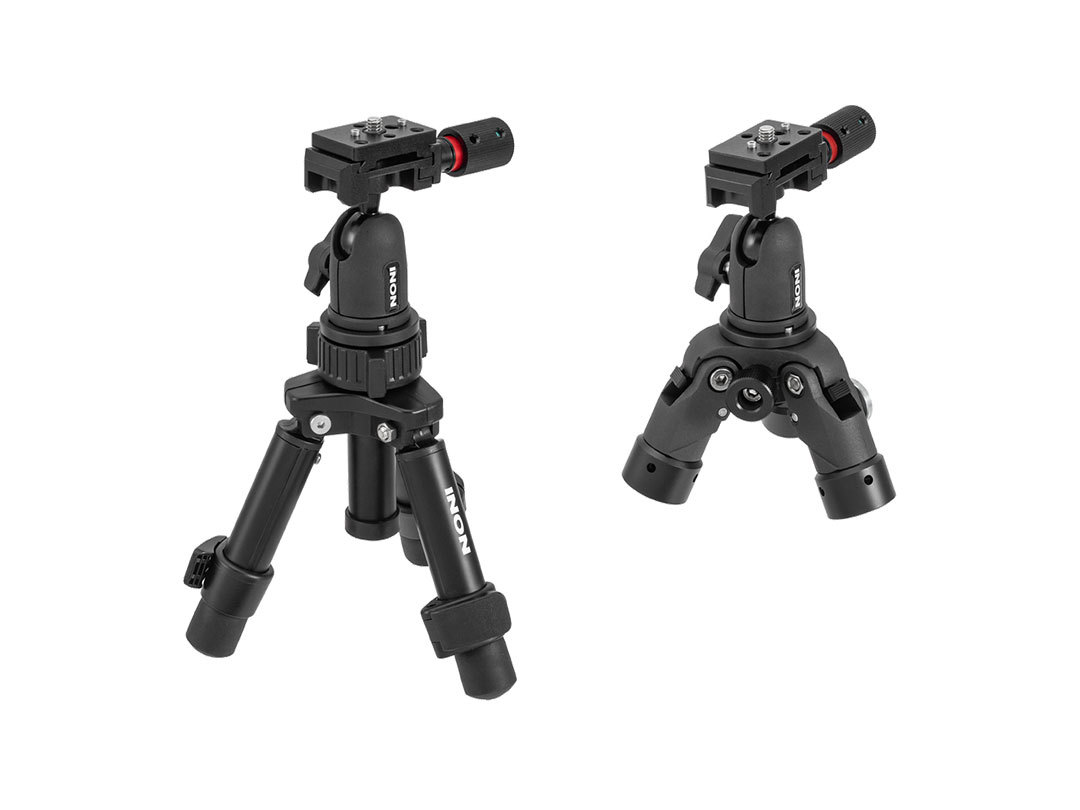

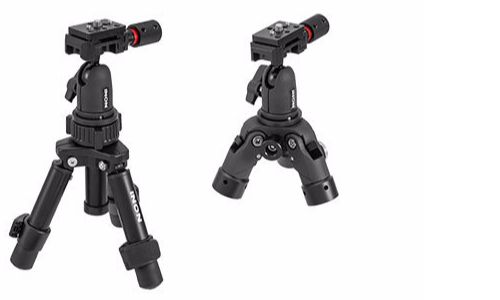

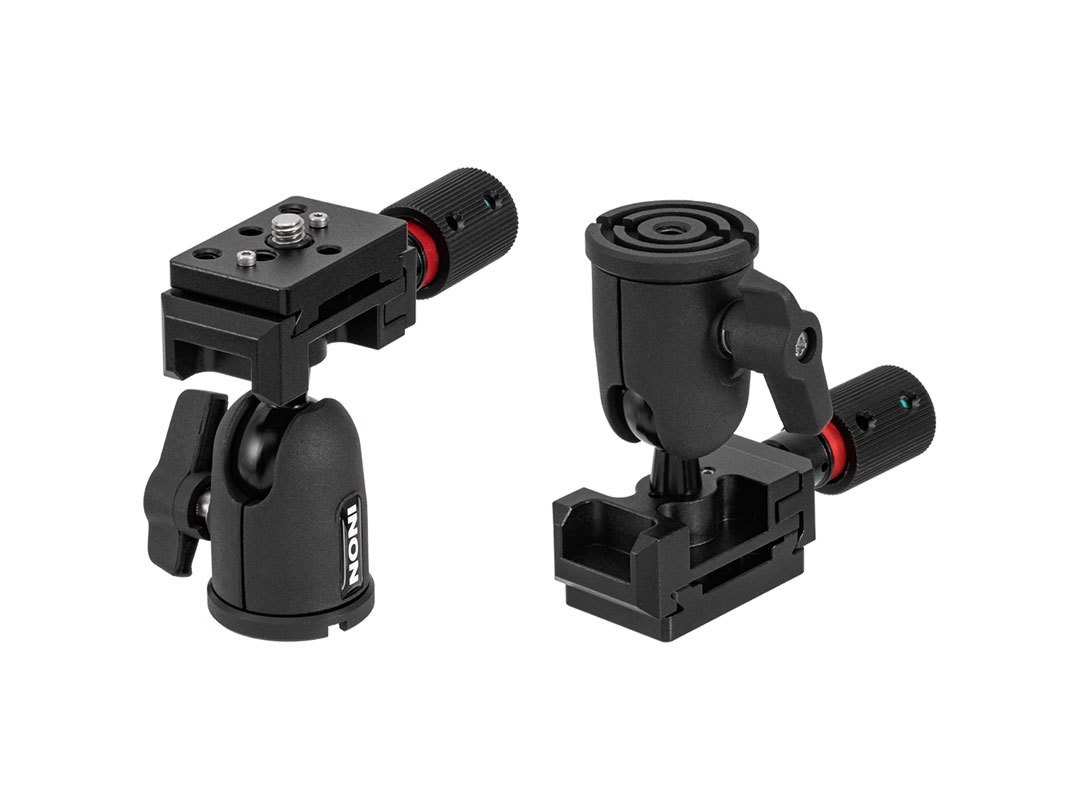

Quick Shoe Ball Head UWTP-QB1
JAN/EAN code : 4570018121111
This underwater ball head features a 1/4-20 UNC screw mount and Arca-Swiss compatibility. Its key feature is a robust holding force, thanks to its large ball, which enables secure, wobble-free mounting even for large housing set with strobe and arms. The camera mount can rotate 360° horizontally and 180° vertically. Use the lock lever on the side for quick, intuitive adjustments of the camera mount.
Camera mount : 1/4-20 UNC thread
Base : 1/4-20 UNC threaded hole
The Arca-Swiss system securely locks even heavy camera setups without wobble, while also allowing quick attachment and removal.

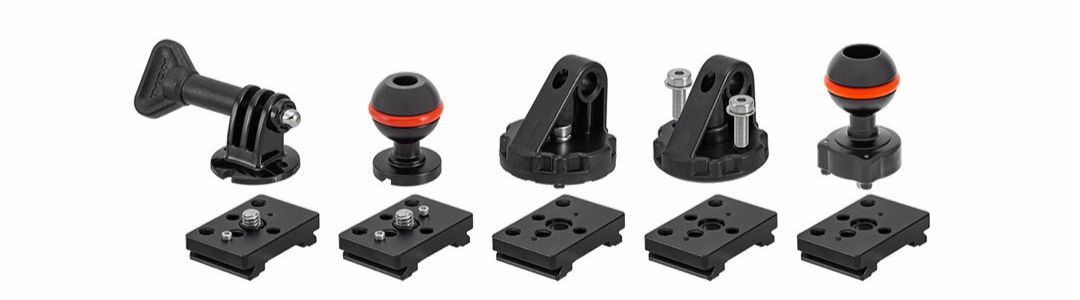

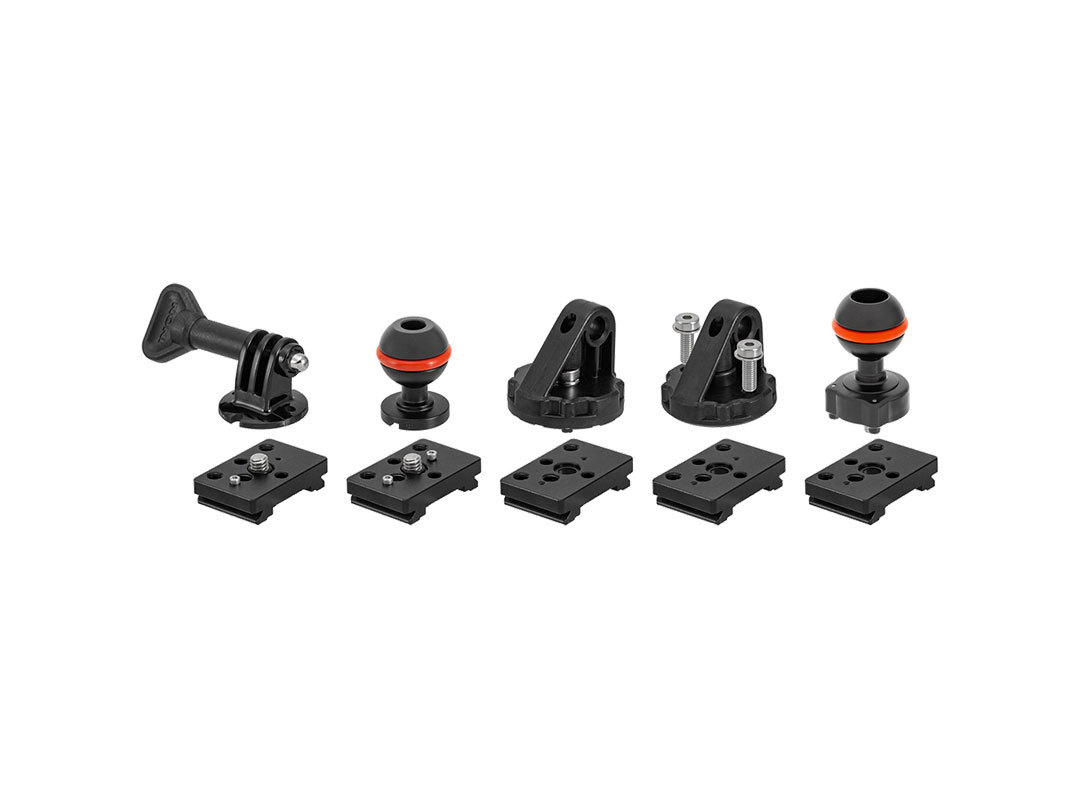

The included Quick Shoe W27 1/4-20 UNC Plate securely holds accessories. Removable 1/4-20 UNC screw and anti-rotation pins effectively prevent wobbling and loosening, helping to avoid accidental detachment due to unintended contact.
Can be attached to the “Compact Tripod UWTP-C1” and the “Underwater Tripod Hub.”
Compatible tripod
- Compact Tripod UWTP-C1
- UW Tripod Hub

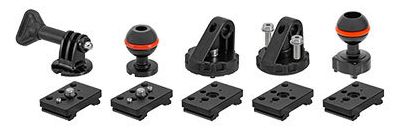

“Quick Shoe W27 1/4-20UNC Plate” compatible products
- GP 1/4-20UNC Adapter II
- BALL 1/4-20UNC Adapter
- Direct BaseIII(*)
- Direct Base YS II
- Direct Base YS RT
- Mount Adapter for ZD/SD Front Mask
- Single Light Holder LE for Tripod
- Single Light Holder LF for Tripod
- Tripod Adapter
- An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).
(*) Optional “M6 spacer (6mm / 0.2 inch length)” required for installation.
| Weight [air] | 169 g/6.0 oz |
| Weight [underwater] | approx.112 g/3.9 oz |
Camera mount : 1/4-20 UNC thread
Base : 1/4-20 UNC threaded hole
The Arca-Swiss system securely locks even heavy camera setups without wobble, while also allowing quick attachment and removal.
The included Quick Shoe W27 1/4-20 UNC Plate securely holds accessories. Removable 1/4-20 UNC screw and anti-rotation pins effectively prevent wobbling and loosening, helping to avoid accidental detachment due to unintended contact.
Can be attached to the “Compact Tripod UWTP-C1” and the “Underwater Tripod Hub.”
Compatible tripod
- Compact Tripod UWTP-C1
- UW Tripod Hub
“Quick Shoe W27 1/4-20UNC Plate” compatible products
- GP 1/4-20UNC Adapter II
- BALL 1/4-20UNC Adapter
- Direct BaseIII(*)
- Direct Base YS II
- Direct Base YS RT
- Mount Adapter for ZD/SD Front Mask
- Single Light Holder LE for Tripod
- Single Light Holder LF for Tripod
- Tripod Adapter
- An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).
(*) Optional “M6 spacer (6mm / 0.2 inch length)” required for installation.
| Weight [air] | 169 g/6.0 oz |
| Weight [underwater] | approx.112 g/3.9 oz |
Quick Shoe Ballhead UWTP-QB1 Accessories (Spare Parts)

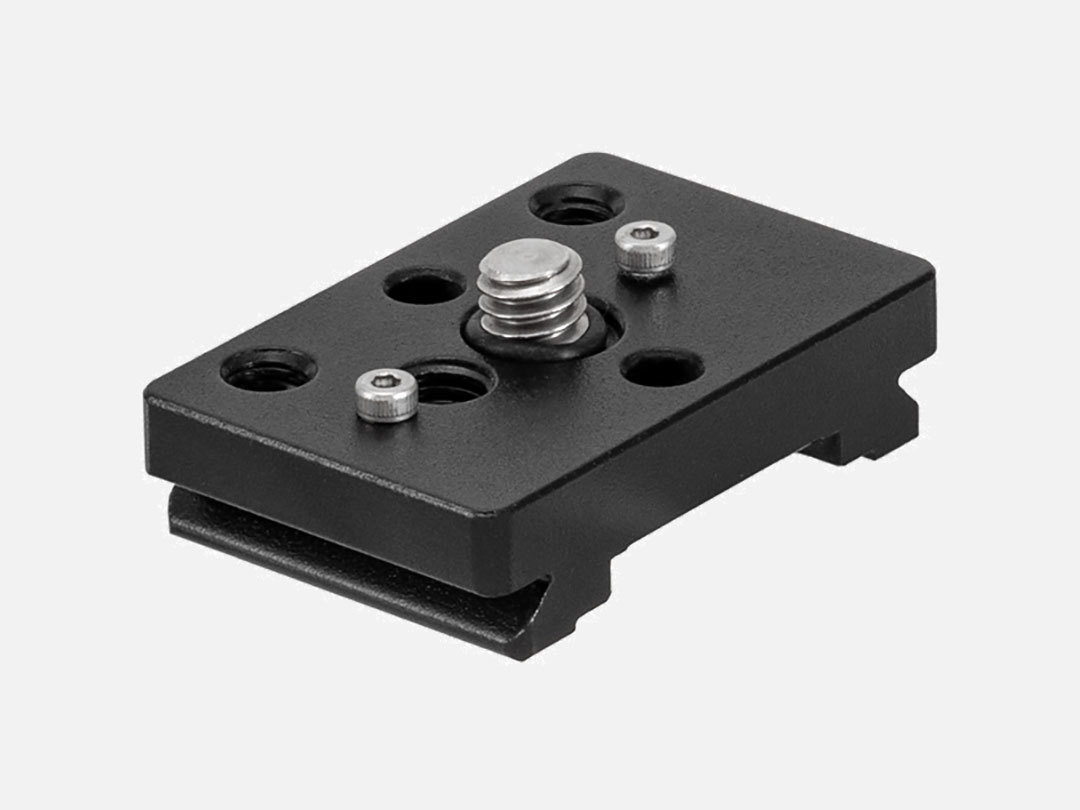

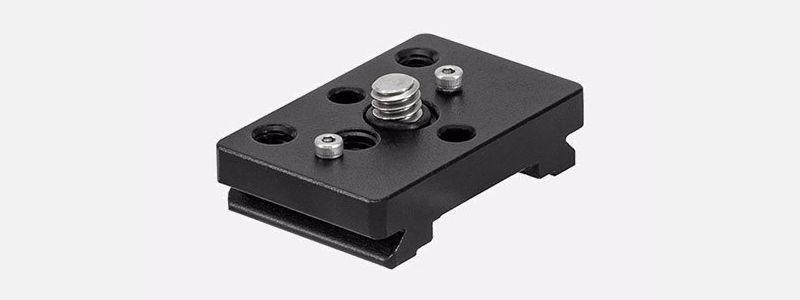

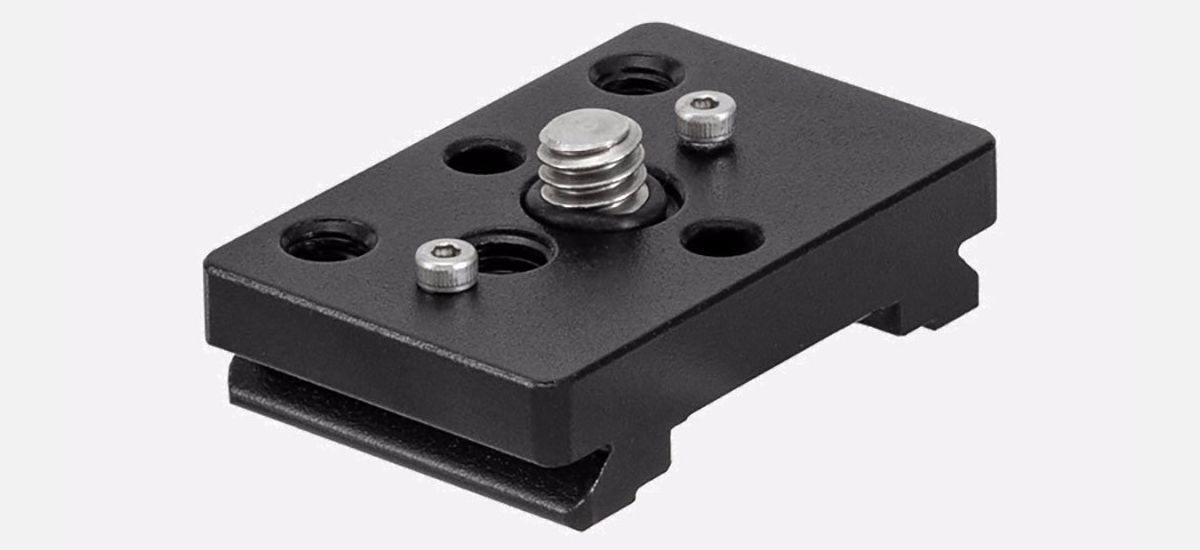

Quick Shoe W27 Plate UWTP-QB1
JAN/EAN code : 4570018121173
Accessories for the Quick Shoe Ballhead UWTP-QB1. Includes a quick-release plate approximately 27 mm / 1.1 in wide, featuring a 1/4-20 UNC screw in the center.
| Weight [air] | 25 g/0.9 oz |
| Weight [underwater] | approx.17 g/0.6 oz |
Accessories for the Quick Shoe Ballhead UWTP-QB1. Includes a quick-release plate approximately 27 mm / 1.1 in wide, featuring a 1/4-20 UNC screw in the center.
| Weight [air] | 25 g/0.9 oz |
| Weight [underwater] | approx.17 g/0.6 oz |

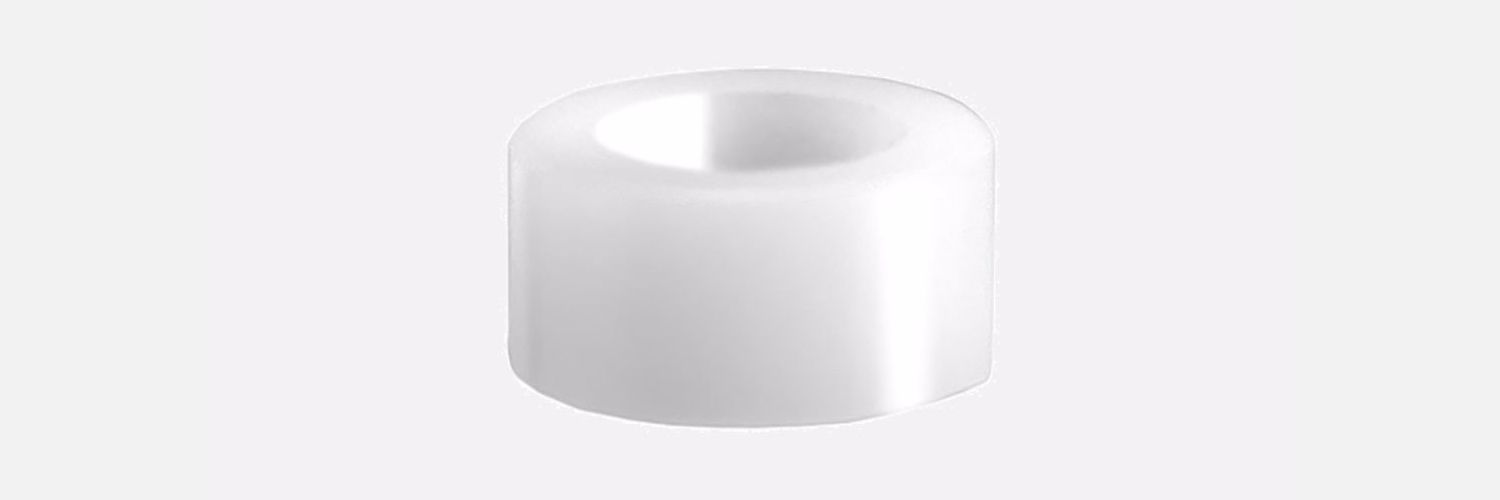

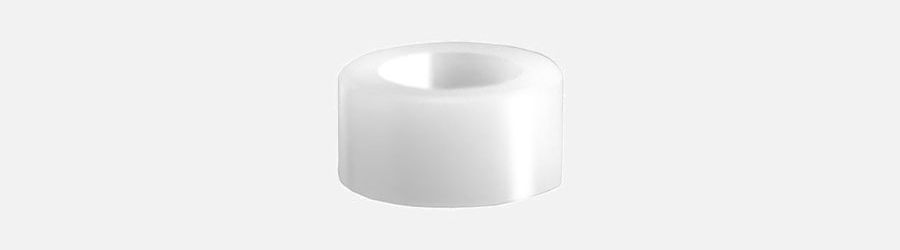

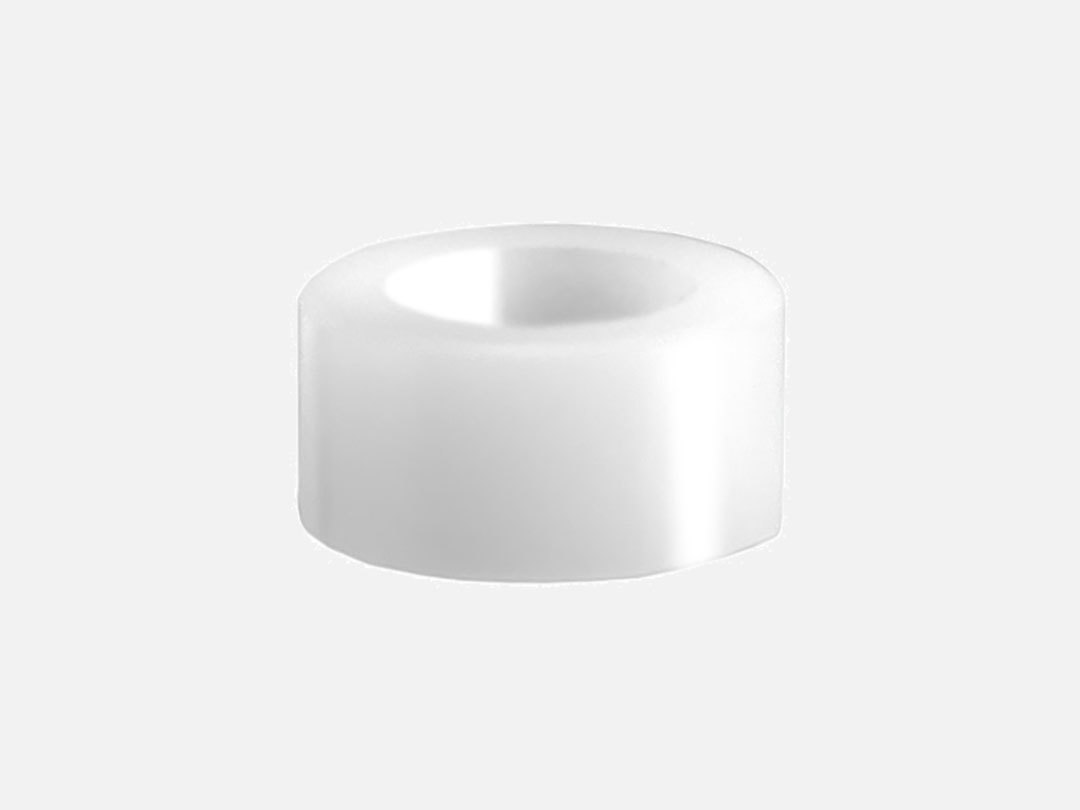

M6 Spacer (6mm)

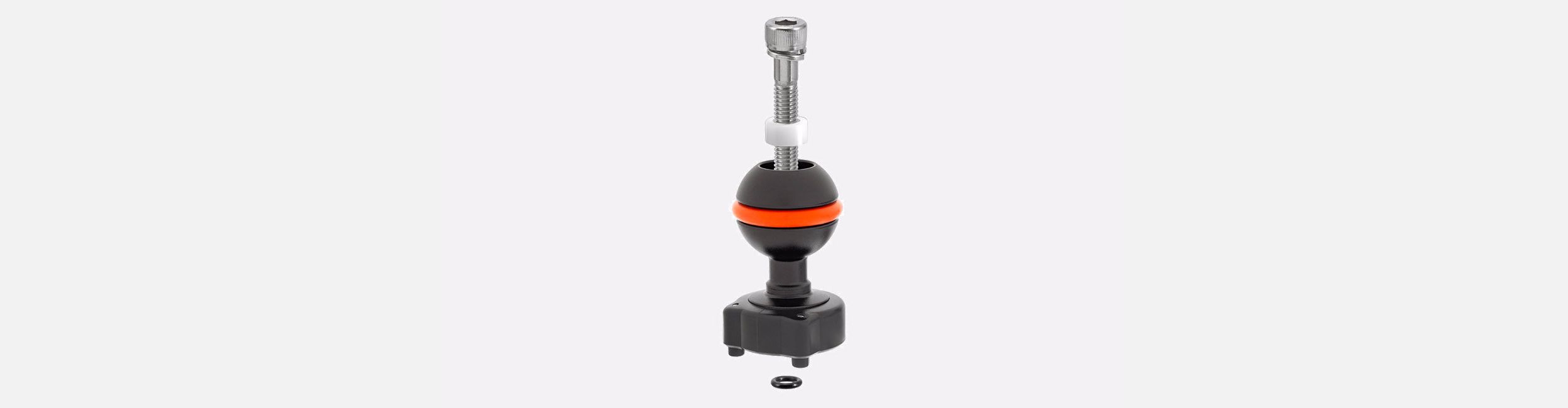

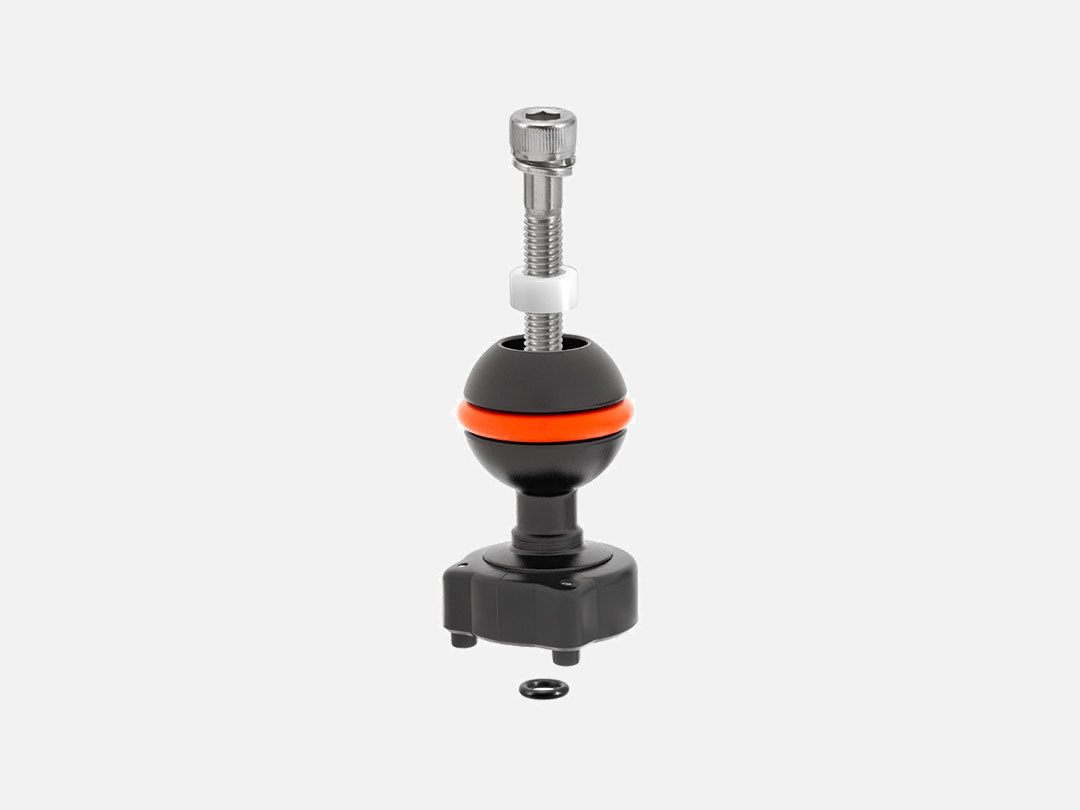

A spacer required when attaching the “Direct Base III” to the “Quick Shoe Ballhead UWTP-QB1.” It attaches to the M6 screw of the “Direct Base III.”

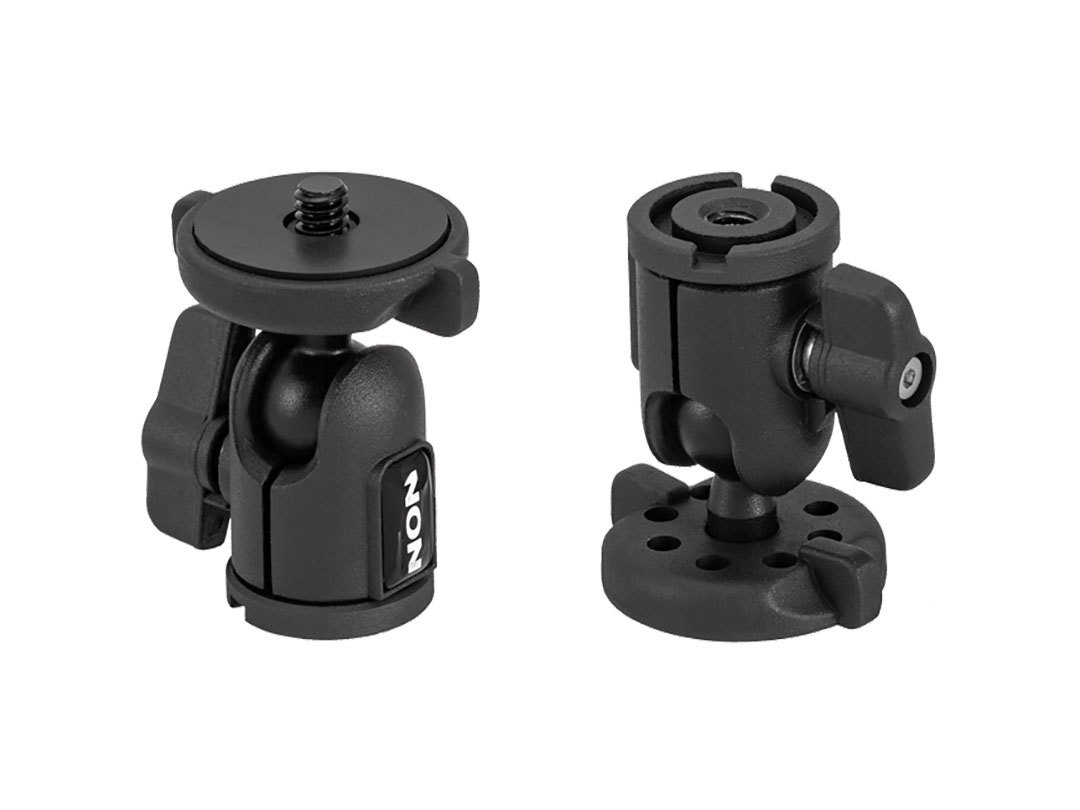

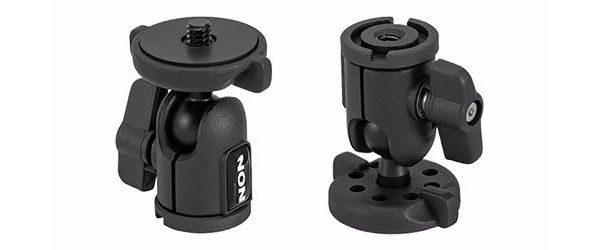

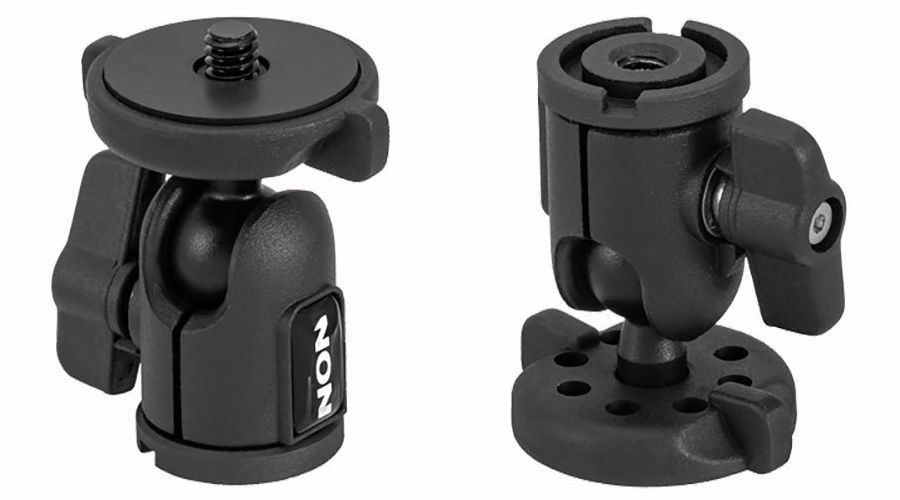

Ball Head UWTP-B1
JAN/EAN code : 4570018121128
A compact, affordable ball head featuring a versatile 1/4-20 UNC screw for attachment to various tripod units. The upper part can rotate 360° horizontally and 180° vertically. Use the lock lever on the side for quick, intuitive adjustments of the combined unit.
Camera mount : 1/4-20 UNC thread
Base : 1/4-20 UNC threaded hole
Compatible tripod
- Compact Tripod UWTP-C1
- UW Tripod Hub
Camera mount-compatible products
- GP 1/4-20UNC Adapter II
- BALL 1/4-20UNC Adapter
- Mount Adapter for ZD/SD Front Mask
- Single Light Holder LE for Tripod
- Single Light Holder LF for Tripod
- Tripod Adapter
- An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).(*)
(*) Recommended total weight: up to 1 kg / 2.2 lb
| Weight [air] | 46 g/1.6 oz |
| Weight [underwater] | approx.29 g/1.0 oz |
A compact, affordable ball head featuring a versatile 1/4-20 UNC screw for attachment to various tripod units. The upper part can rotate 360° horizontally and 180° vertically. Use the lock lever on the side for quick, intuitive adjustments of the combined unit.
Camera mount : 1/4-20 UNC thread
Base : 1/4-20 UNC threaded hole
Compatible tripod
- Compact Tripod UWTP-C1
- UW Tripod Hub
Camera mount-compatible products
- GP 1/4-20UNC Adapter II
- BALL 1/4-20UNC Adapter
- Mount Adapter for ZD/SD Front Mask
- Single Light Holder LE for Tripod
- Single Light Holder LF for Tripod
- Tripod Adapter
- An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).(*)
(*) Recommended total weight: up to 1 kg / 2.2 lb
| Weight [air] | 46 g/1.6 oz |
| Weight [underwater] | approx.29 g/1.0 oz |
M6 Ball Head UWTP-M6B1
JAN/EAN code : 4570018121135
A compact, affordable ball head with an M6 screw on top, allowing direct attachment of INON strobes and action camera accessories such as the SD Front Mask and ZD Front Mask. The upper part can rotate 360° horizontally and 180° vertically. Use the lock lever on the side for quick and intuitive adjustments of the combined unit.
Camera mount : M6 thread
Base : 1/4-20 UNC threaded hole
Compatible tripod
- Compact Tripod UWTP-C1
- UW Tripod Hub
Compatible products
- INON strobe (excl. Z-22)
- SD Mount Cage for HERO3/3+/4 (*)
- ZD / SD Front Mask
(*) When installing the “SD Mount Cage for HERO3/3+/4,” a “rubber spacer” is required. Please ask your retailer for the rubber spacer.
| Weight [air] | 37 g/1.3 oz |
| Weight [underwater] | approx.25 g/0.9 oz |
A compact, affordable ball head with an M6 screw on top, allowing direct attachment of INON strobes and action camera accessories such as the SD Front Mask and ZD Front Mask. The upper part can rotate 360° horizontally and 180° vertically. Use the lock lever on the side for quick and intuitive adjustments of the combined unit.
Camera mount : M6 thread
Base : 1/4-20 UNC threaded hole
Compatible tripod
- Compact Tripod UWTP-C1
- UW Tripod Hub
Compatible products
- INON strobe (excl. Z-22)
- SD Mount Cage for HERO3/3+/4 (*)
- ZD / SD Front Mask
(*) When installing the “SD Mount Cage for HERO3/3+/4,” a “rubber spacer” is required. Please ask your retailer for the rubber spacer.
| Weight [air] | 37 g/1.3 oz |
| Weight [underwater] | approx.25 g/0.9 oz |
Options
GP 1/4-20UNC Adapter II
JAN/EAN code : 4570018121142
GP-standard action cameras can be mounted on tripod and head units.
Top : GP standard
Bottom : 1/4-20 UNC threaded hole
Compatible Products (Top: GP Standard)
- Action cameras with GP standard
- ZD/SD Front Mask (when using the included Male Adapter)
Compatible products (bottom)
- Compact Tripod UWTP-C1
- UW Tripod Hub
- Quick Shoe Ball Head UWTP-QB1
- Quick Shoe W27 Plate UWTP-QB1
- Ball Head UWTP-B1
| Weight [air] | 23 g/0.8 oz |
| Weight [underwater] | approx.13 g/0.4 oz |
GP-standard action cameras can be mounted on tripod and head units.
Top : GP standard
Bottom : 1/4-20 UNC threaded hole
Compatible Products (Top: GP Standard)
- Action cameras with GP standard
- ZD/SD Front Mask (when using the included Male Adapter)
Compatible products (bottom)
- Compact Tripod UWTP-C1
- UW Tripod Hub
- Quick Shoe Ball Head UWTP-QB1
- Quick Shoe W27 Plate UWTP-QB1
- Ball Head UWTP-B1
| Weight [air] | 23 g/0.8 oz |
| Weight [underwater] | approx.13 g/0.4 oz |
BALL 1/4-20UNC Adapter
JAN/EAN code : 4570018121159
Ball adapter that can be mounted on tripod or head units, allowing equipment expansion via clamp.
Top : Ball joint
Bottom : 1/4-20 UNC threaded hole
Compatible products (bottom)
- Compact Tripod UWTP-C1
- UW Tripod Hub
- Quick Shoe Ball Head UWTP-QB1
- Quick Shoe W27 Plate UWTP-QB1
- Ball Head UWTP-B1
| Weight [air] | 21 g/0.7 oz |
| Weight [underwater] | approx.12 g/0.4 oz |
Ball adapter that can be mounted on tripod or head units, allowing equipment expansion via clamp.
Top : Ball joint
Bottom : 1/4-20 UNC threaded hole
Compatible products (bottom)
- Compact Tripod UWTP-C1
- UW Tripod Hub
- Quick Shoe Ball Head UWTP-QB1
- Quick Shoe W27 Plate UWTP-QB1
- Ball Head UWTP-B1
| Weight [air] | 21 g/0.7 oz |
| Weight [underwater] | approx.12 g/0.4 oz |
Direct Base YS II
JAN/EAN code : 4570018121166
YS adapter compatible with the Compact Tripod UWTP-C1 and Quick Shoe Ballhead UWTP-QB1.
Top : YS mount
Bottom : 2 × M5 screws
No 1/4‑20 UNC threaded hole
Compatible products
- Compact Tripod UWTP-C1
- Quick Shoe Ball Head UWTP-QB1
- Quick Shoe W27 Plate UWTP-QB1
| Weight [air] | 24 g/0.8 oz |
| Weight [underwater] | approx.10 g/0.3 oz |
YS adapter compatible with the Compact Tripod UWTP-C1 and Quick Shoe Ballhead UWTP-QB1.
Top : YS mount
Bottom : 2 × M5 screws
No 1/4‑20 UNC threaded hole
Compatible products
- Compact Tripod UWTP-C1
- Quick Shoe Ball Head UWTP-QB1
- Quick Shoe W27 Plate UWTP-QB1
| Weight [air] | 24 g/0.8 oz |
| Weight [underwater] | approx.10 g/0.3 oz |
Quick Shoe W50 Set
JAN/EAN code : 4570018120176
Standard 50 mm wide quick shoe set, consisting of the Quick Shoe W50 Plate and Quick Shoe W50 Clamp.
| Dimensions (W x H x D) |
50.0 x 28.3 x 94.8 mm/ 1.9 x 1.1 x 3.7 in |
| Weight | [air] 146 g/5.1 oz [u/w] Approx.96 g/3.4 oz |
| Material/ surface finishing |
Corrosion resisting aluminum alloy/ rigid alumite etc. |
Standard 50 mm wide quick shoe set, consisting of the Quick Shoe W50 Plate and Quick Shoe W50 Clamp.
| Dimensions (W x H x D) |
50.0 x 28.3 x 94.8 mm/ 1.9 x 1.1 x 3.7 in |
| Weight | [air] 146 g/5.1 oz [u/w] Approx.96 g/3.4 oz |
| Material/ surface finishing |
Corrosion resisting aluminum alloy/ rigid alumite etc. |

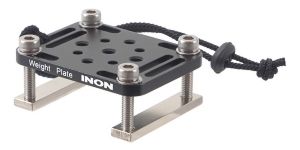

Weight Plate
To improve tripod stability, weights can be hung from the provided strap hole, attached to the legs using INON “Weight Plate”.
Click for detail
To improve tripod stability, weights can be hung from the provided strap hole, attached to the legs using INON “Weight Plate”.
Click for detail
Carbon Telescopic Arm
A telescopic arm featuring two or three sliding sections, enabling adjustable length.
A telescopic arm featuring two or three sliding sections, enabling adjustable length.
Tripod Adapter
JAN/EAN code : 4562121436299
An adapter for attaching an INON strobe or LED light to a tripod equipped with a 1/4‑inch screw.
Click for detail
An adapter for attaching an INON strobe or LED light to a tripod equipped with a 1/4‑inch screw.
Click for detail

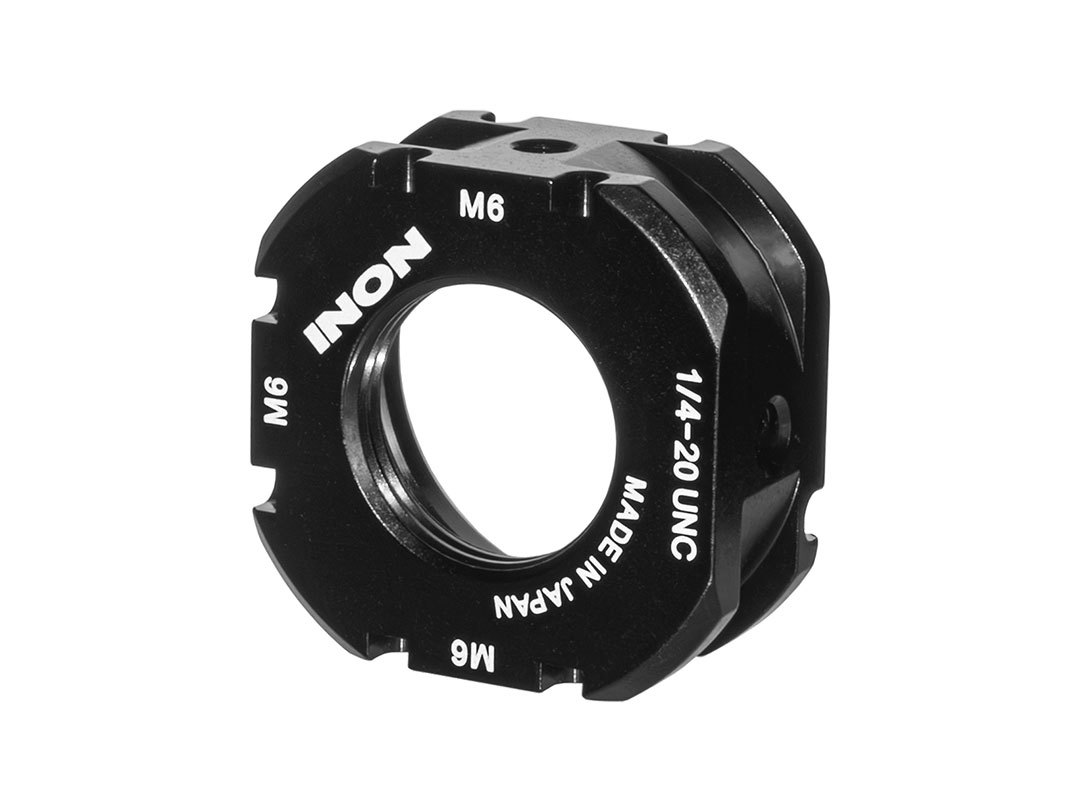

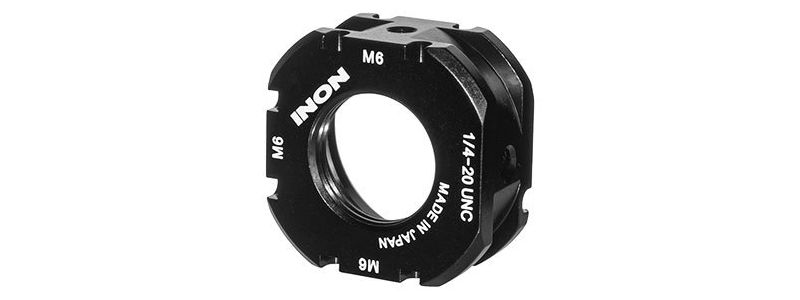

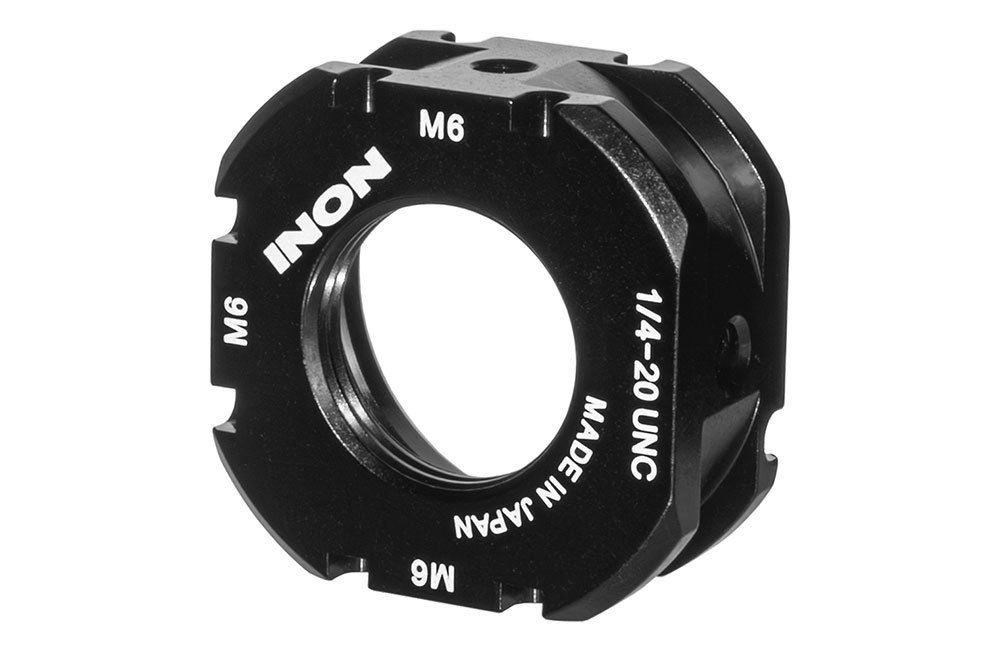

M28 Ring Adapter for Carbon Telescopic Arm
JAN/EAN code : 457001812090
An adapter attached to a Carbon Telescopic Arm enabling to flexibly combine with a tripod system, lights, etc.
Click for detail
An adapter attached to a Carbon Telescopic Arm enabling to flexibly combine with a tripod system, lights, etc.
Click for detail
Single Light Holder LE for Tripod
JAN/EAN code : 4562121438187
Optional accessory to attach one LE series LED light to a tripod (1/4‑20 UNC) or the "Shoe Base 1/4‑20 UNC," enabling off-camera applications such as backlighting or blackwater fish-attracting illumination. With the "Shoe Base," the light mounts easily on an underwater housing’s accessory shoe.
Click for detail
Optional accessory to attach one LE series LED light to a tripod (1/4‑20 UNC) or the "Shoe Base 1/4‑20 UNC," enabling off-camera applications such as backlighting or blackwater fish-attracting illumination. With the "Shoe Base," the light mounts easily on an underwater housing’s accessory shoe.
Click for detail
Single Light Holder LF for Tripod
JAN/EAN code : 4562121438194
Optional accessory to attach one LF series LED light to a tripod (1/4‑20 UNC) or the "Shoe Base 1/4‑20 UNC," enabling off-camera applications such as backlighting or blackwater fish-attracting illumination. With the "Shoe Base," the light mounts easily on an underwater housing’s accessory shoe.
Click for detail
Optional accessory to attach one LF series LED light to a tripod (1/4‑20 UNC) or the "Shoe Base 1/4‑20 UNC," enabling off-camera applications such as backlighting or blackwater fish-attracting illumination. With the "Shoe Base," the light mounts easily on an underwater housing’s accessory shoe.
Click for detail

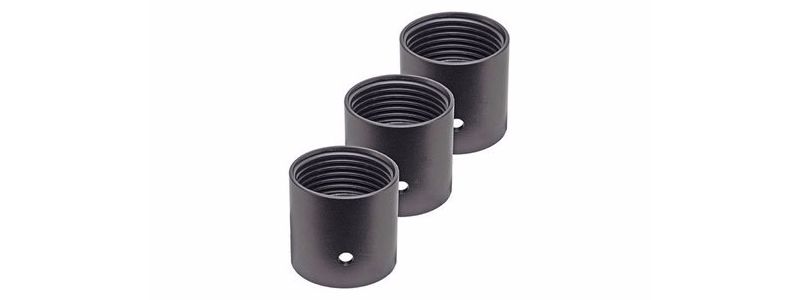

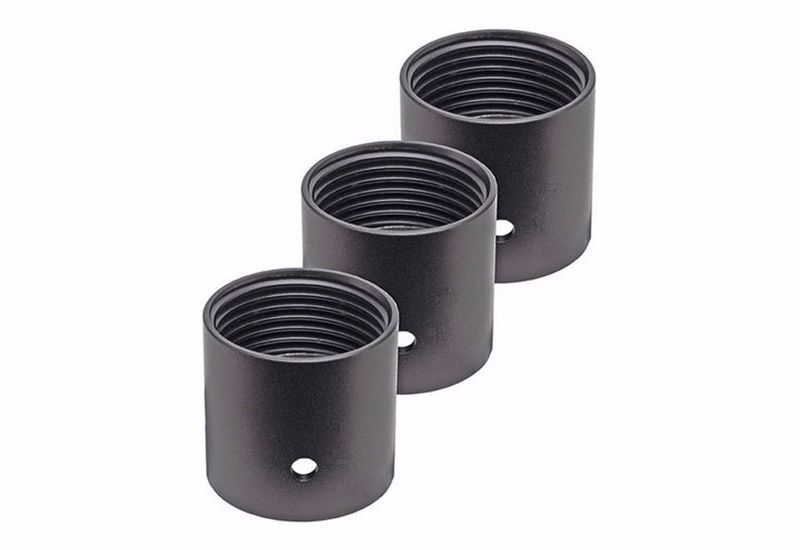

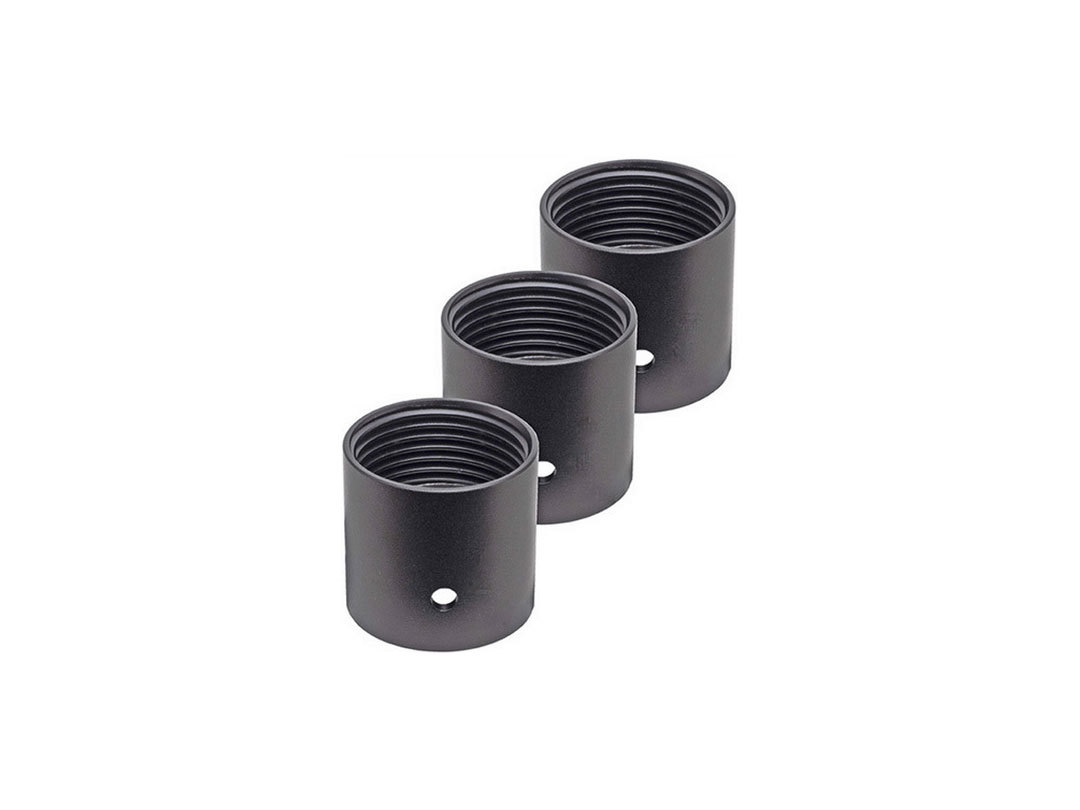

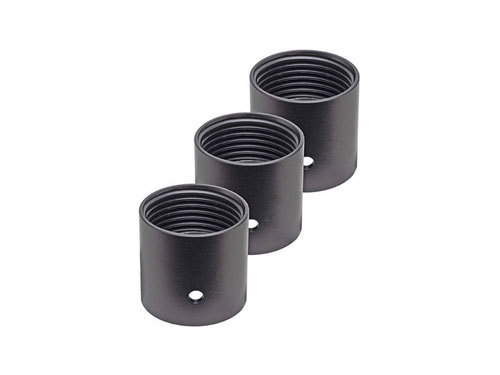

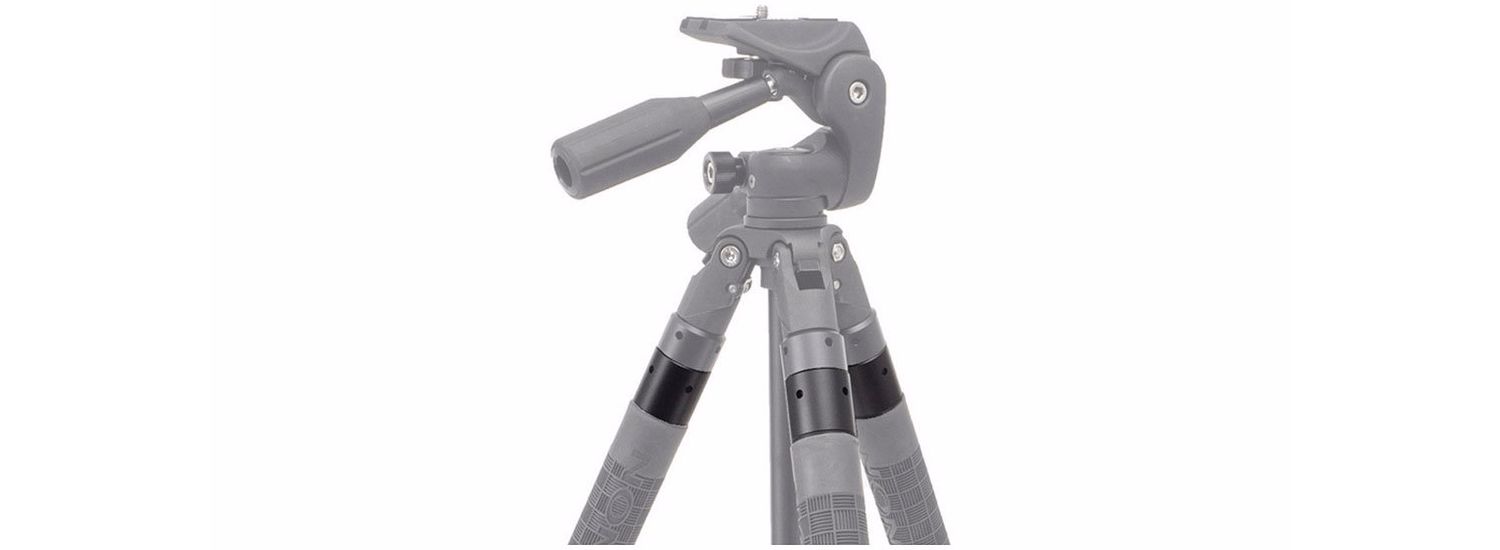

Reinforcing Ring Set
JAN/EAN code : 4562121439658
Connecting Carbon Telescopic Arms fitted with Reinforce Rings to UW Tripod Hub can hold heavier camera system.
Connecting Carbon Telescopic Arms fitted with Reinforce Rings to UW Tripod Hub can hold heavier camera system.
Installing M28 thread part

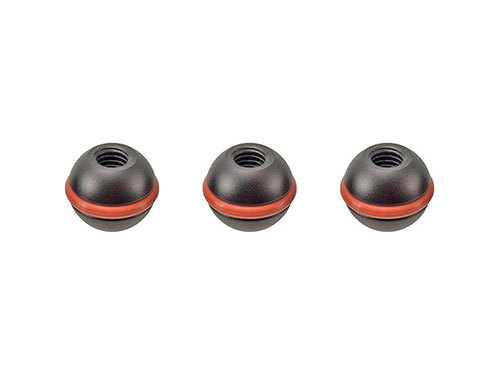

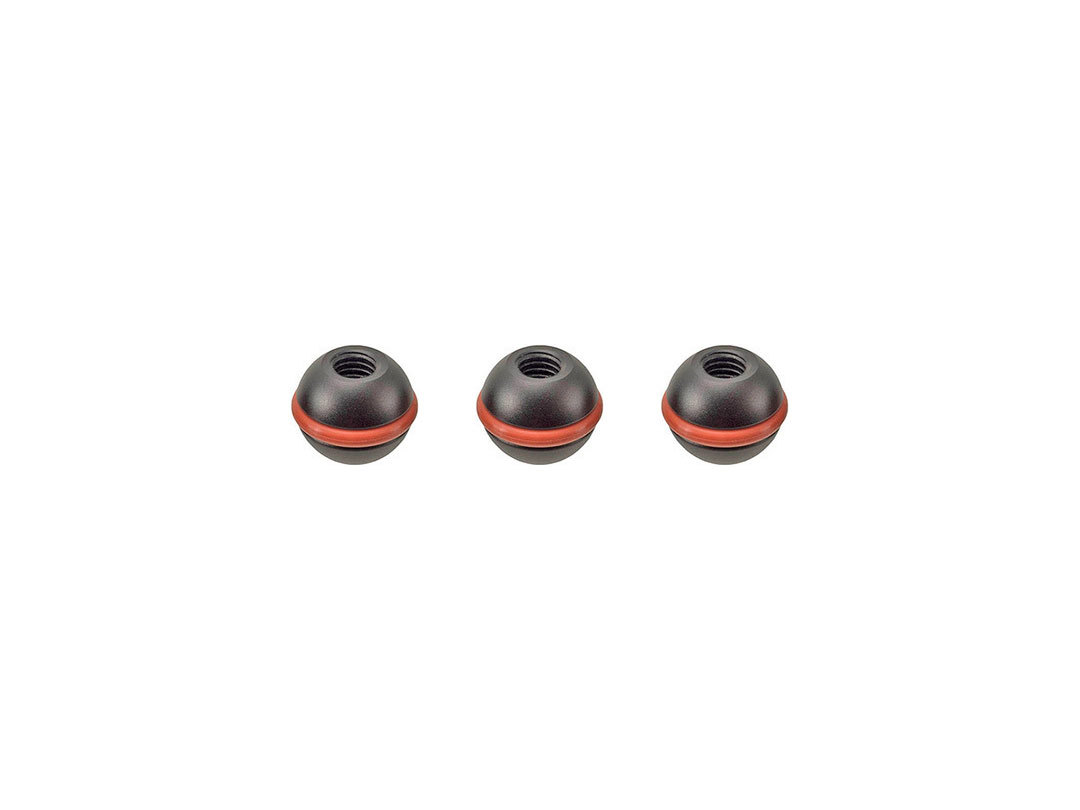

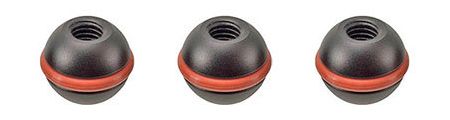

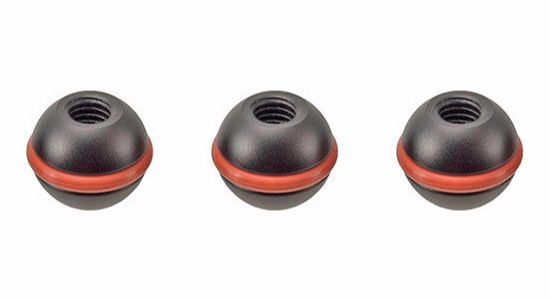

Ferrule Ball Set
JAN/EAN code : 4562121439269
Having another ball and clamp between tripod leg and "2-way Ferrule" supplied with the UW Tripod Hub, works as a joint of the "2-way Ferrule" to enhance stable placement of the tripod.
*Three of “Clamp III”are optionally required.
Having another ball and clamp between tripod leg and "2-way Ferrule" supplied with the UW Tripod Hub, works as a joint of the "2-way Ferrule" to enhance stable placement of the tripod.
*Three of “Clamp III”are optionally required.
Upper image: A ferrule cannot stand without using Ferrule Ball.
Lower image: A ferrule can stand at right angle using Ferrule Ball.
The angle of the ferrule can be freely adjusted so that the ferrule can be firmly grounded and stabilized even in unstable rocky areas with dips or slopes.
Lower Elevator
The center column type elevator consists of two parts. Removing lower elevator enables to put combined camera position down close to the ground when opening angle is set to low position.
Remove the Lower Elevator Column You can get lower height. Extra "Lower Elevator" can be jointed on the original Lower Elevator to extend total height at 145mm/5.7in.
It is also possible to hang down a camera system by attaching the elevator upside-down for extremely low angle shooting or shooting a subject just underneath of the tripod.
2-Way Ferrule
Bundled "2-Way Ferrule" offers two configurations either rubber or spike tip. Ferrules are to be screwed on ball-joints on tripod leg edges. Turning rubber parts upwards will have spike tips to accommodate to different circumstances.

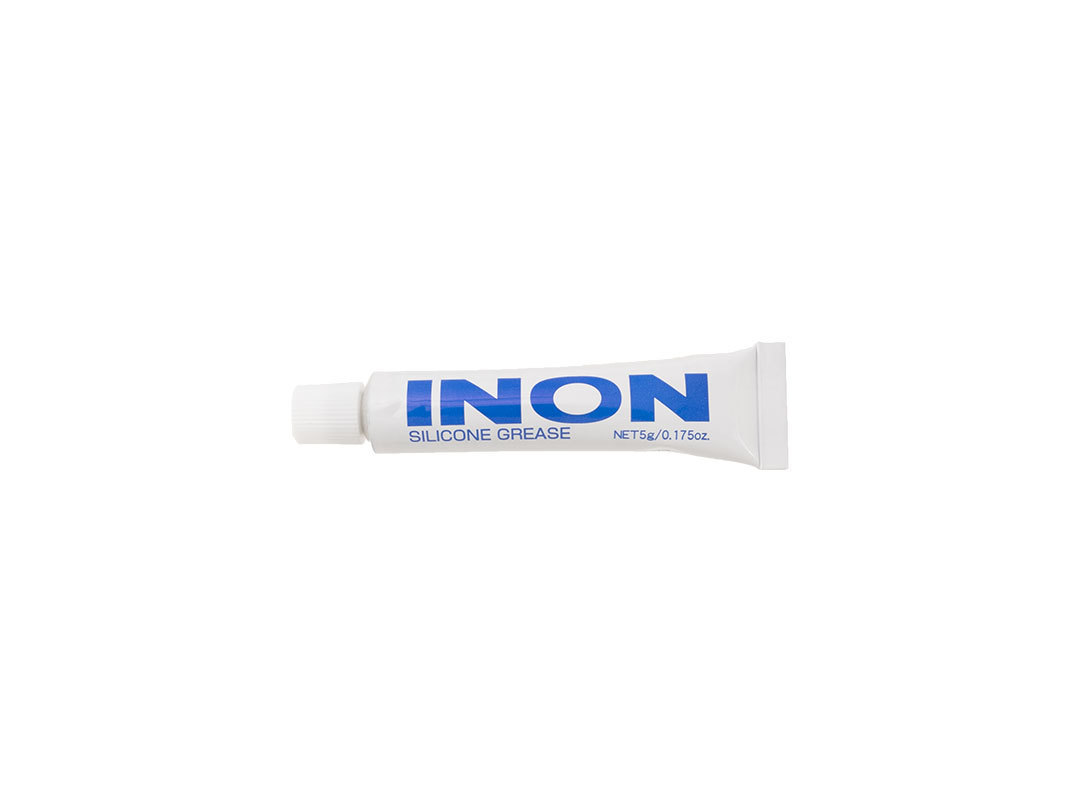

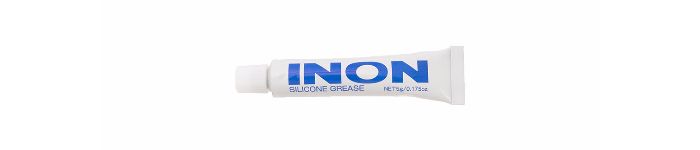

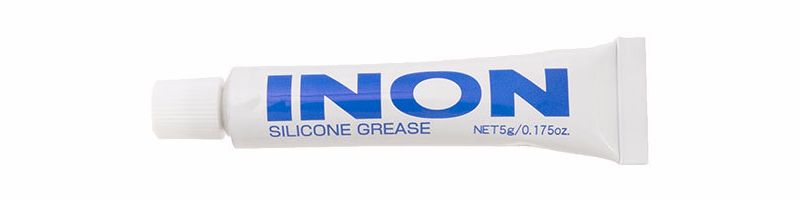

INON Grease
Dedicated grease for use with INON oil-filled O-rings.
Dedicated grease for use with INON oil-filled O-rings.
