Connecting Parts
Connecting Parts
Clamp
Connect and lock ball-joints of INON Arm series products
Base Adapter
Base adapters to attach an arm on Grip Base or DSLR housing

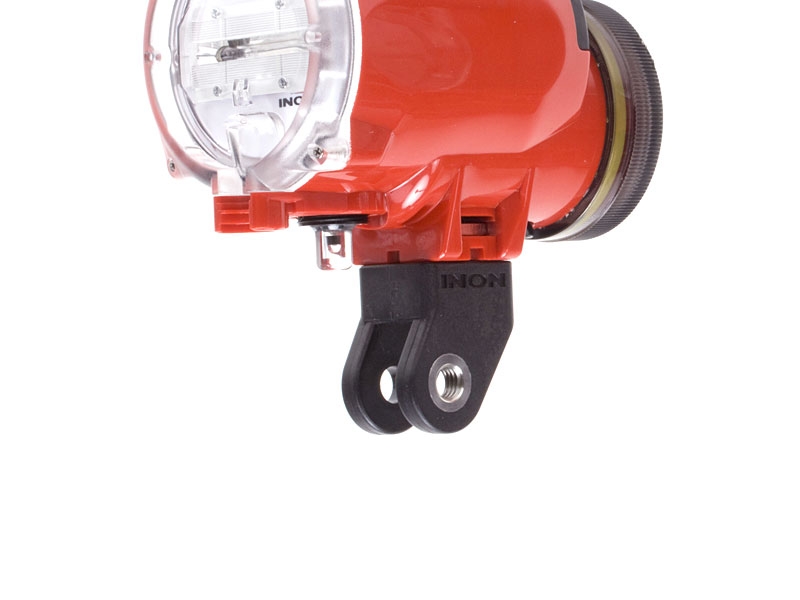

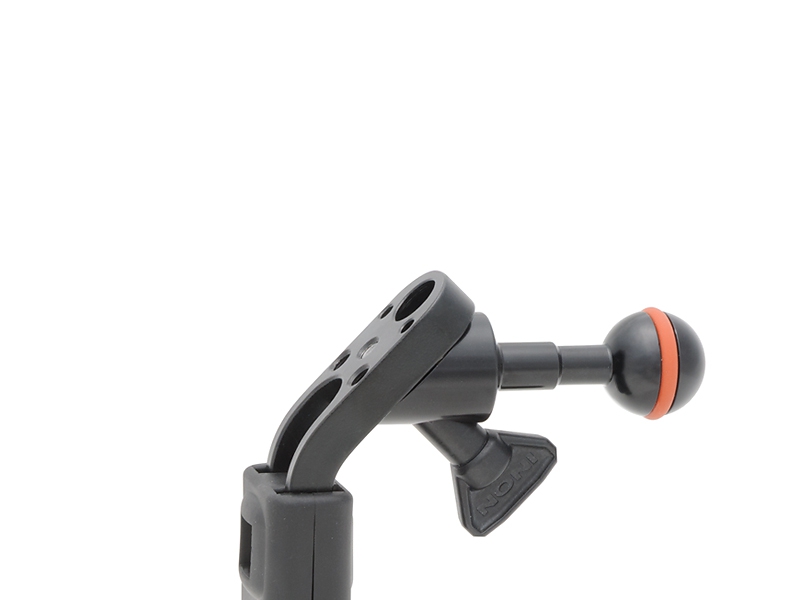

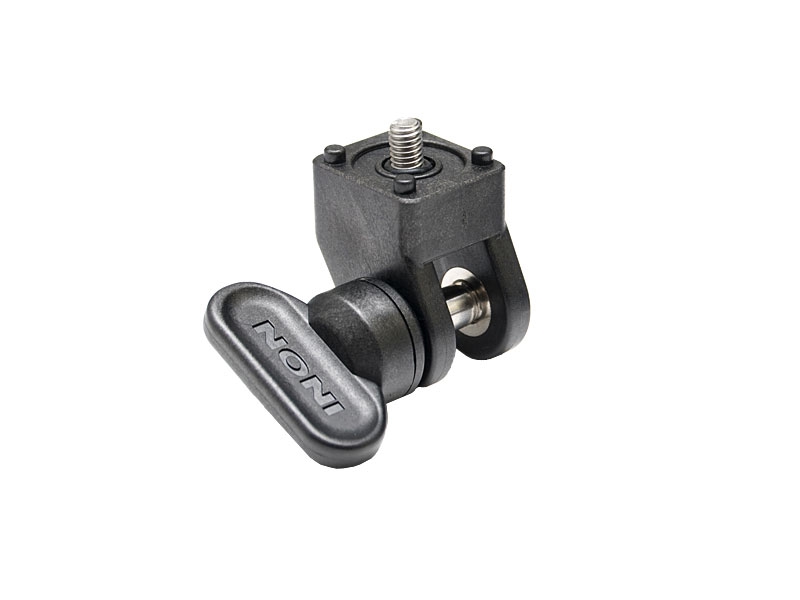

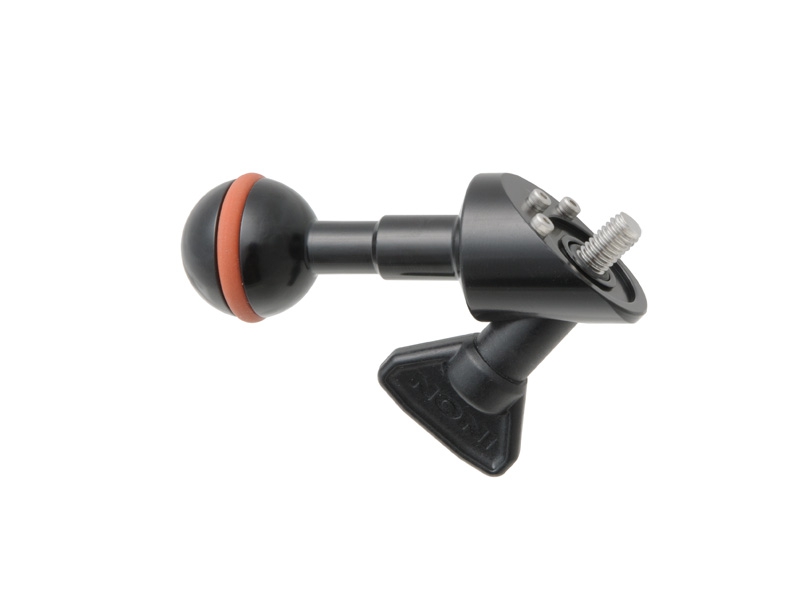

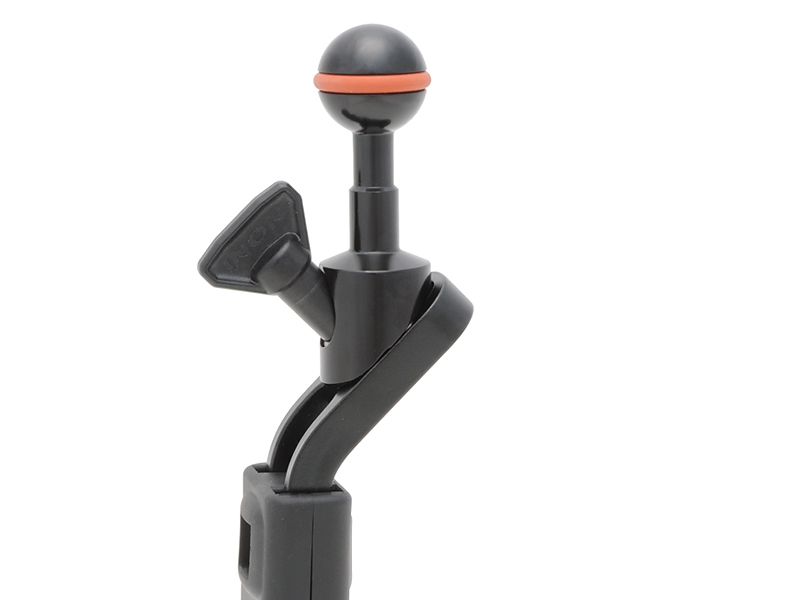

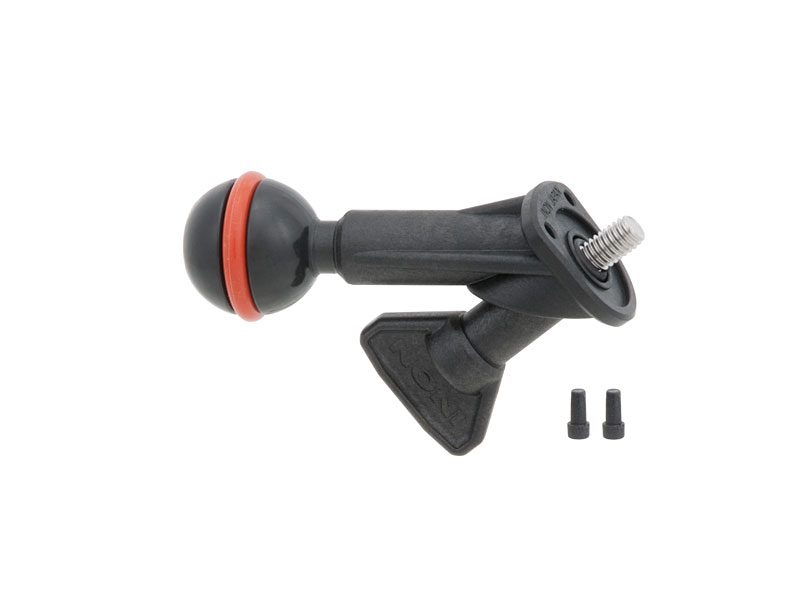

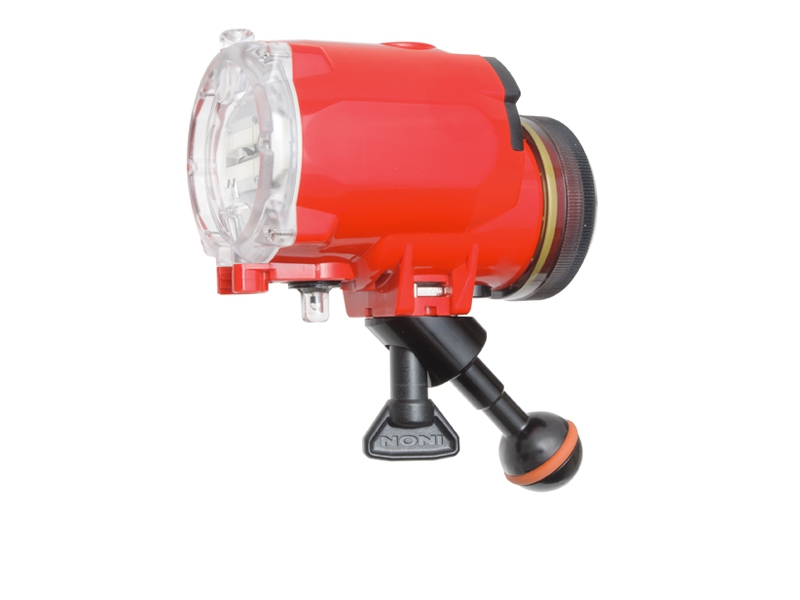

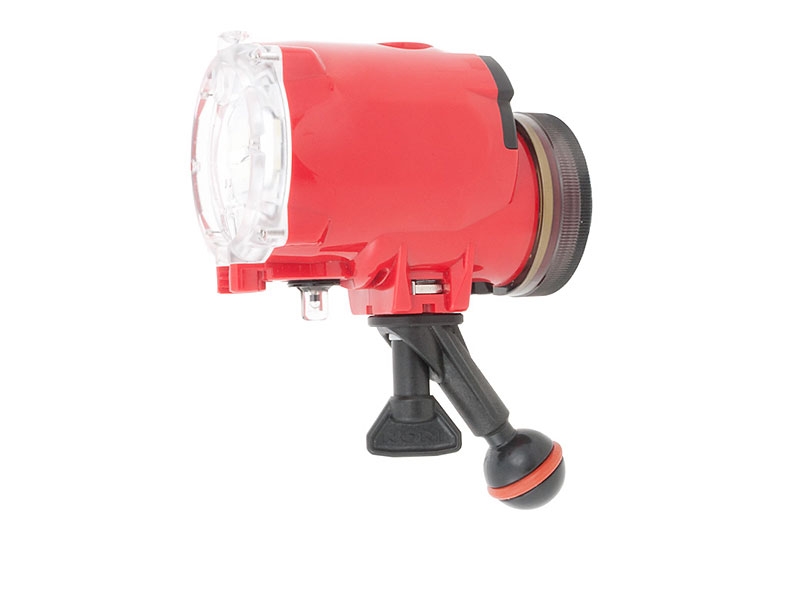

Joint Adapter
Joint adapters to attach INON strobe on an INON Arm series product

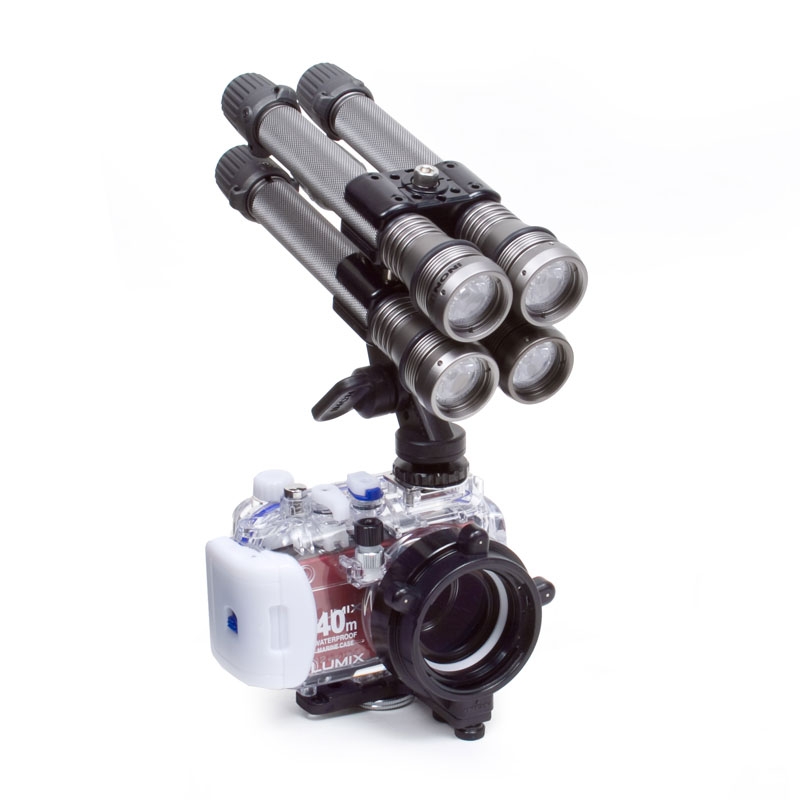

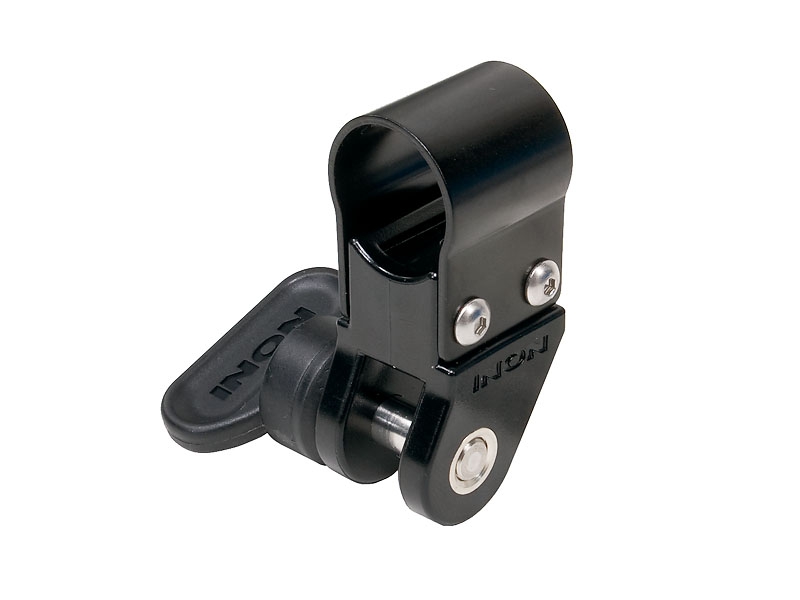

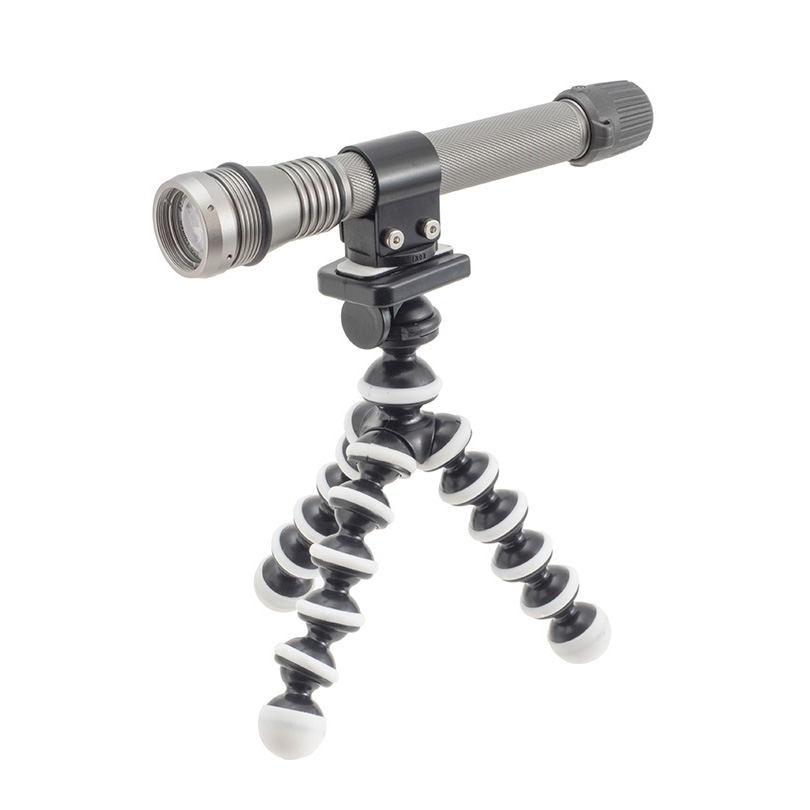

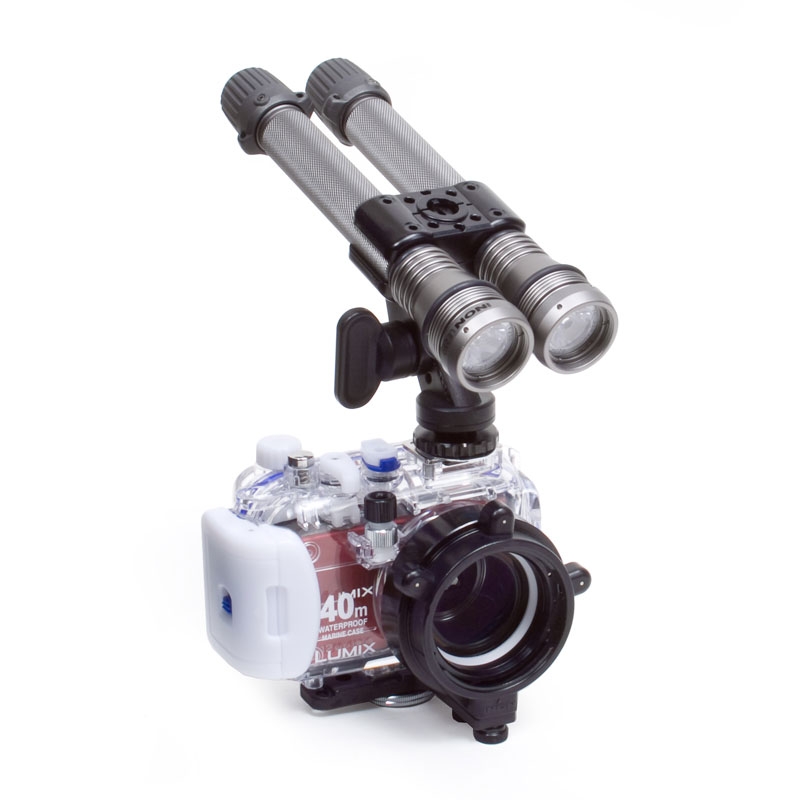

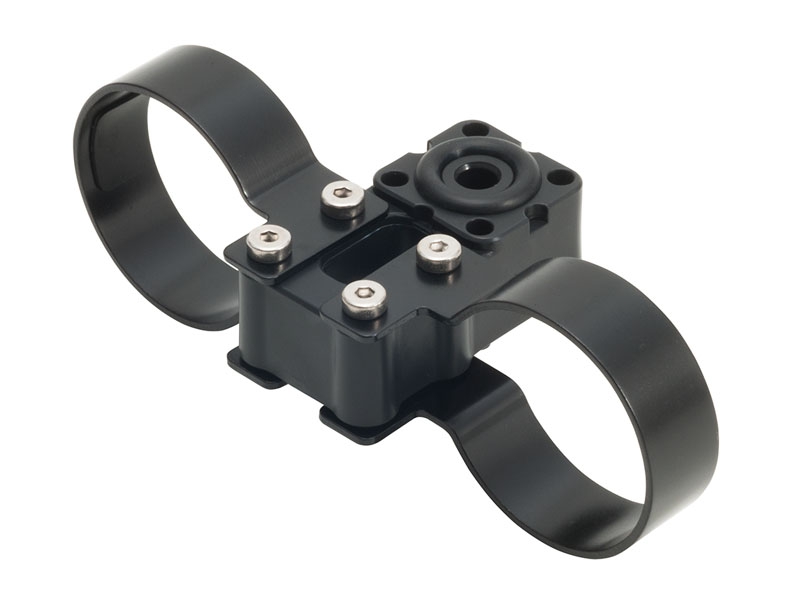

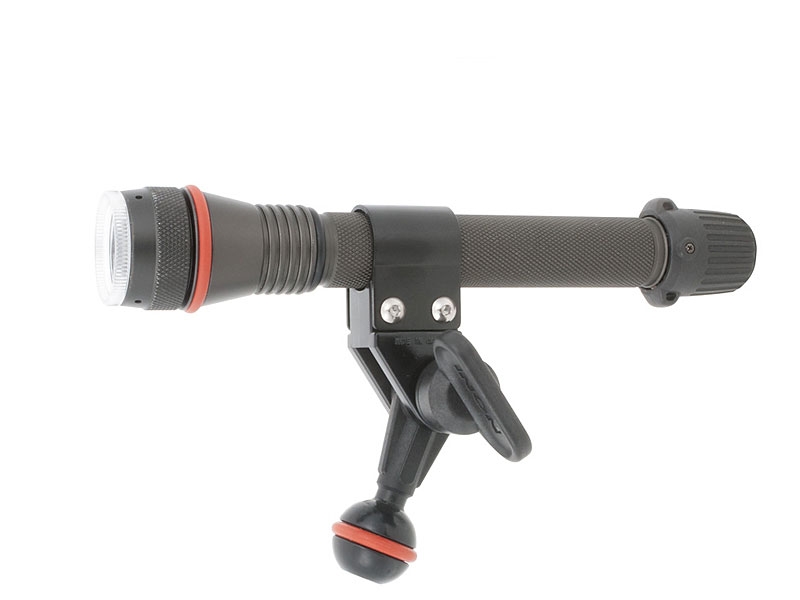

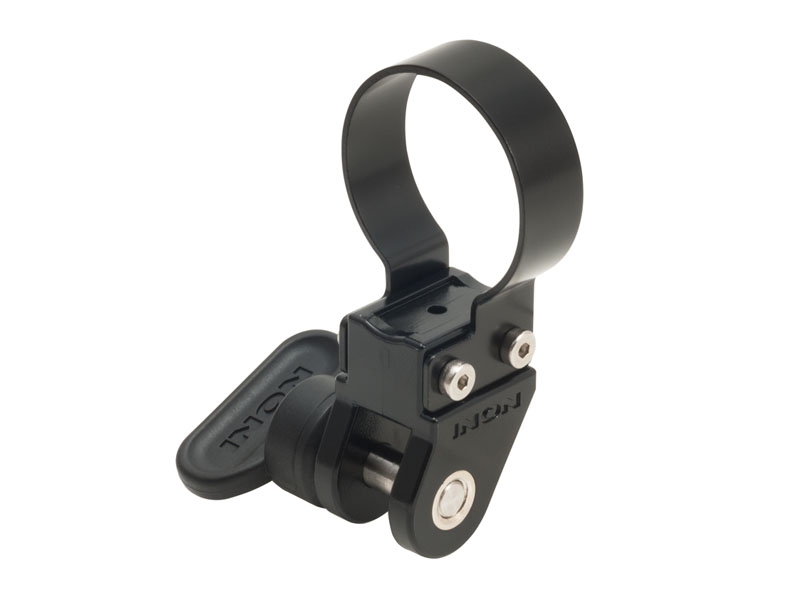

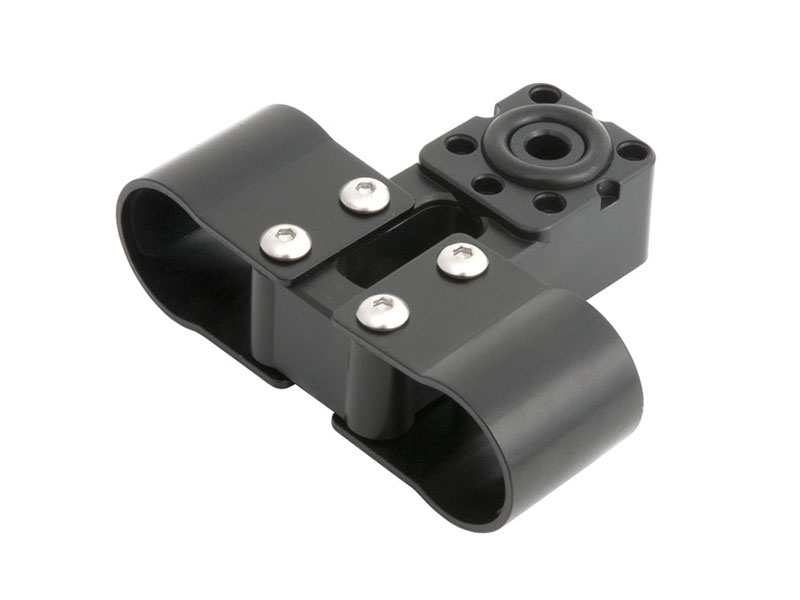

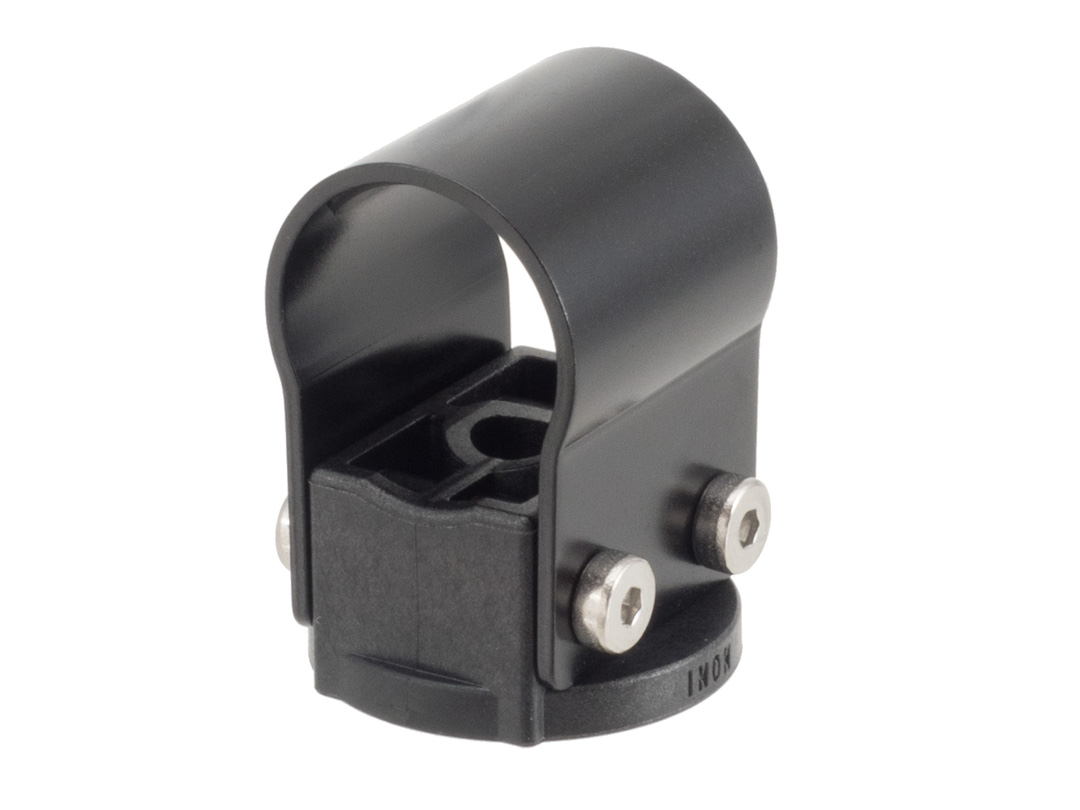

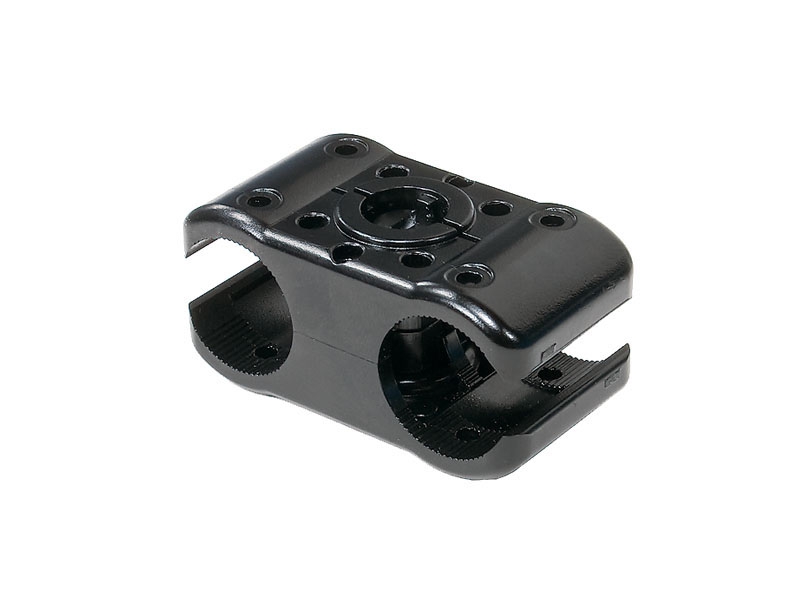

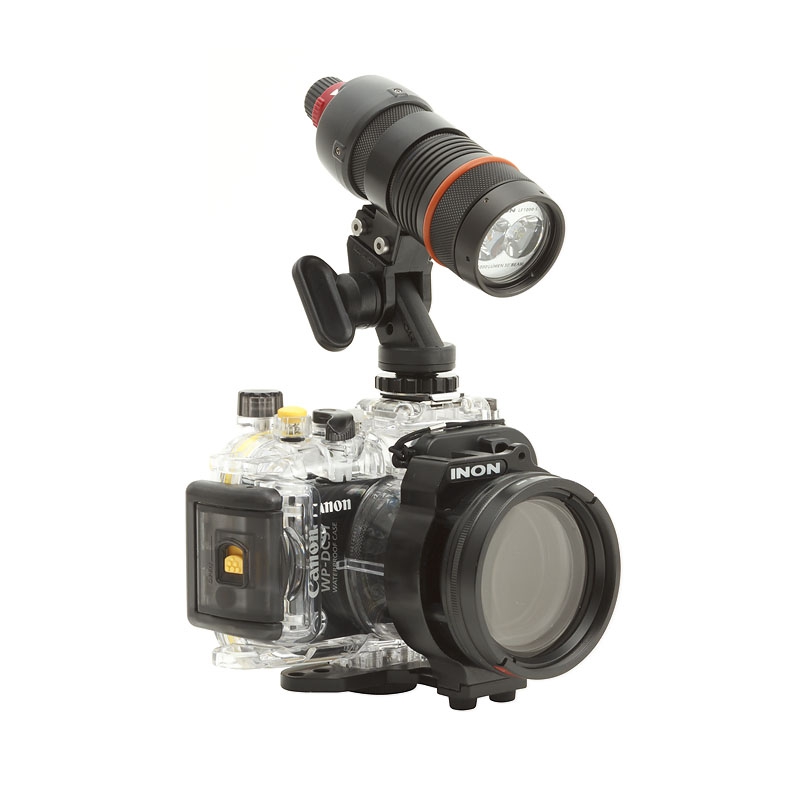

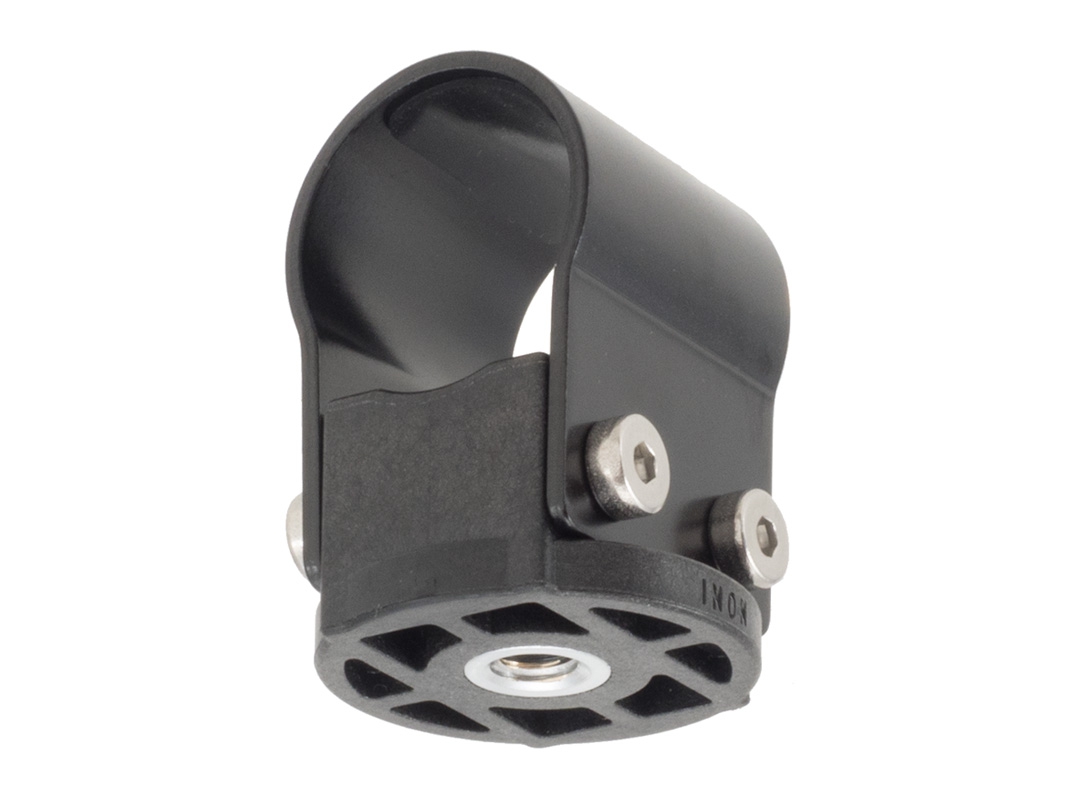

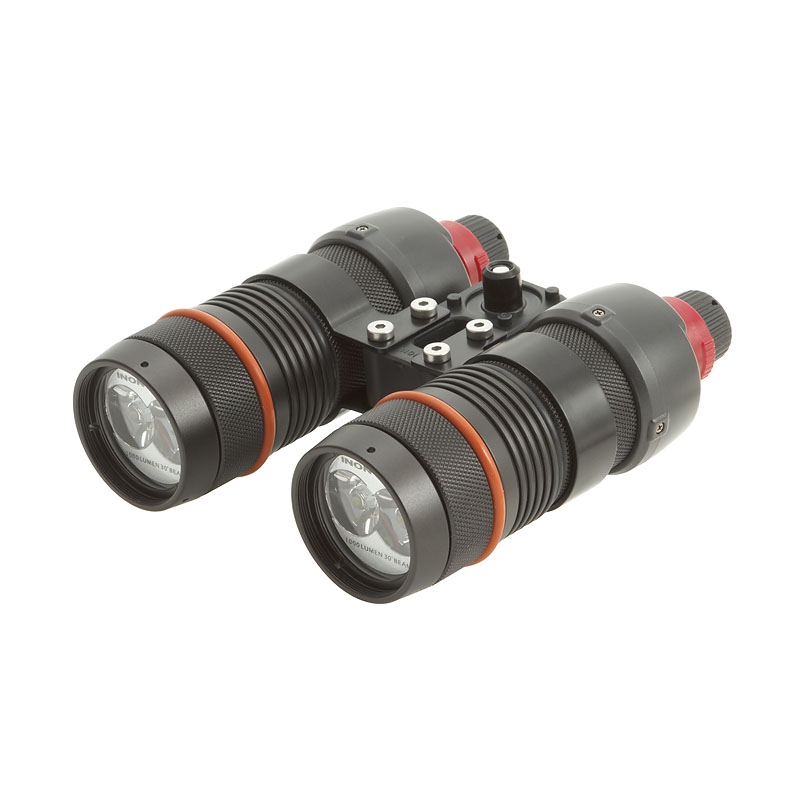

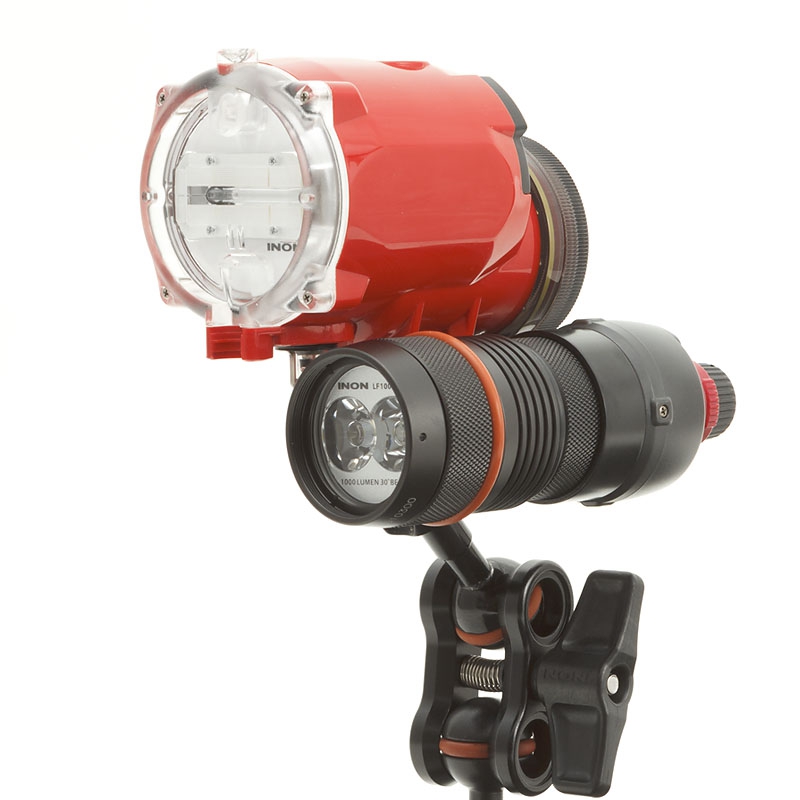

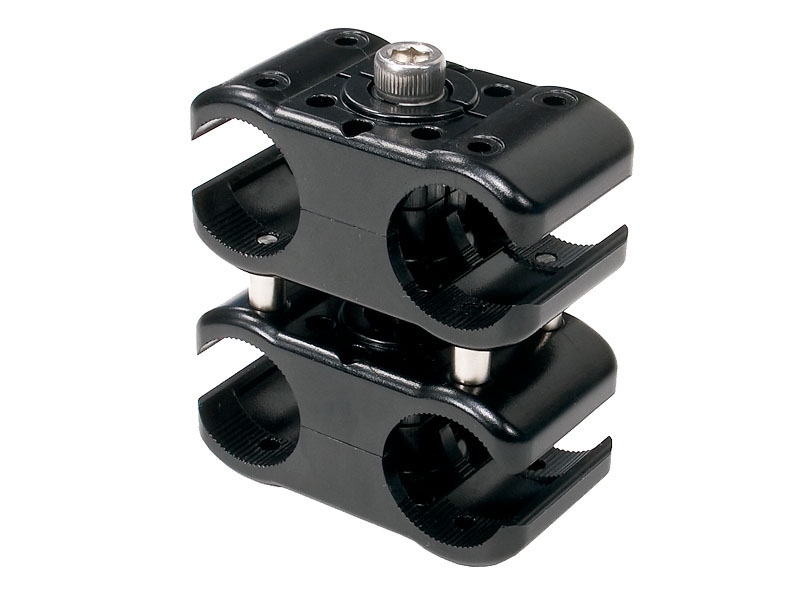

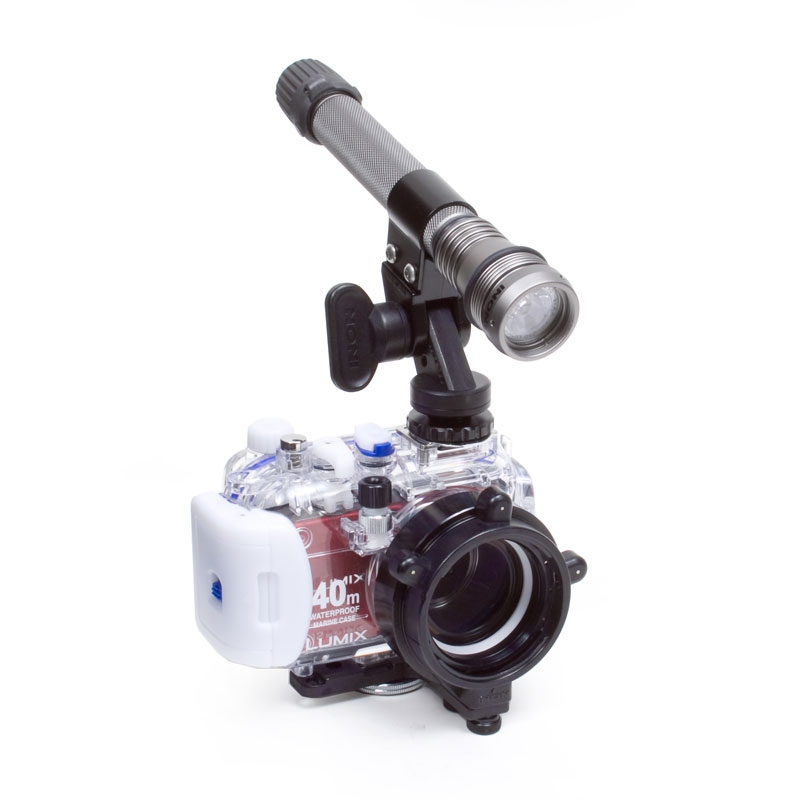

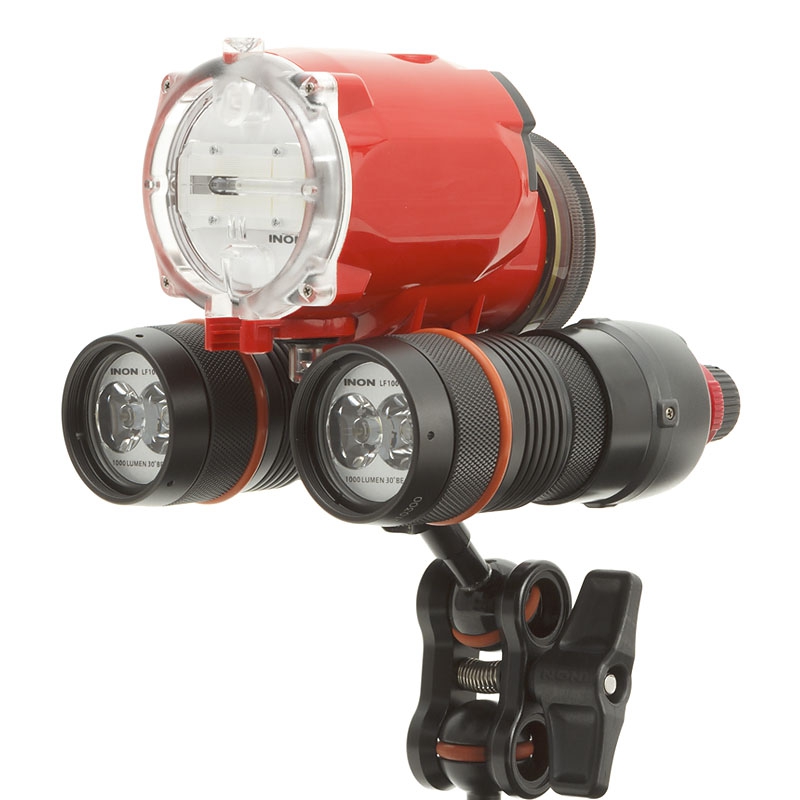

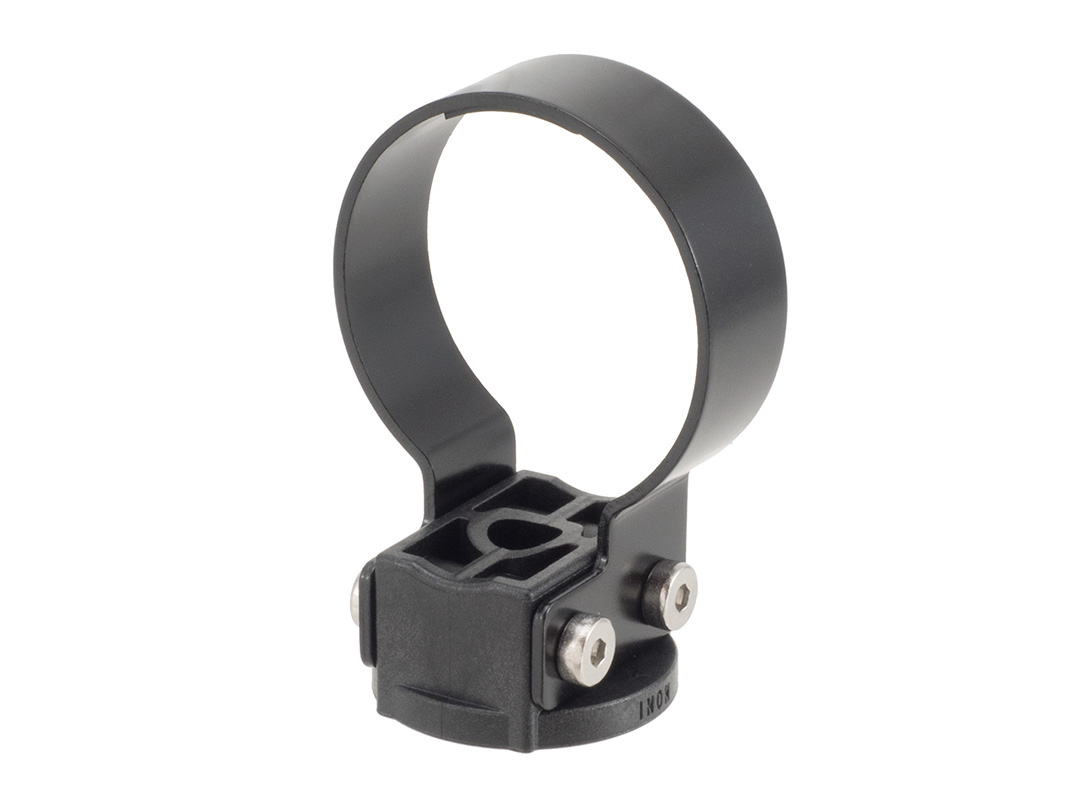

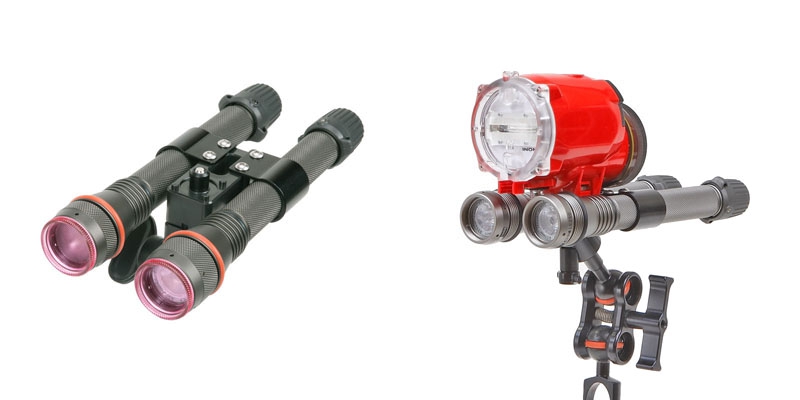

Light Holder
Adapters to attach LE series LED flashlight on an INON Arm series product
Adapter for Carbon Telescopic Arm
An adapter attached to a Carbon Telescopic Arm enabling to flexibly combine with a tripod system, lights, etc.
Clamp

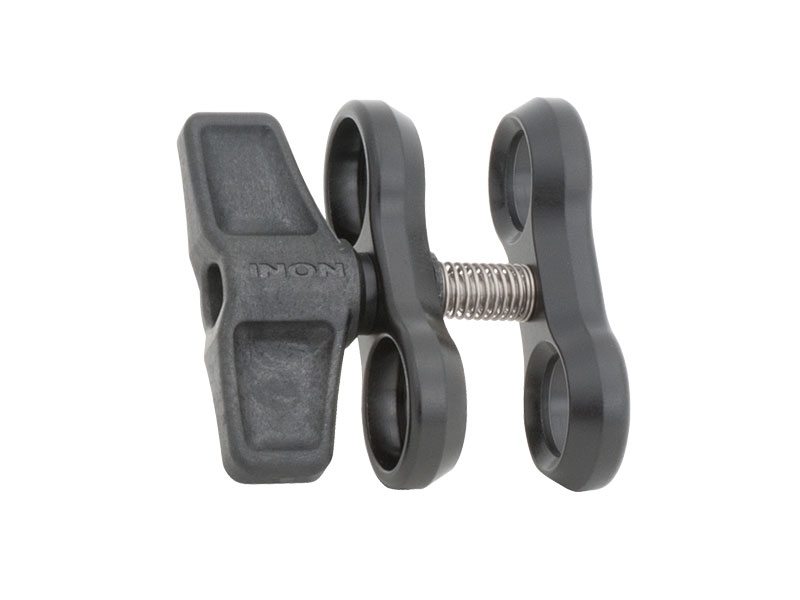

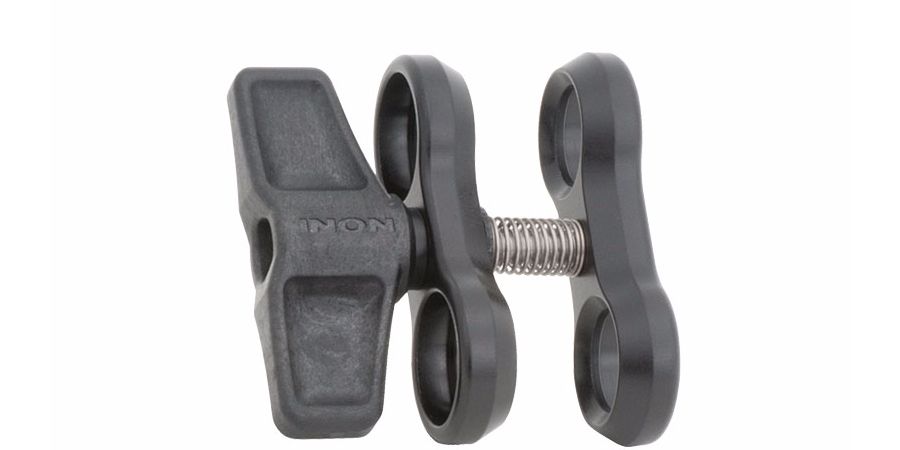

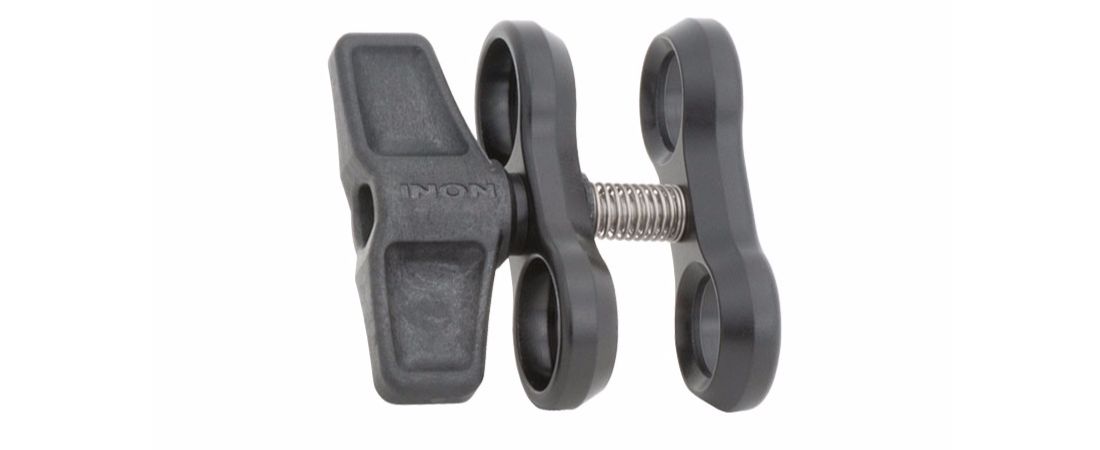

Clamp III
JAN/EAN code : 4562121436510
The Clamp III links and locks ball-joints of an arm body, direct base or adapter each other. Ball-joint receptacles are machined lightweight aluminum alloy to satisfy highly precise and durable requirement. The handle is designed to naturally fit to fingers and made by resin casting to enhance its operability to clamp ball-joints firmly with less power and easy to loosen to adjust relative angle of combined arms.
Effective length : 36mm/1.4in
Weight : 53g/1.9oz [air] / approx.33g/1.2oz [underwater]
The Clamp III links and locks ball-joints of an arm body, direct base or adapter each other. Ball-joint receptacles are machined lightweight aluminum alloy to satisfy highly precise and durable requirement. The handle is designed to naturally fit to fingers and made by resin casting to enhance its operability to clamp ball-joints firmly with less power and easy to loosen to adjust relative angle of combined arms.
Effective length : 36mm/1.4in
Weight : 53g/1.9oz [air] / approx.33g/1.2oz [underwater]
Base Adapter

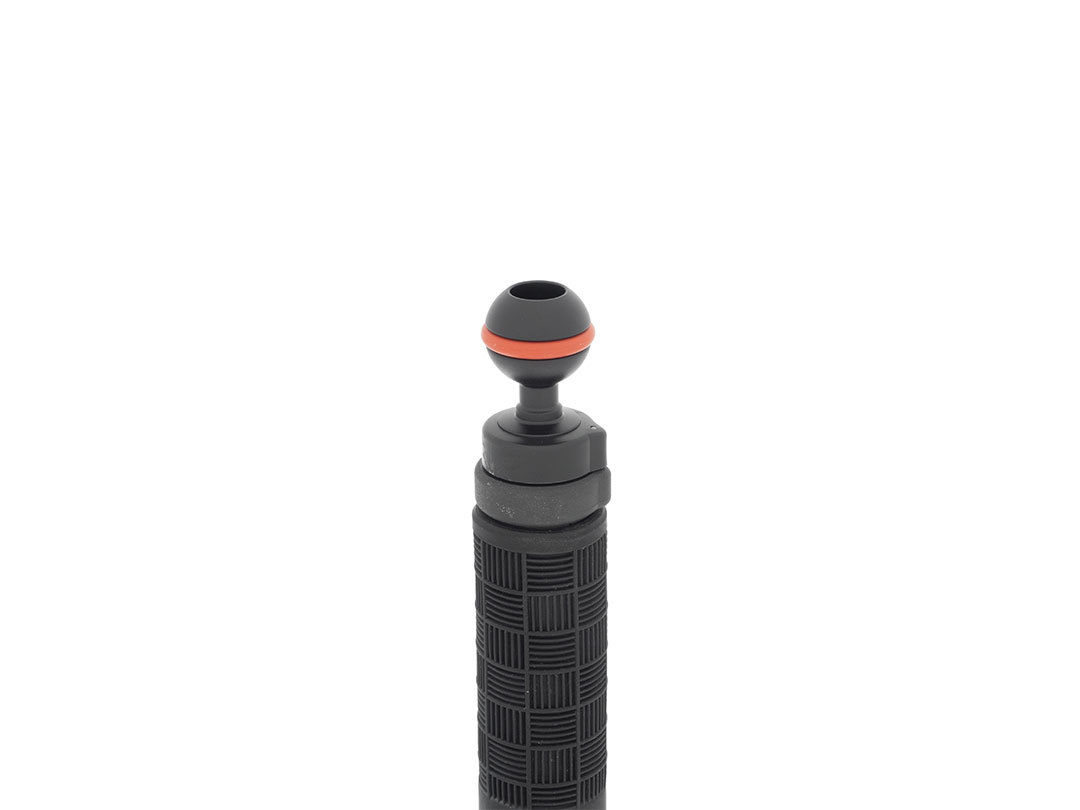

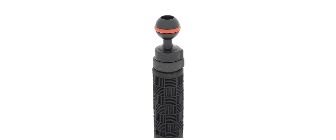

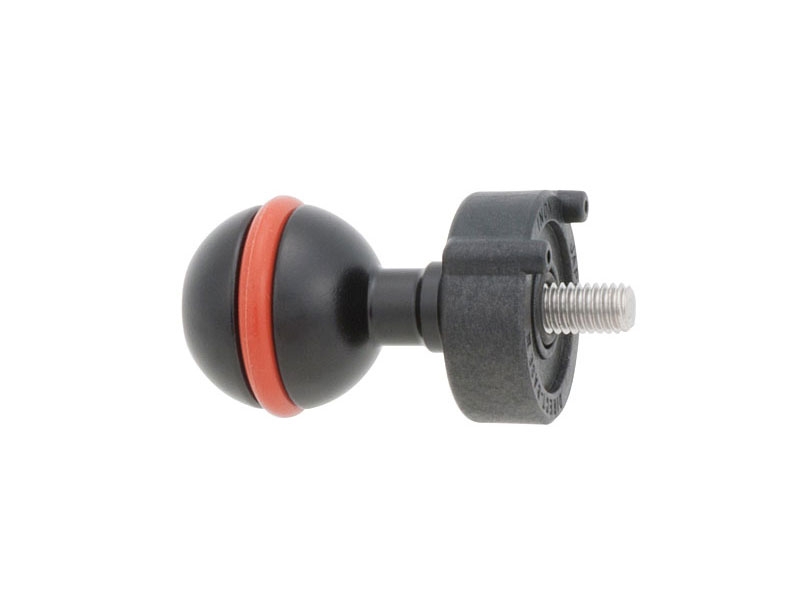

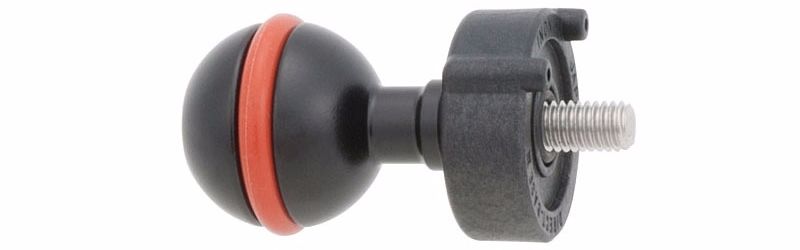

Direct Base III
JAN/EAN code : 4562121436541
The Direct Base III is a fundamental part to attach arm system. Directly attached on the Grip Base D4 / Grip Base M1 / D Holder / SD Front Mask for HERO5/6/7 / Weight Plate or via optional M6 Plate Direct Base III or M5 Plate Direct Base III on a housing or other base products. It is also possible to attach the Direct Base III on the middle of the Stick Arm or Multi Ball Arm via optional M6 Joint. The Direct Base III is attached on a strobe as well. Its ball-joint is made of metal, to provide rigid strobe positioning only by lightly fasten the Clamp III.
Full length : 45mm/1.8in
Effective length : 32mm/1.3in
Weight : 35g/1.2oz [air] / approx.23g/0.8oz [underwater]
Compatible base/housing etc.
Directly attached
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Tripod Adapter
- ZD Front Mask
- SD Front Mask
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)

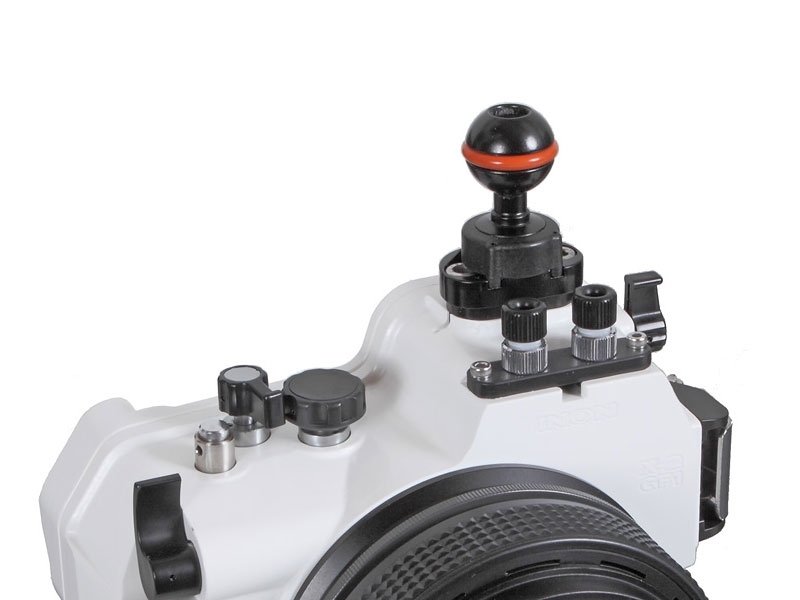

Attached via optional "M6 Plate Direct Base III"
- X-2 series Housing
- Holder II
- Grip+Bar III Set
- Holder II Grip Set
- Holder Base
- Grip+Bar I Set
- Grip+Bar II Set
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
- Other brands' housing/arm system (*1)
(*1) Compatible with 2 x M6 screw holes with 8mm or more depth and 13mm - 28mm center-to-center distance of screw holes.
Attached via optional "M5 Plate Direct Base III"
- Other brands' housing/arm system (*2)
(*2) Compatible with 2 x M5 screw holes with 6mm or more depth and 24mm - 28mm center-to-center distance of screw holes.
Compatible arm

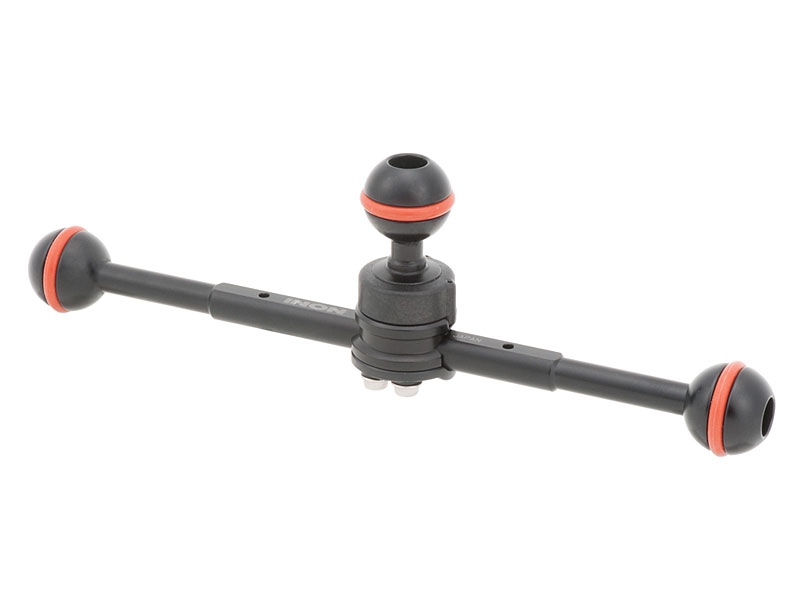

Attached via optional "M6 Joint"
- Stick Arm XS-T/SS-T/S-T/M-T/L
- Multi Ball Arm S/ML/L/LL/XL (Multi Ball Arm SS is not compatible)
Compatible strobe etc.
- S-220

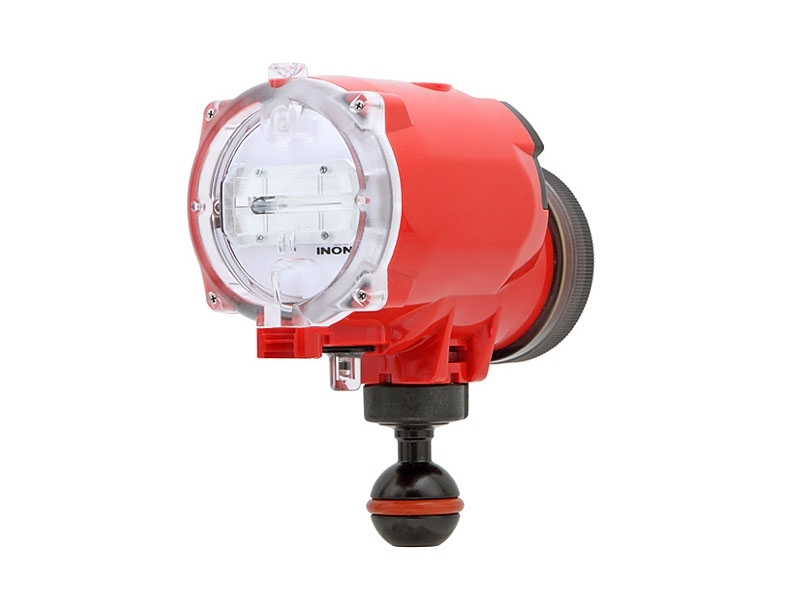

Directly attached on the Grip Base D5 etc.

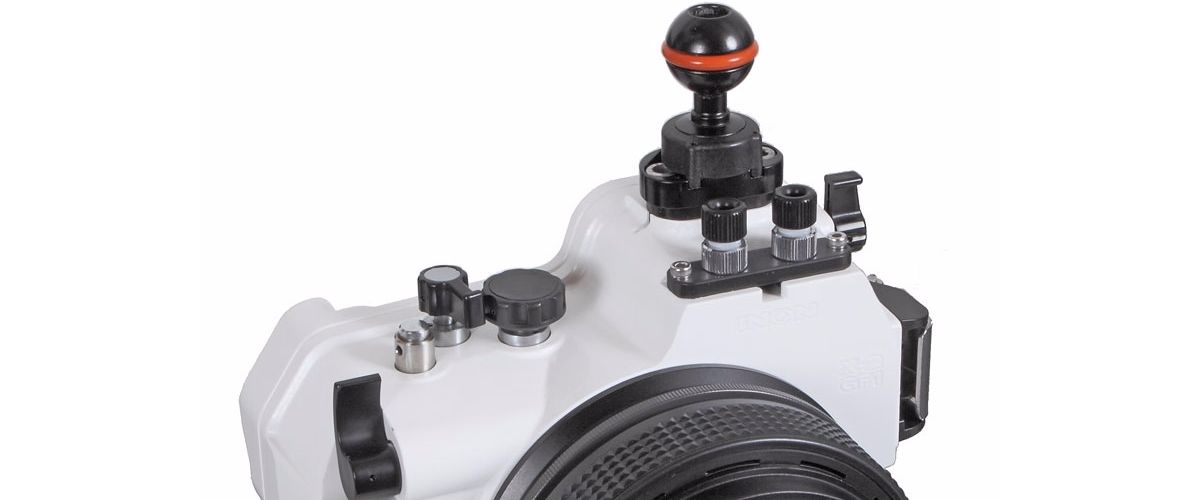

Attached on a housing etc.via "M6 Plate Direct Base III"
Attached on Stick Arm etc.via "M6 Joint"

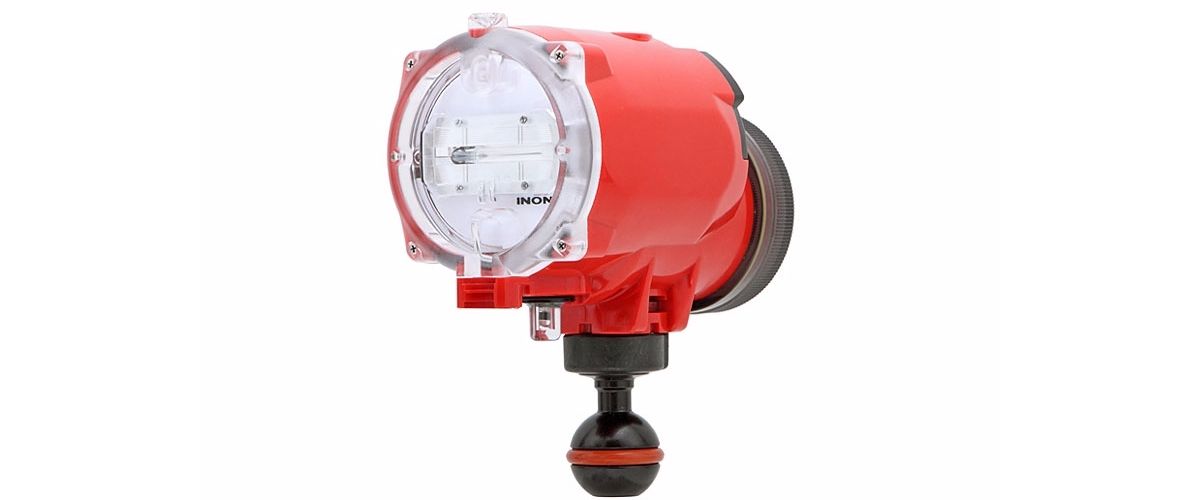

Usable as strobe adapter for stable strobe positioning with a clamp
The Direct Base III is a fundamental part to attach arm system. Directly attached on the Grip Base D4 / Grip Base M1 / D Holder / SD Front Mask for HERO5/6/7 / Weight Plate or via optional M6 Plate Direct Base III or M5 Plate Direct Base III on a housing or other base products. It is also possible to attach the Direct Base III on the middle of the Stick Arm or Multi Ball Arm via optional M6 Joint. The Direct Base III is attached on a strobe as well. Its ball-joint is made of metal, to provide rigid strobe positioning only by lightly fasten the Clamp III.
Full length : 45mm/1.8in
Effective length : 32mm/1.3in
Weight : 35g/1.2oz [air] / approx.23g/0.8oz [underwater]
Compatible base/housing etc.
Directly attached
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Tripod Adapter
- ZD Front Mask
- SD Front Mask
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
Attached via optional "M6 Plate Direct Base III"
- X-2 series Housing
- Holder II
- Grip+Bar III Set
- Holder II Grip Set
- Holder Base
- Grip+Bar I Set
- Grip+Bar II Set
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
- Other brands' housing/arm system (*1)
(*1) Compatible with 2 x M6 screw holes with 8mm or more depth and 13mm - 28mm center-to-center distance of screw holes.
Attached via optional "M5 Plate Direct Base III"
- Other brands' housing/arm system (*2)
(*2) Compatible with 2 x M5 screw holes with 6mm or more depth and 24mm - 28mm center-to-center distance of screw holes.
Compatible arm

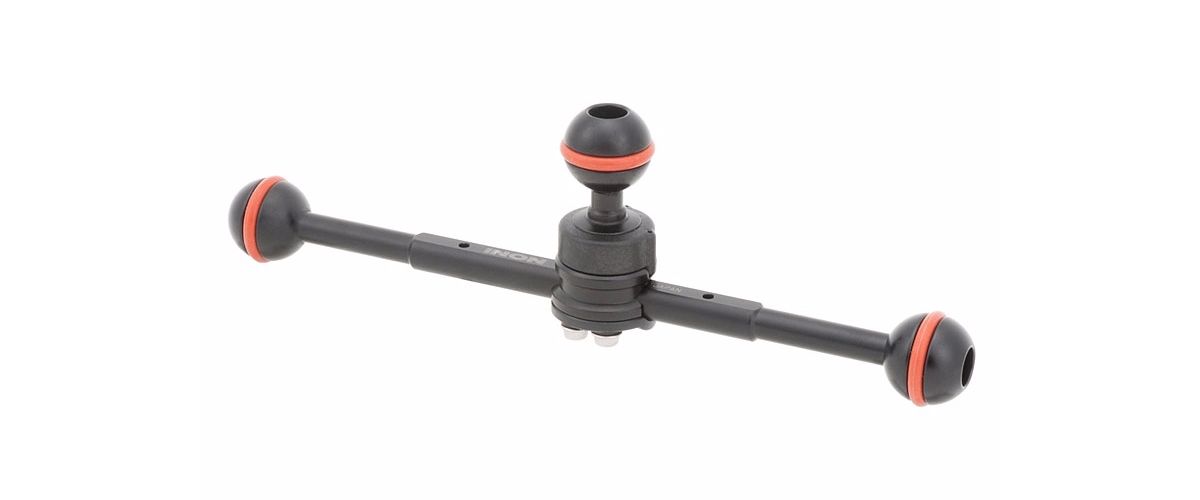

Attached via optional "M6 Joint"
- Stick Arm XS-T/SS-T/S-T/M-T/L
- Multi Ball Arm S/ML/L/LL/XL (Multi Ball Arm SS is not compatible)
Compatible strobe etc.
- S-220
Direct Base III Options

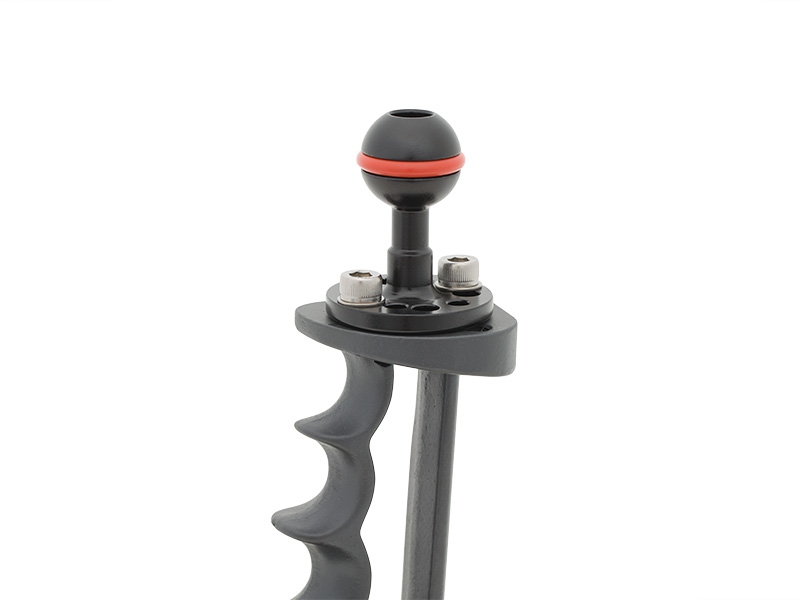

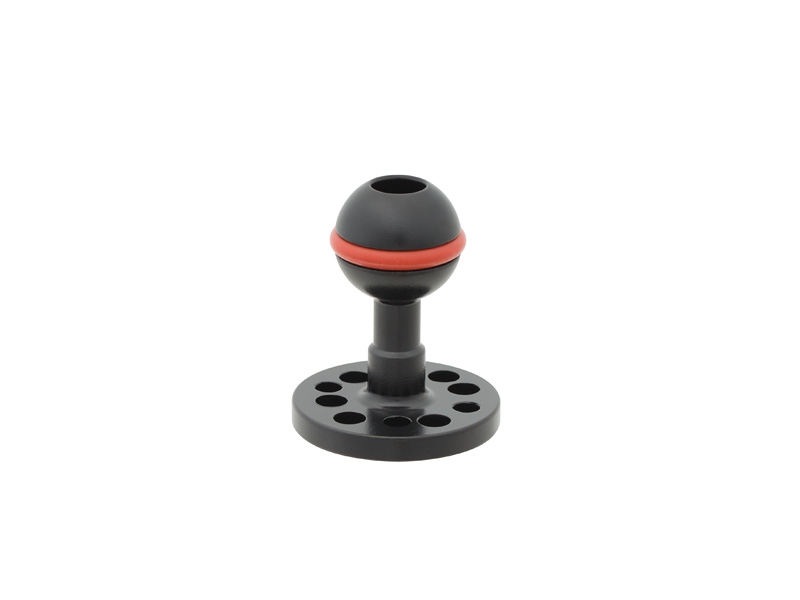

Multi Direct Base IIa
JAN/EAN code : 4562121437494
The Multi Direct Base IIa is a base adapter to add a ball-joint on handle of a digital SLR housing, dedicated mount of a housing or grip base for compact digital cameras to have a strobe or other lighting device via connecting arm with a clamp.
This adapter is manufactured by machining corrosion resistant aluminum alloy. Its base plate has large area and is fixed by two cap screws firmly to comfortably hold heavy gears. There are 6x M6 screw holes and 4x M5 screw holes to accommodate with various housings and handles. The ball-joint is designed with hollow portion to lighten total weight.
Full length : 48mm/1.9in
Effective length : 37mm/1.5in
Weight : 33g/1.2oz [air] / approx.20g/0.7oz [underwater]
Package contents :
- M6 Cap Bolt x 2
- M5 Cap Bolt x 2
- M6 Flat Washer x 2
- M5 Flat Washer x 2
- Allen Wrench
Compatible base/housing etc.
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
- Holder II
- Grip+Bar III Set
- Holder II Grip Set
- Holder Base
- Grip+Bar I Set
- Grip+Bar II Set
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Tripod Adapter
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
- X-2 series Housing
- Other brands' housing/arm system including Anthis, Kenko, SEA&SEA, Nauticam (*1)
(*1) INON INC. has not confirmed compatibility with specific product(s) from other manufactures. Before using, make sure to check if the product(s) from other manufactures is compatible and does not interfere other combined product(s)
The Multi Direct Base IIa is a base adapter to add a ball-joint on handle of a digital SLR housing, dedicated mount of a housing or grip base for compact digital cameras to have a strobe or other lighting device via connecting arm with a clamp.
This adapter is manufactured by machining corrosion resistant aluminum alloy. Its base plate has large area and is fixed by two cap screws firmly to comfortably hold heavy gears. There are 6x M6 screw holes and 4x M5 screw holes to accommodate with various housings and handles. The ball-joint is designed with hollow portion to lighten total weight.
Full length : 48mm/1.9in
Effective length : 37mm/1.5in
Weight : 33g/1.2oz [air] / approx.20g/0.7oz [underwater]
Package contents :
- M6 Cap Bolt x 2
- M5 Cap Bolt x 2
- M6 Flat Washer x 2
- M5 Flat Washer x 2
- Allen Wrench
Compatible base/housing etc.
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
- Holder II
- Grip+Bar III Set
- Holder II Grip Set
- Holder Base
- Grip+Bar I Set
- Grip+Bar II Set
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Tripod Adapter
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
- X-2 series Housing
- Other brands' housing/arm system including Anthis, Kenko, SEA&SEA, Nauticam (*1)
(*1) INON INC. has not confirmed compatibility with specific product(s) from other manufactures. Before using, make sure to check if the product(s) from other manufactures is compatible and does not interfere other combined product(s)

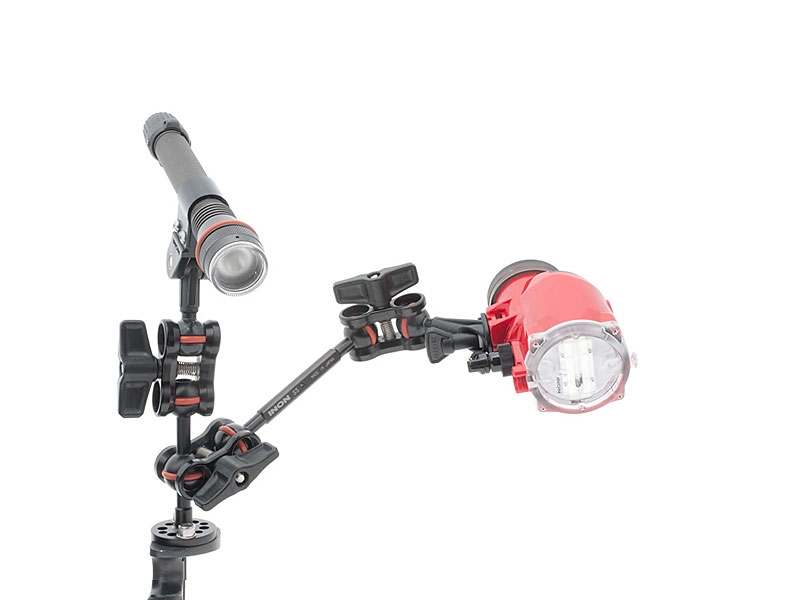

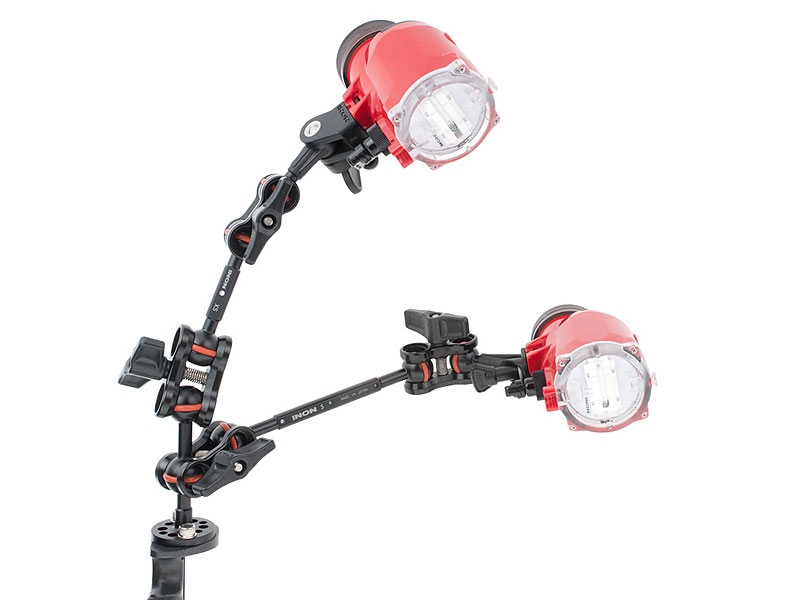

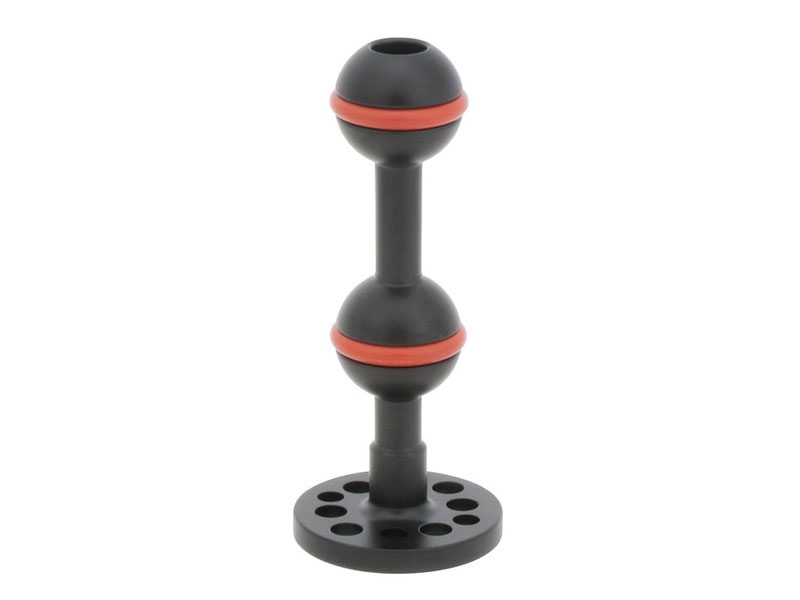

Multi Direct Base II WB
JAN/EAN code : 4562121436992

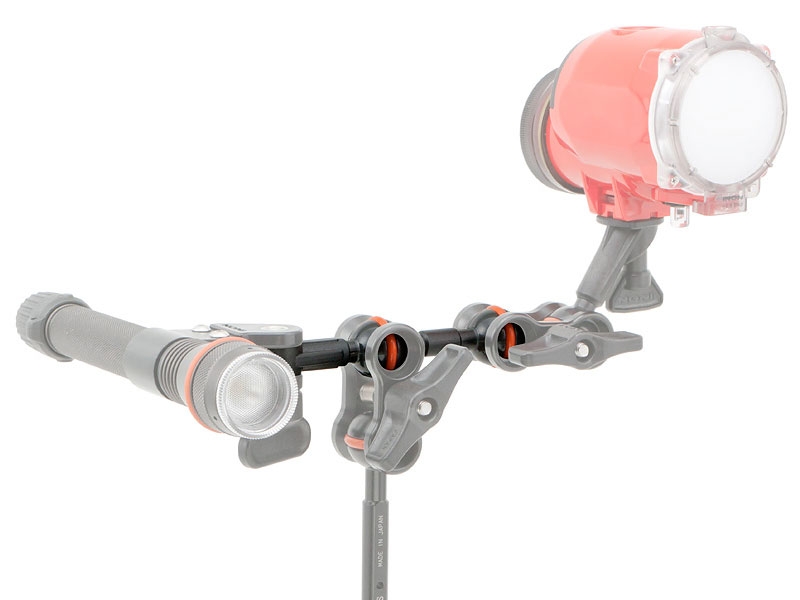

The Multi Direct Base II WB has two ball-joints to have two branches of arm enabling more sophisticated lighting such as using one strobe for a subject and the other strobe for background or using a strobe for still imaging and video light for footage.

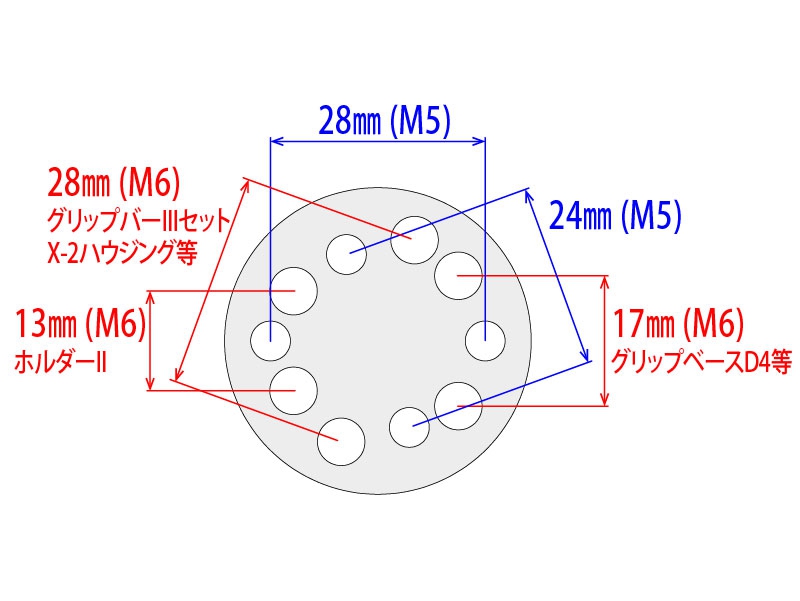

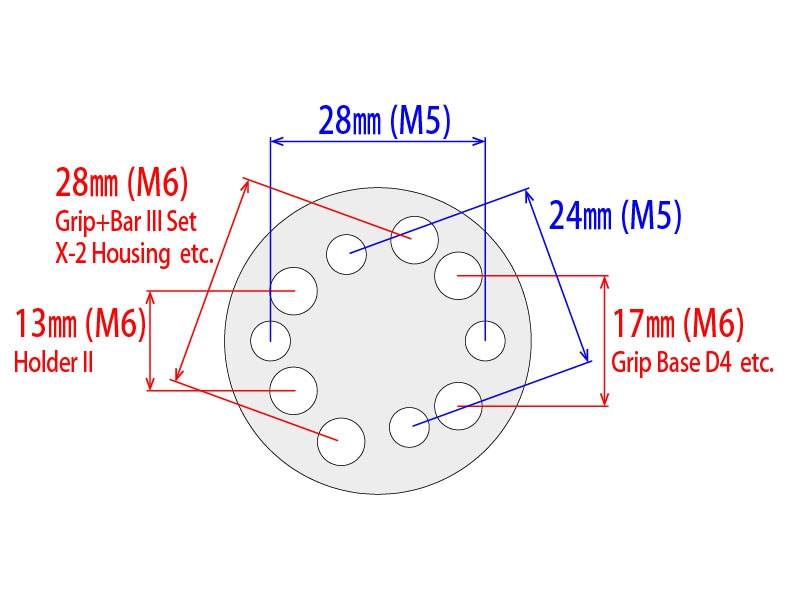

Total 10 fixing holes (M6 x 6, M5 x 4) on its base provide broad compatibility with major brands' housings/grips and attached thoroughly by two cap bolts.
Full length : 97mm/3.8in
Effective length : 86mm/3.4in
Weight : 56g/2.0oz [air] / approx.33g/1.2oz [underwater]
Package contents :
- M6 Cap Bolt x 2
- M5 Cap Bolt x 2
- M6 Flat Washer x 2
- M5 Flat Washer x 2
- Allen Wrench
Compatible base/housing etc.
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
- Holder II
- Grip+Bar III Set
- Holder II Grip Set
- Holder Base
- Grip+Bar I Set
- Grip+Bar II Set
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Tripod Adapter
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
- X-2 series Housing
- Other brands' housing/arm system including Anthis, Kenko, SEA&SEA, Nauticam (*1)
(*1) INON INC. has not confirmed compatibility with specific product(s) from other manufactures. Before using, make sure to check if the product(s) from other manufactures is compatible and does not interfere other combined product(s)
The Multi Direct Base II WB has two ball-joints to have two branches of arm enabling more sophisticated lighting such as using one strobe for a subject and the other strobe for background or using a strobe for still imaging and video light for footage.
Total 10 fixing holes (M6 x 6, M5 x 4) on its base provide broad compatibility with major brands' housings/grips and attached thoroughly by two cap bolts.
Full length : 97mm/3.8in
Effective length : 86mm/3.4in
Weight : 56g/2.0oz [air] / approx.33g/1.2oz [underwater]
Package contents :
- M6 Cap Bolt x 2
- M5 Cap Bolt x 2
- M6 Flat Washer x 2
- M5 Flat Washer x 2
- Allen Wrench
Compatible base/housing etc.
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
- Holder II
- Grip+Bar III Set
- Holder II Grip Set
- Holder Base
- Grip+Bar I Set
- Grip+Bar II Set
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Tripod Adapter
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
- X-2 series Housing
- Other brands' housing/arm system including Anthis, Kenko, SEA&SEA, Nauticam (*1)
(*1) INON INC. has not confirmed compatibility with specific product(s) from other manufactures. Before using, make sure to check if the product(s) from other manufactures is compatible and does not interfere other combined product(s)

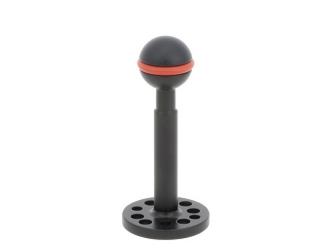

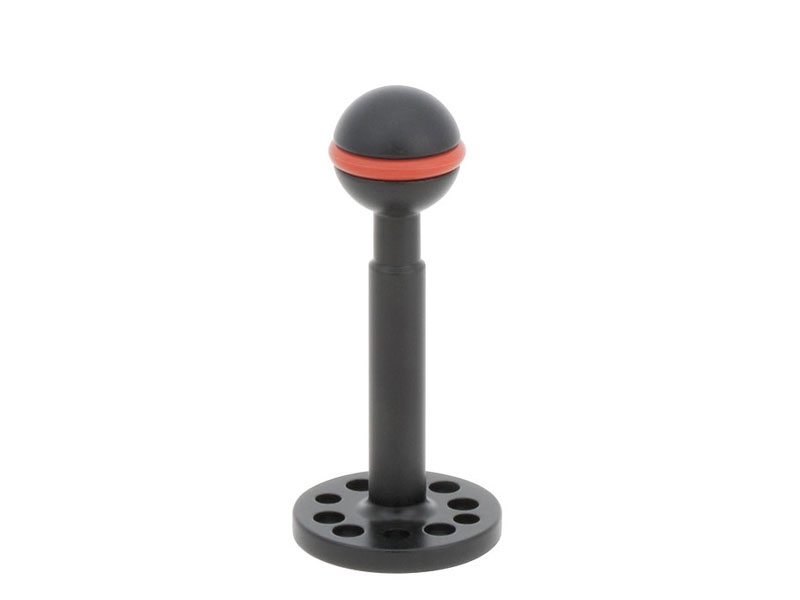

Multi Direct Base II Long
JAN/EAN code : 4562121433618
An aluminum alloy base product to attach an arm on the Grip Base D4 or System Base II etc. Total 10 fixing holes (M6 x 6, M5 x 4) on its base provide broad compatibility with major brands' housings/grips, and attached thoroughly by two cap bolts.
Full length : 88mm/3.5in
Effective length : 76mm/3.0in
Weight : 46g/1.6oz [air] / approx.28g/1.0oz [underwater]
Package contents :
- M6 Cap Bolt x 2
- M5 Cap Bolt x 2
- M6 Flat Washer x 2
- M5 Flat Washer x 2
- Allen Wrench
Compatible base/housing etc.
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
- Holder II
- Grip+Bar III Set
- Holder II Grip Set
- Holder Base
- Grip+Bar I Set
- Grip+Bar II Set
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Tripod Adapter
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
- X-2 series Housing
- Other brands' housing/arm system including Anthis, Kenko, SEA&SEA, Nauticam (*1)
(*1) INON INC. has not confirmed compatibility with specific product(s) from other manufactures. Before using, make sure to check if the product(s) from other manufactures is compatible and does not interfere other combined product(s)
An aluminum alloy base product to attach an arm on the Grip Base D4 or System Base II etc. Total 10 fixing holes (M6 x 6, M5 x 4) on its base provide broad compatibility with major brands' housings/grips, and attached thoroughly by two cap bolts.
Full length : 88mm/3.5in
Effective length : 76mm/3.0in
Weight : 46g/1.6oz [air] / approx.28g/1.0oz [underwater]
Package contents :
- M6 Cap Bolt x 2
- M5 Cap Bolt x 2
- M6 Flat Washer x 2
- M5 Flat Washer x 2
- Allen Wrench
Compatible base/housing etc.
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
- Holder II
- Grip+Bar III Set
- Holder II Grip Set
- Holder Base
- Grip+Bar I Set
- Grip+Bar II Set
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Tripod Adapter
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
- X-2 series Housing
- Other brands' housing/arm system including Anthis, Kenko, SEA&SEA, Nauticam (*1)
(*1) INON INC. has not confirmed compatibility with specific product(s) from other manufactures. Before using, make sure to check if the product(s) from other manufactures is compatible and does not interfere other combined product(s)
Multi Direct Base II Options

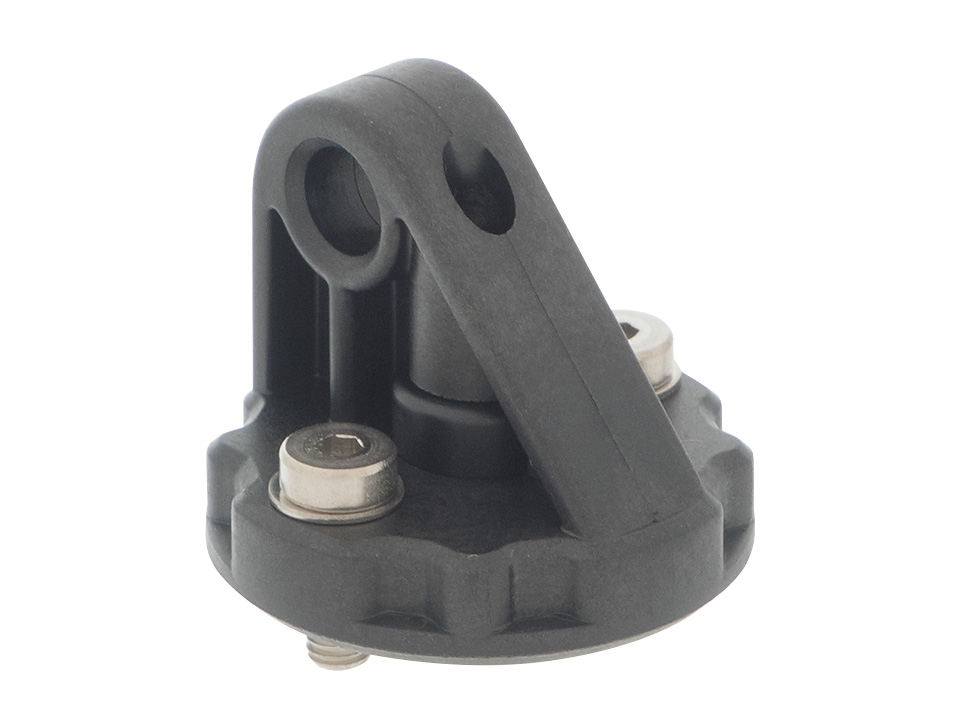

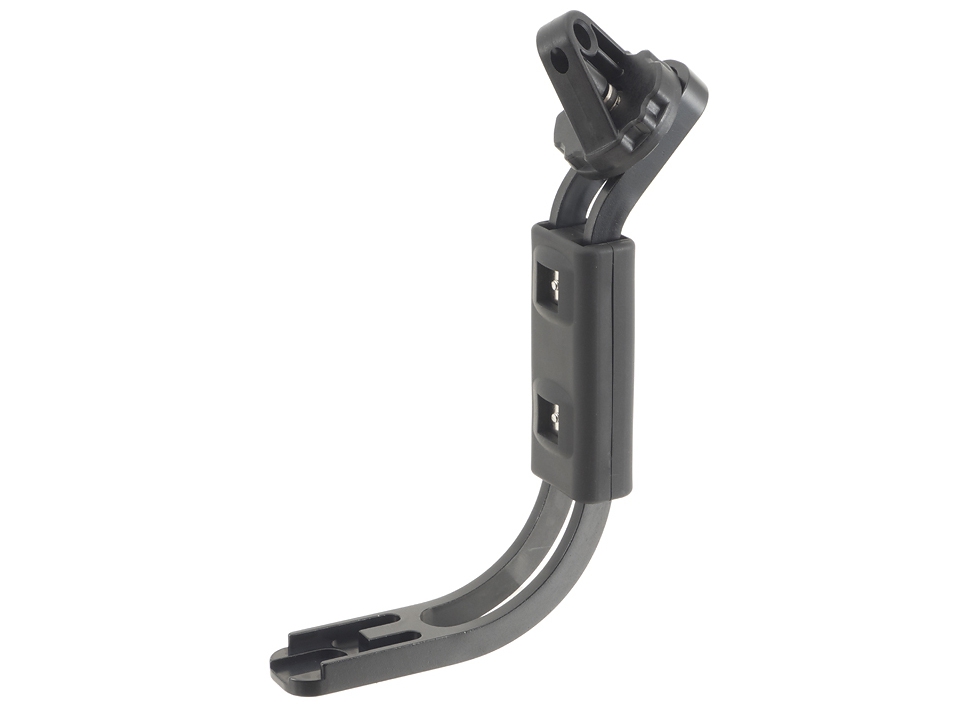

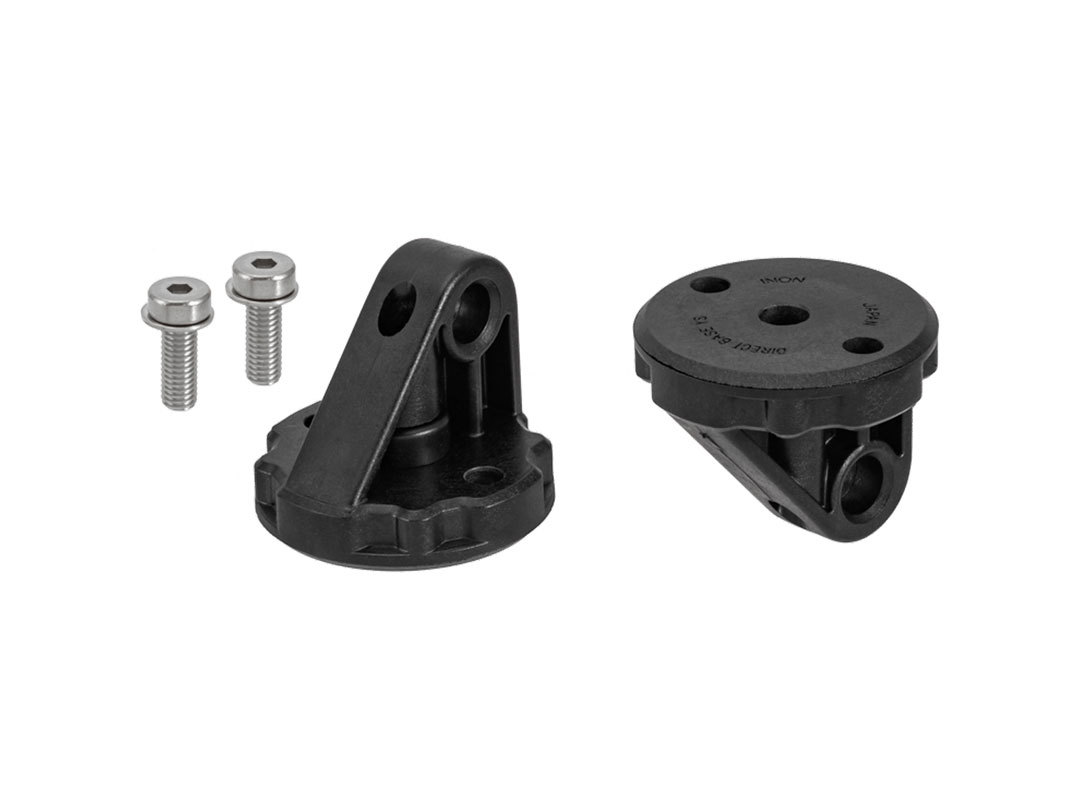

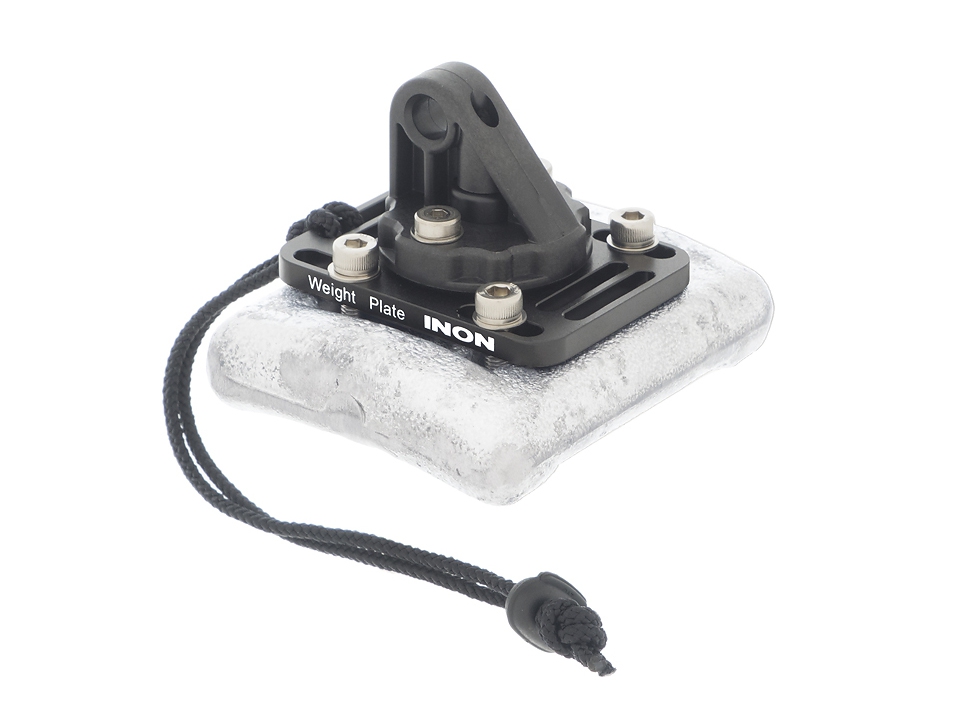

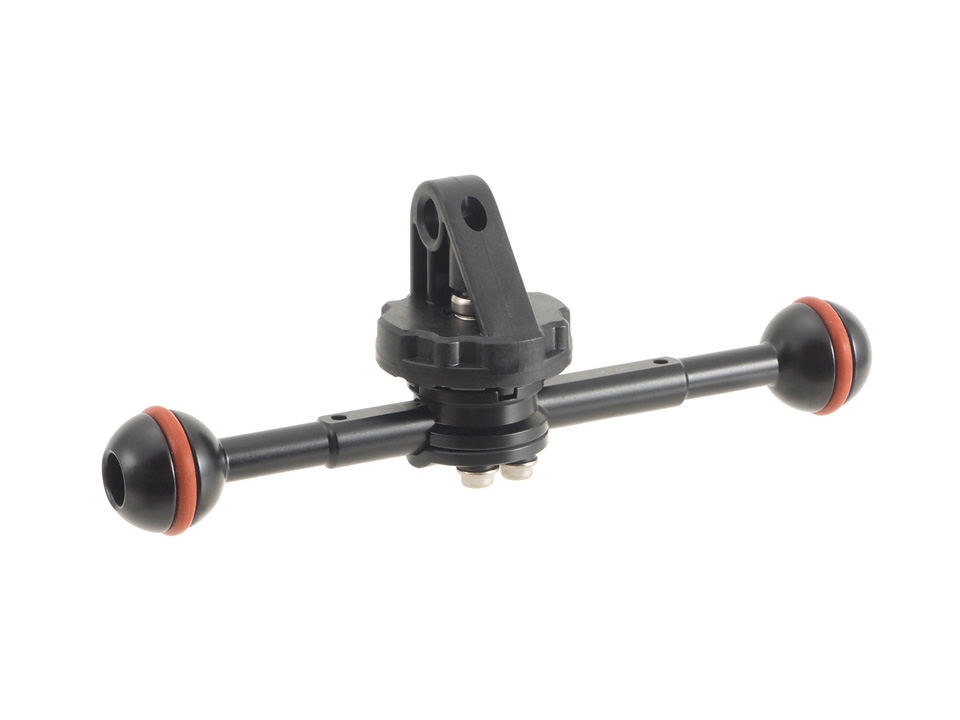

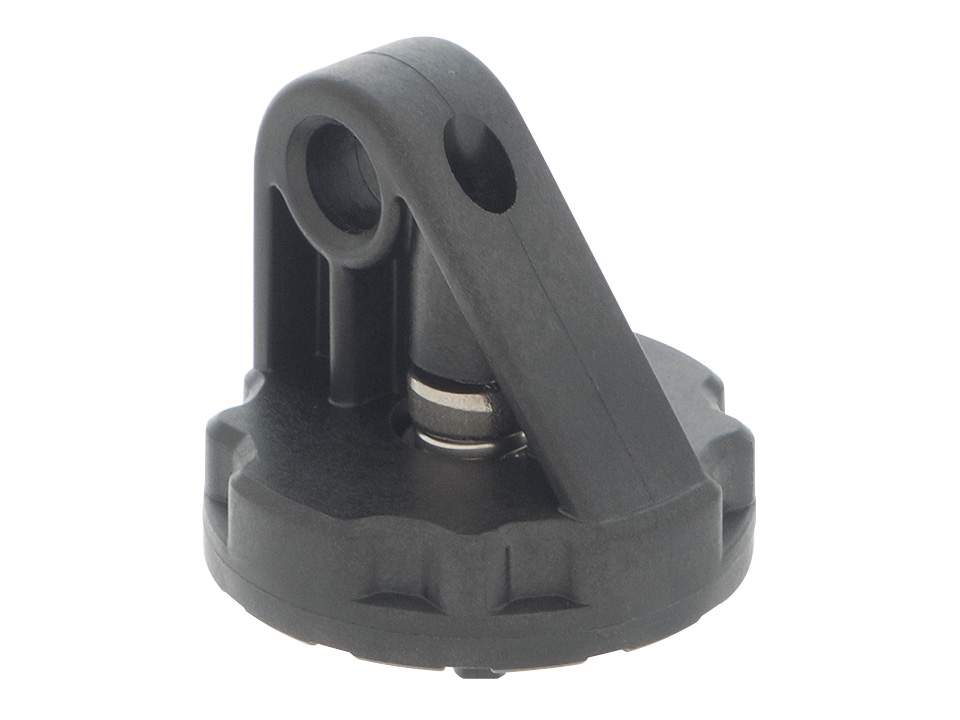

Direct Base YS RT
JAN/EAN code : 4562121438071

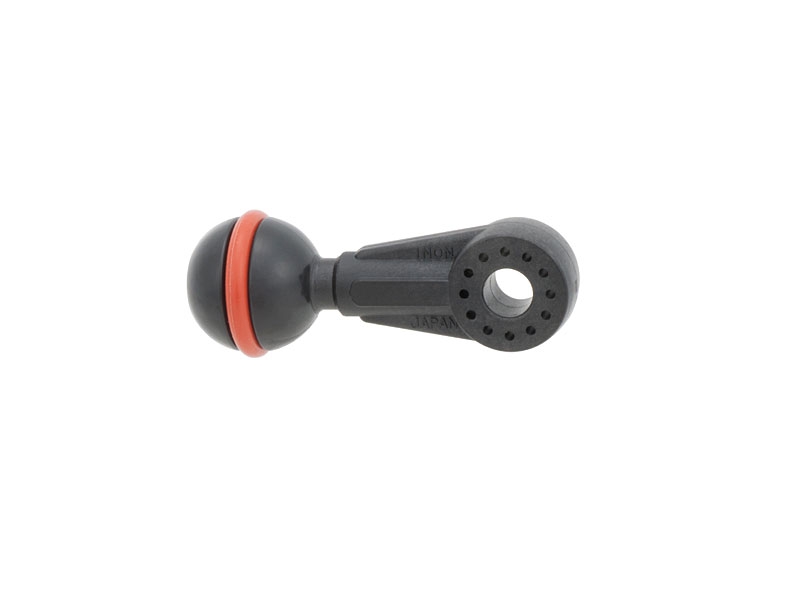

A YS Mount compatible base adapter to hold/attach an LED light, strobe or SD Mount Cage for HERO3/3+/4 via Single Light Holder LE, Single Light Holder LF or Z Joint to create simple and compact system. The YS Mount rotates 360 degree to benefit users with flexible aiming of combined lighting device.
Directly attached on the Grip Base D4/Grip Base M1/D Holder/SD Mount Cage for HERO3/3+/4/Weight Plate or via optional M6 Plate Direct Base III or M5 Plate Direct Base III on a housing or other base products. It is also possible to attach the Direct Base YS RT on the middle of the Stick Arm or Multi Ball Arm via optional M6 Joint.
Full length : 40mm/1.6in
Effective length : 28mm/1.1in
Weight : 27g/1.0oz [air] / approx.10g/0.3oz [underwater]
Compatible base/housing etc.
Directly attached
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Tripod Adapter

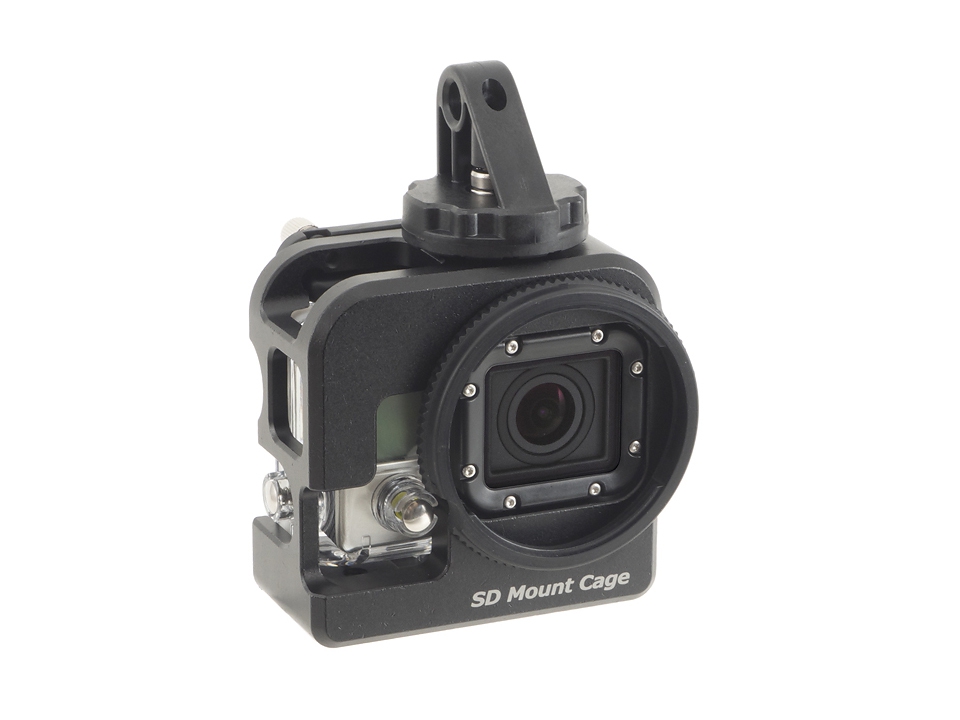

- SD Mount Cage for HERO3/3+/4
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
Attached via optional "M6 Plate Direct Base III"
- X-2 series Housing
- Holder II
- Grip+Bar III Set
- Holder II Grip Set
- Holder Base
- Grip+Bar I Set
- Grip+Bar II Set
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
- Other brands' housing/arm system (*1)
(*1) Compatible with 2 x M6 screw holes with 8mm or more depth and 13mm - 28mm center-to-center distance of screw holes.
Attached via optional "M5 Plate Direct Base III"
- Other brands' housing/arm system (*2)
(*2) Compatible with 2 x M5 screw holes with 6mm or more depth and 24mm - 28mm center-to-center distance of screw holes.
Compatible arm
Attached via optional "M6 Joint"
- Stick Arm XS-T/SS-T/S-T/M-T/L
- Multi Ball Arm S/ML/L/LL/XL (Multi Ball Arm SS is not compatible)
A YS Mount compatible base adapter to hold/attach an LED light, strobe or SD Mount Cage for HERO3/3+/4 via Single Light Holder LE, Single Light Holder LF or Z Joint to create simple and compact system. The YS Mount rotates 360 degree to benefit users with flexible aiming of combined lighting device.
Directly attached on the Grip Base D4/Grip Base M1/D Holder/SD Mount Cage for HERO3/3+/4/Weight Plate or via optional M6 Plate Direct Base III or M5 Plate Direct Base III on a housing or other base products. It is also possible to attach the Direct Base YS RT on the middle of the Stick Arm or Multi Ball Arm via optional M6 Joint.
Full length : 40mm/1.6in
Effective length : 28mm/1.1in
Weight : 27g/1.0oz [air] / approx.10g/0.3oz [underwater]
Compatible base/housing etc.
Directly attached
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Tripod Adapter
- SD Mount Cage for HERO3/3+/4
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
Attached via optional "M6 Plate Direct Base III"
- X-2 series Housing
- Holder II
- Grip+Bar III Set
- Holder II Grip Set
- Holder Base
- Grip+Bar I Set
- Grip+Bar II Set
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
- Other brands' housing/arm system (*1)
(*1) Compatible with 2 x M6 screw holes with 8mm or more depth and 13mm - 28mm center-to-center distance of screw holes.
Attached via optional "M5 Plate Direct Base III"
- Other brands' housing/arm system (*2)
(*2) Compatible with 2 x M5 screw holes with 6mm or more depth and 24mm - 28mm center-to-center distance of screw holes.
Compatible arm
Attached via optional "M6 Joint"
- Stick Arm XS-T/SS-T/S-T/M-T/L
- Multi Ball Arm S/ML/L/LL/XL (Multi Ball Arm SS is not compatible

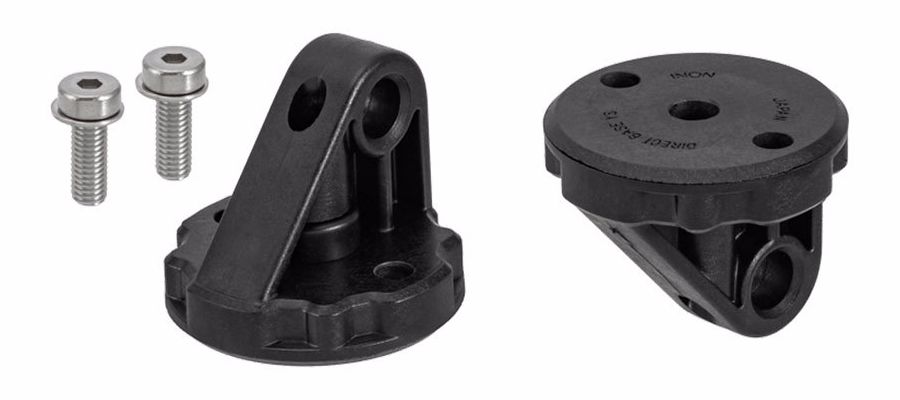

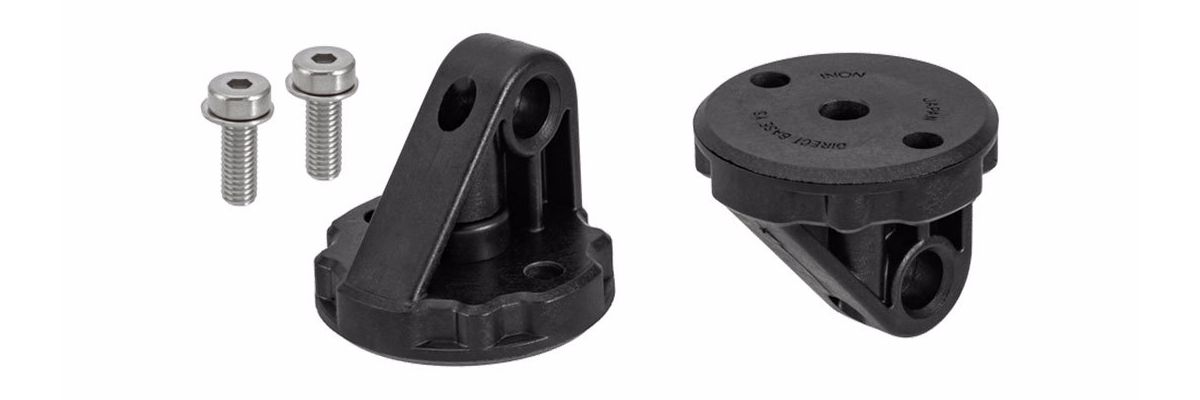

Direct Base YS II
JAN/EAN code : 4570018121166
YS adapter for the “Compact Tripod UWTP-C1” and “Quick Shoe Ballhead UWTP-QB1”.
*No 1/4-20UNC female screw.
Full length : 34.5mm/1.3in
Effective length : 26mm/1.0in
Weight : 24g/0.8oz [air] approx.10g/0.3oz [underwater]
Compatible product
- Compact Tripod UWTP-C1
- Quick Shoe Ball Head UWTP-QB1
- Quick Shoe W27 Plate UWTP-QB1
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
YS compatible adapter side
- Quick Holder Set S-LF
- Quick Holder Set S-LE
- Quick Holder Set S-Z
- Rotatable YS Extension Bar
- Single Light Holder LF
- Single Light Holder LE
- Z Joint
YS adapter for the “Compact Tripod UWTP-C1” and “Quick Shoe Ballhead UWTP-QB1”.
*No 1/4-20UNC female screw.
Full length : 34.5mm/1.3in
Effective length : 26mm/1.0in
Weight : 24g/0.8oz [air] approx.10g/0.3oz [underwater]
Compatible product
- Compact Tripod UWTP-C1
- Quick Shoe Ball Head UWTP-QB1
- Quick Shoe W27 Plate UWTP-QB1
- Weight Plate (Screw Type)
- Weight Plate (Velcro Type)
YS compatible adapter side
- Quick Holder Set S-LF
- Quick Holder Set S-LE
- Quick Holder Set S-Z
- Rotatable YS Extension Bar
- Single Light Holder LF
- Single Light Holder LE
- Z Joint
Joint Adapter

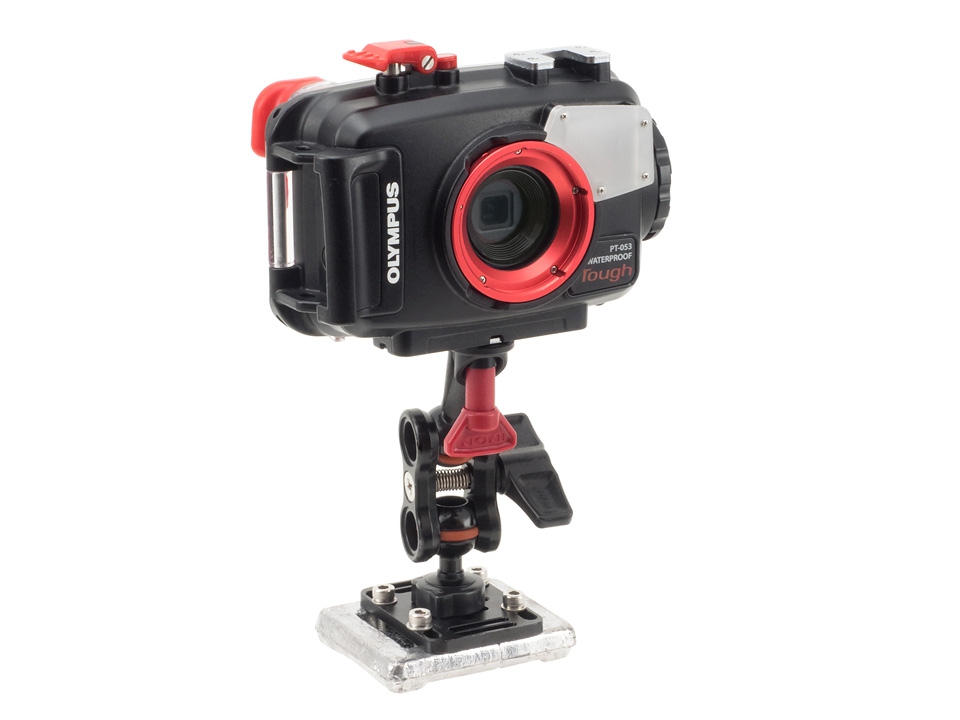

Z Adapter MV
JAN/EAN code : 4562121436527
An adapter to attach S-220 strobe or Double Light Holder LE/Strobe Light Holder LE on an arm body or Direct Base III etc. via clamp.
The ball-joint is made from plastic to provide flexible strobe positioning without loosening a clamp to provide comfortable strobe aiming.
Full length : 76mm/3.0in
Effective length : 58mm/2.3in
Weight : 35g/1.2oz [air] / approx.16g/0.6oz [underwater]
Compatible strobe/light etc.
- S-220
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LE
- ZD Front Mask
- SD Front Mask
An adapter to attach S-220 strobe or Double Light Holder LE/Strobe Light Holder LE on an arm body or Direct Base III etc. via clamp.
The ball-joint is made from plastic to provide flexible strobe positioning without loosening a clamp to provide comfortable strobe aiming.
Full length : 76mm/3.0in
Effective length : 58mm/2.3in
Weight : 35g/1.2oz [air] / approx.16g/0.6oz [underwater]
Compatible strobe/light etc.
- S-220
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LE
- ZD Front Mask
- SD Front Mask
Z Adapter II
JAN/EAN code : 4562121437418
The Z Adapter II is an optional product to add INON Arm II compatible ball-joint on a strobe, light holder or base. An arm product is combined in combination with a clamp. Metal body enhances stability of combined arm. It is useful when handling long arm via this accessory as the Z Adapter II attached on the Grip Base D4/M1 will have its ball-joint vertically or horizontally.
Effective length : 59mm/2.3in
Weight : 58g/2.0oz [air] / approx.36g/1.3oz [underwater]
Compatible arm/base etc.
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Tripod Adapter
Compatible strobe etc.
- S-220
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LE
- Strobe Light Holder LF
The Z Adapter II is an optional product to add INON Arm II compatible ball-joint on a strobe, light holder or base. An arm product is combined in combination with a clamp. Metal body enhances stability of combined arm. It is useful when handling long arm via this accessory as the Z Adapter II attached on the Grip Base D4/M1 will have its ball-joint vertically or horizontally.
Effective length : 59mm/2.3in
Weight : 58g/2.0oz [air] / approx.36g/1.3oz [underwater]
Compatible arm/base etc.
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Tripod Adapter
Compatible strobe etc.
- S-220
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LE
- Strobe Light Holder LF
Z Joint
JAN/EAN code : 4562121433571
A joint adapter to attach S-220 strobe on YS type arm head including Grip Base D4/Grip Base M1/D Holder/Shoe Base II/YS Adapter MV/YS Arm/Direct Base YS RT etc.
Also usable to attach an LED flashlight product on YS type arm head in combination with Double Light Holder LE/Quad Light Holder LE/Strobe Light Holder LE/Strobe Light Holder LF.
Effective length : 26mm/1.0in
Weight : 45.5g/1.6oz [air] / approx.23g/0.8oz [underwater]
Compatible strobe/light etc.
- S-220
- Strobe Light Holder LE
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LF
- ZD Front Mask
- SD Front Mask
Compatible base/arm etc.
- Shoe Base II
- YS Adapter MV
- Double YS Adapter MV
- YS Adapter WB MV
- YS Adapter
- YS Arm M
- YS Arm MS
- Bar Mount
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Direct Base YS RT
- Direct Base YS
(*1) There are two Arm Base design depending on production lot and only trapezoidal version can accept this product.
A joint adapter to attach S-220 strobe on YS type arm head including Grip Base D4/Grip Base M1/D Holder/Shoe Base II/YS Adapter MV/YS Arm/Direct Base YS RT etc.
Also usable to attach an LED flashlight product on YS type arm head in combination with Double Light Holder LE/Quad Light Holder LE/Strobe Light Holder LE/Strobe Light Holder LF.
Effective length : 26mm/1.0in
Weight : 45.5g/1.6oz [air] / approx.23g/0.8oz [underwater]
Compatible strobe/light etc.
- S-220
- Strobe Light Holder LE
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LF
- ZD Front Mask
- SD Front Mask
Compatible base/arm etc.
- Shoe Base II
- YS Adapter MV
- Double YS Adapter MV
- YS Adapter WB MV
- YS Adapter
- YS Arm M
- YS Arm MS
- Bar Mount
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Direct Base YS RT
- Direct Base YS
(*1) There are two Arm Base design depending on production lot and only trapezoidal version can accept this product.

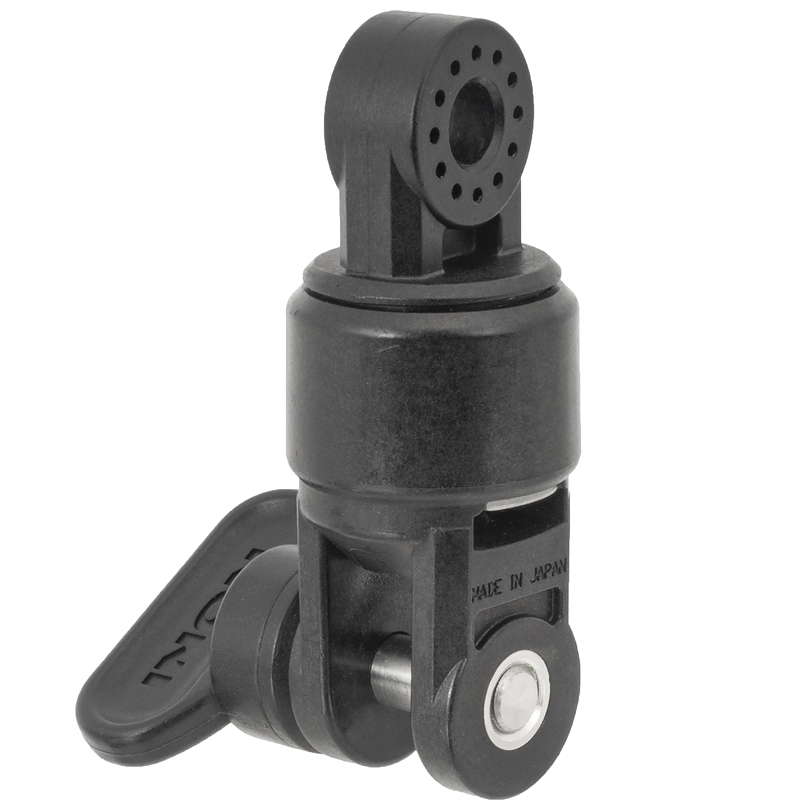

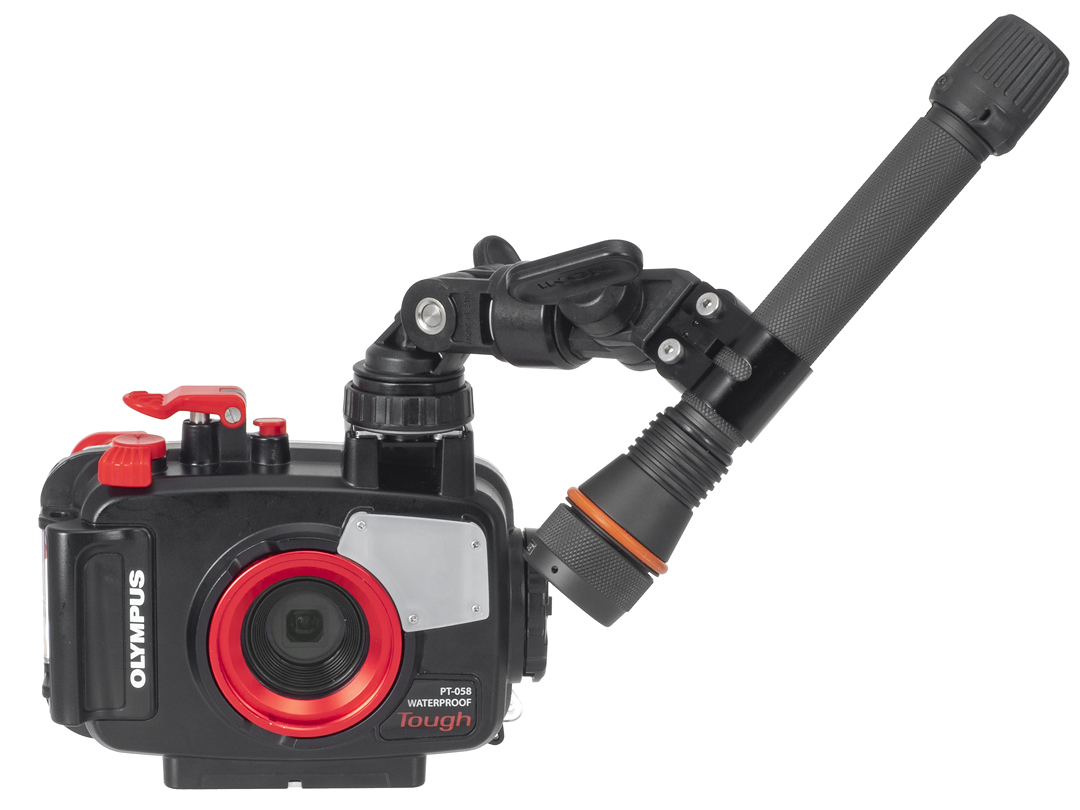

Rotatable YS Extension Bar
JAN/EAN code : 4562121439443
Attached in between YS compatible adapter like INON “ Shoe Base II” and strobe or LED torch to enhance flexibility of lighting thanks to its rotatable body part enabling creative and sophisticated lighting with minimum configuration.

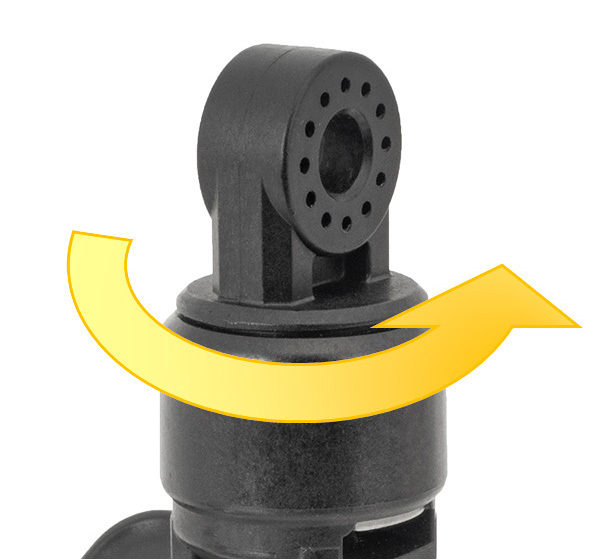

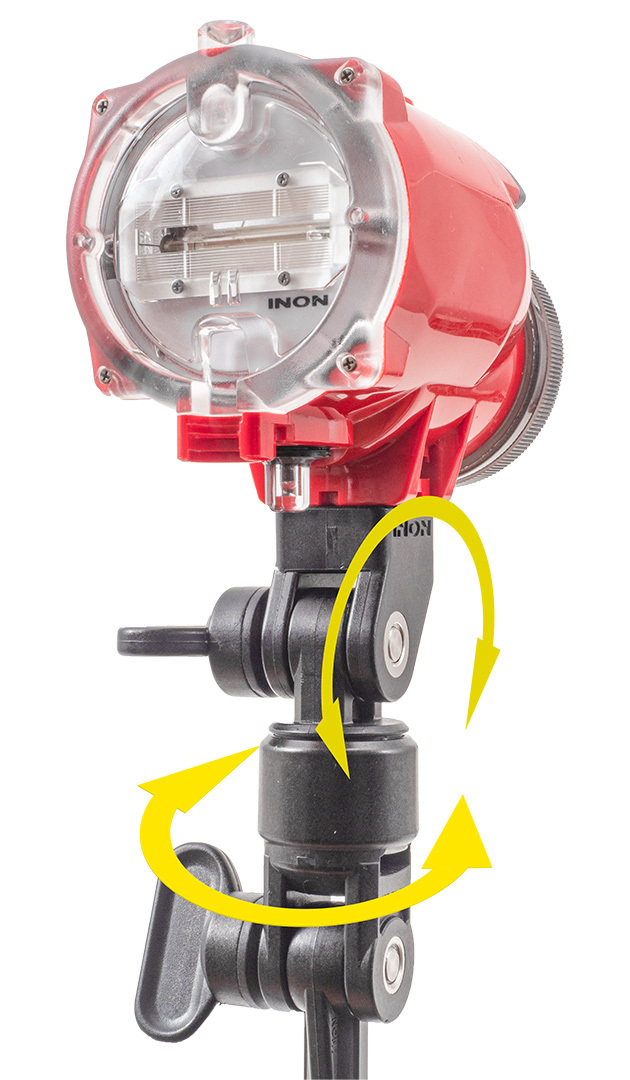

360 degree rotatable body
Effective length : 60mm/2.4in
Length : 82mm/3.2in
Weight : 64g/2.3oz [air] / approx. 25g/0.9oz [underwater]
Compatible products :
[YS head side]
- Quick Base S
- Quick Base M6W
- Quick Holder Set S-LE
- Quick Holder Set S-LF
- Quick Holder Set S-Z
- Z Joint
[YS compatible adapter side]
- Shoe Base II
- Direct Base YS RT
- Direct Base YS
- Bar Mount
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- YS Adapter MV
- Double YS Adapter MV
- YS Adapter WB MV
- YS Adapter
- YS Arm MS
- YS Arm M
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
Attached in between YS compatible adapter like INON “ Shoe Base II” and strobe or LED torch to enhance flexibility of lighting thanks to its rotatable body part enabling creative and sophisticated lighting with minimum configuration.
Effective length : 60mm/2.4in
Length : 82mm/3.2in
Weight : 64g/2.3oz [air] / approx. 25g/0.9oz [underwater]
Compatible products :
[YS head side]
- Quick Base S
- Quick Base M6W
- Quick Holder Set S-LE
- Quick Holder Set S-LF
- Quick Holder Set S-Z
- Z Joint
[YS compatible adapter side]
- Shoe Base II
- Direct Base YS RT
- Direct Base YS
- Bar Mount
- Grip Base D4
- Grip Base M1
- D Holder
- D Holder Extension Bar
- YS Adapter MV
- Double YS Adapter MV
- YS Adapter WB MV
- YS Adapter
- YS Arm MS
- YS Arm M
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60

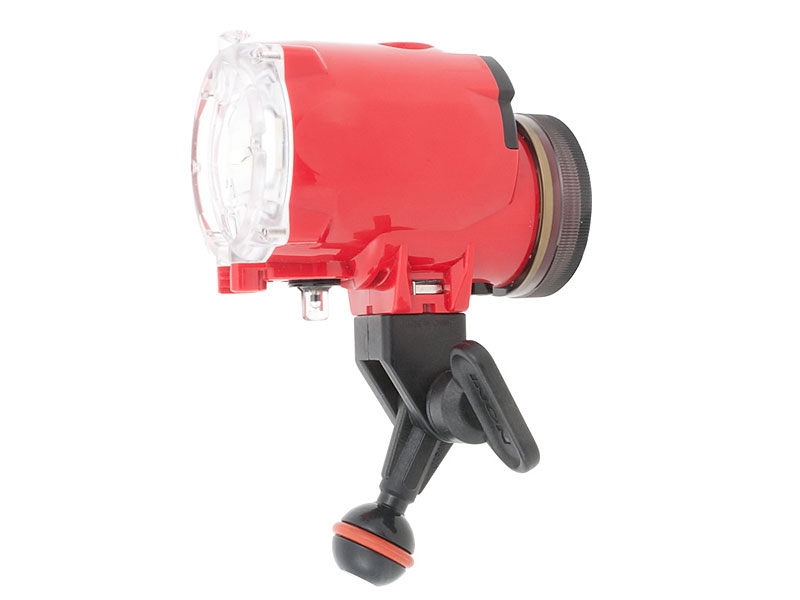

YS Adapter MV
JAN/EAN code : 4562121436534
An adapter to attach YS joint equipped product such as INON Z-22 strobe, SEA&SEA YS series strobe, "Single Light Holder LE", "Single Light Holder LF" or" Z Joint", on an arm or "Direct Base III" via clamp. The ball-joint is made from plastic to provide flexible strobe positioning without loosening a clamp to provide comfortable strobe aiming.
Full lensgth : 67mm/2.6in
Effective length : 45.5mm/1.8in
Weight : 20g/0.7oz [air] / approx.7g/0.2oz [underwater]
Compatible strobe/light etc.
Directly attached
- INON Z-22
- SEA&SEA YS series strobe
- (excluding particular model such as YS-300, YS-350 etc.)
- Single Light Holder LE
- Single Light Holder LF
Attached via optional "Z Joint"
- S-220
- Strobe Light Holder LE
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LF
Attached via optional "YS Adapter Fixing Bolt"
- S-220
(*1) Particular production lot of "Z-220", "Z-220S", "D-180" is not compatible with the "Z Joint". Refer to "Z Joint" section for detail.
An adapter to attach YS joint equipped product such as INON Z-22 strobe, SEA&SEA YS series strobe, "Single Light Holder LE", "Single Light Holder LF" or" Z Joint", on an arm or "Direct Base III" via clamp. The ball-joint is made from plastic to provide flexible strobe positioning without loosening a clamp to provide comfortable strobe aiming.
Full lensgth : 67mm/2.6in
Effective length : 45.5mm/1.8in
Weight : 20g/0.7oz [air] / approx.7g/0.2oz [underwater]
Compatible strobe/light etc.
Directly attached
- INON Z-22
- SEA&SEA YS series strobe
- (excluding particular model such as YS-300, YS-350 etc.)
- Single Light Holder LE
- Single Light Holder LF
Attached via optional "Z Joint"
- S-220
- Strobe Light Holder LE
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LF
Attached via optional "YS Adapter Fixing Bolt"
- S-220
(*1) Particular production lot of "Z-220", "Z-220S", "D-180" is not compatible with the "Z Joint". Refer to "Z Joint" section for detail.

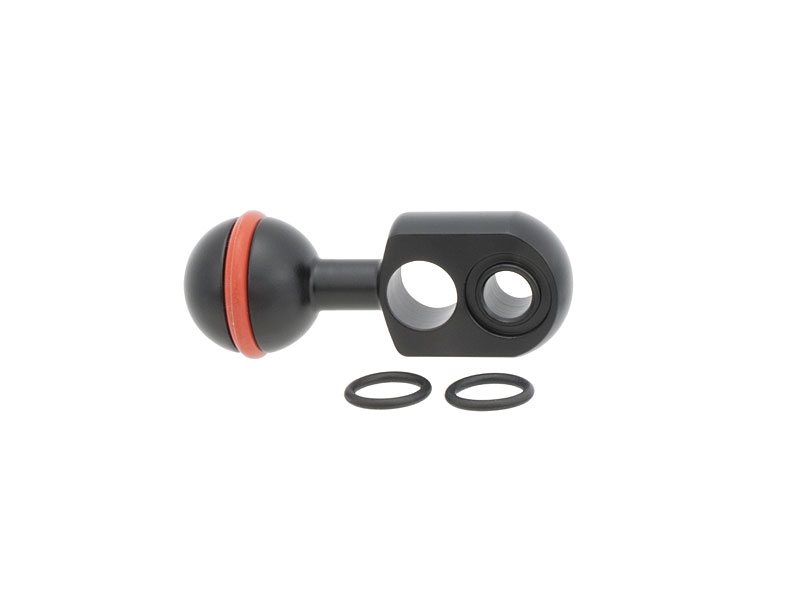

YS Adapter
JAN/EAN code : 4562121431058
An aluminum alloy adapter to attach YS joint equipped product such as INON Z-22 strobe, SEA&SEA YS series strobe, Single Light Holder LE, Single Light Holder LF or Z Joint. The SEA&SEA YS-300 and YS-350 have wider strobe adapter mount and YS Adapter is still usable for them by installing packaged O-Ring on a groove of the adapter to accommodate with the strobe adapter mount.
Full lensgth : 68mm/2.4in
Effective length : 46mm/1.8in
Weight : 36g/1.3oz [air] / approx.22g/0.8oz [underwater]
Compatible strobe/light etc.
Directly attached
- INON Z-22
- SEA&SEA YS Series Strobe
- Single Light Holder LE
- Single Light Holder LF
Attached via optional "Z Joint"
- S-220
- Strobe Light Holder LE
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LF
Attached via optional "YS Adapter Fixing Bolt"
- S-220
(*1) Particular production lot of "Z-220", "Z-220S", "D-180" is not compatible with the "Z Joint". Refer to "Z Joint" section for detail.
An aluminum alloy adapter to attach YS joint equipped product such as INON Z-22 strobe, SEA&SEA YS series strobe, Single Light Holder LE, Single Light Holder LF or Z Joint. The SEA&SEA YS-300 and YS-350 have wider strobe adapter mount and YS Adapter is still usable for them by installing packaged O-Ring on a groove of the adapter to accommodate with the strobe adapter mount.
Full lensgth : 68mm/2.4in
Effective length : 46mm/1.8in
Weight : 36g/1.3oz [air] / approx.22g/0.8oz [underwater]
Compatible strobe/light etc.
Directly attached
- INON Z-22
- SEA&SEA YS Series Strobe
- Single Light Holder LE
- Single Light Holder LF
Attached via optional "Z Joint"
- S-220
- Strobe Light Holder LE
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LF
Attached via optional "YS Adapter Fixing Bolt"
- S-220
(*1) Particular production lot of "Z-220", "Z-220S", "D-180" is not compatible with the "Z Joint". Refer to "Z Joint" section for detail.

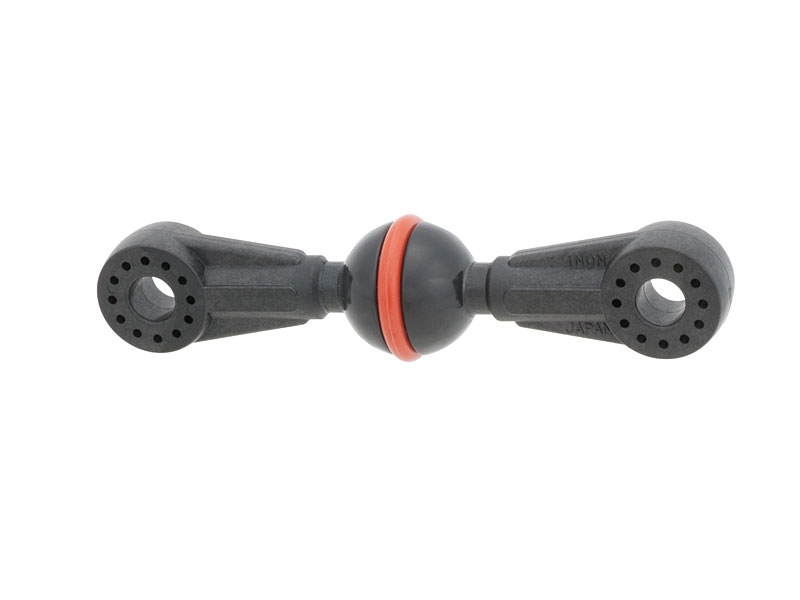

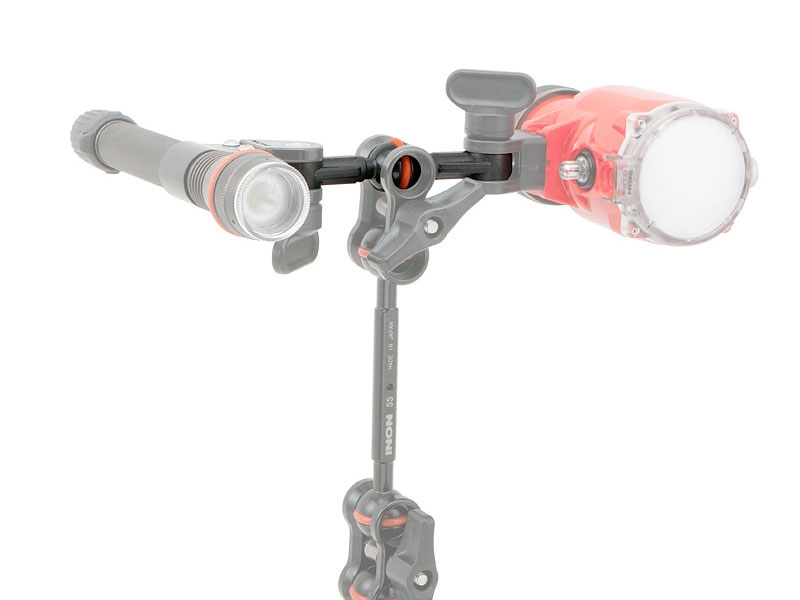

Double YS Adapter MV
JAN/EAN code : 4562121436671
An adapter equipped with two YS type arm heads on a ball-joint to hold two strobe/LED flashlight via Z Joint or light holder. The ball-joint is made from plastic to provide flexible strobe/LED flashlight positioning without loosening a clamp.
Full lensgth : 113mm (4.4in)
Effective length : 91mm (3.6in)
Weight : 30g (1.1oz) [air] / approx.11g (0.4oz) [underwater]
Compatible strobe/light etc.
Directly attached
INON Z-22, SEA&SEA YS series strobe
(excluding particular model such as YS-300, YS-350 etc.)
Single Light Holder LE, Single Light Holder LF
Attached via optional "Z Joint"
Z-330, D-200, S-2000, Z-240, D-2000,
D-2000S, D-2000W/Wn, D-180 (*1), D-180S,
Z-220 (*1), Z-220F, Z-220S (*1)
Strobe Light Holder LE, Double Light Holder LE, Quad Light Holder LE,
Strobe Light Holder LF
Attached via optional "YS Adapter Fixing Bolt"
Z-330, D-200, S-2000, Z-240, D-2000,
D-2000S, D-2000W/Wn, D-180, D-180S, Z-220, Z-220F, Z-220S
(*1) Particular production lot of "Z-220", "Z-220S", "D-180" is not compatible with the "Z Joint". Refer to "Z Joint" section for detail.
An adapter equipped with two YS type arm heads on a ball-joint to hold two strobe/LED flashlight via Z Joint or light holder. The ball-joint is made from plastic to provide flexible strobe/LED flashlight positioning without loosening a clamp.
Full lensgth : 113mm (4.4in)
Effective length : 91mm (3.6in)
Weight : 30g (1.1oz) [air] / approx.11g (0.4oz) [underwater]
Compatible strobe/light etc.
Directly attached
- INON Z-22
- SEA&SEA YS series strobe
- (excluding particular model such as YS-300, YS-350 etc.)
- Single Light Holder LE
- Single Light Holder LF
Attached via optional "Z Joint"
- Z-330
- D-200
- S-2000
- Z-240
- D-2000
- D-2000S
- D-2000W/Wn
- D-180 (*1)
- D-180S
- Z-220 (*1)
- Z-220F
- Z-220S (*1)
- Strobe Light Holder LE
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LF
Attached via optional "YS Adapter Fixing Bolt"
- Z-330
- D-200
- S-2000
- Z-240
- D-2000
- D-2000S
- D-2000W/Wn
- D-180
- D-180S
- Z-220
- Z-220F
- Z-220S
(*1) Particular production lot of "Z-220", "Z-220S", "D-180" is not compatible with the "Z Joint". Refer to "Z Joint" section for detail.

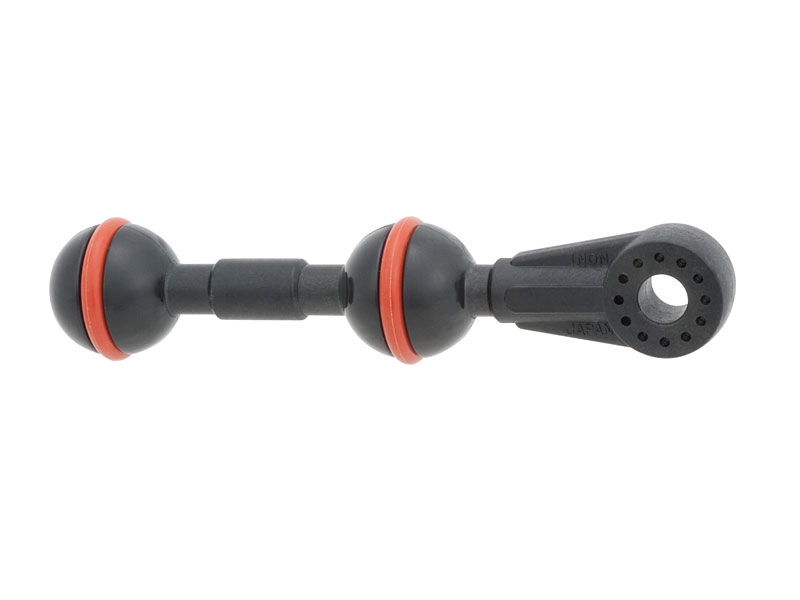

YS Adapter WB MV
JAN/EAN code : 4562121436688

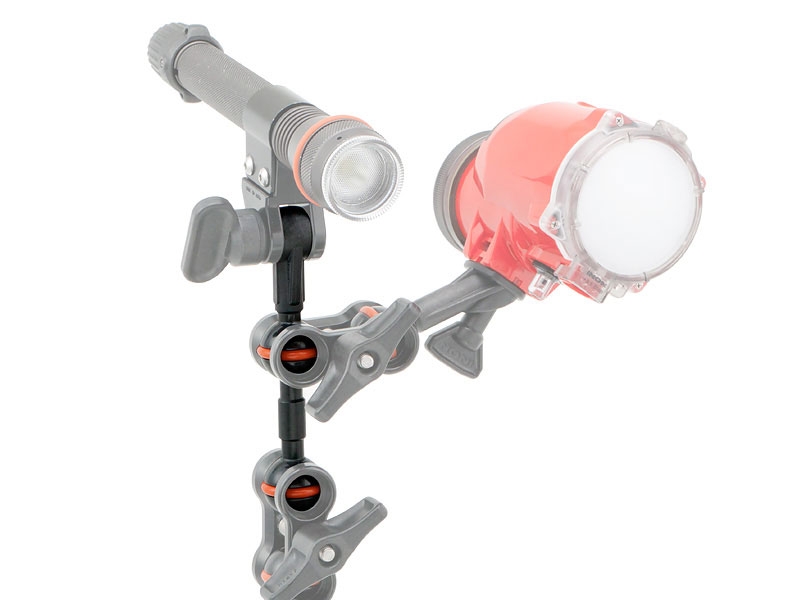

A YS type adapter carrying double ball-joints. Strobes or LED flashlights are attached on the YS Arm compatible arm via Z Joint or light holder and on the ball-joint via clamp. The ball-joint is made from plastic to provide flexible strobe/LED flashlight positioning without loosening a clamp.
*This product is not designed to attach an extra arm. Attaching extra arm will damage the adapter itself.
Full length : 122mm (4.8in)
Effective length : 100.5mm (4.0in)
Weight : 37g (1.3oz) [air] / approx.13g (0.5oz) [underwater]
Compatible strobe/light etc.
Directly attached
INON Z-22, SEA&SEA YS series strobe
(excluding particular model such as YS-300, YS-350 etc.)
Single Light Holder LE, Single Light Holder LF
Attached via optional "Z Joint"
Z-330, D-200, S-2000, Z-240, D-2000,
D-2000S, D-2000W/Wn, D-180 (*1), D-180S,
Z-220 (*1), Z-220F, Z-220S (*1)
Strobe Light Holder LE, Double Light Holder LE, Quad Light Holder LE,
Strobe Light Holder LF
Attached via optional "YS Adapter Fixing Bolt"
Z-330, D-200, S-2000, Z-240, D-2000,
D-2000S, D-2000W/Wn, D-180, D-180S, Z-220, Z-220F, Z-220S
(*1) Particular production lot of "Z-220", "Z-220S", "D-180" is not compatible with the "Z Joint". Refer to "Z Joint" section for detail.
A YS type adapter carrying double ball-joints. Strobes or LED flashlights are attached on the YS Arm compatible arm via Z Joint or light holder and on the ball-joint via clamp. The ball-joint is made from plastic to provide flexible strobe/LED flashlight positioning without loosening a clamp.
*This product is not designed to attach an extra arm. Attaching extra arm will damage the adapter itself.
Full length : 122mm (4.8in)
Effective length : 100.5mm (4.0in)
Weight : 37g (1.3oz) [air] / approx.13g (0.5oz) [underwater]
Compatible strobe/light etc.
Directly attached
- INON Z-22
- SEA&SEA YS series strobe
- (excluding particular model such as YS-300, YS-350 etc.)
- Single Light Holder LE
- Single Light Holder LF
Attached via optional "Z Joint"
- Z-330
- D-200
- S-2000
- Z-240
- D-2000
- D-2000S
- D-2000W/Wn
- D-180 (*1)
- D-180S
- Z-220 (*1)
- Z-220F
- Z-220S (*1)
- Strobe Light Holder LE
- Double Light Holder LE
- Quad Light Holder LE
- Strobe Light Holder LF
Attached via optional "YS Adapter Fixing Bolt"
- Z-330
- D-200
- S-2000
- Z-240
- D-2000
- D-2000S
- D-2000W/Wn
- D-180
- D-180S
- Z-220
- Z-220F
- Z-220S
(*1) Particular production lot of "Z-220", "Z-220S", "D-180" is not compatible with the "Z Joint". Refer to "Z Joint" section for detail.
YS Adapter Options

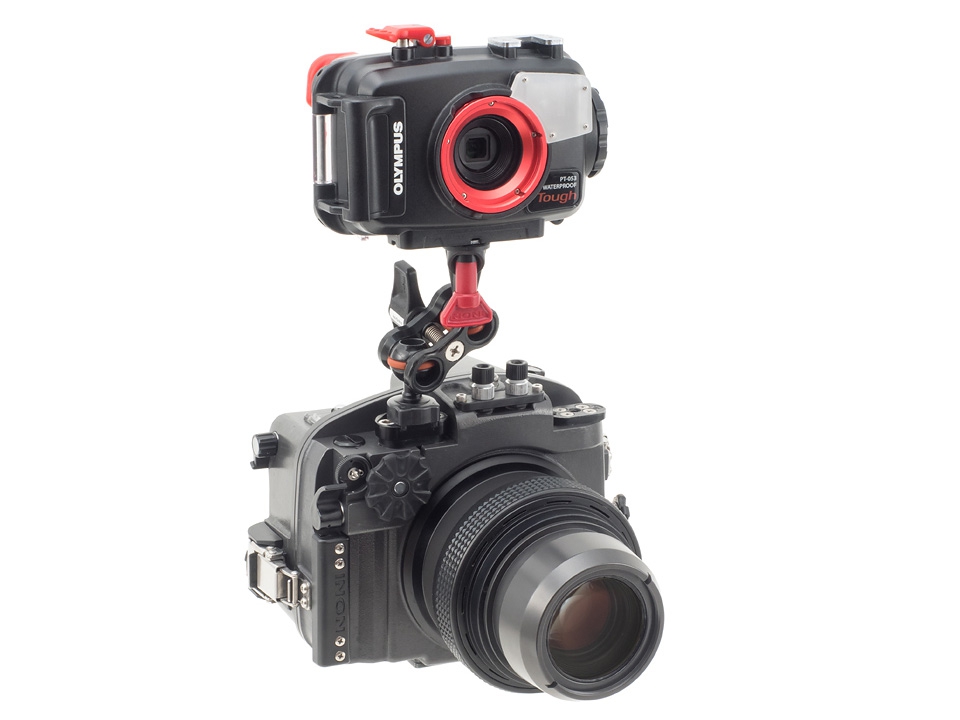

Z Adapter MV 1/4-20UNC
JAN/EAN code : 4562121438170
A ball adapter specifically designed to screw on tripod screw hole (1/4 in. 20UNC) which is generally equipped with a digital camera/underwater housing in the market. This adapter offers various applications as connecting part including attaching compact digital camera on D-SLR camera/housing or attaching on INON weight plate to use diving weight as a tripod base to hold camera system.
The ball-joint is made from plastic to provide flexible positioning without loosening a clamp to provide comfortable aiming.
Do not use this product on land to avoid damage/deformation caused by excessive load.
This product is specifically designed for tripod screw hole (1/4in-20UNC) and not compatible with S-220 strobe, and other relative products those having M6 screw hole.
Full length : 76mm/3.0in
Effective length : 58mm/2.3in
Weight : 35g/1.2oz [air] / approx.16g/0.6oz [underwater]
Z Adapter MV 1/4-20UNC Options
Light Holder
Single Light Holder LF
JAN/EAN code : 4562121437708
An optional product to attach single LF series LED flashlight on a YS type arm head. Especially for handy and compact camera system set-up with Shoe Base or Grip Base D4.
Weight : 57g (2.0oz) [air] / approx.31g (1.1oz) [underwater]
Compatible LED Light
LF1300-EWf, LF3100-EW, LF800-N, LF1100-W, LF1000-S, LF2700-W, LF1400-S
Compatible arm
Directly attached
Shoe Base, Grip Base D4, D Holder, D Holder Extension Bar,
YS Adapter MV, Double YS Adapter MV, YS Adapter WB MV,
YS Adapter, YS Am MS, YS Arm M, Bar Mount,
Port Arm for MRS, Port Arm for UFL-MR130 EFS60,
Direct Base YS RT, Direct Base YS
An optional product to attach single LF series LED flashlight on a YS type arm head. Especially for handy and compact camera system set-up with Shoe Base or Grip Base D4.
Weight : 57g (2.0oz) [air] / approx.31g (1.1oz) [underwater]
Compatible LED Light
- LF1300-EWf
- LF3100-EW
- LF800-N
- LF1100-W
- LF1000-S
- LF2700-W
- LF1400-S
Compatible arm
Directly attached
- Shoe Base
- Grip Base D4
- D Holder
- D Holder Extension Bar
- YS Adapter MV
- Double YS Adapter MV
- YS Adapter WB MV
- YS Adapter
- YS Am MS
- YS Arm M
- Bar Mount
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Direct Base YS RT
- Direct Base YS
Strobe Light Holder LF
JAN/EAN code : 4562121437715
Weight : 65g (2.3oz) [air] / approx.35g (1.2oz) [underwater]
Compatible LED Light
LF1300-EWf, LF3100-EW, LF800-N(*1), LF1100-W, LF1000-S, LF2700-W, LF1400-S
Compatible strobe
Z-330, D-200, S-2000(*1), Z-240, D-2000
D-2000S, D-2000W/Wn, D-180 (*2), D-180S
Z-220F, Z-220S (*2)
Compatible arm
Attached via optional "Z Joint"
Shoe Base (*3), Grip Base D4 (*3), D Holder,
D Holder Extension Bar, YS Adapter MV,
Double YS Adapter MV, YS Adapter WB MV,
YS Adapter, YS Am MS, YS Arm M, Bar Mount,
Port Arm for MRS, Port Arm for UFL-MR130 EFS60,
Direct Base YS RT, Direct Base YS
Attached via optional "Z Adapter II" / "Z Adapter"
Arm system products equipped with a ball-joint.
(*1) LF800-N can be combined only with S-2000 strobe via this product. Any other INON strobe like Z-330, D-200, Z-240, D-2000 etc. cannot be combined with LF800-N.
(*2) There are two Arm Base design depending on production lot and only trapezoidal version can accept this product.
(*3) "Wireless Connection" is not compatible when using this product to attach an external strobe since combined LED flashlight etc. on this product may block installation/free movement of a Mirror Unit (Strobe) which is necessary for "Wireless Connection", where most likely the built-in flash light may not be properly detected. Use "Optical Cable Connection" with compatible optical cable product like "Optical D Cable Type L / Cap Set" to connect between an external strobe and camera's built-in flash.
An optional product to attach one or two LF series LED flashlight on compatible lighting arm together with Z-330/D-200/S-2000/Z-240/D-2000 strobe etc. Directly attached on a YS type arm head like Shoe Base or Grip Base D4 in combination with the Z Joint. Pairing with the Z Adapter II enables to attach on a ball-joint product with a clamp. Usable as lighting arm to hold LF series LED flashlight only as well. You can attach one LED flashlight on either side or two flashlights when using Z adapter II/Z Adapter while using Z Joint allows to hold one flashlight on either side.
Weight : 65g (2.3oz) [air] / approx.35g (1.2oz) [underwater]
Compatible LED Light
- LF1300-EWf
- LF3100-EW
- LF800-N(*1)
- LF1100-W
- LF1000-S
- LF2700-W
- LF1400-S
Compatible strobe
- Z-330
- D-200
- S-2000(*1)
- Z-240
- D-2000
- D-2000S
- D-2000W/Wn
- D-180 (*2)
- D-180S
- Z-220F
- Z-220S (*2)
Compatible arm
Attached via optional "Z Joint"
- Shoe Base (*3)
- Grip Base D4 (*3)
- D Holder
- D Holder Extension Bar
- YS Adapter MV
- Double YS Adapter MV
- YS Adapter WB MV
- YS Adapter
- YS Am MS
- YS Arm M
- Bar Mount
- Port Arm for MRS
- Port Arm for UFL-MR130 EFS60
- Direct Base YS RT
- Direct Base YS
- Attached via optional "Z Adapter II" / "Z Adapter"
- Arm system products equipped with a ball-joint.
(*1) LF800-N can be combined only with S-2000 strobe via this product. Any other INON strobe like Z-330, D-200, Z-240, D-2000 etc. cannot be combined with LF800-N.
(*2) There are two Arm Base design depending on production lot and only trapezoidal version can accept this product.
(*3) "Wireless Connection" is not compatible when using this product to attach an external strobe since combined LED flashlight etc. on this product may block installation/free movement of a Mirror Unit (Strobe) which is necessary for "Wireless Connection", where most likely the built-in flash light may not be properly detected. Use "Optical Cable Connection" with compatible optical cable product like "Optical D Cable Type L / Cap Set" to connect between an external strobe and camera's built-in flash.

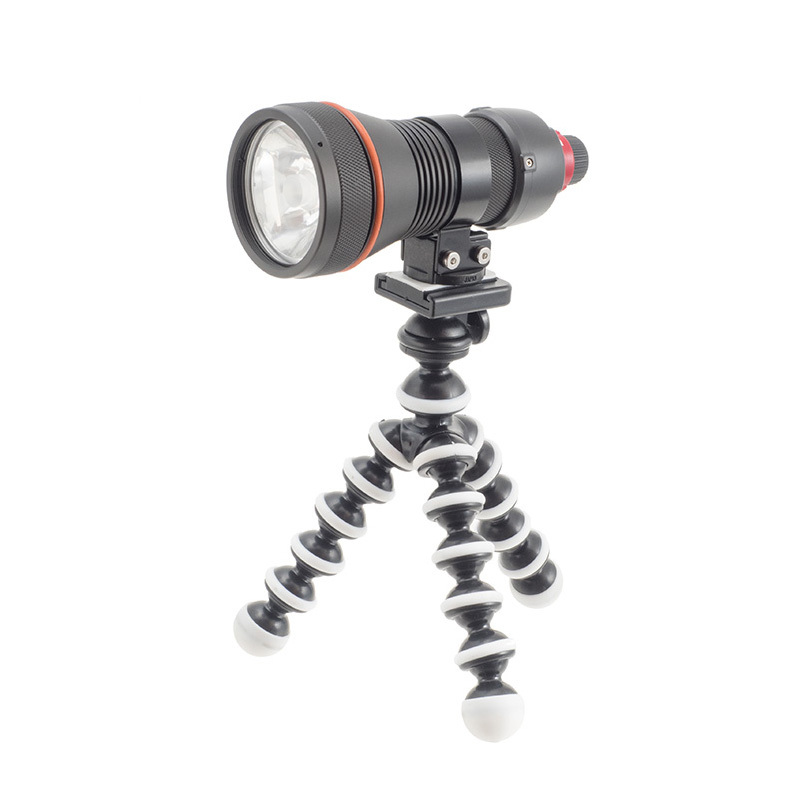

Single Light Holder LF for Tripod
JAN/EAN code : 4562121438194
Weight : 29g (1.0oz) [air] / approx.18g (0.6oz) [underwater]
Compatible LED Light
LF1300-EWf, LF3100-EW, LF800-N, LF1100-W, LF1000-S, LF2700-W, LF1400-S
Single Light Holder LE
JAN/EAN code : 4562121435124
An optional product to attach single LE series LED flashlight on a YS type arm head. Especially for handy and compact camera system set-up with Shoe Base or Grip Base D4.
Weight : 56g (2.0oz) [air] / approx.31g (1.1oz) [underwater]
Compatible LED Light
LE700-W Type2, LE700-S Type2, LE350 Type2,
LE700-W, LE700-S, LE350, LE550-W, LE550-S, LE250, LE240
Compatible arm
Directly attached
Shoe Base, Grip Base D4, D Holder, D Holder Extension Bar,
YS Adapter MV, Double YS Adapter MV, YS Adapter WB MV,
YS Adapter, YS Am MS, YS Arm M, Bar Mount,
Port Arm for MRS, Port Arm for UFL-MR130 EFS60
Direct Base YS RT, Direct Base YS
Double Light Holder LE
JAN/EAN code : 4562121435131
Weight : 73g (2.6oz) [air] / approx.29g (1.0oz) [underwater]
Compatible LED Light
LE700-W Type2, LE700-S Type2, LE350 Type2,
LE700-W, LE700-S, LE350, LE550-W, LE550-S, LE250, LE240
Compatible arm
Attached via optional "Z Joint"
Shoe Base, Grip Base D4, D Holder, D Holder Extension Bar,
YS Adapter MV, Double YS Adapter MV, YS Adapter WB MV,
YS Adapter, YS Am MS, YS Arm M, Bar Mount,
Port Arm for MRS, Port Arm for UFL-MR130 EFS60,
Direct Base YS RT, Direct Base YS
Attached via optional "Z Adapter MV" / "Z Adapter II"
Arm system products equipped with a ball-joint.
Quad Light Holder LE
JAN/EAN code : 4562121435148
Weight : 116g (4.1oz) [air] / approx.48g (1.7oz) [underwater]
Compatible LED Light
LE700-W Type2, LE700-S Type2, LE350 Type2,
LE700-W, LE700-S, LE350, LE550-W, LE550-S, LE250, LE240
Compatible arm
Attached via optional "Z Joint"
Shoe Base, Grip Base D4, D Holder, D Holder Extension Bar,
YS Adapter MV, Double YS Adapter MV, YS Adapter WB MV,
YS Adapter, YS Am MS, YS Arm M, Bar Mount,
Port Arm for MRS, Port Arm for UFL-MR130 EFS60,
Direct Base YS RT, Direct Base YS
Attached via optional "Z Adapter MV" / "Z Adapter II"
Arm system products equipped with a ball-joint.
Strobe Light Holder LE
JAN/EAN code : 4562121435568
Weight : 67.2g (2.4oz) [air] / approx.35g (1.2oz) [underwater]
Compatible LED Light
LE700-W Type2, LE700-S Type2, LE350 Type2,
LE700-W, LE700-S, LE350, LE550-W, LE550-S, LE250, LE240
Compatible strobe
Z-330, D-200, S-2000, Z-240, D-2000
D-2000S, D-2000W/Wn, D-180 (*1), D-180S
Z-220F, Z-220S (*1)
Compatible arm
Attached via optional "Z Joint"
Shoe Base (*2), Grip Base D4 (*2), D Holder,
D Holder Extension Bar, YS Adapter MV,
Double YS Adapter MV, YS Adapter WB MV,
YS Adapter, YS Am MS, YS Arm M, Bar Mount,
Port Arm for MRS, Port Arm for UFL-MR130 EFS60,
Direct Base YS RT, Direct Base YS
Attached via optional "Z Adapter MV" / "Z Adapter II" / "Z Adapter"
Arm system products equipped with a ball-joint.
(*1) There are two Arm Base design depending on production lot and only trapezoidal version can accept this product.
(*2) "Wireless Connection" is not compatible when using this product to attach an external strobe since combined LED flashlight etc. on this product may block installation/free movement of a Mirror Unit (Strobe) which is necessary for "Wireless Connection", where most likely the built-in flash light may not be properly detected. Use "Optical Cable Connection" with compatible optical cable product like "Optical D Cable Type L / Cap Set" to connect between an external strobe and camera's built-in flash.
Single Light Holder LE for Tripod
JAN/EAN code : 4562121438187
An optional product to attach single LE series LED flashlight on a tripod which is equipped with 1/4-20UNC screw or "Shoe Base 1/4-20UNC" offering various off-camera applications such as back lighting with a light attached on a tripod, fish lamp in black water diving etc. Combination with the "Shoe Base 1/4-20UNC" can install compatible light simply on an accessory shoe of an underwater housing.
Weight : 29g (1.0oz) [air] / approx.18g (0.6oz) [underwater]
Compatible LED Light
LE700-W Type2, LE700-S Type2, LE350 Type2,
LE700-W, LE700-S, LE350, LE550-W, LE550-S, LE250, LE240
Adapter for Carbon Telescopic Arm

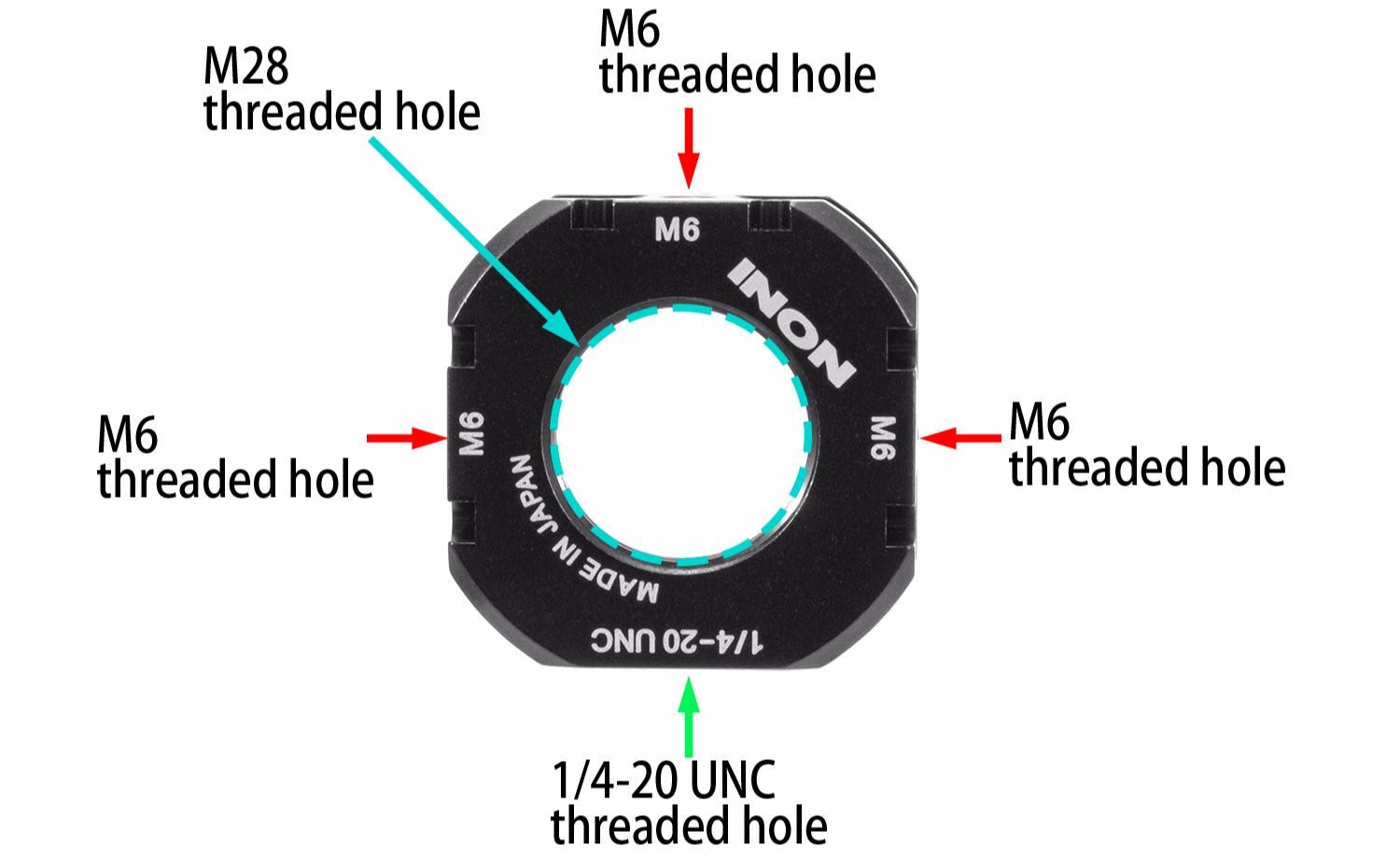

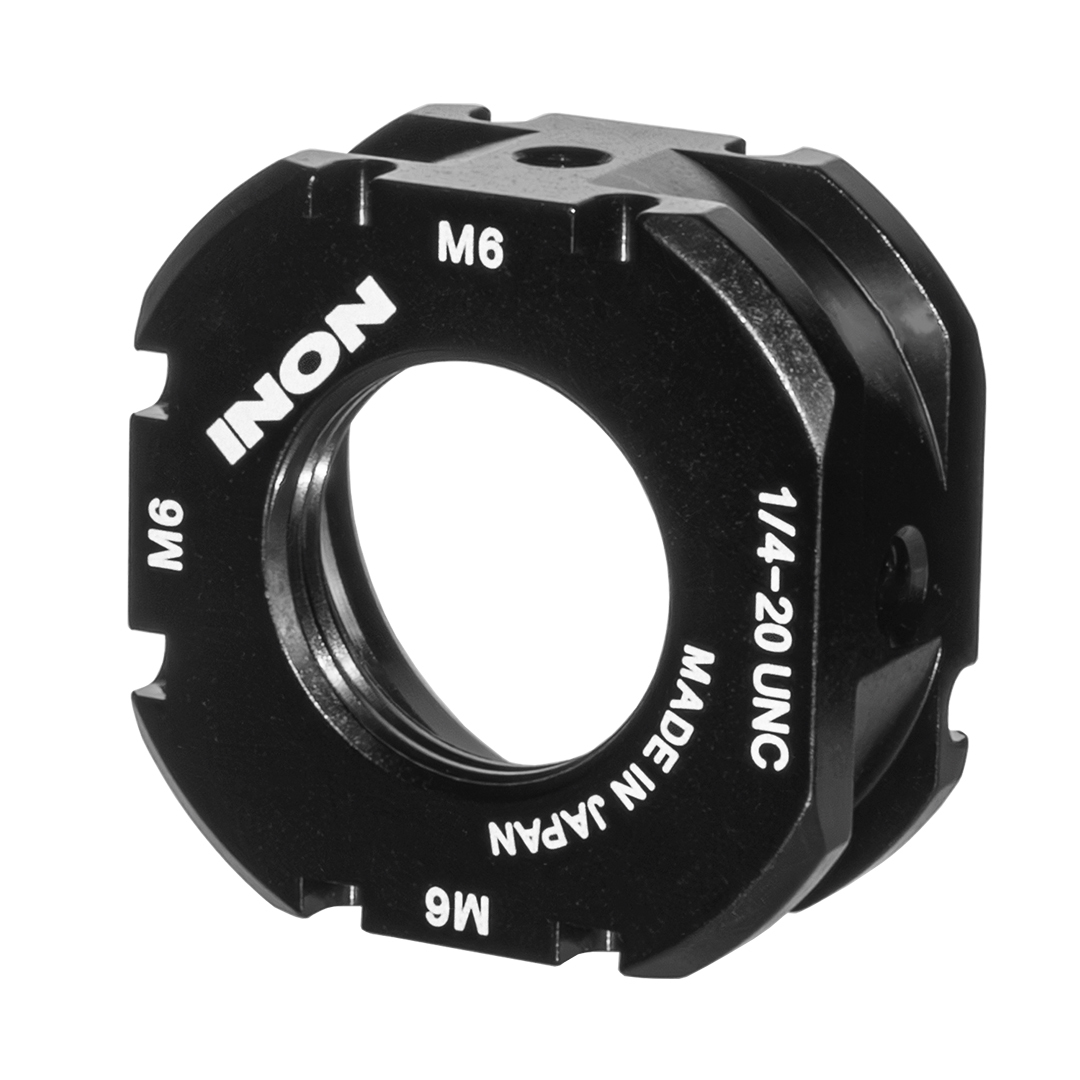

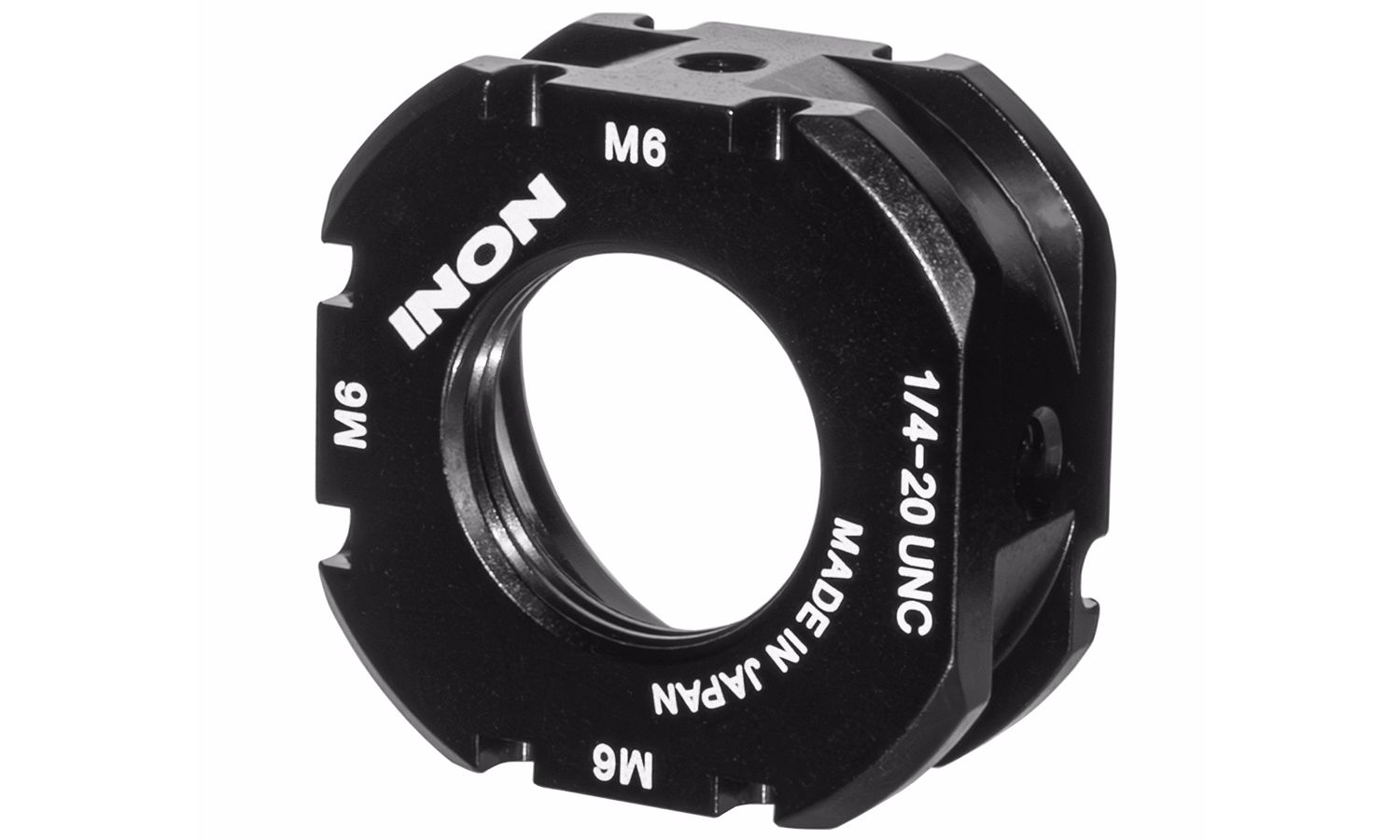

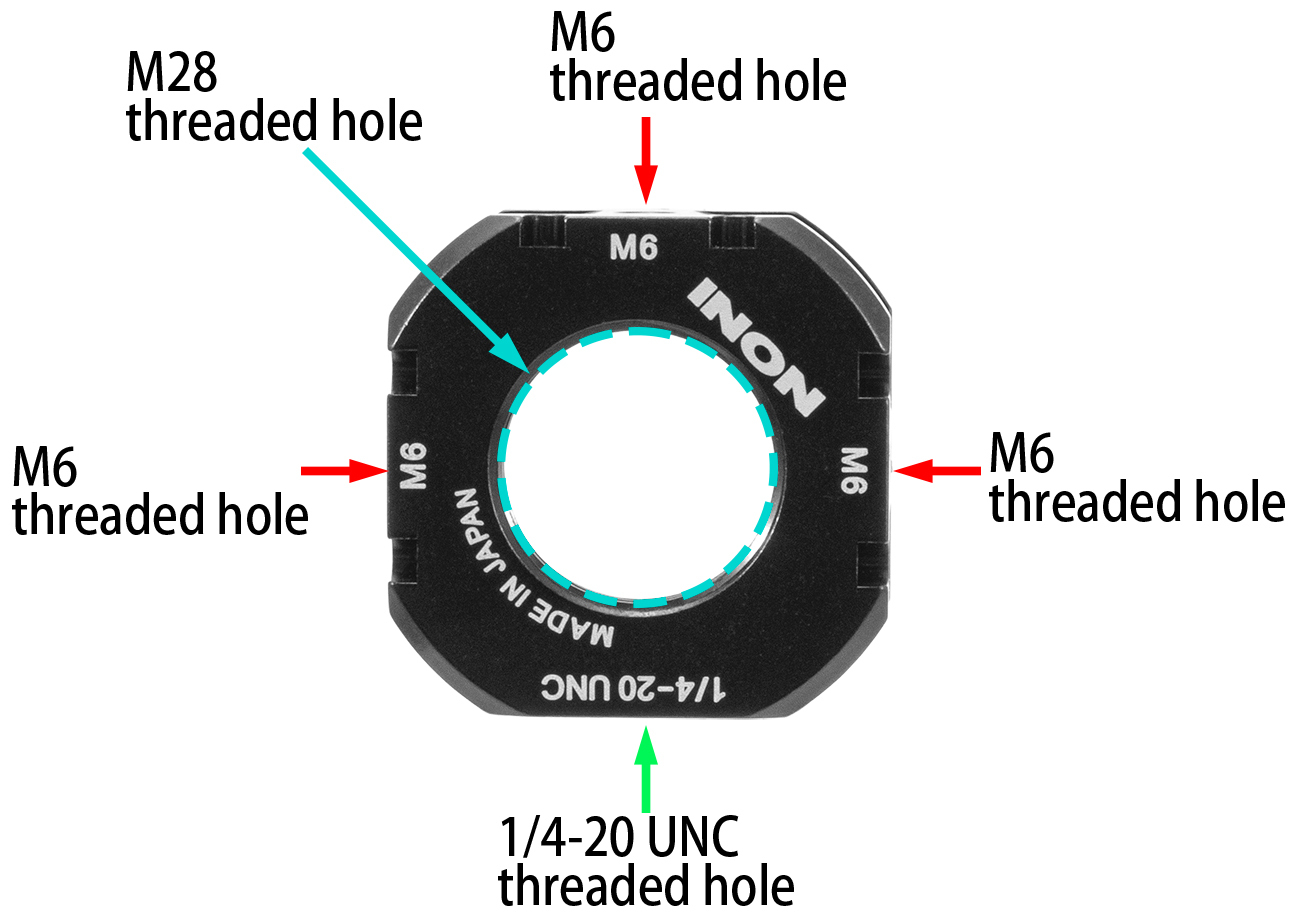

M28 Ring Adapter for Carbon Telescopic Arm
JAN/EAN code : 457001812090
An adapter attached to a Carbon Telescopic Arm enabling to flexibly combine with a tripod system, lights, etc.

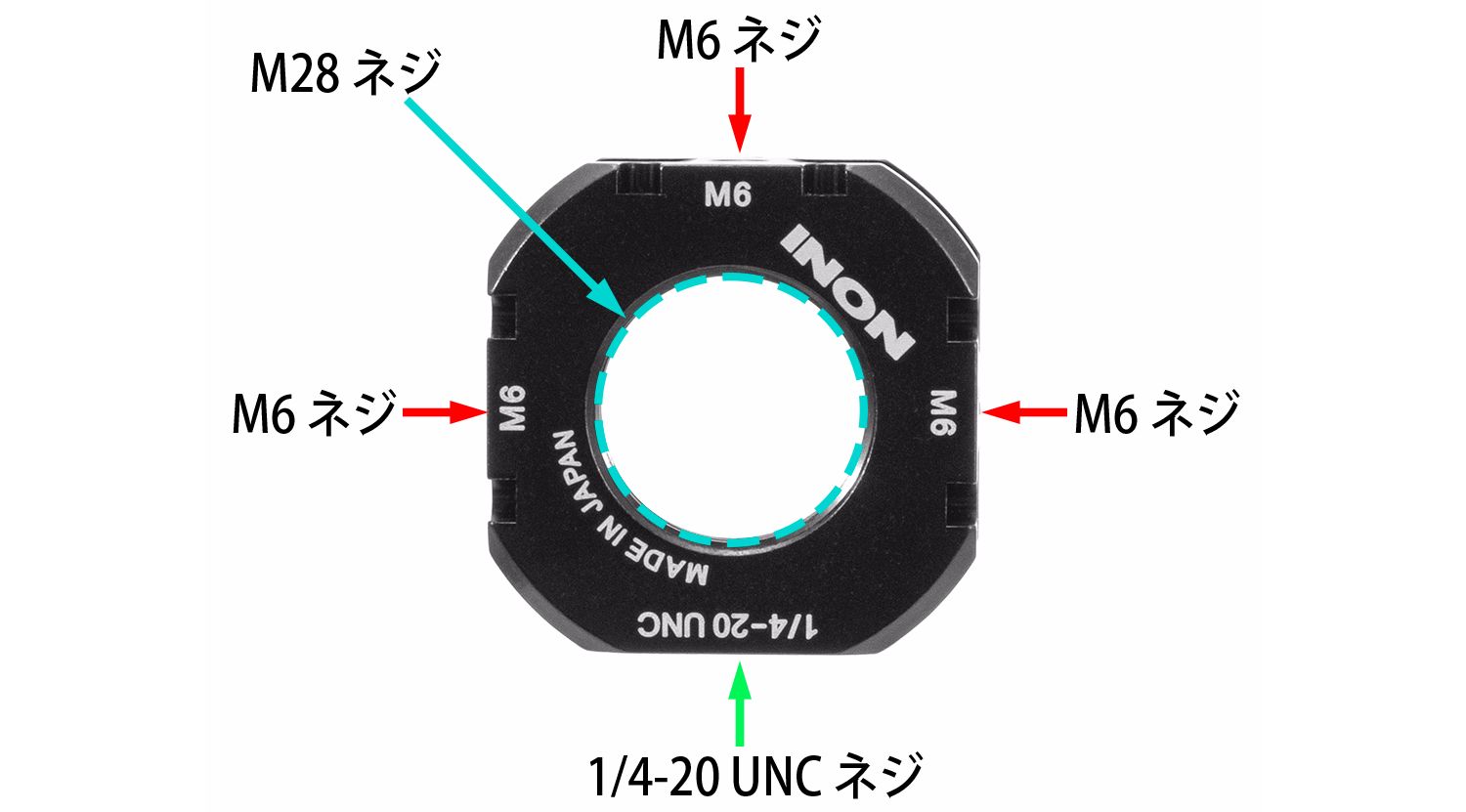

Compatible products
Arms (M28)
- Carbon Telescopic Arm SS / S / M / L
Adapters (M6)
- Direct Base III
- Direct Base YS RT
- Z Adapter MV
- Adapter II
- Z Joint
Others (1/4-20UNC)
- Shoe Base 1/4-20UNC Head
- UW 3-Way Panhead
- UW Tripod Hub
Features
Tripod System
With a standard tripod configuration, it is difficult to adjust the camera position once the tripod is placed on the seabed, but with the M28 Ring Adapter (for Carbon Telescopic Arm) attached, the camera position can be easily controlled by adjusting the Carbon Telescopic Arm length.
Attaching the Direct Base III etc. allows for flexible lighting configuration.
Follow Cam System
Multiple lights can be attached on a Carbon Telescopic Arm to use more intense light for follow cam imaging.
Direct Base III ｘ2
Clamp III ｘ2
YS Adapter MV ｘ2
Quick Holder Set S-LF ｘ2
LF2400h-EW ｘ2
An adapter attached to a Carbon Telescopic Arm enabling to flexibly combine with a tripod system, lights, etc.

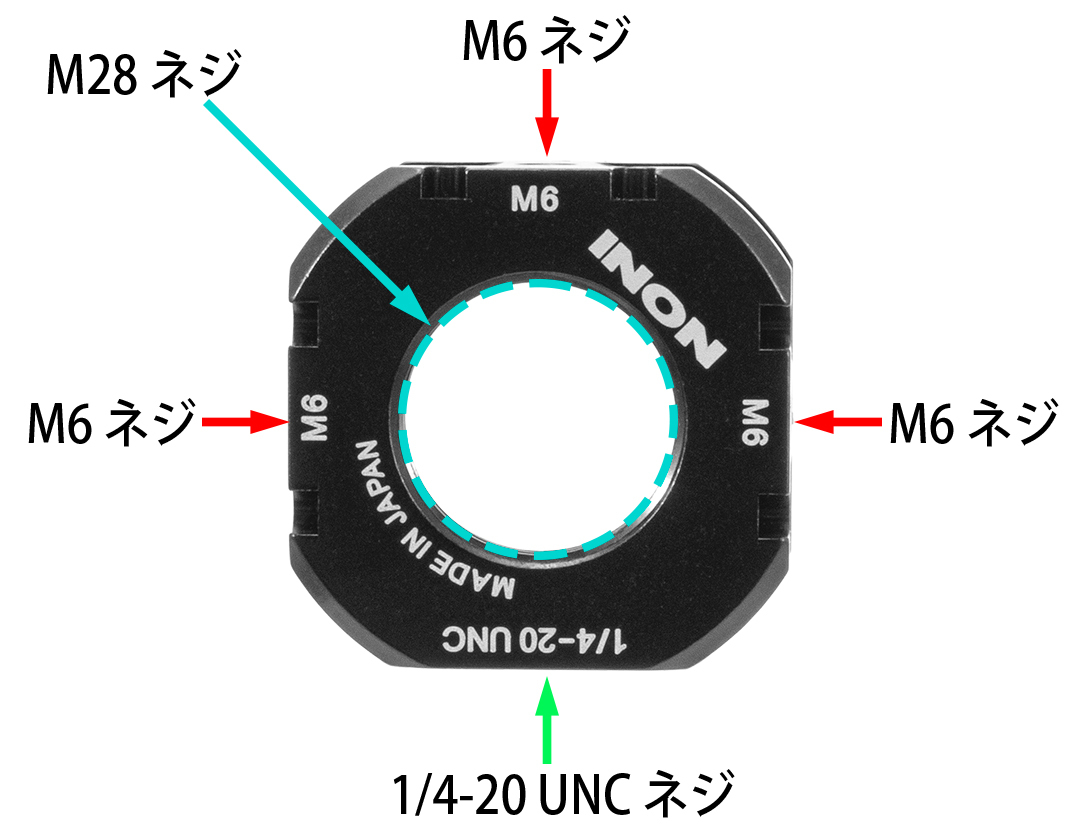

Compatible products
Arms (M28)
- Carbon Telescopic Arm SS / S / M / L
Adapters (M6)
- Direct Base III
- Direct Base YS RT
- Z Adapter MV
- Adapter II
- Z Joint
Others (1/4-20UNC)
- Shoe Base 1/4-20UNC Head
- UW 3-Way Panhead
- UW Tripod Hub
Features

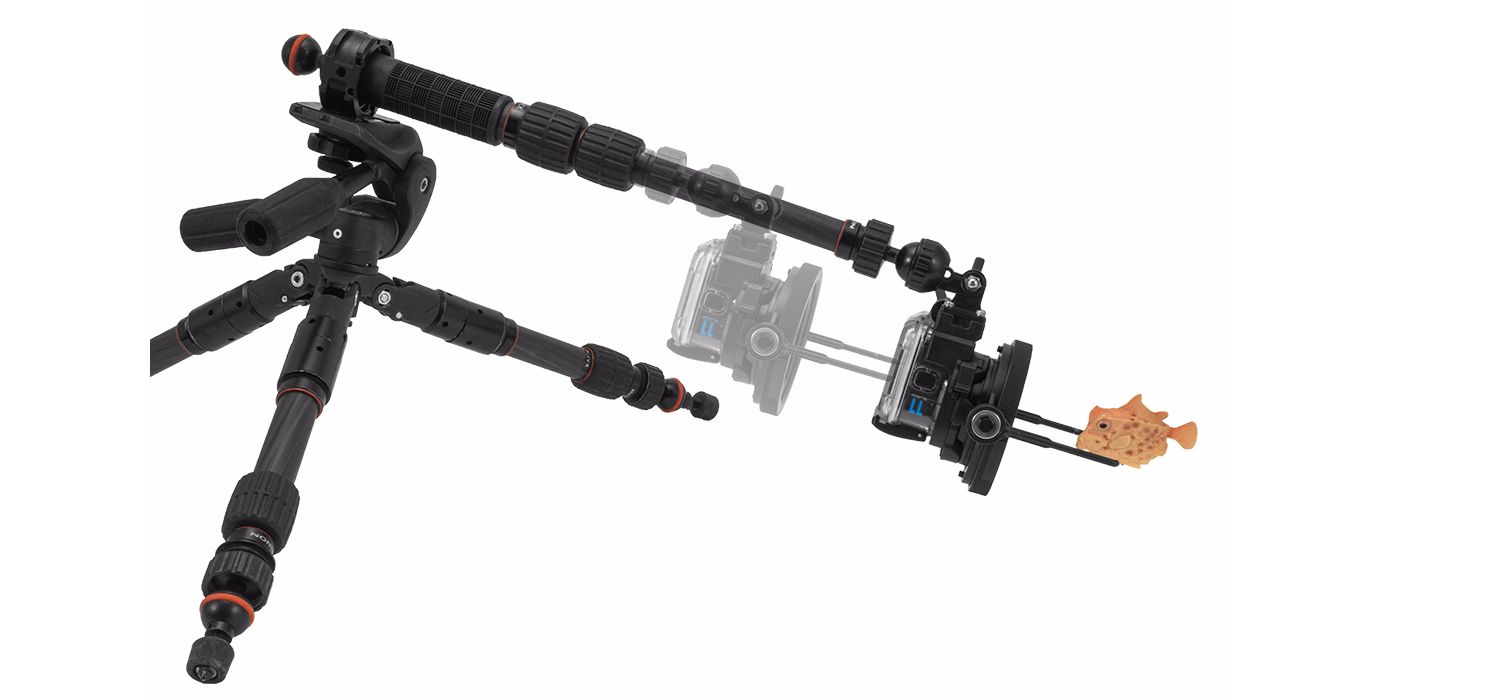

Tripod System
With a standard tripod configuration, it is difficult to adjust the camera position once the tripod is placed on the seabed, but with the M28 Ring Adapter (for Carbon Telescopic Arm) attached, the camera position can be easily controlled by adjusting the Carbon Telescopic Arm length.

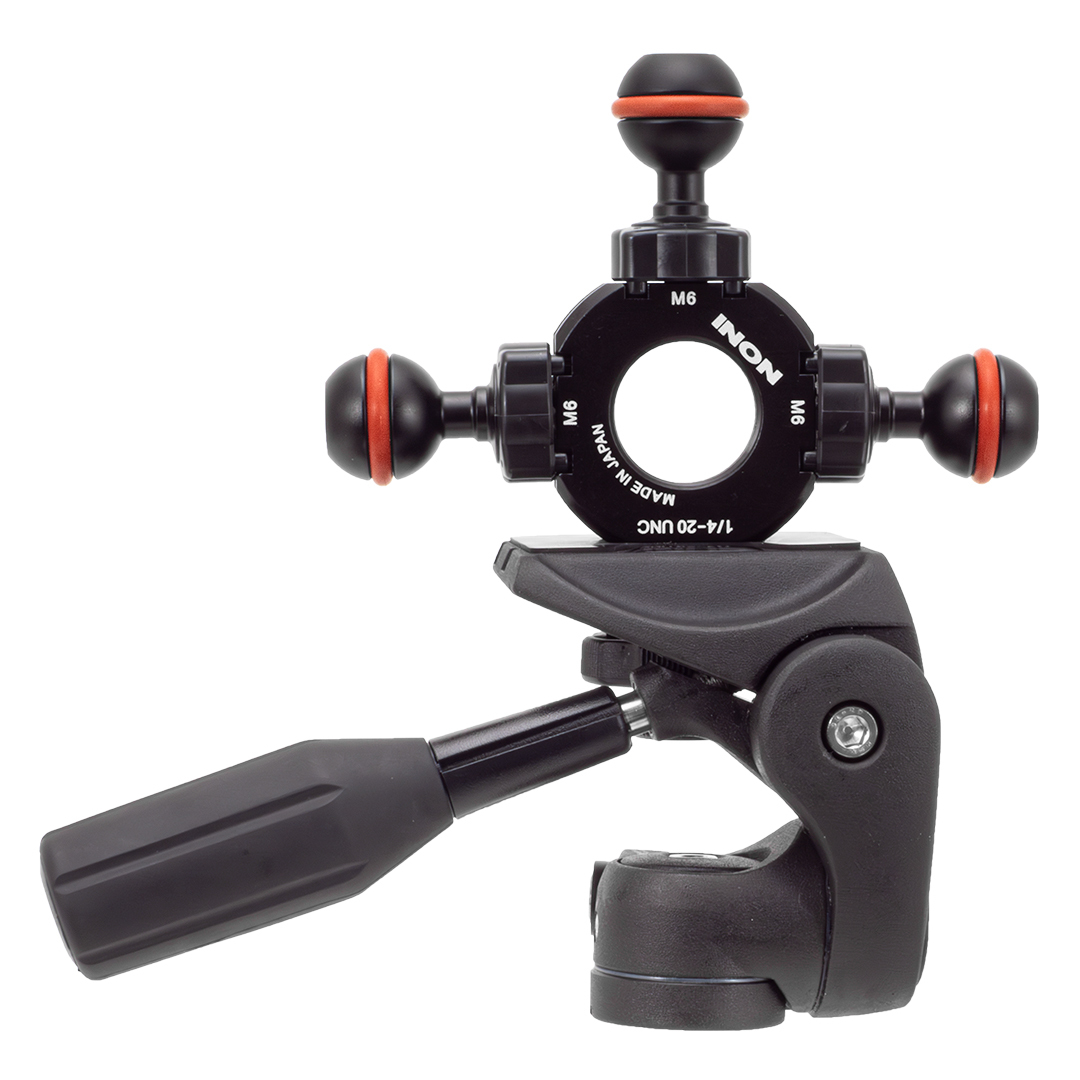

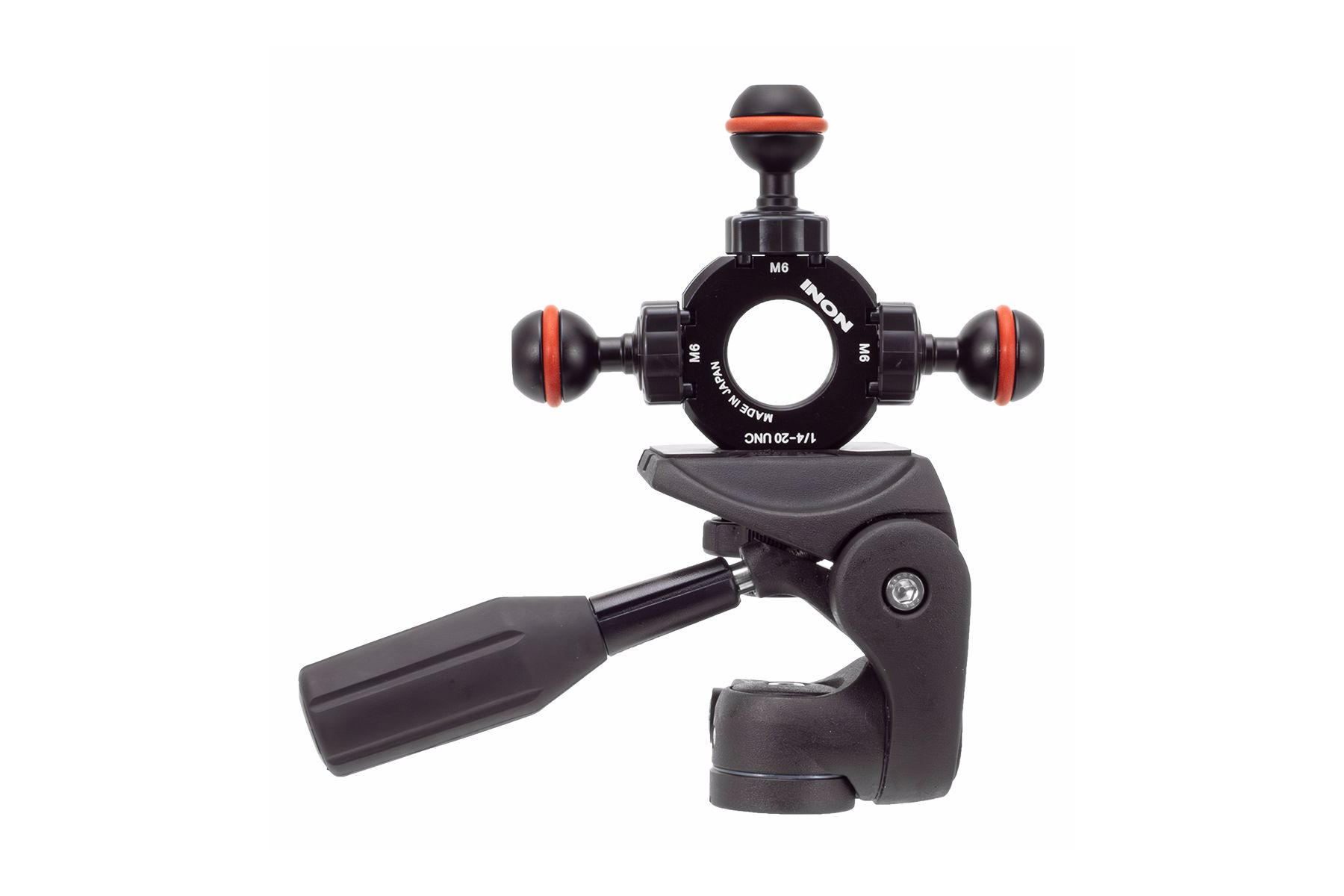

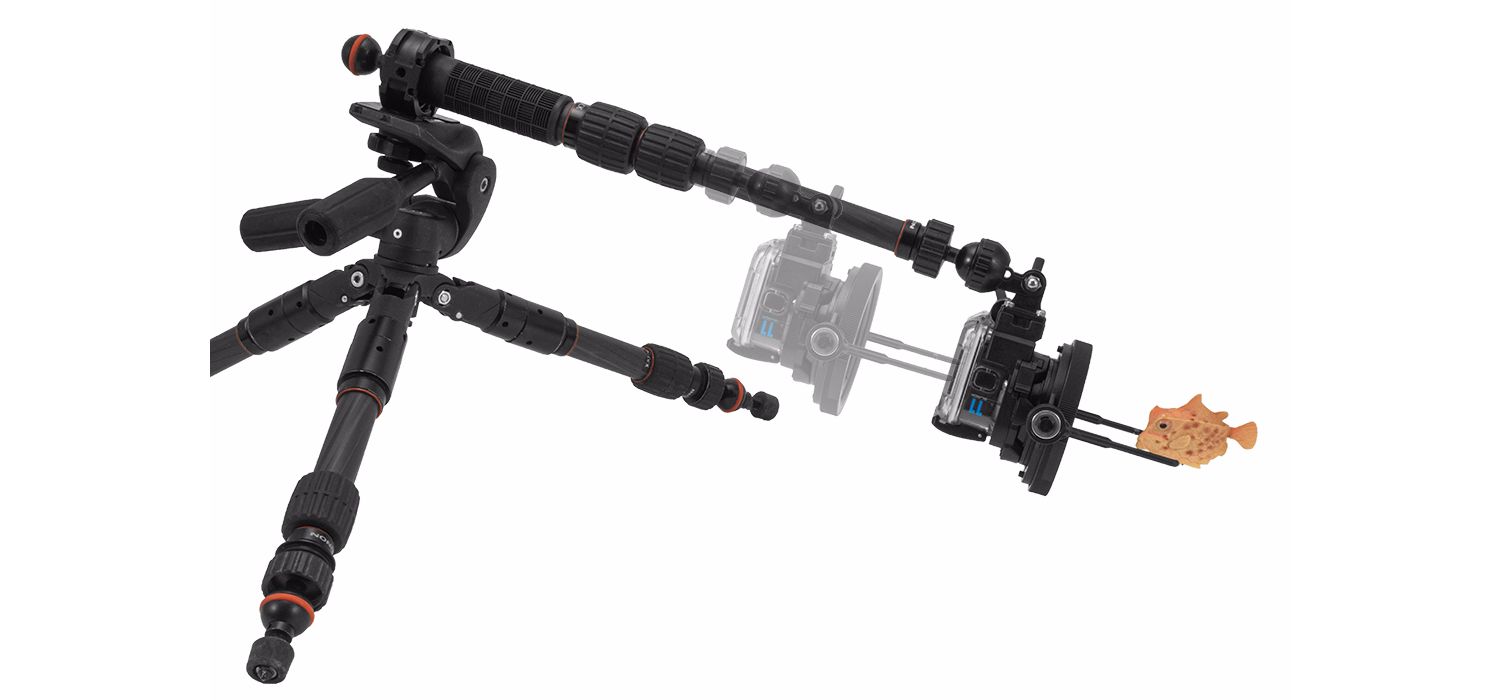

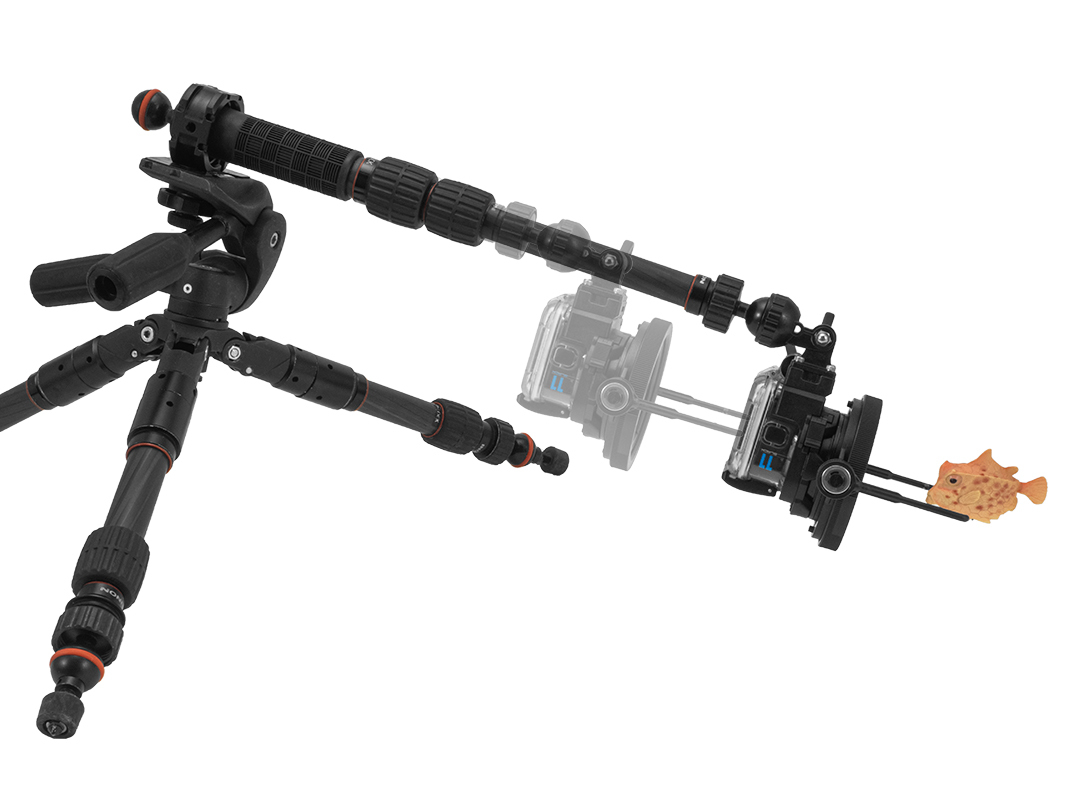

Expansion adapter connected to tripod system

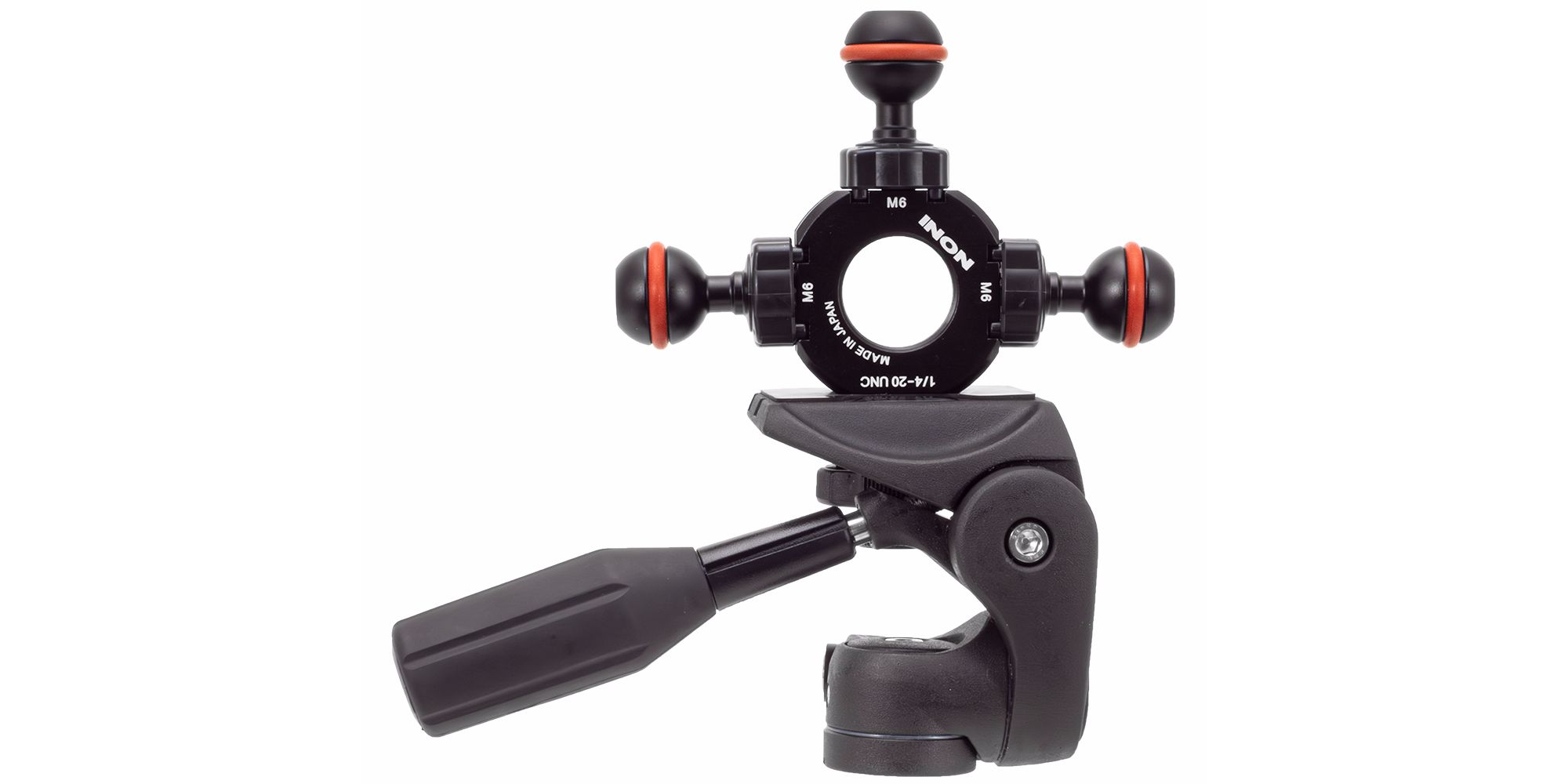

Attaching the Direct Base III etc. allows for flexible lighting configuration.

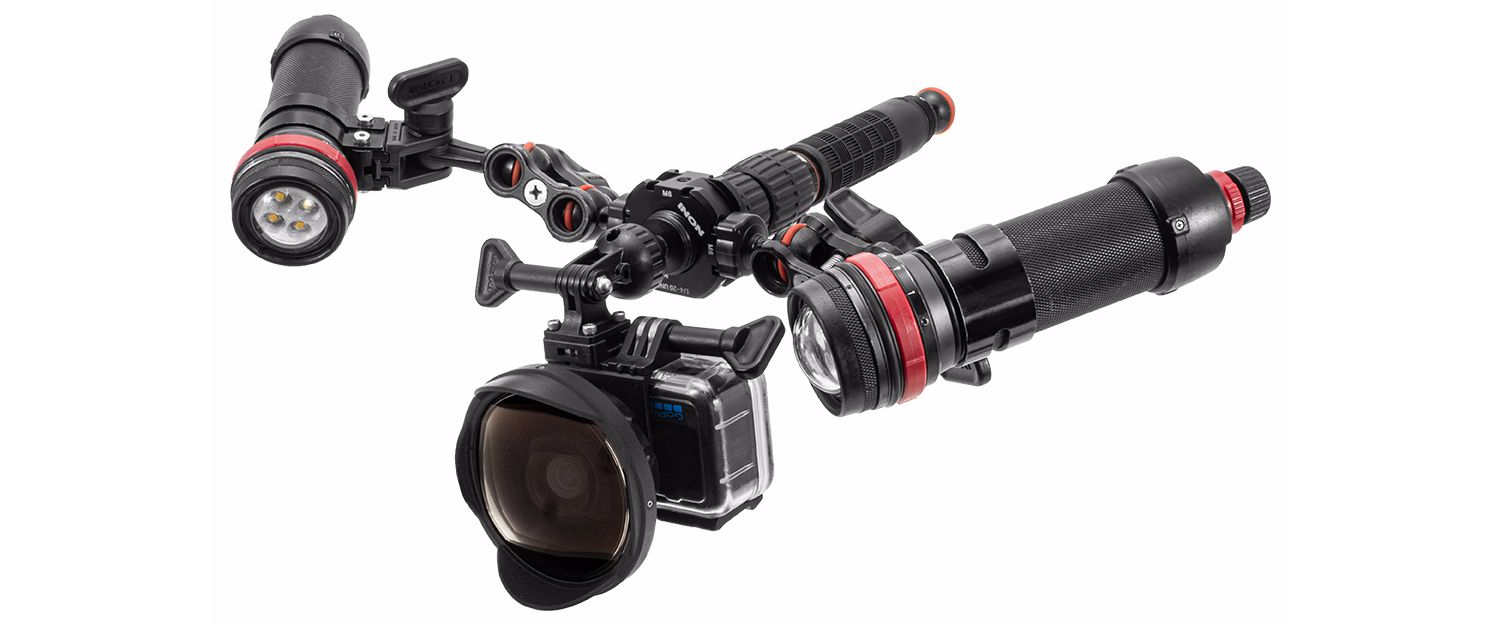

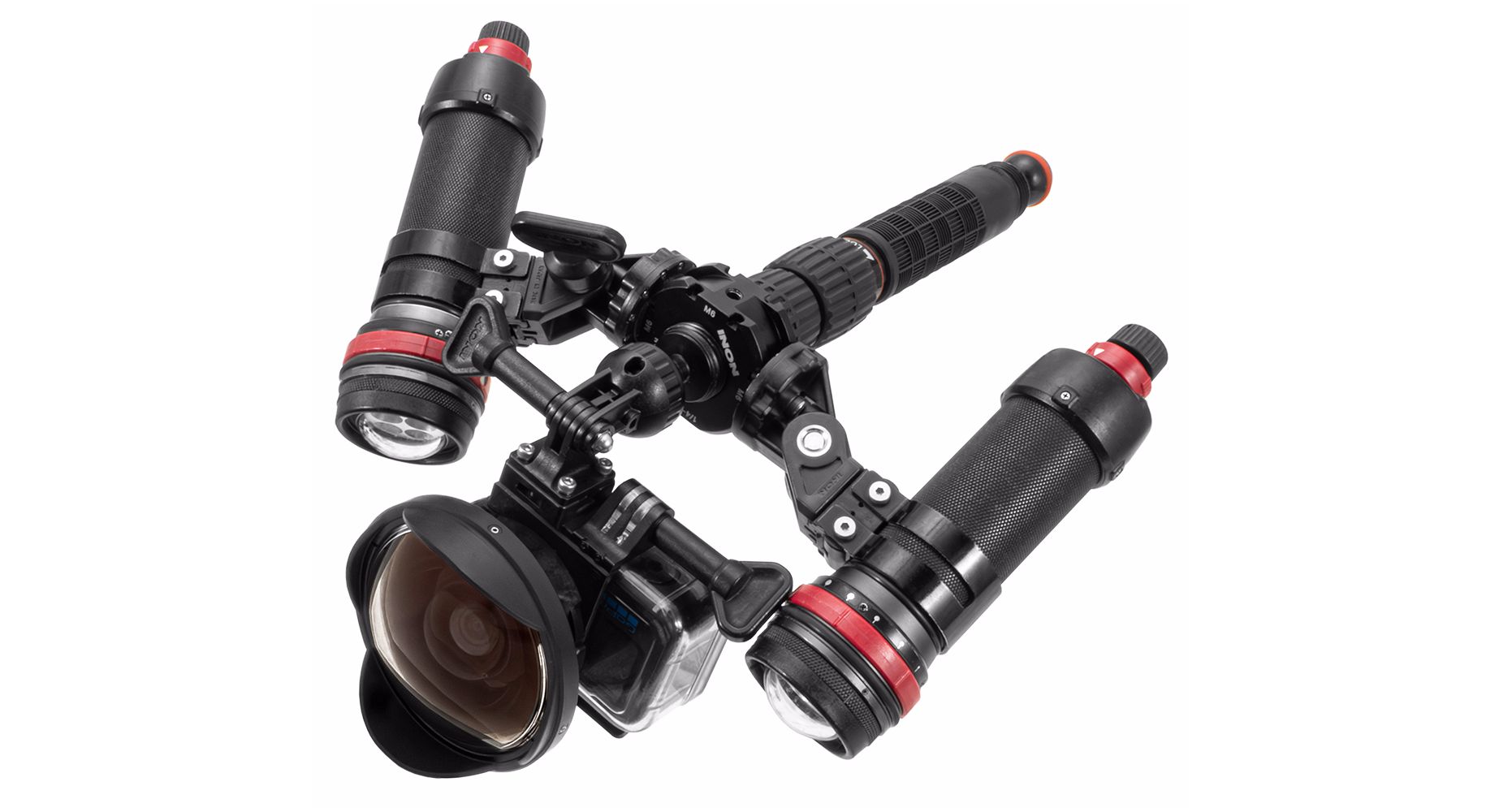

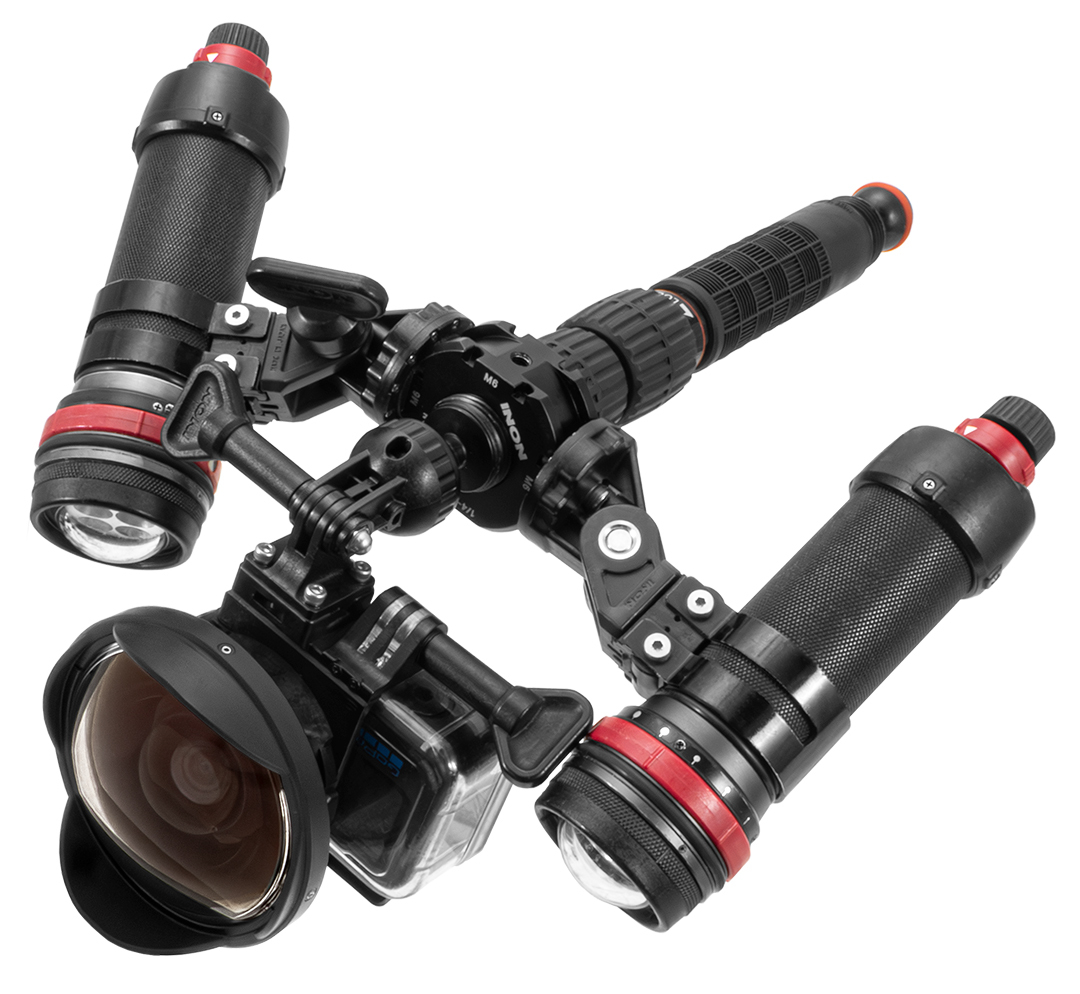

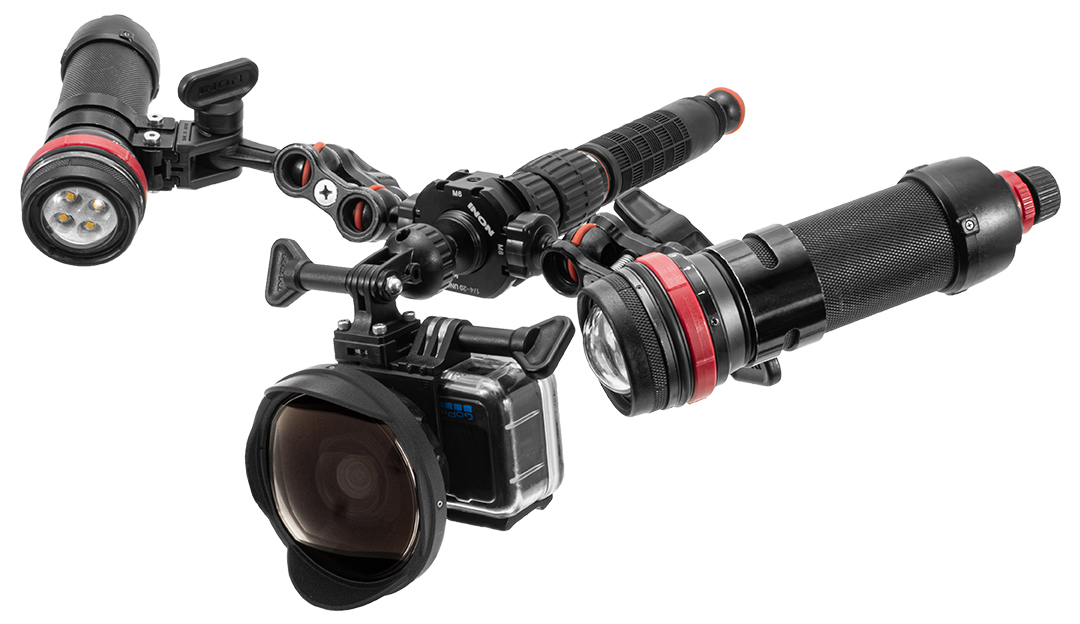

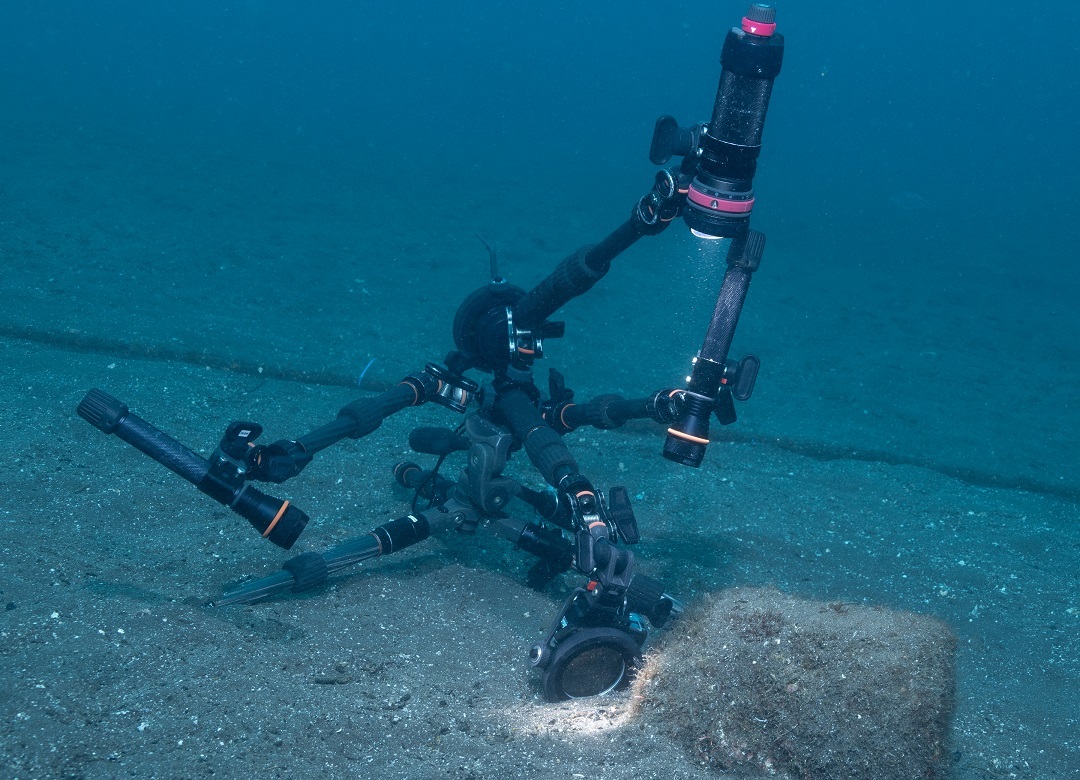

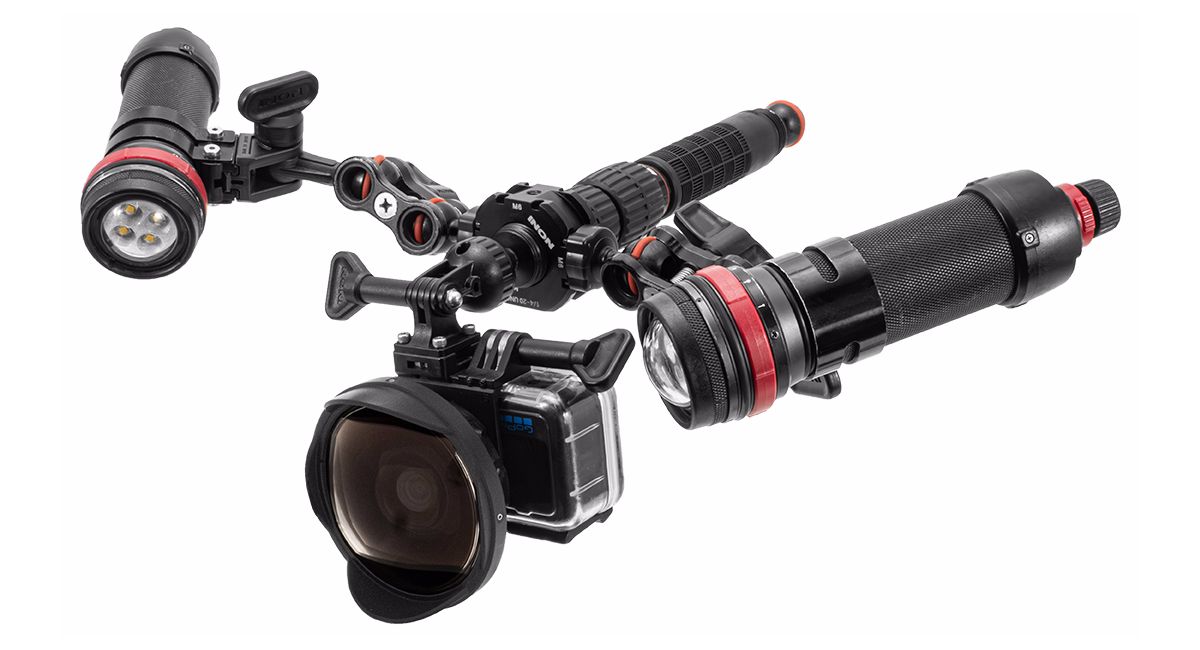

Follow Cam System
Multiple lights can be attached on a Carbon Telescopic Arm to use more intense light for follow cam imaging.
Direct Base III ｘ2
Clamp III ｘ2
YS Adapter MV ｘ2
Quick Holder Set S-LF ｘ2
LF2400h-EW ｘ2
Options
Lens Holder Base (M6-M5)
JAN/EAN code : 4570018121357
Attaches to the M28 Ring Adapter, allowing a Lens Holder to mount.
Compatible products
M6 screw part
- M28 Ring Adapter
- M28 Ring Adapter ll
M5 screw hole
- ZD Lens Holder M5
- AD Lens Holder for Float Arm
- LD Lens Holder for Float Arm
- XD Lens Holder M5
- M67 Lens Holder for Float Arm
- M52 Lens Holder for Float Arm
Attaches to the M28 Ring Adapter, allowing a Lens Holder to mount.
Compatible products
M6 screw part
- M28 Ring Adapter
- M28 Ring Adapter ll
M5 screw hole
- ZD Lens Holder M5
- AD Lens Holder for Float Arm
- LD Lens Holder for Float Arm
- XD Lens Holder M5
- M67 Lens Holder for Float Arm
- M52 Lens Holder for Float Arm
Enables grip-end lens holder mounting
With conventional action camera setups, the center of gravity tends to shift toward the camera when using the Carbon Telescopic Arm. By combining the M28 Ring Adapter II with the Lens Holder Base (M6-M5), a lens holder can be mounted at the grip end for better balance.
With conventional action camera setups, the center of gravity tends to shift toward the camera when using the Carbon Telescopic Arm. By combining the M28 Ring Adapter II with the Lens Holder Base (M6-M5), a lens holder can be mounted at the grip end for better balance.
Compatible Lens Holder
ZD Lens Holder M5
AD Lens Holder for Float Arm
LD Lens Holder for Float Arm
XD Lens Holder M5
M67 Lens Holder for Float Arm
M52 Lens Holder for Float Arm
ZD Lens Holder Set (for Carbon Telescopic Arm)
JAN/EAN code : 570018121364
Package Contents
- ZD Lens Holder M5
- M28 Ring Adapter ll
- Lens Holder Base (M6-M5)
Package Contents
- ZD Lens Holder M5
- M28 Ring Adapter ll
- Lens Holder Base (M6-M5)
