SD Front Mask STD
JAN/EAN code : 4562121438224

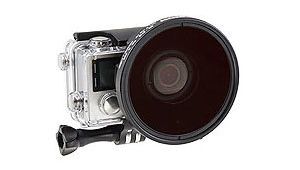

The SD Front Mask STD is a simple solution to add an attachment lens or arm system on GoProR Standard Housing - 131' (40m).
Compatible model
- GoPro®HERO+ LCD
- GoPro®HERO+
- GoPro®HERO
- GoPro®HERO4
--In combination with packaged Standard Housing - 131' (40m)
- GoPro®HERO3+
--In combination with packaged Standard Housing - 131' (40m)
- GoPro®HERO3
--In combination with optional Standard Housing - 131' (40m)
The SD Front Mask STD is a simple solution to add an attachment lens or arm system on GoPro®Standard Housing - 131' (40m).
Compatible model
- GoPro®HERO+ LCD
- GoPro®HERO+
- GoPro®HERO
- GoPro®HERO4
--In combination with packaged Standard Housing - 131' (40m)
- GoPro®HERO3+
--In combination with packaged Standard Housing - 131' (40m)
- GoPro®HERO3
--In combination with optional Standard Housing - 131' (40m)
Features
Quick Lens Replacement with SD Mount
Equipped with INON "SD Mount" bayonet system with additional locking feature to support easy and speedy lens exchange as well as reliable installation of INON "UFL-G140 SD underwater semi-fisheye conversion lens" or "UCL-G165 II SD underwater wide close-up lens" designed exclusively for an action camera like GoPro®. Of course the SD Front Mask for HERO9 is usable without any attachment lens.
Lightweight Reinforced Plastic Body

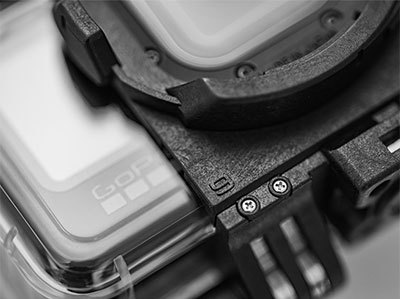

Made of reinforced plastic (FRP) for durability and not to compromise benefit of lightweight Action camera. Easy to install to snap on the front of a housing and fix with a thumbscrew.
Made of reinforced plastic (FRP) for durability and not to compromise benefit of lightweight Action camera. Easy to install to snap on the front of a housing and fix with a thumbscrew.
Versatility
The bottom of the SD Front Mask for HERO9 has a screw hole to attach joint adapters including "Direct Base III", "Z Joint", "Z Adapter MV" and "Shoe Base M6" to use Action cameras for various applications.
The SD Front Mask for HERO9 comes with "Male Adapter (GoPro) for SD Mount Base/SD Front Mask" which is attached on the bottom of the SD Front Mask for HERO9 to use GoPro® compatible accessories.
A wide variety of accessories to support various situations in underwater imaging
Stability
Supplied Mount Adapter enables to install one "D5 Holder" on the left hand side supporting stable shooting underwater. Combining with the “Grip Base D5”* and “D5 Holder” allows you to hold the camera steadily with both hands for stable shooting underwater with less camera shake and you can enjoy a full-scale underwater video system with dual lighting.
* Optional “Direct Base YS RT”and ”Z Joint”are required to attach “Grip Base D5”.
Tripod, Monopod
The Mount Adapter is equipped with the tripod screw (1/4”) to link to a tripod or monopod for shooting no camera shake footage, time-lapse, fixed-point observation etc.
The Mount Adapter is equipped with the tripod screw (1/4”) to link to a tripod or monopod for shooting no camera shake footage, time-lapse, fixed-point observation etc.
LCD/Battery BacPac™ compatibility
The SD Mount Cage can accommodate with LCD Touch BackPac™, Battery BackPac™.
Compatible Accessories
Male adapter
Mount Adapter
M5x18 Cap Screw
Lesnses
UFL-G140 SD
UCL-G165II SD
UCL-G100 SD
UCL-G55 SD
Options
Light Adapter
Hand Grip
Compact Grip Base
D5 Holder
Carbon Telescopic Arm
Mega Float Tube
Quick Holder Set S-Z
Z Joint
Ball Adapter
Z Adapter MV
Direct Base III
Direct Base YS RT
Direct Base YS
M28 Ring Adapter
Shoe Base M6
Specifications
| SD Front Mask STD | |
| Size (excluding protruded parts) |
67.9mm/2.7in (W) 79.3mm/3.1in (H) 37.8mm/1.5in (D) |
| Weight | 42g/1.5oz [air] approx.13g/0.5oz [underwater] |
| Material/finishing | Polycarbonate, POM etc. |
| SD Front Mask STD | |
| Size (excluding protruded parts) |
67.9mm/2.7in (W) 79.3mm/3.1in (H) 37.8mm/1.5in (D) |
| Weight | 42g/1.5oz [air] approx.13g/0.5oz [underwater] |
| Material/finishing | Polycarbonate, POM etc. |
Remarks
Compatible housing is GoPro®genuine "Standard Housing - 131' (40m)" and "HERO+LCD", "HERO+", "HERO". The GoProR "Dive Housing - 197' (60m)" packaged with "GoPro®HERO3" is not compatible. The "GoPro®HERO4/HERO3+" is packaged with the "Standard Housing - 131' (40m)".
When using on land, set FOV mode other than [Ultra Wide] or use without the SD Front Mask STD to prevent vignetting observed mainly in Ultra Wide mode even without an attachment lens. (No vignetting underwater)
Both UFL-G140 SD and UCL-G165 SD are designed for underwater use only and not usable on land.
*GoPro and HERO are trademarks or registered trademarks of GoPro Inc.
*Specifications are subject to change without notice.
