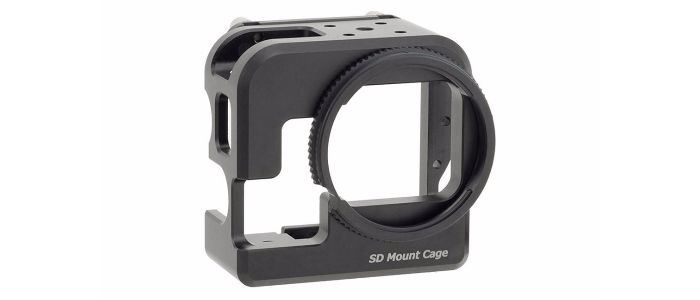

SD Mount Cage for HERO3/3+/4
JAN/EAN code : 4562121437852
Protects GoPro® genuine Dive Housing - 197' (60m) and firmly holds attachment lens, arm, and flashlight.
Compatible model
- GoPro®HERO4
--In combination with optional Dive Housing - 197' (60m)
- GoPro®HERO3+
--In combination with optional Dive Housing - 197' (60m)
- GoPro®HERO3
--In combination with packaged Dive Housing - 197' (60m)
Protects GoPro®genuine Dive Housing - 197' (60m) and firmly holds attachment lens, arm, and flashlight.
Compatible model
- GoPro®HERO4
--In combination with optional Dive Housing - 197' (60m)
- GoPro®HERO3+
--In combination with optional Dive Housing - 197' (60m)
- GoPro®HERO3
--In combination with packaged Dive Housing - 197' (60m)
Features
Quick Lens Replacement with SD Mount
Equipped with INON "SD Mount" bayonet system with additional locking feature to support easy and speedy lens exchange as well as reliable installation of INON "UFL-G140 SD underwater semi-fisheye conversion lens" or "UCL-G165 II SD underwater wide close-up lens" designed exclusively for an action camera like GoPro®. Of course the SD Front Mask for HERO9 is usable without any attachment lens.
Durable Aluminum Protector
Durable construction machined from an aluminum block protects combined housing even in rough condition.
Durable construction machined from an aluminum block protects combined housing even in rough condition.
Versatility
The SD Mount Cage can hold INON "Direct Base III", "Z Joint", "Z Adapter MV", "Direct Base YS RT" or "Shoe Base M6" at its top/bottom surface to install GoPro® camera on various systems for broad application. Packaged "Male Adapter (GoPro) for SD Mount Base/SD Front Mask" can be attached on top/bottom of the cage to use GoPro® compatible accessories.
*When installing INON Shoe Base M6 to SD Mount Cage, optional "Rubber Spacer" is required to attach on the SD Mount Cage. So please consult your purchasing dealer if you attach this product on INON SD Mount Cage.
A wide variety of accessories to support various situations in underwater imaging
Stability

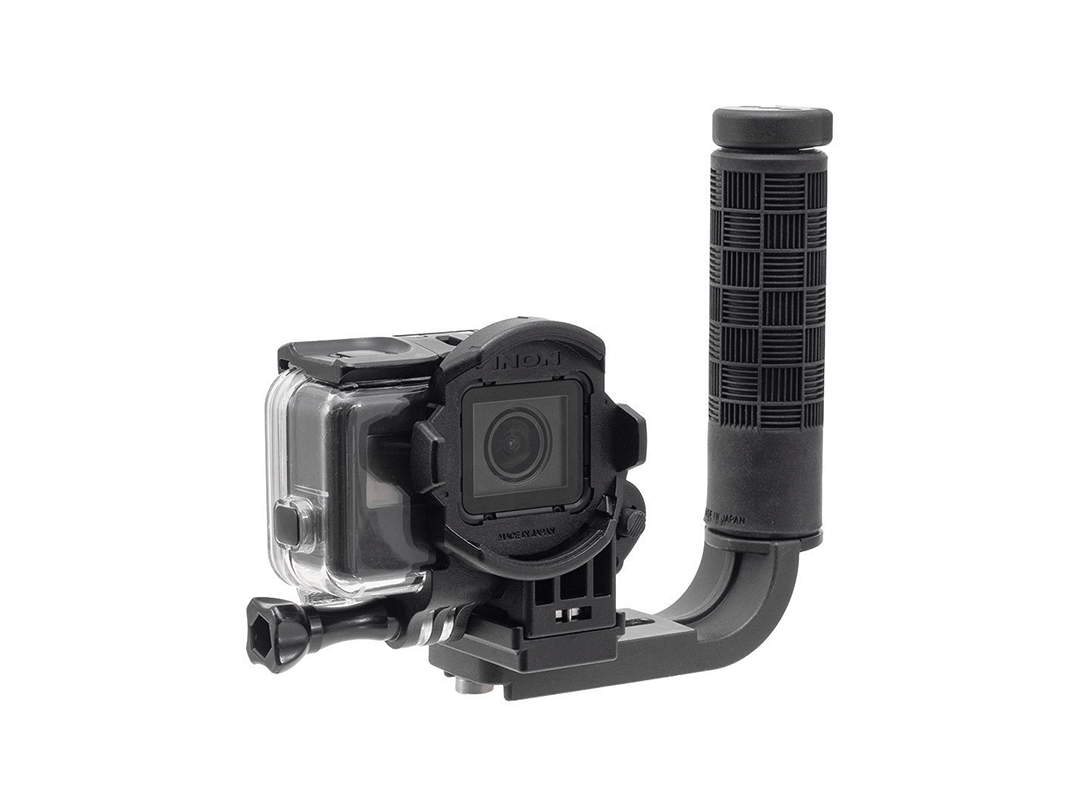

Supplied Mount Adapter enables to install one "D5 Holder" on the left hand side supporting stable shooting underwater. Combining with the “Grip Base D5”* and “D5 Holder” allows you to hold the camera steadily with both hands for stable shooting underwater with less camera shake and you can enjoy a full-scale underwater video system with dual lighting.
* Optional “Direct Base YS RT”and ”Z Joint”are required to attach “Grip Base D5”.
Tripod, Monopod
The tripod screw hole (1/4 inch) on the bottom enables to use a tripod/monopod.
The "Shoe Base 1/4-20UNC" is also compatible.
* Depending on tripod head design, some tripod/monopod may not fit to this product. Check if your tripod head can hold this product before actual use.
The tripod screw hole (1/4 inch) on the bottom enables to use a tripod/monopod.
The "Shoe Base 1/4-20UNC" is also compatible.
* Depending on tripod head design, some tripod/monopod may not fit to this product. Check if your tripod head can hold this product before actual use.
LCD/Battery BacPac™ compatibility
The SD Mount Cage can accommodate with LCD Touch BackPac™, Battery BackPac™.
Compatible Accessories
Male adapter
Lesnses
UFL-G140 SD
UCL-G165II SD
Options
Light Adapter
Hand Grip
Compact Grip Base
D5 Holder
Carbon Telescopic Arm
Mega Float Tube
Quick Holder Set S-Z
Z Joint
Ball Adapter
Z Adapter MV
Direct Base III
Direct Base YS RT
Direct Base YS
M28 Ring Adapter
Shoe Base M6
Specifications
| SD Mount Cage for HERO3/3+/4 | |
| Size (excluding protruded parts) |
88.5mm/3.5in (W) 79.9mm/3.1in (H) 51.3mm/2.0in (D) |
| Weight | 183g/6.5oz [air] approx.114g/4.0oz [underwater] |
| Material/finishing | Corrosion resistant aluminum alloy / rigid black alumite, POM etc. |
| SD Mount Cage for HERO3/3+/4 | |
| Size (excluding protruded parts) |
88.5mm/3.5in (W) 79.9mm/3.1in (H) 51.3mm/2.0in (D) |
| Weight | 183g/6.5oz [air] approx.114g/4.0oz [underwater] |
| Material/finishing | Corrosion resistant aluminum alloy / rigid black alumite, POM etc. |
Remarks
Compatible housing is GoPro®"Dive Housing - 197' (60m)". The GoPro®"Standard Housing - 131' (40m)" packaged with "GoPro®HERO4/HERO3+" is not compatible. The "GoPro®HERO3" is packaged with the "Dive Housing ? 197' (60m)".
When using on land, set FOV mode other than [Ultra Wide] or use without the SD Mount Cage to prevent vignetting observed mainly in Ultra Wide mode even without an attachment lens. (No vignetting underwater)
Both UFL-G140 SD and UCL-G165 SD are designed for underwater use only and not usable on land.
The "SD Mount Cage for HERO3/3+/4" is identical with the "SD Mount Cage HERO3/3+" besides model name and product code
*GoPro and HERO are trademarks or registered trademarks of GoPro Inc.
*Specifications are subject to change without notice.
