INON

SD Front Mask/M67Filter Adapter
(GoPro®HERO8)

SD Front Mask/M67 Filter Adapter
(GoPro®HERO8)

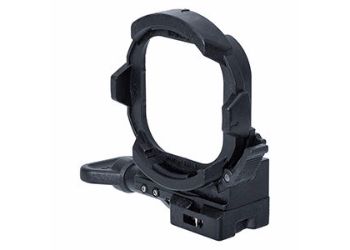

SD Front Mask for HERO8

JAN/EAN code : 4562121439931

SD Front Mask for HERO8
SD Front Mask for HERO8
SD Front Mask for HERO8 on GoProHERO8
SD Front Mask for HERO8
on GoPro ®HERO8

Compatible model

  • GoPro®HERO8 Black

Only compatible with GoPro genuine protective housing.

SD Front Mask for HERO8
SD Front Mask for HERO8
SD Front Mask for HERO8 on GoProHERO8
SD Front Mask for HERO8
on GoPro ®HERO8

Compatible model

  • GoPro®HERO8 Black

Only compatible with GoPro genuine protective housing.


page top

M67 Filter Adapter for HERO8

JAN/EAN code : 4562121439955

M67 Filter Adapter for HERO8
M67 Filter Adapter for HERO8

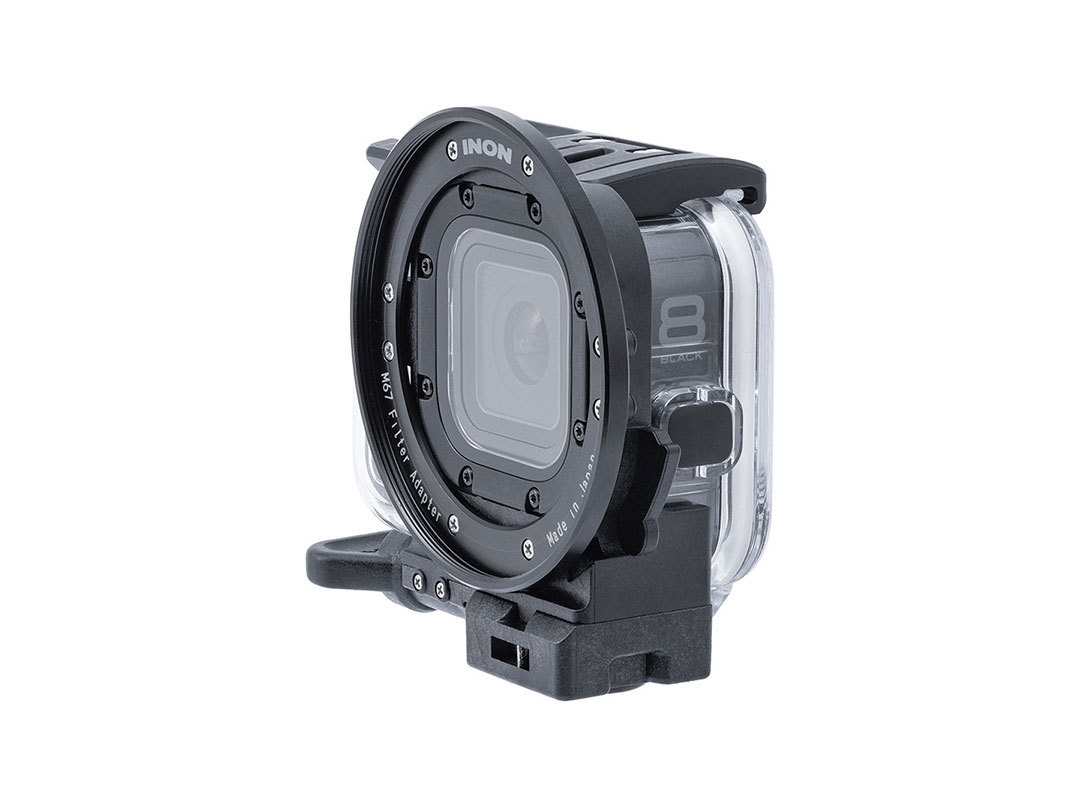

M67 Filter Adapter on GoPro HERO8
M67 Filter Adapter
on GoPro ®HERO8

Dedicated adapter for the GoPro®HERO8 with M67 threads to attach UW Variable Red Filter M67.

Compatible model

  • GoPro®HERO8 Black

Only compatible with GoPro genuine protective housing.

M67 Filter Adapter for HERO8
M67 Filter Adapter for HERO8
M67 Filter Adapter on GoPro HERO8
M67 Filter Adapter
on GoPro ®HERO8

Dedicated adapter for the GoPro®HERO8 with M67 threads to attach UW Variable Red Filter M67.

Compatible model

  • GoPro®HERO8 Black

Only compatible with GoPro genuine protective housing.

* This product is designed exclusively for UW Variable Red Filter M67. Please do not attach any other product regardless of product type and make not to damage this product.


page top

Features

Quick Lens Replacement with SD Mount

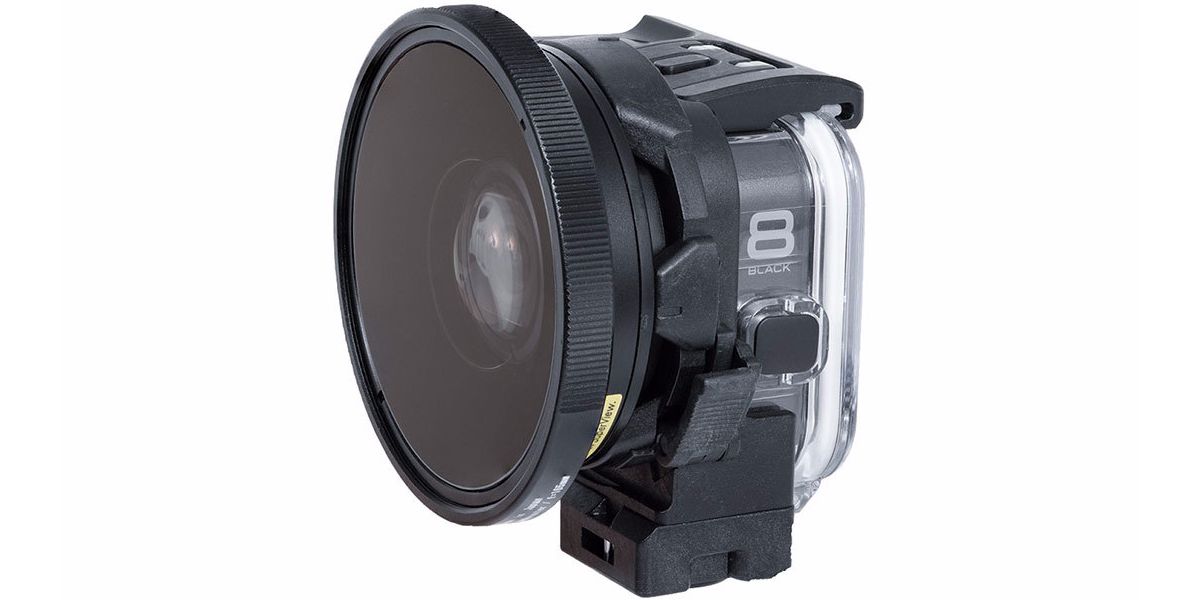

Equipped with INON "SD Mount" bayonet system with additional locking feature to support easy and speedy lens exchange as well as reliable installation of INON "UFL-G140 SD underwater semi-fisheye conversion lens" or "UCL-G165 II SD underwater wide close-up lens" designed exclusively for an action camera like GoPro®. Of course the SD Front Mask for HERO9 is usable without any attachment lens.

UFL-G140 SD
UFL-G140 SD
UCL-G165 SD
UCL-G165II SD
UFL-G140 SD
UFL-G140 SD
UCL-G165 SD
UCL-G165II SD
Attachment lens is separately available.
GoProHERO7 Black + UFL-G140SD
GoProHERO9 Black + UFL-G140SD

Optional Accessories for Selfie, Follow Camera

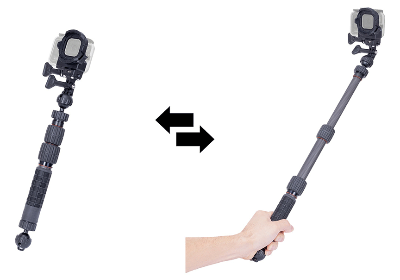

Using an optional “Ball Adapter for GoPro” attached on the “Carbon Telescopic Arm” to combine with your GoPro camera, is an ideal selfie system to record while swimming around. INON's original fixing screw can securely hold the camera in place, enabling stable video recording underwater without worrying about unexpected camera displacement due to current. All components are designed for underwater use offering superior durability and corrosion resistant characteristic.
Attaching a conversion lens on an action camera gets heavy especially when using a “Carbon Telescopic Arm”. Optional“Mega Float Tube” attached on top end of the arm supports comfortable handing underwater without having heavy load on hand grip.

Set-up example - Carbon telescopic Arm S
Set-up example - Carbon telescopic Arm S
Set-up example - Stick Arm S-T
Set-up example - Stick Arm S-T
Set-up example - Carbon telescopic Arm S
Set-up example - Carbon telescopic Arm S
Set-up example - Stick Arm S-T
Set-up example - Stick Arm S-T
Following shot using selfie stick


By using a selfie stick and GoPro compatible underwater semi-fisheye lens "UFL-G140 SD", you can get closer to marine lives that are usually difficult to get close to and capture larger images to easily shoot high quality images with full of realism.

Lightweight Reinforced Plastic Body

Made of reinforced plastic (FRP) for durability and not to compromise benefit of lightweight Action camera. Easy to install to snap on the front of a housing and fix with a thumbscrew.

Lightweight Reinforced Plastic Body

Made of reinforced plastic (FRP) for durability and not to compromise benefit of lightweight Action camera. Easy to install to snap on the front of a housing and fix with a thumbscrew.

Lightweight Reinforced Plastic Body

Versatility

The bottom of the SD Front Mask for HERO9 has a screw hole to attach joint adapters including "Direct Base III", "Z Joint", "Z Adapter MV" and "Shoe Base M6" to use Action cameras for various applications.
The SD Front Mask for HERO9 comes with "Male Adapter (GoPro) for SD Mount Base/SD Front Mask" which is attached on the bottom of the SD Front Mask for HERO9 to use GoPro® compatible accessories.

Versatility
A wide variety of accessories to support various situations in underwater imaging
Images use SD Front Mask for HERO9
Versatility

A wide variety of accessories to support various situations in underwater imaging

Images use SD Front Mask for HERO9

Stability

Supplied Mount Adapter enables to install one "D5 Holder" on the left hand side supporting stable shooting underwater. Combining with the “Grip Base D5”* and “D5 Holder” allows you to hold the camera steadily with both hands for stable shooting underwater with less camera shake and you can enjoy a full-scale underwater video system with dual lighting.

* Optional “Direct Base YS RT”and ”Z Joint”are required to attach “Grip Base D5”.

Single handle
Single handle
Compact Grip Base for GoPro
Compact Grip Base for GoPro
Single handle
Single handle
Compact Grip Base for GoPro
Compact Grip Base for GoPro

Tripod, Monopod

The Mount Adapter is equipped with the tripod screw (1/4”) to link to a tripod or monopod for shooting no camera shake footage, time-lapse, fixed-point observation etc.

Tripod, Monopod

The Mount Adapter is equipped with the tripod screw (1/4”) to link to a tripod or monopod for shooting no camera shake footage, time-lapse, fixed-point observation etc.

Tripod, Monopod
page top

Compatible Accessories

M5 thumbscrew
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

M5 thumbscrew

Male adapter
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Male adapter

Mount Adapter
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Mount Adapter
page top

Lenses/Filter

UFL-G140 SD
SD Front Mask for HERO8

UFL-G140 SD

UCL-G165II SD
SD Front Mask for HERO8

UCL-G165II SD

UCL-G100 SD
SD Front Mask for HERO8

UCL-G100 SD

UCL-G55 SD
SD Front Mask for HERO8

UCL-G55 SD

UW Variable Red Filter M67 [Discontinued]
M67 Filter Adapter for HERO8

水中可変赤フィルター M67
page top

Options

Light Adapter
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Light Adapter

Hand Grip
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Hand Grip

Compact Grip Base
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Compact Grip Base

D5 Holder
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

D5 Holder

Carbon Telescopic Arm
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Carbon Telescopic Arm

Mega Float Tube
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Mega Float Tube

Quick Holder Set S-Z
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Quick Holder Set S-Z

Z Joint
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Z Joint

Ball Adapter
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Ball Adapter

Z Adapter MV
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Z Adapter MV

Direct Base III
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Direct Base III

Direct Base YS RT
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Direct Base YS RT

Direct Base YS
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Direct Base YS

M28 Ring Adapter
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

M28 Ring Adapter

Shoe Base M6
SD Front Mask for HERO8
M67 Filter Adapter for HERO8

Shoe Base M6
page top

Specifications

  SD Front Mask for HERO8 M67 Filter Adapter for HERO8
Size
(excluding protruded parts)
68mm/2.7in (W)
85mm/3.3in (H)
35mm/1.7in (D)
70mm/2.8in (W)
88mm/3.5in (H)
32mm/1.3n (D)
Weight 38g/1.3oz [air]
approx.15g/0.5oz [underwater]
38g/1.3oz [air]
approx.17g/0.6oz [underwater]
Material/finishing Polycarbonate, POM etc.

  SD Front Mask for HERO8 M67 Filter Adapter for HERO8
Size
(excluding protruded parts)
68mm/2.7in (W)
85mm/3.3in (H)
35mm/1.7in (D)
70mm/2.8in (W)
88mm/3.5in (H)
32mm/1.3n (D)
Weight 38g/1.3oz [air]
approx.15g/0.5oz [underwater]
38g/1.3oz [air]
approx.17g/0.6oz [underwater]
Material/finishing Polycarbonate, POM etc.

page top

Remarks

The SD Front Mask on land will have vignetting (no vignetting underwater) even without attachment lens if "HyperSmooth" or such video stabilization is deactivated. INON attachment lenses "UFL-G140 SD”, ‘UCL-G165II SD’,
‘UCL-G100 SD’ and ‘UCL-G55 SD’ are designed for underwater use only and not for land use.


*GoPro and HERO are trademarks or registered trademarks of GoPro Inc.
*Specifications are subject to change without notice.
