[Compatible Lens]

Panasonic Lens Compatible Port Compatible Magnet Ring  (*1)
8mm/F3.5 FISHEYE Dome Port 2+Shade 2 Set  (*2) N/A
Dome Port 115 N/A
14mm/F2.5  (*6) Pancake Port N/A
20mm/F1.7 Pancake Port N/A
45mm/F2.8 O.I.S. MACRO MRS Base Port + Front Port Macro MRS Magnet Ring DG45 Set
(Magnet Ring + MRS Magnet Ring DG45 Adapter)
MRS Base Port (w/o control ring)
+ Front Port Macro (*3)
N/A
Extension Ring 36 + Pancake Port  (*4) N/A
14-42mm/F3.5-5.6 II O.I.S MRS G14-42 II Port MRS Magnet Ring G14-42 II Set
(Magnet Ring + MRS Magnet Ring G14-42 II Adapter)
14-42mm/F3.5-5.6 O.I.S. MRS Base Port + Front Port Wide MRS Magnet Ring G14-42 Set
(Magnet Ring + MRS Magnet Ring G14-42 Adapter)
14-45mm/F3.5-5.6 O.I.S. MRS Base Port + Front Port Wide MRS Magnet Ring G14-45 Set
(Magnet Ring + MRS Magnet Ring G14-45 Adapter)
7-14mm/F4.0  (*5) MRS Base Port + Front Port Dome 115 MRS Magnet Ring G7-14 Set
(Magnet Ring + MRS Magnet Ring G7-14 Adapter)

Olympus Lens Compatible Port Compatible Magnet Ring (*1)
14-42mm F3.5-5.6 II R MRS Base Port + Front Port Flat 5 MRS Magnet Ring MZ14-42 Set
(Magnet Ring + MRS Magnet Ring MZ14-42 Adapter)

(*1) Optional "Shade Sponge D60" attached on inside of the Dome Port 2 to prevent the built-in flash from exposing on an image.
(*2) Auto focus (AF) only. For manual focus (MF), optional "MRS Control Ring(60/60II/100UII/100UIII/50 for Olympus)" and compatible "Magnet Ring" is required.
(*3) Auto focus (AF) only.
(*4) At zoom wide end with wide aperture setting, image quality on peripheral part will be degraded. Stop down the aperture.
(*5) To suppress exposure of the built-in flash light on an image, optional "Shade Ring 46" is necessary to attach in front of the lens.

X-2 System Chart for GF1

■Dome Port 2 + Shade 2 Set

click to enlarge

A Dome Port for a fisheye lens. Multicoated optical glass suppresses flare / ghost. The protector shades unnecessary light to get clear image in addition to prevent accidental damage on the lens surface.

■Comaptible Lens (When using the X-2 for GF1)
Panasonic LUMIX G FISHEYE 8mm/F3.5
* "Shade Sponge D60" is necessary.
* Auto Focus (AF) only.

■Specificatiopn

Dimensions Outer diameter: 170mm / 6.7in
Length: 63mm / 2.5in (incl. Shade 2)
Weight (air) 675g / 23.8oz (incl. Shade 2)
Depth Rating 75m / 246ft
Material Corrosion-resistant aluminum alloy (rigid black alumite)
Optical glass (inner multi coating)
Polycarbonate (Shade 2)

Page Top

■Dome Port 115

A Dome Port using compact dome glass with 115mm diameter which is ideal for compact 8mm/F3.5 FISHEYE lens. Multicoated optical glass suppresses flare / ghost. The protector shades unnecessary light to get clear image in addition to prevent accidental damage on the lens surface. Packaged "Shade Sponge 60" blocks camera built-in flash to prevent it from exposing on an image.

■Compatible Lens (When using the X-2 for GF1)
Panasonic LUMIX G FISHEYE 8mm/F3.5
*Auto Focus (AF) only.

■Specification

Dimensions Outer diameter: 132mm / 5.2in
Length: 56mm / 2.2in (incl. Protector)
Weight (air) 386g / 13.6oz (incl. Protector)
Depth Rating 75m / 246ft
Material Corrosion-resistant aluminum alloy (rigid black alumite)
Optical glass (inner multi coating)
Polycarbonate (Protector)




Page Top

■Pancake Port

クリックすると拡大します

A compact port for the 20mm/F1.7 Pancake lens. The port edge has M67 screw mount which directly accepts "UCL-330", "UCL-165M67" close-up lens.
The 45mm/F2.8 Macro lens is supported as well in combination with "Extension Ring 36" (Auto Focus only).

■Compatible Lens
Panasonic LUMIX G 20mm/F1.7 ASPH.
*Auto Focus (AF) only.

Panasonic LUMIX G 14mm/F2.5 ASPH.
*"Shade Ring 46"is necessary. Auto focus (AF) only.

Panasonic LEICA DG MACRO-ELMARIT 45mm/F2.8 ASPH./MEGA O.I.S.
*"Extension Ring 36 " is necessary. Auto focus (AF) only.

■Compatible Attachment Lens
INON UCL-330 Close-up Lens
INON UCL-165M67 Close-up Lens

■Specification

Dimensions Outer diameter: 104mm / 4.1in
Length: 27mm / 1.1in
Weight (air) 147g / 5.2oz
Depth Rating 75m / 246ft
Material Corrosion-resistant aluminum alloy (rigid black alumite)
Optical glass (inner multi coating)

Page Top

■MRS G14-42 II Port

click to enlarge

■MRS G14-42 II Port (w/o control ring)

クリックすると拡大します

The MRS G14-42 II Port is exclusively for " Panasonic LUMIX G VARIO 14-42mm/F3.5-5.6 II ASPH./MEGA O.I.S.". INON unique "MRS system" compatible utilizing magnetic attraction enabling you to rotate the lens barrel as like operating the lens on land to control zooming smoothly. The port edge has M67 screw mount which directly accepts "UCL-330"/"UCL-165M67"/ "UCL-100M67" close-up lens , "UWL-H100 28M67" wide conversion lens, or "UFL-M150 ZM80" Underwater Micro Fisheye Lens. For existing "MRS Control Ring(60/60II/100UII/100UIII/50 for Olympus) " users, "MRS G14-42 II Port (w/o control ring)" is also available to purchase.

■Compatible Lens
Panasonic LUMIX G VARIO 14-42mm/F3.5-5.6 II ASPH./MEGA O.I.S.
*Optional "Magnet Ring G14-42 II Set" is necessary for zoom operation.
*Auto Focus (AF) only.

■Compatible Attachment Lens
INON UCL-330 Close-up Lens (*1)
INON UCL-165M67 Close-up Lens (*1)
INON UCL-100M67 Close-up Lens
INON UWL-H100 28M67 Type2 Wide Conversion Lens
INON Dome Lens Unit II for UWL-H100 + UWL-H100 28M67 Type2
INON UFL-M150 ZM80 Underwater Micro Fisheye Lens (*2)
(*1) Only usable underwater with zoom setting from middle to telephoto side. Using on land or zoom wide side setting underwater will have vignetting.
(*2) Optional "M27-M67 Mount Converter for UFL-M150 ZM80" is necessary.

■Specification

Dimensions Outer diameter: 115mm / 4.5in
Length: 53mm / 2.1in
Weight (air) 317g / 11.2oz
Depth Rating 75m / 246ft
Material Corrosion-resistant aluminum alloy (Teflon-molybdenous coating)
Optical glass (inner multi coating)

click to enlarge
Setup image of
Close-up Lens
click to enlarge
Setup image of
UWL-H100 28M67 Type2
click to enlarge
Setup image of
Dome Lens Unit II
click to enlarge
Setup image of
UFL-M150 ZM80
Page Top

■MRS Base Port

click to enlarge
Special Price

A Base Port is compatible with 3 different lenses with interchangeable Front Port. This construction allows you to use the Base Port for different lens only buying optional Front Port, and helps to save luggage space when travelling.
Focus operation of a macro lens and zoom operation of a zoom lens uses INON patented "MRS system" rotating a lens barrel by magnetic attraction without any mechanical contact between a lens and lens port providing stress-free lens operation as like controlling a lens on land.

■Compatible Lens
Panasonic LEICA DG MACRO-ELMARIT 45mm/F2.8 ASPH./MEGA O.I.S.
*"Front Port Macro" is necessary. For focus operation, optional "Magnet Ring G14-45 Set" is necessary.

Panasonic LUMIX G VARIO 14-42mm/F3.5-5.6 ASPH./MEGA O.I.S.
*"Front Port Wide" is necessary. For zoom operation, optional "Magnet Ring G14-42 Set" is necessary.

Panasonic LUMIX G VARIO 14-45mm/F3.5-5.6 ASPH./MEGA O.I.S.
*"Front Port Wide" is necessary. For zoom operation, optional "Magnet Ring G14-45 Set" is necessary.

Panasonic LUMIX G VARIO 7-14mm/F4.0 ASPH.
*"Front Port Dome 115" is necessary. For zoom operation, optional "Magnet Ring G7-14 Set" is necessary.

Olympus M.ZUIKO DIGITAL 14-42mm F3.5-5.6 II R
*"Front Port Flat 5" is necessary. For zoom operation, optional "Magnet Ring ZM14-42 Set" is necessary.

■Specification

Dimensions Outer diameter: 115mm / 4.5in
Length: 56mm / 2.2in (incl. MRS Magnet Control Ring)
Weight (air) 288g / 10.2oz (incl. MRS Magnet Control Ring)
Depth Rating 75m / 246ft
Material Corrosion-resistant aluminum alloy (Teflon molybdenum coating)

click to enlarge
Combination with the
Front Port Macro
click to enlage
Combination with the
Front Port Wide
click to enlarge
Combination with the
Front Port Dome 115
click to enlarge
Combination with the
Front Port Flat 5
Page Top

■MRS Base Port (w/o control ring)

クリックすると拡大します

A Base Port without MRS Control Ring for 45mm/F2.8 Macro lens to use auto
focus only in combination with "Front Port Macro". Upgradable to "MRS Base Port (with MRS Control Ring)" with optional "MRS Control Ring (60/60II/100UII/100UIII/50 for Olympus)".

■Compatible Lens
Panasonic LEICA DG MACRO-ELMARIT 45mm/F2.8 ASPH./MEGA O.I.S.
*"Front Port Macro"is necessary.

■Specification

Dimensions Outer diameter: 115mm / 4.5in
Length: 56mm / 2.2in (Port only)
Weight (air) 159g / 5.6oz (Port only)
Depth Rating 75m / 246ft
Material Corrosion-resistant aluminum alloy (Teflon molybdenum coating)

page top

■Front Port Macro

click to enlarge
click to enlarge

Combination with the MRS Base Port

A Front Port to joint on the edge of the "MRS Base Port" or "MRS Base Port (w/o control ring)" to use for 45mm/F2.8 Macro lens. Directly holds INON "UCL-330" or "UCL-165M67" close-up lens.

■Compatible Lens
Panasonic LEICA DG MACRO-ELMARIT 45mm/F2.8 ASPH./MEGA O.I.S.
*Attaching on the "MRS Base Port" is mandatory.
*Optional "Magnet Ring DG45 Set" is necessary for manual focus operation.

■Compatible Attachment Lens
INON UCL-330 Close-up Lens
INON UCL-165M67 Close-up Lens

■Specification

Dimensions Ourter diameter: 93mm / 3.7in
Length: 17mm / 0.7in
Weight (air) 103g / 3.6oz
Depth Rating 75m / 246ft
Material Corrosion-resistant aluminum alloy (rigid black alumite)
Optical glass (inner multi coating)

page top

■Front Port Wide

click to enlarge
click to enlarge

Combination with the MRS Base Port

A Front Port to joint on the edge of the "MRS Base Port" for the 14-45mm/F3.5-5.6 zoom lens.

■Compatible Lens
Panasonic LUMIX G VARIO 14-42mm/F3.5-5.6 ASPH./MEGA O.I.S.
*"MRS Base Port" is necessary.
*Optional "Magnet Ring G14-42 Set" is necessary for zoom operation.
*Auto Focus (AF) only.

Panasonic LUMIX G VARIO 14-45mm/F3.5-5.6 ASPH./MEGA O.I.S.
*"MRS Base Port" is necessary.
*Optional "Magnet Ring G14-45 Set" is necessary for zoom operation.
*Auto Focus (AF) only.

■Compatible Attachment Lens
INON UCL-330 Close-up Lens (*1)
INON UCL-165M67 Close-up Lens (*1)
(*1) Optional "M67 Adaptor for Front Port Wide" is necessary.

■Specification

Dimensions Outer diameter: 104mm / 4.1in
Length: 42mm / 1.7in
Weight (air) 253g / 8.9oz
Depth Rating 75m / 246ft
Material Corrosion-resistant aluminum alloy (rigid black alumite)
Optical glass (inner multi coating)

page top

■Front Port Dome 115

click to enlarge
click to enlarge

Combination with the MRS Base Port

A Front Port to joint on the edge of the "MRS Base Port" for the 7-14mm/F4.0 zoom lens. The protector shades unnecessary light which could cause flare / ghost to get clear image in addition to prevent accidental damage on the lens surface.

■Compatible Lens
Panasonic LUMIX G VARIO 7-14mm/F4.0 ASPH.
*Attaching on the "MRS Base Port" is mandatory.
*Optional "Magnet Ring G7-14 Set" is necessary for zoom operation.
*Auto Focus (AF) only.

■Specifiction

Dimensions Outer diameter: 132mm / 5.2in
Length: 50mm / 2.0in (incl. Protector)
Weight (air) 378g / 13.3oz (incl. Protector)
Depth Rating 75m / 246ft
Material Corrosion-resistant aluminum alloy (rigid black alumite)
Optical glass (inner multi coating)
Polycarbonate (Protector)

* When installing, first set the camera body only in the housing then attach the 7-14mm/F4.0 zoom lens on the camera body from housing front side and attach combined lens port on the housing.

page top

■Front Port Flat 5

click to enlarge
click to enlarge

Combination with the MRS Base Port

A Front Port to joint on the edge of the "MRS Base Port" to use for Olympus 14-42mm F3.5-5.6 II R lens. The port edge has M67 screw mount to attach various conversion lenses to support from macro to ultra wide imaging by changing lens underwater to suit to different subject.

■Compatible Lens
Olympus M.ZUIKO DIGITAL 14-42mm F3.5-5.6 II R
*"MRS Base Port" is mandatory.
*Optional "Magnet Ring MZ14-42 Set" is necessary for zoom operation.
*Auto Focus (AF) only.

■Compatible Attachment Lens
INON UCL-330 Close-up Lens
INON UCL-165M67 Close-up Lens
INON UWL-H100 28M67 Type2 Wide Conversion Lens
INON Dome Lens Unit II for UWL-H100 + UWL-H100 28M67 Type2 (*1)
INON UFL-M150 ZM80 Underwater Micro Fisheye Lens (*2)
(*1) Vignetting is observed at zoom wide end. Crop an image after shooting or zoom to telephoto side when shooting.
(*2) Optional "M27-M67 Mount Converter for UFL-M150 ZM80" is necessary.

■Specification

Dimensions Outer diameter: 89mm / 3.5in
Length: 27mm / 1.1in
Weight (air) 133g / 4.7oz
Depth Rating 75m / 246ft
Material Corrosion-resistant aluminum alloy (rigid black alumite)
Optical glass (inner multi coating)

click to enlarge
Setup image of
Close-up Lens
click to enlarge
Setup image of
UWL-H100 28M67 Type2
click to enlarge
Setup image of
Dome Lens Unit II
click to enlarge
Setup image of
UFL-M150 ZM80
Page Top

■MRS Magnet Ring DG45 set

click to enlarge
click to enlarge

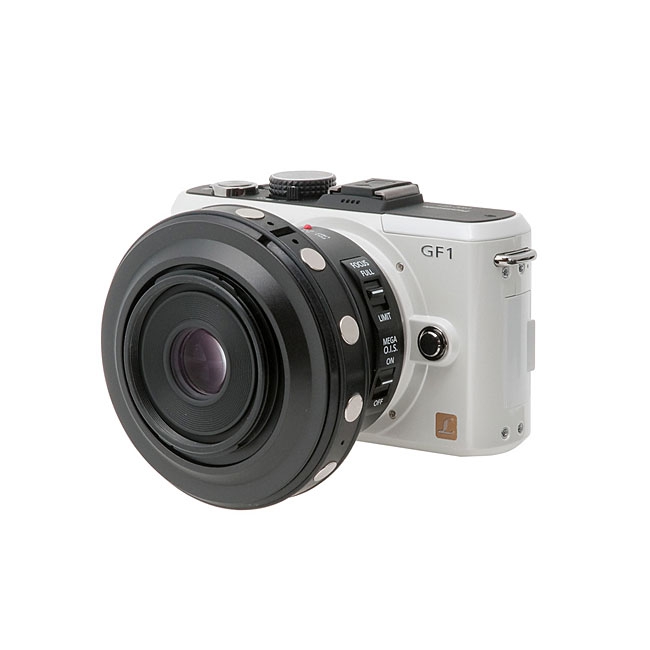

Set-up image

The set of "Magnet Ring" and "MRS Magnet Ring DG45 Adapter" to attach on the 45mm/F2.8 MACRO lens for manual focus operation. The Magnet Ring is also usable with "MRS Magnet Ring G14-42 II Adapter", "MRS Magnet Ring G14-42 Adapter", "MRS Magnet Ring G14-45 Adapter", "MRS Magnet Ring G7-14 Adapter" or "MRS Magnet Ring MZ14-42 Adapter".


■Compatible Lens
Panasonic LEICA DG MACRO-ELMARIT 45mm/F2.8 ASPH./MEGA O.I.S.

■Specification
Weight (air): 86g / 3.0oz (incl. Magnet Ring)

MRS Magnet Ring DG45 Adapter
MRS Magnet Ring
DG45 Adapter
Magnet Ring
Magnet Ring
Page Top

■MRS Magnet Ring G14-42 II Set

click to enlarge
click to enlarge

Set-up image

The set of "Magnet Ring" and "MRS Magnet Ring G14-42 II Adapter" to attach on the 14-42mm/F3.5-5.6 II zoom lens for zoom operation. The Magnet Ring is also usable with "MRS Magnet Ring DG45 Adapter", "MRS Magnet Ring G14-42 Adapter", "MRS Magnet Ring G14-45 Adapter", "MRS Magnet Ring G7-14 Adapter" or "MRS Magnet Ring MZ14-42 Adapter".

■Compatible Lens
Panasonic LUMIX G VARIO 14-42mm/F3.5-5.6 II ASPH./MEGA O.I.S.

■Specification
Weight (air): 89g / 3.1oz (incl. Magnet Ring)

MRS Magnet Ring G14-42 II Adapter
MRS Magnet Ring
G14-42 II Adapter
Magnet Ring
Magnet Ring
Page Top

■MRS Magnet Ring G14-42 Set

click to enlarge
click to enlarge

Set-up image

The set of "Magnet Ring" and "MRS Magnet Ring G14-42 Adapter" to attach on the 14-42mm/F3.5-5.6 zoom lens for zoom operation. The Magnet Ring is also usable with "MRS Magnet Ring DG45 Adapter", "MRS Magnet Ring G14-42 II Adapter", "MRS Magnet Ring G14-45 Adapter", "MRS Magnet Ring G7-14 Adapter" or "MRS Magnet Ring MZ14-42 Adapter".

■Compatible Lens
Panasonic LUMIX G VARIO 14-42mm/F3.5-5.6 ASPH./MEGA O.I.S.

■Specification
Weight (air): 87g / 3.1oz (incl. Magnet Ring)

MRS Magnet Ring G14-42 Adapter
MRS Magnet Ring
G14-42 Adapter
Magnet Ring
Magnet Ring
Page Top

■MRS Magnet Ring G14-45 Set

click to enlarge
click to enlarge

Set-up image

The set of "Magnet Ring" and "MRS Magnet Ring G14-45 Adapter" to attach on the 14-45mm/F3.5-5.6 zoom lens for zoom operation. The Magnet Ring is also usable with "MRS Magnet Ring DG45 Adapter", "MRS Magnet Ring G14-42 II Adapter", "MRS Magnet Ring G14-42 Adapter", "MRS Magnet Ring G7-14 Adapter" or "MRS Magnet Ring MZ14-42 Adapter".

■Compatible Lens
Panasonic LUMIX G VARIO 14-45mm/F3.5-5.6 ASPH./MEGA O.I.S.

■Specification
Weight (air): 91g / 3.2oz (incl. Magnet Ring)

MRS Magnet Ring G14-45 Adapter
MRS Magnet Ring
G14-45 Adapter
Magnet Ring
Magnet Ring
Page Top

■MRS Magnet Ring G7-14 Set

click to enlarge
click to enlarge

Set-up image

The set of "Magnet Ring" and "MRS Magnet Ring G7-14 Adapter" to attach on the 7-14mm/F4.0 zoom lens for zoom operation. The Magnet Ring is also usable with "MRS Magnet Ring DG45 Adapter", "MRS Magnet Ring G14-42 II Adapter", "MRS Magnet Ring G14-42 Adapter", "MRS Magnet Ring G14-45 Adapter" or "MRS Magnet Ring MZ14-42 Adapter".

■Compatible Lens
Panasonic LUMIX G VARIO 7-14mm/F4.0 ASPH.

■Specification
Weight (air): 99g / 3.5oz (incl. Magnet Ring)

MRS Magnet Ring G7-14 Adapter
MRS Magnet Ring
G7-14 Adapter
Magnet Ring
Magnet Ring
Page Top

■MRS Magnet Ring MZ14-42 Set

click to enlarge
click to enlarge

Set-up image

The set of "Magnet Ring" and "MRS Magnet Ring MZ14-42 Adapter" to attach on Olympus M.ZUIKO DIGITAL 14-42mm F3.5-5.6 II R lens for zoom operation. The Magnet Ring is also usable with "MRS Magnet Ring DG45 Adapter", "MRS Magnet Ring G14-42 II Adapter", "MRS Magnet Ring G14-42 Adapter", "MRS Magnet Ring G14-45 Adapter" or "MRS Magnet Ring G7-14 Adapter".

■Compatibe Lens
Olympus M.ZUIKO DIGITAL 14-42mm F3.5-5.6 II R

■Specification
Weight (air): 87g / 3.1oz (incl. Magnet Ring)

MRS Magnet Ring G7-14 Adapter
MRS Magnet Ring
MZ14-42 Adapter
Magnet Ring
Magnet Ring
Page Top
