INON

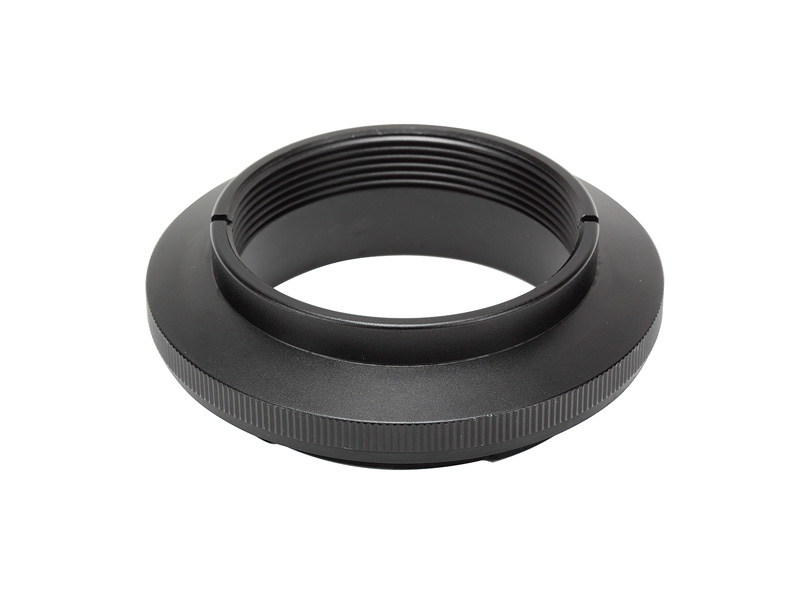

M52-LD Mount Converter for UWL-S100 ZM80

JAN code : 4562121437074

click to enlarge

An adapter to attach this product on INON "LD Lens Adapter Base".

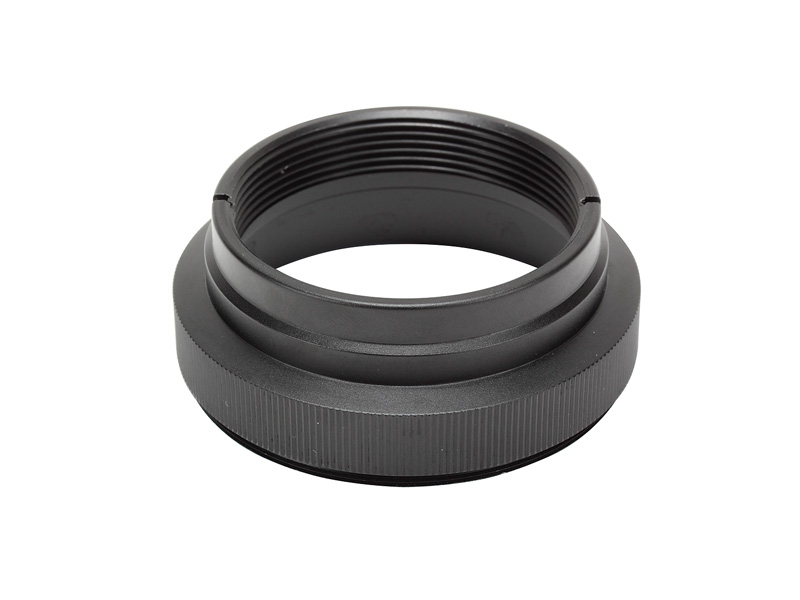

M52-M67 Mount Converter for UWL-S100 ZM80

JAN code : 4562121437067

click to enlarge

An adapter to attach this product on INON "M67 Lens Adapter Base".

page top

Dome Lens Unit II for UWL-S100 ZM80

JAN code : 4562121437081

click to enlarge

The "Dome Lens Unit II for UWL-S100 ZM80" is a dedicated super dome option for " UWL-S100 ZM80" to increase underwater maximum view angle from their original 100.0° to 149.8°. The Dome Lens Unit II enables you to "take more wide image" and "get more closer to subject", which is useful not only to take wide images of underwater landscape but to shoot in poor visibility as well.

Outer diameter: φ97.8mm (3.9in)
Length: [standalone] 39.4mm (1.6in)
     : [with UWL-S100 ZM80] 81.5mm (3.2in)
Weight: [standalone] 148g (5.2oz) [air]
     : [with UWL-S100 ZM80] approx176g (6.2oz) [underwater]

page top

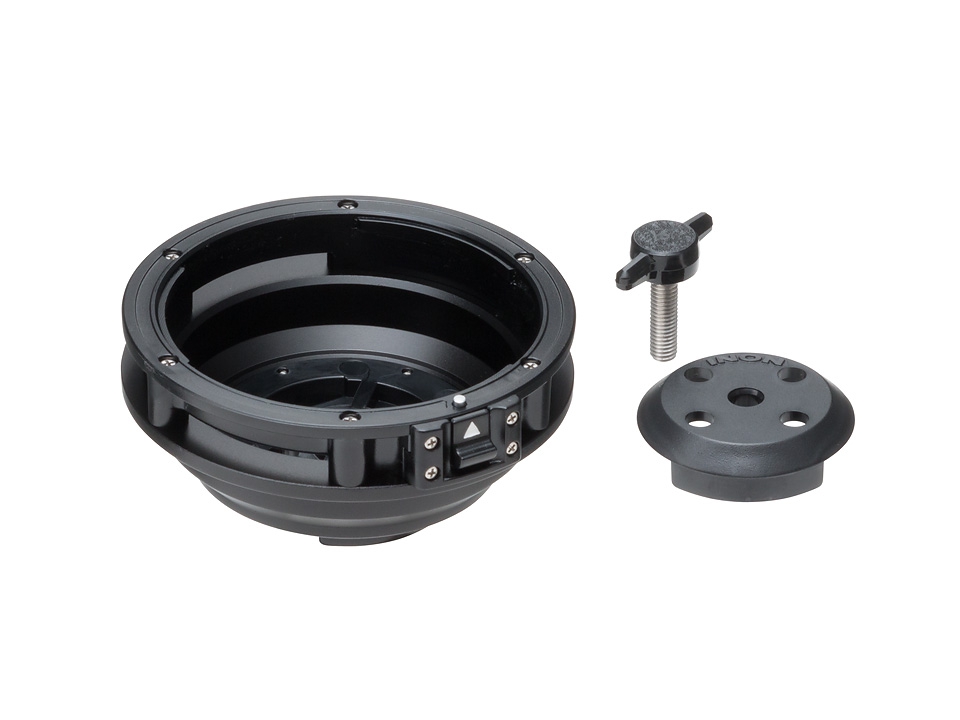

LD Lens Holder DP-S

JAN code : 4562121437937

LD Lens Holder DP-S

A lens holder with deeper receptacle for an INON attachment lens with long lens barrel such as "UWL-S100 ZM80". Compatible with other 28LD series/LD series attachment lenses as well. This lens holder enables to hold the "UWL-S100 ZM80" via "M27-LD Mount Converter for UWL-S100 ZM80" on an Arm product, "D Holder Extension Bar" etc. The lens holder is attached on compatible arm product by sandwiching the arm product between Lens Holder [screw] and Lens Holder Base.

Other lens holder lineups "LD Lens Holder S" or "LD Lens Holder W" are available at lower price for an LD series attachment lens other than "UFL-M150 ZM80" underwater micro fisheye lens and "UWL-S100 ZM80" wide conversion lens.


Weight: 75g (2.6oz) [air] / approx.38g (1.3oz) [underwater]

Compatible Arm/Base
Arm SS/S/M/L
YS Arm MS/M
Grip Base D4 (optional D Holder Extension Bar is necessary.)
Grip Base M1 (optional D Holder Extension Bar is necessary.)
D Holder (optional D Holder Extension Bar is necessary.)
Grip Base DIII w/ Rubber Grip D
Grip Base DII w/ Rubber Grip D

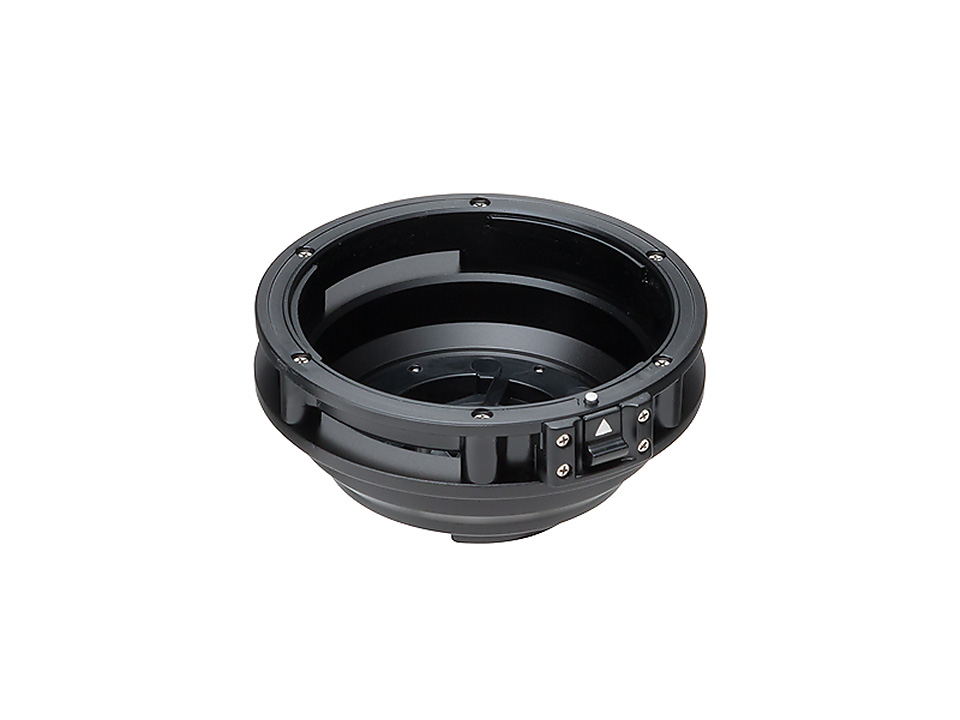

LD Lens Holder DP for Float Arm

JAN code : 4562121437944

LD Lens Holder DP for Float Arm

A lens holder with deeper receptacle for an INON attachment lens with long lens barrel such as "UWL-S100 ZM80". Compatible with other 28LD series/LD series attachment lenses as well. This lens holder enables to hold the "UWL-S100 ZM80" via "M27-LD Mount Converter for UWL-S100 ZM80" on Float Arm/Mega Float Arm/Mega Float Tube or "M5 Joint" installed on Stick Arm/Multi Ball Arm. The lens holder is attached on Float Arm/Mega Float Arm or M5 Joint by a screw through center screw hole.


Other lens holder lineup "LD Lens Holder for Float Arm" is available at lower price for an LD series attachment lens other than "UFL-M150 ZM80" underwater micro fisheye lens and "UWL-S100 ZM80" wide conversion lens.


Weight: 64g (2.3oz) [air] / approx.33g (1.2oz) [underwater]

Compatible Arm/Base
Float Arm S/M/ML
Mega Float Arm S/M
M5 Joint + Stick Arm SS-T/S-T/M-T/L
M5 Joint + Multi Ball Arm ML/L/LL/XL
Mega Float Tube S/M

page top

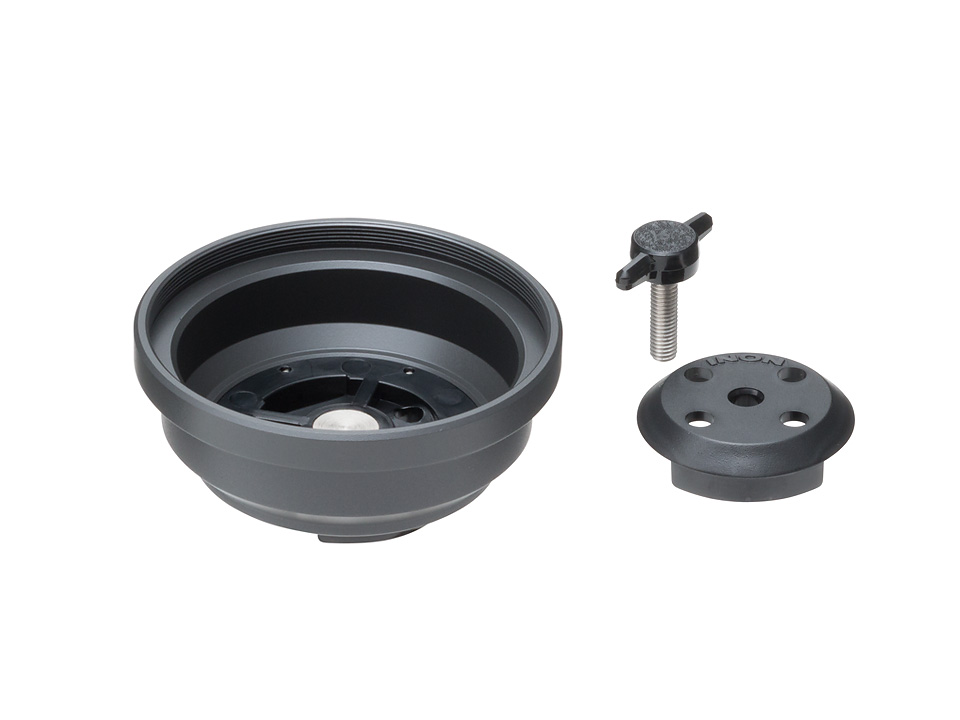

M67 Lens Holder DP-S

JAN code : 4562121437890

M67 Lens Holder DP-S

A lens holder with deeper receptacle for an INON attachment lens with long lens barrel such as "UWL-S100 ZM80". Compatible with other M67 / 28M67 series attachment lenses as well. This lens holder enables to hold the "UWL-S100 ZM80" via "M27-M67 Mount Converter for UWL-S100 ZM80" on an Arm product, "D Holder Extension Bar" etc. The lens holder is attached on compatible arm product by sandwiching the arm product between Lens Holder [screw] and Lens Holder Base.


Other lens holder lineups "M67 Lens Holder S" or "M67 Lens Holder W" are available at lower price for an M67 / 28M67 series attachment lens other than "UFL-M150 ZM80" underwater micro fisheye lens and "UWL-S100 ZM80" wide conversion lens.


Weight: 69g (2.4oz) [air] / approx.39g (1.4oz) [underwater]

Compatible Arm/Base
Arm SS/S/M/L
YS Arm MS/M
Grip Base D4 (optional D Holder Extension Bar is necessary.)
Grip Base M1 (optional D Holder Extension Bar is necessary.)
D Holder (optional D Holder Extension Bar is necessary.)
Grip Base DIII w/ Rubber Grip D

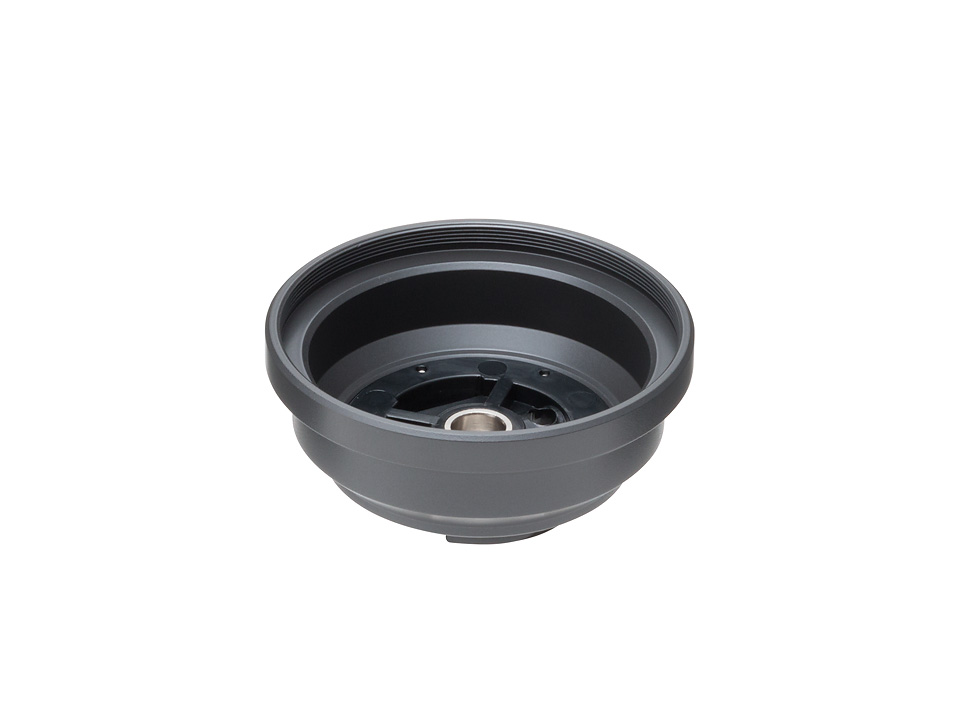

M67 Lens Holder DP for Float Arm

JAN code : 4562121437906

M67 Lens Holder DP for Float Arm

A lens holder with deeper receptacle for an INON attachment lens with long lens barrel such as "UWL-S100 ZM80". Compatible with other M67 / 28M67 series attachment lenses as well. This lens holder enables to hold the "UWL-S100 ZM80" via "M27-M67 Mount Converter for UWL-S100 ZM80" on Float Arm/Mega Float Arm/Mega Float Tube or "M5 Joint" installed on Stick Arm/Multi Ball Arm. The lens holder is attached on Float Arm/Mega Float Arm or M5 Joint by a screw through center screw hole.

Other lens holder lineup "M67 Lens Holder for Float Arm" is available at lower price for an M67 / 28M67 series attachment lens other than "UFL-M150 ZM80" underwater micro fisheye lens and "UWL-S100 ZM80" wide conversion lens.


Weight: 58g (2.0oz) [air] / approx.34g (1.2oz) [underwater]

Compatible Arm/Base
Float Arm S/M/ML
Mega Float Arm S/M
M5 Joint + Stick Arm SS-T/S-T/M-T/L
M5 Joint + Multi Ball Arm ML/L/LL/XL
Mega Float Tube S/M
