INON

Optical D Cable Type L

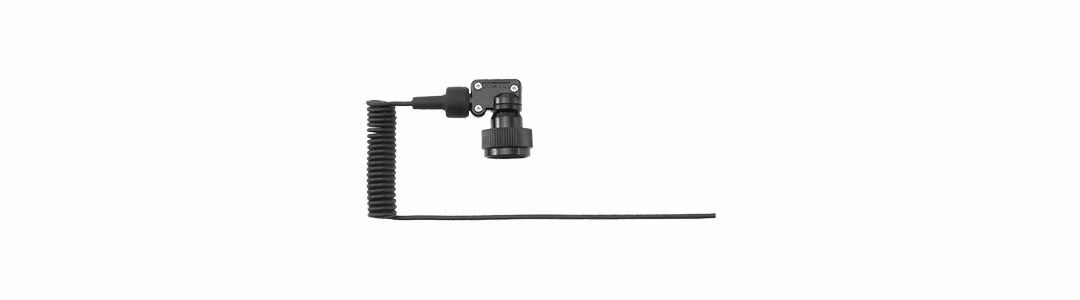

Optical D Cable SS Type L

JAN code : 4562121434431

Manual
Optical D Cable SS Type L

Length: approx 24 cm/9.4 in

Optical D Cable Type L

JAN code : 4562121434417

Manual
Optical D Cable Type L

Length: approx 43 cm/17.0 in

Optical D Cable L Type L

JAN code : 4562121434424

Manual
Optical D Cable L Type L

Length: approx 60 cm/23.6 in

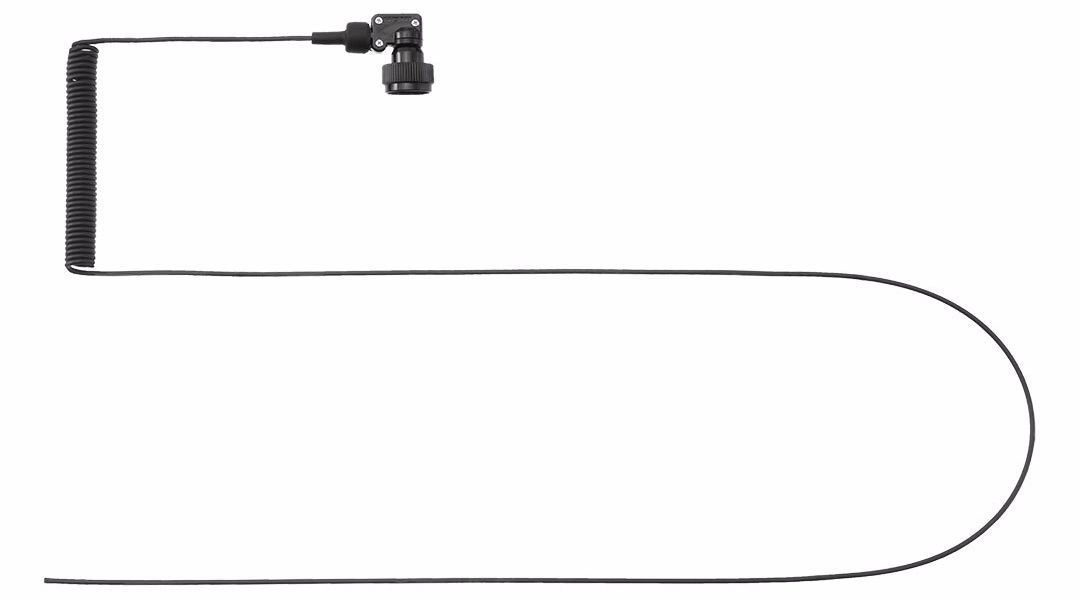

Optical D Cable LL Type L

JAN code : 4562121434448

Optical D Cable LL Type L

Length: approx 110 cm/43.3 in

Fiber optics kit for a housing which directly accepts bear end of Optical D Cable Type L and also usable to connect second strobe. Four different length products are available; Optical D Cable SS Type L (free length approx. 24cm/9in), Optical D Cable Type L (free length approx. 43cm/17in), Optical D Cable L Type L (free length approx. 68cm/27in) and Optical D Cable LL Type L (free length approx. 110cm/43in). INON optical cable products use multicore optical fiber cable made from more than 200 single fibers with enormous characteristic of minimum bending curvature 2mm to provide super durability and rigid reliability to trigger an external strobe in severe underwater together.

Compatible Strobe
[Strobes compatible with pre-installed L-Connector.]
Z-330, D-200, S-2000, Z-240type4, D-2000 Type4

[Strobes requiring replacement of pre-installed L-Connector with optional "Sensor Plug Non-wireless".]
Z-240 Type3/Type2/Type1, D-2000 Type4/Type2/Tyep1, D-2000S, D-2000W/Wn, D-180, D-180S, Z-220, Z-220F, Z-220S


Compatible Housing etc.
INON X-2 for EOS10D, X-2 for EOS20D, X-2 for EOS30D, X-2 for EOS50D/40D,
X-2 for EOS60D, X-2 for EOS70D, X-2 for EOS6D, X-2 for EOS80D
INON X-2 for GF1, X-2 for GF2
INON DN-800, DN-880

To connect second strobe for Optical D Cable Type L Cap Set products, Optical D Cable Type L Bush Set products or Optical D Cable Type L/Double Hole Rubber Bush Set products.

Other manufactures' housings which have plug-in type fiber optics connector
*INON INC. has not confirmed compatibility with specific product(s) from other manufactures. Before using, make sure to check if the product(s) from other manufactures is compatible and does not interfere other combined product(s).

INON X-2 housing has optical connectors

INON X-2 housing has optical connectors
as standard feature

click to enlarge

Dual strobe configuration<br>for a compact digital camera housing

Optical D Cable Type L Option

Sensor Plug Non-wireless

Sensor Plug Non-wireless
