INON

XD Mount

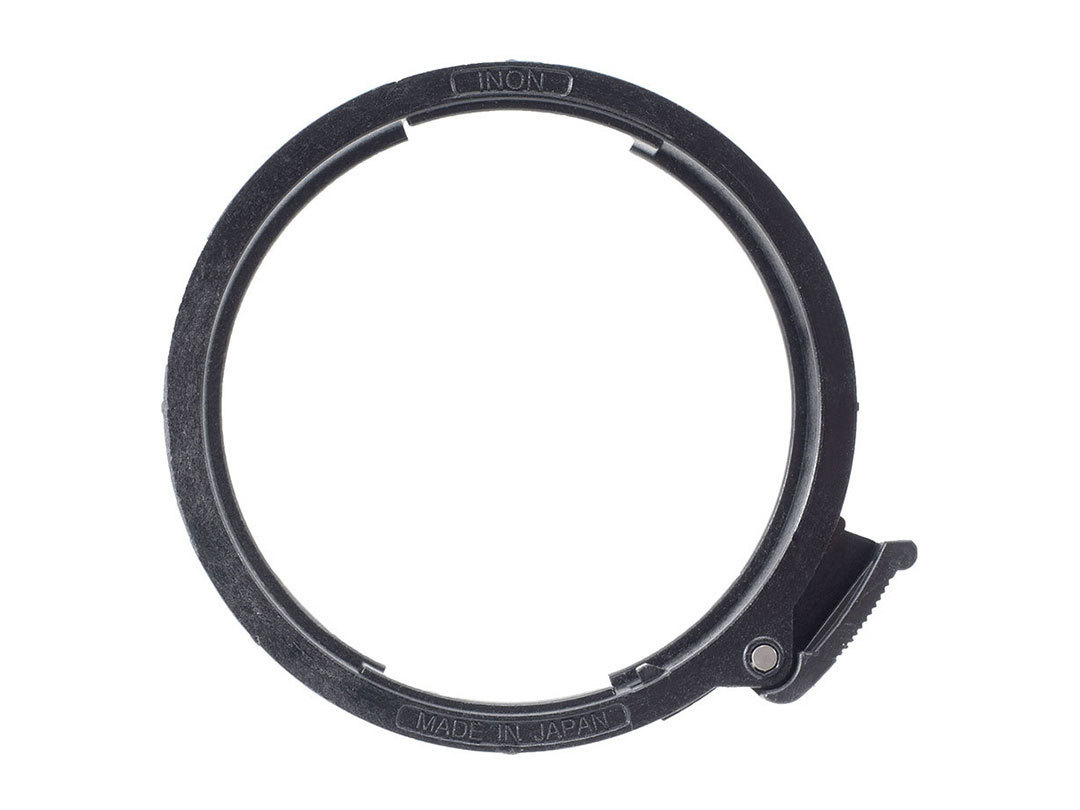

XD Mount for M67 Port

JAN/EAN code : 4570018120329

XD Mount for M67 Port
XD Mount for M67 Port

An adapter attached to the M67 screw on the port end to convert to "XD mount" enabling instant attachment of various INON XD Mount close-up lenses, variable red filter and commercially available ND filters. Ultra thin design keeps the camera lens and conversion lens close together. Despite being an optional part, it maintains quality image when using various close-up lenses.

Compatible port
M86 Port 07
M86 Port 17
M86 Port 49
M86 Port 55

XD Mount for M67 Port

An adapter attached to the M67 screw on the port end to convert to "XD mount" enabling instant attachment of various INON XD Mount close-up lenses, variable red filter and commercially available ND filters. Ultra thin design keeps the camera lens and conversion lens close together. Despite being an optional part, it maintains quality image when using various close-up lenses.

Compatible port
M86 Port 07
M86 Port 17
M86 Port 49
M86 Port 55

XD Mount for M67 Port
page top

Finder Unit

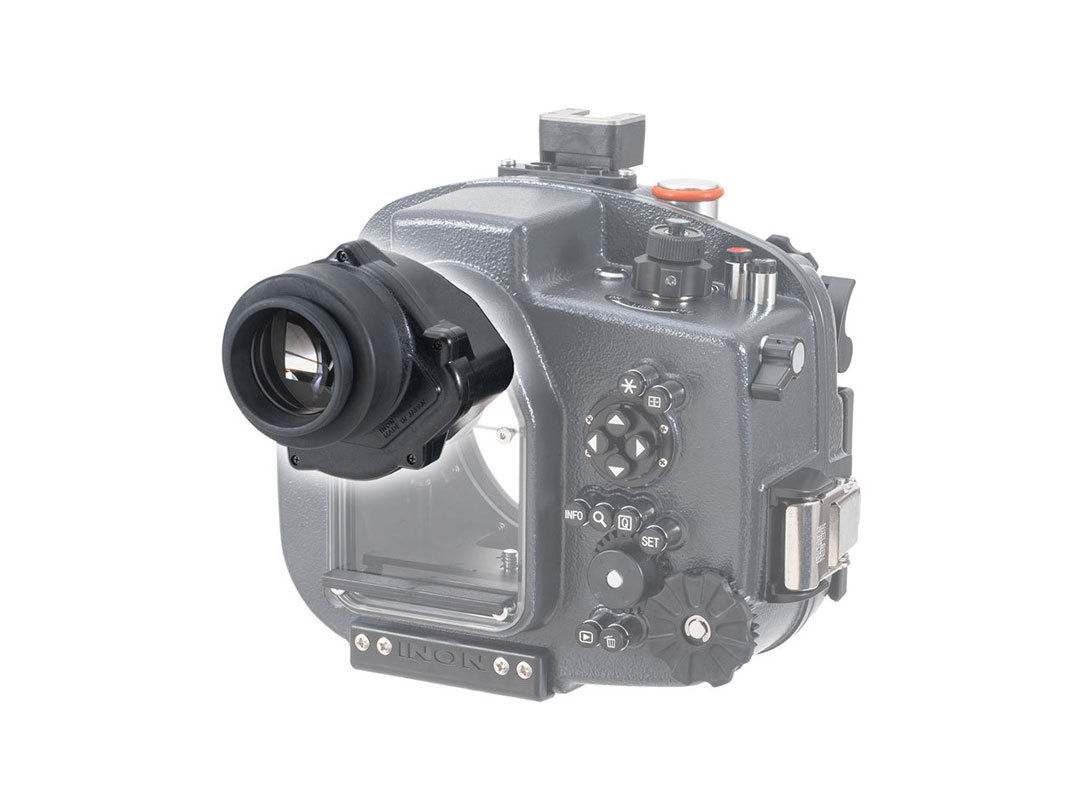

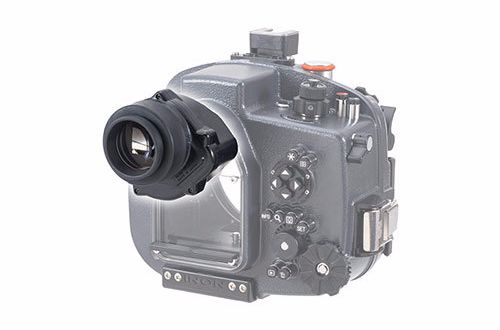

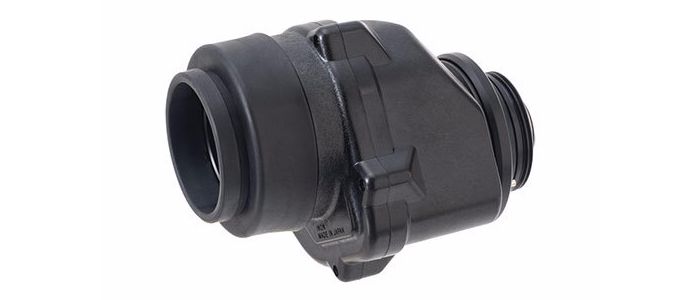

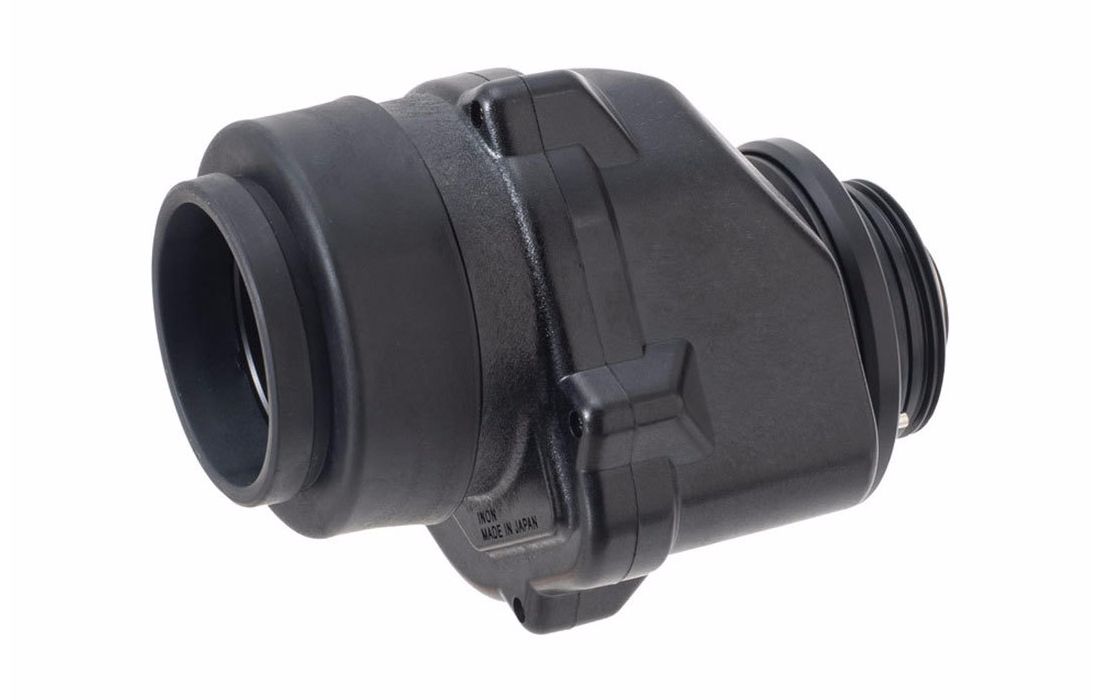

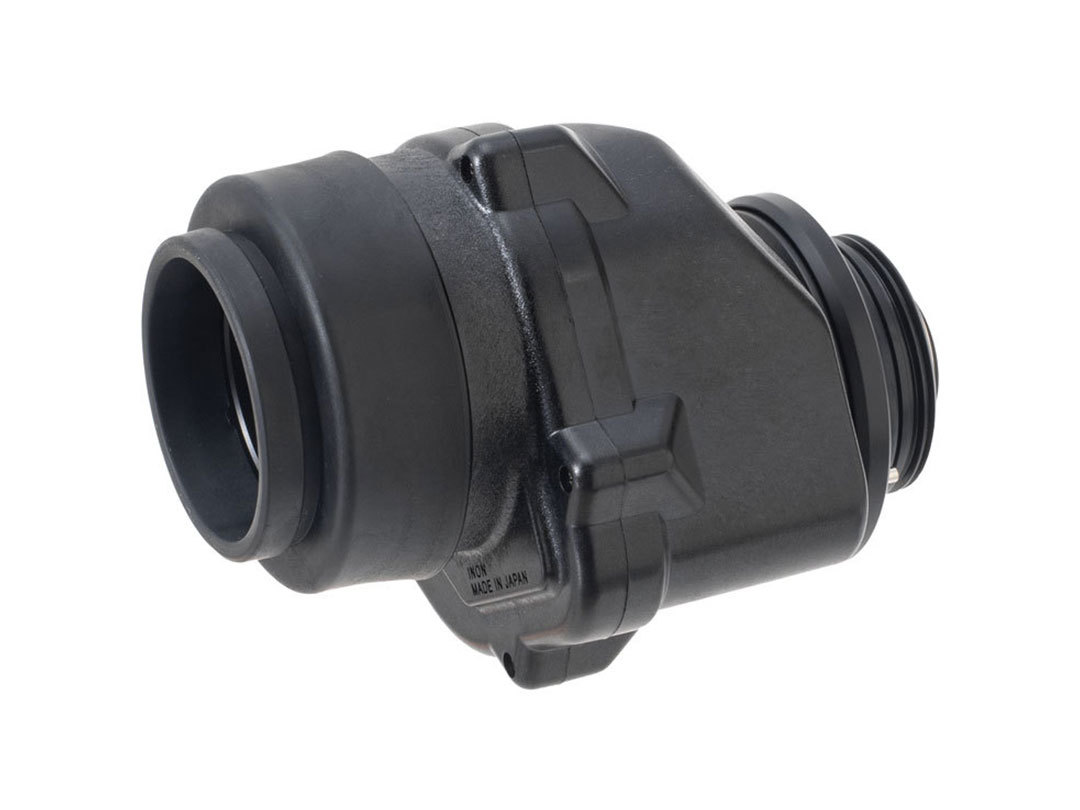

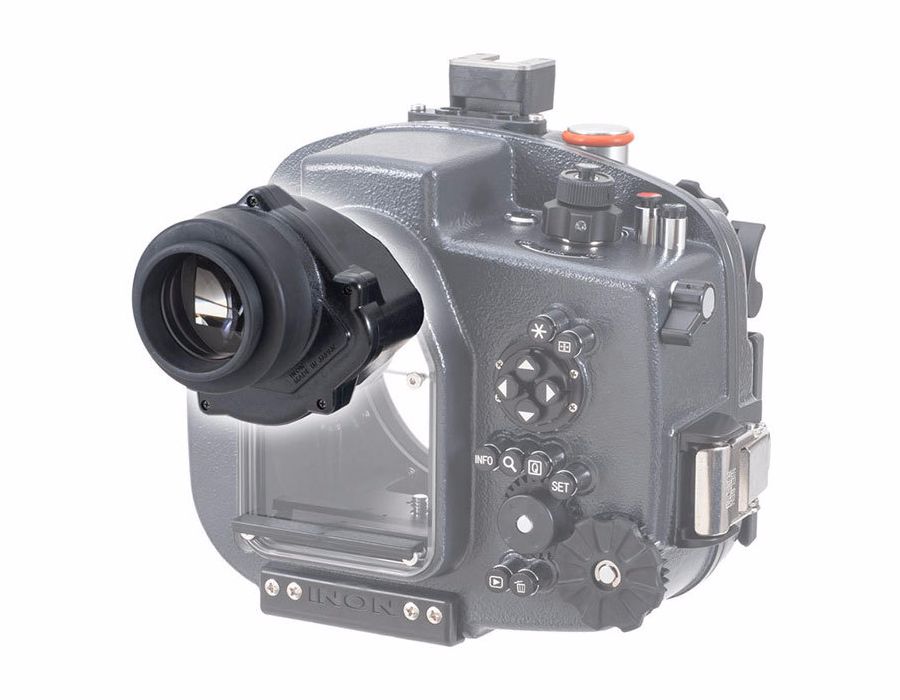

Straight Viewfinder Unit II D10

JAN/EAN code : 4570018121067

ストレートビューファインダーユニットII D10


ストレートビューファインダーユニットII D10

アイカップが大型化された「EOS R5 Mark II」に対応する、高輝度・高解像度・小型・軽量のストレートビューファインダー。
光の損失の少ない大型プリズムを採用し、隅々まで明るくクリアで、広い視野と覗き方によって見え方が変化しにくいファインダー像を実現。
カメラのファインダー倍率は陸上と同じまま(倍率1.0倍)、水中アイポイントを「60ミリ」へ延長。マスク越しでもケラレることなく視認できます。
耐蝕アルミ合金とFRP(強化プラスチック)のハイブリッドボディで、小型軽量化と高強度化を両立しています。

取り付けには別途「X-2ファインダーユニット専用工具」が必要となります。

重量:305g (陸上)


・ストレートビューファインダーII for X-2
上記のビューファインダーを本ハウジングに取り付けすることはできません。
D10仕様へと変更する必要があります。
ストレートビューファインダーII D10仕様変更サービス
¥12,000(税込み¥13,200)

ストレートビューファインダーユニットII D10

アイカップが大型化された「EOS R5 Mark II」に対応する、高輝度・高解像度・小型・軽量のストレートビューファインダー。
光の損失の少ない大型プリズムを採用し、隅々まで明るくクリアで、広い視野と覗き方によって見え方が変化しにくいファインダー像を実現。
カメラのファインダー倍率は陸上と同じまま(倍率1.0倍)、水中アイポイントを「60ミリ」へ延長。マスク越しでもケラレることなく視認できます。
耐蝕アルミ合金とFRP(強化プラスチック)のハイブリッドボディで、小型軽量化と高強度化を両立しています。

取り付けには別途「X-2ファインダーユニット専用工具」が必要となります。

重量:305g (陸上)

・ストレートビューファインダーII for X-2
上記のビューファインダーを本ハウジングに取り付けすることはできません。
D10仕様へと変更する必要があります。
ストレートビューファインダーII D10仕様変更サービス
¥12,000(税込み¥13,200)

ストレートビューファインダーユニットII D10

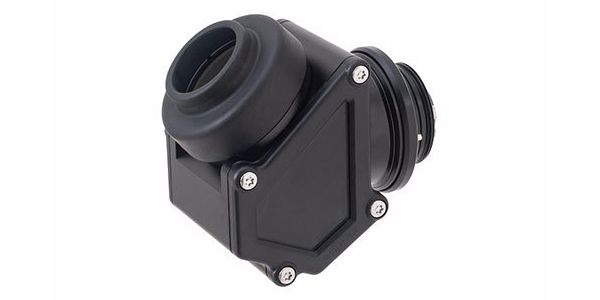

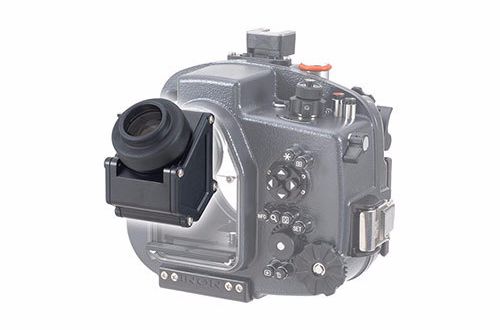

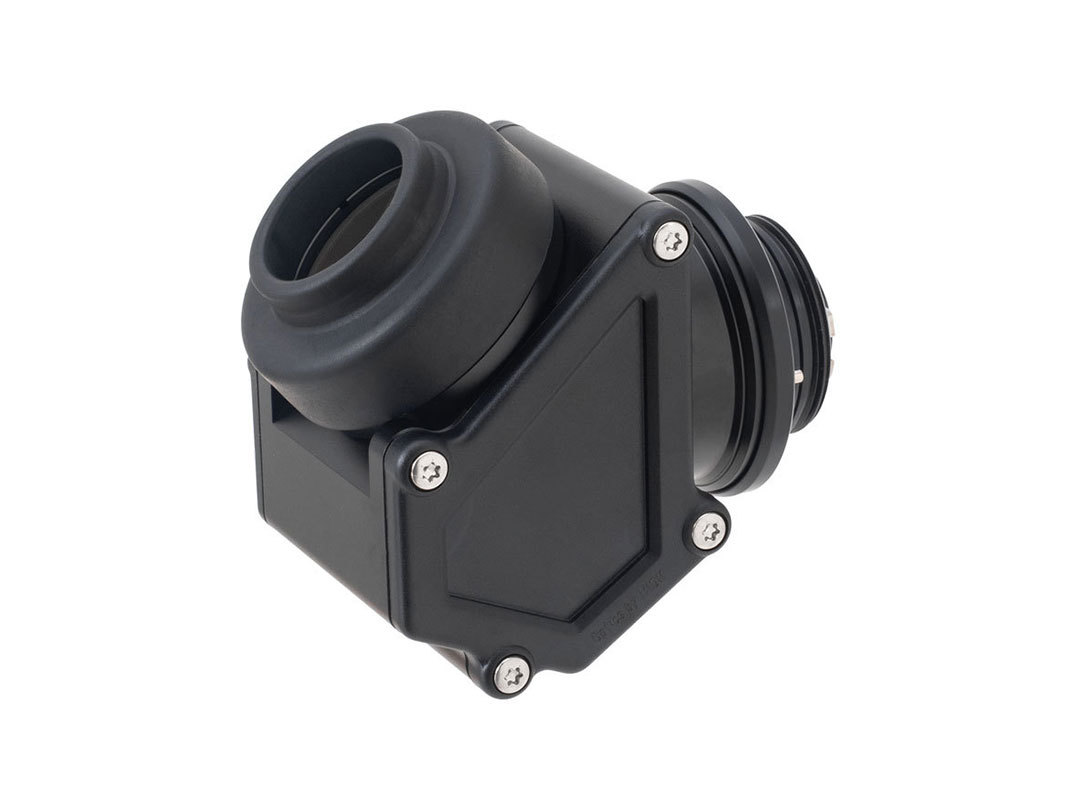

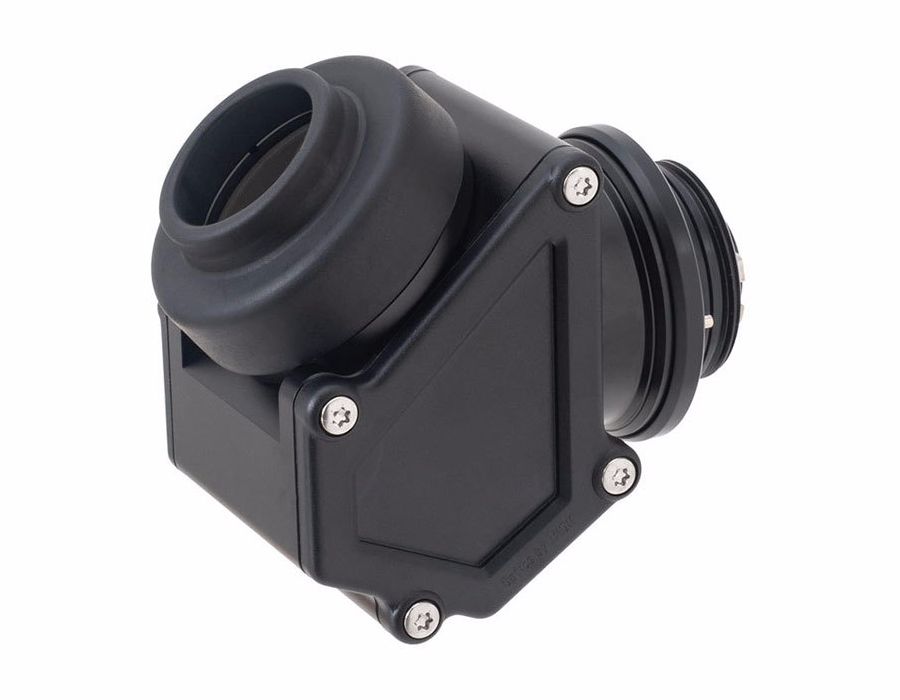

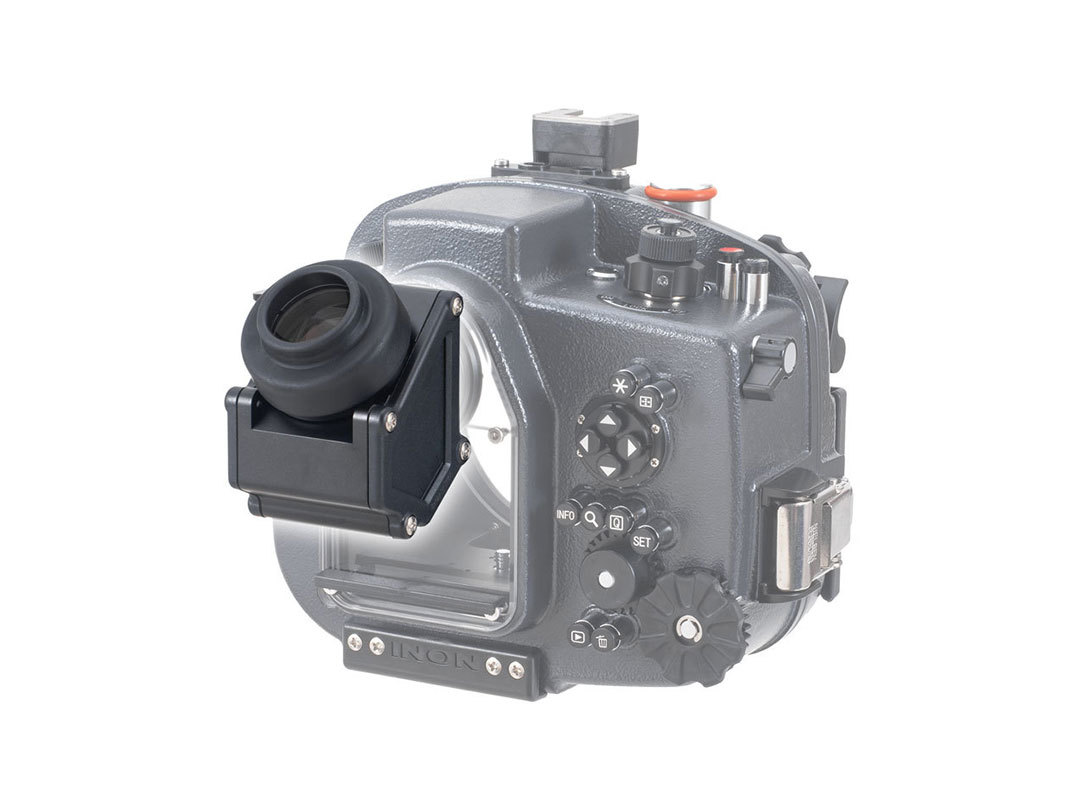

45°Viewfinder Unit II D10

JAN/EAN code : 4570018121050

45°ビューファインダーユニットII D10


45°ビューファインダーユニットII D10

アイカップが大型化された「EOS R5 Mark II」に対応する、カメラ光軸から45°角度のついたビューファインダー。
カメラのファインダー倍率は陸上と同じまま(倍率1.0倍)、水中アイポイントを「60ミリ」へ延長。マスク越しでもケラレることなく視認できます。
接眼部は、カメラの光軸と45°角度が付いており、砂地のハゼなど低い位置に居る被写体での撮影時に威力を発揮。
また、接眼部自体も360°回転。縦位置撮影のローアングルなどでも問題なく使用できます。
取り付けには別途「X-2ファインダーユニット専用工具」が必要となります。

重量:337g (陸上)


・45°ビューファインダーユニット for X-2
・45°ビューファインダーユニットII for X-2
上記のビューファインダーを本ハウジングに取り付けすることはできません。
D10仕様へと変更する必要があります。
45°ビューファインダーII D10 仕様変更サービス
¥12,000(税込み¥13,200)
詳細はご購入された販売店様にお問い合わせください。

45°ビューファインダーユニットII D10

アイカップが大型化された「EOS R5 Mark II」に対応する、カメラ光軸から45°角度のついたビューファインダー。
カメラのファインダー倍率は陸上と同じまま(倍率1.0倍)、水中アイポイントを「60ミリ」へ延長。マスク越しでもケラレることなく視認できます。
接眼部は、カメラの光軸と45°角度が付いており、砂地のハゼなど低い位置に居る被写体での撮影時に威力を発揮。
また、接眼部自体も360°回転。縦位置撮影のローアングルなどでも問題なく使用できます。
取り付けには別途「X-2ファインダーユニット専用工具」が必要となります。

重量:337g (陸上)

・45°ビューファインダーユニット for X-2
・45°ビューファインダーユニットII for X-2
上記のビューファインダーを本ハウジングに取り付けすることはできません。
D10仕様へと変更する必要があります。
45°ビューファインダーII D10 仕様変更サービス
¥12,000(税込み¥13,200)

45°ビューファインダーユニットII D10

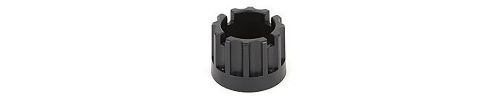

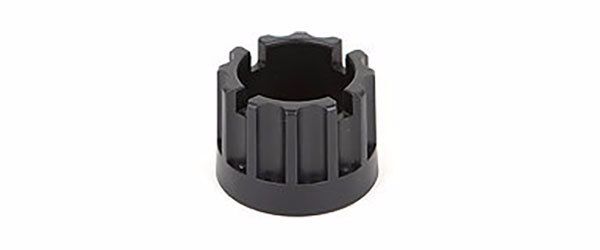

Lock Ring Tool for X-2 Finder Unit

JAN/EAN code : 4562121433052

Lock Ring Tool for X-2 Finder Unit

Required tool to attach and remove a viewfinder unit on the housing.

Lock Ring Tool for X-2 Finder Unit

Required tool to attach and remove a viewfinder unit on the housing.

page top

Cable

Optical D Cable Type L Rubber Bush Set 2

Optical D Cable Type L Rubber Bush Set 2

Fiber optics products to connect the housing and compatible strobe via optical cable adapter. Four different lengths to select; Optical D Cable Type L Rubber Bush Set 2 (free length approx. 43 cm/17 in.), Optical D Cable L Type L Rubber Bush Set 2 (free length approx. 68 cm/27 in.), Optical D Cable LL Type L Rubber Bush Set 2 (free length approx. 110 cm/43 in.) or Optical D Cable SS Type L Rubber Bush Set 2 (free length approx. 24 cm/9 in.)

Optical D Cable Type L Rubber Bush Set 2

Fiber optics products to connect the housing and compatible strobe via optical cable adapter. Four different lengths to select; Optical D Cable Type L Rubber Bush Set 2 (free length approx. 43 cm/17 in.), Optical D Cable L Type L Rubber Bush Set 2 (free length approx. 68 cm/27 in.), Optical D Cable LL Type L Rubber Bush Set 2 (free length approx. 110 cm/43 in.) or Optical D Cable SS Type L Rubber Bush Set 2 (free length approx. 24 cm/9 in.)

page top

Base Adapter

Direct Base III

JAN/EAN code : 4562121436541

Direct Base III

A ball adapter attached on the "D5 Holder" equipped on both sides of the housing.
An arm system can be attached via "Clamp III".

Full length : 45mm/1.8in
Effective length : 32mm/1.3in
Weight : 35g/1.2oz[Air]/approx.23g/0.8oz[Underwater]

Direct Base III

A ball adapter attached on the "D5 Holder" equipped on both sides of the housing.
An arm system can be attached via "Clamp III".

Full length : 45mm/1.8in
Effective length : 32mm/1.3in
Weight : 35g/1.2oz[Air]
/approx.23g/0.8oz[Underwater]

page top

Quick Shoe

Quick Shoe W27 Set

JAN/EAN code : 4570018120169

Quick Shoe W27 Set

Quick Shoe W27 Set Setup example
Compact Quick Shoe with 27 mm/1.1 inch width. Set of the Quick Shoe W27 Plate and Quick Shoe W27 Clamp.

Attached on the "D5 Holder" to easily attach and detach combined base stay and ball arm underwater.

Full length : 95mm/3.7in
Weight : 90g/3.1oz[Air]/approx.60g/2.1oz[Underwater]

Quick Shoe W27 Set
Quick Shoe W27 Set
Quick Shoe W27 Set

Quick Shoe W27 Set Setup example
Compact Quick Shoe with 27 mm/1.1 inch width. Set of the Quick Shoe W27 Plate and Quick Shoe W27 Clamp.

Attached on the "D5 Holder" to easily attach and detach combined base stay and ball arm underwater.

Full length : 95mm/3.7in
Weight : 90g/3.1oz[Air]
/approx.60g/2.1oz[Underwater]

Quick Shoe W27 Set
Quick Shoe W27 Set
page top

Shoe Base

Shoe Base II

JAN/EAN code : 4562121438705

Shoe Base II

A YS mount adapter to use on an accessory shoe of the housing. The base part rotates 360 degree which benefit you to adjust aiming of combined lighting system sideways in addition to up and down adjustment.

Compatible products (YS joint)
Full length : 52mm/2.0in
Weight : 45g/1.5oz[Air]/approx.20g/0.7oz[Underwater]

Shoe Base II

A YS mount adapter to use on an accessory shoe of the housing. The base part rotates 360 degree which benefit you to adjust aiming of combined lighting system sideways in addition to up and down adjustment.

Compatible products (YS joint)
Full length : 52mm/2.0in
Weight : 45g/1.5oz[Air]
/approx.20g/0.7oz[Underwater]

Shoe Base BALL

JAN/EAN code : 4562121438521

Shoe Base BALL

A ball adapter attached on the accessory shoe of the housing. An arm system can be attached via "Clamp III".

Full length : 55mm/2.1in
Weight : 52g/1.8oz[Air]/approx.28g/0.9oz[Underwater]

Shoe Base BALL

A ball adapter attached on the accessory shoe of the housing. An arm system can be attached via "Clamp III".

Full length : 55mm/2.1in
Weight : 52g/1.8oz[Air]
/approx.28g/0.9oz[Underwater]

page top

Cover

Dome Port Cover S (OR)

JAN/EAN code : 4570018120763

ドームポートカバーS(OR)

生地をオレンジ色に変更し、海での視認性を格段に向上させました

ウェットスーツと同じネオプレンゴム製の、水中仕様可能なカバーです。
生地自体にクッション性があるので、持ち運び時にレンズを保護することができます。
スムーズに着脱できるよう、カバーの上下に開口部を設けています。

Compatible port
M86 Dome Port 110
M96 Dome Port 110

Dome Port Cover S (OR)
ドームポートカバーS(OR)

生地をオレンジ色に変更し、海での視認性を格段に向上させました



ウェットスーツと同じネオプレンゴム製の、水中仕様可能なカバーです。
生地自体にクッション性があるので、持ち運び時にレンズを保護することができます。
スムーズに着脱できるよう、カバーの上下に開口部を設けています。

【対応ポート】
M86ドームポート 110
M96ドームポート 110

ドームポートカバーS(OR)取り付けイメージ
取り付けイメージ

Dome Port Cover L

JAN/EAN code : 4562121438927

ドームポートカバーL

ウェットスーツと同じネオプレンゴム製の、水中仕様可能なカバーです。
生地自体にクッション性があるので、持ち運び時にレンズを保護することができます。
スムーズに着脱できるよう、カバーの上下に開口部を設けています。

Compatible port
Dome Port II Protector II Set

Dome Port Cover L
ドームポートカバーL

ウェットスーツと同じネオプレンゴム製の、水中仕様可能なカバーです。
生地自体にクッション性があるので、持ち運び時にレンズを保護することができます。
スムーズに着脱できるよう、カバーの上下に開口部を設けています。

Compatible port
Dome Port II Protector II Set

ドームポートカバーL取り付けイメージ
 取り付けイメージ
page top

Cap

M86 Rear Port Cap

JAN/EAN code : 4570018120923

M86 Rear Port Cap

A rear port cap for M86 thread lens ports to protect the port O-ring during transportation and storage. Designed to vent air not to have excessive pressure inside when transporting in airplanes.

Compatible Port
M86 Dome Port 110
M86 Port 07
M86 Port 17
M86 Port 49
M86 Port 55
M86 Port 82

M86 Rear Port Cap

A rear port cap for M86 thread lens ports to protect the port O-ring during transportation and storage. Designed to vent air not to have excessive pressure inside when transporting in airplanes.

Compatible Port
M86 Dome Port 110
M86 Port 07
M86 Port 17
M86 Port 49
M86 Port 55
M86 Port 82

M96 Rear Port Cap

JAN/EAN code : 4570018120930

M96 Rear Port Cap

A rear port cap for M96 thread lens ports to protect the port O-ring during transportation and storage. Designed to vent air not to have excessive pressure inside when transporting in airplanes.

Compatible Port
M96 Dome Port 110
Dome Port II・ Protector II Set
Dome Port 115
MRS EXT. Ring33
MRS EXT. Ring50
MRS EXT. Ring54
MRS EXT. Ring111
EXT. Ring18
EXT. Ring36

M96 Rear Port Cap

A rear port cap for M96 thread lens ports to protect the port O-ring during transportation and storage. Designed to vent air not to have excessive pressure inside when transporting in airplanes.

Compatible Port
M96 Dome Port 110
Dome Port II・ Protector II Set
Dome Port 115
MRS EXT. Ring33
MRS EXT. Ring50
MRS EXT. Ring54
MRS EXT. Ring111
EXT. Ring18
EXT. Ring36

Housing Body Cap

JAN/EAN code : 4562121430136

Housing Body Cap

A cap for port mount of a housing to protect O-ring contact surface. The cap is designed to equalize with ambient pressure when transporting in an aircraft.

Housing Body Cap
Housing Body Cap

A cap for port mount of a housing to protect O-ring contact surface. The cap is designed to equalize with ambient pressure when transporting in an aircraft.

Housing Body Cap
page top

Service Parts

X-2 Main O-ring 175

X-2 Main O-ring 175

Spare oil-bearing INON yellow O-ring for housing body.

Compatible Housing
X-2 R5
X-2 R5 Mark II
X-2 R6
X-2 R6 Mark II
X-2 for EOS10D
X-2 for EOS20D
X-2 for EOS30D
X-2 for EOS50D/40D
X-2 for EOS60D
X-2 for EOS70D
X-2 for EOS6D
X-2 for GF1
X-2 for GF2

X-2 Main O-ring 175

Spare oil-bearing INON yellow O-ring for housing body.

Compatible Housing
X-2 R5
X-2 R5 Mark II
X-2 R6
X-2 R6 Mark II
X-2 for EOS10D
X-2 for EOS20D
X-2 for EOS30D
X-2 for EOS50D/40D,
X-2 for EOS60D
X-2 for EOS70D
X-2 for EOS6D
X-2 for GF1
X-2 for GF2

O-ring for Port/Extension Ring

O-ring for Port/Extension Ring

Spare oil-bearing INON yellow O-ring for M96 threaded port/EXT. Ring.

Compatible Port
MRS Extension Ring 33
MRS Extension Ring 111
Extension Ring 18
Extension Ring 36

O-ring for Port/Extension Ring

Spare oil-bearing INON yellow O-ring for M96 threaded port/EXT. Ring.

Compatible Port
MRS Extension Ring 33
MRS Extension Ring 111
Extension Ring 18
Extension Ring 36

O-ring for M86 Port

O-ring for M86 Port

Spare oil-bearing INON yellow O-ring for M86 threaded port.

Compatible Port
M86 Dome Port 115
M86 Port 07
M86 Port 17
M86 Port 49
M86 Port 55
M86 Port 82

O-ring for M86 Port

Spare oil-bearing INON yellow O-ring for M86 threaded port.

Compatible Port
M86 Dome Port 115
M86 Port 07
M86 Port 17
M86 Port 49
M86 Port 55
M86 Port 82

INON Grease

INON Grease

Grease exclusively for oil bearing INON yellow O-ring.

INON Grease

Grease exclusively for oil bearing INON yellow O-ring.

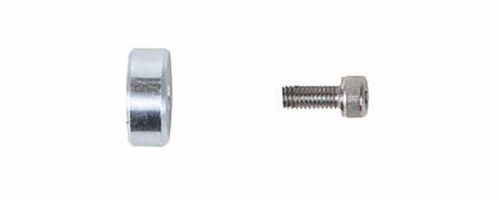

GX Corrosion Suppression Unit

GX Corrosion Suppression Unit

Optional replacement unit when pre-installed unit gets worn. The unit suppresses housing corrosion by oxidizing before the housing body gets rusted.

GX Corrosion Suppression Unit

Optional replacement unit when pre-installed unit gets worn. The unit suppresses housing corrosion by oxidizing before the housing body gets rusted.
