Fiber optics products to connect the X-2 housing and compatible strobe via Double Optical D Connector. Four different length to choose; "Optical D Cable Type L" with free length approx. 43cm / 17in, "Optical D Cable L Type L" with free length approx. 68cm / 27in, "Optical D Cable SS Type L" with free length approx. 24cm / 9in, and "Optical D Cable LL Type L" with free length approx. 110cm / 43in.
Learn more■Holder II Grip Set
A base stay with grip for a SLR housing to attach a strobe arm. The Holder II Grip Set is firmly attached on a housing by two tripod screws. The padded Holder supports back of right hand which holds the housing directly and the Grip on the left is designed to access to focus/zoom dials by left fingers with holding it. Both of them are adjustable to accommodate to a variety of hand sizes.
■Weight: 410g (14.5oz) [air] / approx.196g (6.9oz) [below the surface]

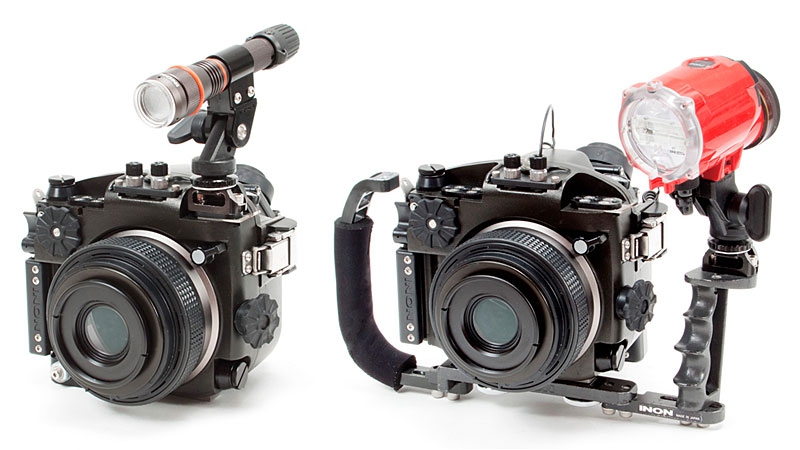

■Shoe Base Adapter X-2
Set-up image
■Weight: 10g (0.4oz) [air] / approx.6g (0.2oz) [underwater]
■Compatible [X-2] series Housing
X-2 for EOS10D, X-2 for EOS10D BK, X-2 for EOS20D, X-2 for EOS20D BK
X-2 for EOS20D BK(TM), X-2 for EOS30D BK(TM), X-2 for EOS50D/40D
X-2 for EOS60D
■Compatible arm system products
Grip+Bar III Set, Holder II Grip Set, Holder Base, Grip Bar Set, Grip Bar II Set
*The thumbscrew of the "Z Joint" or "Light Holder" could possibly obstruct free movement of an Optical D Cable product or electrical cable attached on X-2 housing series.

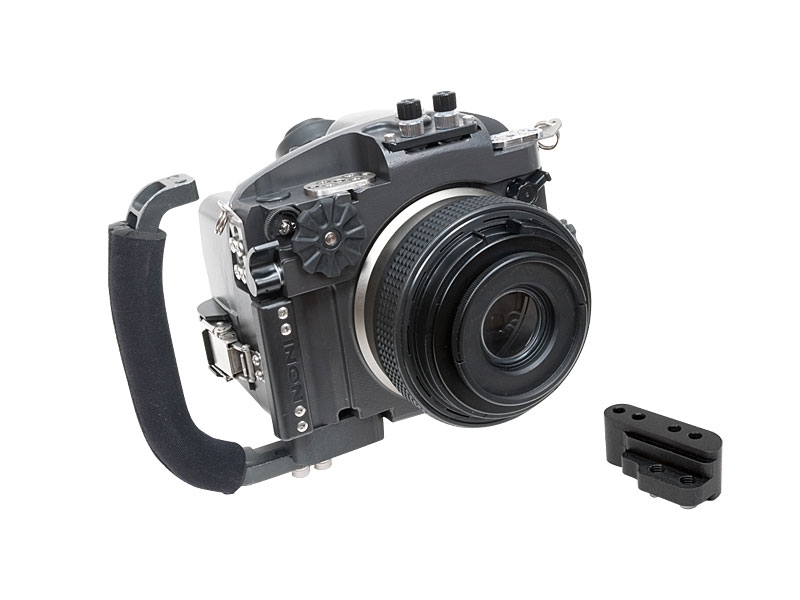

■X-2 Holder II Spacer
The INON X-2 Holder II Spacer enables to install INON Holder II on INON underwater housing X-2 series. Specifically designed to maintain almost same holder location as when attaching INON "Holder II Set" on X-2 housing. Weight saving without using INON "Main Base II".
■Weight: 34g (1.2oz) [air] / approx.21g (0.7oz) [underwater]
■MF Rear Port Cap
A rear cap for a port (except for Front Port) and Extension Ring. When transporting or during storage, this cap protects O-ring and screw mount. The cap is designed to equalize with ambient pressure when transporting in an aircraft.
■Housing Body Cap
A cap for port mount of a housing to protect O-ring contact surface. The cap is designed to equalize with ambient pressure when transporting in an aircraft.
■X-2 Main O-ring 175 for 10D/20D/30D/50D40D/60D/70D/6D/GF1/GF2
Spare oil-bearing INON yellow O-Ring for housing body.
■Comaptible Housing
X-2 for EOS10D, X-2 for EOS20D, X-2 for EOS30D
X-2 for EOS50D/40D , X-2 for EOS60D
X-2 for GF1, X-2 for GF2
■O-ring for Port / Extension Ring
Spare oil-bearing INON yellow O-Ring for port or Extension Ring.
■Compatible Port / Extension Ring
Dome Port 2, MRS60 Port II, MRS60 Port, MRS100 Port Type UIII,
MRS100 Port Type UII, MRS100 Port Type S, MF Wide Port, MF Flat Port,
MF Standard Port 2
Dome Port 115, Pancake Port, MRS Base Port
Extension Ring S, Extension Ring M, Extension Ring L, Extension Ring 18, Extension Ring 36, Extension Ring 58, Extension Ring 81, MF EXT. Ring M
■INON Grease
Grease exclusively for oil bearing INON yellow O-ring.
■Lock Ring Tool for X-2 Housing
Dedicated tool (same as packaged tool) to use when installing / removing a viewfinder unit.
*The Lock Ring Tool for X-2 Housing does not come with a viewfinder when purchasing the viewfinder standalone.
■45°View Finder Unit for X-2
Usable example of 45° View Finder Unit for X-2
The 45°Viewfinder is an interchangeable finder unit to extend eye-point of camera's viewfinder without changing image size (x1.0) to see all finder image area even through a mask without vignetting. The eye piece is at 45 degree angle to camera's optical axis which helps to shoot lower subject like a goby on seabed. Also the eye piece is 360 degree rotatable making it easy to shoot vertical composition from low angle.
*The Lock Ring Tool for X-2 Housing and Finder Unit Fixing Screw Ring is not included.
■Weight: 337g (11.9oz) [air including Finder Unit Fixing Screw Ring]
■Straight View Finder Unit for X-2
[Discontinued]
Usable example of Straight View Finder Unit for X-2
The Straight Viewfinder is an interchangeable finder unit to extend eyepoint of camera's viewfinder without changing image size (x1.0) to see all finder image area even through a mask without vignetting.
The eye piece is level to camera's optical axis to position camera/housing closer to a subject without changing your position.
*The Lock Ring Tool for X-2 Housing and Finder Unit Fixing Screw Ring is not included.
■Weight: 277g (9.8oz) [air including Finder Unit Fixing Screw Ring]
■Pick-up Finder 2 for X-2
Usable example of Pick-up Finder Unit 2 for X-2
The Pick-up Finder is a compact interchangeable finder unit to extend eyepoint and scale down image size (x0.75) to practically suppress vignetting to check composition even through a mask.
Previous "Pick-up Finder Unit for X-2" is not usable for EOS 60D but possible to use in combination with optional "Pick-up Finder Unit 2 (camera side module)".
*The Lock Ring Tool for X-2 Housing and Finder Unit Fixing Screw Ring is not included.
■Finder Window Unit for X-2
Usable example of Finder Window Unit for X-2
The Finder Window is most inexpensive interchangeable finder unit which consists of single waterproof window made of optical glass to access camera's finder. This unit does not have carry optical function like extending camera's eyepoint so only center part of camera's finder is visible through a mask.
*The Lock Ring Tool for X-2 Housing and Finder Unit Fixing Screw Ring is not included.
■Corrosion Suppression Unit
Optional replacement unit when pre-installed unit gets worn. The unit suppresses housing corrosion by oxidizing before the X-2 housing body gets rusted.
