INON X-2 for GX9 Housing [Compatible Lens/Port]

[Lens Compatibility]

Fisheye Lens	Compatible Port/Extension Ring	Compatible Gear/Magnet Ring
LUMIX G FISHEYE Lens, 8mm, F3.5	GX Dome Port	N/A

Zoom Lens	Compatible Port/Extension Ring	Compatible Gear/Magnet Ring
LUMIX GX Vario II Lens, 14-42mm, F3.5-5.6 ASPH., MEGA Optical I.S.	MRS GX Standard Port M67	GX Magnet Ring 14-42 Set
	MRS GX Standard Port LD
	GX Standard Port M67	GX Standard Gear
	GX Standard Port LD
LUMIX G VARIO Ultra Compact Zoom 35-100mm / F4.0-5.6	GX Standard Port M67 + GX EXT. Ring 24	GX Standard Gear
	GX Standard Port LD + GX EXT. Ring 24

Macro Lens	Compatible Port/Extension Ring	Compatible Gear/Magnet Ring
LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S.	MRS GX Macro Port M67	GX Magnet Ring 30 Set
	MRS GX Macro Port LD
LUMIX G LEICA DG MACRO-ELMAR Lens, 45mm, F2.8 ASPH., MEGA Optical I.S.	MRS GX Macro Port M67	GX Magnet Ring
	MRS GX Macro Port LD

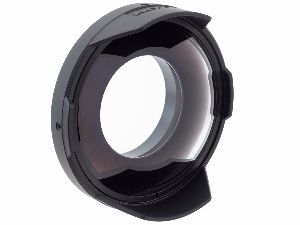

GX Dome Port

JAN code:4562121439016

Ideal 115 mm/4.5 inch glass dome port best suits to compact fisheye lens. Optical grade glass and multi-coated surface suppress flare or ghosting. The dome protector helps to deliver clear image by blocking unnecessary light which causes flare/ghosting in addition to protect lens surface.

Compatible Lens

Panasonic LUMIX G FISHEYE Lens, 8mm, F3.5

*The optional GX Standard Gear is required for zoom operation.

*AF only.

Specifications

Size	Outer diameter: 132 mm/5.2 in. Overall length: 58 mm/2.3 in. (including protector)
Weight (air)	361 g/12.7 oz.(including protector)
Depth Rating	75 m/246 ft.
Material	Corrosion resistant aluminum alloy with rigid black alumite, optical glass with multi-coating on its inner surface, polycarbonate protector
Option	Dome Port Cover S

MRS GX Standard Port M67

JAN code:4562121439467

Dedicated lens port for the compact and reasonable Panasonic LUMIX G VARIO 14-42mm / F3.5-5.6 II ASPH. / MEGA O.I.S. combined with GX Lens Adapter 2 M67 to use variety of M67 mount wet lenses underwater as like using a compact digital camera to shoot from tiny critters to ultra-wide seascape.

INON unique Magnetic Rotary System (MRS) system offering smooth and intuitive zoom operation by magnet attraction. As the lens focus ring turns same amount when turning the MRS Control Ring, operation feeling is much more like zooming camera lens directly on land. Since the MRS Control Ring is held and operated by the left hand, it can contribute not to have too much load on your right hand.

Compatible Lens
Panasonic LUMIX G VARIO 14-42mm / F3.5-5.6 II ASPH. / MEGA O.I.S.

*Optional GX Magnet Ring 14-24 Set is required for zoom operation.
*AF only.

Compatible Attachment Lens
UCL-330 Close-up Lens
UCL-165M67 Close-up Lens
UCL-90 M67 Underwater Close-up Lens
UCL-67 M67 Underwater Close-up Lens
UWL-H100 28M67 Type2 Wide Conversion Lens (*1)
Dome Lens Unit II for UWL-H100 (*1)+ UWL-H100 28M67 Type2
UFL-M150 ZM80 Underwater Micro Fisheye Lens (*2)
UW Variable Red Filter M67

(*1) When using on land with zoom wide end setting, vignetting will be observed on image corners. Crop an image during post processing or zoom in when shooting.
(*2) Optional M27-M67 Mount Converter for UFL-M150 ZM80 is required.

With a close-up lens

with UWL-H100 28M67 Type2

With Dome Lens Unit II

With UFL-M150 ZM80

With UW Variable Red Filter M67

Specifications

Size	Outer diameter: 95 mm/3.7 in. Overall length: 54 mm/2.1 in.
Weight (air)	193 g/6.8 oz.
Depth Rating	75 m/246 ft.
Material	Corrosion resistant aluminum alloy with rigid black alumite, optical glass with multi-coating on its inner surface

MRS GX Standard Port LD

JAN code:4562121439474

Dedicated lens port for the compact and reasonable Panasonic LUMIX G VARIO 14-42mm / F3.5-5.6 II ASPH. / MEGA O.I.S. combined with GX Lens Adapter 2 LD to change variety of LD mount wet lenses underwater as like using a compact digital camera to shoot from tiny critters to ultra-wide seascape.

INON unique Magnetic Rotary System (MRS) system offering smooth and intuitive zoom operation by magnet attraction. As the lens focus ring turns same amount when turning the MRS Control Ring, operation feeling is much more like zooming camera lens directly on land. Since the MRS Control Ring is held and operated by the left hand, it can contribute not to have too much load on your right hand.

Compatible Lens
Panasonic LUMIX G VARIO 14-42mm / F3.5-5.6 II ASPH. / MEGA O.I.S.

*Optional GX Magnet Ring 14-24 Set is required for zoom operation.
*AF only.

Compatible Attachment Lens
UCL-165LD Close-up Lens
UCL-90 LD Close-up Lens
UCL-67 LD Close-up Lens
UWL-H100 28LD Wide Conversion Lens (*1)
Dome Lens Unit II for UWL-H100 (*1)+ UWL-H100 28LD (*1)
UFL-M150 ZM80 Underwater Micro Fisheye Lens (*2)

(*1) When Using on land with zoom wide setting, vignetting will be observed on image corners. Crop an image during post processing or zoom in when shooting.
(*2) Optional M27-M67 Mount Converter for UFL-M150 ZM80 is required.

With a close-up lens

With UWL-H100 28LD

With Dome Lens Unit II

With UFL-M150 ZM80

Specifications

Size	Outer diameter: 95 mm/3.7 in. Overall length: 64 mm/2.5 in.
Weight (air)	216 g/7.6 oz.
Depth Rating	75 m/246 ft.
Material	Corrosion resistant aluminum alloy with rigid black alumite, optical glass with multi-coating on its inner surface

GX Magnet Ring 14-42 Set

JAN code:4562121439504

Zoom gear consists of GX Magnet Ring and MRS Magnet Ring Adapter GX14-42 for Panasonic LUMIX G VARIO 14-42mm / F3.5-5.6 II ASPH. / MEGA O.I.S. to use with MRS GX Standard Port M67 or MRS GX Standard Port LD.

Compatible Lens
Panasonic　LUMIX G MACRO 30mm / F2.8 ASPH. / MEGA O.I.S. (manual focusing operation)

Weight (air): 34 g/1.2 oz.

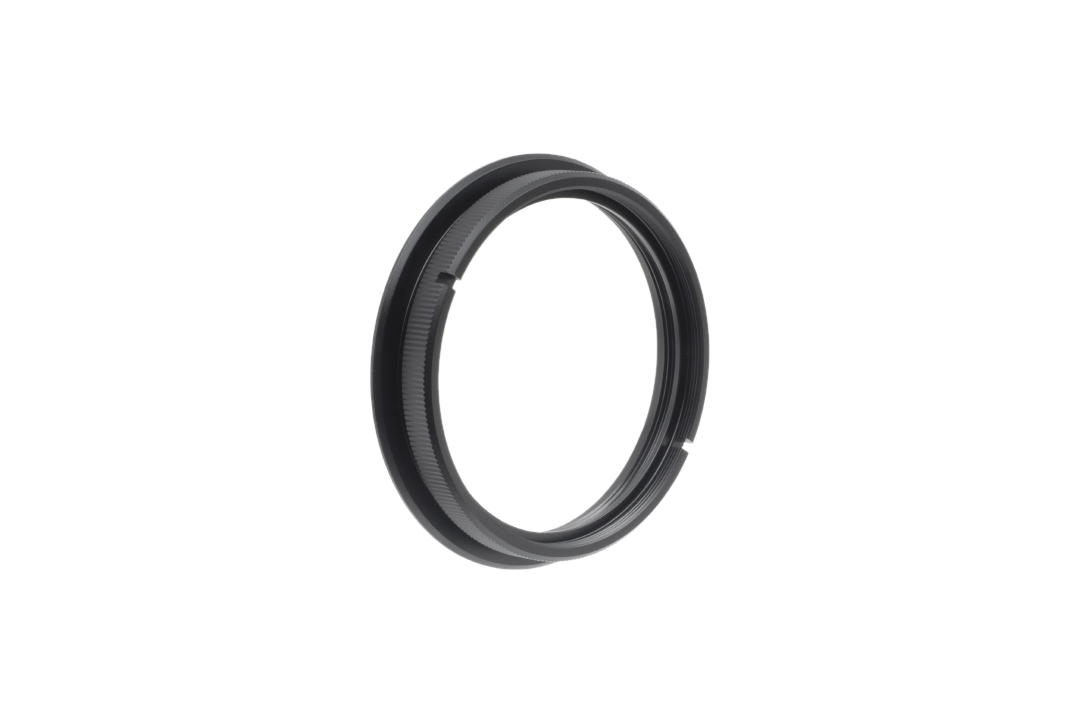

GX Lens Adapter2 M67

JAN code:4562121439511

An adapter to attach M67 screw mount attachment lens on the edge of MRS GX Standard Port.

Compatible Port: MRS GX Standard Port
Weight (air): 27 g/0.95 oz.

GX Lens Adapter2 LD

JAN code:4562121439528

An adapter to attach 28LD Mount attachment lens on the edge of MRS GX Standard Port.

Compatible Port: MRS GX Standard Port
Weight (air): 50 g/1.8 oz.

GX Standard Port M67

JAN code:4562121439023

Dedicated lens port for the compact and reasonable Panasonic LUMIX GX Vario II Lens, 14-42mm, F3.5-5.6 ASPH., MEGA Optical I.S. combined with GX Lens Adapter M67 to change variety of M67 mount wet lenses underwater as like using a compact digital camera to shoot from tiny critters to super wide seascape.

Compatible Lens

LUMIX GX Vario II Lens, 14-42mm, F3.5-5.6 ASPH., MEGA Optical I.S.

*The optional GX Standard Gear is required for zoom operation.

*AF only.

Compatible Attachment Lens
UCL-330 Close-up Lens
UCL-165M67 Close-up Lens
UCL-90 M67 Close-up Lens
UCL-67 M67 Close-up Lens
UWL-H100 28M67 Type2 Wide Conversion Lens (*1)
Dome Lens Unit II for UWL-H100 (*1)+ UWL-H100 28M67 Type2
UFL-M150 ZM80 Underwater Micro Fisheye Lens (*2)
UW Variable Red Filter M67

(*1)When Using on land with zoom wide setting, vignetting will be observed on image corners. Crop an image during post processing or zoom in when shooting.
(*2)Optional M27-M67 Mount Converter for UFL-M150 ZM80 is required.

With a close-up lens

With UWL-H100 28M67 Type2

With Dome Lens Unit II/UWL-H100 28M67 Type2

With UFL-M150 ZM80

With UW Variable Red Filter M67

Specifications

Size	Outer diameter: 83 mm/3.3 in. Overall length: 54 mm/2.1 in.
Weight (air)	142 g/5.0 oz.
Depth Rating	75 m/246 ft.
Material	Corrosion resistant aluminum alloy with rigid black alumite, optical glass with multi-coating on its inner surface

GX Standard Port LD

JAN code:4562121439030

Dedicated lens port for the compact and reasonable Panasonic LUMIX GX Vario II Lens, 14-42mm, F3.5-5.6 ASPH., MEGA Optical I.S. combined with GX Lens Adapter LD to change variety of LD mount wet lenses underwater as like using a compact digital camera to shoot from tiny critters to super wide seascape.

Compatible Lens

LUMIX GX Vario II Lens, 14-42mm, F3.5-5.6 ASPH., MEGA Optical I.S.

*The optional GX Standard Gear is required for zoom operation.

*AF only.

(*1)When Using on land with zoom wide setting, vignetting will be observed on image corners. Crop an image during post processing or zoom in when shooting.
(*2)Optional M27-LD Mount Converter for UFL-M150 ZM80 is required.

With a close-up lens

With Dome Lens Unit II/UWL-H100 28LD

With UFL-M150 ZM80

Specifications

Size	Outer diameter: 83 mm/3.3 in. Overall length: 64 mm/2.5 in.
Weight (air)	167 g/5.9 oz.
Depth Rating	75 m/246 ft.
Material	Corrosion resistant aluminum alloy with rigid black alumite, optical glass with multi-coating on its inner surface

GX Standard Gear

JAN code:4562121439078

A zoom gear for the Panasonic “LUMIX GX Vario II Lens, 14-42mm, F3.5-5.6 ASPH., MEGA Optical I.S.” and “LUMIX G VARIO Ultra Compact Zoom 35-100mm / F4.0-5.6.”

Compatible Lens
LUMIX GX Vario II Lens, 14-42mm, F3.5-5.6 ASPH., MEGA Optical I.S. (zooming operation)
LUMIX G VARIO Ultra Compact Zoom 35-100mm / F4.0-5.6 (zooming operation)

Weight (air): 26 g/0.9 oz.

GX EXT. Ring 24

JAN code:4562121439061

In combination with GX Standard Port M67 or GX Standard Port LD, Panasonic LUMIX G VARIO Ultra Compact Zoom 35-100mm / F4.0-5.6 is supported.

Compatible Lens
Panasonic LUMIX G VARIO Ultra Compact Zoom 35-100mm / F4.0-5.6

Effective Length: 24 mm/0.9 in.
Weight (air): 71 g/2.5 oz. 　
Material: Corrosion-resistant aluminum alloy with rigid black alumite

GX Lens Adapter M67

JAN code:4562121439108

An adapter to attach M67 screw mount attachment lens on the edge of compatible GX Port.

Compatible Port
GX Standard Port
MRS GX Macro Port

Weight (air): 22 g/0.8 oz.

GX Lens Adapter LD

JAN code:4562121439115

An adapter to attach 28LD Mount attachment lens on the edge of compatible GX Port.

Compatible Port
GX Standard Port
MRS GX Macro Port

Weight (air): 47 g/1.7 oz.

MRS GX Macro Port M67

JAN code:4562121439047

Dedicated lens port combined with GX Lens Adapter M67 to use add-on M67 mount wet lens. This macro port supports medium-length telephoto macro lens “Panasonic LUMIX G LEICA DG MACRO-ELMAR Lens, 45mm, F2.8 ASPH., MEGA Optical I.S.” and standard macro lens “LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S.” which enables to shoot at close distance. INON’s patented MRS (Magnetic Rotary System) compatible for smooth manual focusing.

Compatible Lens
Panasonic LUMIX G LEICA DG MACRO-ELMAR Lens, 45mm, F2.8 ASPH., MEGA Optical I.S. (*1)
Panasonic LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S. (*2)

(*1) Optional GX Magnet Ring is required for manual focusing.
(*2) Optional GX Magnet Ring 30 Set is required for manual focusing.

Compatible Attachment Lens
Panasonic LUMIX G LEICA DG MACRO-ELMAR Lens, 45mm, F2.8 ASPH., MEGA Optical I.S.
UCL-330 Close-up Lens
UCL-165M67 Close-up Lens
UCL-90 M67 Close-up Lens
UCL-67 M67 Close-up Lens

UW Variable Red Filter M67

With UCL-90 M67

With UCL-67 M67

Panasonic LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S. (*3)

UW Variable Red Filter M67

(*3) As the minimum focusing distance of the master lens is close enough, using a close-up lens will not dramatically contribute magnification.

Specifications

Size	Outer diameter: 95 mm/3.7 in. Overall length: 64 mm/2.5 in.
Weight (air)	214 g/7.5 oz.
Depth Rating	75 m/246 ft.
Material	Corrosion resistant aluminum alloy with rigid black alumite, optical glass with multi-coating on its inner surface

MRS GX Macro Port LD

JAN code:4562121439054

Dedicated lens port combined with GX Lens Adapter LD to use add-on LD bayonet mount wet lens. This macro port supports medium-length telephoto macro lens “Panasonic LUMIX G LEICA DG MACRO-ELMAR Lens, 45mm, F2.8 ASPH., MEGA Optical I.S.” and standard macro lens “LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S.” which enables to shoot at close distance. INON’s patented MRS (Magnetic Rotary System) compatible for smooth manual focusing.

Compatible Lens
Panasonic LUMIX G LEICA DG MACRO-ELMAR Lens, 45mm, F2.8 ASPH., MEGA Optical I.S. (*1)
Panasonic LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S. (*2)

(*1) Optional GX Magnet Ring is required for manual focusing.
(*2) Optional GX Magnet Ring 30 Set is required for manual focusing.

Compatible Attachment Lens
Panasonic LUMIX G LEICA DG MACRO-ELMAR Lens, 45mm, F2.8 ASPH., MEGA Optical I.S.
UCL-165LD Close-up Lens
UCL-90 LD Close-up Lens
UCL-67 LD Close-up Lens

With UCL-90 LD

With UCL-67 LD

Panasonic LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S. (*3)

(*3) As the minimum focusing distance of the master lens is close enough, using a close-up lens will not dramatically contribute magnification.

Specifications

Size	Outer diameter: 95 mm/3.7 in. Overall length: 74 mm/2.9 in.
Weight (air)	239 g/8.4 oz.
Depth Rating	75 m/246 ft.
Material	Corrosion resistant aluminum alloy with rigid black alumite, optical glass with multi-coating on its inner surface

GX Magnet Ring

JAN code:4562121439085

A magnet ring to attach on the “Panasonic LUMIX G LEICA DG MACRO-ELMAR Lens, 45mm, F2.8 ASPH., MEGA Optical I.S.”for manual focusing operation in combination with MRS GX Macro Port M67or MRS GX Macro Port LD.

Compatible Lens
Panasonic LUMIX G LEICA DG MACRO-ELMAR Lens, 45mm, F2.8 ASPH., MEGA Optical I.S. (manual focusing operation)

Weight (air): 14 g/0.5 oz.

GX Magnet Ring 30 Set

JAN code:4562121439092

A set of GX Magnet Ring and MRS Magnet Ring Adapter GX30 to attach on the “Panasonic LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S.” for manual focusing operation in combination with MRS GX Macro Port M67 or MRS GX Macro Port LD.

Compatible Lens
Panasonic LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S. (manual focusing operation)

Weight (air): 34 g/1.2 oz.

MRS Magnet Ring Adapter GX30

JAN code:4562121439153

An adapter to attach GX Magnet Ring on the “Panasonic LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S.”

Compatible Lens
Panasonic LUMIX G Macro Lens, 30mm, F2.8 ASPH., MEGA Optical I.S. (manual focusing operation)

Weight (air): 20 g/0.7 oz.
