■Diffuser 2
Attaching these diffusers to Z-240 increases beam angle from 100 to 110° and makes quality of light and shadows softer.
Left: -0.5 Blue Diffuser 2 (External Auto)
Right: -0.5 White Diffuser 2 (External Auto)
■Snoot Set for Z-240/D-2000
The INON Snoot Set for Z-240 / D-2000 is an accessory for the INON "Z-240", "D-2000W", "D-2000Wn", "D-2000", "D-2000S", "D-180", "D-180S", "Z-220F", "Z-220S", "Z-220" to change beam angle. The various combination of packaged parts supports 6 different beam coverage with the following sophisticated effects [To block extra diffused light eliminating backscatter] / [To highlight a subject by illuminating the subject only ] / [To give a spotlight effect on a subject etc.]
The Rubber Hood is securely attached on a compatible strobe via supplied dedicated aluminum sleeve which is screwed on diffuser mount screw holes on the strobe.
■Manual Sticker D/Z
glance with intuitive design and numbers. It is easy to read in dark area or night dive thanks to luminous paint.
*Original indications of External Auto mode (green numbers) and S-TTL Auto mode (yellow arcs) become invisible by this sticker.
[Compatible Strobe]
■Wireless Connection Kit
Optional kit to use [Wireless Connection]. This package includes Mirror Units (strobe) and Camera Mirror, stickers to reliably transmit built-in flash light to the Z-240 in S-TTL Auto mode.
*This Wireless connector kit is included in the S-2000 strobe package. But it is sold separately from the Z-240 Type4 strobe and the D-2000 Type4 strobe.
■Optical D cable Type L / Cap Set
INON [Optical D Cable Type L / Cap Set] is a key component to reliably trigger an external strobe in synch with built-in flash light.
*Use correct Optical D Cable exclusively designed for each camera system.
■Optical D Cable Type L
INON optical cable products use multicore optical fiber cable made from more than 200 fibers providing super durability and rigid reliability with minimum bending curvature 2mm which is quite different from single core optical fiber cable.
■Optical D Slave Cable III Type L
■Optical D Slave Cable II Type L
Dedicated Optical D Slave cable to connect the Z-240 / D-2000 and compatible strobe in "Optical D Slave Cable Connection".
■Optical D Cable Type L Rubber Bush-M11 Adapter Set
■Optical D Cable L Type L Rubber Bush-M11 Adapter Set
A fiber optics kit to connect a strobe on a screw mount type fiber optics adapter with thread size M11/P1.0 which is used for INON X1-LZ/X1-NZ/X1-Z housings and Optical Converter D/TTL. Two different length products are available; Optical D Cable Type L (free length approx. 43cm/17in) and Optical D Cable L Type L (free length approx. 68cm/27in).
■Double Optical D Cable Type L Rubber Bush-M11 Adapter Set
■Double Optical D Cable L Type L Rubber Bush-M11 Adapter Set
A fiber optics kit to connect two strobes on screw mount type fiber optics adapter with thread size of M11/P1.0 which is used for INON X1-LZ/X1-NZ/X1-Z housings and Optical Converter D/TTL. Two different length products are available; two of Optical D Cable Type L (free length approx. 43cm/17in) and two of Optical D Cable L Type L (free length approx. 68cm/27in).

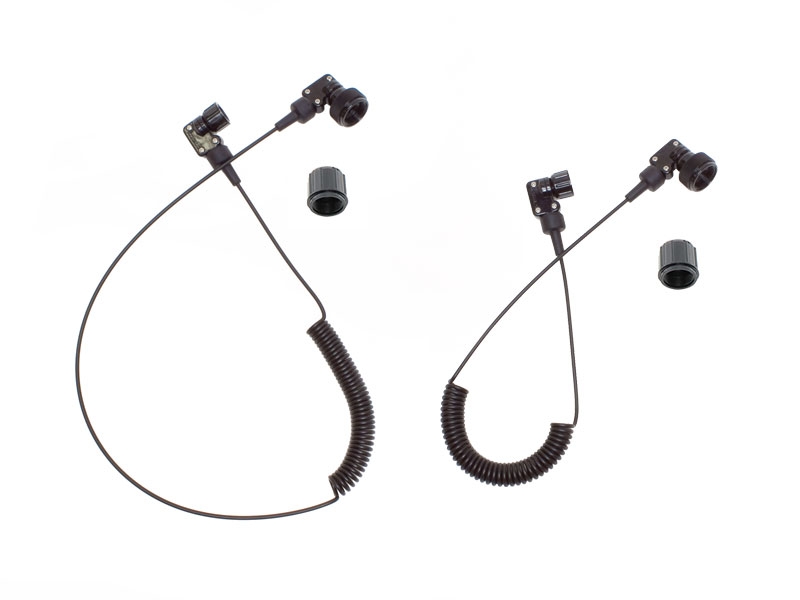

■Optical Cable M Type L
■Optical Cable L Type L
[Discontinued]
Single strobe cable to connect Z-240 to INON X1-LZ / NZ / Z housings or Optical Converter D / TTL. Spare replacement fiber included.
■Double Optical Cable Type L
[Discontinued]
Dual strobe cable to connect to Z-240 or TTL Optical Sensors to INON X1-LZ / NZ / Z housings with Optical Connector. Useful for multiple lighting.
■TTL Optical Slave Cable S Type L
■TTL Optical Slave Cable L Type L
An optical slave cable exclusively used for slave connection between Z-240 or TTL strobe with TTL Sensor, and compatible strobes from other manufacturers or master strobes, such as INON Z-22.
S: Compatible master strobe
Nikon SB‐105, Sea&Sea YS60TTL, YS90TTL Duo, YS120TTL Duo
L: Compatible master strobe
INON Z-22, Nikon SB-104, Sea&Sea YS350TTL/Pro, YS300TTL/S
■Z Adapter MV
An adapter to attach INON "S-2000", "Z-240", "D-2000", "Z-220" or "D-180" series strobe on an arm body or Direct Base III etc. via Clamp III. The ball-joint is made from plastic to provide flexible strobe positioning without loosening a clamp to provide enormously comfortable strobe aiming.
■Z Adapter II
An adapter to attach INON "S-2000", "Z-240", "D-2000", "Z-220" or "D-180" series strobe on an arm body or Direct Base III etc. via Clamp III. Metal body enhances stability of combined arm.
■Direct Base III
A base adapter with aluminum alloy ball-joint. Attached on top edge of the Grip Base D4 to connect Arm Body or Z Adapter MV, or on an INON strobe as strobe adapter to lock strobe position securely by a clamp.
■Strobe Light Holder LE
Optional product to attach one or two INON LE series LED flashlight on compatible lighting arm together with INON "S-2000", "D-2000" or "Z-240" etc. providing flexible lighting source selection. Usable as lighting arm to hold LE series LED flashlight only as well. Optional "Z Joint" or "Z Adapter MV"is necessary to use this product.
■Strobe Light Holder LF
Optional product to attach one or two INON LF series LED flashlight on compatible lighting arm together with INON "S-2000", "D-2000" or "Z-240" etc. providing flexible lighting source selection. Usable as lighting arm to hold LE series LED flashlight only as well. Optional "Z Joint" or "Z Adapter II"is necessary to use this product.
■Z Joint
"Z Joint" is attached on [YS Adapter compatible arm] including "Grip Base D4" / "Shoe Base" etc. to set up compact strobe system and equipping with "YS Adapter" enables to attach on various strobe arms as like "Z Adapter".
■Shoe Base M6
A Shoe Base installing a strobe on an accessory show of an underwater housing.
■Grip Base D4 set
A multi-purpose product to provide strobe arm function to hold compatible INON external strobe, a base-stay function to connect compatible housing / protector and a strobe arm, and grip / holder function to hold a whole system.
■Spare O-ring Set (Battery Box and Synch Connector Cap)
Replacement O-Ring for the Z-330/Z-240.
INON yellow O-Rings contain lubricant in the O-Ring rubber. Yellow color for best contrast, so contaminants etc. are easier to see, and so it is harder to forget to install the O-Ring.
■INON Grease
Special grease formulated to match INON yellow O-Rings. Can also be used with conventional black O-Rings.
■Strobe Cover D/Z
A strobe cover made from neoprene as same as wet-suits for underwater use. This cover protects strobe from accidental damage during diving as well as transportation by its cushioned material. Two slits on both sides are designed for effective radiation.
