INON

Snoot Set for Z-240/D-2000

[Discontinued]

Snoot Set for Z-240/D-2000

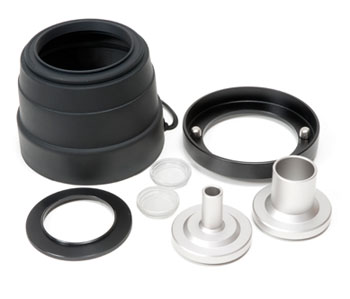

Set contents: Rubber Hood 72, Rubber Hood Sleeve, Step up Ring, W40°Filter LE x 2, Snoot Tube 10, Snoot Tube 26

The INON Snoot Set for Z-240/D-2000 is an accessory for the INON Z-240, D-2000W, D-2000Wn, D-2000, D-2000S, D-180, D-180S, Z-220F, Z-220S, Z-220 to change beam angle. The various combinations of packaged parts deliver 6 different beam coverage with the following sophisticated effects
●To block extra diffused light eliminating backscatter
●To highlight a subject by illuminating the subject only
●To give a spotlight effect on a subject etc.

aluminum sleeve
The Rubber Hood is securely attached on a compatible strobe via supplied dedicated aluminum sleeve which is screwed on diffuser mount screw holes on the strobe. The telescopic structure of the Rubber Hood helps to save space for storage.


Sample Photo
Snoot Set for Z-240/D-2000

Set contents: Rubber Hood 72, Rubber Hood Sleeve, Step up Ring, W40°Filter LE x 2, Snoot Tube 10, Snoot Tube 26

The INON Snoot Set for Z-240/D-2000 is an accessory for the INON Z-240, D-2000W, D-2000Wn, D-2000, D-2000S, D-180, D-180S, Z-220F, Z-220S, Z-220 to change beam angle. The various combinations of packaged parts deliver 6 different beam coverage with the following sophisticated effects
●To block extra diffused light eliminating backscatter
●To highlight a subject by illuminating the subject only
●To give a spotlight effect on a subject etc.


aluminum sleeve


The Rubber Hood is securely attached on a compatible strobe via supplied dedicated aluminum sleeve which is screwed on diffuser mount screw holes on the strobe. The telescopic structure of the Rubber Hood helps to save space for storage.


Sample Photo

Various combination for different beam coverage


Various combination for different beam coverage
Various combination of packaged parts provides 6 different beam coverage to suit to a subject and intended effect.

Pattern 1
[Pattern 1]
Rubber Hood 72
(when collapsed)

[coverage]
approx.100°

To block extra diffused light eliminating backscatter

Pattern 2
[Pattern 2]
Rubber Hood 72
(when extended)

[coveraeg]
approx.53°

Pattern 3
[Pattern 3]
Rubber Hood 72
(when collapsed)
+Step up Ring

[Coverage]
approx.87°

Pattern 4
[Pattern 4]
Rubber Hood 72
(when extended)
+Step up Ring

[Coverage]
apporox.46°

pattern 5
[Pattern 5]
Rubber Hood 72
(when extended)
+Step up Ring
+Snoo Tube 26
+W 40° filter LE

[coverage]
approx.28°

pattern 6
[Pattern 6]
Rubber Hood 72
(when extended)
+Step up Ring
+Snoot Tube 10
+W 40° filter LE

[coverage]

approx.20°

Pattern 1

[Pattern 1]

Rubber Hood 72
(when collapsed)

[coverage]
approx.100°

To block extra diffused light eliminating backscatter

Pattern 2

[Pattern 2]

Rubber Hood 72
(when extended)

[coveraeg]
approx.53°

Pattern 3

[Pattern 3]
Rubber Hood 72
(when collapsed)
+Step up Ring

[Coverage]
approx.87°

Pattern 4

[Pattern 4]
Rubber Hood 72
(when extended)
+Step up Ring

[Coverage]
apporox.46°

pattern 5

[Pattern 5]
Rubber Hood 72
(when extended)
+Step up Ring
+Snoo Tube 26
+W40° filter LE

[coverage]
approx.28°

pattern 6

[Pattern 6]
Rubber Hood 72
(when extended)
+Step up Ring
+Snoot Tube 10
+W40° filter LE

[coverage]

approx.20°

*Beam coverage is actual measured data by INON INC and could have variant depending on test condition.

*Always conduct test shots to familiar with the product characteristic before you take an important shot. When using the strobe in S-TTL Auto mode for spotlight effect of this product, spot metering mode on a camera is recommended since average metering mode or multi pattern metering mode could wash out the center of an image. In case S-TTL Auto mode does not provide appropriate exposure, use Manual mode.

*"Z-240", "D-2000W" ,"D-2000Wn", "D-2000" ,"D-180" and "D-180S" combined with this product cannot support External Auto mode.

*When you entry with this product being attached on a strobe, make sure to evacuate remaining air inside of the Rubber Hood before you get underwater.

*"Slave D Holder Unit 2" of the "Optical D Slave Cable II Type L" is not compatible with this product.

*A diffuser panel cannot be used together with this product.

*The Snoot Tube will reduce available intensity of the built-in Focus Light.

*Make sure to cool down the strobe according to instruction manual / [Compatible battery, operational limitation on flashing] leaflet provided with the strobe, to prevent overheating / degradation of light emitting part / inner components. The light emitting part could have discoloration or burn when excessive repeated flashes are made. Should you observe any irregularity mentioned above, stop using the strobe immediately.

*Always extend the "Rubber Hood 72" when using the "Snoot Tube 10" or "Snoot Tube 26" together to prevent possible damage on light emitting part and/or inner circuit of the strobe etc. since generated heat could stay close to the light emitting part.
