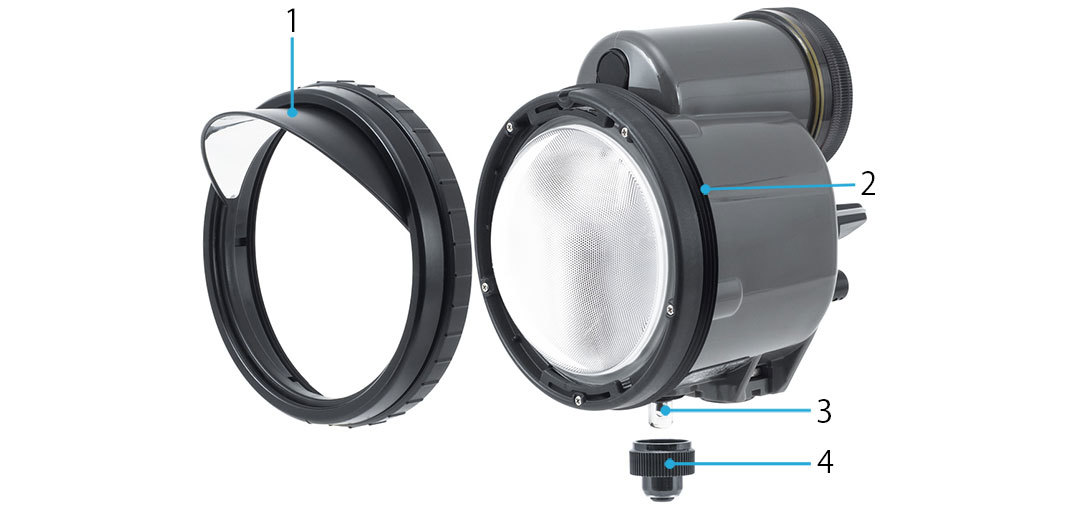

Nomenclature of Z-330 Type2 (front)
1) Strobe Light Shade
2) Heat Radiation Ring
3) Slave Sensor
4) Sensor Cap

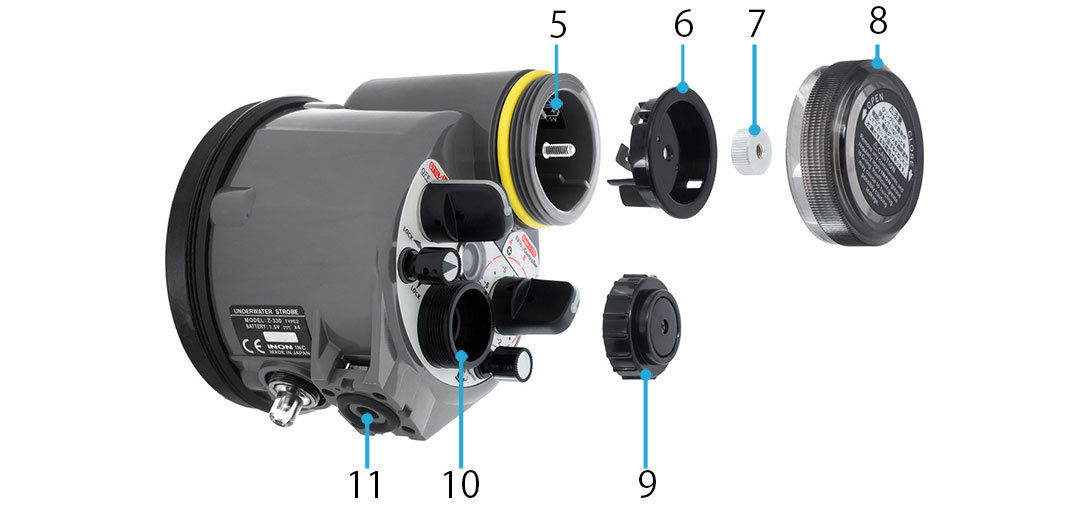

Nomenclature of Z-330 Type2 (back)
5) Battery Box
6) Battery Box Inner Lid
7) Battery Box Inner Lid Screw
8) Battery Box Outer Cap
9) Sync Connector Cap
10) Sync Connector
11) Adapter/Joint Base(M6)

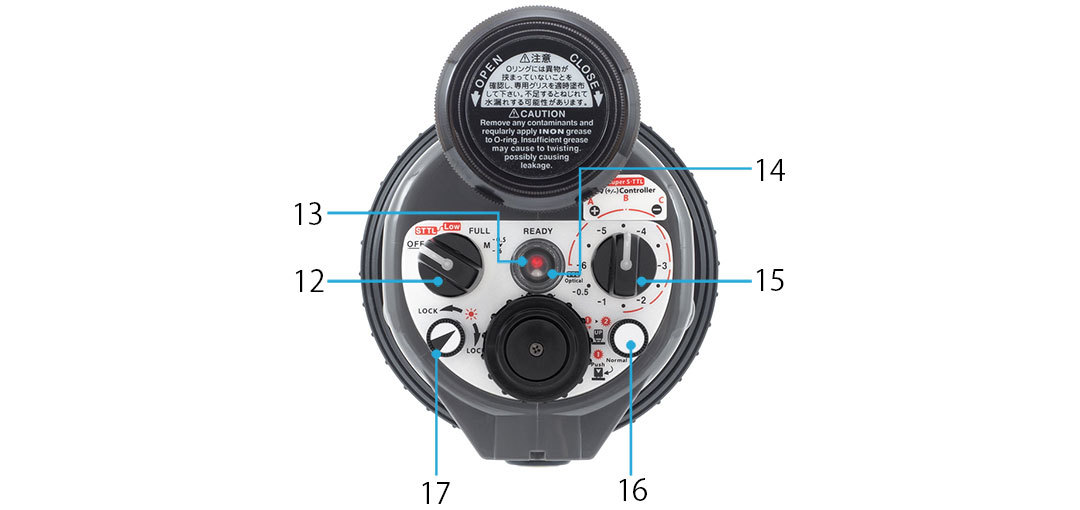

Nomenclature of Z-330 Type2 (controls)
12) Main Mode Switch
13) Strobe Ready Lamp
14) TTL OK Lamp
15) EV. Control Switch
16) Advanced Cancel Circuit Switch
17) Focus Light Switch
