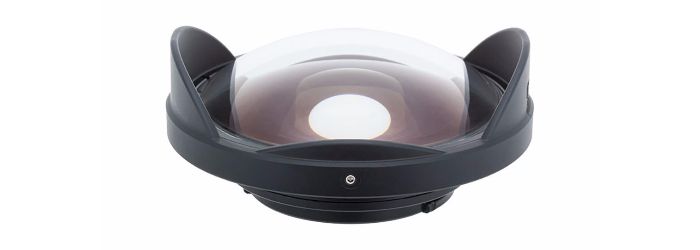

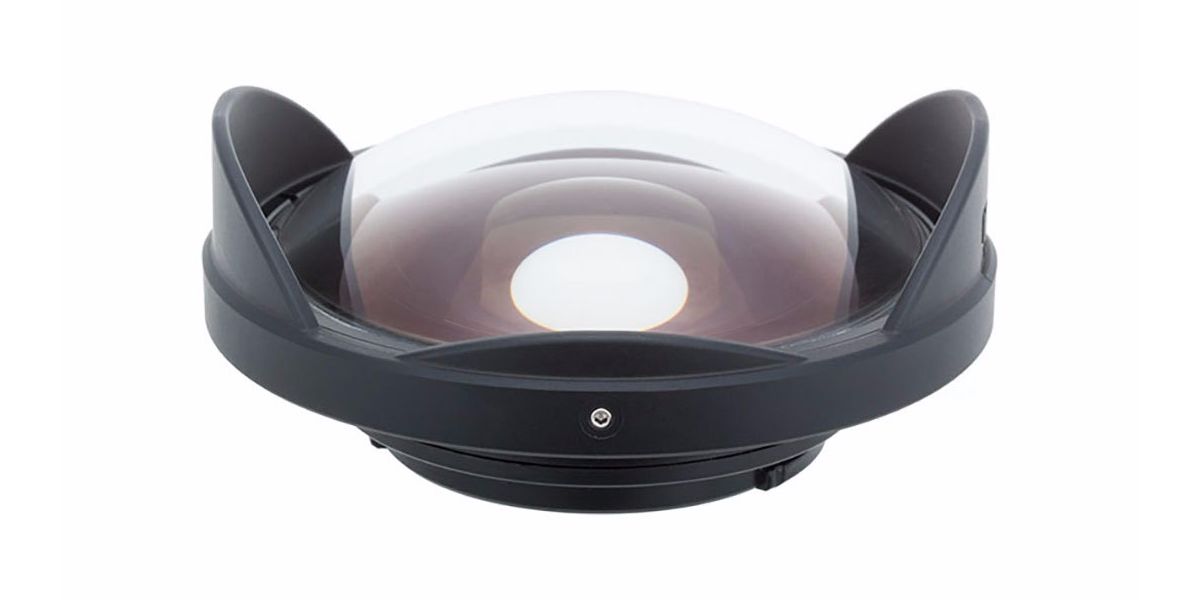

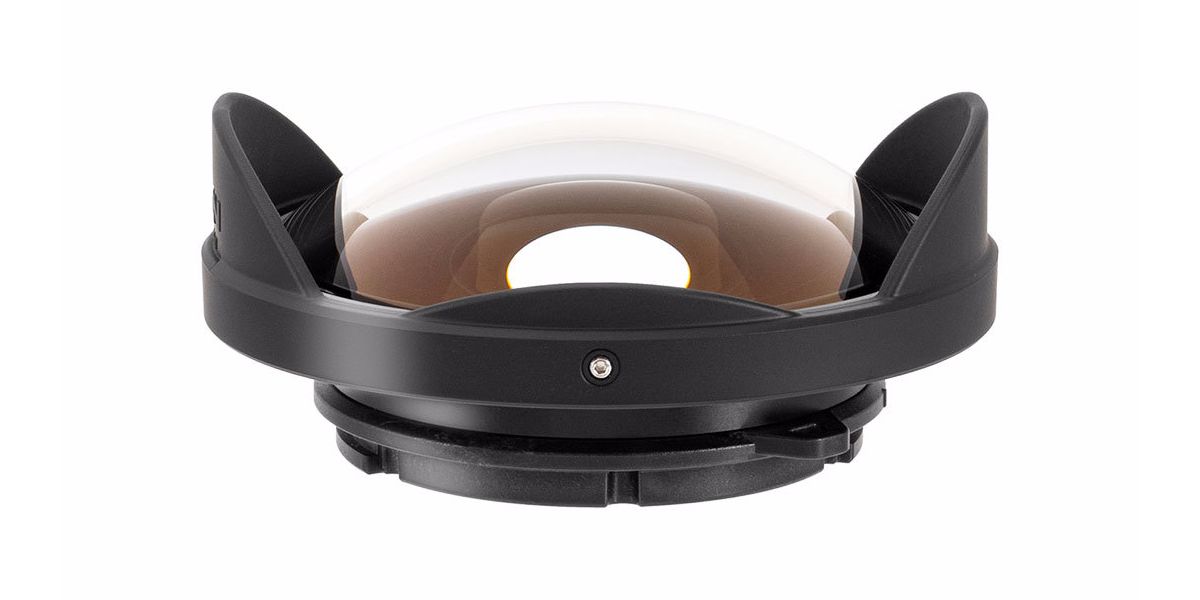

Underwater Semi-fisheye Conversion Lens UFL-G140
Underwater Semi-fisheye Conversion Lens UFL-G140
[ZD Mount]

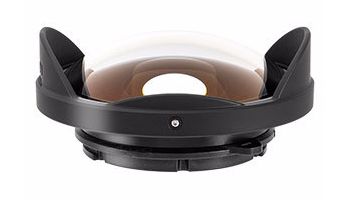

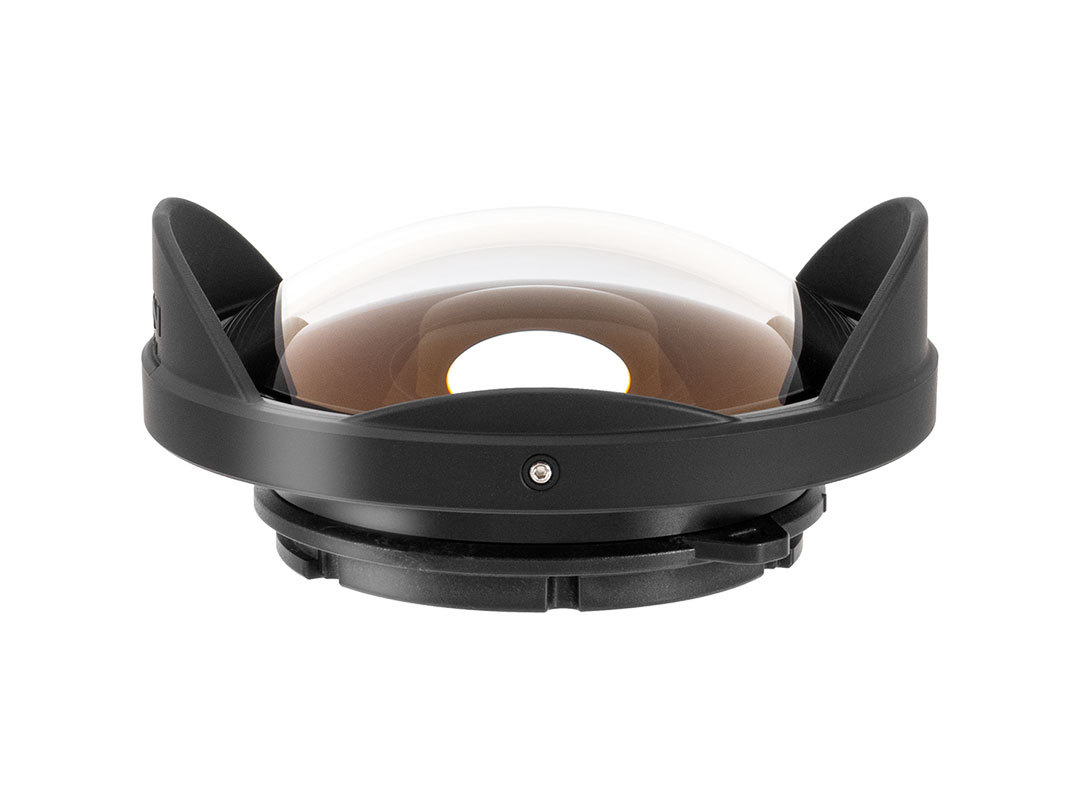

UFL-G140 ZD Underwater Semi-fisheye Conversion Lens
JAN/EAN code : 4570018120954
Delivers wide field of view close to that of shooting on land making your footage vivid and true-to-life. Compact yet high quality underwater lens.
Compatible Front Mask
- ZD Front Mask for Ace Pro 2
- Front Mask for Ace Pro
- ZD Front Mask for GO Ultra
- ZD Front Mask for Osmo Action 5 Pro
- ZD Front Mask for HERO12
Usable field of view (FOV) and supported aspect ratios
Refer to the compatibility chart for vignetting when using the Front Mask and lens.
Delivers wide field of view close to that of shooting on land making your footage vivid and true-to-life. Compact yet high quality underwater lens.
Compatible Front Mask
- ZD Front Mask for Ace Pro 2
- Front Mask for Ace Pro
- ZD Front Mask for GO Ultra
- ZD Front Mask for Osmo Action 5 Pro
- ZD Front Mask for HERO12
Usable field of view (FOV) and supported aspect ratios
Refer to the compatibility chart for vignetting when using the Front Mask and lens.
[SD Mount]

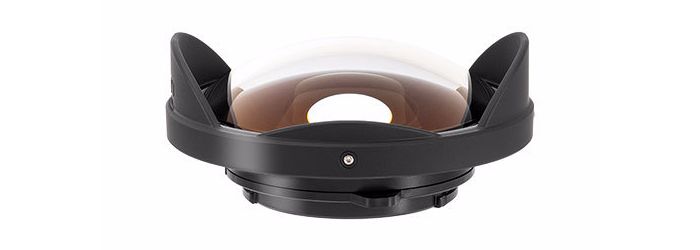

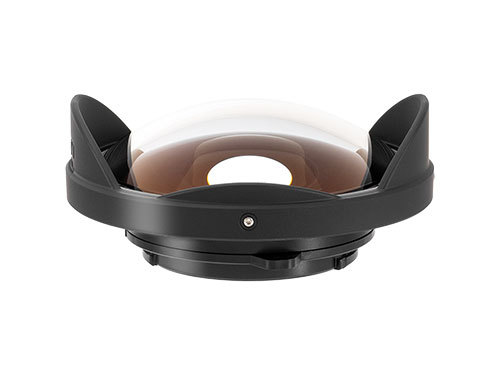

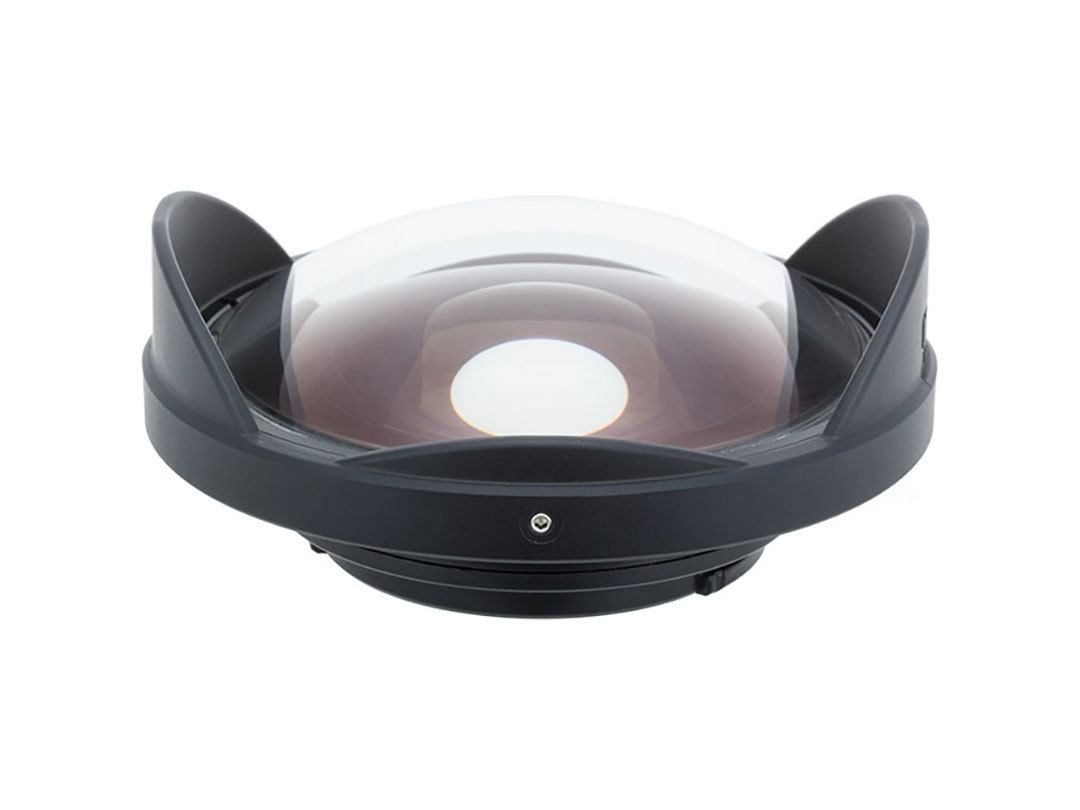

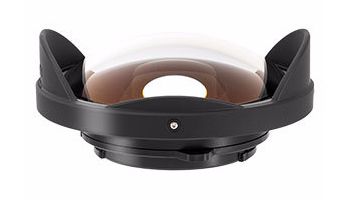

UFL-G140 SD Underwater Semi-fisheye Conversion Lens
JAN/EAN code : 4562121437739
Delivers wide field of view close to that of shooting on land making your footage vivid and true-to-life. Compact yet high quality underwater lens.
Compatible Front Mask
- SD Front Mask for GO 3S
- SD Front Mask for HERO9
- SD Front Mask for HERO8
- SD Front Mask for HERO5/6/7
- SD Front Mask STD
- SD Front Mask for HERO3/3+/4
Usable field of view (FOV) and supported aspect ratios
- Insta360 GO 3S : Supports all FOV settings.
- GoPro HERO3~13 : Supports Digital Lens setting "WIDE". Shooting in aspect ratio 8:7 is not supported.

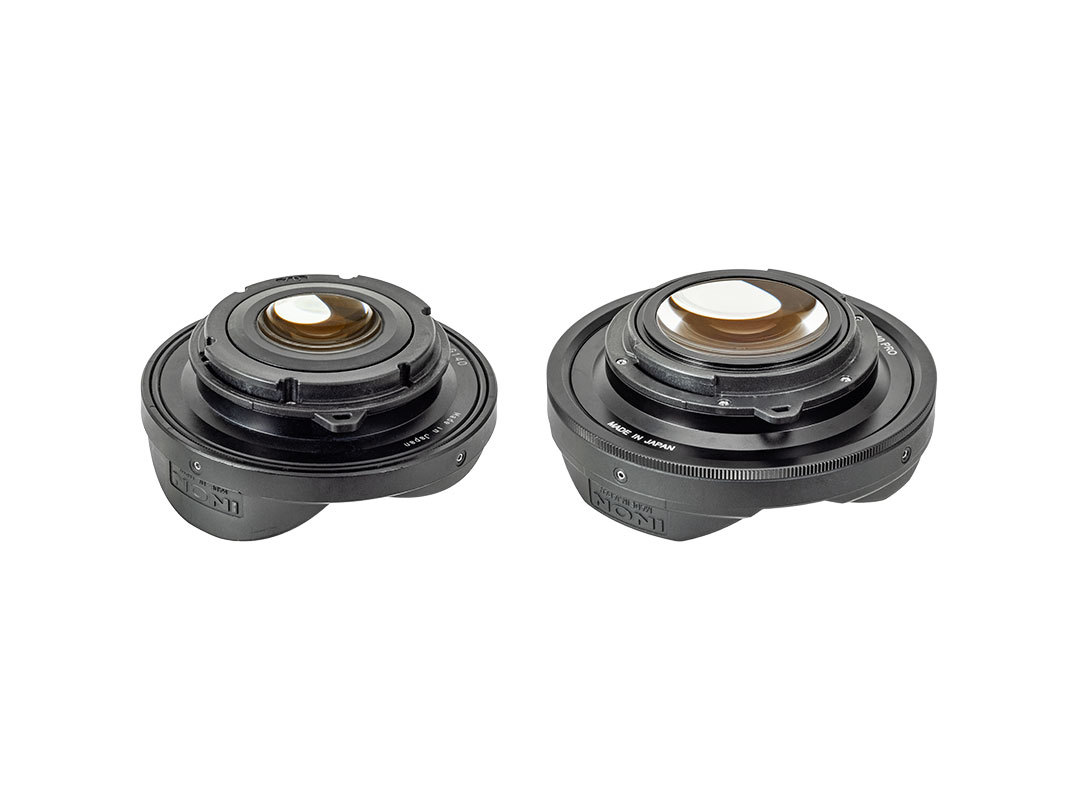

How to Convert to UFL-G140 ZD
You can convert to the “UFL-G140 ZD” by replacing the preinstalled SD Male Bayonet with the optional “ZD Male Bayonet for SD Lens.”
The optional “ZD Rear Cap” is also available, as the original SD Rear Cap will not fit after the conversion.
Delivers wide field of view close to that of shooting on land making your footage vivid and true-to-life. Compact yet high quality underwater lens.
Compatible Front Mask
- SD Front Mask for GO 3S
- SD Front Mask for HERO9
- SD Front Mask for HERO8
- SD Front Mask for HERO5/6/7
- SD Front Mask STD
- SD Front Mask for HERO3/3+/4
Usable field of view (FOV) and supported aspect ratios
- Insta360 GO 3S : Supports all FOV settings.
- GoPro HERO3~13 : Supports Digital Lens setting "WIDE". Shooting in aspect ratio 8:7 is not supported.
How to Convert to UFL-G140 ZD
You can convert to the “UFL-G140 ZD” by replacing the preinstalled SD Male Bayonet with the optional “ZD Male Bayonet for SD Lens.”
The optional “ZD Rear Cap” is also available, as the original SD Rear Cap will not fit after the conversion.
Features

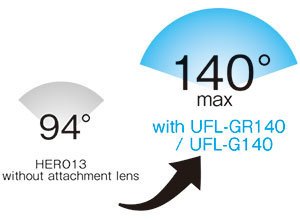

Ultra Wide Even Underwater
Though an action camera is equipped with ultra wide lens, its coverage underwater will dramatically narrow down due to different refraction ratio between air and water.
For example, maximum angle of view of GoPro® HERO13 Black is approx. 156° on land which will narrow down to approx. 94° when we put the camera in genuine dive housing and bring it underwater due to different refraction index. The INON UFL-GR140/UFL-G140 provides ultra wide semi-fisheye imaging with angle of view 140° underwater enabling wild underwater video work only with action cameras.
* Measured angle of view by INON or calculated angle of view underwater based on the measured angle of view. Not confirmed by camera manufacture. The measured angle of view of “HERO3+ Silver Edition” is approx. 142°(air) which is less wide than the “Black Edition”. So angle of view underwater with this lens is less than 140°. The “HERO3+ White Edition” has not been tested.
Dynamic CFWA Imaging
Shooting through the INON UFL-GR140/UFL-G140 lens enables you to shoot a subject at close range to benefit deformed and/or perspective result.

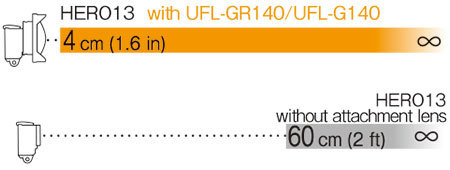

The native depth of field (DoF) of the GoPro®HERO13 Black on land is approx. 60cm/2ft to ∞. With the INON UFL-GR140/UFL-G140, DoF underwater will be extended ∞ 4cm/1.6in to ∞ closer to camera side.
* DoF on land is based on focal length/aperture of camera lens and pixel pitch of the image sensor. DoF underwater is measured from "the forefront of the lens".
Dynamic CFWA Imaging
Both UFL-GR140/UFL-G140 lenses are optimized to produce quality images from the minimum focusing distance to infinity. A 5-layer multi-coating on the inner surface of the acrylic dome ensures excellent image quality comparable to that of a glass dome, while keeping budget price.
*It is not recommended to use INON leｎses with other brand adapter as using with other brand adapter may degrade the image quality significantly (*Not covered by warranty). This is due to lack of optimization of lens adapter design in combination with INON lens.

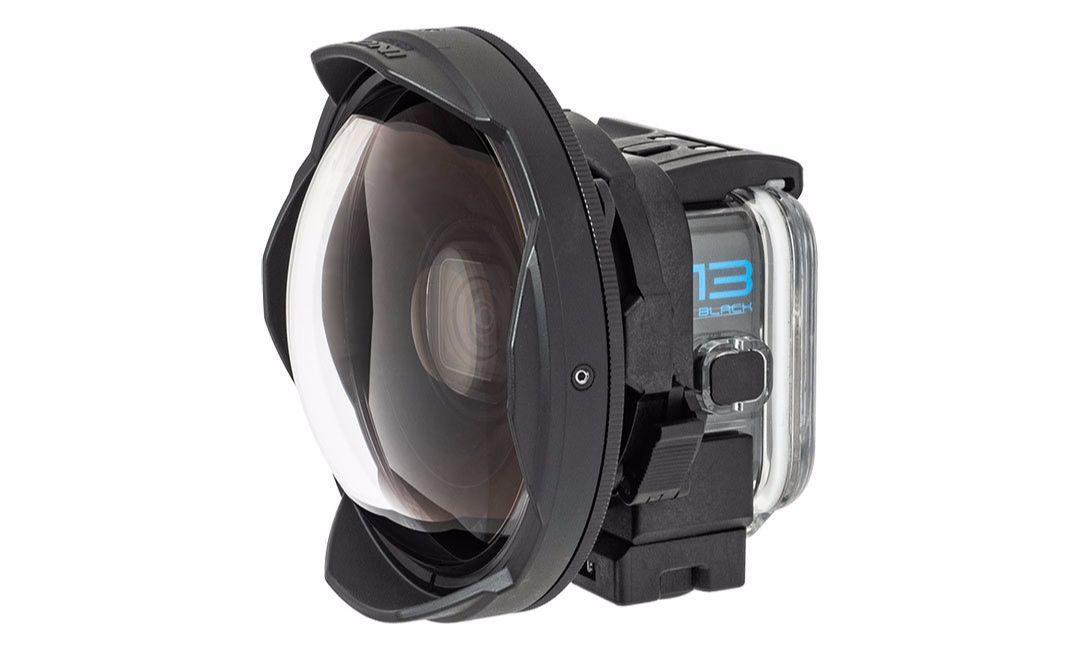

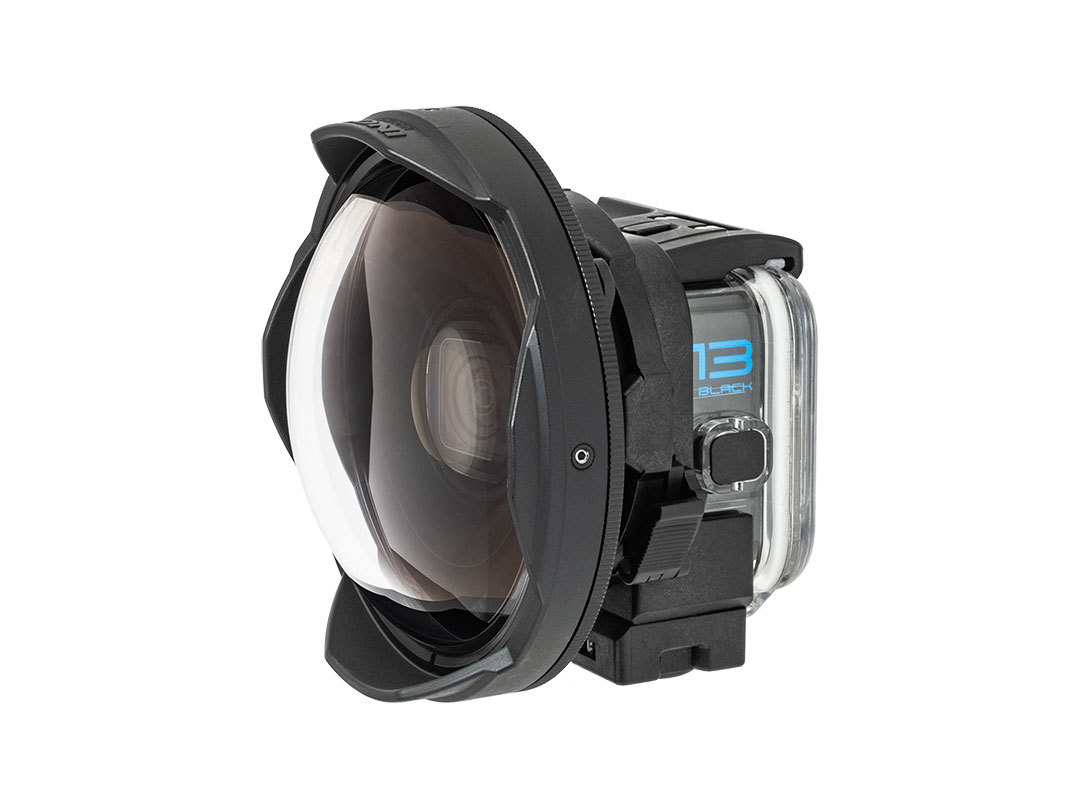

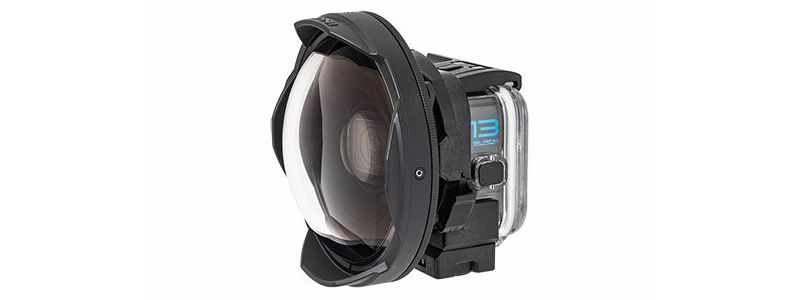

Speedy Lens Exchange by SD Mount/ZD Mount
Bayonet INON SD Mount/ZD Mount compatible to support friendly and speedy lens exchange underwater. Compatible with AD Lens Holder/ZD Lens Holder to hold a lens when not in use.
Bayonet INON SD Mount/ZD Mount compatible to support friendly and speedy lens exchange underwater. Compatible with AD Lens Holder/ZD Lens Holder to hold a lens when not in use.
Compatible Accessories
Front Replacement Lens Cap II(UFL-G140)
Rear Replacement Lens Cap(ZD)
Rear Replacement Lens Cap(SD/AD)
Lens Hood(UFL-G140)
Options
ZD Lens Holder M5
ZD Lens Holder S
AD Lens Holder for Float Arm(SD)
AD Lens Holder(SD)
AD Lens Holder for Float Arm(SD)
UWL-100 Neoprene Carry Pouch
Front Port Cover 100
Protective Cover for UFL-G140 SD
ZD Male Bayonet for SD Lens *
*This is a replacement part to convert SD Mount lenses to ‘ZD Mount’. (e.g., UFL-G140 SD → UFL-G140 ZD)
The lens performance remains unchanged.
Use a #0 Phillips precision screwdriver for replacement. (Compatible lenses: UFL-G140 SD / UCL-G165II SD / UCL-G165 SD / UCL-G100 SD / UCL-G55 SD)
Specifications
| UFL-G140 ZD | UFL-G140 SD | |
| Size (including Lens Hood) |
93.4mm/3.6in [Diameter] 41.8m/1.6in [Length] |
93.4mm/3.7in [Diameter] 41.8mm/1.6in [Length] |
| Weight (including Lens Hood) |
305g/10.7oz [air] approx.155g/5.5oz [underwater] |
300g/10.6oz [air] approx. 153g / 5.4oz [underwater] |
| Mount system | INON ZD Mount | INON SD Mount |
| Depth rating | 60m/196.9ft | |
| Body material/finishing | Corrosion resistant aluminum alloy / rigid black alumite, PC etc. | |
| Lens material/coating | Optical glass/both side coating, Optical plastic/both side hard coating, inner multi-coating |
|
| Max. view angle (*1)(underwater) | 140.0°(GoPro 4:3) | |
| UFL-G140 ZD | UFL-G140 SD | |
| Size (including Lens Hood) |
93.4mm/3.6in [Diameter] 41.8m/1.6in [Length] |
93.4mm/3.7in [Diameter] 41.8mm/1.6in [Length] |
| Weight (including Lens Hood) |
305g/10.7oz [air] approx.155g/5.5oz [underwater] |
300g/10.6oz [air] approx. 153g / 5.4oz [underwater] |
| Mount system | INON ZD Mount | INON SD Mount |
| Depth rating | 60m/196.9ft | |
| Body material/finishing | Corrosion resistant aluminum alloy / rigid black alumite, PC etc. | |
| Lens material/coating | Optical glass/both side coating, Optical plastic/both side hard coating, inner multi-coating |
|
| Max. view angle (*1)(underwater) | 140.0°(GoPro 4:3) | |
(*1) Maximum angle of view underwater. It varies among different action cameras.
| Mfr. | Camera | Depth of field with UFL-G140 ZD(*2) |
Depth of field with UFL-G140 SD(*2) |
| GoPro (*3) | HERO13 Black HERO12 Black HERO11 Black HERO10 Black HERO9 Black |
4cm/1.6in to ∞ | |
| HERO8 Black HERO7 Black HERO6 Black HERO5 Black HERO4 HERO3+ Black HERO HERO+ HERO+ LCD |
Not compatible | 4cm/1.6in to ∞ | |
| HERO3 BLACK | Not compatible | 10cm/3.9in to ∞ | |
| Arashi Vison Inc. | Insta360 Ace Pro 2 Insta360 Ace Pro Insta360 GO Ultra |
7cm/0.3in to ∞ | Not compatible |
| Insta360 GO 3S | Not compatible | 4cm/1.6in to ∞ | |
| DJI | Osmo Action 6 | Not compatible | |
| Osmo Action 5 Pro | 7cm/0.3in to ∞ | Not compatible | |
| OLYMPUS | TG-Tracker | Not compatible | 1cm/0.4in to 80cm/2.6ft |
| SONY | FDR-X3000 HDR-AS300 |
Not compatible | 4cm/1.6in to ∞ |
| Mfr. | Camera | Depth of field with UFL-G140 ZD(*2) |
Depth of field with UFL-G140 SD(*2) |
| GoPro (*3) | HERO13 Black HERO12 Black HERO11 Black HERO10 Black HERO9 Black |
4cm/1.6in to ∞ | |
| HERO8 Black HERO7 Black HERO6 Black HERO5 Black HERO4 HERO3+ Black HERO HERO+ HERO+ LCD |
Not compatible | 4cm/1.6in to ∞ | |
| HERO3 BLACK | Not compatible | 10cm/3.9in to ∞ | |
| Arashi Vison Inc. | Insta360 Ace Pro 2 Insta360 Ace Pro Insta360 GO Ultra |
7cm/0.3in to ∞ | Not compatible |
| Insta360 GO 3S | Not compatible | 4cm/1.6in to ∞ | |
| DJI | Osmo Action 6 | Not compatible | |
| Osmo Action 5 Pro | 7cm/0.3in to ∞ | Not compatible | |
| OLYMPUS | TG-Tracker | Not compatible | 1cm/0.4in to 80cm/2.6ft |
| SONY | FDR-X3000 HDR-AS300 |
Not compatible | 4cm/1.6in to ∞ |
(*2) Measured DoF from foreground of the lens surface. Divide by 1.33 for visual distance underwater.
(*3) Measured distance underwater for GoProR HERO13 Black/HERO12 Black/HERO11 Black/HERO10 Black/HERO9 Black/HERO8 Black/HERO7 Black/HERO6 Black/HERO5 Black/HERO4/HERO3+ Black/HERO3 Black/HERO/HERO+/HERO+ LCD. Other Edition has not been tested.
Remarks
The UFL-G140 is designed only for underwater use. When using on land, distant subject is not in focus, angle of view is not as wide as rated and vigentting is observed.
When using Insta360/DJI/GoPro
For details on each camera's supported settings and vignetting, please refer to the “Compatibility Chart” in the “Supported FOV/Aspect Ratio” section. Please note that the lens hood/Focus Stick may appear in the frame even when marked as “Compatible” if the camera is moved vigorously. Use this information for reference only
When using for TG-Tracker
Activate image stabilization function of the camera while shooting video to avoid vignetting. When taking still images, do not use attachment lens to avoid significant vignetting on image corners.
Since the camera is designed to offer optimal focusing performance for close range subject, usable range of DoF (depth of field) with this lens is "1cm/0.4in to 80cm/2.6ft" and distant subject beyond this range gets blur.
When using for FDR-X3000/HDR-AS300
Select SteadyShot (Movie) [Act] when shooting video as [Std] and [OFF] cause slight vignetting. Select SteadyShot (Still) [ON] when shooting still image.
Excessive camera movement may result vignetting even SteadyShot (Movie) [Act] is selected.
Always set camera's angle setting to [Wide]. Using [Medium] or [Narrow] won't bring optimal performance of this lens.

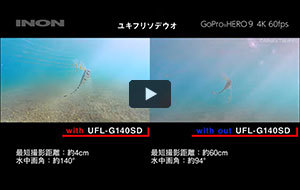

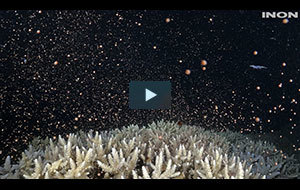

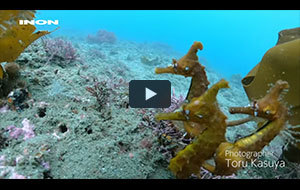

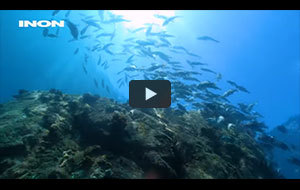

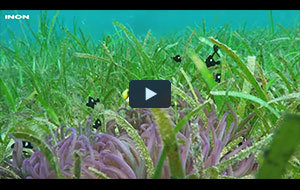

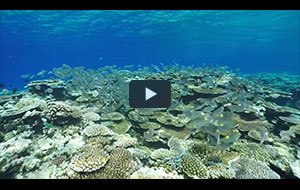

Sample Movie
UFL-G140 SD
UCL-G100 SD / UCL-G55 SD
UFL-G140 SD
UCL-G165 SD
UFL-G140 SD
LF2400h-EW
UFL-G140 SD
LF2400h-EW
UFL-G140 SD
LF2400h-EW
UFL-G140 SD
UFL-G140 SD
LF2400h-EW
UFL-G140 SD
LF2400h-EW
UFL-G140 SD
UCL-G165 SD
UFL-G140 SD
UFL-G140 SD
UFL-G140 SD
UFL-G140 SD
UFL-G140 SD
UFL-G140 SD
UFL-G140 SD
UFL-G140 SD
UCL-G165 SD
UFL-G140 SD
UFL-G140 SD
UFL-G140 SD
UFL-G140 SD
UCL-G165 SD
UFL-G140 SD
LF1100-W
UFL-G140 SD
UCL-G165 SD
LF1100-W
LF1100-W
360° Panorama Video
Underwater 360°panoramic movie with UFL-G140 SD by Makoto Hirose/SeaPics Japan. Six GoPro® cameras with INON UFL-G140 SD lenses are mounted on a customized mount called “rig”. The movie is created by stitching all clips by using specific editing application for 360°panoramic movie. Without INON UFL-G140 SD, it is not possible to create such a natural panoramic movie as angle of view of GoPro® camera underwater is not as wide as on land showing up seams between clips. You can move viewpoint anywhere you like by dragging your mouse over the movie.
*GoPro and HERO are trademarks or registered trademarks of GoPro Inc.
*Insta360 is a trademark or registered trademark of Arashi Vison Inc.
*Olympus, STYLUS and TG-Tracker are trademarks or registered trademarks of Olympus Imaging Corp.
*Sony and Action Cam are trademarks or registered trademarks of Sony Corporation and Sony Marketing Inc.
*Specifications are subject to change without notice.
