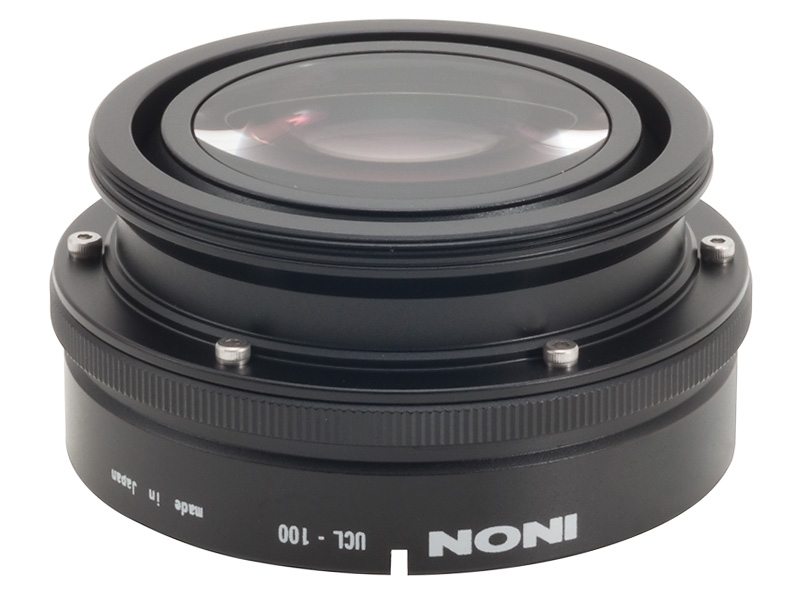

UCL-100M67 Close-up Lens


Click to enlarge
28M67 Series Lens
Compatible Mount
28LD Mount
M67 Screw ring
M67 Screw ring

●The UCL-100LD/UCL-100M67 is designed mainly for compact digital cameras to deliver the best optical performance on magnification, working distance and image quality. Larger lens aperture effectively suppresses vignetting even using at wide end 28mm (35mm film equivalent) (*2).
The UCL-100LD/UCL-100M67 is high magnification close-up lens providing 100mm (+10 diopter) which is stronger than the combination of UCL-165M67/UCL-330 (equivalent to +9 diopter) but not as strong as 2 x UCL-165M67(equivalent to +12 diopter) thus best suited to underwater macro shooters. While these new lenses can capture even an expression of small marine life at zoom telephoto side, a user can appreciate its comfortable working distance (distance from lens edge to a subject) for easy lighting.
●Dual use underwater / land. Optical characteristic supports close wide angle image as well since the lens effectively suppresses vignetting when shooting at zoom wide end with a 28mm camera (35mm film equivalent). Even at same shooting distance, it is easy to capture a subject at desired size by adjusting zoom setting (*3).
●3 elements in 3 groups lens construction effectively suppress aberrations. Inner optical surfaces have antireflection coating to suppress optical aberrations more effectively.
●The lens barrel has joint screw mount on its front side to hold another INON M67 series/28M67 series close-up lens for super macro imaging (*4) (*5).
●Highly versatile screw type "M67 Mount" compatible.
●The UCL-100M67 is directly screwed on a housing which has M67 lens ring. For a housing which does not have M67 lens ring, the UCL-100M67 is attached via dedicated "M67 Lens Adapter Base". For "28LD Mount Base" compatible housing, the UCL-100M67 is attached on "28LD Mount Base" via "M67-LD Mount Converter for UCL-330/165M67".

(*1) Optional "M67-LD Mount Converter for UCL-330/165M67" is necessary.


(*2) Not usable for a compact camera with large master lens or with super zoom function, or an interchangeable lens for SLR system.


(*3) Using on land and zoom wide end setting will have vignetting.


(*4) When using add on "UCL-165M67", "UCL-330" or "UCL-100M67", vignettig will be observed at zoom wide end underwater. Zoom in until no vignetting is observed.


(*5) Depending on combined camera/housing, stacking with other close-up lens could have significant degradation on image quality. For detail, please refer to compatibility chart.


Click to enlarge

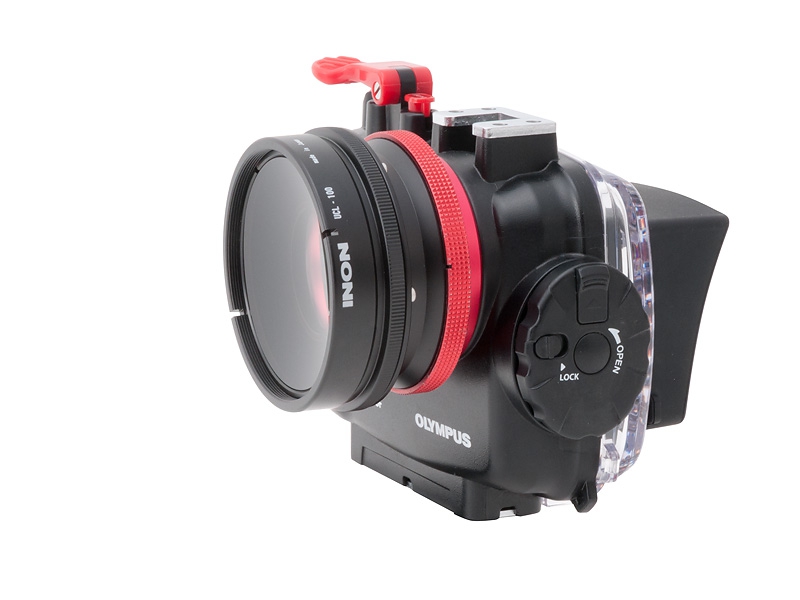

Directly screwed in housing port

Click to enlarge

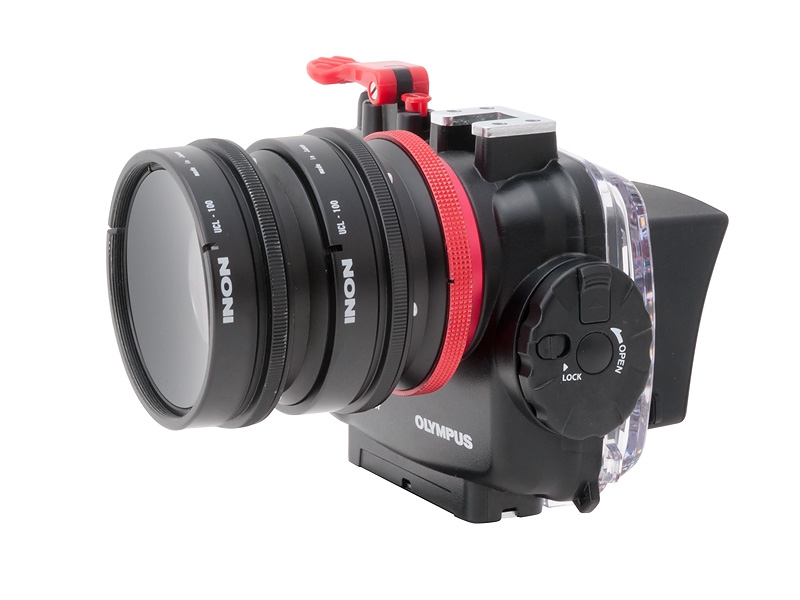

The UCL-100M67 stacked on the UCL-100LD

Sample movie

Sample Movie
Sample Movie
Sample Movie

[When using a close-up lens]
*Depending on housing, shooting distance, angle of view etc., the lens may block the built-in flash light from illuminating the entire image. In such cases it is recommended to shoot with an external strobe or flashlight.
*A close-up lens provides maximum magnification at zoom telephoto end.
*Generally, a close up lens shortens the camera’s close focusing distance. With the UCL-100M67, you can place your camera closer to a subject, achieving a larger image. On the other hand, depending on zoom or aperture setting, it may be more difficult to obtain complete depth of field on a distant subject.
*Stacking multiple lenses may cause vignetting at zoom wide end. As you stack more lens, focusing distance gets short and depth of field gets shallow as well.

Simple & Secure System
System Table
