■M67 Adaptor for Front Port Wide

click to enlarge

click to enlarge

Set-up image

The M67 Adapter for Front Port Wide is a lens adapter to attach INON M67 Mount series close-up lens " UCL-165M67" and " UCL-330" on INON "Front Port Wide" which is lens port for INON X-2 housing. Supports macro imaging by shortening the minimum focus distance of the compatible zoom lens. Rubber pressure attachment structure enables to detach easily underwater when not using the M67 Adapter.

■Weight: 61g (2.2oz) [air] / approx.39g (1.4oz) [underwater]

■Compatible Port / Lens
Front Port Wide + MRS Base Port
Panasonic LUMIX G VARIO 14-45mm/F3.5-5.6 ASPH./MEGA O.I.S.
Panasonic LUMIX G VARIO 14-42mm/F3.5-5.6 ASPH./MEGA O.I.S.

■Lens Monitor Hood X-2

click to enlarge

click to enlarge

Set-up image

A hood with a lens for the LCD monitor of the X-2 for GF1/X-2 for GF2 housing to enhance visibility of the LCD monitor by blocking unnecessary light from behind or reflection. Attached on the housing by dedicated metal adapter, to support easy installation/removal.

■Compatible [X-2] series housing
X-2 for GF1, X-2 for GF2

■Grip Base M1

click to enlarge

click to enlarge

Set-up image

A base arm designed for midsize underwater housing for micro four thirds digital SLR. Firmly attached on a housing with two tripod screws. The Z Joint is directly attached on the top end of the arm to hold a strobe and wide variety of INON arm system is compatible with this product to expand your system with strobe/LED flashlight. It is easy to set-up multiple lighting system with dual strobe configuration by attaching extra "D Holder".

■Weight: 260g (9.2oz) [air]
approx.150g (5.3oz) [underwater]

■Compatible Housing
INON X-2 for GF1, INON X-2 for GF2
Olympus PT-EP01, Olympus PT-EP03
Olympus PT-EP05L, Olympus PT-EP06L
Olympus PT-EP08, Olympus PT-EP10
Olympus PT-053, Olympus PT-054
Nikon WP-N1, Nikon WP-N2

■D Base M1

D Base M1

This product is equivalent to "Grip Base M1" without "D Holder" and especially suitable for existing "D Holder" owners.

■Weight: 110g (3.9oz) [air] / approx.73g (2.6oz) [underwater]

■D Holder

D Holder

Optional D Holder to add to this product as additional strobe arm for dual strobe configuration and/or to hold whole system with both hands.

■Weight: 150g (5.3oz) [air] / approx.77g (2.7oz) [underwater]

■Grip Base D4

Grip Base D4

A universal strobe arm system fitting to more than 100 different housings without rattle.

*When using for the X-2 for GF1 / X-2 for GF2 housing, the D Holder of the Grip Base D4 is for the left hand side only. Installing on the right hand side will interfere the back of the right hand when directly holding the housing.

■Weight: 250g (8.8oz) [air] / approx.142g (5.0oz) [underwater]

■Optical D Cable Type L

Optical D Cable Type L

Fiber optics products to connect the X-2 housing and compatible strobe via Double Optical D Connector. Four different length to choose; "Optical D Cable Type L" with free length approx. 43cm / 17in, "Optical D Cable L Type L" with free length approx. 68cm / 27in, "Optical D Cable SS Type L" with free length approx. 24cm / 9in, and "Optical D Cable LL Type L" with free length approx. 110cm / 43in .


■Holder II Set

Holder II Set

Arm base to attach a strobe on the X-2 housing. Firmly attached on a housing by 2 x tripod screws. The holder supports back of the right hand to enhance holding strength of the housing is slidingly adjustable to suits to different hand size. INON strobe arm system is directly attached on the Holder II.

■Weight: 212g (7.5oz) [air] / approx.66g (2.3oz) [below the surface]

■Holder II Grip Set

Holder II Grip Set

click to enlarge

Set_up image

The Grip+Bar III Set is equipped on the left hand side of the Main Base II, which is adjustable sideway supporting focusing / zooming operation with holding the grip. INON strobe arm system is attached on the Grip+Bar III Set.

■Weight: 410g (14.5oz) [air] /
 approx.196g (6.9oz) [below the surface]

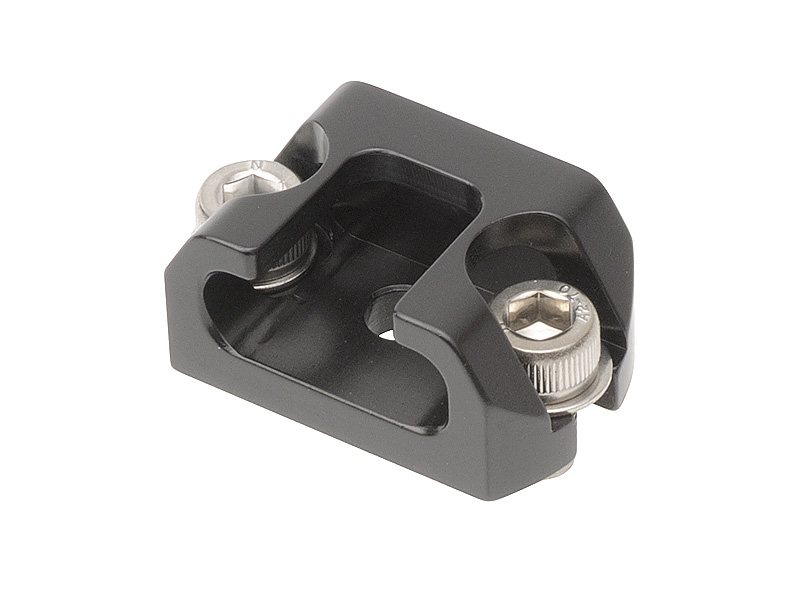

■Shoe Base Adapter X-2

click to enlarge

click to enlarge

Installation example


An adapter to attach the Shoe Base on top of the X-2 series housing enabling to hold Z-240/D-2000/S-2000 strobe or LE series LED flashlight combined with Z Joint or Light Holder product.

■Weight: 10g (0.4oz) [air] / approx.6g (0.2oz) [underwater]

■Compatible [X-2] series housing
X-2 for EOS10D, X-2 for EOS10D BK, X-2 for EOS20D, X-2 for EOS20D BK
X-2 for EOS20D BK (TM), X-2 for EOS30D BK (TM), X-2 for EOS50D/40D,
X-2 for GF2, X-2 for GF2

■Compatible arm system products
Grip+Bar III Set, Holder II Grip set, Holder Base, Grip Bar Set, Grip Bar II Set

*The thumbscrew of the "Z Joint" or "Light Holder" could possibly obstruct free movement of an Optical D Cable product or electrical cable attached on X-2 housing series.

page top

■Front Port Rear Cap

click to enlarge

click to enlarge

Set-up image

The "Front Port Rear Cap" is a protective cap for X-2 for GF2 / X-2 for GF1 compatible Front Port products. When transporting or during storage, this cap protects O-ring and screw mount, and prevent dust from coming in the inside of combined port. The cap is designed to equalize with ambient pressure when transporting in an aircraft.

■Compatible port
Front Port Macro, Front Port Wide, Front Port Dome 115, Front Port Flat 5

■MF Rear Port Cap

click to enlarge

click to enlarge

Set-up image

A rear cap for a port (except for Front Port) and Extension Ring. When transporting or during storage, this cap protects O-ring and screw mount. The cap is designed to equalize with ambient pressure when transporting in an aircraft.

■Body Cap

click to enlarge

click to enlarge

Set-up image

A cap for port mount of a housing to protect O-ring contact surface. The cap is designed to equalize with ambient pressure when transporting in an aircraft.

■Dome Port Cover

Dome Port Cover

Dome Port Cover is made of neoprene which is used for wet suits. It is recommended to cover Dome Port 2 or Dome Port with this Cover until just before you use to prevent accidental damage.

■Compatible Port
Dome Port 2 + Shade 2 set, Dome Port 2

■Dome Port Cover S

Dome Port Cover S

The Dome Port Cover S is made of neoprene as same as wet suits. It is recommended to cover Dome Port 115 or Front Port Dome 115 with this cover until just before you use to prevent accidental damage. The Dome Port Cover S has slits on its top and bottom to help easy and speedy installation/removal on a dome lens/port equipped with a hood.

■Compatible Port
Dome Port 115, Front Port Dome 115

■Compatible Attachment Lens
Dome Lens Unit II for UWL-H100, Dome Lens Unit II for UWL-100,
Dome Lens Unit for UWL-100

*Never put wet lens cover on compatible lens/port on land. Doing so may cause degradation of the lens coating or glass itself resulting in spotting or discoloration.

■Front Port Cover 100

Front Port Cover 100

A Port Cover made from neoprene which is usable underwater to protect lens surface. The cover is 100mm in diameter.

■Compatible Port
MF Wide Port, MF Flat Port, Front Port Wide

■Snap-on Lens Cap M67

click to enlarge
click to enlarge

Set-up image

The "Snap-on Lens Cap M67" is a plastic lens cap for close-up lenses and digital SLR housing lens ports to protect front optical element. Spring loaded center tabs provide easy installation and removal only by squeezing the tabs. Packaged lanyard to avoid loss of the lens cap when not being attached on a lens/port.
page top

■Shade Sponge D60

Shade Sponge D60

When using "Panasonic LUMIX G FISHEYE 8mm/F3.5" in "Dome Port 2+Shade 2 set", this sponge is attached on inner surface of the port to block built-in flash light not to be exposed on an image.

■Compatible Port
Dome Port 2 + Shade 2 Set, Dome Port II

■Shade Ring 46

Shade Ring 46
click to enlarge

Set-up image


When using "Panasonic LUMIX G 14mm/F2.5 ASPH." in "Pancake Port", this shade ring is attached in front of the lens to prevent the built-in flash light from exposing in an image.

■Comaptible Port / Lens
Pancake Port
Panasonic LUMIX G 14mm/F2.5 ASPH.

■MRS Control Ring (MRS60/60UII/100UII/100UIII/50 for Olympus)

MRS Control Ring (MRS60/60UII/100UII/100UIII/Olympus50)

Optional MRS Control Ring to upgrade a port without "MRS Control Ring" to full MRS system which utilizes magnetic attraction to rotate a lens barrel for manual focusing like as land operation of a camera.

■Weight: 129g (4.6oz) [air] / 47g (1.7oz) [underwater]

■Compatible Port
MRS 60 Port II (w/o control ring)
MRS 60 Port (w/o control ring)
MRS 100Port Type U II (w/o control ring)
MRS 100Port Type U III (w/o control ring)
MRS50 Port (w/o control ring) for Olympus
MRS Base Port (w/o control ring)

■Protector for Dome Lens Unit II/Dome Port 115/Front Port Dome 115

protector dome port 115

A protector for Dome Port 115, Front Port Dome 115, Dome Lens Unit II for UWL-H100, Dome Lens Unit II for UWL-100.

■Weight: 43g (1.5oz) [air]

■Material: Polycarbonate

■Compatible Port
Dome Port 115
Front Port Dome 115


■X-2 Main O-ring 175 for 10D/20D/30D/50D40D/60D/70D/6D/GF1/GF2

Main O-Ring for X-2 Housing Body

Spare oil-bearing INON yellow O-Ring for housing body.

■Compatible Housing
X-2 for EOS10D, X-2 for EOS20D, X-2 for EOS30D
X-2 for EOS50D/40D
X-2 for GF1, X-2 for GF2

■O-ring for Port / Extension Ring

O-Ring for Port / Extension Ring

Spare oil-bearing INON yellow O-Ring for Port or Extension Ring.

■Compatible Port / Extension Ring
Dome Port II, MRS60 Port II, MRS60 Port, MRS100 Port Type UIII,
MRS100 Port Type UII, MRS100 Port Type S, MF Wide Port, MF Flat Port,
MF Standard Port 2
Dome Port 115, Pancake Port, MRS Base Port
Extension Ring S, Extension Ring M, Extension Ring L, Extension Ring 18,
Extension Ring 36, Extension Ring 58, Extension Ring 81, MF EXT. Ring M

■O-ring for MRS Front Port

O-Ring for MRS Front Port

Spare oil-bearing INON yellow O-Ring for MRS Front port.

■Compatible Port
Front Port Macro, Front Port Wide, Front Port Dome 115

■INON Grease

INON Grease

Grease exclusively for oil bearing INON yellow O-ring.

■Corrosion Suppression Unit

Corrosion Suppression Unit

Optional replacement unit when pre-installed unit gets worn. The unit suppresses housing corrosion by oxidizing before the X-2 housing body gets rusted.

Optional Factory Modification

■Leak Sensor Installation

Leak Sensor Installation
click to enlarge

Leak Sensor Installation


Installing a warning sensor with red LED and buzzer in case of accidental flooding.
